pDONR221Zeo载体基本信息

出品公司: Invitrogen
载体名称: pDONR221/Zeo
质粒类型: Gateway载体;克隆载体
高拷贝/低拷贝: 高拷贝
克隆方法: --
启动子: T7
载体大小: 4291bp
5' 测序引物及序列: M13F:TGTAAAACGACGGCCAGT
3' 测序引物及序列: M13R:CAGGAAACAGCTATGACC
载体标签: ccdB
载体抗性: 博莱霉素
筛选标记: --
克隆菌株: DB3.1 等
宿主细胞(系): 植物细胞
备注: --
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: --

pDONR221Zeo载体质粒图谱和多克隆位点信息

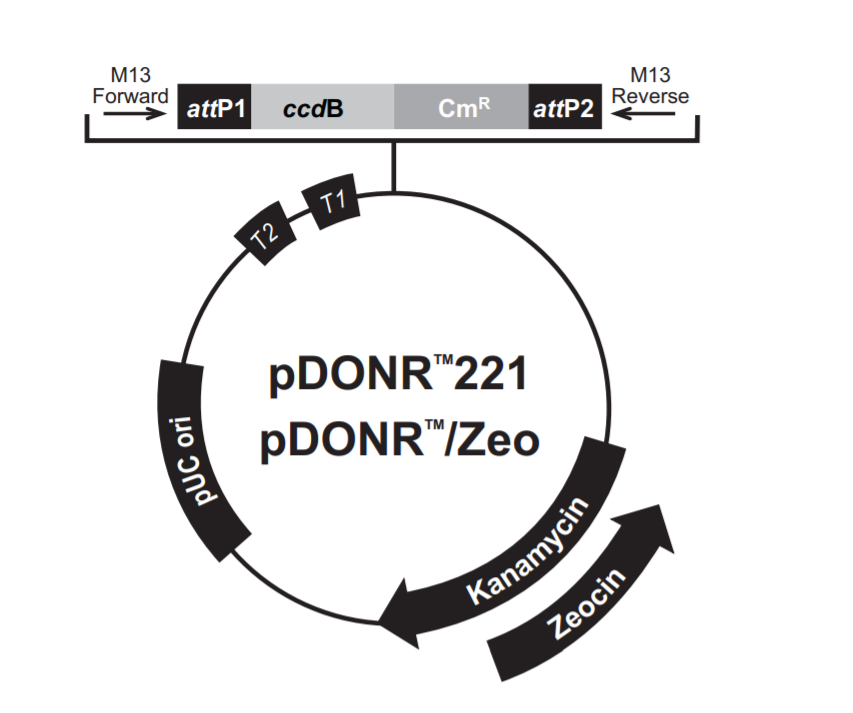

pDONR221Zeo载体图谱

pDONR221Zeo载体简介

pDONR221Zeo载体序列

LOCUS       pDONR Zeo                4291 bp ds-DNA     circular SYN 24-OCT-2017
DEFINITION  Gateway(R) donor vector with attP1 and attP2 sites and a Zeocin(TM)
            resistance marker.
ACCESSION   .
VERSION     .
KEYWORDS    pDONR Zeo
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4291)
  AUTHORS   Thermo Fisher (Invitrogen)
  TITLE     Direct Submission
  JOURNAL   Exported Saturday, August 1, 2020 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4291
                     /organism="synthetic DNA construct"
                     /lab_host="Escherichia coli"
                     /mol_type="other DNA"
     terminator      268..295
                     /note="rrnB T2 terminator"
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     terminator      387..473
                     /gene="Escherichia coli rrnB"
                     /note="rrnB T1 terminator"
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     primer_bind     537..553
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    570..801
                     /gene="mutant version of attP"
                     /bound_moiety="BP Clonase(TM)"
                     /note="attP1"
                     /note="recombination site for the Gateway(R) BP reaction
                     (pDONR(TM)221 version)"
     CDS             complement(1197..1502)
                     /codon_start=1
                     /gene="ccdB"
                     /product="CcdB, a bacterial toxin that poisons DNA gyrase"
                     /note="ccdB"
                     /note="Plasmids containing the ccdB gene cannot be
                     propagated in standard E. coli strains."
                     /translation="MQFKVYTYKRESRYRLFVDVQSDIIDTPGRRMVIPLASARLLSDK
                     VSRELYPVVHIGDESWRMMTTDMASVPVSVIGEEVADLSHRENDIKNAINLMFWGI"
     CDS             complement(1847..2506)
                     /codon_start=1
                     /gene="cat"
                     /product="chloramphenicol acetyltransferase"
                     /note="CmR"
                     /note="confers resistance to chloramphenicol"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAFL
                     KTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETFSS
                     LWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNVANM
                     DNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGGA"
     promoter        complement(2507..2609)
                     /note="cat promoter"
                     /note="promoter of the E. coli cat gene"
     protein_bind    complement(2754..2985)
                     /gene="mutant version of attP"
                     /bound_moiety="BP Clonase(TM)"
                     /note="attP2"
                     /note="recombination site for the Gateway(R) BP reaction
                     (pDONR(TM)221 version)"
     primer_bind     complement(3027..3043)
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     CDS             complement(3111..3485)
                     /codon_start=1
                     /gene="Sh ble from Streptoalloteichus hindustanus"
                     /product="antibiotic-binding protein"
                     /note="BleoR"
                     /note="confers resistance to bleomycin, phleomycin, and
                     Zeocin(TM)"
                     /translation="MAKLTSAVPVLTARDVAGAVEFWTDRLGFSRDFVEDDFAGVVRDD
                     VTLFISAVQDQVVPDNTLAWVWVRGLDELYAEWSEVVSTNFRDASGPAMTEIGEQPWGR
                     EFALRDPAGNCVHFVAEEQD"
     promoter        complement(3504..3551)
                     /note="EM7 promoter"
                     /note="synthetic bacterial promoter "
     rep_origin      3641..4229
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 ctttcctgcg ttatcccctg attctgtgga taaccgtatt accgcctttg agtgagctga
       61 taccgctcgc cgcagccgaa cgaccgagcg cagcgagtca gtgagcgagg aagcggaaga
      121 gcgcccaata cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca
      181 cgacaggttt cccgactgga aagcgggcag tgagcgcaac gcaattaata cgcgtaccgc
      241 tagccaggaa gagtttgtag aaacgcaaaa aggccatccg tcaggatggc cttctgctta
      301 gtttgatgcc tggcagttta tggcgggcgt cctgcccgcc accctccggg ccgttgcttc
      361 acaacgttca aatccgctcc cggcggattt gtcctactca ggagagcgtt caccgacaaa
      421 caacagataa aacgaaaggc ccagtcttcc gactgagcct ttcgttttat ttgatgcctg
      481 gcagttccct actctcgcgt taacgctagc atggatgttt tcccagtcac gacgttgtaa
      541 aacgacggcc agtcttaagc tcgggcccca aataatgatt ttattttgac tgatagtgac
      601 ctgttcgttg caacacattg atgagcaatg cttttttata atgccaactt tgtacaaaaa
      661 agctgaacga gaaacgtaaa atgatataaa tatcaatata ttaaattaga ttttgcataa
      721 aaaacagact acataatact gtaaaacaca acatatccag tcactatgaa tcaactactt
      781 agatggtatt agtgacctgt agtcgaccga cagccttcca aatgttcttc gggtgatgct
      841 gccaacttag tcgaccgaca gccttccaaa tgttcttctc aaacggaatc gtcgtatcca
      901 gcctactcgc tattgtcctc aatgccgtat taaatcataa aaagaaataa gaaaaagagg
      961 tgcgagcctc ttttttgtgt gacaaaataa aaacatctac ctattcatat acgctagtgt
     1021 catagtcctg aaaatcatct gcatcaagaa caatttcaca actcttatac ttttctctta
     1081 caagtcgttc ggcttcatct ggattttcag cctctatact tactaaacgt gataaagttt
     1141 ctgtaatttc tactgtatcg acctgcagac tggctgtgta taagggagcc tgacatttat
     1201 attccccaga acatcaggtt aatggcgttt ttgatgtcat tttcgcggtg gctgagatca
     1261 gccacttctt ccccgataac ggagaccggc acactggcca tatcggtggt catcatgcgc
     1321 cagctttcat ccccgatatg caccaccggg taaagttcac gggagacttt atctgacagc
     1381 agacgtgcac tggccagggg gatcaccatc cgtcgcccgg gcgtgtcaat aatatcactc
     1441 tgtacatcca caaacagacg ataacggctc tctcttttat aggtgtaaac cttaaactgc
     1501 atttcaccag cccctgttct cgtcagcaaa agagccgttc atttcaataa accgggcgac
     1561 ctcagccatc ccttcctgat tttccgcttt ccagcgttcg gcacgcagac gacgggcttc
     1621 attctgcatg gttgtgctta ccagaccgga gatattgaca tcatatatgc cttgagcaac
     1681 tgatagctgt cgctgtcaac tgtcactgta atacgctgct tcatagcata cctctttttg
     1741 acatacttcg ggtatacata tcagtatata ttcttatacc gcaaaaatca gcgcgcaaat
     1801 acgcatactg ttatctggct tttagtaagc cggatccacg cggcgtttac gccccgccct
     1861 gccactcatc gcagtactgt tgtaattcat taagcattct gccgacatgg aagccatcac
     1921 agacggcatg atgaacctga atcgccagcg gcatcagcac cttgtcgcct tgcgtataat
     1981 atttgcccat ggtgaaaacg ggggcgaaga agttgtccat attggccacg tttaaatcaa
     2041 aactggtgaa actcacccag ggattggctg agacgaaaaa catattctca ataaaccctt
     2101 tagggaaata ggccaggttt tcaccgtaac acgccacatc ttgcgaatat atgtgtagaa
     2161 actgccggaa atcgtcgtgg tattcactcc agagcgatga aaacgtttca gtttgctcat
     2221 ggaaaacggt gtaacaaggg tgaacactat cccatatcac cagctcaccg tctttcattg
     2281 ccatacggaa ttccggatga gcattcatca ggcgggcaag aatgtgaata aaggccggat
     2341 aaaacttgtg cttatttttc tttacggtct ttaaaaaggc cgtaatatcc agctgaacgg
     2401 tctggttata ggtacattga gcaactgact gaaatgcctc aaaatgttct ttacgatgcc
     2461 attgggatat atcaacggtg gtatatccag tgattttttt ctccatttta gcttccttag
     2521 ctcctgaaaa tctcgataac tcaaaaaata cgcccggtag tgatcttatt tcattatggt
     2581 gaaagttgga acctcttacg tgccgatcaa cgtctcattt tcgccaaaag ttggcccagg
     2641 gcttcccggt atcaacaggg acaccaggat ttatttattc tgcgaagtga tcttccgtca
     2701 caggtattta ttcggcgcaa agtgcgtcgg gtgatgctgc caacttagtc gactacaggt
     2761 cactaatacc atctaagtag ttgattcata gtgactggat atgttgtgtt ttacagtatt
     2821 atgtagtctg ttttttatgc aaaatctaat ttaatatatt gatatttata tcattttacg
     2881 tttctcgttc agctttcttg tacaaagttg gcattataag aaagcattgc ttatcaattt
     2941 gttgcaacga acaggtcact atcagtcaaa ataaaatcat tatttgccat ccagctgata
     3001 tcccctatag tgagtcgtat tacatggtca tagctgtttc ctggcagctc tggcccgtgt
     3061 ctcaaaatct ctgatgttac attgcacaag ataaaataat atcatcatga tcagtcctgc
     3121 tcctcggcca cgaagtgcac gcagttgccg gccgggtcgc gcagggcgaa ctcccgcccc
     3181 cacggctgct cgccgatctc ggtcatggcc ggcccggagg cgtcccggaa gttcgtggac
     3241 acgacctccg accactcggc gtacagctcg tccaggccgc gcacccacac ccaggccagg
     3301 gtgttgtccg gcaccacctg gtcctggacc gcgctgatga acagggtcac gtcgtcccgg
     3361 accacaccgg cgaagtcgtc ctccacgaag tcccgggaga acccgagccg gtcggtccag
     3421 aactcgaccg ctccggcgac gtcgcgcgcg gtgagcaccg gaacggcact ggtcaacttg
     3481 gccatggttt agttcctcac cttgtcgtat tatactatgc cgatatacta tgccgatgat
     3541 taattgtcaa cacgtgctga tcatgaccaa aatcccttaa cgtgagttac gcgtcgttcc
     3601 actgagcgtc agaccccgta gaaaagatca aaggatcttc ttgagatcct ttttttctgc
     3661 gcgtaatctg ctgcttgcaa acaaaaaaac caccgctacc agcggtggtt tgtttgccgg
     3721 atcaagagct accaactctt tttccgaagg taactggctt cagcagagcg cagataccaa
     3781 atactgttct tctagtgtag ccgtagttag gccaccactt caagaactct gtagcaccgc
     3841 ctacatacct cgctctgcta atcctgttac cagtggctgc tgccagtggc gataagtcgt
     3901 gtcttaccgg gttggactca agacgatagt taccggataa ggcgcagcgg tcgggctgaa
     3961 cggggggttc gtgcacacag cccagcttgg agcgaacgac ctacaccgaa ctgagatacc
     4021 tacagcgtga gctatgagaa agcgccacgc ttcccgaagg gagaaaggcg gacaggtatc
     4081 cggtaagcgg cagggtcgga acaggagagc gcacgaggga gcttccaggg ggaaacgcct
     4141 ggtatcttta tagtcctgtc gggtttcgcc acctctgact tgagcgtcga tttttgtgat
     4201 gctcgtcagg ggggcggagc ctatggaaaa acgccagcaa cgcggccttt ttacggttcc
     4261 tggccttttg ctggcctttt gctcacatgt t
//

pDONR221Zeo载体质粒图谱pdf版和相关资料下载

pDONR221Zeo载体应用举例
