出品公司: SBI
载体名称: pCDH1-MCS2-EF1-copGFP
质粒类型: 慢病毒表达载体;cDNA表达载体

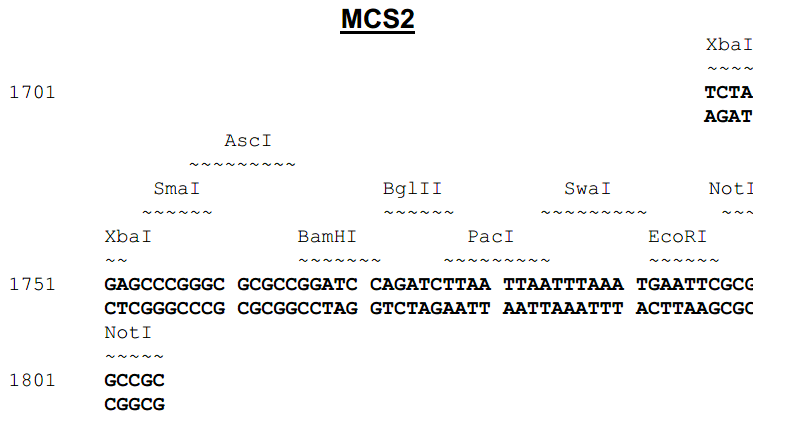

克隆方法: 多克隆位点,限制性内切酶
启动子: EF1a
载体大小: 6771 bp
3' 测序引物及序列: --
载体抗性: 氨苄青霉素(Ampicillin)
筛选标记: GFP
克隆菌株: stbl3
宿主细胞(系): 大部分细胞类型(分裂与非分裂细胞);初级分化细胞
备注: pCDH1-MCS2-EF1-copGFP慢病毒表达载体是基于HIV的慢病毒载体;
单一启动子,由EF1a启动子驱动目 的基因和下游报告基因转录为双顺反子;
产品目录号: CD521A-1
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 慢病毒(HIV)



pCDH Lentivectors 选择指南



This manual provides details and information necessary to generate expression constructs of your gene of interest in the pCDH cDNA Cloning and Expression
Lentivectors. Specifically, it provides critical instructions on amplification and cloning cDNA into the pCDH vectors, and verification of the final expression constructs. This manual does not include information on packaging the pCDH expression constructs into pseudotyped viral particles or transducing your target cells of choice with these particles. This information is available in the user manual Lentivector Expression Systems: Guide to Packaging and Transduction of Target Cells which is available on the SBI website. Before using the reagents and material supplied with this system, please read the entire manual.

基于HIV-1的pCDH 慢病毒载体特征:

 Multiple Cloning Site (MCS)—for cloning the gene of interest in the MCS located downstream of the CMV promoter.
 WPRE element—enhances stability and translation of the CMV-driven transcripts.
 SV40 polyadenylation signal—enables efficient termination of transcription and processing of recombinant transcripts.
 Hybrid RSV/5LTR promoter—provides a high level of expression of the full-length viral transcript in producer 293 cells.
 Genetic elements (cPPT, gag, env, LTRs)—necessary for packaging, transducing, and stably integrating the vira expression construct into genomic DNA.
 SV40 origin—for stable propagation of the pCDH plasmid in mammalian cells.
 pUC origin—for high copy replication and maintenance of the plasmid in E.coli cells.
 Ampicillin resistance gene—for selection in E.coli cells.

pCDH 慢病毒表达载体的优势:

Lentiviral expression vectors are the most effective vehicles for the delivery and expression of a gene of interest to almost any mammalian cell—including non-dividing cells and model organisms (C.A. Machida, 2003; M. Federico, 2003; W. C. Heiser, 2004). As with standard plasmid vectors, it is possible to introduce lentivector expression constructs in plasmid form into the cells with low-to-medium efficiency using conventional transfection protocols. However, by packaging the lentivector construct into viral particles, you can obtain highly efficient transduction of expression constructs—even with the most difficult to transfect cells, such as primary, stem, and differentiated cells. The expression construct transduced in target cells is integrated into genomic DNA and provides stable, long-term expression of the target gene.

pCDH 慢病毒载体的包装载体及细胞系

The expression lentivector contains the genetic elements responsible for packaging, transduction, stable integration of the viral expression construct into genomic DNA, and expression of the target gene sequence. The packaging vector provides all the proteins essential for transcription and packaging of an RNA copy of the expression construct into recombinant viral particles. To produce a high titer of viral particles, expression and packaging vectors are transiently co-transfected into producer mammalian cells (e.g., HEK 293 cells). For a detailed description of SBI’s Lentivector expression system,please refer to the Lentivector Expression System user manual.


SBI provides a collection of cDNA cloning and expression vectors for various applications. A gene of interest can be cloned under a CMV or EF1 promoter with or without another expression cassette for a reporter gene (copGFP or PuroR). Genes can be either expressed transiently through transfection or stably expressed in a target cell line through transduction with packaged viral particles.

The major concern of cDNA expression in lentivectors is the efficiency level and stability of expression in target cell lines.
The Cytomegalovirus (CMV) promoter is a strong and most commonly used viral promoter that constitutively expresses downstream genes. While the CMV promoter works perfectly in the most common cell lines, it shows poor expression in some stem cell lines and hematopoietic cell lines (R.F. Doll, 1996; E.D. Papadakis, 2004).The housekeeping elongation factor 1α (EF1) promoter has been shown to exceed and outlast CMV-mediated expression in retroviral, lentiviral, and adenoviral vectors, in hematopoietic cell lines (K. Tokushige 1997; H. Nakai, 1998; C. Teschendorf, 2002). EF1 also performs well in most common cell lines.

MSCV promoter is the 5’-LTR promoter of murine stem cell virus. When a portion of the U3 region of the 3’ HIV LTR was replaced with the U3 region of MSCV LTR, the resulted hybrid HIV/MSCV LTR has dramatically increased the transgene expression level in human CD34+ hematopoietic cells (J.K. Choi, 2001). After integration into genomic DNA, this promoter transcribes a long transcript with an intron in the 5’UTR flanked with splice donor and acceptor sites derived from the lentiviral vector. Further studies found that additional CpG mutations in the MSCV LTR reduced transcriptional silencing in embryonic stem cells (C.S. Swindle, 2004). We constructed cDNA expression vectors with the CpG-deficient MSCV incorporated into the 3’ HIV LTR. After integration into genomic DNA, 3’MSCV/LTR will replace the 5’LTR and provide a high level of expression of the target gene and reporter gene downstream.


SBI offers a third generation of the most popular HIV-1 based lentivector expression system which consists of three maincomponents:
(1) The lentiviral expression vector (e.g., pCDH-EF1-MCS-T2A-Puro)
(2) The lentiviral packaging plasmids (e.g., pPACKH1 Packaging Plasmid mix)
(3) A pseudoviral particle producer cell line (e.g., 293TN cells)

2A Peptide-enabled dual expression system
Coexpression of a reporter gene together with a gene of interest is a useful approach for selecting transfected or transduced cells. This is commonly achieved by using two independent internal promoters, such as CMV and EF1 in pCDH-CMV-MCSEF1- copGFP, or by linking two transgenes with an internal ribosomal entry site (IRES) element in a single bicistronic transcript. Many dual promoter pairs have shown a high level of expression of both transgenes in standard cell lines— however, promoter interference often occurs in some cell lines. There are also two main problems that limit the use of IRES: the large size and the imbalanced expression between the first and second cistrons (H. Mizuguchi, 2000; X.Yu, 2003).
The “self-cleaving” 2A peptides have been used successfully to generate multiple proteins from a single promoter in many applications (P. de Felipe, 2004; M.J. Osborn, 2005; P. de Felipe, 2006). The 2A-like sequences exist in several  viruses  and are used to mediate protein cleavage from a single open reading frame. Through a ribosomal skip mechanism, the 2A peptide prevents normal peptide bond formation between the 2A glycine and the 2B proline without affecting the translation of 2B (M.L. Donnelly, 2001):SBI’s cDNA expression vectors incorporate the 2A-like sequence (T2A) from the insect virus Thosea asigna to mediate the coexpression of a reporter gene with the target cDNA. Reporter genes have been cloned at either the first or second positions, and we achieved high expression levels at both locations.


LOCUS       pCDH1-MCS2-EF1-copGFP	6771 bp 	DNA	SYN
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6771
                     /mol_type="other DNA"
     misc_feature    287..307
     misc_feature    1165..1180
     misc_feature    1633..1653
     promoter        1634..1703
     misc_feature    1677..1696
     misc_feature    1679..1703
     CDS             2366..3124
                     /label="ORF frame 2"
     misc_feature    3133..3708
     CDS             3221..3961
                     /label="ORF frame 2"
     CDS             3234..3731
                     /label="ORF frame 3"
     misc_feature    3818..3843
     misc_feature    3820..3843
     terminator      4058..4177
     misc_feature    4146..4165
     rep_origin      4195..4272
     misc_feature    4257..4276
     promoter        complement(4364..4382)
     misc_feature    complement(4381..4403)
     promoter        complement(4417..4446)
     gene            complement(5529..6389)
     CDS             complement(5529..6389)
                     /label="ORF frame 2"
     promoter        complement(6431..6459)
     misc_feature    complement(6618..6640)
    1 catatgccaa gtacgccccc tattgacgtc aatgacggta aatggcccgc ctggcattat
   61 gcccagtaca tgaccttatg ggactttcct acttggcagt acatctacgt attagtcatc
  121 gctattacca tggtgatgcg gttttggcag tacatcaatg ggcgtggata gcggtttgac
  181 tcacggggat ttccaagtct ccaccccatt gacgtcaatg ggagtttgtt ttggcaccaa
  241 aatcaacggg actttccaaa atgtcgtaac aactccgccc cattgacgca aatgggcggt
  301 aggcgtgtac ggtgggaggt ctatataagc agagcttgtg aaacttcgag gagtctcttt
  361 gttgaggact tttgagttct cccttgaggc tcccacagat acaataaata tttgagattg
  421 aaccctgtcg agtatctgtg taatcttttt tacctgtgag gtctcggaat ccgggccgag
  481 aacttcgcag ttggcgcccg aacagggact tgattgagag tgattgagga agtgaagcta
  541 gagcaataga aagctgttaa gcagaactcc tgctgaccta aatagggaag cagtagcaga
  601 cgctgctaac agtgagtatc tctagtgaag cagactcgag ctcataatca agtcattgtt
  661 taaaggccca gataaattac atctggtgac tcttcgcgga ccttcaagcc aggagattcg
  721 ccgagggaca gtcaacaagg taggagagat tctacagcaa catggggaat ggacaggggc
  781 gagattggaa aatggccatt aagagatgta gtaatgttgc tgtaggagta ggggggaaga
  841 gtaaaaaatt tggagaaggg aatttcagat gggccattag aatggctaat gtatctacag
  901 gacgagaacc tggtgatata ccagagactt tagatcaact aaggttggtt atttgcgatt
  961 tacaagaaag aagagaaaaa tttggatcta gcaaagaaat tgatatggca attcctgcat
 1021 tgaggagaaa tggtaggcaa tgtggcatgt ctgaaaaaga ggaggaatga tgaagtatct
 1081 cagacttatt ttataaggga gatactgtgc tgagttcttc cctttgagga aggtatgtca
 1141 tatcctagac atagtctcaa ttttaaaaga agaggtagga taggagggat ggccccttat
 1201 gaattattag cacaacaaga atccttaaga atacaagatt atttttctgc aataccacaa
 1261 aaattgcaag cacagtggat ttattataaa gatcaaaaag ataagaaatg gaaaggacca
 1321 atgagagtag aatactgggg acagggatca gtattattaa aggatgaaga gaagggatat
 1381 tttcttataa tcgatactag tattatgccc agtacatgac cttatgggac tttcctactt
 1441 ggcagtacat ctacgtatta gtcatcgcta ttaccatggt gatgcggttt tggcagtaca
 1501 tcaatgggcg tggatagcgg tttgactcac ggggatttcc aagtctccac cccattgacg
 1561 tcaatgggag tttgttttgg caccaaaatc aacgggactt tccaaaatgt cgtaacaact
 1621 ccgccccatt gacgcaaatg ggcggtaggc gtgtacggtg ggaggtctat ataagcagag
 1681 ctcgtttagt gaaccgtcag atcgcctgga gacgccatcc acgctgtttt gacctccata
 1741 gaagattcta gagcccgggc gcgccggatc cagatcttaa ttaatttaaa tgaattcgcg
 1801 gccgcgaagg atctgcgatc gctccggtgc ccgtcagtgg gcagagcgca catcgcccac
 1861 agtccccgag aagttggggg gaggggtcgg caattgaacg ggtgcctaga gaaggtggcg
 1921 cggggtaaac tgggaaagtg atgtcgtgta ctggctccgc ctttttcccg agggtggggg
 1981 agaaccgtat ataagtgcag tagtcgccgt gaacgttctt tttcgcaacg ggtttgccgc
 2041 cagaacacag ctgaagcttc gaggggctcg catctctcct tcacgcgccc gccgccctac
 2101 ctgaggccgc catccacgcc ggttgagtcg cgttctgccg cctcccgcct gtggtgcctc
 2161 ctgaactgcg tccgccgtct aggtaagttt aaagctcagg tcgagaccgg gcctttgtcc
 2221 ggcgctccct tggagcctac ctagactcag ccggctctcc acgctttgcc tgaccctgct
 2281 tgctcaactc tacgtctttg tttcgttttc tgttctgcgc cgttacagat ccaagctgtg
 2341 accggcgcct acgctagacg ccaccatgga gagcgacgag agcggcctgc ccgccatgga
 2401 gatcgagtgc cgcatcaccg gcaccctgaa cggcgtggag ttcgagctgg tgggcggcgg
 2461 agagggcacc cccaagcagg gccgcatgac caacaagatg aagagcacca aaggcgccct
 2521 gaccttcagc ccctacctgc tgagccacgt gatgggctac ggcttctacc acttcggcac
 2581 ctaccccagc ggctacgaga accccttcct gcacgccatc aacaacggcg gctacaccaa
 2641 cacccgcatc gagaagtacg aggacggcgg cgtgctgcac gtgagcttca gctaccgcta
 2701 cgaggccggc cgcgtgatcg gcgacttcaa ggtggtgggc accggcttcc ccgaggacag
 2761 cgtgatcttc accgacaaga tcatccgcag caacgccacc gtggagcacc tgcaccccat
 2821 gggcgataac gtgctggtgg gcagcttcgc ccgcaccttc agcctgcgcg acggcggcta
 2881 ctacagcttc gtggtggaca gccacatgca cttcaagagc gccatccacc ccagcatcct
 2941 gcagaacggg ggccccatgt tcgccttccg ccgcgtggag gagctgcaca gcaacaccga
 3001 gctgggcatc gtggagtacc agcacgcctt caagaccccc atcgccttcg ccagatcccg
 3061 cgctcagtcg tccaattctg ccgtggacgg caccgccgga cccggctcca ccggatctcg
 3121 ctaagtcgac aatcaacctc tggattacaa aatttgtgaa agattgactg gtattcttaa
 3181 ctatgttgct ccttttacgc tatgtggata cgctgcttta atgcctttgt atcatgctat
 3241 tgcttcccgt atggctttca ttttctcctc cttgtataaa tcctggttgc tgtctcttta
 3301 tgaggagttg tggcccgttg tcaggcaacg tggcgtggtg tgcactgtgt ttgctgacgc
 3361 aacccccact ggttggggca ttgccaccac ctgtcagctc ctttccggga ctttcgcttt
 3421 ccccctccct attgccacgg cggaactcat cgccgcctgc cttgcccgct gctggacagg
 3481 ggctcggctg ttgggcactg acaattccgt ggtgttgtcg gggaaatcat cgtcctttcc
 3541 ttggctgctc gcctgtgttg ccacctggat tctgcgcggg acgtccttct gctacgtccc
 3601 ttcggccctc aatccagcgg accttccttc ccgcggcctg ctgccggctc tgcggcctct
 3661 tccgcgtctt cgccttcgcc ctcagacgag tcggatctcc ctttgggccg cctccccgcc
 3721 ggtaccgatg acagagttag aagatcgctt caggaagcta tttggcacga cttctacaac
 3781 gggagacagc acagtagatt ctgaagatga acctcctaaa aaagaaaaaa gggtggactg
 3841 ggatgagtat tggaaccctg aaatcgatag cttccagtgc tttgtgaaac ttcgaggagt
 3901 ctctttgttg aggacttttg agttctccct tgaggctccc acagatacaa taaatatttg
 3961 agattgaacc ctgtcgagta tctgtgtaat cttttttacc tgtgaggtct cggaatccgg
 4021 gccgagaact tcgcagcgag ctcattgtac cgcgaacttg tttattgcag cttataatgg
 4081 ttacaaataa agcaatagca tcacaaattt cacaaataaa gcattttttt cactgcattc
 4141 tagttgtggt ttgtccaaac tcatcaatgt atcttatcat gtctggctct agctatcccg
 4201 cccctaactc cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt
 4261 tatgcagagg ccgaggccgc ctcggcctct gagctattcc agaagtagtg aggaggcttt
 4321 tttggaggcc tagacttttg cagagacggc ccaaattcgt aatcatggtc atagctgttt
 4381 cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg aagcataaag
 4441 tgtaaagcct ggggtgccta atgagtgagc taactcacat taattgcgtt gcgctcactg
 4501 cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg
 4561 gggagaggcg gtttgcgtat tgggcgctct tccgcttcct cgctcactga ctcgctgcgc
 4621 tcggtcgttc ggctgcggcg agcggtatca gctcactcaa aggcggtaat acggttatcc
 4681 acagaatcag gggataacgc aggaaagaac atgtgagcaa aaggccagca aaaggccagg
 4741 aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc tccgcccccc tgacgagcat
 4801 cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga caggactata aagataccag
 4861 gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga
 4921 tacctgtccg cctttctccc ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg
 4981 tatctcagtt cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga accccccgtt
 5041 cagcccgacc gctgcgcctt atccggtaac tatcgtcttg agtccaaccc ggtaagacac
 5101 gacttatcgc cactggcagc agccactggt aacaggatta gcagagcgag gtatgtaggc
 5161 ggtgctacag agttcttgaa gtggtggcct aactacggct acactagaag gacagtattt
 5221 ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa gagttggtag ctcttgatcc
 5281 ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt gcaagcagca gattacgcgc
 5341 agaaaaaaag gatctcaaga agatcctttg atcttttcta cggggtctga cgctcagtgg
 5401 aacgaaaact cacgttaagg gattttggtc atgagattat caaaaaggat cttcacctag
 5461 atccttttaa attaaaaatg aagttttaaa tcaatctaaa gtatatatga gtaaacttgg
 5521 tctgacagtt accaatgctt aatcagtgag gcacctatct cagcgatctg tctatttcgt
 5581 tcatccatag ttgcctgact ccccgtcgtg tagataacta cgatacggga gggcttacca
 5641 tctggcccca gtgctgcaat gataccgcga gacccacgct caccggctcc agatttatca
 5701 gcaataaacc agccagccgg aagggccgag cgcagaagtg gtcctgcaac tttatccgcc
 5761 tccatccagt ctattaattg ttgccgggaa gctagagtaa gtagttcgcc agttaatagt
 5821 ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg
 5881 gcttcattca gctccggttc ccaacgatca aggcgagtta catgatcccc catgttgtgc
 5941 aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg
 6001 ttatcactca tggttatggc agcactgcat aattctctta ctgtcatgcc atccgtaaga
 6061 tgcttttctg tgactggtga gtactcaacc aagtcattct gagaatagtg tatgcggcga
 6121 ccgagttgct cttgcccggc gtcaatacgg gataataccg cgccacatag cagaacttta
 6181 aaagtgctca tcattggaaa acgttcttcg gggcgaaaac tctcaaggat cttaccgctg
 6241 ttgagatcca gttcgatgta acccactcgt gcacccaact gatcttcagc atcttttact
 6301 ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata
 6361 agggcgacac ggaaatgttg aatactcata ctcttccttt ttcaatatta ttgaagcatt
 6421 tatcagggtt attgtctcat gagcggatac atatttgaat gtatttagaa aaataaacaa
 6481 ataggggttc cgcgcacatt tccccgaaaa gtgccacctg acgtctaaga aaccattatt
 6541 atcatgacat taacctataa aaataggcgt atcacgaggc cctttcgtct cgcgcgtttc
 6601 ggtgatgacg gtgaaaacct ctgacacatg cagctcccgg agacggtcac agcttgtctg
 6661 taagcggatg ccgggagcag acaagcccgt cagggcgcgt cagcgggtgt tggcgggtgt
 6721 cggggctggc ttaactatgc ggcatcagag cagattgtac tgagagtgca c
