pESC-Leu

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Agilent 安捷伦
载体名称: pESC-Leu, pESC Leu
质粒类型: 酿酒酵母蛋白表达载体
表达水平: 高拷贝
诱导方法: 半乳糖
启动子: GAL1和GAL10
克隆方法: 多克隆位点,限制性内切酶
载体大小: 7758 bp
5' 测序引物及序列: GAL1-F: ATTTTCGGTTTGTATTACTTC;
GAL10-F: GGTGGTAATGCCATGTAATATG
3' 测序引物及序列: GALI-R: GTTCTTAATACTAACATAACT
GAL10-R: GGCAAGGTAGACAAGCCGACAAC
载体标签: C-Flag, C-Myc
载体抗性: 氨苄
筛选标记: Leu2
备注: 利用半乳糖诱导,可以同时使两个基因在酿酒酵母中表达。
产品目录号: 217452
稳定性: 稳定 Stable
组成型/诱导型: 诱导型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

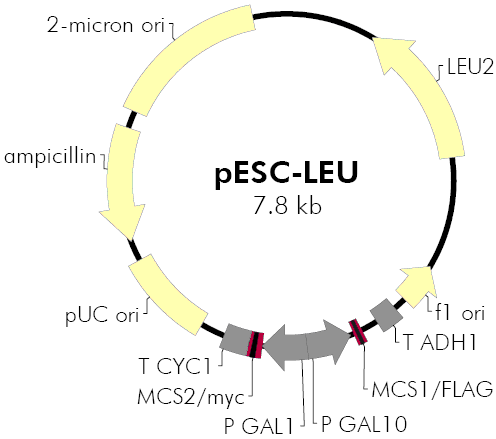

pESC-Leu载体图谱

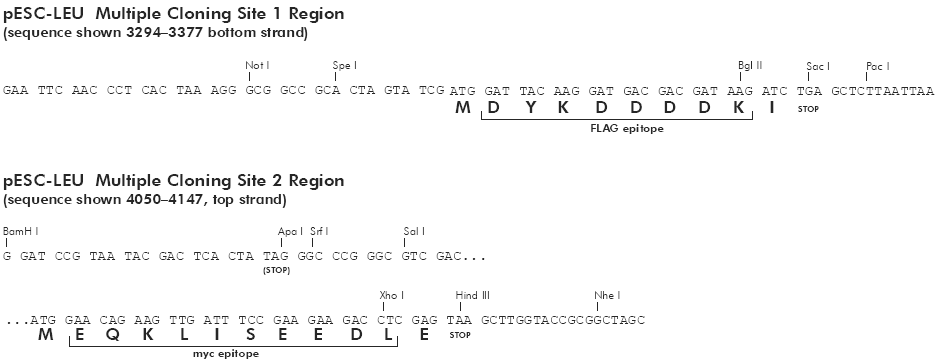

pESC-Leu多克隆位点

载体简介

载体序列

LOCUS       pESC-LEU                7758 bp    DNA     circular SYN 10-OCT-2005
DEFINITION  Cloning vector pESC-LEU, complete sequence.
ACCESSION   AF063849
VERSION     AF063849.1  GI:3228559
SOURCE      Cloning vector pESC-LEU.
  ORGANISM  Cloning vector pESC-LEU
            artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..7758
                     /organism="Cloning vector pESC-LEU"
                     /mol_type="genomic DNA"
                     /specific_host="Escherichia coli K12"
                     /db_xref="taxon:76666"
                     /vntifkey="98"
     CDS             complement(5359..6216)
                     /vntifkey="4"
                     /label=AmpR
     rep_origin      6350..7505
                     /vntifkey="33"
                     /label=2\micron\ori
     CDS             complement(663..1766)
                     /vntifkey="4"
                     /label=LEU2
                     /note="yeast LEU2 ORF"
     terminator      complement(3012..3176)
                     /vntifkey="43"
                     /label=ADH1\terminator
     terminator      4165..4354
                     /vntifkey="43"
                     /label=CYC1\terminator
     rep_origin      complement(2606..2912)
                     /vntifkey="33"
                     /label=f1\ori
     promoter        3607..4061
                     /vntifkey="29"
                     /label=GAL1\promoter
     promoter        complement(3395..3606)
                     /vntifkey="29"
                     /label=GAL10\promoter
     misc_feature    4103..4138
                     /vntifkey="21"
                     /label=c-myc\tag
     misc_feature    complement(3325..3351)
                     /vntifkey="21"
                     /label=FLAG\tag
     misc_feature    complement(3307..3369)
                     /vntifkey="21"
                     /label=MCS1
     misc_feature    4063..4160
                     /vntifkey="21"
                     /label=MCS2
     rep_origin      4541..5208
                     /vntifkey="33"
                     /label=pUC\ori
BASE COUNT     2201 a      1663 c      1649 g      2245 t
ORIGIN
        1 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
       61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
      121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
      181 accatatcga ctacgtcgta aggccgtttc tgacagagta aaattcttga gggaactttc
      241 accattatgg gaaatgcttc aagaaggtat tgacttaaac tccatcaaat ggtcaggtca
      301 ttgagtgttt tttatttgtt gtattttttt ttttttagag aaaatcctcc aatatcaaat
      361 taggaatcgt agtttcatga ttttctgtta cacctaactt tttgtgtggt gccctcctcc
      421 ttgtcaatat taatgttaaa gtgcaattct ttttccttat cacgttgagc cattagtatc
      481 aatttgctta cctgtattcc tttactatcc tcctttttct ccttcttgat aaatgtatgt
      541 agattgcgta tatagtttcg tctaccctat gaacatattc cattttgtaa tttcgtgtcg
      601 tttctattat gaatttcatt tataaagttt atgtacaaat atcataaaaa aagagaatct
      661 ttttaagcaa ggattttctt aacttcttcg gcgacagcat caccgacttc ggtggtactg
      721 ttggaaccac ctaaatcacc agttctgata cctgcatcca aaaccttttt aactgcatct
      781 tcaatggcct taccttcttc aggcaagttc aatgacaatt tcaacatcat tgcagcagac
      841 aagatagtgg cgatagggtc aaccttattc tttggcaaat ctggagcaga accgtggcat
      901 ggttcgtaca aaccaaatgc ggtgttcttg tctggcaaag aggccaagga cgcagatggc
      961 aacaaaccca aggaacctgg gataacggag gcttcatcgg agatgatatc accaaacatg
     1021 ttgctggtga ttataatacc atttaggtgg gttgggttct taactaggat catggcggca
     1081 gaatcaatca attgatgttg aaccttcaat gtagggaatt cgttcttgat ggtttcctcc
     1141 acagtttttc tccataatct tgaagaggcc aaaagattag ctttatccaa ggaccaaata
     1201 ggcaatggtg gctcatgttg tagggccatg aaagcggcca ttcttgtgat tctttgcact
     1261 tctggaacgg tgtattgttc actatcccaa gcgacaccat caccatcgtc ttcctttctc
     1321 ttaccaaagt aaatacctcc cactaattct ctgacaacaa cgaagtcagt acctttagca
     1381 aattgtggct tgattggaga taagtctaaa agagagtcgg atgcaaagtt acatggtctt
     1441 aagttggcgt acaattgaag ttctttacgg atttttagta aaccttgttc aggtctaaca
     1501 ctaccggtac cccatttagg accagccaca gcacctaaca aaacggcatc aaccttcttg
     1561 gaggcttcca gcgcctcatc tggaagtggg acacctgtag catcgatagc agcaccacca
     1621 attaaatgat tttcgaaatc gaacttgaca ttggaacgaa catcagaaat agctttaaga
     1681 accttaatgg cttcggctgt gatttcttga ccaacgtggt cacctggcaa aacgacgatc
     1741 ttcttagggg cagacatagg ggcagacatt agaatggtat atccttgaaa tatatatata
     1801 tattgctgaa atgtaaaagg taagaaaagt tagaaagtaa gacgattgct aaccacctat
     1861 tggaaaaaac aataggtcct taaataatat tgtcaacttc aagtattgtg atgcaagcat
     1921 ttagtcatga acgcttctct attctatatg aaaagccggt tccggcctct cacctttcct
     1981 ttttctccca atttttcagt tgaaaaaggt atatgcgtca ggcgacctct gaaattaaca
     2041 aaaaatttcc agtcatcgaa tttgattctg tgcgatagcg cccctgtgtg ttctcgttat
     2101 gttgaggaaa aaaataatgg ttgctaagag attcgaactc ttgcatctta cgatacctga
     2161 gtattcccac agttaactgc ggtcaagata tttcttgaat caggcgcctt agaccgctcg
     2221 gccaaacaac caattacttg ttgagaaata gagtataatt atcctataaa tataacgttt
     2281 ttgaacacac atgaacaagg aagtacagga caattgattt tgaagagaat gtggattttg
     2341 atgtaattgt tgggattcca tttttaataa ggcaataata ttaggtatgt ggatatacta
     2401 gaagttctcc tcgaccgtcg atatgcggtg tgaaataccg cacagatgcg taaggagaaa
     2461 ataccgcatc aggaaattgt aaacgttaat attttgttaa aattcgcgtt aaatttttgt
     2521 taaatcagct cattttttaa ccaataggcc gaaatcggca aaatccctta taaatcaaaa
     2581 gaatagaccg agatagggtt gagtgttgtt ccagtttgga acaagagtcc actattaaag
     2641 aacgtggact ccaacgtcaa agggcgaaaa accgtctatc agggcgatgg cccactacgt
     2701 gaaccatcac cctaatcaag ttttttgggg tcgaggtgcc gtaaagcact aaatcggaac
     2761 cctaaaggga gcccccgatt tagagcttga cggggaaagc cggcgaacgt ggcgagaaag
     2821 gaagggaaga aagcgaaagg agcgggcgct agggcgctgg caagtgtagc ggtcacgctg
     2881 cgcgtaacca ccacacccgc cgcgcttaat gcgccgctac agggcgcgtc gcgccattcg
     2941 ccattcaggc tgcgcaactg ttgggaaggg cgatcggtgc gggcctcttc gctattacgc
     3001 cagctgaatt ggagcgacct catgctatac ctgagaaagc aacctgacct acaggaaaga
     3061 gttactcaag aataagaatt ttcgttttaa aacctaagag tcactttaaa atttgtatac
     3121 acttattttt tttataactt atttaataat aaaaatcata aatcataaga aattcgctta
     3181 tttagaagtg tcaacaacgt atctaccaac gatttgaccc ttttccatct tttcgtaaat
     3241 ttctggcaag gtagacaagc cgacaacctt gattggagac ttgaccaaac ctctggcgaa
     3301 gaattgttaa ttaagagctc agatcttatc gtcgtcatcc ttgtaatcca tcgatactag
     3361 tgcggccgcc ctttagtgag ggttgaattc gaattttcaa aaattcttac tttttttttg
     3421 gatggacgca aagaagttta ataatcatat tacatggcat taccaccata tacatatcca
     3481 tatacatatc catatctaat cttacttata tgttgtggaa atgtaaagag ccccattatc
     3541 ttagcctaaa aaaaccttct ctttggaact ttcagtaata cgcttaactg ctcattgcta
     3601 tattgaagta cggattagaa gccgccgagc gggtgacagc cctccgaagg aagactctcc
     3661 tccgtgcgtc ctcgtcttca ccggtcgcgt tcctgaaacg cagatgtgcc tcgcgccgca
     3721 ctgctccgaa caataaagat tctacaatac tagcttttat ggttatgaag aggaaaaatt
     3781 ggcagtaacc tggccccaca aaccttcaaa tgaacgaatc aaattaacaa ccataggatg
     3841 ataatgcgat tagtttttta gccttatttc tggggtaatt aatcagcgaa gcgatgattt
     3901 ttgatctatt aacagatata taaatgcaaa aactgcataa ccactttaac taatactttc
     3961 aacattttcg gtttgtatta cttcttattc aaatgtaata aaagtatcaa caaaaaattg
     4021 ttaatatacc tctatacttt aacgtcaagg agaaaaaacc ccggatccgt aatacgactc
     4081 actatagggc ccgggcgtcg acatggaaca gaagttgatt tccgaagaag acctcgagta
     4141 agcttggtac cgcggctagc taagatccgc tctaaccgaa aaggaaggag ttagacaacc
     4201 tgaagtctag gtccctattt atttttttat agttatgtta gtattaagaa cgttatttat
     4261 atttcaaatt tttctttttt ttctgtacag acgcgtgtac gcatgtaaca ttatactgaa
     4321 aaccttgctt gagaaggttt tgggacgctc gaagatccag ctgcattaat gaatcggcca
     4381 acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc gcttcctcgc tcactgactc
     4441 gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg cggtaatacg
     4501 gttatccaca gaatcagggg ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa
     4561 ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc gcccccctga
     4621 cgagcatcac aaaaatcgac gctcaagtca gaggtggcga aacccgacag gactataaag
     4681 ataccaggcg tttccccctg gaagctccct cgtgcgctct cctgttccga ccctgccgct
     4741 taccggatac ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc atagctcacg
     4801 ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc
     4861 ccccgttcag cccgaccgct gcgccttatc cggtaactat cgtcttgagt ccaacccggt
     4921 aagacacgac ttatcgccac tggcagcagc cactggtaac aggattagca gagcgaggta
     4981 tgtaggcggt gctacagagt tcttgaagtg gtggcctaac tacggctaca ctagaaggac
     5041 agtatttggt atctgcgctc tgctgaagcc agttaccttc ggaaaaagag ttggtagctc
     5101 ttgatccggc aaacaaacca ccgctggtag cggtggtttt tttgtttgca agcagcagat
     5161 tacgcgcaga aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc
     5221 tcagtggaac gaaaactcac gttaagggat tttggtcatg agattatcaa aaaggatctt
     5281 cacctagatc cttttaaatt aaaaatgaag ttttaaatca atctaaagta tatatgagta
     5341 aacttggtct gacagttacc aatgcttaat cagtgaggca cctatctcag cgatctgtct
     5401 atttcgttca tccatagttg cctgactccc cgtcgtgtag ataactacga tacgggaggg
     5461 cttaccatct ggccccagtg ctgcaatgat accgcgagac ccacgctcac cggctccaga
     5521 tttatcagca ataaaccagc cagccggaag ggccgagcgc agaagtggtc ctgcaacttt
     5581 atccgcctcc atccagtcta ttaattgttg ccgggaagct agagtaagta gttcgccagt
     5641 taatagtttg cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac gctcgtcgtt
     5701 tggtatggct tcattcagct ccggttccca acgatcaagg cgagttacat gatcccccat
     5761 gttgtgcaaa aaagcggtta gctccttcgg tcctccgatc gttgtcagaa gtaagttggc
     5821 cgcagtgtta tcactcatgg ttatggcagc actgcataat tctcttactg tcatgccatc
     5881 cgtaagatgc ttttctgtga ctggtgagta ctcaaccaag tcattctgag aatagtgtat
     5941 gcggcgaccg agttgctctt gcccggcgtc aatacgggat aataccgcgc cacatagcag
     6001 aactttaaaa gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct caaggatctt
     6061 accgctgttg agatccagtt cgatgtaacc cactcgtgca cccaactgat cttcagcatc
     6121 ttttactttc accagcgttt ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa
     6181 gggaataagg gcgacacgga aatgttgaat actcatactc ttcctttttc aatattattg
     6241 aagcatttat cagggttatt gtctcatgag cggatacata tttgaatgta tttagaaaaa
     6301 taaacaaata ggggttccgc gcacatttcc ccgaaaagtg ccacctgaac gaagcatctg
     6361 tgcttcattt tgtagaacaa aaatgcaacg cgagagcgct aatttttcaa acaaagaatc
     6421 tgagctgcat ttttacagaa cagaaatgca acgcgaaagc gctattttac caacgaagaa
     6481 tctgtgcttc atttttgtaa aacaaaaatg caacgcgaga gcgctaattt ttcaaacaaa
     6541 gaatctgagc tgcattttta cagaacagaa atgcaacgcg agagcgctat tttaccaaca
     6601 aagaatctat acttcttttt tgttctacaa aaatgcatcc cgagagcgct atttttctaa
     6661 caaagcatct tagattactt tttttctcct ttgtgcgctc tataatgcag tctcttgata
     6721 actttttgca ctgtaggtcc gttaaggtta gaagaaggct actttggtgt ctattttctc
     6781 ttccataaaa aaagcctgac tccacttccc gcgtttactg attactagcg aagctgcggg
     6841 tgcatttttt caagataaag gcatccccga ttatattcta taccgatgtg gattgcgcat
     6901 actttgtgaa cagaaagtga tagcgttgat gattcttcat tggtcagaaa attatgaacg
     6961 gtttcttcta ttttgtctct atatactacg tataggaaat gtttacattt tcgtattgtt
     7021 ttcgattcac tctatgaata gttcttacta caattttttt gtctaaagag taatactaga
     7081 gataaacata aaaaatgtag aggtcgagtt tagatgcaag ttcaaggagc gaaaggtgga
     7141 tgggtaggtt atatagggat atagcacaga gatatatagc aaagagatac ttttgagcaa
     7201 tgtttgtgga agcggtattc gcaatatttt agtagctcgt tacagtccgg tgcgtttttg
     7261 gttttttgaa agtgcgtctt cagagcgctt ttggttttca aaagcgctct gaagttccta
     7321 tactttctag agaataggaa cttcggaata ggaacttcaa agcgtttccg aaaacgagcg
     7381 cttccgaaaa tgcaacgcga gctgcgcaca tacagctcac tgttcacgtc gcacctatat
     7441 ctgcgtgttg cctgtatata tatatacatg agaagaacgg catagtgcgt gtttatgctt
     7501 aaatgcgtac ttatatgcgt ctatttatgt aggatgaaag gtagtctagt acctcctgtg
     7561 atattatccc attccatgcg gggtatcgta tgcttccttc agcactaccc tttagctgtt
     7621 ctatatgctg ccactcctca attggattag tctcatcctt caatgctatc atttcctttg
     7681 atattggatc atactaagaa accattatta tcatgacatt aacctataaa aataggcgta
     7741 tcacgaggcc ctttcgtc
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
