pESC-TRP

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Agilent 安捷伦
载体名称: pESC-TRP, pESC TRP
质粒类型: 酿酒酵母蛋白表达载体
表达水平: 高拷贝
诱导方法: 半乳糖
启动子: GAL1和GAL10
克隆方法: 多克隆位点,限制性内切酶
载体大小: 6525 bp
5' 测序引物及序列: GAL1-F: ATTTTCGGTTTGTATTACTTC;
GAL10-F: GGTGGTAATGCCATGTAATATG
3' 测序引物及序列: GALI-R: GTTCTTAATACTAACATAACT
GAL10-R: GGCAAGGTAGACAAGCCGACAAC
载体标签: C-Flag, C-Myc
载体抗性: 氨苄
筛选标记: TRP1
备注: 利用半乳糖诱导,可以同时使两个基因在酿酒酵母中表达。
产品目录号: 217453
稳定性: 稳定 Stable
组成型/诱导型: 诱导型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

pESC-TRP载体图谱

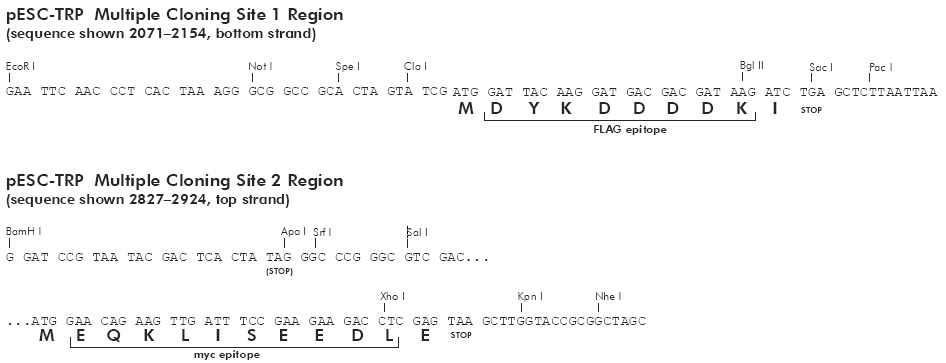

pESC-TRP多克隆位点

载体简介

载体序列

LOCUS       pESC-TRP                6525 bp    DNA     circular SYN 16-SEP-2005
DEFINITION  Cloning vector pESC-TRP, complete sequence.
ACCESSION   AF063848
VERSION     AF063848.1  GI:3228558
SOURCE      Cloning vector pESC-TRP.
  ORGANISM  Cloning vector pESC-TRP
            artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..6525
                     /organism="Cloning vector pESC-TRP"
                     /mol_type="genomic DNA"
                     /specific_host="Escherichia coli K12"
                     /db_xref="taxon:76665"
                     /vntifkey="98"
     CDS             complement(4126..4983)
                     /vntifkey="4"
                     /label=AmpR
     rep_origin      5117..6272
                     /vntifkey="33"
                     /label=2\micron\ori
     CDS             468..1139
                     /vntifkey="4"
                     /label=TRP1
                     /note="yeast TRP1 ORF"
     terminator      complement(1779..1943)
                     /vntifkey="43"
                     /label=ADH1\terminator
     terminator      2932..3121
                     /vntifkey="43"
                     /label=CYC1\terminator
     rep_origin      complement(1373..1679)
                     /vntifkey="33"
                     /label=f1\ori
     promoter        2374..2828
                     /vntifkey="29"
                     /label=GAL1\promoter
     promoter        complement(2162..2373)
                     /vntifkey="29"
                     /label=GAL10\promoter
     misc_feature    2870..2905
                     /vntifkey="21"
                     /label=c-myc\tag
     misc_feature    complement(2092..2118)
                     /vntifkey="21"
                     /label=FLAG\tag
     misc_feature    complement(2074..2157)
                     /vntifkey="21"
                     /label=MCS1
     misc_feature    2830..2927
                     /vntifkey="21"
                     /label=MCS2
     rep_origin      3308..3975
                     /vntifkey="33"
                     /label=pUC\ori
BASE COUNT     1845 a      1380 c      1462 g      1838 t
ORIGIN
        1 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
       61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
      121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
      181 accataaacg acattactat atatataata taggaagcat ttaatagaca gcatcgtaat
      241 atatgtgtac tttgcagtta tgacgccaga tggcagtagt ggaagatatt ctttattgaa
      301 aaatagcttg tcaccttacg tacaatcttg atccggagct tttctttttt tgccgattaa
      361 gaattaattc ggtcgaaaaa agaaaaggag agggccaaga gggagggcat tggtgactat
      421 tgagcacgtg agtatacgtg attaagcaca caaaggcagc ttggagtatg tctgttatta
      481 atttcacagg tagttctggt ccattggtga aagtttgcgg cttgcagagc acagaggccg
      541 cagaatgtgc tctagattcc gatgctgact tgctgggtat tatatgtgtg cccaatagaa
      601 agagaacaat tgacccggtt attgcaagga aaatttcaag tcttgtaaaa gcatataaaa
      661 atagttcagg cactccgaaa tacttggttg gcgtgtttcg taatcaacct aaggaggatg
      721 ttttggctct ggtcaatgat tacggcattg atatcgtcca actgcatgga gatgagtcgt
      781 ggcaagaata ccaagagttc ctcggtttgc cagttattaa aagactcgta tttccaaaag
      841 actgcaacat actactcagt gcagcttcac agaaacctca ttcgtttatt cccttgtttg
      901 attcagaagc aggtgggaca ggtgaacttt tggattggaa ctcgatttct gactgggttg
      961 gaaggcaaga gagccccgaa agcttacatt ttatgttagc tggtggactg acgccagaaa
     1021 atgttggtga tgcgcttaga ttaaatggcg ttattggtgt tgatgtaagc ggaggtgtgg
     1081 agacaaatgg tgtaaaagac tctaacaaaa tagcaaattt cgtcaaaaat gctaagaaat
     1141 aggttattac tgagtagtat ttatttaagt attgtttgtg cacttgccta tgcggtgtga
     1201 aataccgcac agatgcgtaa ggagaaaata ccgcatcagg aaattgtaaa cgttaatatt
     1261 ttgttaaaat tcgcgttaaa tttttgttaa atcagctcat tttttaacca ataggccgaa
     1321 atcggcaaaa tcccttataa atcaaaagaa tagaccgaga tagggttgag tgttgttcca
     1381 gtttggaaca agagtccact attaaagaac gtggactcca acgtcaaagg gcgaaaaacc
     1441 gtctatcagg gcgatggccc actacgtgaa ccatcaccct aatcaagttt tttggggtcg
     1501 aggtgccgta aagcactaaa tcggaaccct aaagggagcc cccgatttag agcttgacgg
     1561 ggaaagccgg cgaacgtggc gagaaaggaa gggaagaaag cgaaaggagc gggcgctagg
     1621 gcgctggcaa gtgtagcggt cacgctgcgc gtaaccacca cacccgccgc gcttaatgcg
     1681 ccgctacagg gcgcgtcgcg ccattcgcca ttcaggctgc gcaactgttg ggaagggcga
     1741 tcggtgcggg cctcttcgct attacgccag ctgaattgga gcgacctcat gctatacctg
     1801 agaaagcaac ctgacctaca ggaaagagtt actcaagaat aagaattttc gttttaaaac
     1861 ctaagagtca ctttaaaatt tgtatacact tatttttttt ataacttatt taataataaa
     1921 aatcataaat cataagaaat tcgcttattt agaagtgtca acaacgtatc taccaacgat
     1981 ttgacccttt tccatctttt cgtaaatttc tggcaaggta gacaagccga caaccttgat
     2041 tggagacttg accaaacctc tggcgaagaa ttgttaatta agagctcaga tcttatcgtc
     2101 gtcatccttg taatccatcg atactagtgc ggccgccctt tagtgagggt tgaattcgaa
     2161 ttttcaaaaa ttcttacttt ttttttggat ggacgcaaag aagtttaata atcatattac
     2221 atggcattac caccatatac atatccatat acatatccat atctaatctt acttatatgt
     2281 tgtggaaatg taaagagccc cattatctta gcctaaaaaa accttctctt tggaactttc
     2341 agtaatacgc ttaactgctc attgctatat tgaagtacgg attagaagcc gccgagcggg
     2401 tgacagccct ccgaaggaag actctcctcc gtgcgtcctc gtcttcaccg gtcgcgttcc
     2461 tgaaacgcag atgtgcctcg cgccgcactg ctccgaacaa taaagattct acaatactag
     2521 cttttatggt tatgaagagg aaaaattggc agtaacctgg ccccacaaac cttcaaatga
     2581 acgaatcaaa ttaacaacca taggatgata atgcgattag ttttttagcc ttatttctgg
     2641 ggtaattaat cagcgaagcg atgatttttg atctattaac agatatataa atgcaaaaac
     2701 tgcataacca ctttaactaa tactttcaac attttcggtt tgtattactt cttattcaaa
     2761 tgtaataaaa gtatcaacaa aaaattgtta atatacctct atactttaac gtcaaggaga
     2821 aaaaaccccg gatccgtaat acgactcact atagggcccg ggcgtcgaca tggaacagaa
     2881 gttgatttcc gaagaagacc tcgagtaagc ttggtaccgc ggctagctaa gatccgctct
     2941 aaccgaaaag gaaggagtta gacaacctga agtctaggtc cctatttatt tttttatagt
     3001 tatgttagta ttaagaacgt tatttatatt tcaaattttt cttttttttc tgtacagacg
     3061 cgtgtacgca tgtaacatta tactgaaaac cttgcttgag aaggttttgg gacgctcgaa
     3121 gatccagctg cattaatgaa tcggccaacg cgcggggaga ggcggtttgc gtattgggcg
     3181 ctcttccgct tcctcgctca ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt
     3241 atcagctcac tcaaaggcgg taatacggtt atccacagaa tcaggggata acgcaggaaa
     3301 gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc
     3361 gtttttccat aggctccgcc cccctgacga gcatcacaaa aatcgacgct caagtcagag
     3421 gtggcgaaac ccgacaggac tataaagata ccaggcgttt ccccctggaa gctccctcgt
     3481 gcgctctcct gttccgaccc tgccgcttac cggatacctg tccgcctttc tcccttcggg
     3541 aagcgtggcg ctttctcata gctcacgctg taggtatctc agttcggtgt aggtcgttcg
     3601 ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg ccttatccgg
     3661 taactatcgt cttgagtcca acccggtaag acacgactta tcgccactgg cagcagccac
     3721 tggtaacagg attagcagag cgaggtatgt aggcggtgct acagagttct tgaagtggtg
     3781 gcctaactac ggctacacta gaaggacagt atttggtatc tgcgctctgc tgaagccagt
     3841 taccttcgga aaaagagttg gtagctcttg atccggcaaa caaaccaccg ctggtagcgg
     3901 tggttttttt gtttgcaagc agcagattac gcgcagaaaa aaaggatctc aagaagatcc
     3961 tttgatcttt tctacggggt ctgacgctca gtggaacgaa aactcacgtt aagggatttt
     4021 ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa aatgaagttt
     4081 taaatcaatc taaagtatat atgagtaaac ttggtctgac agttaccaat gcttaatcag
     4141 tgaggcacct atctcagcga tctgtctatt tcgttcatcc atagttgcct gactccccgt
     4201 cgtgtagata actacgatac gggagggctt accatctggc cccagtgctg caatgatacc
     4261 gcgagaccca cgctcaccgg ctccagattt atcagcaata aaccagccag ccggaagggc
     4321 cgagcgcaga agtggtcctg caactttatc cgcctccatc cagtctatta attgttgccg
     4381 ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg ccattgctac
     4441 aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg gttcccaacg
     4501 atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa gcggttagct ccttcggtcc
     4561 tccgatcgtt gtcagaagta agttggccgc agtgttatca ctcatggtta tggcagcact
     4621 gcataattct cttactgtca tgccatccgt aagatgcttt tctgtgactg gtgagtactc
     4681 aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat
     4741 acgggataat accgcgccac atagcagaac tttaaaagtg ctcatcattg gaaaacgttc
     4801 ttcggggcga aaactctcaa ggatcttacc gctgttgaga tccagttcga tgtaacccac
     4861 tcgtgcaccc aactgatctt cagcatcttt tactttcacc agcgtttctg ggtgagcaaa
     4921 aacaggaagg caaaatgccg caaaaaaggg aataagggcg acacggaaat gttgaatact
     4981 catactcttc ctttttcaat attattgaag catttatcag ggttattgtc tcatgagcgg
     5041 atacatattt gaatgtattt agaaaaataa acaaataggg gttccgcgca catttccccg
     5101 aaaagtgcca cctgaacgaa gcatctgtgc ttcattttgt agaacaaaaa tgcaacgcga
     5161 gagcgctaat ttttcaaaca aagaatctga gctgcatttt tacagaacag aaatgcaacg
     5221 cgaaagcgct attttaccaa cgaagaatct gtgcttcatt tttgtaaaac aaaaatgcaa
     5281 cgcgagagcg ctaatttttc aaacaaagaa tctgagctgc atttttacag aacagaaatg
     5341 caacgcgaga gcgctatttt accaacaaag aatctatact tcttttttgt tctacaaaaa
     5401 tgcatcccga gagcgctatt tttctaacaa agcatcttag attacttttt ttctcctttg
     5461 tgcgctctat aatgcagtct cttgataact ttttgcactg taggtccgtt aaggttagaa
     5521 gaaggctact ttggtgtcta ttttctcttc cataaaaaaa gcctgactcc acttcccgcg
     5581 tttactgatt actagcgaag ctgcgggtgc attttttcaa gataaaggca tccccgatta
     5641 tattctatac cgatgtggat tgcgcatact ttgtgaacag aaagtgatag cgttgatgat
     5701 tcttcattgg tcagaaaatt atgaacggtt tcttctattt tgtctctata tactacgtat
     5761 aggaaatgtt tacattttcg tattgttttc gattcactct atgaatagtt cttactacaa
     5821 tttttttgtc taaagagtaa tactagagat aaacataaaa aatgtagagg tcgagtttag
     5881 atgcaagttc aaggagcgaa aggtggatgg gtaggttata tagggatata gcacagagat
     5941 atatagcaaa gagatacttt tgagcaatgt ttgtggaagc ggtattcgca atattttagt
     6001 agctcgttac agtccggtgc gtttttggtt ttttgaaagt gcgtcttcag agcgcttttg
     6061 gttttcaaaa gcgctctgaa gttcctatac tttctagaga ataggaactt cggaatagga
     6121 acttcaaagc gtttccgaaa acgagcgctt ccgaaaatgc aacgcgagct gcgcacatac
     6181 agctcactgt tcacgtcgca cctatatctg cgtgttgcct gtatatatat atacatgaga
     6241 agaacggcat agtgcgtgtt tatgcttaaa tgcgtactta tatgcgtcta tttatgtagg
     6301 atgaaaggta gtctagtacc tcctgtgata ttatcccatt ccatgcgggg tatcgtatgc
     6361 ttccttcagc actacccttt agctgttcta tatgctgcca ctcctcaatt ggattagtct
     6421 catccttcaa tgctatcatt tcctttgata ttggatcata ttaagaaacc attattatca
     6481 tgacattaac ctataaaaat aggcgtatca cgaggccctt tcgtc
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
