pSL497

LOCUS       pSL497                6441 bp DNA     circular SYN 14-JAN-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6441)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Jul 20, 2026 from SnapGene 6.0.2
            https://www.biofeng.com

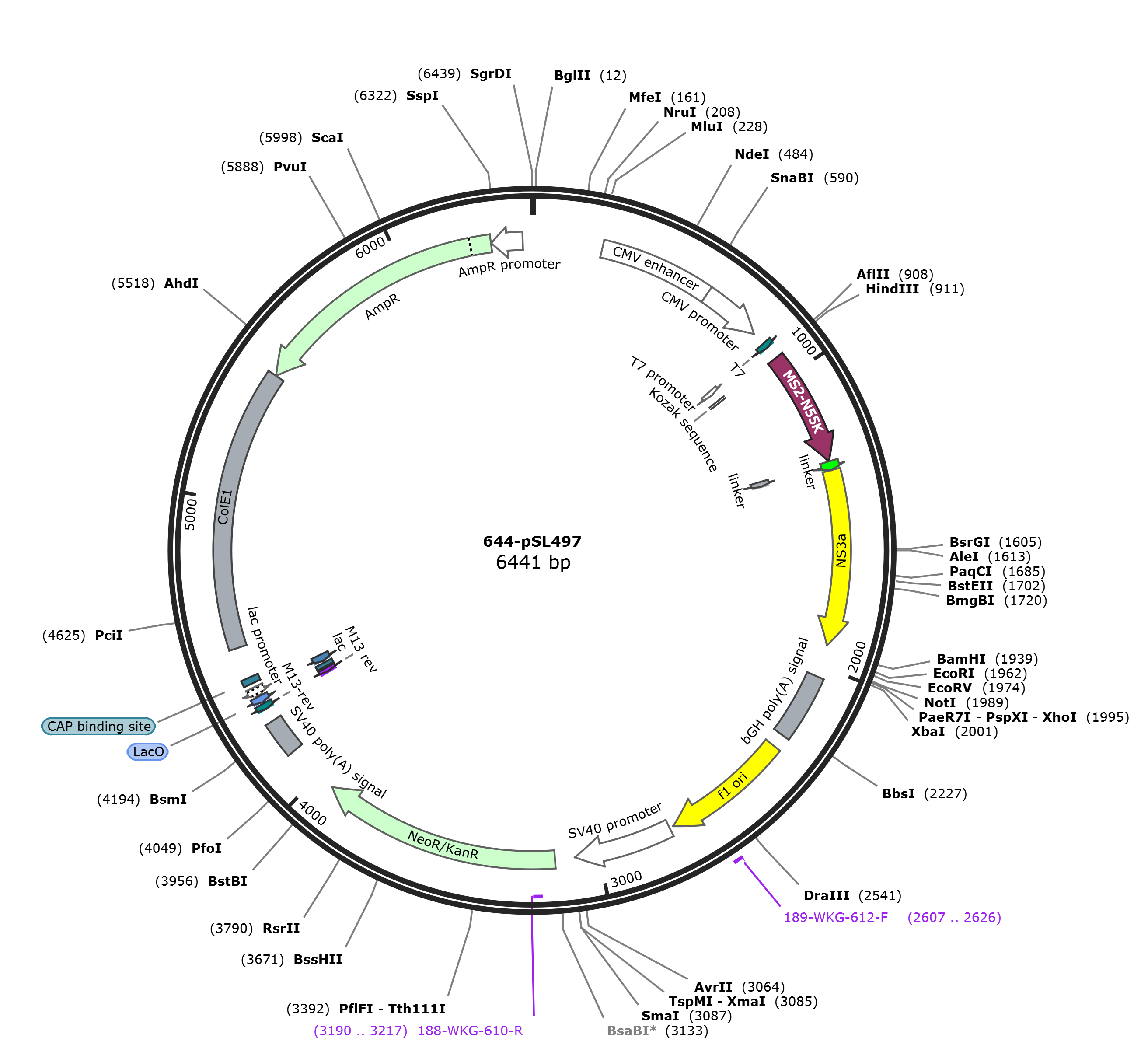

FEATURES             Location/Qualifiers
     source          1..6441
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     863..882
                     /label=T7
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      917..926
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             926..1312
                     /codon_start=1
                     /product="bacteriophage MS2 coat protein"
                     /label=MS2-N55K
                     /note="binds with high affinity to a specific stem-loop
                     structure in the viral RNA (Lim et al., 1994)"
                     /translation="ASNFTQFVLVDNGGTGDVTVAPSNFANGVAEWISSNSRSQAYKVT
                     CSVRQSSAQKRKYTIKVEVPKVATQTVGGVELPVAAWRSYLNMELTIPIFATNSDCELI
                     VKAMQGLLKDGNPIPSAIAANSGIY"
     misc_feature    1313..1342
                     /label=linker
     misc_feature    1313..1333
                     /label=linker
     CDS             1343..1930
                     /codon_start=1
                     /label=NS3a
                     /translation="KKKGSVVIVGRINLSGDTAYAQQTRGEEGCQETSQTGRDKNQVEG
                     EVQIVSTATQTFLATSINGVLWTVYHGAGTRTIASPKGPVTQMYTNVDKDLVGWQAPQG
                     SRSLTPCTCGSSDLYLVTRHADVIPVRRRGDSRGSLLSPRPISYLKGSAGGPLLCPAGH
                     AVGIFRAAVSTRGVAKAVDFIPVESLETTMRSP"
     polyA_signal    2038..2262
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2308..2736
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     2607..2626
                     /label=189-WKG-612-F
     promoter        2750..3079
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     CDS             3146..3940
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3190..3217)
                     /label=188-WKG-610-R
     polyA_signal    4114..4235
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4280..4300)
                     /label=M13-rev
     primer_bind     complement(4284..4300)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(4306..4328)
                     /label=LacO
     protein_bind    4308..4324
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4332..4362)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(4333..4362)
                     /label=lac
     protein_bind    4377..4398
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     misc_feature    4504..5444
                     /label=ColE1
                     /note="ColE1"
     CDS             complement(5445..6305)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6306..6410)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttgcca ccatggcttc aaactttact cagttcgtgc tcgtggacaa
      961 tggtgggaca ggggatgtga cagtggctcc ttctaatttc gctaatgggg tggcagagtg
     1021 gatcagctcc aactcacgga gccaggccta caaggtgaca tgcagcgtca ggcagtctag
     1081 tgcccagaag agaaagtata ccatcaaggt ggaggtcccc aaagtggcta cccagacagt
     1141 gggcggagtc gaactgcctg tcgccgcttg gaggtcctac ctgaacatgg agctcactat
     1201 cccaattttc gctaccaatt ctgactgtga actcatcgtg aaggcaatgc aggggctcct
     1261 caaagacggt aatcctatcc cttccgccat cgccgctaac tcaggtatct acgccagcgg
     1321 aagtggcgga ggaggcgacg tcaagaagaa gggcagcgtg gtgatcgtgg gcagaatcaa
     1381 cctgagcggc gacaccgcct acgcccagca gaccagaggc gaggagggct gccaggagac
     1441 cagccagacc ggcagagaca agaaccaggt ggagggcgag gtgcagatcg tgagcaccgc
     1501 cacccagacc ttcctggcca ccagcatcaa cggcgtgctg tggaccgtgt accacggcgc
     1561 cggcaccaga accatcgcca gccccaaggg ccccgtgacc cagatgtaca cgaacgtgga
     1621 caaggactta gtgggctggc aggcccccca aggcagcaga agcctgaccc cctgcacctg
     1681 cggcagcagc gacctgtacc tggtgaccag acacgccgac gtgatccccg tgagaagaag
     1741 aggcgacagc agaggcagcc tgctgagccc cagacccatc agctatctga aaggctcagc
     1801 tggcggcccc ctgttgtgtc ccgccggcca tgccgtgggc atcttcagag ccgccgtgag
     1861 caccagaggc gtggccaagg ccgtggactt catccccgtg gagagcctgg agaccaccat
     1921 gagaagcccc gctagctagg atccactagt ccagtgtggt ggaattctgc agatatccag
     1981 cacagtggcg gccgctcgag tctagagggc ccgtttaaac ccgctgatca gcctcgactg
     2041 tgccttctag ttgccagcca tctgttgttt gcccctcccc cgtgccttcc ttgaccctgg
     2101 aaggtgccac tcccactgtc ctttcctaat aaaatgagga aattgcatcg cattgtctga
     2161 gtaggtgtca ttctattctg gggggtgggg tggggcagga cagcaagggg gaggattggg
     2221 aagacaatag caggcatgct ggggatgcgg tgggctctat ggcttctgag gcggaaagaa
     2281 ccagctgggg ctctaggggg tatccccacg cgccctgtag cggcgcatta agcgcggcgg
     2341 gtgtggtggt tacgcgcagc gtgaccgcta cacttgccag cgccctagcg cccgctcctt
     2401 tcgctttctt cccttccttt ctcgccacgt tcgccggctt tccccgtcaa gctctaaatc
     2461 gggggctccc tttagggttc cgatttagtg ctttacggca cctcgacccc aaaaaacttg
     2521 attagggtga tggttcacgt agtgggccat cgccctgata gacggttttt cgccctttga
     2581 cgttggagtc cacgttcttt aatagtggac tcttgttcca aactggaaca acactcaacc
     2641 ctatctcggt ctattctttt gatttataag ggattttgcc gatttcggcc tattggttaa
     2701 aaaatgagct gatttaacaa aaatttaacg cgaattaatt ctgtggaatg tgtgtcagtt
     2761 agggtgtgga aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa
     2821 ttagtcagca accaggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag
     2881 catgcatctc aattagtcag caaccatagt cccgccccta actccgccca tcccgcccct
     2941 aactccgccc agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc
     3001 agaggccgag gccgcctctg cctctgagct attccagaag tagtgaggag gcttttttgg
     3061 aggcctaggc ttttgcaaaa agctcccggg agcttgtata tccattttcg gatctgatca
     3121 agagacagga tgaggatcgt ttcgcatgat tgaacaagat ggattgcacg caggttctcc
     3181 ggccgcttgg gtggagaggc tattcggcta tgactgggca caacagacaa tcggctgctc
     3241 tgatgccgcc gtgttccggc tgtcagcgca ggggcgcccg gttctttttg tcaagaccga
     3301 cctgtccggt gccctgaatg aactgcagga cgaggcagcg cggctatcgt ggctggccac
     3361 gacgggcgtt ccttgcgcag ctgtgctcga cgttgtcact gaagcgggaa gggactggct
     3421 gctattgggc gaagtgccgg ggcaggatct cctgtcatct caccttgctc ctgccgagaa
     3481 agtatccatc atggctgatg caatgcggcg gctgcatacg cttgatccgg ctacctgccc
     3541 attcgaccac caagcgaaac atcgcatcga gcgagcacgt actcggatgg aagccggtct
     3601 tgtcgatcag gatgatctgg acgaagagca tcaggggctc gcgccagccg aactgttcgc
     3661 caggctcaag gcgcgcatgc ccgacggcga ggatctcgtc gtgacccatg gcgatgcctg
     3721 cttgccgaat atcatggtgg aaaatggccg cttttctgga ttcatcgact gtggccggct
     3781 gggtgtggcg gaccgctatc aggacatagc gttggctacc cgtgatattg ctgaagagct
     3841 tggcggcgaa tgggctgacc gcttcctcgt gctttacggt atcgccgctc ccgattcgca
     3901 gcgcatcgcc ttctatcgcc ttcttgacga gttcttctga gcgggactct ggggttcgaa
     3961 atgaccgacc aagcgacgcc caacctgcca tcacgagatt tcgattccac cgccgccttc
     4021 tatgaaaggt tgggcttcgg aatcgttttc cgggacgccg gctggatgat cctccagcgc
     4081 ggggatctca tgctggagtt cttcgcccac cccaacttgt ttattgcagc ttataatggt
     4141 tacaaataaa gcaatagcat cacaaatttc acaaataaag catttttttc actgcattct
     4201 agttgtggtt tgtccaaact catcaatgta tcttatcatg tctgtatacc gtcgacctct
     4261 agctagagct tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc
     4321 acaattccac acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga
     4381 gtgagctaac tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg
     4441 tcgtgccagc tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg
     4501 cgctcttccg cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg
     4561 gtatcagctc actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga
     4621 aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg
     4681 gcgtttttcc ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag
     4741 aggtggcgaa acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc
     4801 gtgcgctctc ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg
     4861 ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt
     4921 cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc
     4981 ggtaactatc gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc
     5041 actggtaaca ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg
     5101 tggcctaact acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca
     5161 gttaccttcg gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc
     5221 ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat
     5281 cctttgatct tttctacggg gtctgacgct cagtggaacg aaaactcacg ttaagggatt
     5341 ttggtcatga gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt
     5401 tttaaatcaa tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc
     5461 agtgaggcac ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc
     5521 gtcgtgtaga taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata
     5581 ccgcgagacc cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg
     5641 gccgagcgca gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc
     5701 cgggaagcta gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct
     5761 acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa
     5821 cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt
     5881 cctccgatcg ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca
     5941 ctgcataatt ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac
     6001 tcaaccaagt cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca
     6061 atacgggata ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt
     6121 tcttcggggc gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc
     6181 actcgtgcac ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca
     6241 aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata
     6301 ctcatactct tcctttttca atattattga agcatttatc agggttattg tctcatgagc
     6361 ggatacatat ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc
     6421 cgaaaagtgc cacctgacgt c
//
