pSP64-Tol2-Transposase

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: --
载体名称: pSP64-Tol2-Transposase
质粒类型: 转座子载体
高拷贝/低拷贝: --
克隆方法: --
启动子: SP6
载体大小: 5142bp
5' 测序引物及序列: sp6:ATTTAGGTGACACTATAGAA
3' 测序引物及序列: M13R
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: --
克隆菌株: DH5α 等
宿主细胞(系): 哺乳细胞
备注: --
产品目录号: --
稳定性: 瞬表达
组成型/诱导型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

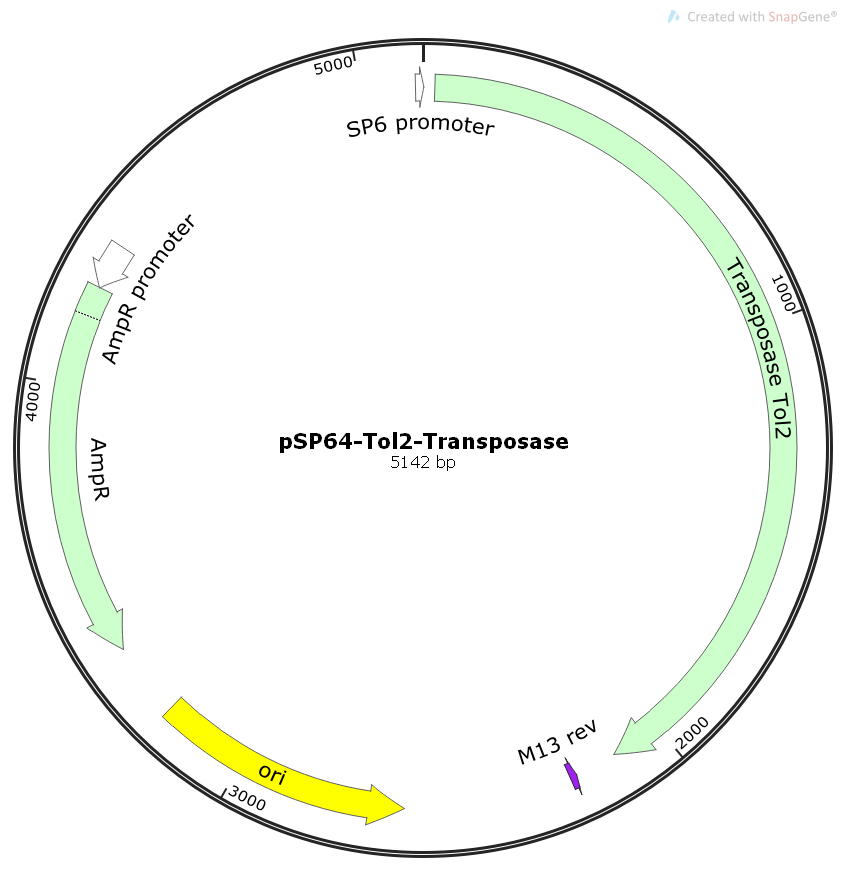

pSP64-Tol2-Transposase载体图谱

载体简介

载体序列

LOCUS       pSP64-Tol2-Transposase               5142 bp ds-DNA     circular SYN 13-FEB-2019
DEFINITION  synthetic circular DNA
KEYWORDS    pSP64-Tol2-Transposase
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5142)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
FEATURES             Location/Qualifiers
     source          1..5142
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     CDS             28..2115
                     /codon_start=1
                     /label=Transposase Tol2
                     /translation="MFIGPLEVTSCHIYYHNAQHLDLEIREIITVNQWKKMEEVCDSSA
                     AASSTVQNQPQDQEHPWPYLREFFSLSGVNKDSFKMKCVLCLPLNKEISAFKSSPSNLR
                     KHIERMHPNYLKNYSKLTAQKRKIGTSTHASSSKQLKVDSVFPVKHVSPVTVNKAILRY
                     IIQGLHPFSTVDLPSFKELISTLQPGISVITRPTLRSKIAEAALIMKQKVTAAMSEVEW
                     IATTTDCWTARRKSFIGVTAHWINPGSLERHSAALACKRLMGSHTFEVLASAMNDIHSE
                     YEIRDKVVCTTTDSGSNFMKAFRVFGVENNDIETEARRCESDDTDSEGCGEGSDGVEFQ
                     DASRVLDQDDGFEFQLPKHQKCACHLLNLVSSVDAQKALSNEHYKKLYRSVFGKCQALW
                     NKSSRSALAAEAVESESRLQLLRPNQTRWNSTFMAVDRILQICKEAGEGALRNICTSLE
                     VPMFNPAEMLFLTEWANTMRPVAKVLDILQAETNTQLGWLLPSVHQLSLKLQRLHHSLR
                     YCDPLVDALQQGIQTRFKHMFEDPEIIAAAILLPKFRTSWTNDETIIKRGMDYIRVHLE
                     PLDHKKELANSSSDDEDFFASLKPTTHEASKELDGYLACVSDTRESLLTFPAICSLSIK
                     TNTPLPASAACERLFSTAGLLFSPKRARLDTNNFENQLLLKLNLRFYNFEGGGKKKRKV
                     G"
     primer_bind     complement(2212..2228)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     rep_origin      complement(2614..3202)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(3373..4233)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(4234..4338)
                     /gene="bla"
                     /label=AmpR promoter
     misc_feature    join(5126..5142,1..2)
                     /label=SP6 promoter
BASE COUNT         1401 a         1255 c         1227 g         1258 t
ORIGIN
        1 gaatacaagc ttgggctgca ggtcgacatg ttcattggtc ctttggaagt gacgtcatgt
       61 cacatctatt accacaatgc acagcacctt gacctggaaa ttagggaaat tataacagtc
      121 aatcagtgga agaaaatgga ggaagtatgt gattcatcag cagctgcgag cagcacagtc
      181 caaaatcagc cacaggatca agagcacccg tggccgtatc ttcgcgaatt cttttcttta
      241 agtggtgtaa ataaagattc attcaagatg aaatgtgtcc tctgtctccc gcttaataaa
      301 gaaatatcgg ccttcaaaag ttcgccatca aacctaagga agcatattga gagaatgcac
      361 ccaaattacc tcaaaaacta ctctaaattg acagcacaga agagaaagat cgggacctcc
      421 acccatgctt ccagcagtaa gcaactgaaa gttgactcag ttttcccagt caaacatgtg
      481 tctccagtca ctgtgaacaa agctatatta aggtacatca ttcaaggact tcatcctttc
      541 agcactgttg atctgccatc atttaaagag ctgattagta cactgcagcc tggcatttct
      601 gtcattacaa ggcctacttt acgctccaag atagctgaag ctgctctgat catgaaacag
      661 aaagtgactg ctgccatgag tgaagttgaa tggattgcaa ccacaacgga ttgttggact
      721 gcacgtagaa agtcattcat tggtgtaact gctcactgga tcaaccctgg aagtcttgaa
      781 agacattccg ctgcacttgc ctgcaaaaga ttaatgggct ctcatacttt tgaggtactg
      841 gccagtgcca tgaatgatat ccactcagag tatgaaatac gtgacaaggt tgtttgcaca
      901 accacagaca gtggttccaa ctttatgaag gctttcagag tttttggtgt ggaaaacaat
      961 gatatcgaga ctgaggcaag aaggtgtgaa agtgatgaca ctgattctga aggctgtggt
     1021 gagggaagtg atggtgtgga attccaagat gcctcacgag tcctggacca agacgatggc
     1081 ttcgaattcc agctaccaaa acatcaaaag tgtgcctgtc acttacttaa cctagtctca
     1141 agcgttgatg cccaaaaagc tctctcaaat gaacactaca agaaactcta cagatctgtc
     1201 tttggcaaat gccaagcttt atggaataaa agcagccgat cggctctagc agctgaagct
     1261 gttgaatcag aaagccggct tcagctttta aggccaaacc aaacgcggtg gaattcaact
     1321 tttatggctg ttgacagaat tcttcaaatt tgcaaagaag caggagaagg cgcacttcgg
     1381 aatatatgca cctctcttga ggttccaatg tttaatccag cagaaatgct gttcttgaca
     1441 gagtgggcca acacaatgcg tccagttgca aaagtactcg acatcttgca agcggaaacg
     1501 aatacacagc tggggtggct gctgcctagt gtccatcagt taagcttgaa acttcagcga
     1561 ctccaccatt ctctcaggta ctgtgaccca cttgtggatg ccctacaaca aggaatccaa
     1621 acacgattca agcatatgtt tgaagatcct gagatcatag cagctgccat ccttctccct
     1681 aaatttcgga cctcttggac aaatgatgaa accatcataa aacgaggcat ggactacatc
     1741 agagtgcatc tggagccttt ggaccacaag aaggaattgg ccaacagttc atctgatgat
     1801 gaagattttt tcgcttcttt gaaaccgaca acacatgaag ccagcaaaga gttggatgga
     1861 tatctggcct gtgtttcaga caccagggag tctctgctca cgtttcctgc tatttgcagc
     1921 ctctctatca agactaatac acctcttccc gcatcggctg cctgtgagag gcttttcagc
     1981 actgcaggat tgcttttcag ccccaaaaga gctaggcttg acactaacaa ttttgagaat
     2041 cagcttctac tgaagttaaa tctgaggttt tacaactttg agggcggcgg caagaagaag
     2101 cgcaaggtgg gctagggatc cccgggcgag ctcccaaaaa aaaaaaaaaa aaaaaaaaaa
     2161 aaaaaccgaa ttctctagag gtaccccatg gctcgaggaa ttcgtaatca tgtcatagct
     2221 gtttcctgtg tgaaattgtt atccgctcac aattccacac aacatacgag ccggaagcat
     2281 aaagtgtaaa gcctggggtg cctaatgagt gagctaactc acattaattg cgttgcgctc
     2341 actgcccgct ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa tcggccaacg
     2401 cgcggggaga ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct
     2461 gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt
     2521 atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc
     2581 caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga
     2641 gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata
     2701 ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac
     2761 cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg
     2821 taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc
     2881 cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag
     2941 acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt
     3001 aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta gaagaacagt
     3061 atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg
     3121 atccggcaaa caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac
     3181 gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca
     3241 gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac
     3301 ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac
     3361 ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt
     3421 tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt
     3481 accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt
     3541 atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc
     3601 cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa
     3661 tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg
     3721 tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt
     3781 gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc
     3841 agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt
     3901 aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg
     3961 gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac
     4021 tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc
     4081 gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt
     4141 tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg
     4201 aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat attattgaag
     4261 catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa
     4321 acaaataggg gttccgcgca catttccccg aaaagtgcca cctgacgtct aagaaaccat
     4381 tattatcatg acattaacct ataaaaatag gcgtatcacg aggccctttc gtctcgcgcg
     4441 tttcggtgat gacggtgaaa acctctgaca catgcagctc ccggagacgg tcacagcttg
     4501 tctgtaagcg gatgccggga gcagacaagc ccgtcagggc gcgtcagcgg gtgttggcgg
     4561 gtgtcggggc tggcttaact atgcggcatc agagcagatt gtactgagag tgcaccattc
     4621 gacgctctcc cttatgcgac tcctgcatta ggaagcagcc cagtagtagg ttgaggccgt
     4681 tgagcaccgc cgccgcaagg aatggtgcat gcaaggagat ggcgcccaac agtcccccgg
     4741 ccacggggcc tgccaccata cccacgccga aacaagcgct catgagcccg aagtggcgag
     4801 cccgatcttc cccatcggtg atgtcggcga tataggcgcc agcaaccgca cctgtggcgc
     4861 cggtgatgcc ggccacgatg cgtccggcgt agaggatctg gctagcgatg accctgctga
     4921 ttggttcgct gaccatttcc gggtgcggga cggcgttacc agaaactcag aaggttcgtc
     4981 caaccaaacc gactctgacg gcagtttacg agagagatga tagggtctgc ttcagtaagc
     5041 cagatgctac acaattaggc ttgtacatat tgtcgttaga acgcggctac aattaataca
     5101 taaccttatg tatcatacac atacgattta ggtgacacta ta
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
