pTYB1

价格:900元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: NEB
载体名称: pTYB1
质粒类型: 大肠杆菌表达载体;蛋白纯化
高拷贝/低拷贝: --
启动子: T7
克隆方法: 多克隆位点,限制性内切酶
载体大小: 7477 bp
5' 测序引物及序列: T7: TAATACGACTCACTATAGGG
3' 测序引物及序列: --
载体标签: Intein
载体抗性: Ampicillin
筛选标记: --
备注: --
产品目录号: N6701S
稳定性: --
组成型: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

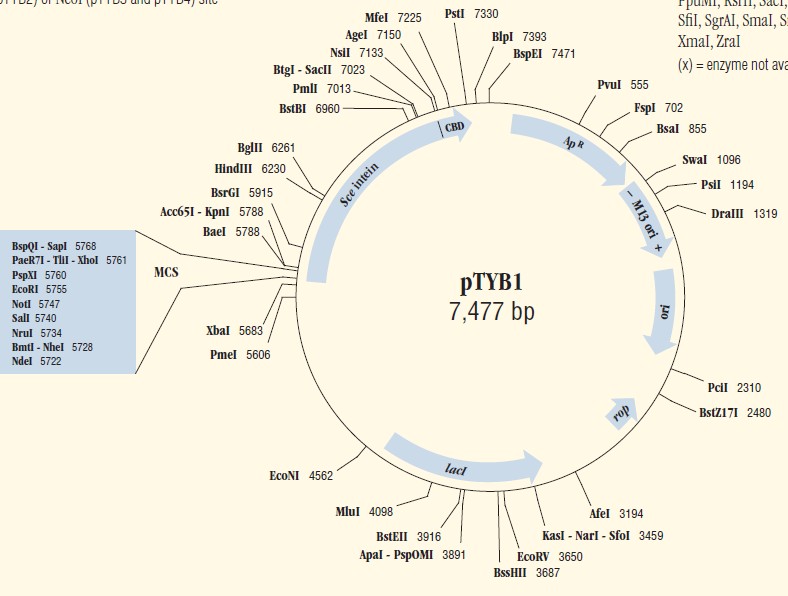

pTYB1载体图谱

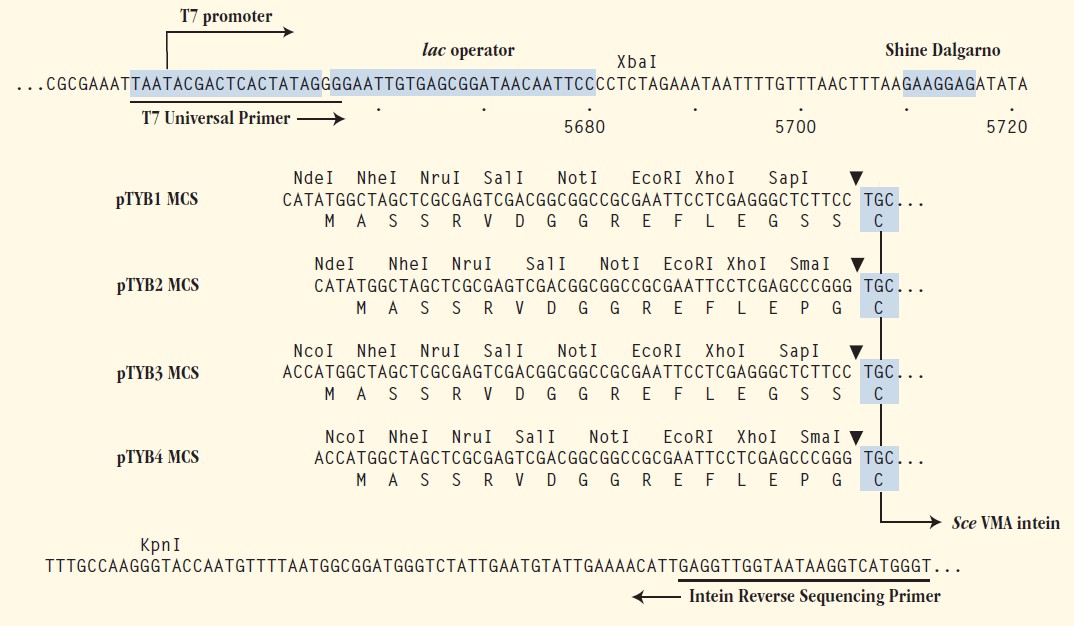

pTYB1多克隆位点

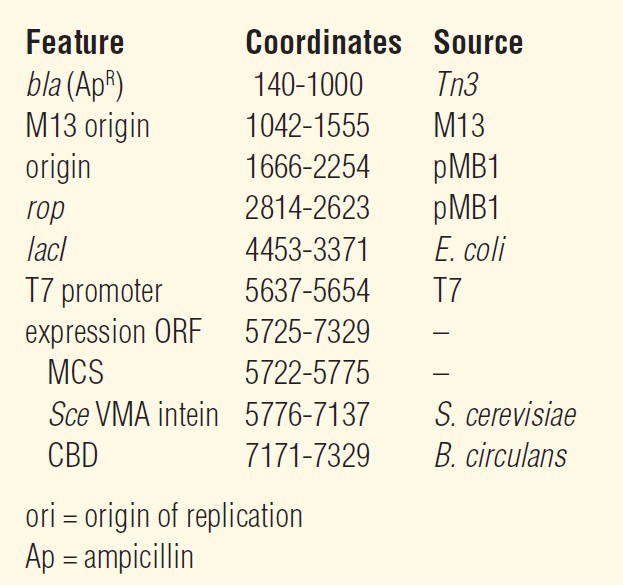

pTYB1载体特征

载体简介

pTYB1 is an E. coli plasmid cloning vector designed for recombinant protein expression and purification using the
IMPACT? Kit (NEB #E6901) (1,2). It contains the pMB1 origin of replication from pBR322 and is maintained at a similar
copy number to pBR322; in addition, pTYB1 also contains an M13 origin of replication.
The multiple cloning site (MCS) is positioned to allow translational fusion of the Sce VMA intein tag to the C-terminus
of the cloned target protein (1). The chitin binding domain (CBD) from B. circulans, fused to the C-terminus of the intein,
facilitates purification of the intein-target protein precursor.
Transcription of the gene fusion is controlled by the inducible T7 promoter, requiring E. coli strains containing integrated
copies of the T7 RNA polymerase gene [e.g., C2566, C2833 or BL21(DE3)] for expression. Basal expression from the T7 promoter
is minimized by the binding of the Lac repressor, encoded by the lacI gene, to the lac operator immediately downstream of the T7 promoter (3). Translation of the fusion utilizes the translation initiation signal (Shine Dalgarno sequence) from the
strongly expressed T7 gene 10 protein (φ10).
pTYB1, pTYB2, pTYB3, and pTYB4 are identical except for the MCS regions (opposite page). All four vectors contain either an
NdeI (pTYB1 and pTYB2) or NcoI (pTYB3 and pTYB4) siteoverlapping the initiating methionine codon of the intein fusion gene.
The N-terminal cysteine residue (“Cys1”) of the intein is shaded.
Enzymes with unique restriction sites are shown in bold type. Location of sites of all NEB restriction enzymes can be found
on the NEB web site (choose Technical Reference > DNA Sequences and Maps). Restriction site coordinates refer to the position of the 5′-most base on the top strand in each recognition sequence.
Open reading frame (ORF) coordinates are in the form "translational start – translational stop”; numbers refer to positions on the top (clockwise) strand, regardless of the direction of transcription and include the start and stop codons. Component
genes or regions of fusion ORFs are indented below the ORF itself.
pMB1 origin of replication coordinates include the region from the -35 promoter sequence of the RNAII transcript to the
RNA/DNA switch point. For the M13 origin, the arrow shows the direction of synthesis of the (+) strand, which gets packaged
into phage particles. bla (ApR) gene coordinates include the signal sequence.

载体序列

LOCUS       pTYB1	7477 bp 	DNA	SYN
DEFINITION  pTYB1
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..7477
                     /organism="pTYB1"
                     /mol_type="other DNA"
     promoter        70..98
                     /label="AmpR_promoter"
     gene            140..1000
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             140..1000
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      complement(1232..1538)
                     /label="f1_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      1650..2269
                     /label="pBR322_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    2607..2629
                     /label="pGEX_3_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    complement(2623..2814)
                     /label="ROP"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     CDS             2953..3588
                     /label="ORF frame 1"
                     /translation="MDAAGPEKNHSGSMPAERQQDVAQRVGRHAGDNGLLLAETFGGG
                     TSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPERCRHLSYELHDKEDSHKCGDD
                     SHAPRPPEGADWVEGSQGHRSRSRCLMSELTYINCVALTARFPVGKPVVPAALMNRPT
                     RGERRFAYWAPGWFFFSPVRRATADCPSPPGPERVAASGPRWFAPAGENPV*"
     gene            complement(3010..3309)
                     /label="tet (611 - 312)"
                     /gene="tet (611 - 312)"
                     /translation="MDAAGPEKNHSGSMPAERQQDVAQRVGRHAGDNGLLLAETFGGG
                     TSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPERCRHLSYELHDKEDSHKCGDD
                     SHAPRPPEGADWVEGSQGHRSRSRCLMSELTYINCVALTARFPVGKPVVPAALMNRPT
                     RGERRFAYWAPGWFFFSPVRRATADCPSPPGPERVAASGPRWFAPAGENPV*"
     misc_feature    complement(3371..4462)
                     /label="lacI"
                     /translation="MDAAGPEKNHSGSMPAERQQDVAQRVGRHAGDNGLLLAETFGGG
                     TSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPERCRHLSYELHDKEDSHKCGDD
                     SHAPRPPEGADWVEGSQGHRSRSRCLMSELTYINCVALTARFPVGKPVVPAALMNRPT
                     RGERRFAYWAPGWFFFSPVRRATADCPSPPGPERVAASGPRWFAPAGENPV*"
     CDS             complement(3371..4330)
                     /label="ORF frame 1"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     CDS             complement(4654..5415)
                     /label="ORF frame 2"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     terminator      4687..4730
                     /label="rrnB_T1_terminator"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     terminator      4870..4913
                     /label="rrnB_T1_terminator"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     terminator      5053..5096
                     /label="rrnB_T1_terminator"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     terminator      5236..5279
                     /label="rrnB_T1_terminator"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     terminator      5419..5462
                     /label="rrnB_T1_terminator"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     promoter        5637..5655
                     /label="T7_promoter"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     misc_feature    5655..5682
                     /label="lacO"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     misc_feature    5700..5716
                     /label="T7_transl_en_RBS"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     CDS             5725..7329
                     /label="ORF frame 1"
                     /translation="MASSRVDGGREFLEGSSCFAKGTNVLMADGSIECIENIEVGNKV
                     MGKDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRT
                     PRSVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELV
                     ESYRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLT
                     IEGPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQ
                     VAKTVNLYSKVVRGNGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRET
                     FLAGLIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVT
                     KHKISYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYG
                     ITLSDDSDHQFLLGSQVVVHACGGLTGLNSGLTTNPGVSAWQVNTAYTAGQLVTYNGK
                     TYKCLQPHTSLAGWEPSNVPALWQLQ*"
     terminator      7349..7477
                     /label="T7_terminator"
                     /translation="MASSRVDGGREFLEGSSCFAKGTNVLMADGSIECIENIEVGNKV
                     MGKDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRT
                     PRSVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELV
                     ESYRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLT
                     IEGPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQ
                     VAKTVNLYSKVVRGNGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRET
                     FLAGLIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVT
                     KHKISYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYG
                     ITLSDDSDHQFLLGSQVVVHACGGLTGLNSGLTTNPGVSAWQVNTAYTAGQLVTYNGK
                     TYKCLQPHTSLAGWEPSNVPALWQLQ*"
     misc_feature    complement(7391..7409)
                     /label="T7_Terminal_primer"
                     /translation="MASSRVDGGREFLEGSSCFAKGTNVLMADGSIECIENIEVGNKV
                     MGKDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRT
                     PRSVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELV
                     ESYRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLT
                     IEGPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQ
                     VAKTVNLYSKVVRGNGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRET
                     FLAGLIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVT
                     KHKISYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYG
                     ITLSDDSDHQFLLGSQVVVHACGGLTGLNSGLTTNPGVSAWQVNTAYTAGQLVTYNGK
                     TYKCLQPHTSLAGWEPSNVPALWQLQ*"
ORIGIN
    1 AACTACGTCA GGTGGCACTT TTCGGGGAAA TGTGCGCGGA ACCCCTATTT GTTTATTTTT
   61 CTAAATACAT TCAAATATGT ATCCGCTCAT GAGACAATAA CCCTGATAAA TGCTTCAATA
  121 ATATTGAAAA AGGAAGAGTA TGAGTATTCA ACATTTCCGT GTCGCCCTTA TTCCCTTTTT
  181 TGCGGCATTT TGCCTTCCTG TTTTTGCTCA CCCAGAAACG CTGGTGAAAG TAAAAGATGC
  241 TGAAGATCAG TTGGGTGCAC GAGTGGGTTA CATCGAACTG GATCTCAACA GCGGTAAGAT
  301 CCTTGAGAGT TTTCGCCCCG AAGAACGTTC TCCAATGATG AGCACTTTTA AAGTTCTGCT
  361 ATGTGGCGCG GTATTATCCC GTGTTGACGC CGGGCAAGAG CAACTCGGTC GCCGCATACA
  421 CTATTCTCAG AATGACTTGG TTGAGTACTC ACCAGTCACA GAAAAGCATC TTACGGATGG
  481 CATGACAGTA AGAGAATTAT GCAGTGCTGC CATAACCATG AGTGATAACA CTGCGGCCAA
  541 CTTACTTCTG ACAACGATCG GAGGACCGAA GGAGCTAACC GCTTTTTTGC ACAACATGGG
  601 GGATCATGTA ACTCGCCTTG ATCGTTGGGA ACCGGAGCTG AATGAAGCCA TACCAAACGA
  661 CGAGCGTGAC ACCACGATGC CTGTAGCAAT GGCAACAACG TTGCGCAAAC TATTAACTGG
  721 CGAACTACTT ACTCTAGCTT CCCGGCAACA ATTAATAGAC TGGATGGAGG CGGATAAAGT
  781 TGCAGGACCA CTTCTGCGCT CGGCCCTTCC GGCTGGCTGG TTTATTGCTG ATAAATCTGG
  841 AGCCGGTGAG CGTGGGTCTC GCGGTATCAT TGCAGCACTG GGGCCAGATG GTAAGCCCTC
  901 CCGTATCGTA GTTATCTACA CGACGGGGAG TCAGGCAACT ATGGATGAAC GAAATAGACA
  961 GATCGCTGAG ATAGGTGCCT CACTGATTAA GCATTGGTAA CTGTCAGACC AAGTTTACTC
 1021 ATATATACTT TAGATTGATT TACCCCGGTT GATAATCAGA AAAGCCCCAA AAACAGGAAG
 1081 ATTGTATAAG CAAATATTTA AATTGTAAAC GTTAATATTT TGTTAAAATT CGCGTTAAAT
 1141 TTTTGTTAAA TCAGCTCATT TTTTAACCAA TAGGCCGAAA TCGGCAAAAT CCCTTATAAA
 1201 TCAAAAGAAT AGCCCGAGAT AGGGTTGAGT GTTGTTCCAG TTTGGAACAA GAGTCCACTA
 1261 TTAAAGAACG TGGACTCCAA CGTCAAAGGG CGAAAAACCG TCTATCAGGG CGATGGCCCA
 1321 CTACGTGAAC CATCACCCAA ATCAAGTTTT TTGGGGTCGA GGTGCCGTAA AGCACTAAAT
 1381 CGGAACCCTA AAGGGAGCCC CCGATTTAGA GCTTGACGGG GAAAGCCGGC GAACGTGGCG
 1441 AGAAAGGAAG GGAAGAAAGC GAAAGGAGCG GGCGCTAGGG CGCTGGCAAG TGTAGCGGTC
 1501 ACGCTGCGCG TAACCACCAC ACCCGCCGCG CTTAATGCGC CGCTACAGGG CGCGTAAAAG
 1561 GATCTAGGTG AAGATCCTTT TTGATAATCT CATGACCAAA ATCCCTTAAC GTGAGTTTTC
 1621 GTTCCACTGA GCGTCAGACC CCGTAGAAAA GATCAAAGGA TCTTCTTGAG ATCCTTTTTT
 1681 TCTGCGCGTA ATCTGCTGCT TGCAAACAAA AAAACCACCG CTACCAGCGG TGGTTTGTTT
 1741 GCCGGATCAA GAGCTACCAA CTCTTTTTCC GAAGGTAACT GGCTTCAGCA GAGCGCAGAT
 1801 ACCAAATACT GTCCTTCTAG TGTAGCCGTA GTTAGGCCAC CACTTCAAGA ACTCTGTAGC
 1861 ACCGCCTACA TACCTCGCTC TGCTAATCCT GTTACCAGTG GCTGCTGCCA GTGGCGATAA
 1921 GTCGTGTCTT ACCGGGTTGG ACTCAAGACG ATAGTTACCG GATAAGGCGC AGCGGTCGGG
 1981 CTGAACGGGG GGTTCGTGCA CACAGCCCAG CTTGGAGCGA ACGACCTACA CCGAACTGAG
 2041 ATACCTACAG CGTGAGCTAT GAGAAAGCGC CACGCTTCCC GAAGGGAGAA AGGCGGACAG
 2101 GTATCCGGTA AGCGGCAGGG TCGGAACAGG AGAGCGCACG AGGGAGCTTC CAGGGGGAAA
 2161 CGCCTGGTAT CTTTATAGTC CTGTCGGGTT TCGCCACCTC TGACTTGAGC GTCGATTTTT
 2221 GTGATGCTCG TCAGGGGGGC GGAGCCTATG GAAAAACGCC AGCAACGCGG CCTTTTTACG
 2281 GTTCCTGGCC TTTTGCTGGC CTTTTGCTCA CATGTTCTTT CCTGCGTTAT CCCCTGATTC
 2341 TGTGGATAAC CGTATTACCG CCTTTGAGTG AGCTGATACC GCTCGCCGCA GCCGAACGAC
 2401 CGAGCGCAGC GAGTCAGTGA GCGAGGAAGC TATGGTGCAC TCTCAGTACA ATCTGCTCTG
 2461 ATGCCGCATA GTTAAGCCAG TATACACTCC GCTATCGCTA CGTGACTGGG TCATGGCTGC
 2521 GCCCCGACAC CCGCCAACAC CCGCTGACGC GCCCTGACGG GCTTGTCTGC TCCCGGCATC
 2581 CGCTTACAGA CAAGCTGTGA CCGTCTCCGG GAGCTGCATG TGTCAGAGGT TTTCACCGTC
 2641 ATCACCGAAA CGCGCGAGGC AGCTGCGGTA AAGCTCATCA GCGTGGTCGT GCAGCGATTC
 2701 ACAGATGTCT GCCTGTTCAT CCGCGTCCAG CTCGTTGAGT TTCTCCAGAA GCGTTAATGT
 2761 CTGGCTTCTG ATAAAGCGGG CCATGTTAAG GGCGGTTTTT TCCTGTTTGG TCACTGATGC
 2821 CTCCGTGTAA GGGGGATTTC TGTTCATGGG GGTAATGATA CCGATGAAAC GAGAGAGGAT
 2881 GCTCACGATA CGGGTTACTG ATGATGAACA TGCCCGGTTA CTGGAACGTT GTGAGGGTAA
 2941 ACAACTGGCG GTATGGATGC GGCGGGACCA GAGAAAAATC ACTCAGGGTC AATGCCAGCC
 3001 GAACGCCAGC AAGACGTAGC CCAGCGCGTC GGCCGCCATG CCGGCGATAA TGGCCTGCTT
 3061 CTCGCCGAAA CGTTTGGTGG CGGGACCAGT GACGAAGGCT TGAGCGAGGG CGTGCAAGAT
 3121 TCCGAATACC GCAAGCGACA GGCCGATCAT CGTCGCGCTC CAGCGAAAGC GGTCCTCGCC
 3181 GAAAATGACC CAGAGCGCTG CCGGCACCTG TCCTACGAGT TGCATGATAA AGAAGACAGT
 3241 CATAAGTGCG GCGACGATAG TCATGCCCCG CGCCCACCGG AAGGAGCTGA CTGGGTTGAA
 3301 GGCTCTCAAG GGCATCGGTC GAGATCCCGG TGCCTAATGA GTGAGCTAAC TTACATTAAT
 3361 TGCGTTGCGC TCACTGCCCG CTTTCCAGTC GGGAAACCTG TCGTGCCAGC TGCATTAATG
 3421 AATCGGCCAA CGCGCGGGGA GAGGCGGTTT GCGTATTGGG CGCCAGGGTG GTTTTTCTTT
 3481 TCACCAGTGA GACGGGCAAC AGCTGATTGC CCTTCACCGC CTGGCCCTGA GAGAGTTGCA
 3541 GCAAGCGGTC CACGCTGGTT TGCCCCAGCA GGCGAAAATC CTGTTTGATG GTGGTTAACG
 3601 GCGGGATATA ACATGAGCTG TCTTCGGTAT CGTCGTATCC CACTACCGAG ATATCCGCAC
 3661 CAACGCGCAG CCCGGACTCG GTAATGGCGC GCATTGCGCC CAGCGCCATC TGATCGTTGG
 3721 CAACCAGCAT CGCAGTGGGA ACGATGCCCT CATTCAGCAT TTGCATGGTT TGTTGAAAAC
 3781 CGGACATGGC ACTCCAGTCG CCTTCCCGTT CCGCTATCGG CTGAATTTGA TTGCGAGTGA
 3841 GATATTTATG CCAGCCAGCC AGACGCAGAC GCGCCGAGAC AGAACTTAAT GGGCCCGCTA
 3901 ACAGCGCGAT TTGCTGGTGA CCCAATGCGA CCAGATGCTC CACGCCCAGT CGCGTACCGT
 3961 CTTCATGGGA GAAAATAATA CTGTTGATGG GTGTCTGGTC AGAGACATCA AGAAATAACG
 4021 CCGGAACATT AGTGCAGGCA GCTTCCACAG CAATGGCATC CTGGTCATCC AGCGGATAGT
 4081 TAATGATCAG CCCACTGACG CGTTGCGCGA GAAGATTGTG CACCGCCGCT TTACAGGCTT
 4141 CGACGCCGCT TCGTTCTACC ATCGACACCA CCACGCTGGC ACCCAGTTGA TCGGCGCGAG
 4201 ATTTAATCGC CGCGACAATT TGCGACGGCG CGTGCAGGGC CAGACTGGAG GTGGCAACGC
 4261 CAATCAGCAA CGACTGTTTG CCCGCCAGTT GTTGTGCCAC GCGGTTGGGA ATGTAATTCA
 4321 GCTCCGCCAT CGCCGCTTCC ACTTTTTCCC GCGTTTTCGC AGAAACGTGG CTGGCCTGGT
 4381 TCACCACGCG GGAAACGGTC TGATAAGAGA CACCGGCATA CTCTGCGACA TCGTATAACG
 4441 TTACTGGTTT CACATTCACC ACCCTGAATT GACTCTCTTC CGGGCGCTAT CATGCCATAC
 4501 CGCGAAAGGT TTTGCGCCAT TCGATGGTGT CCGGGATCTC GACGCTCTCC CTTATGCGAC
 4561 TCCTGCATTA GGAAGCAGCC CAGTAGTAGG TTGAGGCCGT TGAGCACCGC CGCCGCAAGG
 4621 AATGGTGCAT GCCGGCATGC CGCCCTTTCG TCTTCAAGAA TTAATTCCCA ATTCCCCAGG
 4681 CATCAAATAA AACGAAAGGC TCAGTCGAAA GACTGGGCCT TTCGTTTTAT CTGTTGTTTG
 4741 TCGGTGAACG CTCTCCTGAG TAGGACAAAT CCGCCGGGAG CGGATTTGAA CGTTGCGAAG
 4801 CAACGGCCCG GAGGGTGGCG GGCAGGACGC CCGCCATAAA CTGCCAGGAA TTAATTCCCC
 4861 AGGCATCAAA TAAAACGAAA GGCTCAGTCG AAAGACTGGG CCTTTCGTTT TATCTGTTGT
 4921 TTGTCGGTGA ACGCTCTCCT GAGTAGGACA AATCCGCCGG GAGCGGATTT GAACGTTGCG
 4981 AAGCAACGGC CCGGAGGGTG GCGGGCAGGA CGCCCGCCAT AAACTGCCAG GAATTAATTC
 5041 CCCAGGCATC AAATAAAACG AAAGGCTCAG TCGAAAGACT GGGCCTTTCG TTTTATCTGT
 5101 TGTTTGTCGG TGAACGCTCT CCTGAGTAGG ACAAATCCGC CGGGAGCGGA TTTGAACGTT
 5161 GCGAAGCAAC GGCCCGGAGG GTGGCGGGCA GGACGCCCGC CATAAACTGC CAGGAATTAA
 5221 TTCCCCAGGC ATCAAATAAA ACGAAAGGCT CAGTCGAAAG ACTGGGCCTT TCGTTTTATC
 5281 TGTTGTTTGT CGGTGAACGC TCTCCTGAGT AGGACAAATC CGCCGGGAGC GGATTTGAAC
 5341 GTTGCGAAGC AACGGCCCGG AGGGTGGCGG GCAGGACGCC CGCCATAAAC TGCCAGGAAT
 5401 TAATTCCCCA GGCATCAAAT AAAACGAAAG GCTCAGTCGA AAGACTGGGC CTTTCGTTTT
 5461 ATCTGTTGTT TGTCGGTGAA CGCTCTCCTG AGTAGGACAA ATCCGCCGGG AGCGGATTTG
 5521 AACGTTGCGA AGCAACGGCC CGGAGGGTGG CGGGCAGGAC GCCCGCCATA AACTGCCAGG
 5581 AATTGGGGAT CGGAATTAAT TCCCGGTTTA AACCGGGGAT CTCGATCCCG CGAAATTAAT
 5641 ACGACTCACT ATAGGGGAAT TGTGAGCGGA TAACAATTCC CCTCTAGAAA TAATTTTGTT
 5701 TAACTTTAAG AAGGAGATAT ACATATGGCT AGCTCGCGAG TCGACGGCGG CCGCGAATTC
 5761 CTCGAGGGCT CTTCCTGCTT TGCCAAGGGT ACCAATGTTT TAATGGCGGA TGGGTCTATT
 5821 GAATGTATTG AAAACATTGA GGTTGGTAAT AAGGTCATGG GTAAAGATGG CAGACCTCGT
 5881 GAGGTAATTA AATTGCCCAG AGGAAGAGAA ACTATGTACA GCGTCGTGCA GAAAAGTCAG
 5941 CACAGAGCCC ACAAAAGTGA CTCAAGTCGT GAAGTGCCAG AATTACTCAA GTTTACGTGT
 6001 AATGCGACCC ATGAGTTGGT TGTTAGAACA CCTCGTAGTG TCCGCCGTTT GTCTCGTACC
 6061 ATTAAGGGTG TCGAATATTT TGAAGTTATT ACTTTTGAGA TGGGCCAAAA GAAAGCCCCC
 6121 GACGGTAGAA TTGTTGAGCT TGTCAAGGAA GTTTCAAAGA GCTACCCAAT ATCTGAGGGG
 6181 CCTGAGAGAG CCAACGAATT AGTAGAATCC TATAGAAAGG CTTCAAATAA AGCTTATTTT
 6241 GAGTGGACTA TTGAGGCCAG AGATCTTTCT CTGTTGGGTT CCCATGTTCG TAAAGCTACC
 6301 TACCAGACTT ACGCTCCAAT TCTTTATGAG AATGACCACT TTTTCGACTA CATGCAAAAA
 6361 AGTAAGTTTC ATCTCACCAT TGAAGGTCCA AAAGTACTTG CTTATTTACT TGGTTTATGG
 6421 ATTGGTGATG GATTGTCTGA CAGGGCAACT TTTTCGGTTG ATTCCAGAGA TACTTCTTTG
 6481 ATGGAACGTG TTACTGAATA TGCTGAAAAG TTGAATTTGT GCGCCGAGTA TAAGGACAGA
 6541 AAAGAACCAC AAGTTGCCAA AACTGTTAAT TTGTACTCTA AAGTTGTCAG AGGTAATGGT
 6601 ATTCGCAATA ATCTTAATAC TGAGAATCCA TTATGGGACG CTATTGTTGG CTTAGGATTC
 6661 TTGAAGGACG GTGTCAAAAA TATTCCTTCT TTCTTGTCTA CGGACAATAT CGGTACTCGT
 6721 GAAACATTTC TTGCTGGTCT AATTGATTCT GATGGCTATG TTACTGATGA GCATGGTATT
 6781 AAAGCAACAA TAAAGACAAT TCATACTTCT GTCAGAGATG GTTTGGTTTC CCTTGCTCGT
 6841 TCTTTAGGCT TAGTAGTCTC GGTTAACGCA GAACCTGCTA AGGTTGACAT GAATGTCACC
 6901 AAACATAAAA TTAGTTATGC TATTTATATG TCTGGTGGAG ATGTTTTGCT TAACGTTCTT
 6961 TCGAAGTGTG CCGGCTCTAA AAAATTCAGG CCTGCTCCCG CCGCTGCTTT TGCACGTGAG
 7021 TGCCGCGGAT TTTATTTCGA GTTACAAGAA TTGAAGGAAG ACGATTATTA TGGGATTACT
 7081 TTATCTGATG ATTCTGATCA TCAGTTTTTG CTTGGATCCC AGGTTGTCGT CCATGCATGC
 7141 GGTGGCCTGA CCGGTCTGAA CTCAGGCCTC ACGACAAATC CTGGTGTATC CGCTTGGCAG
 7201 GTCAACACAG CTTATACTGC GGGACAATTG GTCACATATA ACGGCAAGAC GTATAAATGT
 7261 TTGCAGCCCC ACACCTCCTT GGCAGGATGG GAACCATCCA ACGTTCCTGC CTTGTGGCAG
 7321 CTTCAATGAC TGCAGGAAGG GGATCCGGCT GCTAACAAAG CCCGAAAGGA AGCTGAGTTG
 7381 GCTGCTGCCA CCGCTGAGCA ATAACTAGCA TAACCCCTTG GGGCCTCTAA ACGGGTCTTG
 7441 AGGGGTTTTT TGCTGAAAGG AGGAACTATA TCCGGAT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
