| 质粒名称: | pX601-AAV-CMV::NLS-SaCas9-NLS-3xHA-bGHpA;U6::BsaI-sgRNA |
|---|---|
| 目录编号: | 61591 |
| 存储实验室: | Feng Zhang |
|
载体骨架基本信息 |
|
| 载体名称: | pAAV |
| 载体抗性: | 氨苄霉素 |
| 载体类型: | 哺乳细胞表达、 AAV, CRISPR |
| 高拷贝/低拷贝: | 高拷贝 |
| 生长条件: | 37 ℃ |
|
插入基因信息 |
|
| 插入基因名称1: | hSaCas9 / hSauCas9 |
| 物种来源: | Staphylococcus aureus |
| 插入大小: | 3345 bp |
| GenBank编号 | CCK74173.1 |
| 标签/融合蛋白: | NLS（N端） NLS（C端） 3xHA（C端） |
| 插入基因名称2: | Chimeric guide for SaCas9 |
| 物种来源: | Staphylococcus aureus |
| 插入大小: | 101bp |
|
文献引用方法 |
|
| 材料和方法部分: | pX601-AAV-CMV::NLS-SaCas9-NLS-3xHA-bGHpA;U6::BsaI-sgRNA was a gift from Feng Zhang (Addgene plasmid # 61591) |
| 参考文献部分: | In vivo genome editing using Staphylococcus aureus Cas9. Ran FA, Cong L, Yan WX, Scott DA, Gootenberg JS, Kriz AJ, Zetsche B, Shalem O, Wu X, Makarova KS, Koonin EV, Sharp PA, Zhang F. Nature. 2015 Apr 1. doi: 10.1038/nature14299. 10.1038/nature14299 PubMed 25830891 |
pX601-AAV-CMV::NLS-SaCas9-NLS-3xHA-bGHpA;U6::BsaI-sgRNA
买家导航
载体基本信息

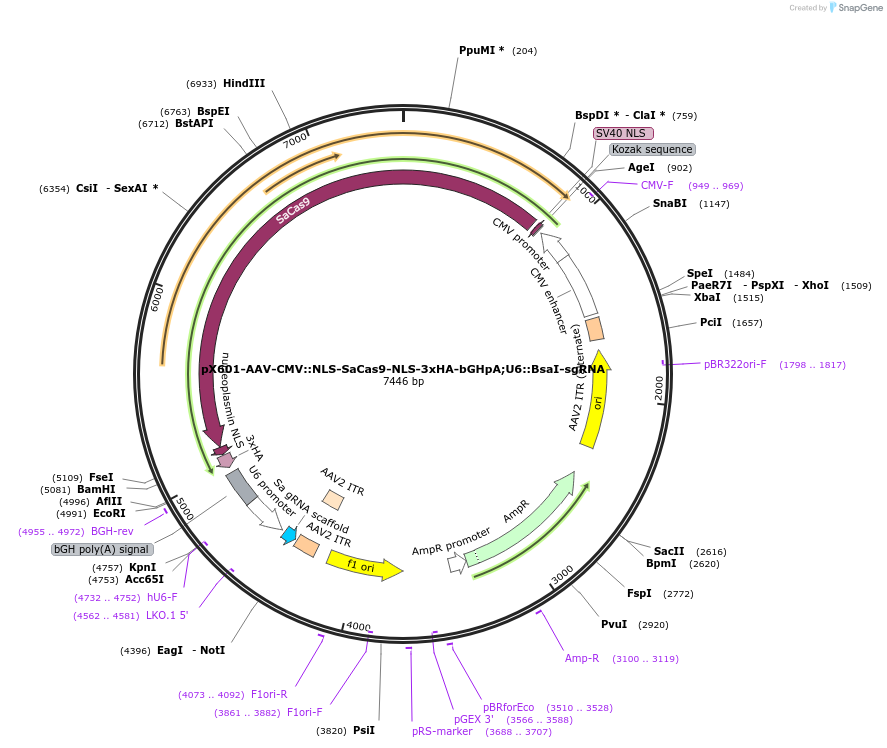

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pX601-AAV-CMV::NLS-SaCas9-NLS-3xHA-bGHpA;U6::BsaI-sgRNA Sequencing Result 7446 bp DNA SYN
DEFINITION pX601-AAV-CMV::NLS-SaCas9-NLS-3xHA-bGHpA;U6::BsaI-sgRNA Sequencing Result
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..7446
/organism="pX601-AAV-CMV::NLS-SaCas9-NLS-3xHA-bGHpA;U6::BsaI-sgRNA Sequencing Result"
/mol_type="other DNA"
promoter 155..731
/label="CMV_immearly_promoter"
misc_feature 234..521
/label="CAG_enhancer"
misc_feature 688..708
/label="CMV_fwd_primer"
CDS 693..4106
/label="ORF frame 3"
CDS complement(744..3479)
/label="ORF frame 2"
misc_feature 768..788
/label="SV40 NLS"
misc_feature 768..791
/label="SV40 NLS"
misc_feature 774..788
/label="NLS"
CDS complement(1973..2431)
/label="ORF frame 3"
misc_feature 4023..4049
/label="HA"
misc_feature complement(4131..4148)
/label="BGH_rev_primer"
terminator 4134..4337
/label="bGH_PA_terminator"
promoter 4360..4592
/label="hU6_promoter"
misc_feature 4522..4541
/label="LKO1_5_primer"
rep_origin 4941..5247
/label="f1_origin"
misc_feature 5515..5537
/label="pGEX_3_primer"
promoter 5696..5724
/label="AmpR_promoter"
gene 5766..6626
/label="Ampicillin"
/gene="Ampicillin"
CDS 5766..6626
/label="ORF frame 3"
rep_origin 6781..7400
/label="pBR322_origin"
ORIGIN
1 CCTGCAGGCA GCTGCGCGCT CGCTCGCTCA CTGAGGCCGC CCGGGCGTCG GGCGACCTTT
61 GGTCGCCCGG CCTCAGTGAG CGAGCGAGCG CGCAGAGAGG GAGTGGCCAA CTCCATCACT
121 AGGGGTTCCT GCGGCCTCTA GACTCGAGGC GTTGACATTG ATTATTGACT AGTTATTAAT
181 AGTAATCAAT TACGGGGTCA TTAGTTCATA GCCCATATAT GGAGTTCCGC GTTACATAAC
241 TTACGGTAAA TGGCCCGCCT GGCTGACCGC CCAACGACCC CCGCCCATTG ACGTCAATAA
301 TGACGTATGT TCCCATAGTA ACGCCAATAG GGACTTTCCA TTGACGTCAA TGGGTGGAGT
361 ATTTACGGTA AACTGCCCAC TTGGCAGTAC ATCAAGTGTA TCATATGCCA AGTACGCCCC
421 CTATTGACGT CAATGACGGT AAATGGCCCG CCTGGCATTA TGCCCAGTAC ATGACCTTAT
481 GGGACTTTCC TACTTGGCAG TACATCTACG TATTAGTCAT CGCTATTACC ATGGTGATGC
541 GGTTTTGGCA GTACATCAAT GGGCGTGGAT AGCGGTTTGA CTCACGGGGA TTTCCAAGTC
601 TCCACCCCAT TGACGTCAAT GGGAGTTTGT TTTGGCACCA AAATCAACGG GACTTTCCAA
661 AATGTCGTAA CAACTCCGCC CCATTGACGC AAATGGGCGG TAGGCGTGTA CGGTGGGAGG
721 TCTATATAAG CAGAGCTCTC TGGCTAACTA CCGGTGCCAC CATGGCCCCA AAGAAGAAGC
781 GGAAGGTCGG TATCCACGGA GTCCCAGCAG CCAAGCGGAA CTACATCCTG GGCCTGGACA
841 TCGGCATCAC CAGCGTGGGC TACGGCATCA TCGACTACGA GACACGGGAC GTGATCGATG
901 CCGGCGTGCG GCTGTTCAAA GAGGCCAACG TGGAAAACAA CGAGGGCAGG CGGAGCAAGA
961 GAGGCGCCAG AAGGCTGAAG CGGCGGAGGC GGCATAGAAT CCAGAGAGTG AAGAAGCTGC
1021 TGTTCGACTA CAACCTGCTG ACCGACCACA GCGAGCTGAG CGGCATCAAC CCCTACGAGG
1081 CCAGAGTGAA GGGCCTGAGC CAGAAGCTGA GCGAGGAAGA GTTCTCTGCC GCCCTGCTGC
1141 ACCTGGCCAA GAGAAGAGGC GTGCACAACG TGAACGAGGT GGAAGAGGAC ACCGGCAACG
1201 AGCTGTCCAC CAAAGAGCAG ATCAGCCGGA ACAGCAAGGC CCTGGAAGAG AAATACGTGG
1261 CCGAACTGCA GCTGGAACGG CTGAAGAAAG ACGGCGAAGT GCGGGGCAGC ATCAACAGAT
1321 TCAAGACCAG CGACTACGTG AAAGAAGCCA AACAGCTGCT GAAGGTGCAG AAGGCCTACC
1381 ACCAGCTGGA CCAGAGCTTC ATCGACACCT ACATCGACCT GCTGGAAACC CGGCGGACCT
1441 ACTATGAGGG ACCTGGCGAG GGCAGCCCCT TCGGCTGGAA GGACATCAAA GAATGGTACG
1501 AGATGCTGAT GGGCCACTGC ACCTACTTCC CCGAGGAACT GCGGAGCGTG AAGTACGCCT
1561 ACAACGCCGA CCTGTACAAC GCCCTGAACG ACCTGAACAA TCTCGTGATC ACCAGGGACG
1621 AGAACGAGAA GCTGGAATAT TACGAGAAGT TCCAGATCAT CGAGAACGTG TTCAAGCAGA
1681 AGAAGAAGCC CACCCTGAAG CAGATCGCCA AAGAAATCCT CGTGAACGAA GAGGATATTA
1741 AGGGCTACAG AGTGACCAGC ACCGGCAAGC CCGAGTTCAC CAACCTGAAG GTGTACCACG
1801 ACATCAAGGA CATTACCGCC CGGAAAGAGA TTATTGAGAA CGCCGAGCTG CTGGATCAGA
1861 TTGCCAAGAT CCTGACCATC TACCAGAGCA GCGAGGACAT CCAGGAAGAA CTGACCAATC
1921 TGAACTCCGA GCTGACCCAG GAAGAGATCG AGCAGATCTC TAATCTGAAG GGCTATACCG
1981 GCACCCACAA CCTGAGCCTG AAGGCCATCA ACCTGATCCT GGACGAGCTG TGGCACACCA
2041 ACGACAACCA GATCGCTATC TTCAACCGGC TGAAGCTGGT GCCCAAGAAG GTGGACCTGT
2101 CCCAGCAGAA AGAGATCCCC ACCACCCTGG TGGACGACTT CATCCTGAGC CCCGTCGTGA
2161 AGAGAAGCTT CATCCAGAGC ATCAAAGTGA TCAACGCCAT CATCAAGAAG TACGGCCTGC
2221 CCAACGACAT CATTATCGAG CTGGCCCGCG AGAAGAACTC CAAGGACGCC CAGAAAATGA
2281 TCAACGAGAT GCAGAAGCGG AACCGGCAGA CCAACGAGCG GATCGAGGAA ATCATCCGGA
2341 CCACCGGCAA AGAGAACGCC AAGTACCTGA TCGAGAAGAT CAAGCTGCAC GACATGCAGG
2401 AAGGCAAGTG CCTGTACAGC CTGGAAGCCA TCCCTCTGGA AGATCTGCTG AACAACCCCT
2461 TCAACTATGA GGTGGACCAC ATCATCCCCA GAAGCGTGTC CTTCGACAAC AGCTTCAACA
2521 ACAAGGTGCT CGTGAAGCAG GAAGAAAACA GCAAGAAGGG CAACCGGACC CCATTCCAGT
2581 ACCTGAGCAG CAGCGACAGC AAGATCAGCT ACGAAACCTT CAAGAAGCAC ATCCTGAATC
2641 TGGCCAAGGG CAAGGGCAGA ATCAGCAAGA CCAAGAAAGA GTATCTGCTG GAAGAACGGG
2701 ACATCAACAG GTTCTCCGTG CAGAAAGACT TCATCAACCG GAACCTGGTG GATACCAGAT
2761 ACGCCACCAG AGGCCTGATG AACCTGCTGC GGAGCTACTT CAGAGTGAAC AACCTGGACG
2821 TGAAAGTGAA GTCCATCAAT GGCGGCTTCA CCAGCTTTCT GCGGCGGAAG TGGAAGTTTA
2881 AGAAAGAGCG GAACAAGGGG TACAAGCACC ACGCCGAGGA CGCCCTGATC ATTGCCAACG
2941 CCGATTTCAT CTTCAAAGAG TGGAAGAAAC TGGACAAGGC CAAAAAAGTG ATGGAAAACC
3001 AGATGTTCGA GGAAAAGCAG GCCGAGAGCA TGCCCGAGAT CGAAACCGAG CAGGAGTACA
3061 AAGAGATCTT CATCACCCCC CACCAGATCA AGCACATTAA GGACTTCAAG GACTACAAGT
3121 ACAGCCACCG GGTGGACAAG AAGCCTAATA GAGAGCTGAT TAACGACACC CTGTACTCCA
3181 CCCGGAAGGA CGACAAGGGC AACACCCTGA TCGTGAACAA TCTGAACGGC CTGTACGACA
3241 AGGACAATGA CAAGCTGAAA AAGCTGATCA ACAAGAGCCC CGAAAAGCTG CTGATGTACC
3301 ACCACGACCC CCAGACCTAC CAGAAACTGA AGCTGATTAT GGAACAGTAC GGCGACGAGA
3361 AGAATCCCCT GTACAAGTAC TACGAGGAAA CCGGGAACTA CCTGACCAAG TACTCCAAAA
3421 AGGACAACGG CCCCGTGATC AAGAAGATTA AGTATTACGG CAACAAACTG AACGCCCATC
3481 TGGACATCAC CGACGACTAC CCCAACAGCA GAAACAAGGT CGTGAAGCTG TCCCTGAAGC
3541 CCTACAGATT CGACGTGTAC CTGGACAATG GCGTGTACAA GTTCGTGACC GTGAAGAATC
3601 TGGATGTGAT CAAAAAAGAA AACTACTACG AAGTGAATAG CAAGTGCTAT GAGGAAGCTA
3661 AGAAGCTGAA GAAGATCAGC AACCAGGCCG AGTTTATCGC CTCCTTCTAC AACAACGATC
3721 TGATCAAGAT CAACGGCGAG CTGTATAGAG TGATCGGCGT GAACAACGAC CTGCTGAACC
3781 GGATCGAAGT GAACATGATC GACATCACCT ACCGCGAGTA CCTGGAAAAC ATGAACGACA
3841 AGAGGCCCCC CAGGATCATT AAGACAATCG CCTCCAAGAC CCAGAGCATT AAGAAGTACA
3901 GCACAGACAT TCTGGGCAAC CTGTATGAAG TGAAATCTAA GAAGCACCCT CAGATCATCA
3961 AAAAGGGCAA AAGGCCGGCG GCCACGAAAA AGGCCGGCCA GGCAAAAAAG AAAAAGGGAT
4021 CCTACCCATA CGATGTTCCA GATTACGCTT ACCCATACGA TGTTCCAGAT TACGCTTACC
4081 CATACGATGT TCCAGATTAC GCTTAAGAAT TCCTAGAGCT CGCTGATCAG CCTCGACTGT
4141 GCCTTCTAGT TGCCAGCCAT CTGTTGTTTG CCCCTCCCCC GTGCCTTCCT TGACCCTGGA
4201 AGGTGCCACT CCCACTGTCC TTTCCTAATA AAATGAGGAA ATTGCATCGC ATTGTCTGAG
4261 TAGGTGTCAT TCTATTCTGG GGGGTGGGGT GGGGCAGGAC AGCAAGGGGG AGGATTGGGA
4321 AGAGAATAGC AGGCATGCTG GGGAGGTACC GAGGGCCTAT TTCCCATGAT TCCTTCATAT
4381 TTGCATATAC GATACAAGGC TGTTAGAGAG ATAATTGGAA TTAATTTGAC TGTAAACACA
4441 AAGATATTAG TACAAAATAC GTGACGTAGA AAGTAATAAT TTCTTGGGTA GTTTGCAGTT
4501 TTAAAATTAT GTTTTAAAAT GGACTATCAT ATGCTTACCG TAACTTGAAA GTATTTCGAT
4561 TTCTTGGCTT TATATATCTT GTGGAAAGGA CGAAACACCG GAGACCACGG CAGGTCTCAG
4621 TTTTAGTACT CTGGAAACAG AATCTACTAA AACAAGGCAA AATGCCGTGT TTATCTCGTC
4681 AACTTGTTGG CGAGATTTTT GCGGCCGCAG GAACCCCTAG TGATGGAGTT GGCCACTCCC
4741 TCTCTGCGCG CTCGCTCGCT CACTGAGGCC GGGCGACCAA AGGTCGCCCG ACGCCCGGGC
4801 TTTGCCCGGG CGGCCTCAGT GAGCGAGCGA GCGCGCAGCT GCCTGCAGGG GCGCCTGATG
4861 CGGTATTTTC TCCTTACGCA TCTGTGCGGT ATTTCACACC GCATACGTCA AAGCAACCAT
4921 AGTACGCGCC CTGTAGCGGC GCATTAAGCG CGGCGGGTGT GGTGGTTACG CGCAGCGTGA
4981 CCGCTACACT TGCCAGCGCC TTAGCGCCCG CTCCTTTCGC TTTCTTCCCT TCCTTTCTCG
5041 CCACGTTCGC CGGCTTTCCC CGTCAAGCTC TAAATCGGGG GCTCCCTTTA GGGTTCCGAT
5101 TTAGTGCTTT ACGGCACCTC GACCCCAAAA AACTTGATTT GGGTGATGGT TCACGTAGTG
5161 GGCCATCGCC CTGATAGACG GTTTTTCGCC CTTTGACGTT GGAGTCCACG TTCTTTAATA
5221 GTGGACTCTT GTTCCAAACT GGAACAACAC TCAACTCTAT CTCGGGCTAT TCTTTTGATT
5281 TATAAGGGAT TTTGCCGATT TCGGTCTATT GGTTAAAAAA TGAGCTGATT TAACAAAAAT
5341 TTAACGCGAA TTTTAACAAA ATATTAACGT TTACAATTTT ATGGTGCACT CTCAGTACAA
5401 TCTGCTCTGA TGCCGCATAG TTAAGCCAGC CCCGACACCC GCCAACACCC GCTGACGCGC
5461 CCTGACGGGC TTGTCTGCTC CCGGCATCCG CTTACAGACA AGCTGTGACC GTCTccggga
5521 gctgcatgtg tcagaggttt tcaccgtcat caccgaaacg cgcgagACGA AAGGGCCTCG
5581 TGATACGCCT ATTTTTATAG GTTAATGTCA TGATAATAAT GGTTTCTTAG ACGTCAGGTG
5641 GCACTTTTCG GGGAAATGTG CGCGGAACCC CTATTTGTTT ATTTTTCTAA ATACATTCAA
5701 ATATGTATCC GCTCATGAGA CAATAACCCT GATAAATGCT TCAATAATAT TGAAAAAGGA
5761 AGAGTATGAG TATTCAACAT TTCCGTGTCG CCCTTATTCC CTTTTTTGCG GCATTTTGCC
5821 TTCCTGTTTT TGCTCACCCA GAAACGCTGG TGAAAGTAAA AGATGCTGAA GATCAGTTGG
5881 GTGCACGAGT GGGTTACATC GAACTGGATC TCAACAGCGG TAAGATCCTT GAGAGTTTTC
5941 GCCCCGAAGA ACGTTTTCCA ATGATGAGCA CTTTTAAAGT TCTGCTATGT GGCGCGGTAT
6001 TATCCCGTAT TGACGCCGGG CAAGAGCAAC TCGGTCGCCG CATACACTAT TCTCAGAATG
6061 ACTTGGTTGA GTACTCACCA GTCACAGAAA AGCATCTTAC GGATGGCATG ACAGTAAGAG
6121 AATTATGCAG TGCTGCCATA ACCATGAGTG ATAACACTGC GGCCAACTTA CTTCTGACAA
6181 CGATCGGAGG ACCGAAGGAG CTAACCGCTT TTTTGCACAA CATGGGGGAT CATGTAACTC
6241 GCCTTGATCG TTGGGAACCG GAGCTGAATG AAGCCATACC AAACGACGAG CGTGACACCA
6301 CGATGCCTGT AGCAATGGCA ACAACGTTGC GCAAACTATT AACTGGCGAA CTACTTACTC
6361 TAGCTTCCCG GCAACAATTA ATAGACTGGA TGGAGGCGGA TAAAGTTGCA GGACCACTTC
6421 TGCGCTCGGC CCTTCCGGCT GGCTGGTTTA TTGCTGATAA ATCTGGAGCC GGTGAGCGTG
6481 GAAGCCGCGG TATCATTGCA GCACTGGGGC CAGATGGTAA GCCCTCCCGT ATCGTAGTTA
6541 TCTACACGAC GGGGAGTCAG GCAACTATGG ATGAACGAAA TAGACAGATC GCTGAGATAG
6601 GTGCCTCACT GATTAAGCAT TGGTAACTGT CAGACCAAGT TTACTCATAT ATACTTTAGA
6661 TTGATTTAAA ACTTCATTTT TAATTTAAAA GGATCTAGGT GAAGATCCTT TTTGATAATC
6721 TCATGACCAA AATCCCTTAA CGTGAGTTTT CGTTCCACTG AGCGTCAGAC CCCGTAGAAA
6781 AGATCAAAGG ATCTTCTTGA GATCCTTTTT TTCTGCGCGT AATCTGCTGC TTGCAAACAA
6841 AAAAACCACC GCTACCAGCG GTGGTTTGTT TGCCGGATCA AGAGCTACCA ACTCTTTTTC
6901 CGAAGGTAAC TGGCTTCAGC AGAGCGCAGA TACCAAATAC TGTTCTTCTA GTGTAGCCGT
6961 AGTTAGGCCA CCACTTCAAG AACTCTGTAG CACCGCCTAC ATACCTCGCT CTGCTAATCC
7021 TGTTACCAGT GGCTGCTGCC AGTGGCGATA AGTCGTGTCT TACCGGGTTG GACTCAAGAC
7081 GATAGTTACC GGATAAGGCG CAGCGGTCGG GCTGAACGGG GGGTTCGTGC ACACAGCCCA
7141 GCTTGGAGCG AACGACCTAC ACCGAACTGA GATACCTACA GCGTGAGCTA TGAGAAAGCG
7201 CCACGCTTCC CGAAGGGAGA AAGGCGGACA GGTATCCGGT AAGCGGCAGG GTCGGAACAG
7261 GAGAGCGCAC GAGGGAGCTT CCAGGGGGAA ACGCCTGGTA TCTTTATAGT CCTGTCGGGT
7321 TTCGCCACCT CTGACTTGAG CGTCGATTTT TGTGATGCTC GTCAGGGGGG CGGAGCCTAT
7381 GGAAAAACGC CAGCAACGCG GCCTTTTTAC GGTTCCTGGC CTTTTGCTGG CCTTTTGCTC
7441 ACATGT
//
