pLVX-TetOne

价格:4000元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-TetOne
质粒类型: 慢病毒载体;四环素调控系统载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: TRE3GS
载体大小: 8279 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记:
克隆菌株: Stbl3
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
备注: 慢病毒载体pLVX-TetOne是集调控与应答于一体的四环素诱导载体。
产品目录号: 631846
稳定性: 稳表达
组成型/诱导型: 诱导型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

pLVX-TetOne载体图谱

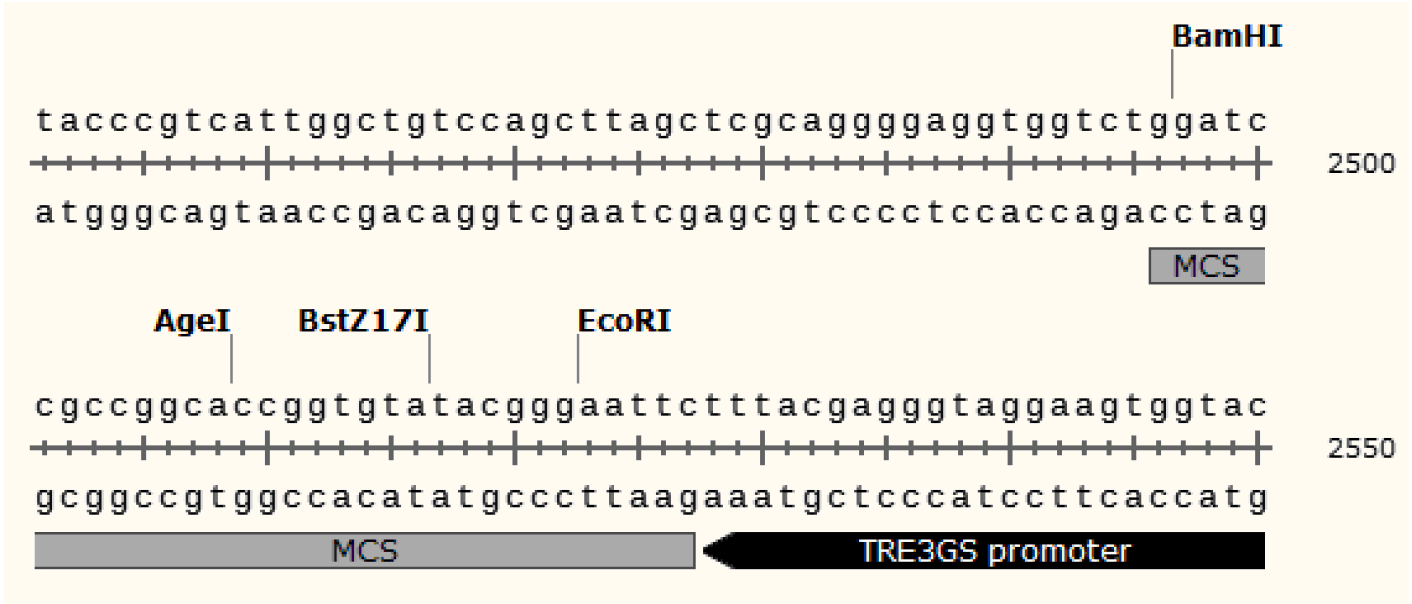

pLVX-TetOne 多克隆位点

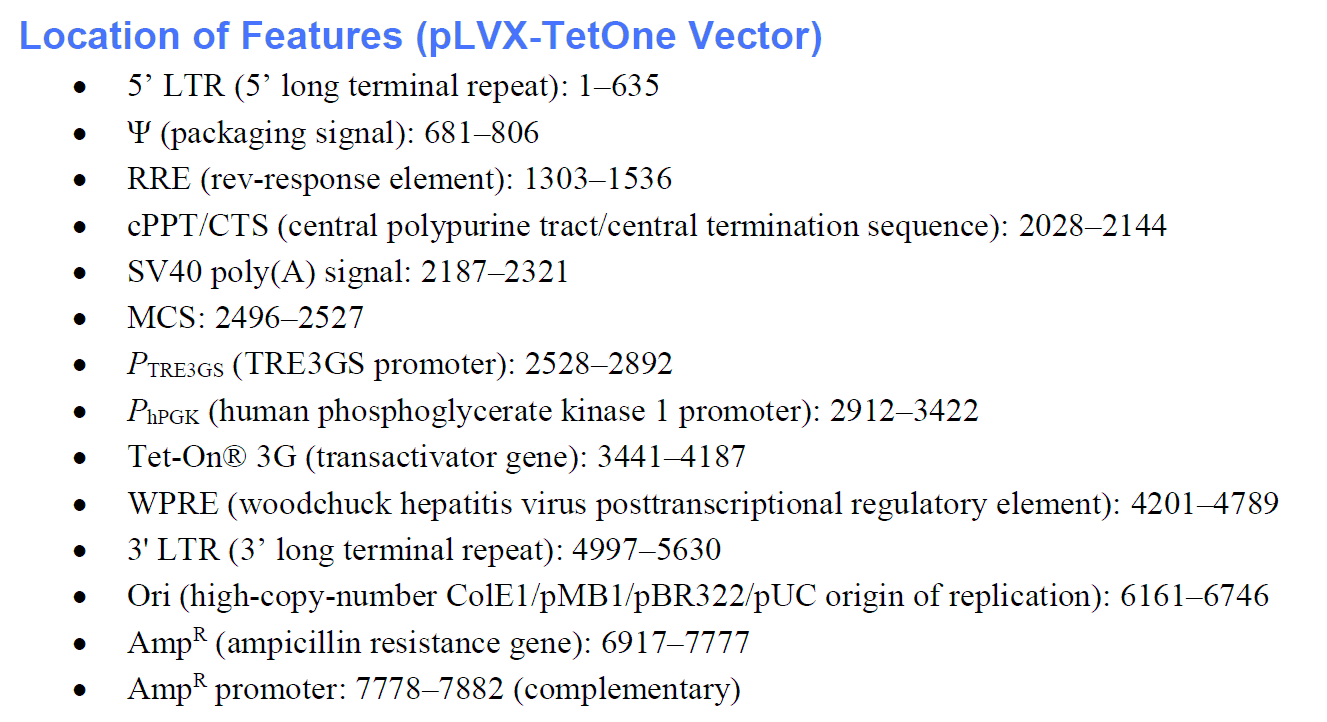

pLVX-TetOne 载体特征

载体简介

载体序列

LOCUS       pLVX-TetOne           8279 bp ds-DNA    circular DNA 11-JUL-2013
COMMENT     Created by Clontech Laboratories Inc. http://www.clontech.com
COMMENT     631844, 631845, 631846
FEATURES             Location/Qualifiers

     LTR             1..635
                     /label="5' LTR"
     misc_feature    681..806
                     /label="packaging signal"
     misc_feature    1303..1536
                     /label="RRE"
     misc_feature    2028..2144
                     /label="cPPT/CTS"
     polyA_signal    2187..2321
                     /label="SV40 polyA signal"
     misc_feature    complement(2496..2527)
                     /label="MCS"
     misc_feature    complement(2528..2892)
                     /label="TRE3GS promoter"
     promoter        2912..3422
                     /label="hPGK promoter"
     CDS             3441..4187
                     /label="Tet-On 3G"
     misc_feature    4201..4789
                     /label="WPRE"
     LTR             4997..5630
                     /label="3' LTR"
     rep_origin      complement(6161..6746)
                     /label="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6917..7777)
                     /label="AmpR"
     promoter        complement(7778..7882)
                     /label="AmpR promoter"
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga actacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgacttaact tgtttattgc agcttataat ggttacaaat
     2221 aaggcaatag catcacaaat ttcacaaata aggcattttt ttcactgcat tctagttttg
     2281 gtttgtccaa actcatcaat gtatcttatc atgtctggat ctcaaatccc tcggaagctg
     2341 cgcctgtctt aggttggagt gatacatttt tatcactttt acccgtcttt ggattaggca
     2401 gtagctctga cggccctcct gtcttaggtt agtgaaaaat gtcactctct tacccgtcat
     2461 tggctgtcca gcttagctcg caggggaggt ggtctggatc cgccggcacc ggtgtatacg
     2521 ggaattcttt acgagggtag gaagtggtac ggaaagttgg tataagacaa aagtgttgtg
     2581 gaattgaagt ttactcaaaa aatcagcact cttttatagg cgccctggtt tacataagca
     2641 aagcttatac gttctctatc actgataggg agtaaactgg atatacgttc tctatcactg
     2701 atagggagta aactgtagat acgttctcta tcactgatag ggagtaaact ggtcatacgt
     2761 tctctatcac tgatagggag taaactcctt atacgttctc tatcactgat agggagtaaa
     2821 gtctgcatac gttctctatc actgataggg agtaaactct tcatacgttc tctatcactg
     2881 atagggagta aactcgaggt gataattcca cggggttggg gttgcgcctt ttccaaggca
     2941 gccctgggtt tgcgcaggga cgcggctgct ctgggcgtgg ttccgggaaa cgcagcggcg
     3001 ccgaccctgg gtctcgcaca ttcttcacgt ccgttcgcag cgtcacccgg atcttcgccg
     3061 ctacccttgt gggccccccg gcgacgcttc ctgctccgcc cctaagtcgg gaaggttcct
     3121 tgcggttcgc ggcgtgccgg acgtgacaaa cggaagccgc acgtctcact agtaccctcg
     3181 cagacggaca gcgccaggga gcaatggcag cgcgccgacc gcgatgggct gtggccaata
     3241 gcggctgctc agcagggcgc gccgagagca gcggccggga aggggcggtg cgggaggcgg
     3301 ggtgtggggc ggtagtgtgg gccctgttcc tgcccgcgcg gtgttccgca ttctgcaagc
     3361 ctccggagcg cacgtcggca gtcggctccc tcgttgaccg aatcaccgac ctctctcccc
     3421 agggggatca tcgaattacc atgtctagac tggacaagag caaagtcata aactctgctc
     3481 tggaattact caatggagtc ggtatcgaag gcctgacgac aaggaaactc gctcaaaagc
     3541 tgggagttga gcagcctacc ctgtactggc acgtgaagaa caagcgggcc ctgctcgatg
     3601 ccctgccaat cgagatgctg gacaggcatc atacccactc ctgccccctg gaaggcgagt
     3661 catggcaaga ctttctgcgg aacaacgcca agtcataccg ctgtgctctc ctctcacatc
     3721 gcgacggggc taaagtgcat ctcggcaccc gcccaacaga gaaacagtac gaaaccctgg
     3781 aaaatcagct cgcgttcctg tgtcagcaag gcttctccct ggagaacgca ctgtacgctc
     3841 tgtccgccgt gggccacttt acactgggct gcgtattgga ggaacaggag catcaagtag
     3901 caaaagagga aagagagaca cctaccaccg attctatgcc cccacttctg aaacaagcaa
     3961 ttgagctgtt cgaccggcag ggagccgaac ctgccttcct tttcggcctg gaactaatca
     4021 tatgtggcct ggagaaacag ctaaagtgcg aaagcggcgg gccgaccgac gcccttgacg
     4081 attttgactt agacatgctc ccagccgatg cccttgacga ctttgacctt gatatgctgc
     4141 ctgctgacgc tcttgacgat tttgaccttg acatgctccc cgggtaaacg cgtctggaac
     4201 aatcaacctc tggattacaa aatttgtgaa agattgactg gtattcttaa ctatgttgct
     4261 ccttttacgc tatgtggata cgctgcttta atgcctttgt atcatgctat tgcttcccgt
     4321 atggctttca ttttctcctc cttgtataaa tcctggttgc tgtctcttta tgaggagttg
     4381 tggcccgttg tcaggcaacg tggcgtggtg tgcactgtgt ttgctgacgc aacccccact
     4441 ggttggggca ttgccaccac ctgtcagctc ctttccggga ctttcgcttt ccccctccct
     4501 attgccacgg cggaactcat cgccgcctgc cttgcccgct gctggacagg ggctcggctg
     4561 ttgggcactg acaattccgt ggtgttgtcg gggaagctga cgtcctttcc atggctgctc
     4621 gcctgtgttg ccacctggat tctgcgcggg acgtccttct gctacgtccc ttcggccctc
     4681 aatccagcgg accttccttc ccgcggcctg ctgccggctc tgcggcctct tccgcgtctt
     4741 cgccttcgcc ctcagacgag tcggatctcc ctttgggccg cctccccgcc tggaattaat
     4801 tctgcagtcg agacctagaa aaacatggag caatcacaag tagcaataca gcagctacca
     4861 atgctgattg tgcctggcta gaagcacaag aggaggagga ggtgggtttt tccagtcaca
     4921 cctcaggtac ctttaagacc aatgacttac aaggcagctg tagatcttag ccacttttta
     4981 aaagaaaaga ggggactgga agggctaatt cactcccaac gaagacaaga tatccttgat
     5041 ctgtggatct accacacaca aggctacttc cctgattagc agaactacac accagggcca
     5101 ggggtcagat atccactgac ctttggatgg tgctacaagc tagtaccagt tgagccagat
     5161 aaggtagaag aggccaataa aggagagaac accagcttgt tacaccctgt gagcctgcat
     5221 gggatggatg acccggagag agaagtgtta gagtggaggt ttgacagccg cctagcattt
     5281 catcacgtgg cccgagagct gcatccggag tacttcaaga actgctgata tcgagcttgc
     5341 tacaagggac tttccgctgg ggactttcca gggaggcgtg gcctgggcgg gactggggag
     5401 tggcgagccc tcagatcctg catataagca gctgcttttt gcctgtactg ggtctctctg
     5461 gttagaccag atctgagcct gggagctctc tggctaacta gggaacccac tgcttaagcc
     5521 tcaataaagc ttgccttgag tgcttcaagt agtgtgtgcc cgtctgttgt gtgactctgg
     5581 taactagaga tccctcagac ccttttagtc agtgtggaaa atctctagca gtagtagttc
     5641 atgtcatctt attattcagt atttataact tgcaaagaaa tgaatatcag agagtgagag
     5701 gccttgacat tgctagcgtt ttaccgtcga cctctagcta gagcttggcg taatcatggt
     5761 catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac atacgagccg
     5821 gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag ctaactcaca ttaattgcgt
     5881 tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat taatgaatcg
     5941 gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg
     6001 actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca aaggcggtaa
     6061 tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca aaaggccagc
     6121 aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg ctccgccccc
     6181 ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg acaggactat
     6241 aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc
     6301 cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt tctcatagct
     6361 cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg
     6421 aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc
     6481 cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt agcagagcga
     6541 ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc tacactagaa
     6601 gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa agagttggta
     6661 gctcttgatc cggcaaacaa accaccgctg gtagcggttt ttttgtttgc aagcagcaga
     6721 ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg gggtctgacg
     6781 ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca aaaaggatct
     6841 tcacctagat ccttttaaat taaaaatgaa gttttaaatc aatctaaagt atatatgagt
     6901 aaacttggtc tgacagttac caatgcttaa tcagtgaggc acctatctca gcgatctgtc
     6961 tatttcgttc atccatagtt gcctgactcc ccgtcgtgta gataactacg atacgggagg
     7021 gcttaccatc tggccccagt gctgcaatga taccgcgaga cccacgctca ccggctccag
     7081 atttatcagc aataaaccag ccagccggaa gggccgagcg cagaagtggt cctgcaactt
     7141 tatccgcctc catccagtct attaattgtt gccgggaagc tagagtaagt agttcgccag
     7201 ttaatagttt gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca cgctcgtcgt
     7261 ttggtatggc ttcattcagc tccggttccc aacgatcaag gcgagttaca tgatccccca
     7321 tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat cgttgtcaga agtaagttgg
     7381 ccgcagtgtt atcactcatg gttatggcag cactgcataa ttctcttact gtcatgccat
     7441 ccgtaagatg cttttctgtg actggtgagt actcaaccaa gtcattctga gaatagtgta
     7501 tgcggcgacc gagttgctct tgcccggcgt caatacggga taataccgcg ccacatagca
     7561 gaactttaaa agtgctcatc attggaaaac gttcttcggg gcgaaaactc tcaaggatct
     7621 taccgctgtt gagatccagt tcgatgtaac ccactcgtgc acccaactga tcttcagcat
     7681 cttttacttt caccagcgtt tctgggtgag caaaaacagg aaggcaaaat gccgcaaaaa
     7741 agggaataag ggcgacacgg aaatgttgaa tactcatact cttccttttt caatattatt
     7801 gaagcattta tcagggttat tgtctcatga gcggatacat atttgaatgt atttagaaaa
     7861 ataaacaaat aggggttccg cgcacatttc cccgaaaagt gccacctgac gtcgacggat
     7921 cgggagatca acttgtttat tgcagcttat aatggttaca aataaagcaa tagcatcaca
     7981 aatttcacaa ataaagcatt tttttcactg cattctagtt gtggtttgtc caaactcatc
     8041 aatgtatctt atcatgtctg gatcaactgg ataactcaag ctaaccaaaa tcatcccaaa
     8101 cttcccaccc cataccctat taccactgcc aattacctag tggtttcatt tactctaaac
     8161 ctgtgattcc tctgaattat tttcatttta aagaaattgt atttgttaaa tatgtactac
     8221 aaacttagta gtttttaaag aaattgtatt tgttaaatat gtactacaaa cttagtagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
