载体基本信息

出品公司: SIGMA
载体名称: p3XFLAG-CMV-9
质粒类型: 哺乳动物表达载体; 分泌表达载体
高拷贝/低拷贝: 低拷贝
克隆方法: 多克隆位点;限制性内切酶
启动子: CMV
载体大小: 6373 bp
5' 测序引物及序列: CMV Forward:CGCAAATGGGCGGTAGGCGTG
3' 测序引物及序列: --
载体标签: 3XFLAG tag (N-末端)
载体抗性: 氨苄青霉素
筛选标记: Neomycin
克隆菌株: --
宿主细胞(系): 常用细胞系,如293、Hela等
备注: p3XFLAG-CMV-9载体N端含有信号肽PPT,辅助目的蛋白分泌表达;
CMV启动子驱动目的蛋白高水平表达;
FLAG标签含8个氨基酸残基(DYKDDDDK),3XFLAG标签含22个氨基酸 残基,
一般位于融合蛋白的外表面,具有高度免疫灵敏性,便于检测和纯化目的蛋白;
用EK蛋白酶可将3XFLAG标签切除。
产品目录号: E9783
稳定性: 瞬表达 或 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

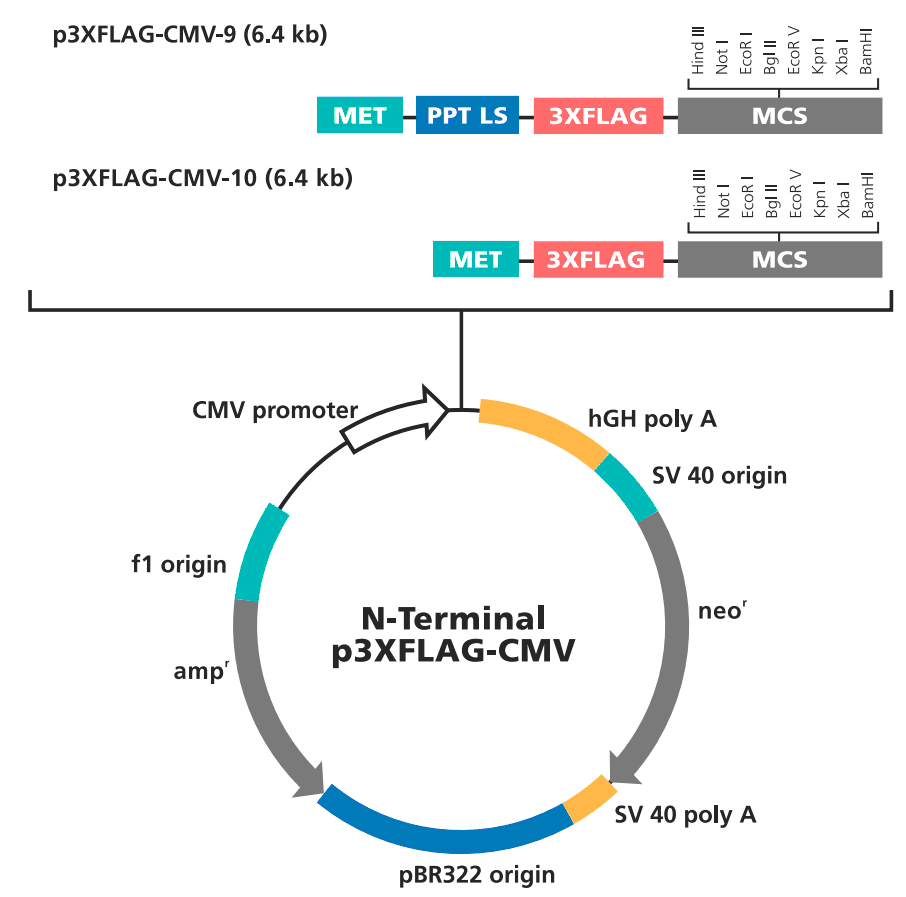

p3XFLAG-CMV-9载体图谱



p3XFLAG-CMV-9 多克隆位点

载体简介


FLAG 和 3xFLAG 标签:

A Proven System for Detection and Purification of Proteins The FLAG Expression System is an established way to express, purify and detect recombinant fusion proteins. FLAG and 3xFLAG have proven utility in numerous applications such as Western blotting, immunocytochemistry, immunoprecipitation, flow cytometry, protein purification, and in the study of protein-protein interactions, cell ultrastructure and protein localization. These small hydrophilic tags facilitate superior detection and purification of recombinant fusion proteins when using our highly specific and sensitive ANTI-FLAG antibodies. Ideal Epitope Tags: Small, Hydrophilic and Cleavable The FLAG expression system utilizes a short, hydrophilic 8-amino acid peptide that is fused to the recombinant protein of interest. Because of its hydrophilic nature, the FLAG peptide is likely to be located on the surface of the fusion protein. As a result, the FLAG peptide is easily accessible for cleavage by enterokinase (Ek) and for detection with antibodies. In addition, because of the small size of the FLAG peptide tag, it is not likely to obscure other epitopes, domains, or alter function, secretion, or transport of the fusion protein. The 3xFLAG system is an improvement upon the original system by fusing 3 tandem FLAG epitopes (22 amino acids). Detection of fusion proteins containing 3xFLAG is enhanced up to 200 times more than any other system. Like the original FLAG tag, 3xFLAG is hydrophilic, contains an Ek cleavage site, and is relatively small. Therefore, the risk of altering protein function, blocking other epitopes or decreasing solubility is minimized.
3xFLAG System Expression Vectors for Ultra-Sensitive

重组蛋白的检测

The 3xFLAG system is an improvement upon the original system by fusing 3 tandem FLAG epitopes for a total of 22 amino acids. Detection of fusion proteins containing 3xFLAG is enhanced up to 200 times more than any other system. Like the original FLAG tag, 3xFLAG is hydrophilic, contains an Enterokinase cleavage site, and is relatively small. Therefore, the risk of altering protein function, blocking other epitopes or decreasing solubility is minimized. In cases of low-level expression, 3xFLAG is ideal. Our selection of CMV vectors provides options for transient or stable expression of 3xFLAG fusion proteins.

Ultrasensitive System - Detect < 10 femtomoles using ANTI-FLAG Antibodies; Ideal for cases of low-level expression in mammalian cells.
Superior Detection - 20-200x more sensitive than any other system.
Versatile - Enhanced detection for immunoprecipitation, Western blots and immunocytochemistry.
Wide Selection of Detection and Purification Products - ANTI-FLAG antibodies, resins, and affinity capture plates.

CMV启动子:
Our mammalian expression vectors contain the strong CMV promoter for high-level constitutive expression in mammalian cells. The strong human cytomegalovirus (CMV) promoter regulatory region drives constitutive protein expression levels as high as 1 mg/L in COS cells. For less potent cell lines, protein levels are typically ~0.1 mg/L. The presence of the SV40 replication origin will result in high levels of DNA replication in SV40 replication permissive COS cells. Vectors containing the preprotrypsin leader (PPT) sequence direct secretion of FLAG fusion proteins into the culture medium for purification using ANTI-FLAG antibodies, resins, and plates.

载体介绍:

The p3XFLAG-CMV-9 Expression Vector is a 6.4 kb derivative of pCMV5 used to establish transient or stable expression of secreted N-terminal 3XFLAG fusion proteins in mammalian cells. The vector encodes three adjacent FLAG epitopes (Asp-Tyr-Lys-Xaa-Xaa- Asp) upstream of the multiple cloning region. This results in increased detection sensitivity using ANTIFLAG M2 antibody. The third epitope includes the enterokinase recognition sequence, allowing cleavage of the 3XFLAG peptide from the purified fusion protein.

p3XFLAG-CMV-9 expression vector is a shuttle vector for E. coli and mammalian cells. Efficiency of replication and genomic integration is optimal when using an SV40 T antigen expressing host, such as COS cells. A related vector, p3XFLAG-CMV-3, has been used for stable transfection of HEK 293 cells. Efficiency of replication and genomic integration is optimal when using an SV40 T antigen-expressing host.

The p3XFLAG-CMV-7-BAP Control Plasmid is a 6.2 kb derivative of pCMV5 used for transient intracellular expression of N-terminal 3XFLAG bacterial alkaline phosphatase fusion protein in mammalian cells. The vector encodes three adjacent FLAG epitopes (Asp-Tyr-Lys-Xaa-Xaa-Asp) upstream of the multiple cloning region. This results in increased detection sensitivity using ANTI-FLAG M2 antibody. The third FLAG epitope includes the enterokinase recognition sequence, allowing cleavage of the 3XFLAG peptide from the purified fusion protein.

The promoter-regulatory region of the human cytomegalovirus drives transcription of FLAG-fusion constructs. The preprotrypsin leader sequence precedes the FLAG sequence. The aminoglycoside phosphotransferase II gene (Neo-r) confers resistance to aminoglycosides such as G418 allowing for selection of stable transfectants.

载体序列

LOCUS       p3xFLAG-CMV-9	6373 bp 	DNA	SYN
DEFINITION  p3xFLAG-CMV-9
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6373
                     /organism="p3xFLAG-CMV?-9"
                     /mol_type="other DNA"
     misc_feature    complement(12..155)
                     /label="lacZ_a"
     misc_feature    126..148
                     /label="M13_pUC_fwd_primer"
     promoter        141..157
                     /label="M13_forward20_primer"
     promoter        319..895
                     /label="CMV_immearly_promoter"
     misc_feature    398..685
                     /label="CAG_enhancer"
     promoter        841..912
                     /label="CMV_promoter"
     misc_feature    852..872
                     /label="CMV_fwd_primer"
     misc_feature    896..915
                     /label="pCEP_fwd_primer"
     misc_feature    1038..1052
                     /label="EK"
     terminator      1124..1590
                     /label="hGH_PA_terminator"
     misc_feature    complement(1760..1780)
                     /label="pBABE_3_primer"
     misc_feature    complement(1766..1984)
                     /label="SV40_enhancer"
     promoter        1778..2047
                     /label="SV40_promoter"
     rep_origin      1960..2029
                     /label="SV40_origin"
     CDS             2130..2924
                     /label="ORF frame 3"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            2133..2921
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
                     PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
                     LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
                     EHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
                     QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(2439..2975)
                     /label="ORF frame 3"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     terminator      3579..3710
                     /label="SV40_PA_terminator"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     misc_feature    3667..3686
                     /label="EBV_rev_primer"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     promoter        complement(3716..3734)
                     /label="T7_promoter"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     misc_feature    complement(3761..3783)
                     /label="M13_pUC_rev_primer"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     promoter        complement(3797..3826)
                     /label="lac_promoter"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     gene            complement(4909..5769)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
                     VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
                     VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
                     PPHCISHDGYFLGRSKVR*"
     CDS             complement(4909..5769)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(5811..5839)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      5918..6241
                     /label="f1_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 CCATTCGCCA TTCAGGCTGC GCAACTGTTG GGAAGGGCGA TCGGTGCGGG CCTCTTCGCT
   61 ATTACGCCAG CTGGCGAAAG GGGGATGTGC TGCAAGGCGA TTAAGTTGGG TAACGCCAGG
  121 GTTTTCCCAG TCACGACGTT GTAAAACGAC GGCCAGTGCC AAGCTGATCT ATACATTGAA
  181 TCAATATTGG CAATTAGCCA TATTAGTCAT TGGTTATATA GCATAAATCA ATATTGGCTA
  241 TTGGCCATTG CATACGTTGT ATCTATATCA TAATATGTAC ATTTATATTG GCTCATGTCC
  301 AATATGACCG CCATGTTGAC ATTGATTATT GACTAGTTAT TAATAGTAAT CAATTACGGG
  361 GTCATTAGTT CATAGCCCAT ATATGGAGTT CCGCGTTACA TAACTTACGG TAAATGGCCC
  421 GCCTGGCTGA CCGCCCAACG ACCCCCGCCC ATTGACGTCA ATAATGACGT ATGTTCCCAT
  481 AGTAACGCCA ATAGGGACTT TCCATTGACG TCAATGGGTG GAGTATTTAC GGTAAACTGC
  541 CCACTTGGCA GTACATCAAG TGTATCATAT GCCAAGTCCG CCCCCTATTG ACGTCAATGA
  601 CGGTAAATGG CCCGCCTGGC ATTATGCCCA GTACATGACC TTACGGGACT TTCCTACTTG
  661 GCAGTACATC TACGTATTAG TCATCGCTAT TACCATGGTG ATGCGGTTTT GGCAGTACAC
  721 CAATGGGCGT GGATAGCGGT TTGACTCACG GGGATTTCCA AGTCTCCACC CCATTGACGT
  781 CAATGGGAGT TTGTTTTGGC ACCAAAATCA ACGGGACTTT CCAAAATGTC GTAATAACCC
  841 CGCCCCGTTG ACGCAAATGG GCGGTAGGCG TGTACGGTGG GAGGTCTATA TAAGCAGAGC
  901 TCGTTTAGTG AACCGTCAGA ATTAATTCAG ATCGATCTAC CATGTCTGCA CTTCTGATCC
  961 TAGCTCTTGT TGGAGCTGCA GTTGCTGACT ACAAAGACCA TGACGGTGAT TATAAAGATC
 1021 ATGACATCGA TTACAAGGAT GACGATGACA AGCTTGCGGC CGCGAATTCA TCGATAGATC
 1081 TGATATCGGT ACCAGTCGAC TCTAGAGGAT CCCGGGTGGC ATCCCTGTGA CCCCTCCCCA
 1141 GTGCCTCTCC TGGCCCTGGA AGTTGCCACT CCAGTGCCCA CCAGCCTTGT CCTAATAAAA
 1201 TTAAGTTGCA TCATTTTGTC TGACTAGGTG TCCTTCTATA ATATTATGGG GTGGAGGGGG
 1261 GTGGTATGGA GCAAGGGGCA AGTTGGGAAG ACAACCTGTA GGGCCTGCGG GGTCTATTGG
 1321 GAACCAAGCT GGAGTGCAGT GGCACAATCT TGGCTCACTG CAATCTCCGC CTCCTGGGTT
 1381 CAAGCGATTC TCCTGCCTCA GCCTCCCGAG TTGTTGGGAT TCCAGGCATG CATGACCAGG
 1441 CTCAGCTAAT TTTTGTTTTT TTGGTAGAGA CGGGGTTTCA CCATATTGGC CAGGCTGGTC
 1501 TCCAACTCCT AATCTCAGGT GATCTACCCA CCTTGGCCTC CCAAATTGCT GGGATTACAG
 1561 GCGTGAACCA CTGCTCCCTT CCCTGTCCTT CTGATTTTAA AATAACTATA CCAGCAGGAG
 1621 GACGTCCAGA CACAGCATAG GCTACCTGGC CATGCCCAAC CGGTGGGACA TTTGAGTTGC
 1681 TTGCTTGGCA CTGTCCTCTC ATGCGTTGGG TCCACTCAGT AGATGCCTGT TGAATTGGGT
 1741 ACGCGGCCAG CTTGGCTGTG GAATGTGTGT CAGTTAGGGT GTGGAAAGTC CCCAGGCTCC
 1801 CCAGCAGGCA GAAGTATGCA AAGCATGCAT CTCAATTAGT CAGCAACCAG GTGTGGAAAG
 1861 TCCCCAGGCT CCCCAGCAGG CAGAAGTATG CAAAGCATGC ATCTCAATTA GTCAGCAACC
 1921 ATAGTCCCGC CCCTAACTCC GCCCATCCCG CCTCCGCTAA CTCCGCCCAG TTCCGCCCAT
 1981 TCTCCGCCCC ATGGCTGACT AATTTTTTTT ATTTATGCAG GCCGAGGCCG CCTCGGCCTC
 2041 TGAGCTATTC CAGAAGTAGT GAGGAGGCTT TTTTGGAGGA ATTGATCAGC TTGGGATCTG
 2101 ATCAAGAGAC AGGATGAGGA TCGTTTCGCA TGATTGAACA AGATGGATTG CACGCAGGTT
 2161 CTCCGGCCGC TTGGGTGGAG AGGCTATTCG GCTATGACTG GGCACAACAG ACAATCGGCT
 2221 GCTCTGATGC CGCCGTGTTC CGGCTGTCAG CGCAGGGGCG CCCGGTTCTT TTTGTCAAGA
 2281 CCGACCTGTC CGGTGCCCTG AATGAACTGC AGGACGAGGC AGCGCGGCTA TCGTGGCTGG
 2341 CCACGACGGG CGTTCCTTGC GCAGCTGTGC TCGACGTTGT CACTGAAGCG GGAAGGGACT
 2401 GGCTGCTATT GGGCGAAGTG CCGGGGCAGG ATCTCCTGTC ATCTCACCTT GCTCCTGCCG
 2461 AGAAAGTATC CATCATGGCT GATGCAATGC GGCGGCTGCA TACGCTTGAT CCGGCTACCT
 2521 GCCCATTCGA CCACCAAGCG AAACATCGCA TCGAGCGAGC ACGTACTCGG ATGGAAGCCG
 2581 GTCTTGTCGA TCAGGATGAT CTGGACGAAG AGCATCAGGG GCTCGCGCCA GCCGAACTGT
 2641 TCGCCAGGCT CAAGGCGCGC ATGCCCGACG GCGAGGATCT CGTCGTGACC CATGGCGATG
 2701 CCTGCTTGCC GAATATCATG GTGGAAAATG GCCGCTTTTC TGGATTCATC GACTGTGGCC
 2761 GGCTGGGTGT GGCGGACCGC TATCAGGACA TAGCGTTGGC TACCCGTGAT ATTGCTGAAG
 2821 AGCTTGGCGG CGAATGGGCT GACCGCTTCC TCGTGCTTTA CGGTATCGCC GCTCCCGATT
 2881 CGCAGCGCAT CGCCTTCTAT CGCCTTCTTG ACGAGTTCTT CTGAGCGGGA CTCTGGGGTT
 2941 CGAAATGACC GACCAAGCGA CGCCCAACCT GCCATCACGA GATTTCGATT CCACCGCCGC
 3001 CTTCTATGAA AGGTTGGGCT TCGGAATCGT TTTCCGGGAC GCCGGCTGGA TGATCCTCCA
 3061 GCGCGGGGAT CTCATGCTGG AGTTCTTCGC CCACCCCGGG CTCGATCCCC TCGCGAGTTG
 3121 GTTCAGCTGC TGCCTGAGGC TGGACGACCT CGCGGAGTTC TACCGGCAGT GCAAATCCGT
 3181 CGGCATCCAG GAAACCAGCA GCGGCTATCC GCGCATCCAT GCCCCCGAAC TGCAGGAGTG
 3241 GGGAGGCACG ATGGCCGCTT TGGTCGACCC GGACGGGACG CTCCTGCGCC TGATACAGAA
 3301 CGAATTGCTT GCAGGCATCT CATGAGTGTG TCTTCCCGTT TTCCGCCTGA GGTCACTGCG
 3361 TGGATGGAGC GCTGGCGCCT GCTGCGCGAC GGCGAGCTGC TCACCACCCA CTCGCCAAGC
 3421 TGGAACCGTA AAAAGGCCGC GTTGCTGGCG TTTTTCCATA GGCTCCGCCG ATCATAATCA
 3481 GCCATACCAC ATTTGTAGAG GTTTTACTTG CTTTAAAAAA CCTCCCACAC CTCCCCCTGA
 3541 ACCTGAAACA TAAAATGAAT GCAATTGTTG TTGTTAACTT GTTTATTGCA GCTTATAATG
 3601 GTTACAAATA AAGCAATAGC ATCACAAATT TCACAAATAA AGCATTTTTT TCACTGCATT
 3661 CTAGTTGTGG TTTGTCCAAA CTCATCAATG TATCTTATCA TGTCTGGATC AATTCCCTAT
 3721 AGTGAGTCGT ATTAAATTCG TAATCATGTC ATAGCTGTTT CCTGTGTGAA ATTGTTATCC
 3781 GCTCACAATT CCACACAACA TACGAGCCGG AAGCATAAAG TGTAAAGCCT GGGGTGCCTA
 3841 ATGAGTGAGC TAACTCACAT TAATTGCGTT GCGCTCACTG CCCGCTTTCC AGTCGGGAAA
 3901 CCTGTCGTGC CAGCTGCATT AATGAATCGG CCAACGCGCG GGGAGAGGCG GTTTGCGTAT
 3961 TGGGCGCTCT TCCGCTTCCT CGCTCACTGA CTCGCTGCGC TCGGTCGTTC GGCTGCGGCG
 4021 AGCGGTATCA GCTCACTCAA AGGCGGTAAT ACGGTTATCC ACAGAATCAG GGGATAACGC
 4081 AGGAAAGAAC ATGTGAGCAA AAGGCCAGCA AAAGGCCAGG AACCGTAAAA AGGCCGCGTT
 4141 GCTGGCGTTT TTCCATAGGC TCCGCCCCCC TGACGAGCAT CACAAAAATC GACGCTCAAG
 4201 TCAGAGGTGG CGAAACCCGA CAGGACTATA AAGATACCAG GCGTTTCCCC CTGGAAGCTC
 4261 CCTCGTGCGC TCTCCTGTTC CGACCCTGCC GCTTACCGGA TACCTGTCCG CCTTTCTCCC
 4321 TTCGGGAAGC GTGGCGCTTT CTCATAGCTC ACGCTGTAGG TATCTCAGTT CGGTGTAGGT
 4381 CGTTCGCTCC AAGCTGGGCT GTGTGCACGA ACCCCCCGTT CAGCCCGACC GCTGCGCCTT
 4441 ATCCGGTAAC TATCGTCTTG AGTCCAACCC GGTAAGACAC GACTTATCGC CACTGGCAGC
 4501 AGCCACTGGT AACAGGATTA GCAGAGCGAG GTATGTAGGC GGTGCTACAG AGTTCTTGAA
 4561 GTGGTGGCCT AACTACGGCT ACACTAGAAG AACAGTATTT GGTATCTGCG CTCTGCTGAA
 4621 GCCAGTTACC TTCGGAAAAA GAGTTGGTAG CTCTTGATCC GGCAAACAAA CCACCGCTGG
 4681 TAGCGGTGGT TTTTTTGTTT GCAAGCAGCA GATTACGCGC AGAAAAAAAG GATCTCAAGA
 4741 AGATCCTTTG ATCTTTTCTA CGGGGTCTGA CGCTCAGTGG AACGAAAACT CACGTTAAGG
 4801 GATTTTGGTC ATGAGATTAT CAAAAAGGAT CTTCACCTAG ATCCTTTTAA ATTAAAAATG
 4861 AAGTTTTAAA TCAATCTAAA GTATATATGA GTAAACTTGG TCTGACAGTT ACCAATGCTT
 4921 AATCAGTGAG GCACCTATCT CAGCGATCTG TCTATTTCGT TCATCCATAG TTGCCTGACT
 4981 CCCCGTCGTG TAGATAACTA CGATACGGGA GGGCTTACCA TCTGGCCCCA GTGCTGCAAT
 5041 GATACCGCGA GACCCACGCT CACCGGCTCC AGATTTATCA GCAATAAACC AGCCAGCCGG
 5101 AAGGGCCGAG CGCAGAAGTG GTCCTGCAAC TTTATCCGCC TCCATCCAGT CTATTAATTG
 5161 TTGCCGGGAA GCTAGAGTAA GTAGTTCGCC AGTTAATAGT TTGCGCAACG TTGTTGCCAT
 5221 TGCTACAGGC ATCGTGGTGT CACGCTCGTC GTTTGGTATG GCTTCATTCA GCTCCGGTTC
 5281 CCAACGATCA AGGCGAGTTA CATGATCCCC CATGTTGTGC AAAAAAGCGG TTAGCTCCTT
 5341 CGGTCCTCCG ATCGTTGTCA GAAGTAAGTT GGCCGCAGTG TTATCACTCA TGGTTATGGC
 5401 AGCACTGCAT AATTCTCTTA CTGTCATGCC ATCCGTAAGA TGCTTTTCTG TGACTGGTGA
 5461 GTACTCAACC AAGTCATTCT GAGAATAGTG TATGCGGCGA CCGAGTTGCT CTTGCCCGGC
 5521 GTCAATACGG GATAATACCG CGCCACATAG CAGAACTTTA AAAGTGCTCA TCATTGGAAA
 5581 ACGTTCTTCG GGGCGAAAAC TCTCAAGGAT CTTACCGCTG TTGAGATCCA GTTCGATGTA
 5641 ACCCACTCGT GCACCCAACT GATCTTCAGC ATCTTTTACT TTCACCAGCG TTTCTGGGTG
 5701 AGCAAAAACA GGAAGGCAAA ATGCCGCAAA AAAGGGAATA AGGGCGACAC GGAAATGTTG
 5761 AATACTCATA CTCTTCCTTT TTCAATATTA TTGAAGCATT TATCAGGGTT ATTGTCTCAT
 5821 GAGCGGATAC ATATTTGAAT GTATTTAGAA AAATAAACAA ATAGGGGTTC CGCGCACATT
 5881 TCCCCGAAAA GTGCCACCTG ACGCGCCCTG TAGCGGCGCA TTAAGCGCGG CGGGTGTGGT
 5941 GGTTACGCGC AGCGTGACCG CTACACTTGC CAGCGCCCTA GCGCCCGCTC CTTTCGCTTT
 6001 CTTCCCTTCC TTTCTCGCCA CGTTCGCCGG CTTTCCCCGT CAAGCTCTAA ATCGGGGGCT
 6061 CCCTTTAGGG TTCCGATTTA GTGCTTTACG GCACCTCGAC CCCAAAAAAC TTGATTAGGG
 6121 TGATGGTTCA CGTAGTGGGC CATCGCCCTG ATAGACGGTT TTTCGCCCTT TGACGTTGGA
 6181 GTCCACGTTC TTTAAGAGTC CACTATTAAA GAACGTGGAC TCTTGTTCCA AACTGGAACA
 6241 ACACTCAACC CTATCTCGGT CTATTCTTTT GATTTATAAG GGATTTTGCC GATTTCGGCC
 6301 TATTGGTTAA AAAATGAGCT GATTTAACAA AAATTTAACG CGAATTTTAA CAAAATATTA
 6361 ACGCTTACAA TTT
//


载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
