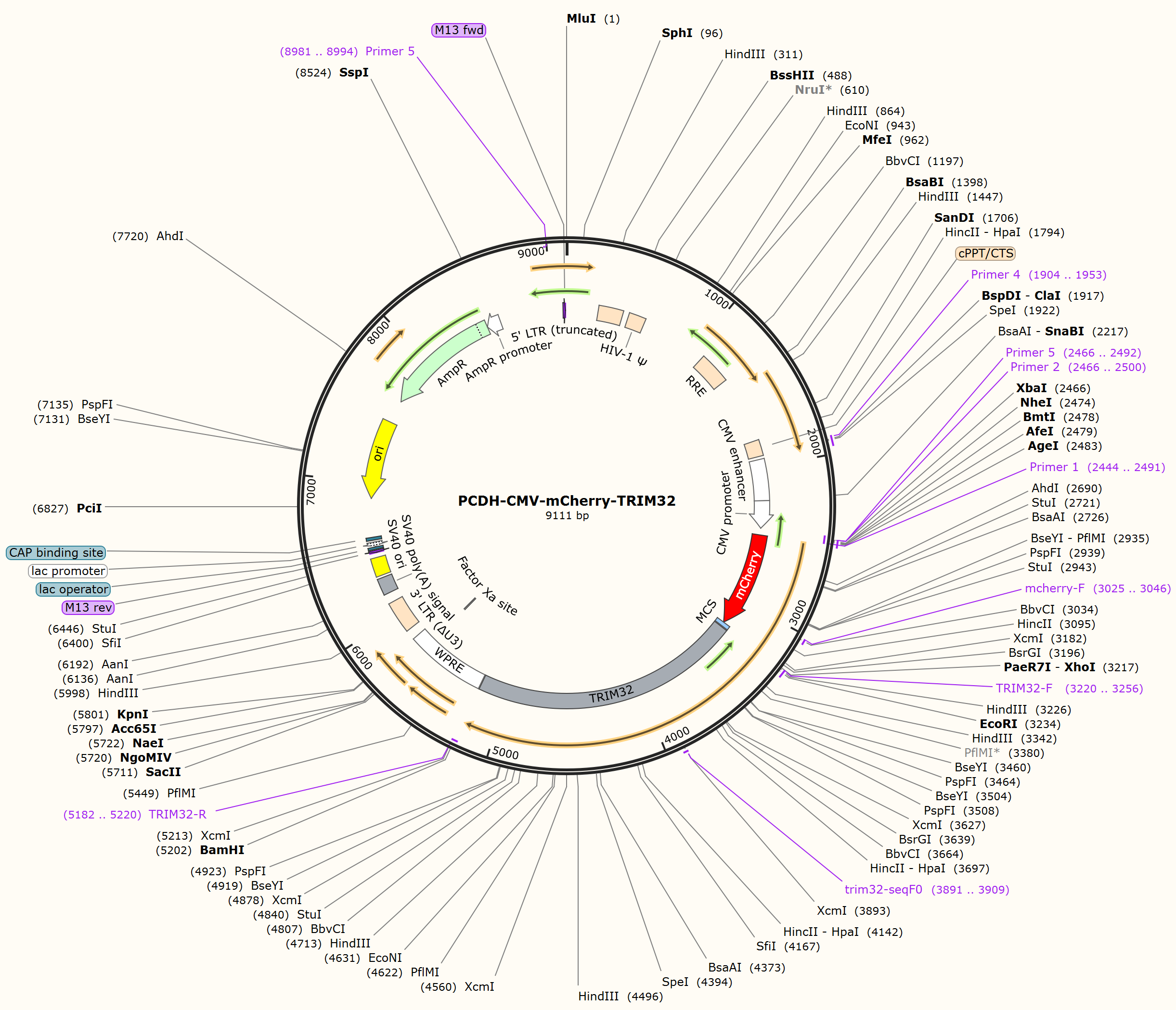

PCDH-CMV-mCherry-TRIM32

LOCUS       PCDH-CMV-mCherry-TRIM32               9111 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9111)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 7, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..9111
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3220..3256
                     /label=TRIM32-F
     misc_feature    3240..5201
                     /label=TRIM32
     primer_bind     3891..3909
                     /label=trim32-seqF0
     primer_bind     complement(5182..5220)
                     /label=TRIM32-R
     misc_feature    5208..5795
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5679..5690)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5868..6101
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    6173..6294
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      6313..6448
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6486..6502)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6510..6526
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6534..6564)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6579..6600
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6888..7476)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7647..8507)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8508..8612)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8981..8994)
                     /label=Primer 5
     primer_bind     9086..9102
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggctgcagc agcagcttct cacctgaacc tggatgccct ccgggaagtg ctagaatgcc
     3301 ccatctgcat ggagtccttc acagaagagc agctgcgtcc caagcttctg cactgtggcc
     3361 ataccatctg ccgccagtgc ctggagaagc tattggccag tagcatcaat ggtgtccgct
     3421 gtcccttttg cagcaagatt acccgcataa ccagcttgac ccagctgaca gacaatctga
     3481 cagtgctaaa gatcattgat acagctgggc tcagcgaggc tgtggggctg ctcatgtgtc
     3541 ggtcctgtgg gcggcgtctg ccccggcaat tctgccggag ctgtggtttg gtgttatgtg
     3601 agccctgccg ggaggcagac catcagcctc ctggccactg tacactccct gtcaaagaag
     3661 cagctgagga gcggcgtcgg gactttggag agaagttaac tcgtctgcgg gaacttatgg
     3721 gggagctgca gcggcggaag gcagccttgg aaggtgtctc caaggacctt caggcaaggt
     3781 ataaagcagt tctccaggag tatgggcatg aggagcgcag ggtccaggat gagctggctc
     3841 gctctcggaa gttcttcaca ggctctttgg ctgaagttga gaagtccaat agtcaagtgg
     3901 tagaggagca gagttacctg cttaacattg cagaggtgca ggctgtgtct cgctgtgact
     3961 acttcctggc caagatcaag caggcagatg tagcactact ggaggagaca gctgatgagg
     4021 aggagccaga gctcactgcc agcttgcctc gggagctcac cctgcaagat gtggagctcc
     4081 ttaaggtagg tcatgttggc cccctccaaa ttggacaagc tgttaagaag ccccggacag
     4141 ttaacgtgga agattcctgg gccatggagg ccacagcgtc tgctgcctct acctctgtta
     4201 cttttagaga gatggacatg agcccggagg aagtggttgc cagccctagg gcctcacctg
     4261 ctaaacagcg gggtcctgag gcagcctcca atatccagca gtgcctcttt ctcaagaaga
     4321 tgggggccaa aggcagcact ccaggaatgt tcaatcttcc agtcagtctc tacgtgacca
     4381 gtcaaggtga agtactagtc gctgaccgtg gtaactatcg tatacaagtc tttacccgca
     4441 aaggcttttt gaaggaaatc cgccgcagcc ccagtggcat tgatagcttt gtgctaagct
     4501 tccttggggc agatctaccc aacctcactc ctctctcagt ggcaatgaac tgccaggggc
     4561 tgattggtgt gactgacagc tatgataact ccctcaaggt atataccttg gatggccact
     4621 gcgtggcctg tcacaggagc cagctgagca aaccatgggg tatcacagcc ttgccatctg
     4681 gccagtttgt agtaaccgat gtggaaggtg gaaagctttg gtgtttcaca gttgatcgag
     4741 gatcaggggt ggtcaaatac agctgcctat gtagtgctgt gcggcccaaa tttgtcacct
     4801 gtgatgctga gggcaccgtc tacttcaccc agggcttagg cctcaatctg gagaatcggc
     4861 agaatgagca ccacctggag ggtggctttt ccattggctc tgtaggccct gatgggcagc
     4921 tgggtcgcca gattagccac ttcttctcgg agaatgagga tttccgctgc attgctggca
     4981 tgtgtgtgga tgctcgtggt gatctcatcg tggctgacag tagtcgcaag gaaattctcc
     5041 attttcctaa gggtgggggc tatagtgtcc ttattcgaga gggacttacc tgtccggtgg
     5101 gcatagccct aactcctaag gggcagctgc tggtcttgga ctgttgggat cattgcatca
     5161 agatctacag ctaccatctg agaagatatt ccaccccata gggatccaat caacctctgg
     5221 attacaaaat ttgtgaaaga ttgactggta ttcttaacta tgttgctcct tttacgctat
     5281 gtggatacgc tgctttaatg cctttgtatc atgctattgc ttcccgtatg gctttcattt
     5341 tctcctcctt gtataaatcc tggttgctgt ctctttatga ggagttgtgg cccgttgtca
     5401 ggcaacgtgg cgtggtgtgc actgtgtttg ctgacgcaac ccccactggt tggggcattg
     5461 ccaccacctg tcagctcctt tccgggactt tcgctttccc cctccctatt gccacggcgg
     5521 aactcatcgc cgcctgcctt gcccgctgct ggacaggggc tcggctgttg ggcactgaca
     5581 attccgtggt gttgtcgggg aagctgacgt cctttccatg gctgctcgcc tgtgttgcca
     5641 cctggattct gcgcgggacg tccttctgct acgtcccttc ggccctcaat ccagcggacc
     5701 ttccttcccg cggcctgctg ccggctctgc ggcctcttcc gcgtctccgc cttcgccctc
     5761 agacgagtcg gatctccctt tggccgcctc cccgccggta cctttaagac caatgactta
     5821 caaggcagct gtagatctta gccacttttt aaaagaaaag gggggactgg aagggctaat
     5881 tcactcccaa cgaaaataag atctgctttt tgcttgtact gggtctctct ggttagacca
     5941 gatctgagcc tgggagctct ctggctaact agggaaccca ctgcttaagc ctcaataaag
     6001 cttgccttga gtgcttcaag tagtgtgtgc ccgtctgttg tgtgactctg gtaactagag
     6061 atccctcaga cccttttagt cagtgtggaa aatctctagc agtagtagtt catgtcatct
     6121 tattattcag tatttataac ttgcaaagaa atgaatatca gagagtgaga ggaacttgtt
     6181 tattgcagct tataatggtt acaaataaag caatagcatc acaaatttca caaataaagc
     6241 atttttttca ctgcattcta gttgtggttt gtccaaactc atcaatgtat cttatcatgt
     6301 ctggctctag ctatcccgcc cctaactccg cccagttccg cccattctcc gccccatggc
     6361 tgactaattt tttttattta tgcagaggcc gaggccgcct cggcctctga gctattccag
     6421 aagtagtgag gaggcttttt tggaggccta gacttttgca gagacggccc aaattcgtaa
     6481 tcatggtcat agctgtttcc tgtgtgaaat tgttatccgc tcacaattcc acacaacata
     6541 cgagccggaa gcataaagtg taaagcctgg ggtgcctaat gagtgagcta actcacatta
     6601 attgcgttgc gctcactgcc cgctttccag tcgggaaacc tgtcgtgcca gctgcattaa
     6661 tgaatcggcc aacgcgcggg gagaggcggt ttgcgtattg ggcgctcttc cgcttcctcg
     6721 ctcactgact cgctgcgctc ggtcgttcgg ctgcggcgag cggtatcagc tcactcaaag
     6781 gcggtaatac ggttatccac agaatcaggg gataacgcag gaaagaacat gtgagcaaaa
     6841 ggccagcaaa aggccaggaa ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc
     6901 cgcccccctg acgagcatca caaaaatcga cgctcaagtc agaggtggcg aaacccgaca
     6961 ggactataaa gataccaggc gtttccccct ggaagctccc tcgtgcgctc tcctgttccg
     7021 accctgccgc ttaccggata cctgtccgcc tttctccctt cgggaagcgt ggcgctttct
     7081 catagctcac gctgtaggta tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt
     7141 gtgcacgaac cccccgttca gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag
     7201 tccaacccgg taagacacga cttatcgcca ctggcagcag ccactggtaa caggattagc
     7261 agagcgaggt atgtaggcgg tgctacagag ttcttgaagt ggtggcctaa ctacggctac
     7321 actagaagga cagtatttgg tatctgcgct ctgctgaagc cagttacctt cggaaaaaga
     7381 gttggtagct cttgatccgg caaacaaacc accgctggta gcggtggttt ttttgtttgc
     7441 aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg
     7501 gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca
     7561 aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc aatctaaagt
     7621 atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc acctatctca
     7681 gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta gataactacg
     7741 atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga cccacgctca
     7801 ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg cagaagtggt
     7861 cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc tagagtaagt
     7921 agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca
     7981 cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag gcgagttaca
     8041 tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat cgttgtcaga
     8101 agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa ttctcttact
     8161 gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa gtcattctga
     8221 gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga taataccgcg
     8281 ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg gcgaaaactc
     8341 tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc acccaactga
     8401 tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg aaggcaaaat
     8461 gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact cttccttttt
     8521 caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat atttgaatgt
     8581 atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt gccacctgac
     8641 gtctaagaaa ccattattat catgacatta acctataaaa ataggcgtat cacgaggccc
     8701 tttcgtctcg cgcgtttcgg tgatgacggt gaaaacctct gacacatgca gctcccggag
     8761 acggtcacag cttgtctgta agcggatgcc gggagcagac aagcccgtca gggcgcgtca
     8821 gcgggtgttg gcgggtgtcg gggctggctt aactatgcgg catcagagca gattgtactg
     8881 agagtgcacc atatgcggtg tgaaataccg cacagatgcg taaggagaaa ataccgcatc
     8941 aggcgccatt cgccattcag gctgcgcaac tgttgggaag ggcgatcggt gcgggcctct
     9001 tcgctattac gccagctggc gaaaggggga tgtgctgcaa ggcgattaag ttgggtaacg
     9061 ccagggtttt cccagtcacg acgttgtaaa acgacggcca gtgccaagct g
//
