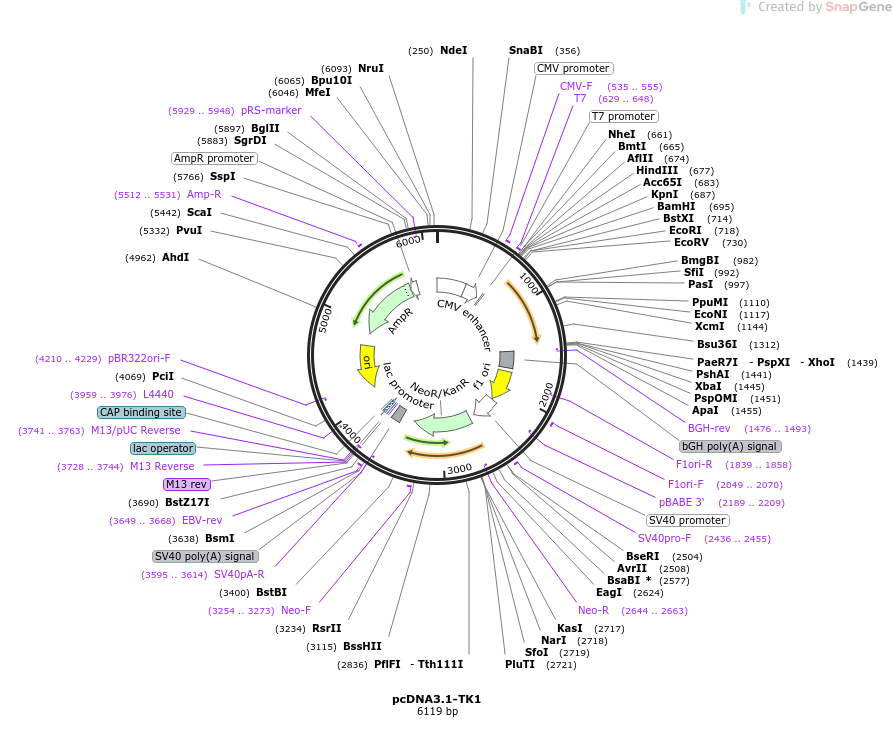

pcDNA3.1-TK1

LOCUS       pcDNA3.1-TK1        6119 bp DNA     circular SYN 25-AUG-2024
DEFINITION  mammalian expression of thymidine kinase 1  .
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6119)
  AUTHORS   Yeh HW, Lee SS, Chang CY, Hu CM, Jou YS
  TITLE     Pyrimidine metabolic rate limiting enzymes in poorly-differentiated
            hepatocellular carcinoma are signature genes of cancer stemness and
            associated with poor prognosis.
  JOURNAL   Oncotarget. 2017 Sep 8;8(44):77734-77751. doi:
            10.18632/oncotarget.20774. eCollection 2017 Sep 29.
  PUBMED    29100421
REFERENCE   2  (bases 1 to 6119)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 25, 2024 from SnapGene Server 7.0.3
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; doi:
            "10.18632/oncotarget.20774"; journalName: "Oncotarget"; date:
            "2017-09-8- 8"; volume: "8"; issue: "44"; pages: "77734-77751"
FEATURES             Location/Qualifiers
     source          1..6119
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        1..380
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        381..584
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     535..555
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     629..648
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        629..647
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(1476..1493)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    1482..1706
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      1752..2180
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1839..1858)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     2049..2070
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(2189..2209)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        2194..2523
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2374..2509
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2436..2455
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2590..3384
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2644..2663)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3254..3273
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    3558..3679
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3595..3614)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3649..3668
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3728..3744)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3728..3744)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3741..3763)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3752..3768
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3776..3806)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3821..3842
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(3959..3976)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4130..4718)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4210..4229)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4889..5749)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5512..5531
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5750..5854)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(5929..5948)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
ORIGIN
        1 gacattgatt attgactagt tattaatagt aatcaattac ggggtcatta gttcatagcc
       61 catatatgga gttccgcgtt acataactta cggtaaatgg cccgcctggc tgaccgccca
      121 acgacccccg cccattgacg tcaataatga cgtatgttcc catagtaacg ccaataggga
      181 ctttccattg acgtcaatgg gtggagtatt tacggtaaac tgcccacttg gcagtacatc
      241 aagtgtatca tatgccaagt acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct
      301 ggcattatgc ccagtacatg accttatggg actttcctac ttggcagtac atctacgtat
      361 tagtcatcgc tattaccatg gtgatgcggt tttggcagta catcaatggg cgtggatagc
      421 ggtttgactc acggggattt ccaagtctcc accccattga cgtcaatggg agtttgtttt
      481 ggcaccaaaa tcaacgggac tttccaaaat gtcgtaacaa ctccgcccca ttgacgcaaa
      541 tgggcggtag gcgtgtacgg tgggaggtct atataagcag agctctctgg ctaactagag
      601 aacccactgc ttactggctt atcgaaatta atacgactca ctatagggag acccaagctg
      661 gctagcgttt aaacttaagc ttggtaccga gctcggatcc actagtccag tgtggtggaa
      721 ttctgcagat atcatgagct gcattaacct gcccactgtg ctgcccggct cccccagcaa
      781 gacccggggg cagatccagg tgattctcgg gccgatgttc tcaggaaaaa gcacagagtt
      841 gatgagacgc gtccgtcgct tccagattgc tcagtacaag tgcctggtga tcaagtatgc
      901 caaagacact cgctacagca gcagcttctg cacacatgac cggaacacca tggaggcgct
      961 gcccgcctgc ctgctccgag acgtggccca ggaggccctg ggcgtggctg tcataggcat
     1021 cgacgagggg cagtttttcc ctgacatcgt ggagttctgc gaggccatgg ccaacgccgg
     1081 gaagaccgta attgtggctg cactggatgg gaccttccag aggaagccat ttggggccat
     1141 cctgaacctg gtgccgctgg ccgagagcgt ggtgaagctg acggcggtgt gcatggagtg
     1201 cttccgggaa gccgcctata ccaagaggct cggcacagag aaggaggtcg aggtgattgg
     1261 gggagcagac aagtaccact ccgtgtgtcg gctctgctac ttcaagaagg cctcaggcca
     1321 gcctgccggg ccggacaaca aagagaactg cccagtgcca ggaaagccag gggaagccgt
     1381 ggctgccagg aagctctttg ccccacagca gattctgcaa tgcagccctg ccaactgact
     1441 cgagtctaga gggcccgttt aaacccgctg atcagcctcg actgtgcctt ctagttgcca
     1501 gccatctgtt gtttgcccct cccccgtgcc ttccttgacc ctggaaggtg ccactcccac
     1561 tgtcctttcc taataaaatg aggaaattgc atcgcattgt ctgagtaggt gtcattctat
     1621 tctggggggt ggggtggggc aggacagcaa gggggaggat tgggaagaca atagcaggca
     1681 tgctggggat gcggtgggct ctatggcttc tgaggcggaa agaaccagct ggggctctag
     1741 ggggtatccc cacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg
     1801 cagcgtgacc gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc
     1861 ctttctcgcc acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg
     1921 gttccgattt agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc
     1981 acgtagtggg ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt
     2041 ctttaatagt ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc
     2101 ttttgattta taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta
     2161 acaaaaattt aacgcgaatt aattctgtgg aatgtgtgtc agttagggtg tggaaagtcc
     2221 ccaggctccc cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccagg
     2281 tgtggaaagt ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag
     2341 tcagcaacca tagtcccgcc cctaactccg cccatcccgc ccctaactcc gcccagttcc
     2401 gcccattctc cgccccatgg ctgactaatt ttttttattt atgcagaggc cgaggccgcc
     2461 tctgcctctg agctattcca gaagtagtga ggaggctttt ttggaggcct aggcttttgc
     2521 aaaaagctcc cgggagcttg tatatccatt ttcggatctg atcaagagac aggatgagga
     2581 tcgtttcgca tgattgaaca agatggattg cacgcaggtt ctccggccgc ttgggtggag
     2641 aggctattcg gctatgactg ggcacaacag acaatcggct gctctgatgc cgccgtgttc
     2701 cggctgtcag cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc cggtgccctg
     2761 aatgaactgc aggacgaggc agcgcggcta tcgtggctgg ccacgacggg cgttccttgc
     2821 gcagctgtgc tcgacgttgt cactgaagcg ggaagggact ggctgctatt gggcgaagtg
     2881 ccggggcagg atctcctgtc atctcacctt gctcctgccg agaaagtatc catcatggct
     2941 gatgcaatgc ggcggctgca tacgcttgat ccggctacct gcccattcga ccaccaagcg
     3001 aaacatcgca tcgagcgagc acgtactcgg atggaagccg gtcttgtcga tcaggatgat
     3061 ctggacgaag agcatcaggg gctcgcgcca gccgaactgt tcgccaggct caaggcgcgc
     3121 atgcccgacg gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg
     3181 gtggaaaatg gccgcttttc tggattcatc gactgtggcc ggctgggtgt ggcggaccgc
     3241 tatcaggaca tagcgttggc tacccgtgat attgctgaag agcttggcgg cgaatgggct
     3301 gaccgcttcc tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat cgccttctat
     3361 cgccttcttg acgagttctt ctgagcggga ctctggggtt cgaaatgacc gaccaagcga
     3421 cgcccaacct gccatcacga gatttcgatt ccaccgccgc cttctatgaa aggttgggct
     3481 tcggaatcgt tttccgggac gccggctgga tgatcctcca gcgcggggat ctcatgctgg
     3541 agttcttcgc ccaccccaac ttgtttattg cagcttataa tggttacaaa taaagcaata
     3601 gcatcacaaa tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca
     3661 aactcatcaa tgtatcttat catgtctgta taccgtcgac ctctagctag agcttggcgt
     3721 aatcatggtc atagctgttt cctgtgtgaa attgttatcc gctcacaatt ccacacaaca
     3781 tacgagccgg aagcataaag tgtaaagcct ggggtgccta atgagtgagc taactcacat
     3841 taattgcgtt gcgctcactg cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt
     3901 aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct tccgcttcct
     3961 cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca gctcactcaa
     4021 aggcggtaat acggttatcc acagaatcag gggataacgc aggaaagaac atgtgagcaa
     4081 aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc
     4141 tccgcccccc tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga
     4201 caggactata aagataccag gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc
     4261 cgaccctgcc gcttaccgga tacctgtccg cctttctccc ttcgggaagc gtggcgcttt
     4321 ctcatagctc acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc aagctgggct
     4381 gtgtgcacga accccccgtt cagcccgacc gctgcgcctt atccggtaac tatcgtcttg
     4441 agtccaaccc ggtaagacac gacttatcgc cactggcagc agccactggt aacaggatta
     4501 gcagagcgag gtatgtaggc ggtgctacag agttcttgaa gtggtggcct aactacggct
     4561 acactagaag aacagtattt ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa
     4621 gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt
     4681 gcaagcagca gattacgcgc agaaaaaaag gatctcaaga agatcctttg atcttttcta
     4741 cggggtctga cgctcagtgg aacgaaaact cacgttaagg gattttggtc atgagattat
     4801 caaaaaggat cttcacctag atccttttaa attaaaaatg aagttttaaa tcaatctaaa
     4861 gtatatatga gtaaacttgg tctgacagtt accaatgctt aatcagtgag gcacctatct
     4921 cagcgatctg tctatttcgt tcatccatag ttgcctgact ccccgtcgtg tagataacta
     4981 cgatacggga gggcttacca tctggcccca gtgctgcaat gataccgcga gacccacgct
     5041 caccggctcc agatttatca gcaataaacc agccagccgg aagggccgag cgcagaagtg
     5101 gtcctgcaac tttatccgcc tccatccagt ctattaattg ttgccgggaa gctagagtaa
     5161 gtagttcgcc agttaatagt ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt
     5221 cacgctcgtc gtttggtatg gcttcattca gctccggttc ccaacgatca aggcgagtta
     5281 catgatcccc catgttgtgc aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca
     5341 gaagtaagtt ggccgcagtg ttatcactca tggttatggc agcactgcat aattctctta
     5401 ctgtcatgcc atccgtaaga tgcttttctg tgactggtga gtactcaacc aagtcattct
     5461 gagaatagtg tatgcggcga ccgagttgct cttgcccggc gtcaatacgg gataataccg
     5521 cgccacatag cagaacttta aaagtgctca tcattggaaa acgttcttcg gggcgaaaac
     5581 tctcaaggat cttaccgctg ttgagatcca gttcgatgta acccactcgt gcacccaact
     5641 gatcttcagc atcttttact ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa
     5701 atgccgcaaa aaagggaata agggcgacac ggaaatgttg aatactcata ctcttccttt
     5761 ttcaatatta ttgaagcatt tatcagggtt attgtctcat gagcggatac atatttgaat
     5821 gtatttagaa aaataaacaa ataggggttc cgcgcacatt tccccgaaaa gtgccacctg
     5881 acgtcgacgg atcgggagat ctcccgatcc cctatggtgc actctcagta caatctgctc
     5941 tgatgccgca tagttaagcc agtatctgct ccctgcttgt gtgttggagg tcgctgagta
     6001 gtgcgcgagc aaaatttaag ctacaacaag gcaaggcttg accgacaatt gcatgaagaa
     6061 tctgcttagg gttaggcgtt ttgcgctgct tcgcgatgta cgggccagat atacgcgtt
//
