pDC316-mCMV-EGFP

价格:1500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

出品公司: --
载体名称: pDC316-mCMV-EGFP
质粒类型: 腺病毒穿梭载体
高拷贝/低拷贝: --
复制子: pUC
启动子: CMV
载体大小: 5879 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: 绿色荧光蛋白EGFP
克隆菌株: Stbl3
宿主细胞(系): --
备注: --
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

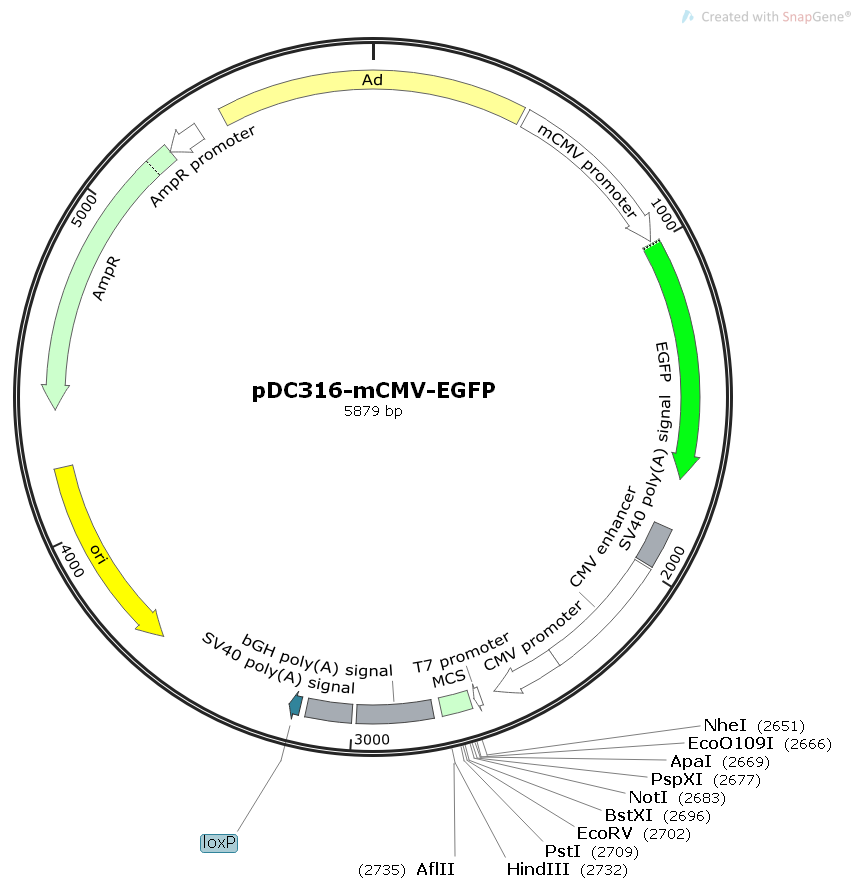

pDC316-mCMV-EGFP载体图谱

载体简介

载体序列

LOCUS       pDC316-mCMV-EGFP                5879 bp ds-DNA     circular SYN 10-DEC-2017
DEFINITION  synthetic circular DNA
FEATURES             Location/Qualifiers
     source          1..5879
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     misc_feature    468..992
                     /label=mCMV promoter
     CDS             999..1715
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     polyA_signal    1862..1983
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     enhancer        1991..2370
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2371..2574
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        2619..2637
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     misc_feature    2651..2740
                     /label=MCS
     polyA_signal    2764..2988
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     polyA_signal    3002..3136
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     protein_bind    3156..3189
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     rep_origin      complement(3613..4201)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4372..5232)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5233..5337)
                     /gene="bla"
                     /label=AmpR promoter
     misc_feature    5420..453
                     /label=Ad
ORIGIN
        1 ttcatcaata atatacctta ttttggattg aagccaatat gataatgagg gggtggagtt
       61 tgtgacgtgg cgcggggcgt gggaacgggg cgggtgacgt agtagtgtgg cggaagtgtg
      121 atgttgcaag tgtggcggaa cacatgtaag cgacggatgt ggcaaaagtg acgtttttgg
      181 tgtgcgccgg tgtacacagg aagtgacaat tttcgcgcgg ttttaggcgg atgttgtagt
      241 aaatttgggc gtaaccgagt aagatttggc cattttcgcg ggaaaactga ataagaggaa
      301 gtgaaatctg aataattttg tgttactcat agcgcgtaat atttgtctag ggccgcgggg
      361 actttgaccg tttacgtgga gactcgccca ggtgtttttc tcaggtgttt tccgcgttcc
      421 gggtcaaagt tggcgtttta ttattatagt cagtctagag atatactgag tcattaggga
      481 ctttccaatg ggttttgccc agtacataag gtcaataggg gtgaatcaac aggaaagtcc
      541 cattggagcc aagtacactg agtcaatagg gactttccat tgggttttgc ccagtacaaa
      601 aggtcaatag ggggtgagtc aatgggtttt tcccattatt ggcacgtaca taaggtcaat
      661 aggggtgagt cattgggttt ttccagccaa tttaattaaa acgccatgta ctttcccacc
      721 attgacgtca atgggctatt gaaactaatg caacgtgacc tttaaacggt actttcccat
      781 agctgattaa tgggaaagta ccgttctcga gccaatacac gtcaatggga agtgaaaggg
      841 cagccaaaac gtaacaccgc cccggttttc ccctggaaat tccatattgg cacgcattct
      901 attggctgag ctgcgttcta cgtgggtata agaggcgcga ccagcgtcgg taccgtcgca
      961 gtcttcggtc tgaccaccgt agaacgcaga tcgaattcat ggtgagcaag ggcgaggagc
     1021 tgttcaccgg ggtggtgccc atcctggtcg agctggacgg cgacgtaaac ggccacaagt
     1081 tcagcgtgtc cggcgagggc gagggcgatg ccacctacgg caagctgacc ctgaagttca
     1141 tctgcaccac cggcaagctg cccgtgccct ggcccaccct cgtgaccacc ctgacctacg
     1201 gcgtgcagtg cttcagccgc taccccgacc acatgaagca gcacgacttc ttcaagtccg
     1261 ccatgcccga aggctacgtc caggagcgca ccatcttctt caaggacgac ggcaactaca
     1321 agacccgcgc cgaggtgaag ttcgagggcg acaccctggt gaaccgcatc gagctgaagg
     1381 gcatcgactt caaggaggac ggcaacatcc tggggcacaa gctggagtac aactacaaca
     1441 gccacaacgt ctatatcatg gccgacaagc agaagaacgg catcaaggtg aacttcaaga
     1501 tccgccacaa catcgaggac ggcagcgtgc agctcgccga ccactaccag cagaacaccc
     1561 ccatcggcga cggccccgtg ctgctgcccg acaaccacta cctgagcacc cagtccgccc
     1621 tgagcaaaga ccccaacgag aagcgcgatc acatggtcct gctggagttc gtgaccgccg
     1681 ccgggatcac tctcggcatg gacgagctgt acaagtccgg actcagatct cgagatccac
     1741 cggatctaga taactgatca taatcagcca taccacattt gtagaggttt tacttgcttt
     1801 aaaaaacctc ccacacctcc ccctgaacct gaaacataaa atgaatgcaa ttgttgttgt
     1861 taacttgttt attgcagctt ataatggtta caaataaagc aatagcatca caaatttcac
     1921 aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca tcaatgtatc
     1981 ttaacgcgtt gacattgatt attgactagt tattaatagt aatcaattac ggggtcatta
     2041 gttcatagcc catatatgga gttccgcgtt acataactta cggtaaatgg cccgcctggc
     2101 tgaccgccca acgacccccg cccattgacg tcaataatga cgtatgttcc catagtaacg
     2161 ccaataggga ctttccattg acgtcaatgg gtggagtatt tacggtaaac tgcccacttg
     2221 gcagtacatc aagtgtatca tatgccaagt acgcccccta ttgacgtcaa tgacggtaaa
     2281 tggcccgcct ggcattatgc ccagtacatg accttatggg actttcctac ttggcagtac
     2341 atctacgtat tagtcatcgc tattaccatg gtgatgcggt tttggcagta catcaatggg
     2401 cgtggatagc ggtttgactc acggggattt ccaagtctcc accccattga cgtcaatggg
     2461 agtttgtttt ggcaccaaaa tcaacgggac tttccaaaat gtcgtaacaa ctccgcccca
     2521 ttgacgcaaa tgggcggtag gcgtgtacgg tgggaggtct atataagcag agctctctgg
     2581 ctaactagag aacccactgc ttactggctt atcgaaatta atacgactca ctatagggag
     2641 acccaagctg gctagcgttt aaacgggccc tctagactcg agcggccgcc actgtgctgg
     2701 atatctgcag aattgatccg agctcggtac caagcttaag tttaaaccgc tgatcagcct
     2761 cgactgtgcc ttctagttgc cagccatctg ttgtttgccc ctcccccgtg ccttccttga
     2821 ccctggaagg tgccactccc actgtccttt cctaataaaa tgaggaaatt gcatcgcatt
     2881 gtctgagtag gtgtcattct attctggggg gtggggtggg gcaggacagc aagggggagg
     2941 attgggaaga caatagcagg catgctgggg atgcggtggg ctctatgggt cgacttcgag
     3001 caacttgttt attgcagctt ataatggtta caaataaagc aatagcatca caaatttcac
     3061 aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca tcaatgtatc
     3121 ttatcatgtc tggatcgtct agcatcgaag atccaataac ttcgtatagc atacattata
     3181 cgaagttata agtagcttgg cgtaatcatg gtcatagctg tttcctgtgt gaaattgtta
     3241 tccgctcaca attccacaca acatacgagc cggaagcata aagtgtaaag cctggggtgc
     3301 ctaatgagtg agctaactca cattaattgc gttgcgctca ctgcccgctt tccagtcggg
     3361 aaacctgtcg tgccagctgc attaatgaat cggccaacgc gcggggagag gcggtttgcg
     3421 tattgggcgc tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg
     3481 gcgagcggta tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa
     3541 cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc
     3601 gttgctggcg tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc
     3661 aagtcagagg tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag
     3721 ctccctcgtg cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct
     3781 cccttcggga agcgtggcgc tttctcaatg ctcacgctgt aggtatctca gttcggtgta
     3841 ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc
     3901 cttatccggt aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc
     3961 agcagccact ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt
     4021 gaagtggtgg cctaactacg gctacactag aaggacagta tttggtatct gcgctctgct
     4081 gaagccagtt accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc
     4141 tggtagcggt ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca
     4201 agaagatcct ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta
     4261 agggattttg gtcatgagat tatcaaaaag gatcttcacc tagatccttt taaattaaaa
     4321 atgaagtttt aaatcaatct aaagtatata tgagtaaact tggtctgaca gttaccaatg
     4381 cttaatcagt gaggcaccta tctcagcgat ctgtctattt cgttcatcca tagttgcctg
     4441 actccccgtc gtgtagataa ctacgatacg ggagggctta ccatctggcc ccagtgctgc
     4501 aatgataccg cgagacccac gctcaccggc tccagattta tcagcaataa accagccagc
     4561 cggaagggcc gagcgcagaa gtggtcctgc aactttatcc gcctccatcc agtctattaa
     4621 ttgttgccgg gaagctagag taagtagttc gccagttaat agtttgcgca acgttgttgc
     4681 cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat tcagctccgg
     4741 ttcccaacga tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag cggttagctc
     4801 cttcggtcct ccgatcgttg tcagaagtaa gttggccgca gtgttatcac tcatggttat
     4861 ggcagcactg cataattctc ttactgtcat gccatccgta agatgctttt ctgtgactgg
     4921 tgagtactca accaagtcat tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc
     4981 ggcgtcaaca cgggataata ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg
     5041 aaaacgttct tcggggcgaa aactctcaag gatcttaccg ctgttgagat ccagttcgat
     5101 gtaacccact cgtgcaccca actgatcttc agcatctttt actttcacca gcgtttctgg
     5161 gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga ataagggcga cacggaaatg
     5221 ttgaatactc atactcttcc tttttcaata ttattgaagc atttatcagg gttattgtct
     5281 catgagcgga tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac
     5341 atttccccga aaagtgccac ctgacgtcta agaaaccatt attatcatga cattaaccta
     5401 taaaaatagg cgtatcactc taggcaaaat agcaccctcc cgctccagaa caacatacag
     5461 cgcttcacag cggcagccta acagtcagcc ttaccagtaa aaaagaaaac ctattaaaaa
     5521 aacaccactc gacacggcac cagctcaatc agtcacagtg taaaaaaggg ccaagtgcag
     5581 agcgagtata tataggacta aaaaatgacg taacggttaa agtccacaaa aaacacccag
     5641 aaaaccgcac gcgaacctac gcccagaaac gaaagccaaa aaacccacaa cttcctcaaa
     5701 tcgtcacttc cgttttccca cgttacgtaa cttcccattt taagaaaact acaattccca
     5761 acacatacaa gttactccgc cctaaaacct acgtcacccg ccccgttccc acgccccgcg
     5821 ccacgtcaca aactccaccc cctcattatc atattggctt caatccaaaa taaggtata
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
