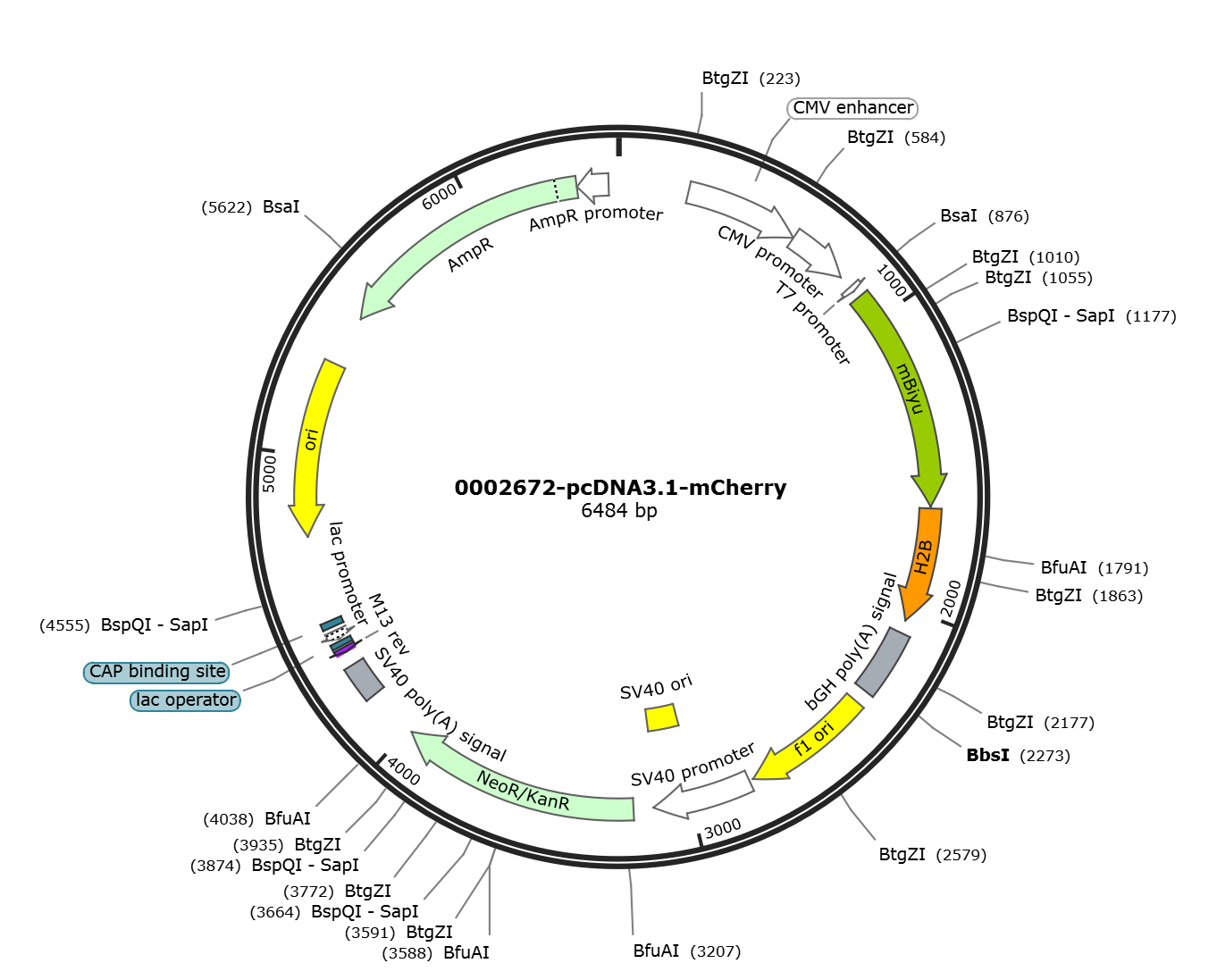

pcDNA-mBiyu-H2B

LOCUS       pcDNA-mBiyu-H2B       6484 bp DNA     circular SYN 13-MAY-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    0002672-pcDNA3.1-mCherry
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6484)
  AUTHORS   sunwenjuan
  TITLE     Direct Submission
  JOURNAL   Exported Sep 18, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6484
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             907..1653
                     /codon_start=1
                     /label=mBiyu
                     /translation="MVSKGEEDNMASYGALLFREKIPYVVEMEGDVEGMKFSVRGKGHG
                     DANTGKIEASFICTTGELPVPWSSILTTVTYGAQCFAKYPNDIKDYLKSTMPEGYVQER
                     TITFENDGIYKTRAEVTYEKGSVYNRVTLNGSGFKKGGNILGKKLEFNFNASRTYVLPD
                     VENNGIKCYINIRHNVIGGGQIRAEHQQLNTPLGGGPVDIPHYHAIQTHTILSKDPKET
                     RDHMNVVEVFRAIDCKTAYAGMDELYK"
     misc_feature    1660..2040
                     /label=H2B
     polyA_signal    2084..2308
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2354..2782
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2796..3125
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2976..3111
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3192..3986
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4160..4281
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4330..4346)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4354..4370
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4378..4408)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4423..4444
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4732..5317)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5488..6348)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6349..6453)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gccaccatgg tgagcaaggg cgaggaggac aacatggcct cctacggagc cctgctgttt
      961 agagagaaga tcccctacgt ggtggagatg gagggcgatg tggagggaat gaagttctcc
     1021 gtgagaggca agggccacgg cgatgctaac accggaaaga tcgaggccag ctttatctgc
     1081 accaccggcg agctgcccgt gccttggagc agcatcctga caaccgtgac atacggcgcc
     1141 cagtgcttcg ctaagtaccc taatgatatc aaggactacc tgaagagcac catgcccgag
     1201 ggctacgtgc aggaaagaac catcacattt gagaacgatg gcatctacaa gaccagggcc
     1261 gaggtgacct acgagaaggg aagcgtgtac aacagggtga cactgaacgg cagcggcttc
     1321 aagaagggcg gaaacatcct gggcaagaag ctggagttca attttaacgc ctccaggaca
     1381 tacgtgctgc ctgacgtgga gaacaatggc atcaagtgtt acatcaacat caggcacaac
     1441 gtgatcggcg gcggccaaat cagggctgaa caccaacagc tgaatacccc cctgggcgga
     1501 ggacctgttg acattccaca ctaccacgcc atccagaccc acaccatcct gtccaaggac
     1561 cccaaggaga caagggacca catgaacgtg gtggaggtgt ttagagccat cgattgcaag
     1621 acagcctacg ccggcatgga tgagctgtac aagggatcca tgcctgaacc taccaagtct
     1681 gctcctgccc caaagaaggg ctccaagaag gcggtgacta aggctcagaa gaaggacggg
     1741 aagaagcgca agcgtagccg caaggagagc tattcagtgt atgtgtacaa ggtgctgaag
     1801 caggtccatc ccgacaccgg catctcttcc aaggcaatgg ggatcatgaa ttccttcgtc
     1861 aacgacatct tcgagcgcat cgcaggcgag gcttcccgcc aggcgcatta caacaagcgc
     1921 tcgaccatca cctccaggga gatccagacg gccgtgcgcc tgctgcttcc gggggagctg
     1981 gccaagcacg ccgtgtcgga gggcaccaag gccgtcacca agtacaccag ttccaagtaa
     2041 ctcgagtcta gagggcccgt ttaaacccgc tgatcagcct cgactgtgcc ttctagttgc
     2101 cagccatctg ttgtttgccc ctcccccgtg ccttccttga ccctggaagg tgccactccc
     2161 actgtccttt cctaataaaa tgaggaaatt gcatcgcatt gtctgagtag gtgtcattct
     2221 attctggggg gtggggtggg gcaggacagc aagggggagg attgggaaga caatagcagg
     2281 catgctgggg atgcggtggg ctctatggct tctgaggcgg aaagaaccag ctggggctct
     2341 agggggtatc cccacgcgcc ctgtagcggc gcattaagcg cggcgggtgt ggtggttacg
     2401 cgcagcgtga ccgctacact tgccagcgcc ctagcgcccg ctcctttcgc tttcttccct
     2461 tcctttctcg ccacgttcgc cggctttccc cgtcaagctc taaatcgggg gctcccttta
     2521 gggttccgat ttagtgcttt acggcacctc gaccccaaaa aacttgatta gggtgatggt
     2581 tcacgtagtg ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt ggagtccacg
     2641 ttctttaata gtggactctt gttccaaact ggaacaacac tcaaccctat ctcggtctat
     2701 tcttttgatt tataagggat tttgccgatt tcggcctatt ggttaaaaaa tgagctgatt
     2761 taacaaaaat ttaacgcgaa ttaattctgt ggaatgtgtg tcagttaggg tgtggaaagt
     2821 ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag tcagcaacca
     2881 ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg catctcaatt
     2941 agtcagcaac catagtcccg cccctaactc cgcccatccc gcccctaact ccgcccagtt
     3001 ccgcccattc tccgccccat ggctgactaa ttttttttat ttatgcagag gccgaggccg
     3061 cctctgcctc tgagctattc cagaagtagt gaggaggctt ttttggaggc ctaggctttt
     3121 gcaaaaagct cccgggagct tgtatatcca ttttcggatc tgatcaagag acaggatgag
     3181 gatcgtttcg catgattgaa caagatggat tgcacgcagg ttctccggcc gcttgggtgg
     3241 agaggctatt cggctatgac tgggcacaac agacaatcgg ctgctctgat gccgccgtgt
     3301 tccggctgtc agcgcagggg cgcccggttc tttttgtcaa gaccgacctg tccggtgccc
     3361 tgaatgaact gcaggacgag gcagcgcggc tatcgtggct ggccacgacg ggcgttcctt
     3421 gcgcagctgt gctcgacgtt gtcactgaag cgggaaggga ctggctgcta ttgggcgaag
     3481 tgccggggca ggatctcctg tcatctcacc ttgctcctgc cgagaaagta tccatcatgg
     3541 ctgatgcaat gcggcggctg catacgcttg atccggctac ctgcccattc gaccaccaag
     3601 cgaaacatcg catcgagcga gcacgtactc ggatggaagc cggtcttgtc gatcaggatg
     3661 atctggacga agagcatcag gggctcgcgc cagccgaact gttcgccagg ctcaaggcgc
     3721 gcatgcccga cggcgaggat ctcgtcgtga cccatggcga tgcctgcttg ccgaatatca
     3781 tggtggaaaa tggccgcttt tctggattca tcgactgtgg ccggctgggt gtggcggacc
     3841 gctatcagga catagcgttg gctacccgtg atattgctga agagcttggc ggcgaatggg
     3901 ctgaccgctt cctcgtgctt tacggtatcg ccgctcccga ttcgcagcgc atcgccttct
     3961 atcgccttct tgacgagttc ttctgagcgg gactctgggg ttcgaaatga ccgaccaagc
     4021 gacgcccaac ctgccatcac gagatttcga ttccaccgcc gccttctatg aaaggttggg
     4081 cttcggaatc gttttccggg acgccggctg gatgatcctc cagcgcgggg atctcatgct
     4141 ggagttcttc gcccacccca acttgtttat tgcagcttat aatggttaca aataaagcaa
     4201 tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt gtggtttgtc
     4261 caaactcatc aatgtatctt atcatgtctg tataccgtcg acctctagct agagcttggc
     4321 gtaatcatgg tcatagctgt ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa
     4381 catacgagcc ggaagcataa agtgtaaagc ctggggtgcc taatgagtga gctaactcac
     4441 attaattgcg ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt gccagctgca
     4501 ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt attgggcgct cttccgcttc
     4561 ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat cagctcactc
     4621 aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga acatgtgagc
     4681 aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag
     4741 gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc
     4801 gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt
     4861 tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct
     4921 ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg
     4981 ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta actatcgtct
     5041 tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg gtaacaggat
     5101 tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc ctaactacgg
     5161 ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta ccttcggaaa
     5221 aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtt tttttgtttg
     5281 caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga tcttttctac
     5341 ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca tgagattatc
     5401 aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat caatctaaag
     5461 tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg cacctatctc
     5521 agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt agataactac
     5581 gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag acccacgctc
     5641 accggctcca gatttatcag caataaacca gccagccgga agggccgagc gcagaagtgg
     5701 tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag ctagagtaag
     5761 tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca tcgtggtgtc
     5821 acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa ggcgagttac
     5881 atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga tcgttgtcag
     5941 aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata attctcttac
     6001 tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca agtcattctg
     6061 agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg ataataccgc
     6121 gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg ggcgaaaact
     6181 ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg cacccaactg
     6241 atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag gaaggcaaaa
     6301 tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac tcttcctttt
     6361 tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca tatttgaatg
     6421 tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag tgccacctga
     6481 cgtc
//
