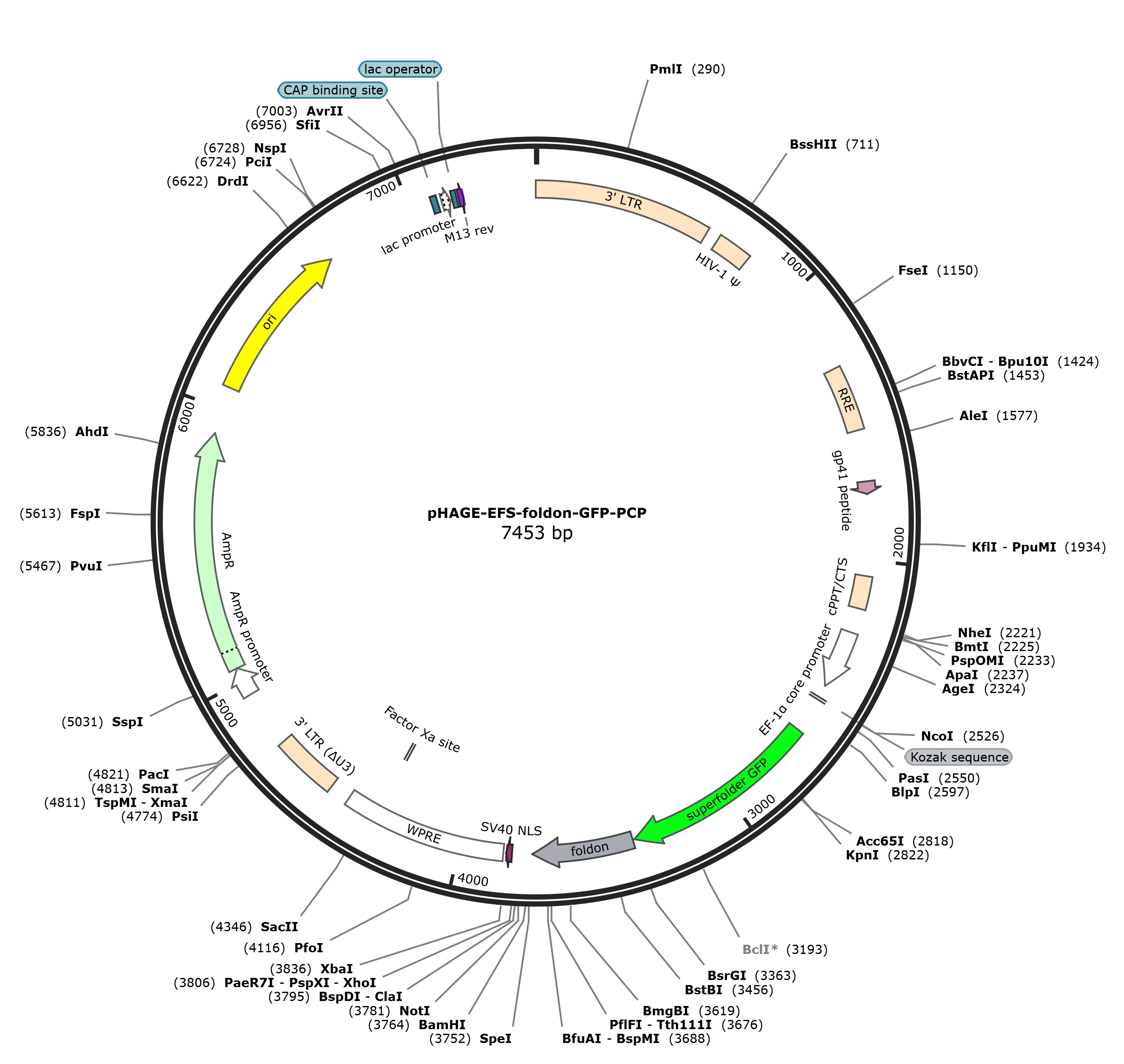

pHAGE-EFS-foldon-GFP-PCP

LOCUS       pHAGE-EFS-foldon-GFP-PCP                7453 bp DNA     circular SYN 20-JUN-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7453)
  AUTHORS   Stavrini Papadaki
  TITLE     Direct Submission
  JOURNAL   Exported Apr 14, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7453
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             1..634
                     /label=3' LTR
                     /note="3' long terminal repeat (LTR) from HIV-1"
     misc_feature    681..806
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1303..1536
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             1721..1765
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    2058..2175
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        2265..2476
                     /label=EF-1-alpha core promoter
                     /note="core promoter for human elongation factor
                     EF-1-alpha"
     regulatory      2522..2531
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             2660..3370
                     /codon_start=1
                     /product="GFP variant that folds robustly even when fused
                     to poorly folded proteins (Pedelacq et al., 2006)"
                     /label=superfolder GFP
                     /translation="RKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTLKF
                     ICTTGKLPVPWPTLVTTLTYGVQCFARYPDHMKQHDFFKSAMPEGYVQERTISFKDDGT
                     YKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIKAN
                     FKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSVLSKDPNEKRDHMVLLEF
                     VTAAGITHGMDELYK"
     CDS             3377..3739
                     /codon_start=1
                     /label=foldon
                     /note="C-terminal domain of T4 fibritin (foldon) of
                     Bacteriophage T4"
                     /translation="SKTIVLSVGEATRTLTEIQSTADRQIFEEKVGPLVGRLRLTASLR
                     QNGAKTAYRVNLKLDQADVVDSGLPKVRYTQVWSHDVTIVANSTEASRKSLYDLTKSLV
                     ATSQVEDLVVNLVPLGR"
     CDS             3812..3832
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     misc_feature    3843..4431
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(3896..3916)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(4314..4325)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4506..4739
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     primer_bind     complement(4858..4876)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        4944..5048
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5049..5909
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(5267..5286)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      6080..6668
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6569..6588
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     6822..6839
                     /label=L4440
                     /note="L4440 vector, forward primer"
     primer_bind     6931..6950
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(6954..6965)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     protein_bind    7079..7100
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        7115..7145
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    7153..7169
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     7158..7180
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     7177..7193
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     7177..7193
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     7243..7262
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccgaa ttgacaaatg
     2041 gcagtattca tccacaattt taaaagaaaa ggggggattg gggggtacag tgcaggggaa
     2101 agaatagtag acataatagc aacagacata caaactaaag aattacaaaa acaaattaca
     2161 aaaattcaaa attttcgggt ttattacagg gacagcagag atccagtttg gactagcgat
     2221 gctagctgat gcgggccctt cgagtggctc cggtgcccgt cagtgggcag agcgcacatc
     2281 gcccacagtc cccgagaagt tggggggagg ggtcggcaat tgaaccggtg cctagagaag
     2341 gtggcgcggg gtaaactggg aaagtgatgt cgtgtactgg ctccgccttt ttcccgaggg
     2401 tgggggagaa ccgtatataa gtgcagtagt cgccgtgaac gttctttttc gcaacgggtt
     2461 tgccgccaga acacaggtgt cgtgacgcgg ttccggttaa ggtgaacgcg tgcaggctgg
     2521 cgccaccatg ggctacatcc ccgaggcccc cagggacggc caggcctacg tgaggaagga
     2581 cggcgagtgg gtgctgctga gcaccttcct gagtggcgga ggaggttcag gaggcggcgg
     2641 aagcggtgga ggaggttctc gtaaaggcga agagctgttc actggtgtcg tccctattct
     2701 ggtggaactg gatggtgatg tcaacggtca taagttttcc gtgcgtggcg agggtgaagg
     2761 tgacgcaact aatggtaaac tgacgctgaa gttcatctgt actactggta aactgccggt
     2821 accttggccg actctggtaa cgacgctgac ttatggtgtt cagtgctttg ctcgttatcc
     2881 ggaccatatg aagcagcatg acttcttcaa gtccgccatg ccggaaggct atgtgcagga
     2941 acgcacgatt tcctttaagg atgacggcac gtacaaaacg cgtgcggaag tgaaatttga
     3001 aggcgatacc ctggtaaacc gcattgagct gaaaggcatt gactttaaag aagacggcaa
     3061 tatcctgggc cataagctgg aatacaattt taacagccac aatgtttaca tcaccgccga
     3121 taaacaaaaa aatggcatta aagcgaattt taaaattcgc cacaacgtgg aggatggcag
     3181 cgtgcagctg gctgatcact accagcaaaa cactccaatc ggtgatggtc ctgttctgct
     3241 gccagacaat cactatctga gcacgcaaag cgttctgtct aaagatccga acgagaaacg
     3301 cgatcatatg gttctgctgg agttcgtaac cgcagcgggc atcacgcatg gtatggatga
     3361 actgtacaaa atgggttcca aaaccatcgt tctttcggtc ggcgaggcta ctcgcactct
     3421 gactgagatc cagtccaccg cagaccgtca gatcttcgaa gagaaggtcg ggcctctggt
     3481 gggtcggctg cgcctcacgg cttcgctccg tcaaaacgga gccaagaccg cgtatcgcgt
     3541 caacctaaaa ctggatcagg cggacgtcgt tgattccgga cttccgaaag tgcgctacac
     3601 tcaggtatgg tcgcacgacg tgacaatcgt tgcgaatagc accgaggcct cgcgcaaatc
     3661 gttgtacgat ttgaccaagt ccctcgtcgc gacctcgcag gtcgaagatc ttgtcgtcaa
     3721 ccttgtgccg ctgggccgtg gtggcggagg gactagtgga ggtggatccg gaagttctgg
     3781 cggccgctct ggcatcgatg ggagcctcga gccaaagaaa aagcggaaag tgtaatctag
     3841 ataatcaacc tctggattac aaaatttgtg aaagattgac tggtattctt aactatgttg
     3901 ctccttttac gctatgtgga tacgctgctt taatgccttt gtatcatgct attgcttccc
     3961 gtatggcttt cattttctcc tccttgtata aatcctggtt gctgtctctt tatgaggagt
     4021 tgtggcccgt tgtcaggcaa cgtggcgtgg tgtgcactgt gtttgctgac gcaaccccca
     4081 ctggttgggg cattgccacc acctgtcagc tcctttccgg gactttcgct ttccccctcc
     4141 ctattgccac ggcggaactc atcgccgcct gccttgcccg ctgctggaca ggggctcggc
     4201 tgttgggcac tgacaattcc gtggtgttgt cggggaaatc atcgtccttt ccttggctgc
     4261 tcgcctgtgt tgccacctgg attctgcgcg ggacgtcctt ctgctacgtc ccttcggccc
     4321 tcaatccagc ggaccttcct tcccgcggcc tgctgccggc tctgcggcct cttccgcgtc
     4381 ttcgccttcg ccctcagacg agtcggatct ccctttgggc cgcctccccg cctgagatcc
     4441 tttaagacca atgacttaca aggcagctgt agatcttagc cactttttaa aagaaaaggg
     4501 gggactggaa gggctaattc actcccaacg aagacaagat ctgctttttg cttgtactgg
     4561 gtctctctgg ttagaccaga tctgagcctg ggagctctct ggctaactag ggaacccact
     4621 gcttaagcct caataaagct tgccttgagt gcttcaagta gtgtgtgccc gtctgttgtg
     4681 tgactctggt aactagagat ccctcagacc cttttagtca gtgtggaaaa tctctagcag
     4741 tagtagttca tgtcatctta ttattcagta tttataactt gcaaagaaat gaatatcaga
     4801 gagtgagagg cccgggttaa ttaaggaaag ggctagatca ttcttgaaga cgaaagggcc
     4861 tcgtgatacg cctattttta taggttaatg tcatgataat aatggtttct tagacgtcag
     4921 gtggcacttt tcggggaaat gtgcgcggaa cccctatttg tttatttttc taaatacatt
     4981 caaatatgta tccgctcatg agacaataac cctgataaat gcttcaataa tattgaaaaa
     5041 ggaagagtat gagtattcaa catttccgtg tcgcccttat tccctttttt gcggcatttt
     5101 gccttcctgt ttttgctcac ccagaaacgc tggtgaaagt aaaagatgct gaagatcagt
     5161 tgggtgcacg agtgggttac atcgaactgg atctcaacag cggtaagatc cttgagagtt
     5221 ttcgccccga agaacgtttt ccaatgatga gcacttttaa agttctgcta tgtggcgcgg
     5281 tattatcccg tgttgacgcc gggcaagagc aactcggtcg ccgcatacac tattctcaga
     5341 atgacttggt tgagtactca ccagtcacag aaaagcatct tacggatggc atgacagtaa
     5401 gagaattatg cagtgctgcc ataaccatga gtgataacac tgcggccaac ttacttctga
     5461 caacgatcgg aggaccgaag gagctaaccg cttttttgca caacatgggg gatcatgtaa
     5521 ctcgccttga tcgttgggaa ccggagctga atgaagccat accaaacgac gagcgtgaca
     5581 ccacgatgcc tgtagcaatg gcaacaacgt tgcgcaaact attaactggc gaactactta
     5641 ctctagcttc ccggcaacaa ttaatagact ggatggaggc ggataaagtt gcaggaccac
     5701 ttctgcgctc ggcccttccg gctggctggt ttattgctga taaatctgga gccggtgagc
     5761 gtgggtctcg cggtatcatt gcagcactgg ggccagatgg taagccctcc cgtatcgtag
     5821 ttatctacac gacggggagt caggcaacta tggatgaacg aaatagacag atcgctgaga
     5881 taggtgcctc actgattaag cattggtaac tgtcagacca agtttactca tatatacttt
     5941 agattgattt aaaacttcat ttttaattta aaaggatcta ggtgaagatc ctttttgata
     6001 atctcatgac caaaatccct taacgtgagt tttcgttcca ctgagcgtca gaccccgtag
     6061 aaaagatcaa aggatcttct tgagatcctt tttttctgcg cgtaatctgc tgcttgcaaa
     6121 caaaaaaacc accgctacca gcggtggttt gtttgccgga tcaagagcta ccaactcttt
     6181 ttccgaaggt aactggcttc agcagagcgc agataccaaa tactgttctt ctagtgtagc
     6241 cgtagttagg ccaccacttc aagaactctg tagcaccgcc tacatacctc gctctgctaa
     6301 tcctgttacc agtggctgct gccagtggcg ataagtcgtg tcttaccggg ttggactcaa
     6361 gacgatagtt accggataag gcgcagcggt cgggctgaac ggggggttcg tgcacacagc
     6421 ccagcttgga gcgaacgacc tacaccgaac tgagatacct acagcgtgag ctatgagaaa
     6481 gcgccacgct tcccgaaggg agaaaggcgg acaggtatcc ggtaagcggc agggtcggaa
     6541 caggagagcg cacgagggag cttccagggg gaaacgcctg gtatctttat agtcctgtcg
     6601 ggtttcgcca cctctgactt gagcgtcgat ttttgtgatg ctcgtcaggg gggcggagcc
     6661 tatggaaaaa cgccagcaac gcggcctttt tacggttcct ggccttttgc tggccttttg
     6721 ctcacatgtt ctttcctgcg ttatcccctg attctgtgga taaccgtatt accgcctttg
     6781 agtgagctga taccgctcgc cgcagccgaa cgaccgagcg cagcgagtca gtgagcgagg
     6841 aagcggaaga gcgcccaata cgcaaaccgc ctctccccgc gcgttggccg attcattaat
     6901 gcagcaagct catggctgac taattttttt tatttatgca gaggccgagg ccgcctcggc
     6961 ctctgagcta ttccagaagt agtgaggagg cttttttgga ggcctaggct tttgcaaaaa
     7021 gctccccgtg gcacgacagg tttcccgact ggaaagcggg cagtgagcgc aacgcaatta
     7081 atgtgagtta gctcactcat taggcacccc aggctttaca ctttatgctt ccggctcgta
     7141 tgttgtgtgg aattgtgagc ggataacaat ttcacacagg aaacagctat gacatgatta
     7201 cgaatttcac aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca
     7261 tcaatgtatc ttatcatgtc tggatcaact ggataactca agctaaccaa aatcatccca
     7321 aacttcccac cccataccct attaccactg ccaattacct gtggtttcat ttactctaaa
     7381 cctgtgattc ctctgaatta ttttcatttt aaagaaattg tatttgttaa atatgtacta
     7441 caaacttagt agt
//
