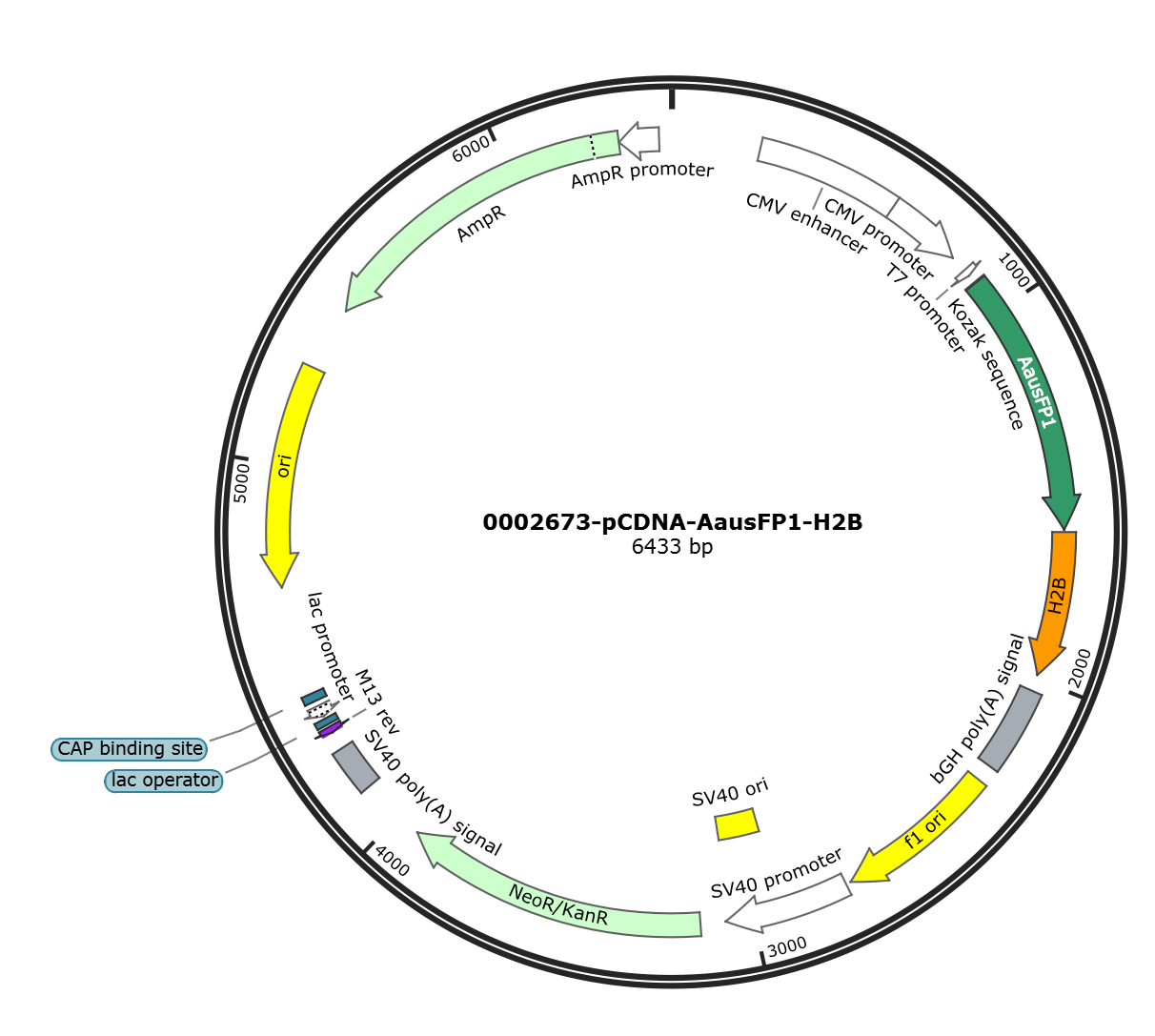

pcDNA-AausFP1-H2B

LOCUS       pcDNA-AausFP1-H2B             6433 bp DNA     circular SYN 12-MAY-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6433)
  AUTHORS   ustc
  TITLE     Direct Submission
  JOURNAL   Exported Sep 18, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6433
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      904..906
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             907..1602
                     /codon_start=1
                     /label=AausFP1
                     /translation="MSYGALLFREKIPYVVEMEGDVEGMKFSVRGKGHGDANTGKIEAS
                     FICTTGELPVPWSSILTTVTYGAQCFAKYPNDIKDYPKSAMPEGYVQERTITFENDGVY
                     KTRAEVTYEKGSVYNRVTLNGSGFKKGGNILGKKLEFNYNPHCIYVLPDVQNNGIKCYI
                     NIVHDVIGGGQIIAAHQQLNTPLGGGPVDIPHYHHIQAHTILSKDPKETRDHMNVVEVF
                     RAIDCKTAYA"
     CDS             1609..1989
                     /codon_start=1
                     /label=H2B
                     /translation="MPEPTKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSVYVYKV
                     LKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRQAHYNKRSTITSREIQTAVRLLLP
                     GELAKHAVSEGTKAVTKYTSSK"
     polyA_signal    2033..2257
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2303..2731
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2745..3074
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2925..3060
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3141..3935
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4109..4230
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4279..4295)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4303..4319
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4327..4357)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4372..4393
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4681..5266)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5437..6297)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6298..6402)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gccaccatga gctacggcgc tctgctgttc agagagaaga tcccctacgt ggtggagatg
      961 gagggcgacg ttgagggaat gaagttctcc gtgaggggca agggccacgg agatgctaat
     1021 accggcaaga tcgaggcctc ctttatctgc acaacaggcg agctgcccgt gccctggagc
     1081 agcatcctga ccaccgttac atacggcgcc cagtgcttcg ccaagtaccc aaatgatatc
     1141 aaggactacc ccaagagcgc catgcctgag ggatacgtgc aggagaggac catcaccttc
     1201 gagaacgatg gcgtgtacaa gaccagggcc gaggtgacat acgagaaggg ctccgtgtac
     1261 aacagggtga cactgaacgg ctccggcttc aagaagggcg gaaacatcct gggcaagaag
     1321 ctggagttca actacaaccc tcactgtatc tacgtgctgc ccgatgtgca gaacaatggc
     1381 atcaagtgct acatcaacat cgtgcacgat gtgatcggcg gcggccaaat catcgccgct
     1441 catcaacagc tgaatacccc cctgggcggc ggacctgtgg acatccctca ctatcaccac
     1501 atccaggccc acacaatcct gtccaaggac cctaaggaga caagggatca catgaatgtg
     1561 gtggaggtgt tcagagccat cgactgcaag accgcctacg ccggatccat gcctgaacct
     1621 accaagtctg ctcctgcccc aaagaagggc tccaagaagg cggtgactaa ggctcagaag
     1681 aaggacggga agaagcgcaa gcgtagccgc aaggagagct attcagtgta tgtgtacaag
     1741 gtgctgaagc aggtccatcc cgacaccggc atctcttcca aggcaatggg gatcatgaat
     1801 tccttcgtca acgacatctt cgagcgcatc gcaggcgagg cttcccgcca ggcgcattac
     1861 aacaagcgct cgaccatcac ctccagggag atccagacgg ccgtgcgcct gctgcttccg
     1921 ggggagctgg ccaagcacgc cgtgtcggag ggcaccaagg ccgtcaccaa gtacaccagt
     1981 tccaagtaac tcgagtctag agggcccgtt taaacccgct gatcagcctc gactgtgcct
     2041 tctagttgcc agccatctgt tgtttgcccc tcccccgtgc cttccttgac cctggaaggt
     2101 gccactccca ctgtcctttc ctaataaaat gaggaaattg catcgcattg tctgagtagg
     2161 tgtcattcta ttctgggggg tggggtgggg caggacagca agggggagga ttgggaagac
     2221 aatagcaggc atgctgggga tgcggtgggc tctatggctt ctgaggcgga aagaaccagc
     2281 tggggctcta gggggtatcc ccacgcgccc tgtagcggcg cattaagcgc ggcgggtgtg
     2341 gtggttacgc gcagcgtgac cgctacactt gccagcgccc tagcgcccgc tcctttcgct
     2401 ttcttccctt cctttctcgc cacgttcgcc ggctttcccc gtcaagctct aaatcggggg
     2461 ctccctttag ggttccgatt tagtgcttta cggcacctcg accccaaaaa acttgattag
     2521 ggtgatggtt cacgtagtgg gccatcgccc tgatagacgg tttttcgccc tttgacgttg
     2581 gagtccacgt tctttaatag tggactcttg ttccaaactg gaacaacact caaccctatc
     2641 tcggtctatt cttttgattt ataagggatt ttgccgattt cggcctattg gttaaaaaat
     2701 gagctgattt aacaaaaatt taacgcgaat taattctgtg gaatgtgtgt cagttagggt
     2761 gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt
     2821 cagcaaccag gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc
     2881 atctcaatta gtcagcaacc atagtcccgc ccctaactcc gcccatcccg cccctaactc
     2941 cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt tatgcagagg
     3001 ccgaggccgc ctctgcctct gagctattcc agaagtagtg aggaggcttt tttggaggcc
     3061 taggcttttg caaaaagctc ccgggagctt gtatatccat tttcggatct gatcaagaga
     3121 caggatgagg atcgtttcgc atgattgaac aagatggatt gcacgcaggt tctccggccg
     3181 cttgggtgga gaggctattc ggctatgact gggcacaaca gacaatcggc tgctctgatg
     3241 ccgccgtgtt ccggctgtca gcgcaggggc gcccggttct ttttgtcaag accgacctgt
     3301 ccggtgccct gaatgaactg caggacgagg cagcgcggct atcgtggctg gccacgacgg
     3361 gcgttccttg cgcagctgtg ctcgacgttg tcactgaagc gggaagggac tggctgctat
     3421 tgggcgaagt gccggggcag gatctcctgt catctcacct tgctcctgcc gagaaagtat
     3481 ccatcatggc tgatgcaatg cggcggctgc atacgcttga tccggctacc tgcccattcg
     3541 accaccaagc gaaacatcgc atcgagcgag cacgtactcg gatggaagcc ggtcttgtcg
     3601 atcaggatga tctggacgaa gagcatcagg ggctcgcgcc agccgaactg ttcgccaggc
     3661 tcaaggcgcg catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat gcctgcttgc
     3721 cgaatatcat ggtggaaaat ggccgctttt ctggattcat cgactgtggc cggctgggtg
     3781 tggcggaccg ctatcaggac atagcgttgg ctacccgtga tattgctgaa gagcttggcg
     3841 gcgaatgggc tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat tcgcagcgca
     3901 tcgccttcta tcgccttctt gacgagttct tctgagcggg actctggggt tcgaaatgac
     3961 cgaccaagcg acgcccaacc tgccatcacg agatttcgat tccaccgccg ccttctatga
     4021 aaggttgggc ttcggaatcg ttttccggga cgccggctgg atgatcctcc agcgcgggga
     4081 tctcatgctg gagttcttcg cccaccccaa cttgtttatt gcagcttata atggttacaa
     4141 ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg
     4201 tggtttgtcc aaactcatca atgtatctta tcatgtctgt ataccgtcga cctctagcta
     4261 gagcttggcg taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat
     4321 tccacacaac atacgagccg gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag
     4381 ctaactcaca ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg
     4441 ccagctgcat taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc
     4501 ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc
     4561 agctcactca aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa
     4621 catgtgagca aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt
     4681 tttccatagg ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg
     4741 gcgaaacccg acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg
     4801 ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag
     4861 cgtggcgctt tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc
     4921 caagctgggc tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa
     4981 ctatcgtctt gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg
     5041 taacaggatt agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc
     5101 taactacggc tacactagaa gaacagtatt tggtatctgc gctctgctga agccagttac
     5161 cttcggaaaa agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggttt
     5221 ttttgtttgc aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat
     5281 cttttctacg gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat
     5341 gagattatca aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc
     5401 aatctaaagt atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc
     5461 acctatctca gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta
     5521 gataactacg atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga
     5581 cccacgctca ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg
     5641 cagaagtggt cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc
     5701 tagagtaagt agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat
     5761 cgtggtgtca cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag
     5821 gcgagttaca tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat
     5881 cgttgtcaga agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa
     5941 ttctcttact gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa
     6001 gtcattctga gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga
     6061 taataccgcg ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg
     6121 gcgaaaactc tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc
     6181 acccaactga tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg
     6241 aaggcaaaat gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact
     6301 cttccttttt caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat
     6361 atttgaatgt atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt
     6421 gccacctgac gtc
//
