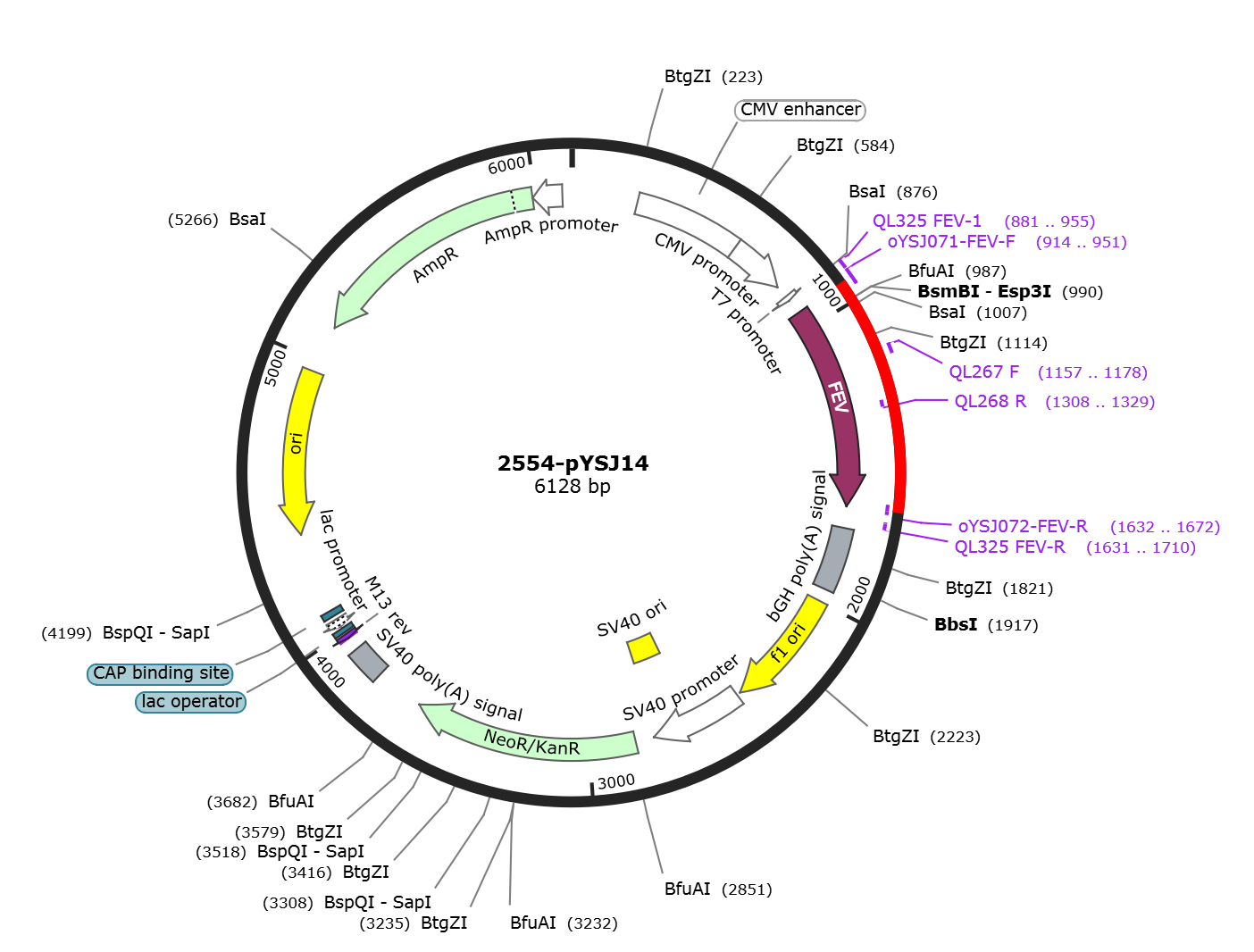

pYSJ14

LOCUS       pYSJ14            6128 bp DNA     circular SYN 29-MAY-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6128)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6128
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     881..955
                     /label=QL325 FEV-1
     primer_bind     914..951
                     /label=oYSJ071-FEV-F
     CDS             935..1651
                     /codon_start=1
                     /label=FEV
                     /translation="MRQSGASQPLLINMYLPDPVGDGLFKDGKNPSWGPLSPAVQKGSG
                     QIQLWQFLLELLADRANAGCIAWEGGHGEFKLTDPDEVARRWGERKSKPNMNYDKLSRA
                     LRYYYDKNIMSKVHGKRYAYRFDFQGLAQACQPPPAHAHAAAAAAAAAAAAQDGALYKL
                     PAGLAPLPFPGLSKLNLMAASAGVAPAGFSYWPGPGPAATAAAATAALYPSPSLQPPPG
                     PFGAVAAASHLGGHYH"
     primer_bind     1157..1178
                     /label=QL267 F
     primer_bind     complement(1308..1329)
                     /label=QL268 R
     primer_bind     complement(1631..1710)
                     /label=QL325 FEV-R
     primer_bind     complement(1632..1672)
                     /label=oYSJ072-FEV-R
     polyA_signal    1728..1952
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      1998..2426
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2440..2769
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2620..2755
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2836..3630
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3804..3925
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3974..3990)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    3998..4014
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4022..4052)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4067..4088
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4376..4961)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5132..5992)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5993..6097)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatgaga cagagcggcg cctcccagcc
      961 cctgctgatc aacatgtacc tgccagatcc cgtcggagac ggtctcttca aggacgggaa
     1021 gaacccgagc tgggggccgc tgagccccgc ggttcagaaa ggcagcggac agatccagct
     1081 gtggcagttt ctgctggagc tgctggctga ccgcgcgaac gccggctgca tcgcgtggga
     1141 gggcggtcac ggcgagttca agctcacgga cccggacgag gtggcgcggc ggtggggcga
     1201 gcgcaagagc aagcccaaca tgaactacga caagctgagc cgcgccctgc gctactacta
     1261 cgacaagaac atcatgagca aggtgcatgg caagcgctac gcctaccgct tcgacttcca
     1321 gggcctggcg caggcctgcc agccgccgcc cgcgcacgct catgccgccg ccgcagctgc
     1381 tgccgccgcc gcggccgccc aggacggcgc gctctacaag ctgcccgccg gcctcgcccc
     1441 gctgcccttc cccggcctct ccaaactcaa cctcatggcc gcctcggccg gggtcgcgcc
     1501 cgccggcttc tcctactggc cgggcccggg ccccgccgcc accgctgccg ccgccaccgc
     1561 cgcgctctac cccagtccca gcttgcagcc cccgcccggg cccttcgggg ccgtggccgc
     1621 agcctcgcac ttggggggcc attaccacta ggaattctgc agatatccag cacagtggcg
     1681 gccgctcgag tctagagggc ccgtttaaac ccgctgatca gcctcgactg tgccttctag
     1741 ttgccagcca tctgttgttt gcccctcccc cgtgccttcc ttgaccctgg aaggtgccac
     1801 tcccactgtc ctttcctaat aaaatgagga aattgcatcg cattgtctga gtaggtgtca
     1861 ttctattctg gggggtgggg tggggcagga cagcaagggg gaggattggg aagacaatag
     1921 caggcatgct ggggatgcgg tgggctctat ggcttctgag gcggaaagaa ccagctgggg
     1981 ctctaggggg tatccccacg cgccctgtag cggcgcatta agcgcggcgg gtgtggtggt
     2041 tacgcgcagc gtgaccgcta cacttgccag cgccctagcg cccgctcctt tcgctttctt
     2101 cccttccttt ctcgccacgt tcgccggctt tccccgtcaa gctctaaatc gggggctccc
     2161 tttagggttc cgatttagtg ctttacggca cctcgacccc aaaaaacttg attagggtga
     2221 tggttcacgt agtgggccat cgccctgata gacggttttt cgccctttga cgttggagtc
     2281 cacgttcttt aatagtggac tcttgttcca aactggaaca acactcaacc ctatctcggt
     2341 ctattctttt gatttataag ggattttgcc gatttcggcc tattggttaa aaaatgagct
     2401 gatttaacaa aaatttaacg cgaattaatt ctgtggaatg tgtgtcagtt agggtgtgga
     2461 aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca
     2521 accaggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc
     2581 aattagtcag caaccatagt cccgccccta actccgccca tcccgcccct aactccgccc
     2641 agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag
     2701 gccgcctctg cctctgagct attccagaag tagtgaggag gcttttttgg aggcctaggc
     2761 ttttgcaaaa agctcccggg agcttgtata tccattttcg gatctgatca agagacagga
     2821 tgaggatcgt ttcgcatgat tgaacaagat ggattgcacg caggttctcc ggccgcttgg
     2881 gtggagaggc tattcggcta tgactgggca caacagacaa tcggctgctc tgatgccgcc
     2941 gtgttccggc tgtcagcgca ggggcgcccg gttctttttg tcaagaccga cctgtccggt
     3001 gccctgaatg aactgcagga cgaggcagcg cggctatcgt ggctggccac gacgggcgtt
     3061 ccttgcgcag ctgtgctcga cgttgtcact gaagcgggaa gggactggct gctattgggc
     3121 gaagtgccgg ggcaggatct cctgtcatct caccttgctc ctgccgagaa agtatccatc
     3181 atggctgatg caatgcggcg gctgcatacg cttgatccgg ctacctgccc attcgaccac
     3241 caagcgaaac atcgcatcga gcgagcacgt actcggatgg aagccggtct tgtcgatcag
     3301 gatgatctgg acgaagagca tcaggggctc gcgccagccg aactgttcgc caggctcaag
     3361 gcgcgcatgc ccgacggcga ggatctcgtc gtgacccatg gcgatgcctg cttgccgaat
     3421 atcatggtgg aaaatggccg cttttctgga ttcatcgact gtggccggct gggtgtggcg
     3481 gaccgctatc aggacatagc gttggctacc cgtgatattg ctgaagagct tggcggcgaa
     3541 tgggctgacc gcttcctcgt gctttacggt atcgccgctc ccgattcgca gcgcatcgcc
     3601 ttctatcgcc ttcttgacga gttcttctga gcgggactct ggggttcgaa atgaccgacc
     3661 aagcgacgcc caacctgcca tcacgagatt tcgattccac cgccgccttc tatgaaaggt
     3721 tgggcttcgg aatcgttttc cgggacgccg gctggatgat cctccagcgc ggggatctca
     3781 tgctggagtt cttcgcccac cccaacttgt ttattgcagc ttataatggt tacaaataaa
     3841 gcaatagcat cacaaatttc acaaataaag catttttttc actgcattct agttgtggtt
     3901 tgtccaaact catcaatgta tcttatcatg tctgtatacc gtcgacctct agctagagct
     3961 tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac
     4021 acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac
     4081 tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc
     4141 tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgctcttccg
     4201 cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc
     4261 actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt
     4321 gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc
     4381 ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa
     4441 acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc
     4501 ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg
     4561 cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc
     4621 tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc
     4681 gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca
     4741 ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact
     4801 acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg
     4861 gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc ggtttttttg
     4921 tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt
     4981 ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat
     5041 tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt aaatcaatct
     5101 aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt gaggcaccta
     5161 tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc gtgtagataa
     5221 ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg cgagacccac
     5281 gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc gagcgcagaa
     5341 gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg gaagctagag
     5401 taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca ggcatcgtgg
     5461 tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga tcaaggcgag
     5521 ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg
     5581 tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg cataattctc
     5641 ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca accaagtcat
     5701 tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata cgggataata
     5761 ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa
     5821 aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact cgtgcaccca
     5881 actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa acaggaaggc
     5941 aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc atactcttcc
     6001 tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga tacatatttg
     6061 aatgtattta gaaaaataaa caaatagggg ttccgcgcac atttccccga aaagtgccac
     6121 ctgacgtc
//
