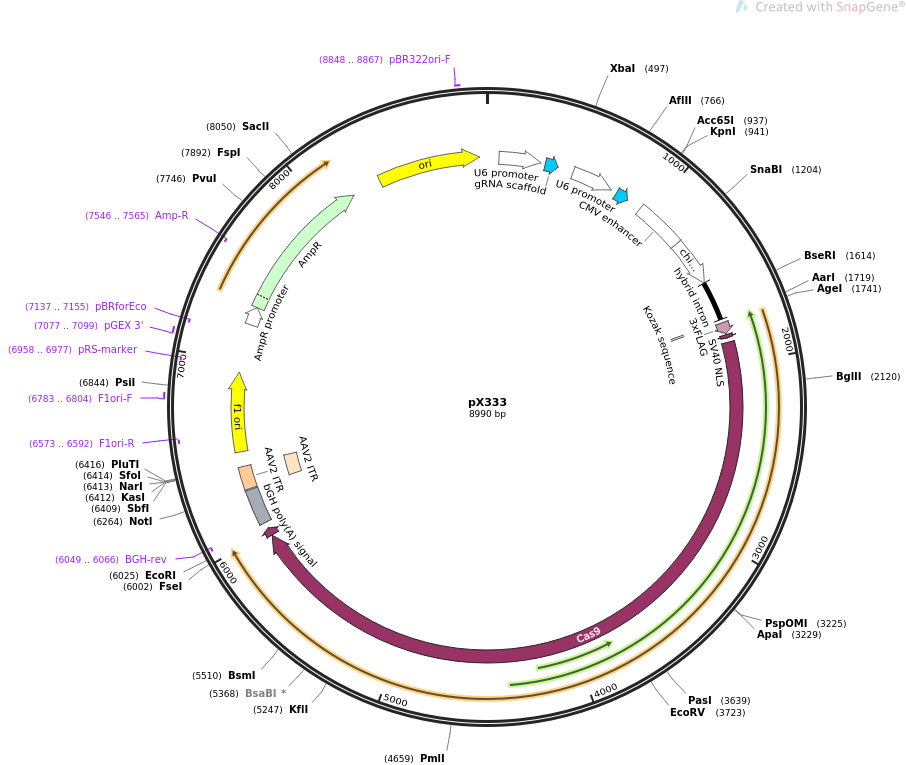

pX333

LOCUS       pX333                8990 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  Vector for tandem expression of two sgRNAs from two independent U6
            promoters. Cas9 is expressed by Cbh promoter..
ACCESSION   .
VERSION     .
KEYWORDS    pX333
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8990)
  AUTHORS   Maddalo D, Manchado E, Concepcion CP, Bonetti C, Vidigal JA, Han YC,
            Ogrodowski P, Crippa A, Rekhtman N, de Stanchina E, Lowe SW, Ventura
            A
  TITLE     In vivo engineering of oncogenic chromosomal rearrangements with the
            CRISPR/Cas9 system.
  JOURNAL   Nature. 2014 Dec 18;516(7531):423-7. doi: 10.1038/nature13902. Epub
            2014 Oct 22.
  PUBMED    25337876
REFERENCE   2  (bases 1 to 8990)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..8990
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        70..310
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     misc_RNA        337..412
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     promoter        503..743
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     misc_RNA        778..853
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     enhancer        943..1228
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer;
                     contains an 18-bp deletion relative to the standard CMV
                     enhancer"
     promoter        1230..1507
                     /label=chicken beta-actin promoter
     intron          1508..1735
                     /label=hybrid intron
                     /note="hybrid between chicken beta-actin (CBA) and minute
                     virus of mice (MMV) introns (Gray et al., 2011)"
     regulatory      1747..1756
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1756..1821
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     CDS             1828..1848
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             1873..5973
                     /codon_start=1
                     /product="Cas9 (Csn1) endonuclease from the Streptococcus
                     pyogenes Type II CRISPR/Cas system"
                     /label=Cas9
                     /note="generates RNA-guided double strand breaks in DNA"
                     /translation="DKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN
                     LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF
                     LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF
                     RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE
                     NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI
                     GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ
                     QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR
                     KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN
                     SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF
                     TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS
                     VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL
                     KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ
                     LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH
                     KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL
                     YYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPS
                     EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV
                     AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN
                     AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE
                     SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT
                     IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL
                     ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA
                     NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD
                     ATLIHQSITGLYETRIDLSQLGGD"
     CDS             5974..6021
                     /codon_start=1
                     /product="bipartite nuclear localization signal from
                     nucleoplasmin"
                     /label=nucleoplasmin NLS
                     /translation="KRPAATKKAGQAKKKK"
     primer_bind     complement(6049..6066)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    6055..6262
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     repeat_region   6271..6411
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   6271..6400
                     /label=AAV2 ITR
     rep_origin      6486..6941
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(6573..6592)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     6783..6804
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(6958..6977)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     7077..7099
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(7137..7155)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        7223..7327
                     /gene="bla"
                     /label=AmpR promoter
     CDS             7328..8188
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(7546..7565)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      8359..8947
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     8848..8867
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 ggccttttgc tcacatgcgc cattctcgag catgcgccat tctcgagcat gctcgagaat
       61 ggcgcatgtg agggcctatt tcccatgatt ccttcatatt tgcatatacg atacaaggct
      121 gttagagaga taattggaat taatttgact gtaaacacaa agatattagt acaaaatacg
      181 tgacgtagaa agtaataatt tcttgggtag tttgcagttt taaaattatg ttttaaaatg
      241 gactatcata tgcttaccgt aacttgaaag tatttcgatt tcttggcttt atatatcttg
      301 tggaaaggac gaaacaccgg gtcttcgaga agacctgttt tagagctaga aatagcaagt
      361 taaaataagg ctagtccgtt atcaacttga aaaagtggca ccgagtcggt gcttttttgt
      421 tttagagcta gaaatagcaa gttaaaataa ggctagtccg tttttagcgc gtgcgccaat
      481 tctgcagaca aatggctcta gagagggcct atttcccatg attccttcat atttgcatat
      541 acgatacaag gctgttagag agataattgg aattaatttg actgtaaaca caaagatatt
      601 agtacaaaat acgtgacgta gaaagtaata atttcttggg tagtttgcag ttttaaaatt
      661 atgttttaaa atggactatc atatgcttac cgtaacttga aagtatttcg atttcttggc
      721 tttatatatc ttgtggaaag gacgaaacac cggagaccta ttcgccttaa ggtctcggtt
      781 ttagagctag aaatagcaag ttaaaataag gctagtccgt tatcaacttg aaaaagtggc
      841 accgagtcgg tgcttttttg ttttagagct agaaatagca agttaaaata aggctagtcc
      901 gtttttagcg cgtgcgccaa ttctgcagac aaatggggta cccgttacat aacttacggt
      961 aaatggcccg cctggctgac cgcccaacga cccccgccca ttgacgtcaa tagtaacgcc
     1021 aatagggact ttccattgac gtcaatgggt ggagtattta cggtaaactg cccacttggc
     1081 agtacatcaa gtgtatcata tgccaagtac gccccctatt gacgtcaatg acggtaaatg
     1141 gcccgcctgg cattgtgccc agtacatgac cttatgggac tttcctactt ggcagtacat
     1201 ctacgtatta gtcatcgcta ttaccatggt cgaggtgagc cccacgttct gcttcactct
     1261 ccccatctcc cccccctccc cacccccaat tttgtattta tttatttttt aattattttg
     1321 tgcagcgatg ggggcggggg gggggggggg gcgcgcgcca ggcggggcgg ggcggggcga
     1381 ggggcggggc ggggcgaggc ggagaggtgc ggcggcagcc aatcagagcg gcgcgctccg
     1441 aaagtttcct tttatggcga ggcggcggcg gcggcggccc tataaaaagc gaagcgcgcg
     1501 gcgggcggga gtcgctgcgc gctgccttcg ccccgtgccc cgctccgccg ccgcctcgcg
     1561 ccgcccgccc cggctctgac tgaccgcgtt actcccacag gtgagcgggc gggacggccc
     1621 ttctcctccg ggctgtaatt agctgagcaa gaggtaaggg tttaagggat ggttggttgg
     1681 tggggtatta atgtttaatt acctggagca cctgcctgaa atcacttttt ttcaggttgg
     1741 accggtgcca ccatggacta taaggaccac gacggagact acaaggatca tgatattgat
     1801 tacaaagacg atgacgataa gatggcccca aagaagaagc ggaaggtcgg tatccacgga
     1861 gtcccagcag ccgacaagaa gtacagcatc ggcctggaca tcggcaccaa ctctgtgggc
     1921 tgggccgtga tcaccgacga gtacaaggtg cccagcaaga aattcaaggt gctgggcaac
     1981 accgaccggc acagcatcaa gaagaacctg atcggagccc tgctgttcga cagcggcgaa
     2041 acagccgagg ccacccggct gaagagaacc gccagaagaa gatacaccag acggaagaac
     2101 cggatctgct atctgcaaga gatcttcagc aacgagatgg ccaaggtgga cgacagcttc
     2161 ttccacagac tggaagagtc cttcctggtg gaagaggata agaagcacga gcggcacccc
     2221 atcttcggca acatcgtgga cgaggtggcc taccacgaga agtaccccac catctaccac
     2281 ctgagaaaga aactggtgga cagcaccgac aaggccgacc tgcggctgat ctatctggcc
     2341 ctggcccaca tgatcaagtt ccggggccac ttcctgatcg agggcgacct gaaccccgac
     2401 aacagcgacg tggacaagct gttcatccag ctggtgcaga cctacaacca gctgttcgag
     2461 gaaaacccca tcaacgccag cggcgtggac gccaaggcca tcctgtctgc cagactgagc
     2521 aagagcagac ggctggaaaa tctgatcgcc cagctgcccg gcgagaagaa gaatggcctg
     2581 ttcggaaacc tgattgccct gagcctgggc ctgaccccca acttcaagag caacttcgac
     2641 ctggccgagg atgccaaact gcagctgagc aaggacacct acgacgacga cctggacaac
     2701 ctgctggccc agatcggcga ccagtacgcc gacctgtttc tggccgccaa gaacctgtcc
     2761 gacgccatcc tgctgagcga catcctgaga gtgaacaccg agatcaccaa ggcccccctg
     2821 agcgcctcta tgatcaagag atacgacgag caccaccagg acctgaccct gctgaaagct
     2881 ctcgtgcggc agcagctgcc tgagaagtac aaagagattt tcttcgacca gagcaagaac
     2941 ggctacgccg gctacattga cggcggagcc agccaggaag agttctacaa gttcatcaag
     3001 cccatcctgg aaaagatgga cggcaccgag gaactgctcg tgaagctgaa cagagaggac
     3061 ctgctgcgga agcagcggac cttcgacaac ggcagcatcc cccaccagat ccacctggga
     3121 gagctgcacg ccattctgcg gcggcaggaa gatttttacc cattcctgaa ggacaaccgg
     3181 gaaaagatcg agaagatcct gaccttccgc atcccctact acgtgggccc tctggccagg
     3241 ggaaacagca gattcgcctg gatgaccaga aagagcgagg aaaccatcac cccctggaac
     3301 ttcgaggaag tggtggacaa gggcgcttcc gcccagagct tcatcgagcg gatgaccaac
     3361 ttcgataaga acctgcccaa cgagaaggtg ctgcccaagc acagcctgct gtacgagtac
     3421 ttcaccgtgt ataacgagct gaccaaagtg aaatacgtga ccgagggaat gagaaagccc
     3481 gccttcctga gcggcgagca gaaaaaggcc atcgtggacc tgctgttcaa gaccaaccgg
     3541 aaagtgaccg tgaagcagct gaaagaggac tacttcaaga aaatcgagtg cttcgactcc
     3601 gtggaaatct ccggcgtgga agatcggttc aacgcctccc tgggcacata ccacgatctg
     3661 ctgaaaatta tcaaggacaa ggacttcctg gacaatgagg aaaacgagga cattctggaa
     3721 gatatcgtgc tgaccctgac actgtttgag gacagagaga tgatcgagga acggctgaaa
     3781 acctatgccc acctgttcga cgacaaagtg atgaagcagc tgaagcggcg gagatacacc
     3841 ggctggggca ggctgagccg gaagctgatc aacggcatcc gggacaagca gtccggcaag
     3901 acaatcctgg atttcctgaa gtccgacggc ttcgccaaca gaaacttcat gcagctgatc
     3961 cacgacgaca gcctgacctt taaagaggac atccagaaag cccaggtgtc cggccagggc
     4021 gatagcctgc acgagcacat tgccaatctg gccggcagcc ccgccattaa gaagggcatc
     4081 ctgcagacag tgaaggtggt ggacgagctc gtgaaagtga tgggccggca caagcccgag
     4141 aacatcgtga tcgaaatggc cagagagaac cagaccaccc agaagggaca gaagaacagc
     4201 cgcgagagaa tgaagcggat cgaagagggc atcaaagagc tgggcagcca gatcctgaaa
     4261 gaacaccccg tggaaaacac ccagctgcag aacgagaagc tgtacctgta ctacctgcag
     4321 aatgggcggg atatgtacgt ggaccaggaa ctggacatca accggctgtc cgactacgat
     4381 gtggaccata tcgtgcctca gagctttctg aaggacgact ccatcgacaa caaggtgctg
     4441 accagaagcg acaagaaccg gggcaagagc gacaacgtgc cctccgaaga ggtcgtgaag
     4501 aagatgaaga actactggcg gcagctgctg aacgccaagc tgattaccca gagaaagttc
     4561 gacaatctga ccaaggccga gagaggcggc ctgagcgaac tggataaggc cggcttcatc
     4621 aagagacagc tggtggaaac ccggcagatc acaaagcacg tggcacagat cctggactcc
     4681 cggatgaaca ctaagtacga cgagaatgac aagctgatcc gggaagtgaa agtgatcacc
     4741 ctgaagtcca agctggtgtc cgatttccgg aaggatttcc agttttacaa agtgcgcgag
     4801 atcaacaact accaccacgc ccacgacgcc tacctgaacg ccgtcgtggg aaccgccctg
     4861 atcaaaaagt accctaagct ggaaagcgag ttcgtgtacg gcgactacaa ggtgtacgac
     4921 gtgcggaaga tgatcgccaa gagcgagcag gaaatcggca aggctaccgc caagtacttc
     4981 ttctacagca acatcatgaa ctttttcaag accgagatta ccctggccaa cggcgagatc
     5041 cggaagcggc ctctgatcga gacaaacggc gaaaccgggg agatcgtgtg ggataagggc
     5101 cgggattttg ccaccgtgcg gaaagtgctg agcatgcccc aagtgaatat cgtgaaaaag
     5161 accgaggtgc agacaggcgg cttcagcaaa gagtctatcc tgcccaagag gaacagcgat
     5221 aagctgatcg ccagaaagaa ggactgggac cctaagaagt acggcggctt cgacagcccc
     5281 accgtggcct attctgtgct ggtggtggcc aaagtggaaa agggcaagtc caagaaactg
     5341 aagagtgtga aagagctgct ggggatcacc atcatggaaa gaagcagctt cgagaagaat
     5401 cccatcgact ttctggaagc caagggctac aaagaagtga aaaaggacct gatcatcaag
     5461 ctgcctaagt actccctgtt cgagctggaa aacggccgga agagaatgct ggcctctgcc
     5521 ggcgaactgc agaagggaaa cgaactggcc ctgccctcca aatatgtgaa cttcctgtac
     5581 ctggccagcc actatgagaa gctgaagggc tcccccgagg ataatgagca gaaacagctg
     5641 tttgtggaac agcacaagca ctacctggac gagatcatcg agcagatcag cgagttctcc
     5701 aagagagtga tcctggccga cgctaatctg gacaaagtgc tgtccgccta caacaagcac
     5761 cgggataagc ccatcagaga gcaggccgag aatatcatcc acctgtttac cctgaccaat
     5821 ctgggagccc ctgccgcctt caagtacttt gacaccacca tcgaccggaa gaggtacacc
     5881 agcaccaaag aggtgctgga cgccaccctg atccaccaga gcatcaccgg cctgtacgag
     5941 acacggatcg acctgtctca gctgggaggc gacaaaaggc cggcggccac gaaaaaggcc
     6001 ggccaggcaa aaaagaaaaa gtaagaattc ctagagctcg ctgatcagcc tcgactgtgc
     6061 cttctagttg ccagccatct gttgtttgcc cctcccccgt gccttccttg accctggaag
     6121 gtgccactcc cactgtcctt tcctaataaa atgaggaaat tgcatcgcat tgtctgagta
     6181 ggtgtcattc tattctgggg ggtggggtgg ggcaggacag caagggggag gattgggaag
     6241 agaatagcag gcatgctggg gagcggccgc aggaacccct agtgatggag ttggccactc
     6301 cctctctgcg cgctcgctcg ctcactgagg ccgggcgacc aaaggtcgcc cgacgcccgg
     6361 gctttgcccg ggcggcctca gtgagcgagc gagcgcgcag ctgcctgcag gggcgcctga
     6421 tgcggtattt tctccttacg catctgtgcg gtatttcaca ccgcatacgt caaagcaacc
     6481 atagtacgcg ccctgtagcg gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt
     6541 gaccgctaca cttgccagcg ccttagcgcc cgctcctttc gctttcttcc cttcctttct
     6601 cgccacgttc gccggctttc cccgtcaagc tctaaatcgg gggctccctt tagggttccg
     6661 atttagtgct ttacggcacc tcgaccccaa aaaacttgat ttgggtgatg gttcacgtag
     6721 tgggccatcg ccctgataga cggtttttcg ccctttgacg ttggagtcca cgttctttaa
     6781 tagtggactc ttgttccaaa ctggaacaac actcaactct atctcgggct attcttttga
     6841 tttataaggg attttgccga tttcggtcta ttggttaaaa aatgagctga tttaacaaaa
     6901 atttaacgcg aattttaaca aaatattaac gtttacaatt ttatggtgca ctctcagtac
     6961 aatctgctct gatgccgcat agttaagcca gccccgacac ccgccaacac ccgctgacgc
     7021 gccctgacgg gcttgtctgc tcccggcatc cgcttacaga caagctgtga ccgtctccgg
     7081 gagctgcatg tgtcagaggt tttcaccgtc atcaccgaaa cgcgcgagac gaaagggcct
     7141 cgtgatacgc ctatttttat aggttaatgt catgataata atggtttctt agacgtcagg
     7201 tggcactttt cggggaaatg tgcgcggaac ccctatttgt ttatttttct aaatacattc
     7261 aaatatgtat ccgctcatga gacaataacc ctgataaatg cttcaataat attgaaaaag
     7321 gaagagtatg agtattcaac atttccgtgt cgcccttatt cccttttttg cggcattttg
     7381 ccttcctgtt tttgctcacc cagaaacgct ggtgaaagta aaagatgctg aagatcagtt
     7441 gggtgcacga gtgggttaca tcgaactgga tctcaacagc ggtaagatcc ttgagagttt
     7501 tcgccccgaa gaacgttttc caatgatgag cacttttaaa gttctgctat gtggcgcggt
     7561 attatcccgt attgacgccg ggcaagagca actcggtcgc cgcatacact attctcagaa
     7621 tgacttggtt gagtactcac cagtcacaga aaagcatctt acggatggca tgacagtaag
     7681 agaattatgc agtgctgcca taaccatgag tgataacact gcggccaact tacttctgac
     7741 aacgatcgga ggaccgaagg agctaaccgc ttttttgcac aacatggggg atcatgtaac
     7801 tcgccttgat cgttgggaac cggagctgaa tgaagccata ccaaacgacg agcgtgacac
     7861 cacgatgcct gtagcaatgg caacaacgtt gcgcaaacta ttaactggcg aactacttac
     7921 tctagcttcc cggcaacaat taatagactg gatggaggcg gataaagttg caggaccact
     7981 tctgcgctcg gcccttccgg ctggctggtt tattgctgat aaatctggag ccggtgagcg
     8041 tggaagccgc ggtatcattg cagcactggg gccagatggt aagccctccc gtatcgtagt
     8101 tatctacacg acggggagtc aggcaactat ggatgaacga aatagacaga tcgctgagat
     8161 aggtgcctca ctgattaagc attggtaact gtcagaccaa gtttactcat atatacttta
     8221 gattgattta aaacttcatt tttaatttaa aaggatctag gtgaagatcc tttttgataa
     8281 tctcatgacc aaaatccctt aacgtgagtt ttcgttccac tgagcgtcag accccgtaga
     8341 aaagatcaaa ggatcttctt gagatccttt ttttctgcgc gtaatctgct gcttgcaaac
     8401 aaaaaaacca ccgctaccag cggtggtttg tttgccggat caagagctac caactctttt
     8461 tccgaaggta actggcttca gcagagcgca gataccaaat actgttcttc tagtgtagcc
     8521 gtagttaggc caccacttca agaactctgt agcaccgcct acatacctcg ctctgctaat
     8581 cctgttacca gtggctgctg ccagtggcga taagtcgtgt cttaccgggt tggactcaag
     8641 acgatagtta ccggataagg cgcagcggtc gggctgaacg gggggttcgt gcacacagcc
     8701 cagcttggag cgaacgacct acaccgaact gagataccta cagcgtgagc tatgagaaag
     8761 cgccacgctt cccgaaggga gaaaggcgga caggtatccg gtaagcggca gggtcggaac
     8821 aggagagcgc acgagggagc ttccaggggg aaacgcctgg tatctttata gtcctgtcgg
     8881 gtttcgccac ctctgacttg agcgtcgatt tttgtgatgc tcgtcagggg ggcggagcct
     8941 atggaaaaac gccagcaacg cggccttttt acggttcctg gccttttgct
//
