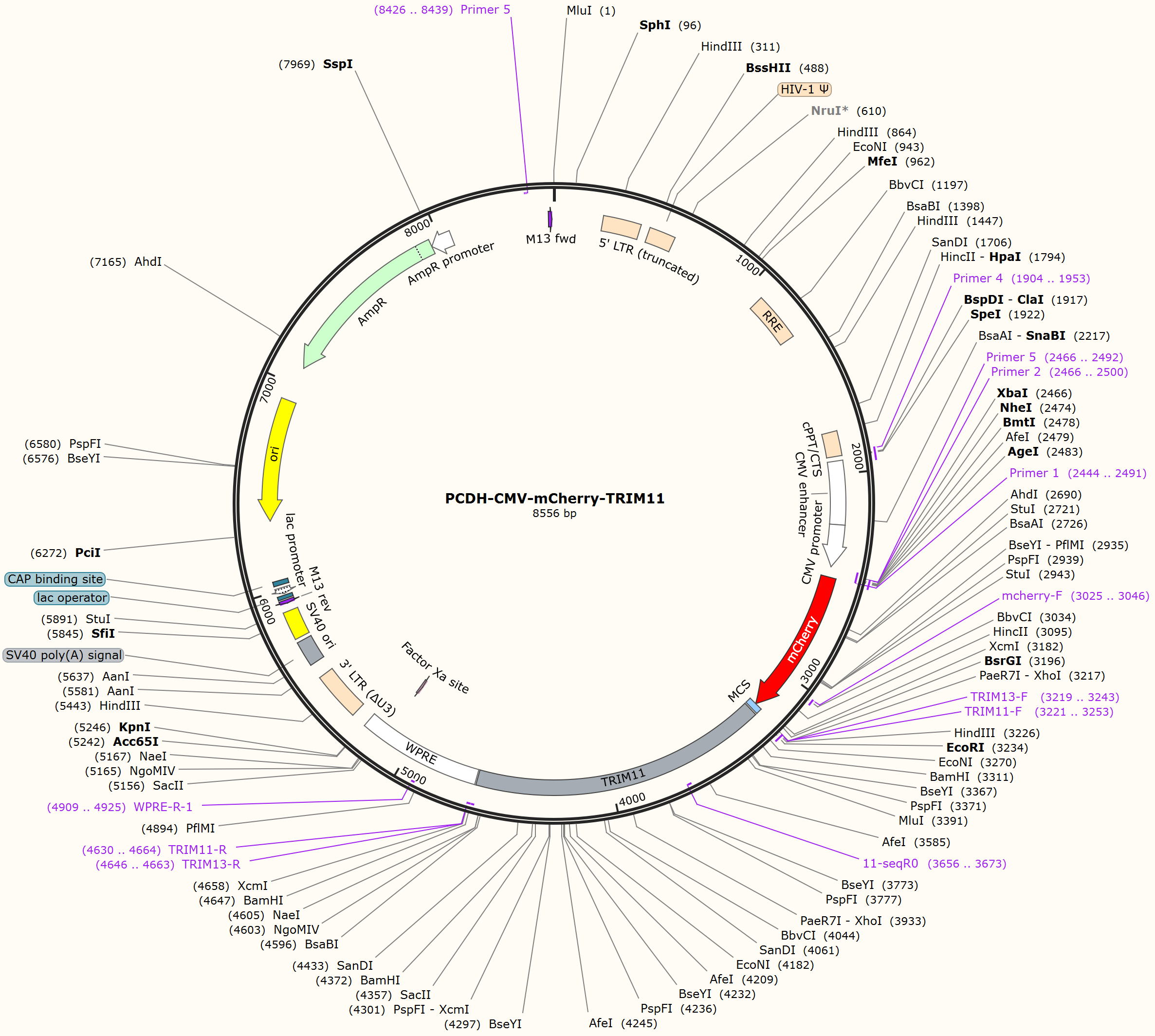

PCDH-CMV-mCherry-TRIM11

LOCUS      PCDH-CMV-mCherry-TRIM11             8556 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8556)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8556
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3219..3243
                     /label=TRIM13-F
     primer_bind     3221..3253
                     /label=TRIM11-F
     misc_feature    3240..4646
                     /label=TRIM11
     primer_bind     complement(3656..3673)
                     /label=11-seqR0
     primer_bind     complement(4630..4664)
                     /label=TRIM11-R
     primer_bind     complement(4646..4663)
                     /label=TRIM13-R
     misc_feature    4653..5240
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(4909..4925)
                     /label=WPRE-R-1
     CDS             complement(5124..5135)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5313..5546
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5618..5739
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5758..5893
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5931..5947)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5955..5971
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5979..6009)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6024..6045
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6333..6921)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7092..7952)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7953..8057)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8426..8439)
                     /label=Primer 5
     primer_bind     8531..8547
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggccgcccc cgacctgtcc accaacctcc aggaggaggc cacctgcgcc atctgcctcg
     3301 actacttcac ggatccggtg atgaccgact gcggccacaa cttctgccgc gagtgcatcc
     3361 ggcgctgctg gggccagccc gagggcccgt acgcgtgccc cgagtgccgc gagctgtccc
     3421 cgcagaggaa cctgcggccc aaccgcccgc ttgctaagat ggccgagatg gcgcggcgcc
     3481 tgcacccgcc gtcgccggtc ccgcagggcg tgtgccccgc gcaccgcgag ccactggccg
     3541 ccttctgtgg cgacgagctg cgcctcctgt gtgcggcctg cgagcgctct ggggagcact
     3601 gggcgcaccg cgtgcggccg ctgcaggacg cggccgaaga cctcaaggcg aagctggaga
     3661 agtcactgga gcatctccgg aagcagatgc aggatgcgtt gctgttccaa gcccaggcgg
     3721 atgagacctg cgtcttgtgg cagaagatgg tggagagcca gcggcagaac gtgctgggtg
     3781 agttcgagcg tcttcgccgt ttgctggcag aggaggagca gcagctgctg cagaggctgg
     3841 aggaggagga gctggaggtg ctgccccggc tgcgggaggg cgcagcccac ctaggccagc
     3901 agagcgccca cctagctgag ctcatcgccg agctcgaggg ccgctgccag ctgcctgctc
     3961 tggggctgct gcaggacatc aaggacgccc tgcgcagggt ccaggatgtg aagctgcagc
     4021 ccccagaagt tgtgcctatg gagctgagga ccgtgtgcag ggtcccggga ctggtagaga
     4081 cactgcggag gtttcgaggg gacgtgacct tggacccgga caccgccaac cctgagctga
     4141 tcctgtctga agacaggcgg agcgtgcagc ggggggacct acggcaggcc ctgccggaca
     4201 gcccagagcg ctttgacccc ggcccctgcg tgctgggcca ggagcgcttc acctcaggcc
     4261 gccactactg ggaggtggag gttggggacc gcaccagctg ggccctgggg gtgtgcaggg
     4321 agaacgtgaa caggaaggag aagggcgagc tgtccgcggg caacggcttc tggatcctgg
     4381 tcttcctggg gagctattac aattcctcgg aacgggcctt ggctccactc cgggacccac
     4441 ccaggcgcgt ggggatcttt ctggactacg aggctggaca tctctctttc tacagtgcca
     4501 ccgatgggtc actgctattc atctttcccg agatcccctt ctcggggacg ctgcggcccc
     4561 tcttctcacc cctgtccagc agcccgaccc cgatgactat ctgccggccg aaaggtgggt
     4621 ccggggacac cctggctccc cagtgaggat ccaatcaacc tctggattac aaaatttgtg
     4681 aaagattgac tggtattctt aactatgttg ctccttttac gctatgtgga tacgctgctt
     4741 taatgccttt gtatcatgct attgcttccc gtatggcttt cattttctcc tccttgtata
     4801 aatcctggtt gctgtctctt tatgaggagt tgtggcccgt tgtcaggcaa cgtggcgtgg
     4861 tgtgcactgt gtttgctgac gcaaccccca ctggttgggg cattgccacc acctgtcagc
     4921 tcctttccgg gactttcgct ttccccctcc ctattgccac ggcggaactc atcgccgcct
     4981 gccttgcccg ctgctggaca ggggctcggc tgttgggcac tgacaattcc gtggtgttgt
     5041 cggggaagct gacgtccttt ccatggctgc tcgcctgtgt tgccacctgg attctgcgcg
     5101 ggacgtcctt ctgctacgtc ccttcggccc tcaatccagc ggaccttcct tcccgcggcc
     5161 tgctgccggc tctgcggcct cttccgcgtc tccgccttcg ccctcagacg agtcggatct
     5221 ccctttggcc gcctccccgc cggtaccttt aagaccaatg acttacaagg cagctgtaga
     5281 tcttagccac tttttaaaag aaaagggggg actggaaggg ctaattcact cccaacgaaa
     5341 ataagatctg ctttttgctt gtactgggtc tctctggtta gaccagatct gagcctggga
     5401 gctctctggc taactaggga acccactgct taagcctcaa taaagcttgc cttgagtgct
     5461 tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac tagagatccc tcagaccctt
     5521 ttagtcagtg tggaaaatct ctagcagtag tagttcatgt catcttatta ttcagtattt
     5581 ataacttgca aagaaatgaa tatcagagag tgagaggaac ttgtttattg cagcttataa
     5641 tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt tttcactgca
     5701 ttctagttgt ggtttgtcca aactcatcaa tgtatcttat catgtctggc tctagctatc
     5761 ccgcccctaa ctccgcccag ttccgcccat tctccgcccc atggctgact aatttttttt
     5821 atttatgcag aggccgaggc cgcctcggcc tctgagctat tccagaagta gtgaggaggc
     5881 ttttttggag gcctagactt ttgcagagac ggcccaaatt cgtaatcatg gtcatagctg
     5941 tttcctgtgt gaaattgtta tccgctcaca attccacaca acatacgagc cggaagcata
     6001 aagtgtaaag cctggggtgc ctaatgagtg agctaactca cattaattgc gttgcgctca
     6061 ctgcccgctt tccagtcggg aaacctgtcg tgccagctgc attaatgaat cggccaacgc
     6121 gcggggagag gcggtttgcg tattgggcgc tcttccgctt cctcgctcac tgactcgctg
     6181 cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt aatacggtta
     6241 tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc
     6301 aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc ccctgacgag
     6361 catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact ataaagatac
     6421 caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct gccgcttacc
     6481 ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag ctcacgctgt
     6541 aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc
     6601 gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa cccggtaaga
     6661 cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc gaggtatgta
     6721 ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag aaggacagta
     6781 tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg tagctcttga
     6841 tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca gcagattacg
     6901 cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag
     6961 tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc
     7021 tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact
     7081 tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt
     7141 cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta
     7201 ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta
     7261 tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc
     7321 gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat
     7381 agtttgcgca acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt
     7441 atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg
     7501 tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca
     7561 gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta
     7621 agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg
     7681 cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact
     7741 ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg
     7801 ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt
     7861 actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga
     7921 ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata ttattgaagc
     7981 atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa
     8041 caaatagggg ttccgcgcac atttccccga aaagtgccac ctgacgtcta agaaaccatt
     8101 attatcatga cattaaccta taaaaatagg cgtatcacga ggccctttcg tctcgcgcgt
     8161 ttcggtgatg acggtgaaaa cctctgacac atgcagctcc cggagacggt cacagcttgt
     8221 ctgtaagcgg atgccgggag cagacaagcc cgtcagggcg cgtcagcggg tgttggcggg
     8281 tgtcggggct ggcttaacta tgcggcatca gagcagattg tactgagagt gcaccatatg
     8341 cggtgtgaaa taccgcacag atgcgtaagg agaaaatacc gcatcaggcg ccattcgcca
     8401 ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg cctcttcgct attacgccag
     8461 ctggcgaaag ggggatgtgc tgcaaggcga ttaagttggg taacgccagg gttttcccag
     8521 tcacgacgtt gtaaaacgac ggccagtgcc aagctg
//
