pLXIN

价格:3500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLXIN
质粒类型: 逆病毒载体
高拷贝/低拷贝: --
克隆方法: 限制性内切酶,多克隆位点
启动子: --
载体大小: 6081 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签:
载体抗性: 氨苄青霉素
筛选标记: 新霉素(Nenomycin)
克隆菌株: DH5α, HB101
宿主细胞(系): --
备注: pLXIN载体含IRES元件(内部核糖体结合位点),目的基因和Neomycin抗性基因以双顺反子的形式共转录。
产品目录号: 631501
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 逆转录病毒

载体质粒图谱和多克隆位点信息

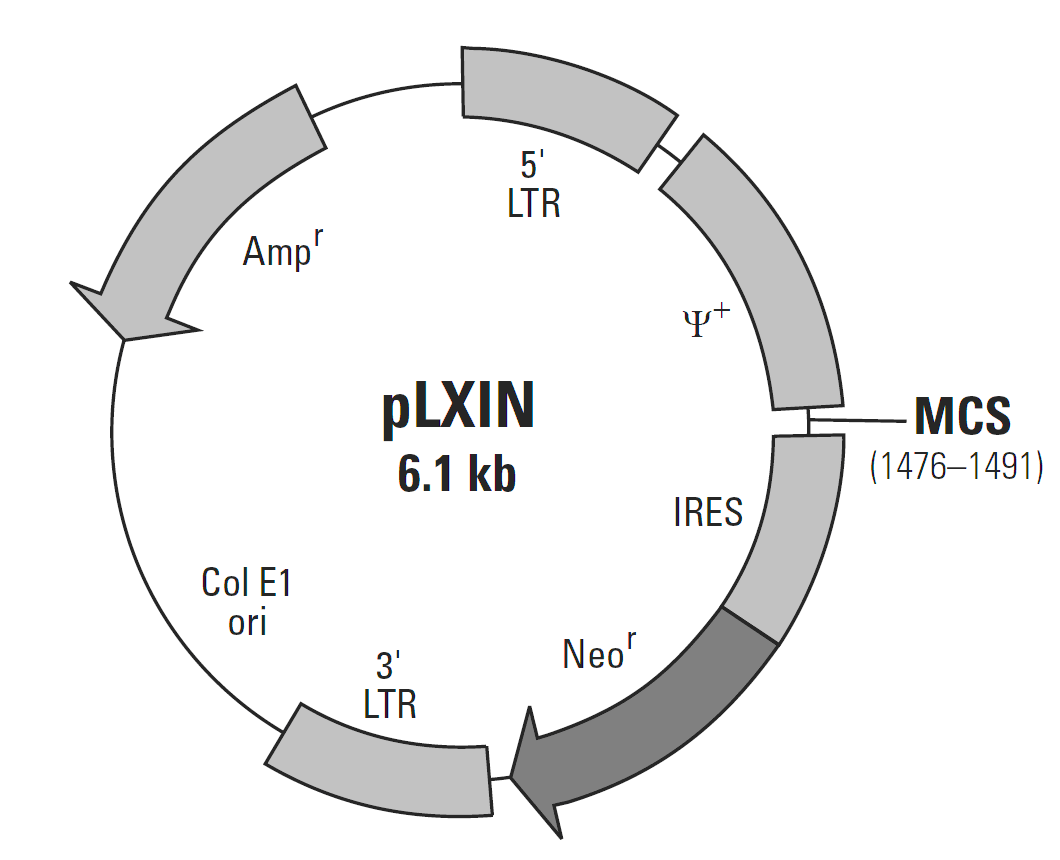

pLXIN载体图谱



pLXIN 多克隆位点

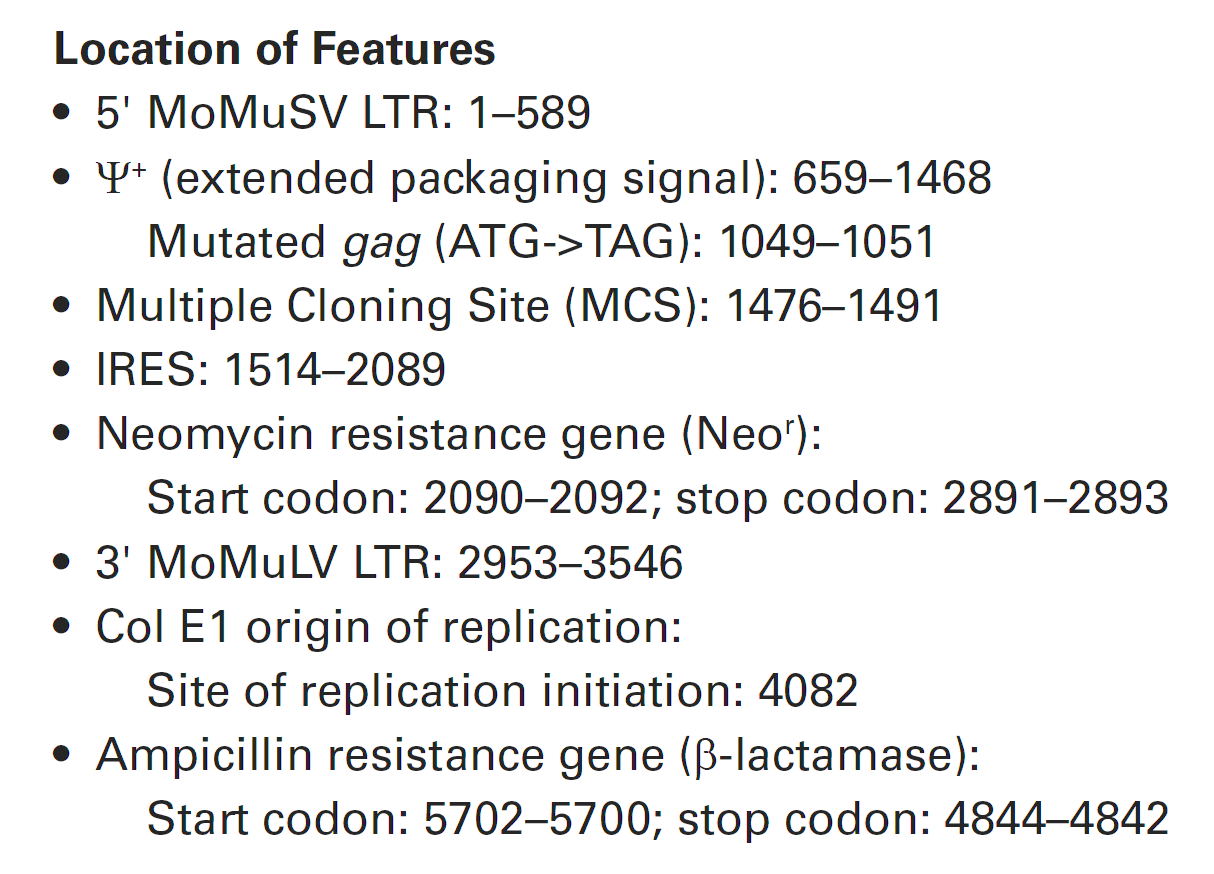

pLXIN 载体特征

载体简介

pLXIN contains elements derived from Moloney murine leukemia virus (MoMuLV) and Moloney murine sarcoma virus (MoMuSV), and is a bicistronic retroviral vector designed for retroviral gene delivery and expression (1–3). This vector contains an internal ribosome entry site (IRES) between the MCS and the neomycin resistance (Neor) gene. Thus, the 5' viral LTR promoter in this vector controls expression of both the gene of interest and Neor. pLXIN also possesses a Col E1 origin of replication and E. coli Ampr gene for propagation and antibiotic selection in bacteria.

The use of this bicistronic vector poses two primary advantages: Upon transfection into a packaging cell line, selection for antibiotic resistance allows for the simultaneous selection of high-titer, virus-producing lines. Later, upon infection of target cells with this virus, neomycin resistance correlates to expression of the gene of interest.
pLXIN can be transfected into a packaging cell line such as the RetroPack PT67 Cell Line (Cat. No. 631510). Once in the cell, RNA from the vector is packaged into infectious, replicationincompetent retroviral particles. pLXIN does not contain the structural genes (gag, pol, and env) necessary for particle formation and replication; however, these genes are stably integrated into PT67 (4–7). Subsequent introduction of pLXIN, containing Ψ+ (psi; the extended viral packaging signal), transcription and processing elements, and the gene of interest produces high-titer, replication-incompetent infectious virus. That is, these retroviral particles can infect target cells and transmit the gene of interest (which is cloned between the viral LTR sequences), but cannot replicate within these cells since the cells lack the viral structural genes. The separate introduction and integration of the structural genes into the packaging cell line minimizes the chances of producing replication-competent virus due to recombination events during cell proliferation.

载体序列

LOCUS       pLXIN	6081 bp 	DNA	SYN
DEFINITION  pLXIN
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6081
                     /organism="pLXIN"
                     /mol_type="other DNA"
     misc_feature    1..589
                     /label="5MoMuLV_LTR"
     misc_feature    659..1468
                     /label="psi_plus_pack"
     misc_feature    1055..1462
                     /label="gag"
     misc_feature    1398..1420
                     /label="MSCV_primer"
     misc_feature    1398..1420
                     /label="pLXSN_5_primer"
     misc_feature    1436..1452
                     /label="pBABE_5_primer"
     misc_feature    1515..2089
                     /label="IRES"
     gene            2090..2890
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"
     CDS             2090..2893
                     /label="ORF frame 2"
                     /translation="MGSAIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSA
                     QGRPVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPG
                     QDLLSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDD
                     LDEEHQGLAPAELFARLKARMPDGDDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVA
                     DRYQDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    2953..3546
                     /label="3MoMuLV_LTR"
                     /translation="MGSAIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSA
                     QGRPVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPG
                     QDLLSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDD
                     LDEEHQGLAPAELFARLKARMPDGDDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVA
                     DRYQDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    2995..3546
                     /label="5_LTR2"
                     /translation="MGSAIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSA
                     QGRPVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPG
                     QDLLSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDD
                     LDEEHQGLAPAELFARLKARMPDGDDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVA
                     DRYQDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     misc_feature    complement(3649..3671)
                     /label="pGEX_3_primer"
                     /translation="MGSAIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSA
                     QGRPVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPG
                     QDLLSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDD
                     LDEEHQGLAPAELFARLKARMPDGDDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVA
                     DRYQDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     gene            complement(4842..5702)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MGSAIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSA
                     QGRPVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPG
                     QDLLSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDD
                     LDEEHQGLAPAELFARLKARMPDGDDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVA
                     DRYQDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
     CDS             complement(4842..5702)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(5744..5772)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 TTTGAAAGAC CCCACCCGTA GGTGGCAAGC TAGCTTAAGT AACGCCACTT TGCAAGGCAT
   61 GGAAAAATAC ATAACTGAGA ATAGAAAAGT TCAGATCAAG GTCAGGAACA AAGAAACAGC
  121 TGAATACCAA ACAGGATATC TGTGGTAAGC GGTTCCTGCC CCGGCTCAGG GCCAAGAACA
  181 GATGAGACAG CTGAGTGATG GGCCAAACAG GATATCTGTG GTAAGCAGTT CCTGCCCCGG
  241 CTCGGGGCCA AGAACAGATG GTCCCCAGAT GCGGTCCAGC CCTCAGCAGT TTCTAGTGAA
  301 TCATCAGATG TTTCCAGGGT GCCCCAAGGA CCTGAAAATG ACCCTGTACC TTATTTGAAC
  361 TAACCAATCA GTTCGCTTCT CGCTTCTGTT CGCGCGCTTC CGCTCTCCGA GCTCAATAAA
  421 AGAGCCCACA ACCCCTCACT CGGCGCGCCA GTCTTCCGAT AGACTGCGTC GCCCGGGTAC
  481 CCGTATTCCC AATAAAGCCT CTTGCTGTTT GCATCCGAAT CGTGGTCTCG CTGTTCCTTG
  541 GGAGGGTCTC CTCTGAGTGA TTGACTACCC ACGACGGGGG TCTTTCATTT GGGGGCTCGT
  601 CCGGGATTTG GAGACCCCTG CCCAGGGACC ACCGACCCAC CACCGGGAGG TAAGCTGGCC
  661 AGCAACTTAT CTGTGTCTGT CCGATTGTCT AGTGTCTATG TTTGATGTTA TGCGCCTGCG
  721 TCTGTACTAG TTAGCTAACT AGCTCTGTAT CTGGCGGACC CGTGGTGGAA CTGACGAGTT
  781 CTGAACACCC GGCCGCAACC CTGGGAGACG TCCCAGGGAC TTTGGGGGCC GTTTTTGTGG
  841 CCCGACCTGA GGAAGGGAGT CGATGTGGAA TCCGACCCCG TCAGGATATG TGGTTCTGGT
  901 AGGAGACGAG AACCTAAAAC AGTTCCCGCC TCCGTCTGAA TTTTTGCTTT CGGTTTGGAA
  961 CCGAAGCCGC GCGTCTTGTC TGCTGCAGCG CTGCAGCATC GTTCTGTGTT GTCTCTGTCT
 1021 GACTGTGTTT CTGTATTTGT CTGAAAATTA GGGCCAGACT GTTACCACTC CCTTAAGTTT
 1081 GACCTTAGGT CACTGGAAAG ATGTCGAGCG GATCGCTCAC AACCAGTCGG TAGATGTCAA
 1141 GAAGAGACGT TGGGTTACCT TCTGCTCTGC AGAATGGCCA ACCTTTAACG TCGGATGGCC
 1201 GCGAGACGGC ACCTTTAACC GAGACCTCAT CACCCAGGTT AAGATCAAGG TCTTTTCACC
 1261 TGGCCCGCAT GGACACCCAG ACCAGGTCCC CTACATCGTG ACCTGGGAAG CCTTGGCTTT
 1321 TGACCCCCCT CCCTGGGTCA AGCCCTTTGT ACACCCTAAG CCTCCGCCTC CTCTTCCTCC
 1381 ATCCGCCCCG TCTCTCCCCC TTGAACCTCC TCGTTCGACC CCGCCTCGAT CCTCCCTTTA
 1441 TCCAGCCCTC ACTCCTTCTC TAGGCGCCGG AATTCGTTAA CTCGAGGATC CACTAGTAAC
 1501 GGCCGCCAGA ATTCGCCCCT CTCCCTCCCC CCCCCCTAAC GTTACTGGCC GAAGCCGCTT
 1561 GGAATAAGGC CGGTGTGCGT TTGTCTATAT GTGATTTTCC ACCATATTGC CGTCTTTTGG
 1621 CAATGTGAGG GCCCGGAAAC CTGGCCCTGT CTTCTTGACG AGCATTCCTA GGGGTCTTTC
 1681 CCCTCTCGCC AAAGGAATGC AAGGTCTGTT GAATGTCGTG AAGGAAGCAG TTCCTCTGGA
 1741 AGCTTCTTGA AGACAAACAA CGTCTGTAGC GACCCTTTGC AGGCAGCGGA ACCCCCCACC
 1801 TGGCGACAGG TGCCTCTGCG GCCAAAAGCC ACGTGTATAA GATACACCTG CAAAGGCGGC
 1861 ACAACCCCAG TGCCACGTTG TGAGTTGGAT AGTTGTGGAA AGAGTCAAAT GGCTCTCCTC
 1921 AAGCGTATTC AACAAGGGGC TGAAGGATGC CCAGAAGGTA CCCCATTGTA TGGGATCTGA
 1981 TCTGGGGCCT CGGTGCACAT GCTTTACATG TGTTTAGTCG AGGTTAAAAA AGCTCTAGGC
 2041 CCCCCGAACC ACGGGGACGT GGTTTTCCTT TGAAAAACAC GATGATAATA TGGGATCGGC
 2101 CATTGAACAA GATGGATTGC ACGCAGGTTC TCCGGCCGCT TGGGTGGAGA GGCTATTCGG
 2161 CTATGACTGG GCACAACAGA CAATCGGCTG CTCTGATGCC GCCGTGTTCC GGCTGTCAGC
 2221 GCAGGGGCGC CCGGTTCTTT TTGTCAAGAC CGACCTGTCC GGTGCCCTGA ATGAACTGCA
 2281 GGACGAGGCA GCGCGGCTAT CGTGGCTGGC CACGACGGGC GTTCCTTGCG CAGCTGTGCT
 2341 CGACGTTGTC ACTGAAGCGG GAAGGGACTG GCTGCTATTG GGCGAAGTGC CGGGGCAGGA
 2401 TCTCCTGTCA TCTCACCTTG CTCCTGCCGA GAAAGTATCC ATCATGGCTG ATGCAATGCG
 2461 GCGGCTGCAT ACGCTTGATC CGGCTACCTG CCCATTCGAC CACCAAGCGA AACATCGCAT
 2521 CGAGCGAGCA CGTACTCGGA TGGAAGCCGG TCTTGTCGAT CAGGATGATC TGGACGAAGA
 2581 GCATCAGGGG CTCGCGCCAG CCGAACTGTT CGCCAGGCTC AAGGCGCGCA TGCCCGACGG
 2641 CGATGATCTC GTCGTGACCC ATGGCGATGC CTGCTTGCCG AATATCATGG TGGAAAATGG
 2701 CCGCTTTTCT GGATTCATCG ACTGTGGCCG GCTGGGTGTG GCGGACCGCT ATCAGGACAT
 2761 AGCGTTGGCT ACCCGTGATA TTGCTGAAGA GCTTGGCGGC GAATGGGCTG ACCGCTTCCT
 2821 CGTGCTTTAC GGTATCGCCG CTCCCGATTC GCAGCGCATC GCCTTCTATC GCCTTCTTGA
 2881 CGAGTTCTTC TGAGCGGGAC TCTGGGGTTC GATAAAATAA AAGATTTTAT TTAGTCTCCA
 2941 GAAAAAGGGG GGAATGAAAG ACCCCACCTG TAGGTTTGGC AAGCTAGCTT AAGTAACGCC
 3001 ATTTTGCAAG GCATGGAAAA ATACATAACT GAGAATAGAG AAGTTCAGAT CAAGGTCAGG
 3061 AACAGATGGA ACAGCTGAAT ATGGGCCAAA CAGGATATCT GTGGTAAGCA GTTCCTGCCC
 3121 CGGCTCAGGG CCAAGAACAG ATGGAACAGC TGAATATGGG CCAAACAGGA TATCTGTGGT
 3181 AAGCAGTTCC TGCCCCGGCT CAGGGCCAAG AACAGATGGT CCCCAGATGC GGTCCAGCCC
 3241 TCAGCAGTTT CTAGAGAACC ATCAGATGTT TCCAGGGTGC CCCAAGGACC TGAAATGACC
 3301 CTGTGCCTTA TTTGAACTAA CCAATCAGTT CGCTTCTCGC TTCTGTTCGC GCGCTTCTGC
 3361 TCCCCGAGCT CAATAAAAGA GCCCACAACC CCTCACTCGG GGCGCCAGTC CTCCGATTGA
 3421 CTGAGTCGCC CGGGTACCCG TGTATCCAAT AAACCCTCTT GCAGTTGCAT CCGACTTGTG
 3481 GTCTCGCTGT TCCTTGGGAG GGTCTCCTCT GAGTGATTGA CTACCCGTCA GCGGGGGTCT
 3541 TTCATTTGGG GGCTCGTCCG GGATCGGGAG ACCCCTGCCC AGGGACCACC GACCCACCAC
 3601 CGGGAGGTAA GCTGGCTGCC TCGCGCGTTT CGGTGATGAC GGTGAAAACC TCTGACACAT
 3661 GCAGCTCCCG GAGACGGTCA CAGCTTGTCT GTAAGCGGAT GCCGGGAGCA GACAAGCCCG
 3721 TCAGGGCGCG TCAGCGGGTG TTGGCGGGTG TCGGGGCGCA GCCATGACCC AGTCACGTAG
 3781 CGATAGCGGA GTGTATACTG GCTTAACTAT GCGGCATCAG AGCAGATTGT ACTGAGAGTG
 3841 CACCATATGC GGTGTGAAAT ACCGCACAGA TGCGTAAGGA GAAAATACCG CATCAGGCGC
 3901 TCTTCCGCTT CCTCGCTCAC TGACTCGCTG CGCTCGGTCG TTCGGCTGCG GCGAGCGGTA
 3961 TCAGCTCACT CAAAGGCGGT AATACGGTTA TCCACAGAAT CAGGGGATAA CGCAGGAAAG
 4021 AACATGTGAG CAAAAGGCCA GCAAAAGGCC AGGAACCGTA AAAAGGCCGC GTTGCTGGCG
 4081 TTTTTCCATA GGCTCCGCCC CCCTGACGAG CATCACAAAA ATCGACGCTC AAGTCAGAGG
 4141 TGGCGAAACC CGACAGGACT ATAAAGATAC CAGGCGTTTC CCCCTGGAAG CTCCCTCGTG
 4201 CGCTCTCCTG TTCCGACCCT GCCGCTTACC GGATACCTGT CCGCCTTTCT CCCTTCGGGA
 4261 AGCGTGGCGC TTTCTCATAG CTCACGCTGT AGGTATCTCA GTTCGGTGTA GGTCGTTCGC
 4321 TCCAAGCTGG GCTGTGTGCA CGAACCCCCC GTTCAGCCCG ACCGCTGCGC CTTATCCGGT
 4381 AACTATCGTC TTGAGTCCAA CCCGGTAAGA CACGACTTAT CGCCACTGGC AGCAGCCACT
 4441 GGTAACAGGA TTAGCAGAGC GAGGTATGTA GGCGGTGCTA CAGAGTTCTT GAAGTGGTGG
 4501 CCTAACTACG GCTACACTAG AAGGACAGTA TTTGGTATCT GCGCTCTGCT GAAGCCAGTT
 4561 ACCTTCGGAA AAAGAGTTGG TAGCTCTTGA TCCGGCAAAC AAACCACCGC TGGTAGCGGT
 4621 GGTTTTTTTG TTTGCAAGCA GCAGATTACG CGCAGAAAAA AAGGATCTCA AGAAGATCCT
 4681 TTGATCTTTT CTACGGGGTC TGACGCTCAG TGGAACGAAA ACTCACGTTA AGGGATTTTG
 4741 GTCATGAGAT TATCAAAAAG GATCTTCACC TAGATCCTTT TAAATTAAAA ATGAAGTTTT
 4801 AAATCAATCT AAAGTATATA TGAGTAAACT TGGTCTGACA GTTACCAATG CTTAATCAGT
 4861 GAGGCACCTA TCTCAGCGAT CTGTCTATTT CGTTCATCCA TAGTTGCCTG ACTCCCCGTC
 4921 GTGTAGATAA CTACGATACG GGAGGGCTTA CCATCTGGCC CCAGTGCTGC AATGATACCG
 4981 CGAGACCCAC GCTCACCGGC TCCAGATTTA TCAGCAATAA ACCAGCCAGC CGGAAGGGCC
 5041 GAGCGCAGAA GTGGTCCTGC AACTTTATCC GCCTCCATCC AGTCTATTAA TTGTTGCCGG
 5101 GAAGCTAGAG TAAGTAGTTC GCCAGTTAAT AGTTTGCGCA ACGTTGTTGC CATTGCTGCA
 5161 GGCATCGTGG TGTCACGCTC GTCGTTTGGT ATGGCTTCAT TCAGCTCCGG TTCCCAACGA
 5221 TCAAGGCGAG TTACATGATC CCCCATGTTG TGCAAAAAAG CGGTTAGCTC CTTCGGTCCT
 5281 CCGATCGTTG TCAGAAGTAA GTTGGCCGCA GTGTTATCAC TCATGGTTAT GGCAGCACTG
 5341 CATAATTCTC TTACTGTCAT GCCATCCGTA AGATGCTTTT CTGTGACTGG TGAGTACTCA
 5401 ACCAAGTCAT TCTGAGAATA GTGTATGCGG CGACCGAGTT GCTCTTGCCC GGCGTCAACA
 5461 CGGGATAATA CCGCGCCACA TAGCAGAACT TTAAAAGTGC TCATCATTGG AAAACGTTCT
 5521 TCGGGGCGAA AACTCTCAAG GATCTTACCG CTGTTGAGAT CCAGTTCGAT GTAACCCACT
 5581 CGTGCACCCA ACTGATCTTC AGCATCTTTT ACTTTCACCA GCGTTTCTGG GTGAGCAAAA
 5641 ACAGGAAGGC AAAATGCCGC AAAAAAGGGA ATAAGGGCGA CACGGAAATG TTGAATACTC
 5701 ATACTCTTCC TTTTTCAATA TTATTGAAGC ATTTATCAGG GTTATTGTCT CATGAGCGGA
 5761 TACATATTTG AATGTATTTA GAAAAATAAA CAAATAGGGG TTCCGCGCAC ATTTCCCCGA
 5821 AAAGTGCCAC CTGACGTCTA AGAAACCATT ATTATCATGA CATTAACCTA TAAAAATAGG
 5881 CGTATCACGA GGCCCTTTCG TCTTCAAGAA TTGCTAGCAA TTGCTAGCAA TTGCTAGCAA
 5941 TTCATACCAG ATCACCGAAA ACTGTCCTCC AAATGTGTCC CCCTCACACT CCCAAATTCG
 6001 CGGGCTTCTG CCTCTTAGAC CACTCTACCC TATTCCCCAC ACTCACCGGA GCCAAAGCCG
 6061 CGGCCCTTCC GTTTCTTTGC T
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
