pBABE

价格:1250元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品人: David Ron
载体名称: pBABE
质粒类型: 逆病毒载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: MSCV
载体大小: 5316 bp
5' 测序引物及序列: pBABE 5' primer 5'CTTTATCCAGCCCTCAC3'
3' 测序引物及序列: pBABE 3' primer 5'ACCCTAACTGACACACATTCC3'
载体标签:
载体抗性: 氨苄青霉素
筛选标记: EGFP
克隆菌株: DH5α、HB101等
宿主细胞(系): 常规哺乳动物细胞系
备注:

推荐使用逆病毒包装载体:pUMVCpCMV-VSV-G

产品目录号: #21836
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 逆转录病毒

载体质粒图谱和多克隆位点信息

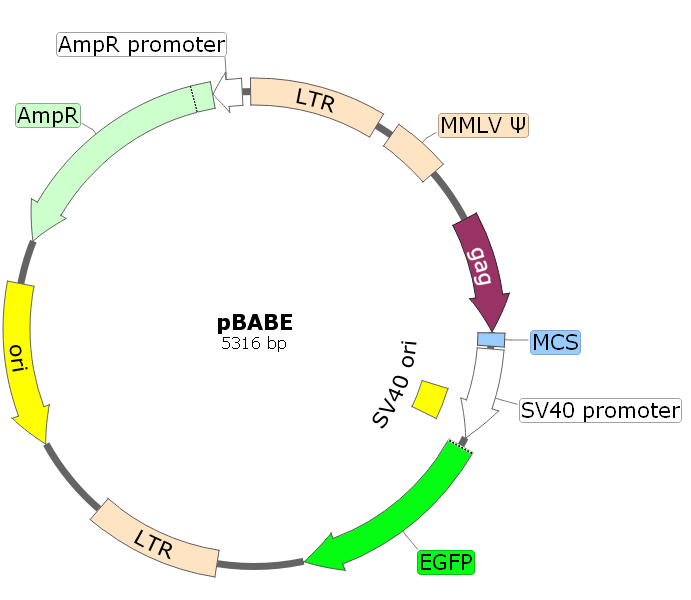

pBABE载体图谱

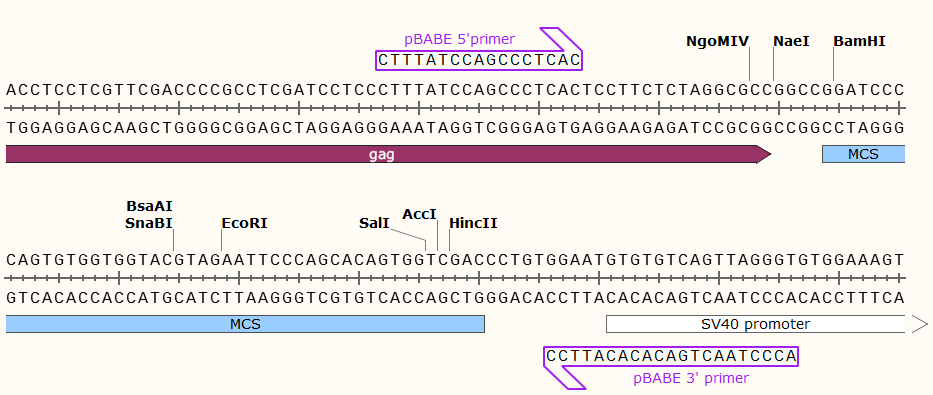

pBABE多克隆位点

载体简介

载体序列

LOCUS       pBABE	5316 bp 	DNA	SYN
DEFINITION  pBABE
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5316
                     /organism="pBABE"
                     /mol_type="other DNA"
     misc_feature    11..460
                     /label="3MoMuLV_LTR"
     misc_feature    17..460
                     /label="5_LTR2"
     misc_feature    530..1339
                     /label="psi_plus_pack"
     misc_feature    926..1333
                     /label="gag"
     misc_feature    1269..1291
                     /label="pLXSN_5_primer"
     misc_feature    1269..1291
                     /label="MSCV_primer"
     misc_feature    1307..1323
                     /label="pBABE_5_primer"
     misc_feature    complement(1396..1416)
                     /label="pBABE_3_primer"
     misc_feature    complement(1402..1617)
                     /label="SV40_enhancer"
     promoter        1414..1682
                     /label="SV40_promoter"
     rep_origin      1581..1658
                     /label="SV40_origin"
     misc_feature    1643..1662
                     /label="SV40pro_F_primer"
     CDS             1764..2621
                     /label="ORF frame 3"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYKYSDPLRESWTTKVNWMAHTVRKDYRSKLNPPDESGPG
                     CMSCKCVLS*"
     gene            1767..2480
                     /label="EGFP"
                     /gene="EGFP"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYKYSDPLRESWTTKVNWMAHTVRKDYRSKLNPPDESGPG
                     CMSCKCVLS*"
     misc_feature    complement(1809..1830)
                     /label="EGFP_N_primer"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYKYSDPLRESWTTKVNWMAHTVRKDYRSKLNPPDESGPG
                     CMSCKCVLS*"
     misc_feature    1947..1976
                     /label="Y66 (EGFP)"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYKYSDPLRESWTTKVNWMAHTVRKDYRSKLNPPDESGPG
                     CMSCKCVLS*"
     misc_feature    2417..2438
                     /label="EGFP_C_primer"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYKYSDPLRESWTTKVNWMAHTVRKDYRSKLNPPDESGPG
                     CMSCKCVLS*"
     misc_feature    2711..3250
                     /label="5_LTR2"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYKYSDPLRESWTTKVNWMAHTVRKDYRSKLNPPDESGPG
                     CMSCKCVLS*"
     gene            complement(4309..5169)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLT
                     LKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFK
                     DDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKN
                     GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH
                     MVLLEFVTAAGITLGMDELYKYSDPLRESWTTKVNWMAHTVRKDYRSKLNPPDESGPG
                     CMSCKCVLS*"
     CDS             complement(4309..5169)
                     /label="ORF frame 1"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(5211..5239)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    5309..460
                     /label="5_LTR2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    5315..460
                     /label="3MoMuLV_LTR"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 CAAACAGGAT ATCTGTGGTA AGCAGTTCCT GCCCCGGCTC AGGGCCAAGA ACAGATGGAA
   61 CAGCTGAATA TGGGCCAAAC AGGATATCTG TGGTAAGCAG TTCCTGCCCC GGCTCAGGGC
  121 CAAGAACAGA TGGTCCCCAG ATGCGGTCCA GCCCTCAGCA GTTTCTAGAG AACCATCAGA
  181 TGTTTCCAGG GTGCCCCAAG GACCTGAAAT GACCCTGTGC CTTATTTGAA CTAACCAATC
  241 AGTTCGCTTC TCGCTTCTGT TCGCGCGCTT CTGCTCCCCG AGCTCAATAA AAGAGCCCAC
  301 AACCCCTCAC TCGGGGCGCC AGTCCTCCGA TTGACTGAGT CGCCCGGGTA CCCGTGTATC
  361 CAATAAACCC TCTTGCAGTT GCATCCGACT TGTGGTCTCG CTGTTCCTTG GGAGGGTCTC
  421 CTCTGAGTGA TTGACTACCC GTCAGCGGGG GTCTTTCATT TGGGGGCTCG TCCGGGATCG
  481 GGAGACCCCT GCCCAGGGAC CACCGACCCA CCACCGGGAG GCAAGCTGGC CAGCAACTTA
  541 TCTGTGTCTG TCCGATTGTC TAGTGTCTAT GACTGATTTT ATGCGCCTGC GTCGGTACTA
  601 GTTAGCTAAC TAGCTCTGTA TCTGGCGGAC CCGTGGTGGA ACTGACGAGT TCTGAACACC
  661 CGGCCGCAAC CCTGGGAGAC GTCCCAGGGA CTTTGGGGGC CGTTTTTGTG GCCCGACCTG
  721 AGGAAGGGAG TCGATGTGGA ATCCGACCCC GTCAGGATAT GTGGTTCTGG TAGGAGACGA
  781 GAACCTAAAA CAGTTCCCGC CTCCGTCTGA ATTTTTGCTT TCGGTTTGGA ACCGAAGCCG
  841 CGCGTCTTGT CTGCTGCAGC GCTGCAGCAT CGTTCTGTGT TGTCTCTGTC TGACTGTGTT
  901 TCTGTATTTG TCTGAAAATT AGGGCCAGAC TGTTACCACT CCCTTAAGTT TGACCTTAGG
  961 TCACTGGAAA GATGTCGAGC GGATCGCTCA CAACCAGTCG GTAGATGTCA AGAAGAGACG
 1021 TTGGGTTACC TTCTGCTCTG CAGAATGGCC AACCTTTAAC GTCGGATGGC CGCGAGACGG
 1081 CACCTTTAAC CGAGACCTCA TCACCCAGGT TAAGATCAAG GTCTTTTCAC CTGGCCCGCA
 1141 TGGACACCCA GACCAGGTCC CCTACATCGT GACCTGGGAA GCCTTGGCTT TTGACCCCCC
 1201 TCCCTGGGTC AAGCCCTTTG TACACCCTAA GCCTCCGCCT CCTCTTCCTC CATCCGCCCC
 1261 GTCTCTCCCC CTTGAACCTC CTCGTTCGAC CCCGCCTCGA TCCTCCCTTT ATCCAGCCCT
 1321 CACTCCTTCT CTAGGCGCCG GCCGGATCCC CAGTGTGGTG GTACGTAGAA TTCCCAGCAC
 1381 AGTGGTCGAC CCTGTGGAAT GTGTGTCAGT TAGGGTGTGG AAAGTCCCCA GGCTCCCCAG
 1441 CAGGCAGAAG TATGCAAAGC ATGCATCTCA ATTAGTCAGC AACCAGGTGT GGAAAGTCCC
 1501 CAGGCTCCCC AGCAGGCAGA AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCATAG
 1561 TCCCGCCCCT AACTCCGCCC ATCCCGCCCC TAACTCCGCC CAGTTCCGCC CATTCTCCGC
 1621 CCCATGGCTG ACTAATTTTT TTTATTTATG CAGAGGCCGA GGCCGCCTCG GCCTCTGAGC
 1681 TATTCCAGAA GTAGTGAGGA GGCTTTTTTG GAGGCCTAGG CTTTTGCAAA AAGCTGGCCG
 1741 CTCTAGCGCT ACCGGTCGCC ACCATGGTGA GCAAGGGCGA GGAGCTGTTC ACCGGGGTGG
 1801 TGCCCATCCT GGTCGAGCTG GACGGCGACG TAAACGGCCA CAAGTTCAGC GTGTCCGGCG
 1861 AGGGCGAGGG CGATGCCACC TACGGCAAGC TGACCCTGAA GTTCATCTGC ACCACCGGCA
 1921 AGCTGCCCGT GCCCTGGCCC ACCCTCGTGA CCACCCTGAC CTACGGCGTG CAGTGCTTCA
 1981 GCCGCTACCC CGACCACATG AAGCAGCACG ACTTCTTCAA GTCCGCCATG CCCGAAGGCT
 2041 ACGTCCAGGA GCGCACCATC TTCTTCAAGG ACGACGGCAA CTACAAGACC CGCGCCGAGG
 2101 TGAAGTTCGA GGGCGACACC CTGGTGAACC GCATCGAGCT GAAGGGCATC GACTTCAAGG
 2161 AGGACGGCAA CATCCTGGGG CACAAGCTGG AGTACAACTA CAACAGCCAC AACGTCTATA
 2221 TCATGGCCGA CAAGCAGAAG AACGGCATCA AGGTGAACTT CAAGATCCGC CACAACATCG
 2281 AGGACGGCAG CGTGCAGCTC GCCGACCACT ACCAGCAGAA CACCCCCATC GGCGACGGCC
 2341 CCGTGCTGCT GCCCGACAAC CACTACCTGA GCACCCAGTC CGCCCTGAGC AAAGACCCCA
 2401 ACGAGAAGCG CGATCACATG GTCCTGCTGG AGTTCGTGAC CGCCGCCGGG ATCACTCTCG
 2461 GCATGGACGA GCTGTACAAG TACTCAGATC CGCTCAGGGA AAGCTGGACT ACTAAAGTGA
 2521 ACTGGATGGC CCACACAGTT CGGAAAGACT ACAGATCTAA GCTGAACCCT CCTGATGAGA
 2581 GTGGCCCCGG CTGCATGAGC TGCAAGTGTG TGCTCTCCTG AGGATCGATA AAATAAAAGA
 2641 TTTTATTTAG TCTCCAGAAA AAGGGGGGAA TGAAAGACCC CACCTGTAGG TTTGGCAAGC
 2701 TAGCTTAAGT AACGCCATTT TGCAAGGCAT GGAAAAATAC ATAACTGAGA ATAGAGAAGT
 2761 TCAGATCAAG GTCAGGAACA GATGGAACAG CTGAATATGG GCCAAACAGG ATATCTGTGG
 2821 TAAGCAGTTC CTGCCCCGGC TCAGGGCCAA GAACAGATGG AACAGCTGAA TATGGGCCAA
 2881 ACAGGATATC TGTGGTAAGC AGTTCCTGCC CCGGCTCAGG GCCAAGAACA GATGGTCCCC
 2941 AGATGCGGTC CAGCCCTCAG CAGTTTCTAG AGAACCATCA GATGTTTCCA GGGTGCCCCA
 3001 AGGACCTGAA ATGACCCTGT GCCTTATTTG AACTAACCAA TCAGTTCGCT TCTCGCTTCT
 3061 GTTCGCGCGC TTCTGCTCCC CGAGCTCAAT AAAAGAGCCC ACAACCCCTC ACTCGGGGCG
 3121 CCAGTCCTCC GATTGACTGA GTCGCCCGGG TACCCGTGTA TCCAATAAAC CCTCTTGCAG
 3181 TTGCATCCGA CTTGTGGTCT CGCTGTTCCT TGGGAGGGTC TCCTCTGAGT GATTGACTAC
 3241 CCGTCAGCGG GGGTCTTTCA CATGCAGCAT GTATCAAAAT TAATTTGGTT TTTTTTCTTA
 3301 AGTATTTACA TTAAATGGCC ATAGTTGCAT TAATGAATCG GCCAACGCGC GGGGAGAGGC
 3361 GGTTTGCGTA TTGGGCGCTC TTCCGCTTCC TCGCTCACTG ACTCGCTGCG CTCGGTCGTT
 3421 CGGCTGCGGC GAGCGGTATC AGCTCACTCA AAGGCGGTAA TACGGTTATC CACAGAATCA
 3481 GGGGATAACG CAGGAAAGAA CATGTGAGCA AAAGGCCAGC AAAAGGCCAG GAACCGTAAA
 3541 AAGGCCGCGT TGCTGGCGTT TTTCCATAGG CTCCGCCCCC CTGACGAGCA TCACAAAAAT
 3601 CGACGCTCAA GTCAGAGGTG GCGAAACCCG ACAGGACTAT AAAGATACCA GGCGTTTCCC
 3661 CCTGGAAGCT CCCTCGTGCG CTCTCCTGTT CCGACCCTGC CGCTTACCGG ATACCTGTCC
 3721 GCCTTTCTCC CTTCGGGAAG CGTGGCGCTT TCTCATAGCT CACGCTGTAG GTATCTCAGT
 3781 TCGGTGTAGG TCGTTCGCTC CAAGCTGGGC TGTGTGCACG AACCCCCCGT TCAGCCCGAC
 3841 CGCTGCGCCT TATCCGGTAA CTATCGTCTT GAGTCCAACC CGGTAAGACA CGACTTATCG
 3901 CCACTGGCAG CAGCCACTGG TAACAGGATT AGCAGAGCGA GGTATGTAGG CGGTGCTACA
 3961 GAGTTCTTGA AGTGGTGGCC TAACTACGGC TACACTAGAA GAACAGTATT TGGTATCTGC
 4021 GCTCTGCTGA AGCCAGTTAC CTTCGGAAAA AGAGTTGGTA GCTCTTGATC CGGCAAACAA
 4081 ACCACCGCTG GTAGCGGTGG TTTTTTTGTT TGCAAGCAGC AGATTACGCG CAGAAAAAAA
 4141 GGATCTCAAG AAGATCCTTT GATCTTTTCT ACGGGGTCTG ACGCTCAGTG GAACGAAAAC
 4201 TCACGTTAAG GGATTTTGGT CATGAGATTA TCAAAAAGGA TCTTCACCTA GATCCTTTTG
 4261 CGGCCGCAAA TCAATCTAAA GTATATATGA GTAAACTTGG TCTGACAGTT ACCAATGCTT
 4321 AATCAGTGAG GCACCTATCT CAGCGATCTG TCTATTTCGT TCATCCATAG TTGCCTGACT
 4381 CCCCGTCGTG TAGATAACTA CGATACGGGA GGGCTTACCA TCTGGCCCCA GTGCTGCAAT
 4441 GATACCGCGA GACCCACGCT CACCGGCTCC AGATTTATCA GCAATAAACC AGCCAGCCGG
 4501 AAGGGCCGAG CGCAGAAGTG GTCCTGCAAC TTTATCCGCC TCCATCCAGT CTATTAATTG
 4561 TTGCCGGGAA GCTAGAGTAA GTAGTTCGCC AGTTAATAGT TTGCGCAACG TTGTTGCCAT
 4621 TGCTACAGGC ATCGTGGTGT CACGCTCGTC GTTTGGTATG GCTTCATTCA GCTCCGGTTC
 4681 CCAACGATCA AGGCGAGTTA CATGATCCCC CATGTTGTGC AAAAAAGCGG TTAGCTCCTT
 4741 CGGTCCTCCG ATCGTTGTCA GAAGTAAGTT GGCCGCAGTG TTATCACTCA TGGTTATGGC
 4801 AGCACTGCAT AATTCTCTTA CTGTCATGCC ATCCGTAAGA TGCTTTTCTG TGACTGGTGA
 4861 GTACTCAACC AAGTCATTCT GAGAATAGTG TATGCGGCGA CCGAGTTGCT CTTGCCCGGC
 4921 GTCAATACGG GATAATACCG CGCCACATAG CAGAACTTTA AAAGTGCTCA TCATTGGAAA
 4981 ACGTTCTTCG GGGCGAAAAC TCTCAAGGAT CTTACCGCTG TTGAGATCCA GTTCGATGTA
 5041 ACCCACTCGT GCACCCAACT GATCTTCAGC ATCTTTTACT TTCACCAGCG TTTCTGGGTG
 5101 AGCAAAAACA GGAAGGCAAA ATGCCGCAAA AAAGGGAATA AGGGCGACAC GGAAATGTTG
 5161 AATACTCATA CTCTTCCTTT TTCAATATTA TTGAAGCATT TATCAGGGTT ATTGTCTCAT
 5221 GAGCGGATAC ATATTTGAAT GTATTTAGAA AAATAAACAA ATAGGGGTTC CGCGCACATT
 5281 TCCCCGAAAA GTGCCACCTG CAGCCTGAAT ATGGGC
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
