pLVX-TRE3G

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-TRE3G , pLVX TRE3G
质粒类型: 哺乳动物细胞慢病毒表达载体
高拷贝/低拷贝: 高拷贝
启动子: TRE3GV
克隆方法: 多克隆位点,限制性内切酶
载体大小: 7819 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素(Ampicillin)
筛选标记: 嘌呤霉素(Puromycin)
备注: 包含有Tet-On 3G反式激活蛋白,多西环素(doxycycline)诱导基因表达的慢病毒载体。
产品目录号: 631191
稳定性: /
组成型: 诱导型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

pLVX-TRE3G载体图谱

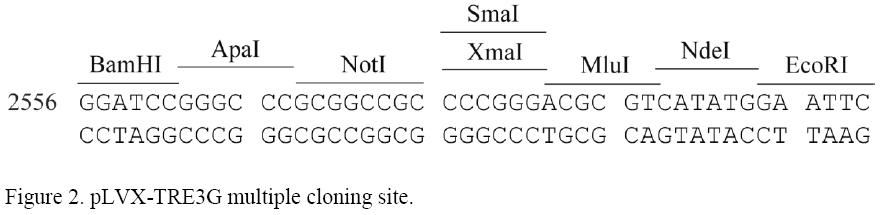

pLVX-TRE3G多克隆位点

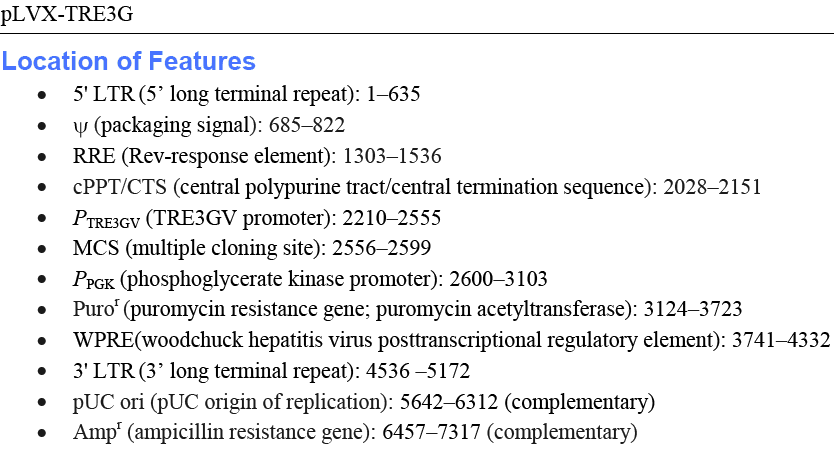

pLVX-TRE3G载体特征

载体简介

载体序列

LOCUS       pLVX-TRE3G   7819 bp    DNA   circular            31-MAY-2011
COMMENT     Created by Clontech Laboratories Inc. http://www.clontech.com
COMMENT     Cat. No.631191, 631193,631187, 631189
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     misc_feature    1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=Packaging\signal
     misc_feature    1303..1536
                     /label=RRE
     misc_feature    2028..2151
                     /label=cPPT/CTS
     misc_feature    2600..3103
                     /label=pPGK
     misc_feature    3124..3723
                     /label=Puro(R)
     misc_feature    3741..4332
                     /label=WPRE
     3'clip          4536..5172
                     /label=3'\LTR
     misc_feature    complement(5642..6312)
                     /label=pUC\ori
     misc_feature    2556..2599
                     /label=MCS
     misc_feature    2210..2555
                     /label=pTRE3G
     misc_feature    complement(6457..7317)
                     /label=Amp(R)
BASE COUNT     1973 a      1955 c      2040 g      1851 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga actacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgatgaggcc ctttcgtctt cactcgagtt tactccctat
     2221 cagtgataga gaacgtatga agagtttact ccctatcagt gatagagaac gtatgcagac
     2281 tttactccct atcagtgata gagaacgtat aaggagttta ctccctatca gtgatagaga
     2341 acgtatgacc agtttactcc ctatcagtga tagagaacgt atctacagtt tactccctat
     2401 cagtgataga gaacgtatat ccagtttact ccctatcagt gatagagaac gtatgtcgag
     2461 gtaggcgtgt acggtgggcg cctataaaag cagagctcgt ttagtgaacc gtcagatcgc
     2521 ctggagcaat tccacaacac ttttgtctta tacttggatc cgggcccgcg gccgccccgg
     2581 gacgcgtcat atggaattct accgggtagg ggaggcgctt ttcccaaggc agtctggagc
     2641 atgcgcttta gcagccccgc tgggcacttg gcgctacaca agtggcctct ggcctcgcac
     2701 acattccaca tccaccggta ggcgccaacc ggctccgttc tttggtggcc ccttcgcgcc
     2761 accttctact cctcccctag tcaggaagtt cccccccgcc ccgcagctcg cgtcgtgcag
     2821 gacgtgacaa atggaagtag cacgtctcac tagtctcgtg cagatggaca gcaccgctga
     2881 gcaatggaag cgggtaggcc tttggggcag cggccaatag cagctttgct ccttcgcttt
     2941 ctgggctcag aggctgggaa ggggtgggtc cgggggcggg ctcaggggcg ggctcagggg
     3001 cggggcgggc gcccgaaggt cctccggagg cccggcattc tgcacgcttc aaaagcgcac
     3061 gtctgccgcg ctgttctcct cttcctcatc tccgggcctt tcgacctgca gcccaagctt
     3121 accatgaccg agtacaagcc cacggtgcgc ctcgccaccc gcgacgacgt ccccagggcc
     3181 gtacgcaccc tcgccgccgc gttcgccgac taccccgcca cgcgccacac cgtcgatccg
     3241 gaccgccaca tcgagcgggt caccgagctg caagaactct tcctcacgcg cgtcgggctc
     3301 gacatcggca aggtgtgggt cgcggacgac ggcgccgcgg tggcggtctg gaccacgccg
     3361 gagagcgtcg aagcgggggc ggtgttcgcc gagatcggcc cgcgcatggc cgagttgagc
     3421 ggttcccggc tggccgcgca gcaacagatg gaaggcctcc tggcgccgca ccggcccaag
     3481 gagcccgcgt ggttcctggc caccgtcggc gtctcgcccg accaccaggg caagggtctg
     3541 ggcagcgccg tcgtgctccc cggagtggag gcggccgagc gcgccggggt gcccgccttc
     3601 ctggagacct ccgcgccccg caacctcccc ttctacgagc ggctcggctt caccgtcacc
     3661 gccgacgtcg aggtgcccga aggaccgcgc acctggtgca tgacccgcaa gcccggtgcc
     3721 tgacggggcg cgtctggaac aatcaacctc tggattacaa aatttgtgaa agattgactg
     3781 gtattcttaa ctatgttgct ccttttacgc tatgtggata cgctgcttta atgcctttgt
     3841 atcatgctat tgcttcccgt atggctttca ttttctcctc cttgtataaa tcctggttgc
     3901 tgtctcttta tgaggagttg tggcccgttg tcaggcaacg tggcgtggtg tgcactgtgt
     3961 ttgctgacgc aacccccact ggttggggca ttgccaccac ctgtcagctc ctttccggga
     4021 ctttcgcttt ccccctccct attgccacgg cggaactcat cgccgcctgc cttgcccgct
     4081 gctggacagg ggctcggctg ttgggcactg acaattccgt ggtgttgtcg gggaagctga
     4141 cgtcctttcc atggctgctc gcctgtgttg ccacctggat tctgcgcggg acgtccttct
     4201 gctacgtccc ttcggccctc aatccagcgg accttccttc ccgcggcctg ctgccggctc
     4261 tgcggcctct tccgcgtctt cgccttcgcc ctcagacgag tcggatctcc ctttgggccg
     4321 cctccccgcc tggaattaat tctgcagtcg agacctagaa aaacatggag caatcacaag
     4381 tagcaataca gcagctacca atgctgattg tgcctggcta gaagcacaag aggaggagga
     4441 ggtgggtttt tccagtcaca cctcaggtac ctttaagacc aatgacttac aaggcagctg
     4501 tagatcttag ccacttttta aaagaaaaga ggggactgga agggctaatt cactcccaac
     4561 gaagacaaga tatccttgat ctgtggatct accacacaca aggctacttc cctgattagc
     4621 agaactacac accagggcca ggggtcagat atccactgac ctttggatgg tgctacaagc
     4681 tagtaccagt tgagccagat aaggtagaag aggccaataa aggagagaac accagcttgt
     4741 tacaccctgt gagcctgcat gggatggatg acccggagag agaagtgtta gagtggaggt
     4801 ttgacagccg cctagcattt catcacgtgg cccgagagct gcatccggag tacttcaaga
     4861 actgctgata tcgagcttgc tacaagggac tttccgctgg ggactttcca gggaggcgtg
     4921 gcctgggcgg gactggggag tggcgagccc tcagatcctg catataagca gctgcttttt
     4981 gcctgtactg ggtctctctg gttagaccag atctgagcct gggagctctc tggctaacta
     5041 gggaacccac tgcttaagcc tcaataaagc ttgccttgag tgcttcaagt agtgtgtgcc
     5101 cgtctgttgt gtgactctgg taactagaga tccctcagac ccttttagtc agtgtggaaa
     5161 atctctagca gtagtagttc atgtcatctt attattcagt atttataact tgcaaagaaa
     5221 tgaatatcag agagtgagag gccttgacat tgctagcgtt ttaccgtcga cctctagcta
     5281 gagcttggcg taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat
     5341 tccacacaac atacgagccg gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag
     5401 ctaactcaca ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg
     5461 ccagctgcat taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc
     5521 ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc
     5581 agctcactca aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa
     5641 catgtgagca aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt
     5701 tttccatagg ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg
     5761 gcgaaacccg acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg
     5821 ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag
     5881 cgtggcgctt tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc
     5941 caagctgggc tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa
     6001 ctatcgtctt gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg
     6061 taacaggatt agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc
     6121 taactacggc tacactagaa gaacagtatt tggtatctgc gctctgctga agccagttac
     6181 cttcggaaaa agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggttt
     6241 ttttgtttgc aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat
     6301 cttttctacg gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat
     6361 gagattatca aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc
     6421 aatctaaagt atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc
     6481 acctatctca gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta
     6541 gataactacg atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga
     6601 cccacgctca ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg
     6661 cagaagtggt cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc
     6721 tagagtaagt agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat
     6781 cgtggtgtca cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag
     6841 gcgagttaca tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat
     6901 cgttgtcaga agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa
     6961 ttctcttact gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa
     7021 gtcattctga gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga
     7081 taataccgcg ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg
     7141 gcgaaaactc tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc
     7201 acccaactga tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg
     7261 aaggcaaaat gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact
     7321 cttccttttt caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat
     7381 atttgaatgt atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt
     7441 gccacctgac gtcgacggat cgggagatca acttgtttat tgcagcttat aatggttaca
     7501 aataaagcaa tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt
     7561 gtggtttgtc caaactcatc aatgtatctt atcatgtctg gatcaactgg ataactcaag
     7621 ctaaccaaaa tcatcccaaa cttcccaccc cataccctat taccactgcc aattacctag
     7681 tggtttcatt tactctaaac ctgtgattcc tctgaattat tttcatttta aagaaattgt
     7741 atttgttaaa tatgtactac aaacttagta gtttttaaag aaattgtatt tgttaaatat
     7801 gtactacaaa cttagtagt
//
