pLVX-Tet3G

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-Tet3G , pLVX Tet3G
质粒类型: 慢病毒表达载体;四环素诱导系统;(shRNA)RNA干扰载体
高拷贝/低拷贝: 高拷贝
启动子: CMV
克隆方法: --
载体大小: 9051 bp
5' 测序引物及序列: CMV-F: CGCAAATGGGCGGTAGGCGTG
3' 测序引物及序列: --
载体标签:
载体抗性: 氨苄青霉素
筛选标记: 新霉素(Neomycin)
备注: 编码Tet-On 3G反式激活物蛋白因子,诱导基因表达;
pLVX-Tet3G是四环素诱导系统的调控载体,对应的应答载体为pLVX-TRE3G。
产品目录号: 631187
稳定性: 稳表达
组成型: 诱导型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

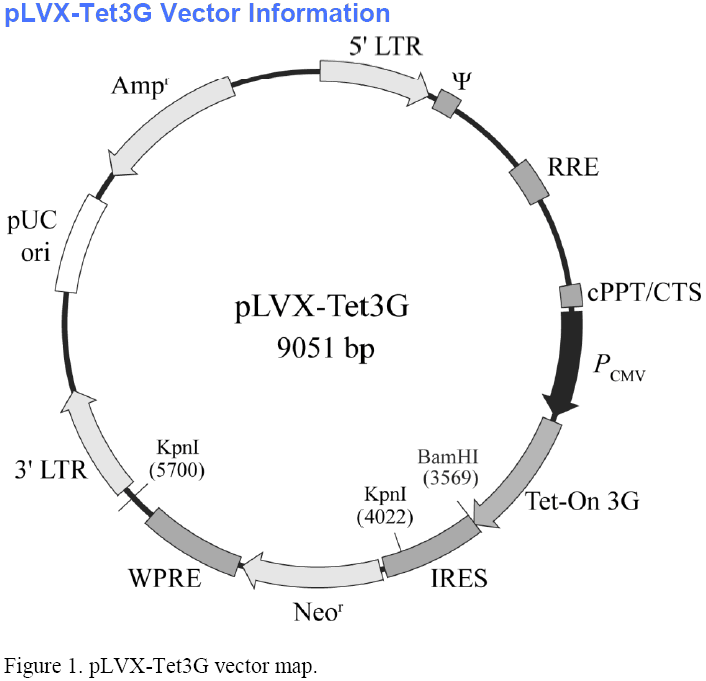

pLVX-Tet3G载体图谱

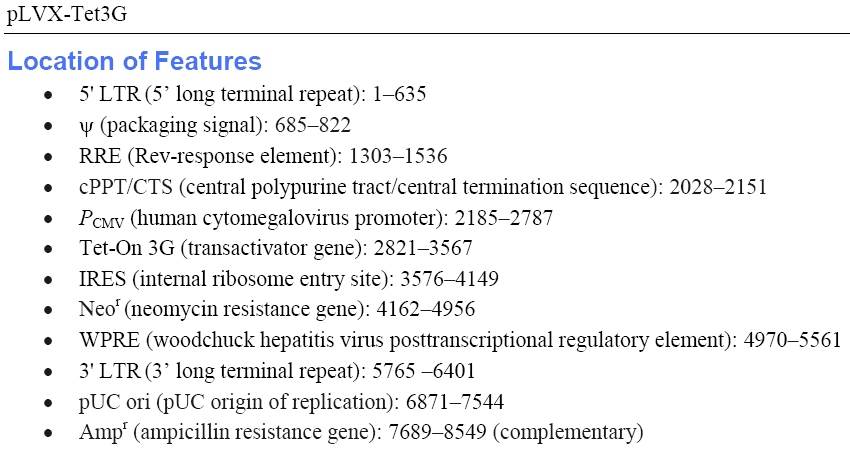

pLVX-Tet3G载体特征

载体简介

载体序列

LOCUS       pLVX-Tet3G   9051 bp    DNA   circular            10-AUG 2012
COMMENT     Created by Clontech Laboratories Inc. http://www.clontech.com
COMMENT	    631191, 631187, 631358, 631349, 631350, 631351, 635086
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     LTR             1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=Packaging\signal
     misc_feature    1303..1536
                     /label=RRE
     misc_feature    2028..2151
                     /label=cPPT
     misc_feature    3576..4149
                     /label=IRES
     CDS             4162..4956
                     /label=Neo(R)
     misc_feature    4970..5561
                     /label=WPRE
     LTR             5765..6401
                     /label=3'\LTR
     misc_feature    complement(6871..7544)
                     /label=pUC\ori
     CDS             2821..3567
                     /label=Tet-On\3G
     misc_feature    complement(7689..8549)
                     /label=Amp(R)
     misc_feature    2185..2787
                     /label=pCMV
BASE COUNT     2318 a      2220 c      2322 g      2191 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga actacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgataagctt gggagttccg cgttacataa cttacggtaa
     2221 atggcccgcc tggctgaccg cccaacgacc cccgcccatt gacgtcaata atgacgtatg
     2281 ttcccatagt aacgccaata gggactttcc attgacgtca atgggtggag tatttacggt
     2341 aaactgccca cttggcagta catcaagtgt atcatatgcc aagtacgccc cctattgacg
     2401 tcaatgacgg taaatggccc gcctggcatt atgcccagta catgacctta tgggactttc
     2461 ctacttggca gtacatctac gtattagtca tcgctattac catggtgatg cggttttggc
     2521 agtacatcaa tgggcgtgga tagcggtttg actcacgggg atttccaagt ctccacccca
     2581 ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg ggactttcca aaatgtcgta
     2641 acaactccgc cccattgacg caaatgggcg gtaggcgtgt acggtgggag gtctatataa
     2701 gcagagctcg tttagtgaac cgtcagatcg cctggagacg ccatccacgc tgttttgacc
     2761 tccatagaag acaccgactc tactagagga tctatttccg gtgaattcct cgaggccacc
     2821 atgtctagac tggacaagag caaagtcata aactctgctc tggaattact caatggagtc
     2881 ggtatcgaag gcctgacgac aaggaaactc gctcaaaagc tgggagttga gcagcctacc
     2941 ctgtactggc acgtgaagaa caagcgggcc ctgctcgatg ccctgccaat cgagatgctg
     3001 gacaggcatc atacccactc ctgccccctg gaaggcgagt catggcaaga ctttctgcgg
     3061 aacaacgcca agtcataccg ctgtgctctc ctctcacatc gcgacggggc taaagtgcat
     3121 ctcggcaccc gcccaacaga gaaacagtac gaaaccctgg aaaatcagct cgcgttcctg
     3181 tgtcagcaag gcttctccct ggagaacgca ctgtacgctc tgtccgccgt gggccacttt
     3241 acactgggct gcgtattgga ggaacaggag catcaagtag caaaagagga aagagagaca
     3301 cctaccaccg attctatgcc cccacttctg aaacaagcaa ttgagctgtt cgaccggcag
     3361 ggagccgaac ctgccttcct tttcggcctg gaactaatca tatgtggcct ggagaaacag
     3421 ctaaagtgcg aaagcggcgg gccgaccgac gcccttgacg attttgactt agacatgctc
     3481 ccagccgatg cccttgacga ctttgacctt gatatgctgc ctgctgacgc tcttgacgat
     3541 tttgaccttg acatgctccc cgggtaagga tcccgcccct ctccctcccc cccccctaac
     3601 gttactggcc gaagccgctt ggaataaggc cggtgtgcgt ttgtctatat gttattttcc
     3661 accatattgc cgtcttttgg caatgtgagg gcccggaaac ctggccctgt cttcttgacg
     3721 agcattccta ggggtctttc ccctctcgcc aaaggaatgc aaggtctgtt gaatgtcgtg
     3781 aaggaagcag ttcctctgga agcttcttga agacaaacaa cgtctgtagc gaccctttgc
     3841 aggcagcgga accccccacc tggcgacagg tgcctctgcg gccaaaagcc acgtgtataa
     3901 gatacacctg caaaggcggc acaaccccag tgccacgttg tgagttggat agttgtggaa
     3961 agagtcaaat ggctctcctc aagcgtattc aacaaggggc tgaaggatgc ccagaaggta
     4021 ccccattgta tgggatctga tctggggcct cggtgcacat gctttacatg tgtttagtcg
     4081 aggttaaaaa acgtctaggc cccccgaacc acggggacgt ggttttcctt tgaaaaacac
     4141 gatgataagc ttgccacaac catggctgaa caagatggat tgcacgcagg ttctccggcc
     4201 gcttgggtgg agaggctatt cggctatgac tgggcacaac agacaatcgg ctgctctgat
     4261 gccgccgtgt tccggctgtc agcgcagggg cgcccggttc tttttgtcaa gaccgacctg
     4321 tccggtgccc tgaatgaact gcaggacgag gcagcgcggc tatcgtggct ggccacgacg
     4381 ggcgttcctt gcgcagctgt gctcgacgtt gtcactgaag cgggaaggga ctggctgcta
     4441 ttgggcgaag tgccggggca ggatctcctg tcatctcacc ttgctcctgc cgagaaagta
     4501 tccatcatgg ctgatgcaat gcggcggctg catacgcttg atccggctac ctgcccattc
     4561 gaccaccaag cgaaacatcg catcgagcga gcacgtactc ggatggaagc cggtcttgtc
     4621 gatcaggatg atctggacga agagcatcag gggctcgcgc cagccgaact gttcgccagg
     4681 ctcaaggcgc gcatgcccga cggcgaggat ctcgtcgtga cccatggcga tgcctgcttg
     4741 ccgaatatca tggtggaaaa tggccgcttt tctggattca tcgactgtgg ccggctgggt
     4801 gtggcggacc gctatcagga catagcgttg gctacccgtg atattgctga agagcttggc
     4861 ggcgaatggg ctgaccgctt cctcgtgctt tacggtatcg ccgctcccga ttcgcagcgc
     4921 atcgccttct atcgccttct tgacgagttc ttctgaacgc gtctggaaca atcaacctct
     4981 ggattacaaa atttgtgaaa gattgactgg tattcttaac tatgttgctc cttttacgct
     5041 atgtggatac gctgctttaa tgcctttgta tcatgctatt gcttcccgta tggctttcat
     5101 tttctcctcc ttgtataaat cctggttgct gtctctttat gaggagttgt ggcccgttgt
     5161 caggcaacgt ggcgtggtgt gcactgtgtt tgctgacgca acccccactg gttggggcat
     5221 tgccaccacc tgtcagctcc tttccgggac tttcgctttc cccctcccta ttgccacggc
     5281 ggaactcatc gccgcctgcc ttgcccgctg ctggacaggg gctcggctgt tgggcactga
     5341 caattccgtg gtgttgtcgg ggaagctgac gtcctttcca tggctgctcg cctgtgttgc
     5401 cacctggatt ctgcgcggga cgtccttctg ctacgtccct tcggccctca atccagcgga
     5461 ccttccttcc cgcggcctgc tgccggctct gcggcctctt ccgcgtcttc gccttcgccc
     5521 tcagacgagt cggatctccc tttgggccgc ctccccgcct ggaattaatt ctgcagtcga
     5581 gacctagaaa aacatggagc aatcacaagt agcaatacag cagctaccaa tgctgattgt
     5641 gcctggctag aagcacaaga ggaggaggag gtgggttttt ccagtcacac ctcaggtacc
     5701 tttaagacca atgacttaca aggcagctgt agatcttagc cactttttaa aagaaaagag
     5761 gggactggaa gggctaattc actcccaacg aagacaagat atccttgatc tgtggatcta
     5821 ccacacacaa ggctacttcc ctgattagca gaactacaca ccagggccag gggtcagata
     5881 tccactgacc tttggatggt gctacaagct agtaccagtt gagccagata aggtagaaga
     5941 ggccaataaa ggagagaaca ccagcttgtt acaccctgtg agcctgcatg ggatggatga
     6001 cccggagaga gaagtgttag agtggaggtt tgacagccgc ctagcatttc atcacgtggc
     6061 ccgagagctg catccggagt acttcaagaa ctgctgatat cgagcttgct acaagggact
     6121 ttccgctggg gactttccag ggaggcgtgg cctgggcggg actggggagt ggcgagccct
     6181 cagatcctgc atataagcag ctgctttttg cctgtactgg gtctctctgg ttagaccaga
     6241 tctgagcctg ggagctctct ggctaactag ggaacccact gcttaagcct caataaagct
     6301 tgccttgagt gcttcaagta gtgtgtgccc gtctgttgtg tgactctggt aactagagat
     6361 ccctcagacc cttttagtca gtgtggaaaa tctctagcag tagtagttca tgtcatctta
     6421 ttattcagta tttataactt gcaaagaaat gaatatcaga gagtgagagg ccttgacatt
     6481 gctagcgttt taccgtcgac ctctagctag agcttggcgt aatcatggtc atagctgttt
     6541 cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg aagcataaag
     6601 tgtaaagcct ggggtgccta atgagtgagc taactcacat taattgcgtt gcgctcactg
     6661 cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg
     6721 gggagaggcg gtttgcgtat tgggcgctct tccgcttcct cgctcactga ctcgctgcgc
     6781 tcggtcgttc ggctgcggcg agcggtatca gctcactcaa aggcggtaat acggttatcc
     6841 acagaatcag gggataacgc aggaaagaac atgtgagcaa aaggccagca aaaggccagg
     6901 aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc tccgcccccc tgacgagcat
     6961 cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga caggactata aagataccag
     7021 gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga
     7081 tacctgtccg cctttctccc ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg
     7141 tatctcagtt cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga accccccgtt
     7201 cagcccgacc gctgcgcctt atccggtaac tatcgtcttg agtccaaccc ggtaagacac
     7261 gacttatcgc cactggcagc agccactggt aacaggatta gcagagcgag gtatgtaggc
     7321 ggtgctacag agttcttgaa gtggtggcct aactacggct acactagaag aacagtattt
     7381 ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa gagttggtag ctcttgatcc
     7441 ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt gcaagcagca gattacgcgc
     7501 agaaaaaaag gatctcaaga agatcctttg atcttttcta cggggtctga cgctcagtgg
     7561 aacgaaaact cacgttaagg gattttggtc atgagattat caaaaaggat cttcacctag
     7621 atccttttaa attaaaaatg aagttttaaa tcaatctaaa gtatatatga gtaaacttgg
     7681 tctgacagtt accaatgctt aatcagtgag gcacctatct cagcgatctg tctatttcgt
     7741 tcatccatag ttgcctgact ccccgtcgtg tagataacta cgatacggga gggcttacca
     7801 tctggcccca gtgctgcaat gataccgcga gacccacgct caccggctcc agatttatca
     7861 gcaataaacc agccagccgg aagggccgag cgcagaagtg gtcctgcaac tttatccgcc
     7921 tccatccagt ctattaattg ttgccgggaa gctagagtaa gtagttcgcc agttaatagt
     7981 ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg
     8041 gcttcattca gctccggttc ccaacgatca aggcgagtta catgatcccc catgttgtgc
     8101 aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg
     8161 ttatcactca tggttatggc agcactgcat aattctctta ctgtcatgcc atccgtaaga
     8221 tgcttttctg tgactggtga gtactcaacc aagtcattct gagaatagtg tatgcggcga
     8281 ccgagttgct cttgcccggc gtcaatacgg gataataccg cgccacatag cagaacttta
     8341 aaagtgctca tcattggaaa acgttcttcg gggcgaaaac tctcaaggat cttaccgctg
     8401 ttgagatcca gttcgatgta acccactcgt gcacccaact gatcttcagc atcttttact
     8461 ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata
     8521 agggcgacac ggaaatgttg aatactcata ctcttccttt ttcaatatta ttgaagcatt
     8581 tatcagggtt attgtctcat gagcggatac atatttgaat gtatttagaa aaataaacaa
     8641 ataggggttc cgcgcacatt tccccgaaaa gtgccacctg acgtcgacgg atcgggagat
     8701 caacttgttt attgcagctt ataatggtta caaataaagc aatagcatca caaatttcac
     8761 aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca tcaatgtatc
     8821 ttatcatgtc tggatcaact ggataactca agctaaccaa aatcatccca aacttcccac
     8881 cccataccct attaccactg ccaattacct agtggtttca tttactctaa acctgtgatt
     8941 cctctgaatt attttcattt taaagaaatt gtatttgtta aatatgtact acaaacttag
     9001 tagtttttaa agaaattgta tttgttaaat atgtactaca aacttagtag t
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
