pLVX-TRE3G-IRES

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-TRE3G-IRES , pLVX TRE3G IRES
质粒类型: 哺乳动物细胞慢病毒表达载体
高拷贝/低拷贝: 高拷贝
启动子: TRE3GV
克隆方法: 多克隆位点,限制性内切酶
载体大小: 8409 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄
筛选标记: 嘌呤霉素
备注: 包含有Tet-On 3G反式激活蛋白,多西环素(doxycycline)能够同时诱导2个基因表达的慢病毒载体。
产品目录号: 631351
稳定性: /
组成型: 诱导型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

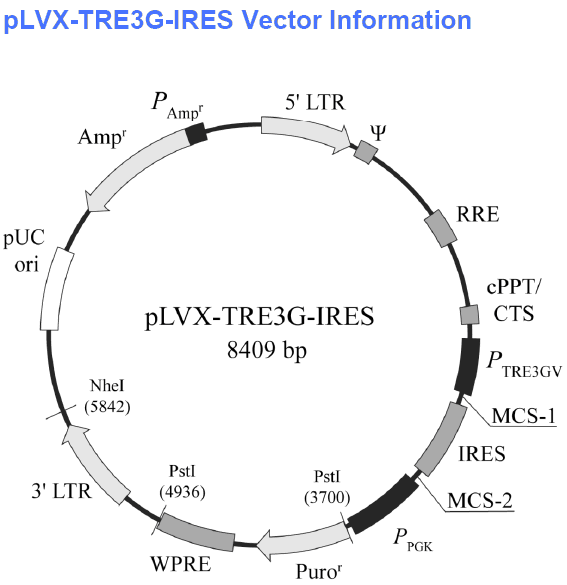

pLVX-TRE3G-IRES载体图谱

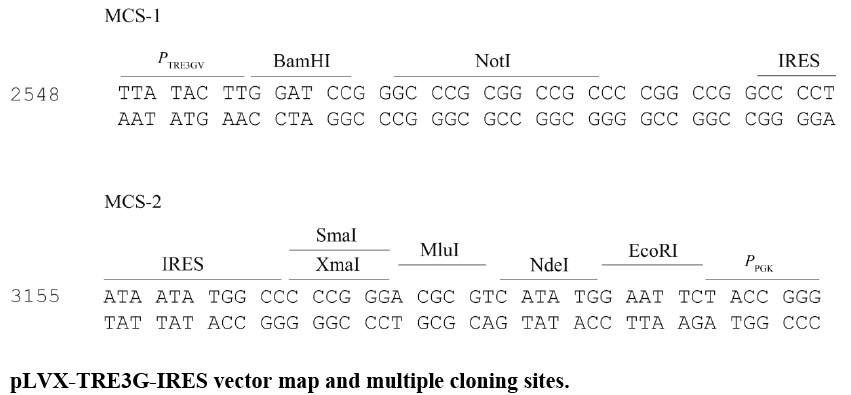

pLVX-TRE3G-IRES多克隆位点

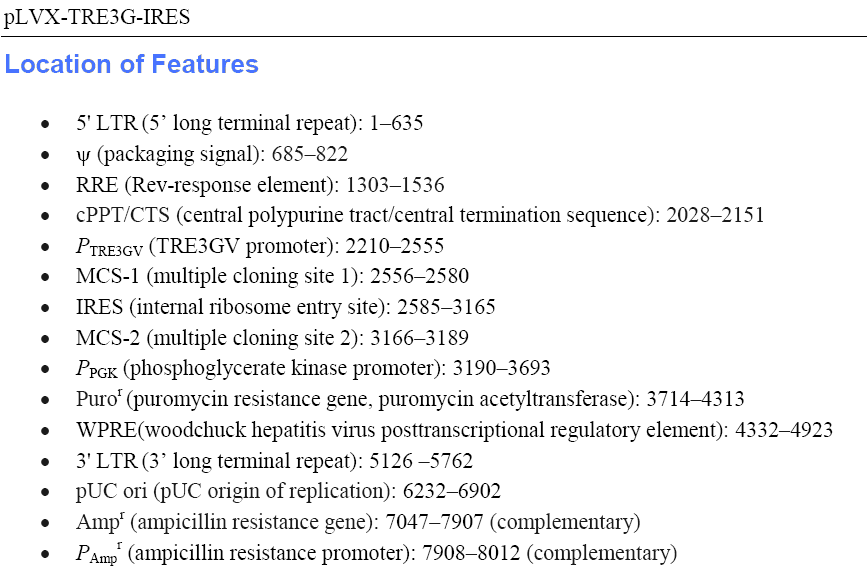

pLVX-TRE3G-IRES载体特征

载体简介

载体序列

LOCUS       pLVX-TRE3G-IRES   8409 bp    DNA   circular             9-MAY-2012
COMMENT     Created by Clontech Laboratories Inc. http://www.clontech.com
COMMENT     631362, 631351, 631354, 631257
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     misc_feature    1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=packaging\signal
     misc_feature    1303..1536
                     /label=RRE
     misc_feature    2028..2151
                     /label=cPPT/CTS
     misc_feature    3190..3693
                     /label=Ppgk
     misc_feature    3714..4313
                     /label=Puro(R)
     misc_feature    4331..4922
                     /label=WPRE
     3'clip          5126..5762
                     /label=3'\LTR
     misc_feature    complement(6232..6902)
                     /label=pUC\ori
     misc_feature    2210..2555
                     /label=pTRE3GV
     misc_feature    complement(7047..7907)
                     /label=Amp(R)
     misc_feature    2585..3165
                     /label=IRES
     misc_feature    complement(7908..8012)
                     /label=pAmp(R)
     misc_feature    3166..3189
                     /label=MCS-2
     misc_feature    2556..2580
                     /label=MCS-1
BASE COUNT     2108 a      2117 c      2194 g      1991 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgatgaggcc ctttcgtctt cactcgagtt tactccctat
     2221 cagtgataga gaacgtatga agagtttact ccctatcagt gatagagaac gtatgcagac
     2281 tttactccct atcagtgata gagaacgtat aaggagttta ctccctatca gtgatagaga
     2341 acgtatgacc agtttactcc ctatcagtga tagagaacgt atctacagtt tactccctat
     2401 cagtgataga gaacgtatat ccagtttact ccctatcagt gatagagaac gtatgtcgag
     2461 gtaggcgtgt acggtgggcg cctataaaag cagagctcgt ttagtgaacc gtcagatcgc
     2521 ctggagcaat tccacaacac ttttgtctta tacttggatc cgggcccgcg gccgccccgg
     2581 ccggcccctc tccctccccc ccccctaacg ttactggccg aagccgcttg gaataaggcc
     2641 ggtgtgcgtt tgtctatatg ttattttcca ccatattgcc gtcttttggc aatgtgaggg
     2701 cccggaaacc tggccctgtc ttcttgacga gcattcctag gggtctttcc cctctcgcca
     2761 aaggaatgca aggtctgttg aatgtcgtga aggaagcagt tcctctggaa gcttcttgaa
     2821 gacaaacaac gtctgtagcg accctttgca ggcagcggaa ccccccacct ggcgacaggt
     2881 gcctctgcgg ccaaaagcca cgtgtataag atacacctgc aaaggcggca caaccccagt
     2941 gccacgttgt gagttggata gttgtggaaa gagtcaaatg gctctcctca agcgtattca
     3001 acaaggggct gaaggatgcc cagaaggtac cccattgtat gggatctgat ctggggcctc
     3061 ggtacacatg ctttacatgt gtttagtcga ggttaaaaaa acgtctaggc cccccgaacc
     3121 acggggacgt ggttttcctt tgaaaaacac gatgataata tggcccccgg gacgcgtcat
     3181 atggaattct accgggtagg ggaggcgctt ttcccaaggc agtctggagc atgcgcttta
     3241 gcagccccgc tgggcacttg gcgctacaca agtggcctct ggcctcgcac acattccaca
     3301 tccaccggta ggcgccaacc ggctccgttc tttggtggcc ccttcgcgcc accttctact
     3361 cctcccctag tcaggaagtt cccccccgcc ccgcagctcg cgtcgtgcag gacgtgacaa
     3421 atggaagtag cacgtctcac tagtctcgtg cagatggaca gcaccgctga gcaatggaag
     3481 cgggtaggcc tttggggcag cggccaatag cagctttgct ccttcgcttt ctgggctcag
     3541 aggctgggaa ggggtgggtc cgggggcggg ctcaggggcg ggctcagggg cggggcgggc
     3601 gcccgaaggt cctccggagg cccggcattc tgcacgcttc aaaagcgcac gtctgccgcg
     3661 ctgttctcct cttcctcatc tccgggcctt tcgacctgca gcccaagctt accatgaccg
     3721 agtacaagcc cacggtgcgc ctcgccaccc gcgacgacgt ccccagggcc gtacgcaccc
     3781 tcgccgccgc gttcgccgac taccccgcca cgcgccacac cgtcgatccg gaccgccaca
     3841 tcgagcgggt caccgagctg caagaactct tcctcacgcg cgtcgggctc gacatcggca
     3901 aggtgtgggt cgcggacgac ggcgccgcgg tggcggtctg gaccacgccg gagagcgtcg
     3961 aagcgggggc ggtgttcgcc gagatcggcc cgcgcatggc cgagttgagc ggttcccggc
     4021 tggccgcgca gcaacagatg gaaggcctcc tggcgccgca ccggcccaag gagcccgcgt
     4081 ggttcctggc caccgtcggc gtctcgcccg accaccaggg caagggtctg ggcagcgccg
     4141 tcgtgctccc cggagtggag gcggccgagc gcgccggggt gcccgccttc ctggagacct
     4201 ccgcgccccg caacctcccc ttctacgagc ggctcggctt caccgtcacc gccgacgtcg
     4261 aggtgcccga aggaccgcgc acctggtgca tgacccgcaa gcccggtgcc tgacggggcg
     4321 cgtctggaac aatcaacctc tggattacaa aatttgtgaa agattgactg gtattcttaa
     4381 ctatgttgct ccttttacgc tatgtggata cgctgcttta atgcctttgt atcatgctat
     4441 tgcttcccgt atggctttca ttttctcctc cttgtataaa tcctggttgc tgtctcttta
     4501 tgaggagttg tggcccgttg tcaggcaacg tggcgtggtg tgcactgtgt ttgctgacgc
     4561 aacccccact ggttggggca ttgccaccac ctgtcagctc ctttccggga ctttcgcttt
     4621 ccccctccct attgccacgg cggaactcat cgccgcctgc cttgcccgct gctggacagg
     4681 ggctcggctg ttgggcactg acaattccgt ggtgttgtcg gggaagctga cgtcctttcc
     4741 atggctgctc gcctgtgttg ccacctggat tctgcgcggg acgtccttct gctacgtccc
     4801 ttcggccctc aatccagcgg accttccttc ccgcggcctg ctgccggctc tgcggcctct
     4861 tccgcgtctt cgccttcgcc ctcagacgag tcggatctcc ctttgggccg cctccccgcc
     4921 tggaattaat tctgcagtcg agacctagaa aaacatggag caatcacaag tagcaataca
     4981 gcagctacca atgctgattg tgcctggcta gaagcacaag aggaggagga ggtgggtttt
     5041 tccagtcaca cctcaggtac ctttaagacc aatgacttac aaggcagctg tagatcttag
     5101 ccacttttta aaagaaaaga ggggactgga agggctaatt cactcccaac gaagacaaga
     5161 tatccttgat ctgtggatct accacacaca aggctacttc cctgattagc agaactacac
     5221 accagggcca ggggtcagat atccactgac ctttggatgg tgctacaagc tagtaccagt
     5281 tgagccagat aaggtagaag aggccaataa aggagagaac accagcttgt tacaccctgt
     5341 gagcctgcat gggatggatg acccggagag agaagtgtta gagtggaggt ttgacagccg
     5401 cctagcattt catcacgtgg cccgagagct gcatccggag tacttcaaga actgctgata
     5461 tcgagcttgc tacaagggac tttccgctgg ggactttcca gggaggcgtg gcctgggcgg
     5521 gactggggag tggcgagccc tcagatcctg catataagca gctgcttttt gcctgtactg
     5581 ggtctctctg gttagaccag atctgagcct gggagctctc tggctaacta gggaacccac
     5641 tgcttaagcc tcaataaagc ttgccttgag tgcttcaagt agtgtgtgcc cgtctgttgt
     5701 gtgactctgg taactagaga tccctcagac ccttttagtc agtgtggaaa atctctagca
     5761 gtagtagttc atgtcatctt attattcagt atttataact tgcaaagaaa tgaatatcag
     5821 agagtgagag gccttgacat tgctagcgtt ttaccgtcga cctctagcta gagcttggcg
     5881 taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac
     5941 atacgagccg gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag ctaactcaca
     6001 ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat
     6061 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc
     6121 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca
     6181 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     6241 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     6301 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     6361 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     6421 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     6481 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     6541 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     6601 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     6661 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     6721 tacactagaa gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     6781 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggttt ttttgtttgc
     6841 aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg
     6901 gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca
     6961 aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc aatctaaagt
     7021 atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc acctatctca
     7081 gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta gataactacg
     7141 atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga cccacgctca
     7201 ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg cagaagtggt
     7261 cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc tagagtaagt
     7321 agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca
     7381 cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag gcgagttaca
     7441 tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat cgttgtcaga
     7501 agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa ttctcttact
     7561 gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa gtcattctga
     7621 gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga taataccgcg
     7681 ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg gcgaaaactc
     7741 tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc acccaactga
     7801 tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg aaggcaaaat
     7861 gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact cttccttttt
     7921 caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat atttgaatgt
     7981 atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt gccacctgac
     8041 gtcgacggat cgggagatca acttgtttat tgcagcttat aatggttaca aataaagcaa
     8101 tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt gtggtttgtc
     8161 caaactcatc aatgtatctt atcatgtctg gatcaactgg ataactcaag ctaaccaaaa
     8221 tcatcccaaa cttcccaccc cataccctat taccactgcc aattacctag tggtttcatt
     8281 tactctaaac ctgtgattcc tctgaattat tttcatttta aagaaattgt atttgttaaa
     8341 tatgtactac aaacttagta gtttttaaag aaattgtatt tgttaaatat gtactacaaa
     8401 cttagtagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
