pLVX-TRE3G-mCherry

价格:1800元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-TRE3G-mCherry
质粒类型: 哺乳动物细胞慢病毒表达载体
高拷贝/低拷贝: 高拷贝
启动子: TRE3GV
克隆方法: 多克隆位点,限制性内切酶
载体大小: 9115 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄
筛选标记: 嘌呤霉素
备注: 包含有Tet-On 3G反式激活蛋白,多西环素(doxycycline)诱导基因表达的慢病毒载体,含有mCherry荧光蛋白标签。
产品目录号: 631349, 631352, 631355
稳定性: /
组成型: 诱导型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

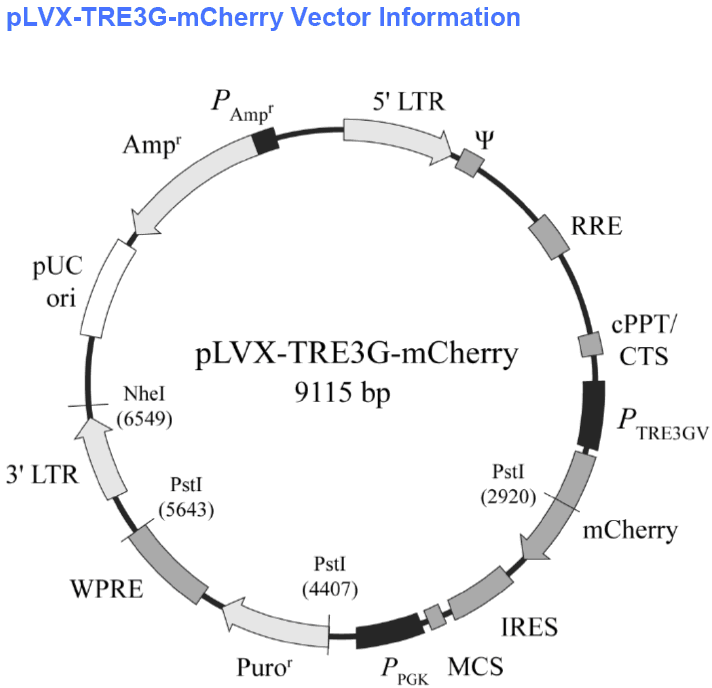

pLVX-TRE3G-mCherry载体图谱

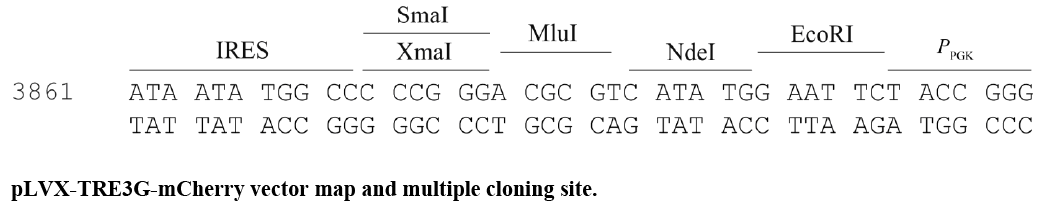

pLVX-TRE3G-mCherry多克隆位点

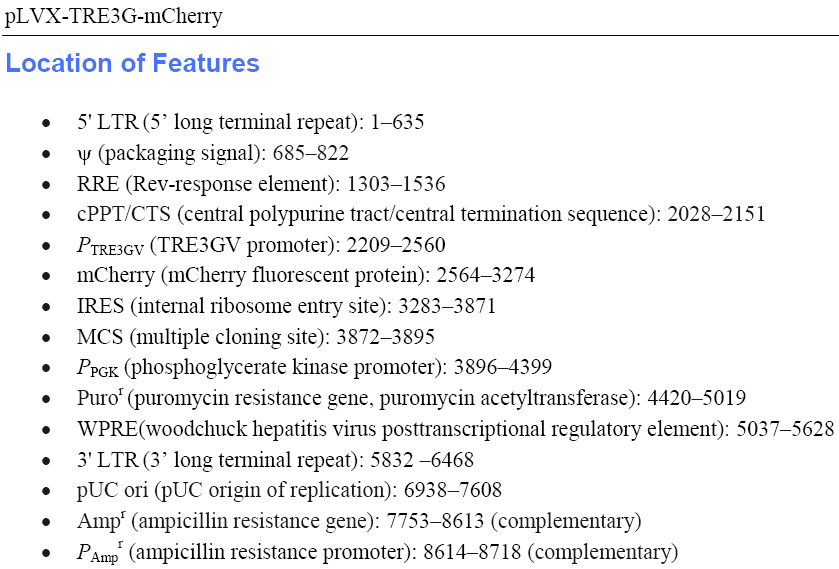

pLVX-TRE3G-mCherry载体特征

载体简介

载体序列

LOCUS       pLVX-TRE3G-mCherry  9115 bp    DNA   circular             9-MAY-2012
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     631360, 631349, 631352, 631255
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     misc_feature    1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=psi
     misc_feature    1303..1536
                     /label=RRE
     misc_feature    2028..2151
                       /label=cPPT/CTS
     misc_feature    3896..4399
                     /label=pPGK
     misc_feature    4420..5019
                     /label=Puro
     misc_feature    5037..5628
                     /label=WPRE
     3'clip          5832..6468
                     /label=3'\LTR
     misc_feature    complement(6938..7608)
                     /label=pUC\ori
     misc_feature    2564..3274
                     /label=mCherry
     misc_feature    3283..3871
                     /label=IRES
     misc_feature    3872..3895
                     /label=MCS
     misc_feature    2209..2560
                     /label=pTRE3GV
     misc_feature    complement(8614..8718)
                     /label=pAmp(R)
     misc_feature    complement(7753..8613)
                     /label=Amp(R)
BASE COUNT     2273 a      2340 c      2410 g      2092 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgatgaggcc ctttcgtctt cactcgagtt tactccctat
     2221 cagtgataga gaacgtatga agagtttact ccctatcagt gatagagaac gtatgcagac
     2281 tttactccct atcagtgata gagaacgtat aaggagttta ctccctatca gtgatagaga
     2341 acgtatgacc agtttactcc ctatcagtga tagagaacgt atctacagtt tactccctat
     2401 cagtgataga gaacgtatat ccagtttact ccctatcagt gatagagaac gtatgtcgag
     2461 gtaggcgtgt acggtgggcg cctataaaag cagagctcgt ttagtgaacc gtcagatcgc
     2521 ctggagcaat tccacaacac ttttgtctta tacttggatc accatggtga gcaagggcga
     2581 ggaggataac atggccatca tcaaggagtt catgcgcttc aaggtgcaca tggagggctc
     2641 cgtgaacggc cacgagttcg agatcgaggg cgagggcgag ggccgcccct acgagggcac
     2701 ccagaccgcc aagctgaagg tgaccaaggg tggccccctg cccttcgcct gggacatcct
     2761 gtcccctcag ttcatgtacg gctccaaggc ctacgtgaag caccccgccg acatccccga
     2821 ctacttgaag ctgtccttcc ccgagggctt caagtgggag cgcgtgatga acttcgagga
     2881 cggcggcgtg gtgaccgtga cccaggactc ctccctgcag gacggcgagt tcatctacaa
     2941 ggtgaagctg cgcggcacca acttcccctc cgacggcccc gtaatgcaga agaagaccat
     3001 gggctgggag gcctcctccg agcggatgta ccccgaggac ggcgccctga agggcgagat
     3061 caagcagagg ctgaagctga aggacggcgg ccactacgac gctgaggtca agaccaccta
     3121 caaggccaag aagcccgtgc agctgcccgg cgcctacaac gtcaacatca agttggacat
     3181 cacctcccac aacgaggact acaccatcgt ggaacagtac gaacgcgccg agggccgcca
     3241 ctccaccggc ggcatggacg agctgtacaa gtagggccgc cccggccggc ccctctccct
     3301 cccccccccc ctaacgttac tggccgaagc cgcttggaat aaggccggtg tgcgtttgtc
     3361 tatatgttat tttccaccat attgccgtct tttggcaatg tgagggcccg gaaacctggc
     3421 cctgtcttct tgacgagcat tcctaggggt ctttcccctc tcgccaaagg aatgcaaggt
     3481 ctgttgaatg tcgtgaagga agcagttcct ctggaagctt cttgaagaca aacaacgtct
     3541 gtagcgaccc tttgcaggca gcggaacccc ccacctggcg acaggtgcct ctgcggccaa
     3601 aagccacgtg tataagatac acctgcaaag gcggcacaac cccagtgcca cgttgtgagt
     3661 tggatagttg tggaaagagt caaatggctc tcctcaagcg tattcaacaa ggggctgaag
     3721 gatgcccaga aggtacccca ttgtatggga tctgatctgg ggcctcggta cacatgcttt
     3781 acatgtgttt agtcgaggtt aaaaaaacgt ctaggccccc cgaaccacgg ggacgtggtt
     3841 ttcctttgaa aaacacgatg ataatatggc ccccgggacg cgtcatatgg aattctaccg
     3901 ggtaggggag gcgcttttcc caaggcagtc tggagcatgc gctttagcag ccccgctggg
     3961 cacttggcgc tacacaagtg gcctctggcc tcgcacacat tccacatcca ccggtaggcg
     4021 ccaaccggct ccgttctttg gtggcccctt cgcgccacct tctactcctc ccctagtcag
     4081 gaagttcccc cccgccccgc agctcgcgtc gtgcaggacg tgacaaatgg aagtagcacg
     4141 tctcactagt ctcgtgcaga tggacagcac cgctgagcaa tggaagcggg taggcctttg
     4201 gggcagcggc caatagcagc tttgctcctt cgctttctgg gctcagaggc tgggaagggg
     4261 tgggtccggg ggcgggctca ggggcgggct caggggcggg gcgggcgccc gaaggtcctc
     4321 cggaggcccg gcattctgca cgcttcaaaa gcgcacgtct gccgcgctgt tctcctcttc
     4381 ctcatctccg ggcctttcga cctgcagccc aagcttacca tgaccgagta caagcccacg
     4441 gtgcgcctcg ccacccgcga cgacgtcccc agggccgtac gcaccctcgc cgccgcgttc
     4501 gccgactacc ccgccacgcg ccacaccgtc gatccggacc gccacatcga gcgggtcacc
     4561 gagctgcaag aactcttcct cacgcgcgtc gggctcgaca tcggcaaggt gtgggtcgcg
     4621 gacgacggcg ccgcggtggc ggtctggacc acgccggaga gcgtcgaagc gggggcggtg
     4681 ttcgccgaga tcggcccgcg catggccgag ttgagcggtt cccggctggc cgcgcagcaa
     4741 cagatggaag gcctcctggc gccgcaccgg cccaaggagc ccgcgtggtt cctggccacc
     4801 gtcggcgtct cgcccgacca ccagggcaag ggtctgggca gcgccgtcgt gctccccgga
     4861 gtggaggcgg ccgagcgcgc cggggtgccc gccttcctgg agacctccgc gccccgcaac
     4921 ctccccttct acgagcggct cggcttcacc gtcaccgccg acgtcgaggt gcccgaagga
     4981 ccgcgcacct ggtgcatgac ccgcaagccc ggtgcctgac ggggcgcgtc tggaacaatc
     5041 aacctctgga ttacaaaatt tgtgaaagat tgactggtat tcttaactat gttgctcctt
     5101 ttacgctatg tggatacgct gctttaatgc ctttgtatca tgctattgct tcccgtatgg
     5161 ctttcatttt ctcctccttg tataaatcct ggttgctgtc tctttatgag gagttgtggc
     5221 ccgttgtcag gcaacgtggc gtggtgtgca ctgtgtttgc tgacgcaacc cccactggtt
     5281 ggggcattgc caccacctgt cagctccttt ccgggacttt cgctttcccc ctccctattg
     5341 ccacggcgga actcatcgcc gcctgccttg cccgctgctg gacaggggct cggctgttgg
     5401 gcactgacaa ttccgtggtg ttgtcgggga agctgacgtc ctttccatgg ctgctcgcct
     5461 gtgttgccac ctggattctg cgcgggacgt ccttctgcta cgtcccttcg gccctcaatc
     5521 cagcggacct tccttcccgc ggcctgctgc cggctctgcg gcctcttccg cgtcttcgcc
     5581 ttcgccctca gacgagtcgg atctcccttt gggccgcctc cccgcctgga attaattctg
     5641 cagtcgagac ctagaaaaac atggagcaat cacaagtagc aatacagcag ctaccaatgc
     5701 tgattgtgcc tggctagaag cacaagagga ggaggaggtg ggtttttcca gtcacacctc
     5761 aggtaccttt aagaccaatg acttacaagg cagctgtaga tcttagccac tttttaaaag
     5821 aaaagagggg actggaaggg ctaattcact cccaacgaag acaagatatc cttgatctgt
     5881 ggatctacca cacacaaggc tacttccctg attagcagaa ctacacacca gggccagggg
     5941 tcagatatcc actgaccttt ggatggtgct acaagctagt accagttgag ccagataagg
     6001 tagaagaggc caataaagga gagaacacca gcttgttaca ccctgtgagc ctgcatggga
     6061 tggatgaccc ggagagagaa gtgttagagt ggaggtttga cagccgccta gcatttcatc
     6121 acgtggcccg agagctgcat ccggagtact tcaagaactg ctgatatcga gcttgctaca
     6181 agggactttc cgctggggac tttccaggga ggcgtggcct gggcgggact ggggagtggc
     6241 gagccctcag atcctgcata taagcagctg ctttttgcct gtactgggtc tctctggtta
     6301 gaccagatct gagcctggga gctctctggc taactaggga acccactgct taagcctcaa
     6361 taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac
     6421 tagagatccc tcagaccctt ttagtcagtg tggaaaatct ctagcagtag tagttcatgt
     6481 catcttatta ttcagtattt ataacttgca aagaaatgaa tatcagagag tgagaggcct
     6541 tgacattgct agcgttttac cgtcgacctc tagctagagc ttggcgtaat catggtcata
     6601 gctgtttcct gtgtgaaatt gttatccgct cacaattcca cacaacatac gagccggaag
     6661 cataaagtgt aaagcctggg gtgcctaatg agtgagctaa ctcacattaa ttgcgttgcg
     6721 ctcactgccc gctttccagt cgggaaacct gtcgtgccag ctgcattaat gaatcggcca
     6781 acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc gcttcctcgc tcactgactc
     6841 gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg cggtaatacg
     6901 gttatccaca gaatcagggg ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa
     6961 ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc gcccccctga
     7021 cgagcatcac aaaaatcgac gctcaagtca gaggtggcga aacccgacag gactataaag
     7081 ataccaggcg tttccccctg gaagctccct cgtgcgctct cctgttccga ccctgccgct
     7141 taccggatac ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc atagctcacg
     7201 ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc
     7261 ccccgttcag cccgaccgct gcgccttatc cggtaactat cgtcttgagt ccaacccggt
     7321 aagacacgac ttatcgccac tggcagcagc cactggtaac aggattagca gagcgaggta
     7381 tgtaggcggt gctacagagt tcttgaagtg gtggcctaac tacggctaca ctagaagaac
     7441 agtatttggt atctgcgctc tgctgaagcc agttaccttc ggaaaaagag ttggtagctc
     7501 ttgatccggc aaacaaacca ccgctggtag cggttttttt gtttgcaagc agcagattac
     7561 gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca
     7621 gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac
     7681 ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac
     7741 ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt
     7801 tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt
     7861 accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt
     7921 atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc
     7981 cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa
     8041 tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg
     8101 tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt
     8161 gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc
     8221 agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt
     8281 aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg
     8341 gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac
     8401 tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc
     8461 gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt
     8521 tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg
     8581 aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat attattgaag
     8641 catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa
     8701 acaaataggg gttccgcgca catttccccg aaaagtgcca cctgacgtcg acggatcggg
     8761 agatcaactt gtttattgca gcttataatg gttacaaata aagcaatagc atcacaaatt
     8821 tcacaaataa agcatttttt tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg
     8881 tatcttatca tgtctggatc aactggataa ctcaagctaa ccaaaatcat cccaaacttc
     8941 ccaccccata ccctattacc actgccaatt acctagtggt ttcatttact ctaaacctgt
     9001 gattcctctg aattattttc attttaaaga aattgtattt gttaaatatg tactacaaac
     9061 ttagtagttt ttaaagaaat tgtatttgtt aaatatgtac tacaaactta gtagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
