pLVX-IRES-Neo

价格:1350元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-IRES-Neo, pLVX IRES Neo
质粒类型: 慢病毒载体;哺乳动物细胞表达载体;双顺反子载体
高拷贝/低拷贝: 高拷贝
启动子: CMV
克隆方法: 多克隆位点,限制性内切酶
载体大小: 8269 bp
5' 测序引物及序列: CMV-F: CGCAAATGGGCGGTAGGCGTG (Invitrogen)
3' 测序引物及序列: IRES-R: CCTCACATTGCCAAAAGACG
载体标签: 无标签
载体抗性: 氨苄青霉素
筛选标记: Neomycin_1.html' target='_blank'>新霉素Neomycin
克隆菌株: Stbl3 E.coli
备注: pLVX-IRES-Neo载体以双顺反子的形式同时表达Neo抗性基因和目的基因;
CMV启动子驱动目的基因的过表达。
产品目录号: 632181
稳定性: 稳表达
组成型: 组成型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

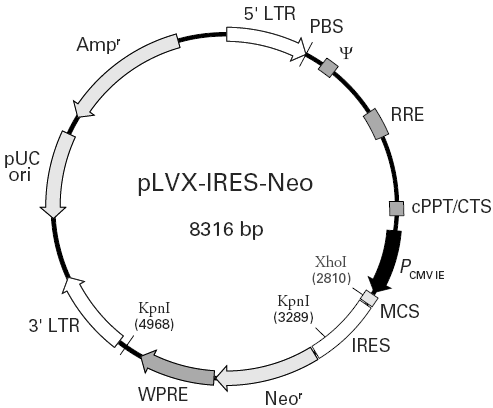

pLVX-IRES-Neo载体图谱



pLVX-IRES-Neo多克隆位点

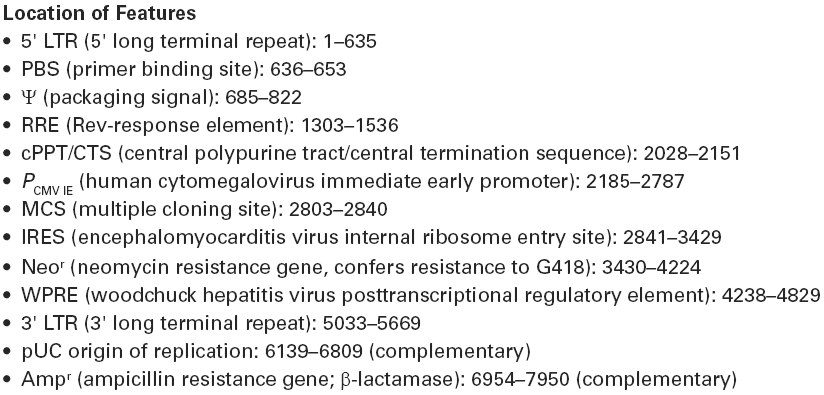

pLVX-IRES-Neo载体特征

载体简介

载体序列

LOCUS       pLVX-IRES-Neo   8269 bp    DNA   circular             8-NOV-2009
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     Cat. No. 632184,632181
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     LTR             1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=packaging\signal
     misc_feature    2028..2151
                     /label=cPPT/CTS\(DNA\flap)
     promoter        2185..2787
                     /label=CMV\IE\Promoter
     misc_feature    4238..4829
                     /label=WPRE
     rep_origin      complement(6137..6810)
                     /label=pUC\origin
     CDS             complement(6955..7951)
                     /label=Amp(R)
     misc_binding    1303..1536
                     /label=RRE
     misc_binding    636..653
                     /label=PBS
     CDS             3430..4224
                     /label=Neo(R)
     misc_structure  2841..3429
                     /label=IRES
     misc_feature    2803..2840
                     /label=MCS
     LTR             5032..5668
                     /label=3'\LTR
BASE COUNT     2115 a      2002 c      2130 g      2022 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgataagctt gggagttccg cgttacataa cttacggtaa
     2221 atggcccgcc tggctgaccg cccaacgacc cccgcccatt gacgtcaata atgacgtatg
     2281 ttcccatagt aacgccaata gggactttcc attgacgtca atgggtggag tatttacggt
     2341 aaactgccca cttggcagta catcaagtgt atcatatgcc aagtacgccc cctattgacg
     2401 tcaatgacgg taaatggccc gcctggcatt atgcccagta catgacctta tgggactttc
     2461 ctacttggca gtacatctac gtattagtca tcgctattac catggtgatg cggttttggc
     2521 agtacatcaa tgggcgtgga tagcggtttg actcacgggg atttccaagt ctccacccca
     2581 ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg ggactttcca aaatgtcgta
     2641 acaactccgc cccattgacg caaatgggcg gtaggcgtgt acggtgggag gtctatataa
     2701 gcagagctcg tttagtgaac cgtcagatcg cctggagacg ccatccacgc tgttttgacc
     2761 tccatagaag acaccgactc tactagagga tctatttccg gtgaattcct cgagactagt
     2821 tctagagcgg ccgcggatcc cgcccctctc cctccccccc ccctaacgtt actggccgaa
     2881 gccgcttgga ataaggccgg tgtgcgtttg tctatatgtt attttccacc atattgccgt
     2941 cttttggcaa tgtgagggcc cggaaacctg gccctgtctt cttgacgagc attcctaggg
     3001 gtctttcccc tctcgccaaa ggaatgcaag gtctgttgaa tgtcgtgaag gaagcagttc
     3061 ctctggaagc ttcttgaaga caaacaacgt ctgtagcgac cctttgcagg cagcggaacc
     3121 ccccacctgg cgacaggtgc ctctgcggcc aaaagccacg tgtataagat acacctgcaa
     3181 aggcggcaca accccagtgc cacgttgtga gttggatagt tgtggaaaga gtcaaatggc
     3241 tctcctcaag cgtattcaac aaggggctga aggatgccca gaaggtaccc cattgtatgg
     3301 gatctgatct ggggcctcgg tgcacatgct ttacatgtgt ttagtcgagg ttaaaaaaac
     3361 gtctaggccc cccgaaccac ggggacgtgg ttttcctttg aaaaacacga tgataagctt
     3421 gccacaacca tggctgaaca agatggattg cacgcaggtt ctccggccgc ttgggtggag
     3481 aggctattcg gctatgactg ggcacaacag acaatcggct gctctgatgc cgccgtgttc
     3541 cggctgtcag cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc cggtgccctg
     3601 aatgaactgc aggacgaggc agcgcggcta tcgtggctgg ccacgacggg cgttccttgc
     3661 gcagctgtgc tcgacgttgt cactgaagcg ggaagggact ggctgctatt gggcgaagtg
     3721 ccggggcagg atctcctgtc atctcacctt gctcctgccg agaaagtatc catcatggct
     3781 gatgcaatgc ggcggctgca tacgcttgat ccggctacct gcccattcga ccaccaagcg
     3841 aaacatcgca tcgagcgagc acgtactcgg atggaagccg gtcttgtcga tcaggatgat
     3901 ctggacgaag agcatcaggg gctcgcgcca gccgaactgt tcgccaggct caaggcgcgc
     3961 atgcccgacg gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg
     4021 gtggaaaatg gccgcttttc tggattcatc gactgtggcc ggctgggtgt ggcggaccgc
     4081 tatcaggaca tagcgttggc tacccgtgat attgctgaag agcttggcgg cgaatgggct
     4141 gaccgcttcc tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat cgccttctat
     4201 cgccttcttg acgagttctt ctgaacgcgt ctggaacaat caacctctgg attacaaaat
     4261 ttgtgaaaga ttgactggta ttcttaacta tgttgctcct tttacgctat gtggatacgc
     4321 tgctttaatg cctttgtatc atgctattgc ttcccgtatg gctttcattt tctcctcctt
     4381 gtataaatcc tggttgctgt ctctttatga ggagttgtgg cccgttgtca ggcaacgtgg
     4441 cgtggtgtgc actgtgtttg ctgacgcaac ccccactggt tggggcattg ccaccacctg
     4501 tcagctcctt tccgggactt tcgctttccc cctccctatt gccacggcgg aactcatcgc
     4561 cgcctgcctt gcccgctgct ggacaggggc tcggctgttg ggcactgaca attccgtggt
     4621 gttgtcgggg aagctgacgt cctttccatg gctgctcgcc tgtgttgcca cctggattct
     4681 gcgcgggacg tccttctgct acgtcccttc ggccctcaat ccagcggacc ttccttcccg
     4741 cggcctgctg ccggctctgc ggcctcttcc gcgtcttcgc cttcgccctc agacgagtcg
     4801 gatctccctt tgggccgcct ccccgcctgg aattaattct gcagtcgaga cctagaaaaa
     4861 catggagcaa tcacaagtag caatacagca gctaccaatg ctgattgtgc ctggctagaa
     4921 gcacaagagg aggaggaggt gggttttcca gtcacacctc aggtaccttt aagaccaatg
     4981 acttacaagg cagctgtaga tcttagccac tttttaaaag aaaagagggg actggaaggg
     5041 ctaattcact cccaacgaag acaagatatc cttgatctgt ggatctacca cacacaaggc
     5101 tacttccctg attagcagaa ctacacacca gggccagggg tcagatatcc actgaccttt
     5161 ggatggtgct acaagctagt accagttgag ccagataagg tagaagaggc caataaagga
     5221 gagaacacca gcttgttaca ccctgtgagc ctgcatggga tggatgaccc ggagagagaa
     5281 gtgttagagt ggaggtttga cagccgccta gcatttcatc acgtggcccg agagctgcat
     5341 ccggagtact tcaagaactg ctgatatcga gcttgctaca agggactttc cgctggggac
     5401 tttccaggga ggcgtggcct gggcgggact ggggagtggc gagccctcag atcctgcata
     5461 taagcagctg ctttttgcct gtactgggtc tctctggtta gaccagatct gagcctggga
     5521 gctctctggc taactaggga acccactgct taagcctcaa taaagcttgc cttgagtgct
     5581 tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac tagagatccc tcagaccctt
     5641 ttagtcagtg tggaaaatct ctagcagtag tagttcatgt catcttatta ttcagtattt
     5701 ataacttgca aagaaatgaa tatcagagag tgagaggcct tgacattgct agcgtttacc
     5761 gtcgacctct agctagagct tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg
     5821 ttatccgctc acaattccac acaacatacg agccggaagc ataaagtgta aagcctgggg
     5881 tgcctaatga gtgagctaac tcacattaat tgcgttgcgc tcactgcccg ctttccagtc
     5941 gggaaacctg tcgtgccagc tgcattaatg aatcggccaa cgcgcgggga gaggcggttt
     6001 gcgtattggg cgctcttccg cttcctcgct cactgactcg ctgcgctcgg tcgttcggct
     6061 gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg ttatccacag aatcagggga
     6121 taacgcagga aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc
     6181 cgcgttgctg gcgtttttcc ataggctccg cccccctgac gagcatcaca aaaatcgacg
     6241 ctcaagtcag aggtggcgaa acccgacagg actataaaga taccaggcgt ttccccctgg
     6301 aagctccctc gtgcgctctc ctgttccgac cctgccgctt accggatacc tgtccgcctt
     6361 tctcccttcg ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc tcagttcggt
     6421 gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg
     6481 cgccttatcc ggtaactatc gtcttgagtc caacccggta agacacgact tatcgccact
     6541 ggcagcagcc actggtaaca ggattagcag agcgaggtat gtaggcggtg ctacagagtt
     6601 cttgaagtgg tggcctaact acggctacac tagaagaaca gtatttggta tctgcgctct
     6661 gctgaagcca gttaccttcg gaaaaagagt tggtagctct tgatccggca aacaaaccac
     6721 cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc
     6781 tcaagaagat cctttgatct tttctacggg gtctgacgct cagtggaacg aaaactcacg
     6841 ttaagggatt ttggtcatga gattatcaaa aaggatcttc acctagatcc ttttaaatta
     6901 aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa acttggtctg acagttacca
     6961 atgcttaatc agtgaggcac ctatctcagc gatctgtcta tttcgttcat ccatagttgc
     7021 ctgactcccc gtcgtgtaga taactacgat acgggagggc ttaccatctg gccccagtgc
     7081 tgcaatgata ccgcgagacc cacgctcacc ggctccagat ttatcagcaa taaaccagcc
     7141 agccggaagg gccgagcgca gaagtggtcc tgcaacttta tccgcctcca tccagtctat
     7201 taattgttgc cgggaagcta gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt
     7261 tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc
     7321 cggttcccaa cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa aagcggttag
     7381 ctccttcggt cctccgatcg ttgtcagaag taagttggcc gcagtgttat cactcatggt
     7441 tatggcagca ctgcataatt ctcttactgt catgccatcc gtaagatgct tttctgtgac
     7501 tggtgagtac tcaaccaagt cattctgaga atagtgtatg cggcgaccga gttgctcttg
     7561 cccggcgtca atacgggata ataccgcgcc acatagcaga actttaaaag tgctcatcat
     7621 tggaaaacgt tcttcggggc gaaaactctc aaggatctta ccgctgttga gatccagttc
     7681 gatgtaaccc actcgtgcac ccaactgatc ttcagcatct tttactttca ccagcgtttc
     7741 tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa
     7801 atgttgaata ctcatactct tcctttttca atattattga agcatttatc agggttattg
     7861 tctcatgagc ggatacatat ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg
     7921 cacatttccc cgaaaagtgc cacctgacgt cgacggatcg ggagatcaac ttgtttattg
     7981 cagcttataa tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt
     8041 tttcactgca ttctagttgt ggtttgtcca aactcatcaa tgtatcttat catgtctgga
     8101 tcaactggat aactcaagct aaccaaaatc atcccaaact tcccacccca taccctatta
     8161 ccactgccaa ttacctgtgg tttcatttac tctaaacctg tgattcctct gaattatttt
     8221 cattttaaag aaattgtatt tgttaaatat gtactacaaa cttagtagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
