载体基本信息

出品公司: Invitrigen
载体名称: pYES-DEST52
质粒类型: 酿酒酵母表达载体;Gateway载体
高拷贝/低拷贝: 高拷贝
启动子: GAL1
克隆方法: Gateway
载体大小: 7621bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: His Tag (6x) ; V5 Epitope Tag
载体抗性: 氨苄青霉素、氯霉素(仅空载体)
筛选标记: 报告基因URA3
克隆菌株: DB3.1(空载体的复制)
备注: --
产品目录号: 12286-019
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

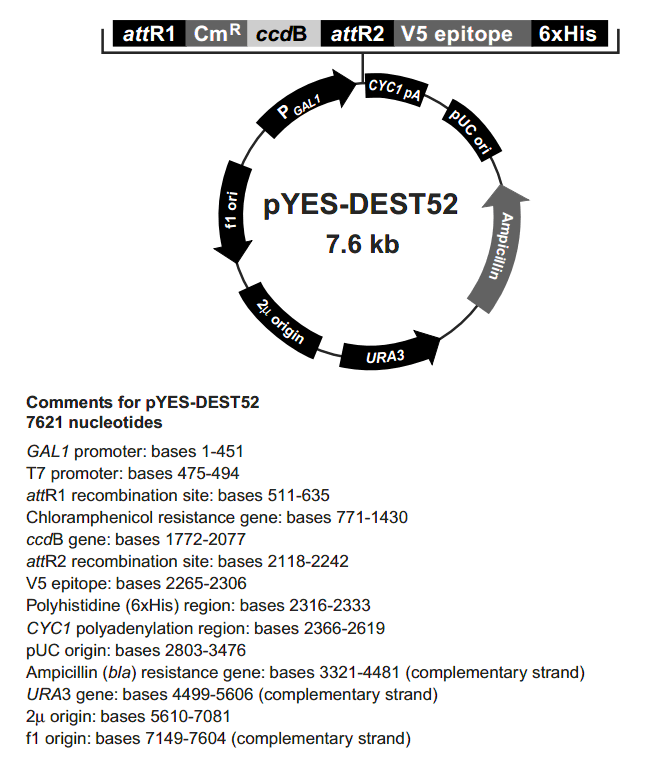

pYES-DEST52载体图谱

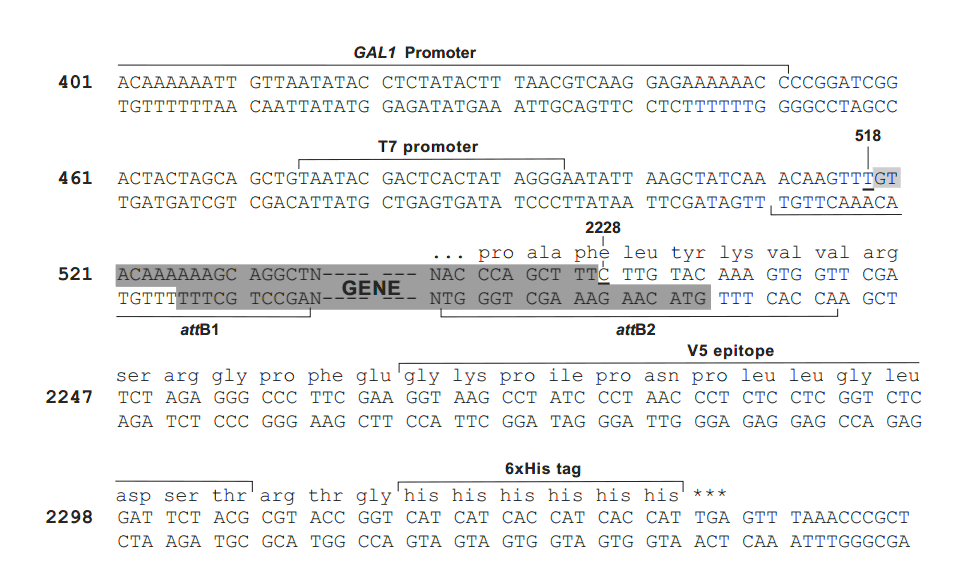

pYES-DEST52多克隆位点

载体简介

The pYES2-DEST52 Gateway destination vector is designed for rapid cloning with a Gateway entry clone using lambda phage site-specific recombination and subsequent expression in Saccharomyces cerevisiae. As part of the YES Vector Collection, pYES2-DEST52 carries the promoter and enhancer sequences from the GAL1 gene for regulated expression in S.cerevisiae.
pYES2-DEST52 features:

 2μ origin of replication for high-copy maintenance
gene for auxotrophic selection on economical minimal medium
 C-terminal V5 epitope and polyhistidine(6xHis) tags for efficient detection and purification
tR sites for efficient recombination with any attL-flanked Gateway entry vector

载体序列

ACGGATTAGAAGCCGCCGAGCGGGTGACAGCCCTCCGAAGGAAGACTCTCCTCCGTGCGTCCTCGTCTTC
ACCGGTCGCGTTCCTGAAACGCAGATGTGCCTCGCGCCGCACTGCTCCGAACAATAAAGATTCTACAATA
CTAGCTTTTATGGTTATGAAGAGGAAAAATTGGCAGTAACCTGGCCCCACAAACCTTCAAATGAACGAAT
CAAATTAACAACCATAGGATGATAATGCGATTAGTTTTTTAGCCTTATTTCTGGGGTAATTAATCAGCGA
AGCGATGATTTTTGATCTATTAACAGATATATAAATGCAAAAACTGCATAACCACTTTAACTAATACTTT
CAACATTTTCGGTTTGTATTACTTCTTATTCAAATGTAATAAAAGTATCAACAAAAAATTGTTAATATAC
CTCTATACTTTAACGTCAAGGAGAAAAAACCCCGGATCGGACTACTAGCAGCTGTAATACGACTCACTAT
AGGGAATATTAAGCTATCAAACAAGTTTGTACAAAAAAGCTGAACGAGAAACGTAAAATGATATAAATAT
CAATATATTAAATTAGATTTTGCATAAAAAACAGACTACATAATACTGTAAAACACAACATATCCAGTCA
CTATGGCGGCCGCGGGTGATGCTGCCAACTTAGCGGCCGCATTAGGCACCCCAGGCTTTACACTTTATGC
TTCCGGCTCGTATAATGTGTGGATTTTGAGTTAGGATCCGTCGAGATTTTCAGGAGCTAAGGAAGCTAAA
ATGGAGAAAAAAATCACTGGATATACCACCGTTGATATATCCCAATGGCATCGTAAAGAACATTTTGAGG
CATTTCAGTCAGTTGCTCAATGTACCTATAACCAGACCGTTCAGCTGGATATTACGGCCTTTTTAAAGAC
CGTAAAGAAAAATAAGCACAAGTTTTATCCGGCCTTTATTCACATTCTTGCCCGCCTGATGAATGCTCAT
CCGGAATTCCGTATGGCAATGAAAGACGGTGAGCTGGTGATATGGGATAGTGTTCACCCTTGTTACACCG
TTTTCCATGAGCAAACTGAAACGTTTTCATCGCTCTGGAGTGAATACCACGACGATTTCCGGCAGTTTCT
ACACATATATTCGCAAGATGTGGCGTGTTACGGTGAAAACCTGGCCTATTTCCCTAAAGGGTTTATTGAG
AATATGTTTTTCGTCTCAGCCAATCCCTGGGTGAGTTTCACCAGTTTTGATTTAAACGTGGCCAATATGG
ACAACTTCTTCGCCCCCGTTTTCACCATGGGCAAATATTATACGCAAGGCGACAAGGTGCTGATGCCGCT
GGCGATTCAGGTTCATCATGCCGTCTGTGATGGCTTCCATGTCGGCAGAATGCTTAATGAATTACAACAG
TACTGCGATGAGTGGCAGGGCGGGGCGTAATCTAGAGGATCCGGCTTACTAAAAGCCAGATAACAGTATG
CGTATTTGCGCGCTGATTTTTGCGGTATAAGAATATATACTGATATGTATACCCGAAGTATGTCAAAAAG
AGGTGTGCTATGAAGCAGCGTATTACAGTGACAGTTGACAGCGACAGCTATCAGTTGCTCAAGGCATATA
TGATGTCAATATCTCCGGTCTGGTAAGCACAACCATGCAGAATGAAGCCCGTCGTCTGCGTGCCGAACGC
TGGAAAGCGGAAAATCAGGAAGGGATGGCTGAGGTCGCCCGGTTTATTGAAATGAACGGCTCTTTTGCTG
ACGAGAACAGGGACTGGTGAAATGCAGTTTAAGGTTTACACCTATAAAAGAGAGAGCCGTTATCGTCTGT
TTGTGGATGTACAGAGTGATATTATTGACACGCCCGGGCGACGGATGGTGATCCCCCTGGCCAGTGCACG
TCTGCTGTCAGATAAAGTCTCCCGTGAACTTTACCCGGTGGTGCATATCGGGGATGAAAGCTGGCGCATG
ATGACCACCGATATGGCCAGTGTGCCGGTCTCCGTTATCGGGGAAGAAGTGGCTGATCTCAGCCACCGCG
AAAATGACATCAAAAACGCCATTAACCTGATGTTCTGGGGAATATAAATGTCAGGCTCCGTTATACACAG
CCAGTCTGCAGGTCGACCATAGTGACTGGATATGTTGTGTTTTACAGTATTATGTAGTCTGTTTTTTATG
CAAAATCTAATTTAATATATTGATATTTATATCATTTTACGTTTCTCGTTCAGCTTTCTTGTACAAAGTG
GTTCGATCTAGAGGGCCCTTCGAAGGTAAGCCTATCCCTAACCCTCTCCTCGGTCTCGATTCTACGCGTA
CCGGTCATCATCACCATCACCATTGAGTTTAAACCCGCTGATCCTAGAGGGCCGCATCATGTAATTAGTT
ATGTCACGCTTACATTCACGCCCTCCCCCCACATCCGCTCTAACCGAAAAGGAAGGAGTTAGACAACCTG
AAGTCTAGGTCCCTATTTATTTTTTTATAGTTATGTTAGTATTAAGAACGTTATTTATATTTCAAATTTT
TCTTTTTTTTCTGTACAGACGCGTGTACGCATGTAACATTATACTGAAAACCTTGCTTGAGAAGGTTTTG
GGACGCTCGAAGGCTTTAATTTGCAAGCTGCGGCCCTGCATTAATGAATCGGCCAACGCGCGGGGAGAGG
CGGTTTGCGTATTGGGCGCTCTTCCGCTTCCTCGCTCACTGACTCGCTGCGCTCGGTCGTTCGGCTGCGG
CGAGCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGA
ACATGTGAGCAAAAGGCCAGCAAAAGCCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAG
GCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTA
TAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCG
GATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAG
TTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCC
TTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTG
GTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGG
CTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGT
AGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGC
GCAGAAAAAAAGGATCTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAA
CTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTAAATTAAAAA
TGAAGTTTTAAATCAATCTAAAGTATATATGAGTAAACTTGGTCTGACAGTTACCAATGCTTAATCAGTG
AGGCACCTATCTCAGCGATCTGTCTATTTCGTTCATCCATAGTTGCCTGACTCCCCGTCGTGTAGATAAC
TACGATACGGGAGCGCTTACCATCTGGCCCCAGTGCTGCAATGATACCGCGAGACCCACGCTCACCGGCT
CCAGATTTATCAGCAATAAACCAGCCAGCCGGAAGGGCCGAGCGCAGAAGTGGTCCTGCAACTTTATCCG
CCTCCATCCAGTCTATTAATTGTTGCCGGGAAGCTAGAGTAAGTAGTTCGCCAGTTAATAGTTTGCGCAA
CGTTGTTGGCATTGCTACAGGCATCGTGGTGTCACTCTCGTCGTTTGGTATGGCTTCATTCAGCTCCGGT
TCCCAACGATCAAGGCGAGTTACATGATCCCCCATGTTGTGCAAAAAAGCGGTTAGCTCCTTCGGTCCTC
CGATCGTTGTCAGAAGTAAGTTGGCCGCAGTGTTATCACTCATGGTTATGGCAGCACTGCATAATTCTCT
TACTGTCATGCCATCCGTAAGATGCTTTTCTGTGACTGGTGAGTACTCAACCAAGTCATTCTGAGAATAG
TGTATGCGGCGACCGAGTTGCTCTTGCCCGGCGTCAATACGGGATAATAGTGTATCACATAGCAGAACTT
TAAAAGTGCTCATCATTGGAAAACGTTCTTCGGGGCGAAAACTCTCAAGGATCTTACCGCTGTTGAGATC
CAGTTCGATGTAACCCACTCGTGCACCCAACTGATCTTCAGCATCTTTTACTTTCACCAGCGTTTCTGGG
TGAGCAAAAACAGGAAGGCAAAATGCCGCAAAAAAGGGAATAAGGGCGACACGGAAATGTTGAATACTCA
TACTCTTCCTTTTTCAATGGGTAATAACTGATATAATTAAATTGAAGCTCTAATTTGTGAGTTTAGTATA
CATGCATTTACTTATAATACAGTTTTTTAGTTTTGCTGGCCGCATCTTCTCAAATATGCTTCCCAGCCTG
CTTTTCTGTAACGTTCACCCTCTACCTTAGCATCCCTTCCCTTTGCAAATAGTCCTCTTCCAACAATAAT
AATGTCAGATCCTGTAGAGACCACATCATCCACGGTTCTATACTGTTGACCCAATGCGTCTCCCTTGTCA
TCTAAACCCACACCGGGTGTCATAATCAACCAATCGTAACCTTCATCTCTTCCACCCATGTCTCTTTGAG
CAATAAAGCCGATAACAAAATCTTTGTCGCTCTTCGCAATGTCAACAGTACCCTTAGTATATTCTCCAGT
AGATAGGGAGCCCTTGCATGACAATTCTGCTAACATCAAAAGGCCTCTAGGTTCCTTTGTTACTTCTTCT
GCCGCCTGCTTCAAACCGCTAACAATACCTGGGCCCACCACACCGTGTGCATTCGTAATGTCTGCCCATT
CTGCTATTCTGTATACACCCGCAGAGTACTGCAATTTGACTGTATTACCAATGTCAGCAAATTTTCTGTC
TTCGAAGAGTAAAAAATTGTACTTGGCGGATAATGCCTTTAGCGGCTTAACTGTGCCCTCCATGGAAAAA
TCAGTCAAGATATCCACATGTGTTTTTAGTAAACAAATTTTGGGACCTAATGCTTCAACTAACTCCAGTA
ATTCCTTGGTGGTACGAACATCCAATGAAGCACACAAGTTTGTTTGCTTTTCGTGCATGATATTAAATAG
CTTGGCAGCAACAGGACTAGGATGAGTAGCAGCACGTTCCTTATATGTAGCTTTCGACATGATTTATCTT
CGTTTCCTGCAGGTTTTTGTTCTGTGCAGTTGGGTTAAGAATACTGGGCAATTTCATGTTTCTTCAACAC
TACATATGCGTATATATACCAATCTAAGTCTGTGCTCCTTCCTTCGTTCTTCCTTCTGTTCGGAGATTAC
CGAATCAAAAAAATTTCAAAGAAACCGAAATCAAAAAAAAGAATAAAAAAAAAATGATGAATTGAATTGA
AAAGCTAGCTTATCGATGATAAGCTGTCAAAGATGAGAATTAATTCCACGGACTATAGACTATACTAGAT
ACTCCGTCTACTGTACGATACACTTCCGCTCAGGTCCTTGTCCTTTAACGAGGCCTTACCACTCTTTTGT
TACTCTATTGATCCAGCTCAGCAAAGGCAGTGTGATCTAAGATTCTATCTTCGCGATGTAGTAAAACTAG
CTAGACCGAGAAAGAGACTAGAAATGCAAAAGGCACTTCTACAATGGCTGCCATCATTATTATCCGATGT
GACGCTGCAGCTTCTCAATGATATTCGAATACGCTTTGAGGAGATACAGCCTAATATCCGACAAACTGTT
TTACAGATTTACGATCGTACTTGTTACCCATCATTGAATTTTGAACATCCGAACCTGGGAGTTTTCCCTG
AAACAGATAGTATATTTGAACCTGTATAATAATATATAGTCTAGCGCTTTACGGAAGACAATGTATGTAT
TTCGGTTCCTGGAGAAACTATTGCATCTATTGCATAGGTAATCTTGCACGTCGCATCCCCGGTTCATTTT
CTGCGTTTCCATCTTGCACTTCAATAGCATATCTTTGTTAACGAAGCATCTGTGCTTCATTTTGTAGAAC
AAAAATGCAACGCGAGAGCGCTAATTTTTCAAACAAAGAATCTGAGCTGCATTTTTACAGAACAGAAATG
CAACGCGAAAGCGCTATTTTACCAACGAAGAATCTGTGCTTCATTTTTGTAAAACAAAAATGCAACGCGA
CGAGAGCGCTAATTTTTCAAACAAAGAATCTGAGCTGCATTTTTACAGAACAGAAATGCAACGCGAGAGC
GCTATTTTACCAACAAAGAATCTATACTTCTTTTTTGTTCTACAAAAATGCATCCCGAGAGCGCTATTTT
TCTAACAAAGCATCTTAGATTACTTTTTTTCTCCTTTGTGCGCTCTATAATGCAGTCTCTTGATAACTTT
TTGCACTGTAGGTCCGTTAAGGTTAGAAGAAGGCTACTTTGGTGTCTATTTTCTCTTCCATAAAAAAAGC
CTGACTCCACTTCCCGCGTTTACTGATTACTAGCGAAGCTGCGGGTGCATTTTTTCAAGATAAAGGCATC
CCCGATTATATTCTATACCGATGTGGATTGCGCATACTTTGTGAACAGAAAGTGATAGCGTTGATGATTC
TTCATTGGTCAGAAAATTATGAACGGTTTCTTCTATTTTGTCTCTATATACTACGTATAGGAAATGTTTA
CATTTTCGTATTGTTTTCGATTCACTCTATGAATAGTTCTTACTACAATTTTTTTGTCTAAAGAGTAATA
CTAGAGATAAACATAAAAAATGTAGAGGTCGAGTTTAGATGCAAGTTCAAGGAGCGAAAGGTGGATGGGT
AGGTTATATAGGGATATAGCACAGAGATATATAGCAAAGAGATACTTTTGAGCAATGTTTGTGGAAGCGG
TATTCGCAATGGGAAGCTCCACCCCGGTTGATAATCAGAAAAGCCCCAAAAACAGGAAGATTGTATAAGC
AAATATTTAAATTGTAAACGTTAATATTTTGTTAAAATTCGCGTTAAATTTTTGTTAAATCAGCTCATTT
TTTAACGAATAGCCCGAAATCGGCAAAATCCCTTATAAATCAAAAGAATAGACCGAGATAGGGTTGAGTG
TTGTTCCAGTTTCCAACAAGAGTCCACTATTAAAGAACGTGGACTCCAACGTCAAAGGGCGAAAAAGGGT
CTATCAGGGCGATGGCCCACTACGTGAACCATCACCCTAATCAAGTTTTTTGGGGTCGAGGTGCCGTAAA
GCAGTAAATCGGAAGGGTAAACGGATGCCCCCATTTAGAGCTTGACGGGGAAAGCCGGCGAACGTGGCGA
GAAAGGAAGGGAAGAAAGCGAAAGGAGCGGGGGCTAGGGCGGTGGGAAGTGTAGGGGTCACGCTGGGCGT
AACCACCACACCCGCCGCGCTTAATGGGGCGCTACAGGGCGCGTGGGGATGATCCACTAGT

载体质粒图谱pdf版和相关资料下载

载体应用举例
