pYC44

价格:1200元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品人: Irene Castano Navarro(2015)
载体名称: pYC44
质粒类型: 酿酒酵母表达载体;Initial Integrative Vector;FLP/FRT系统载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: --
载体大小: 5913 bp
5' 测序引物及序列: M13/pUC fwd primer 5’ CCAGTCACGACGTTGTAAAACG 3’
3' 测序引物及序列: --
载体标签: FRT::3'UTRcta::NAT::FRT
载体抗性: 氨苄青霉素
筛选标记: URA3,Nourseothricin
克隆菌株: DH10B感受态细胞 ,30°C
宿主细胞(系): 出芽酵母(酿酒酵母)、白色念珠菌
备注: --
产品目录号: #63903
稳定性: 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

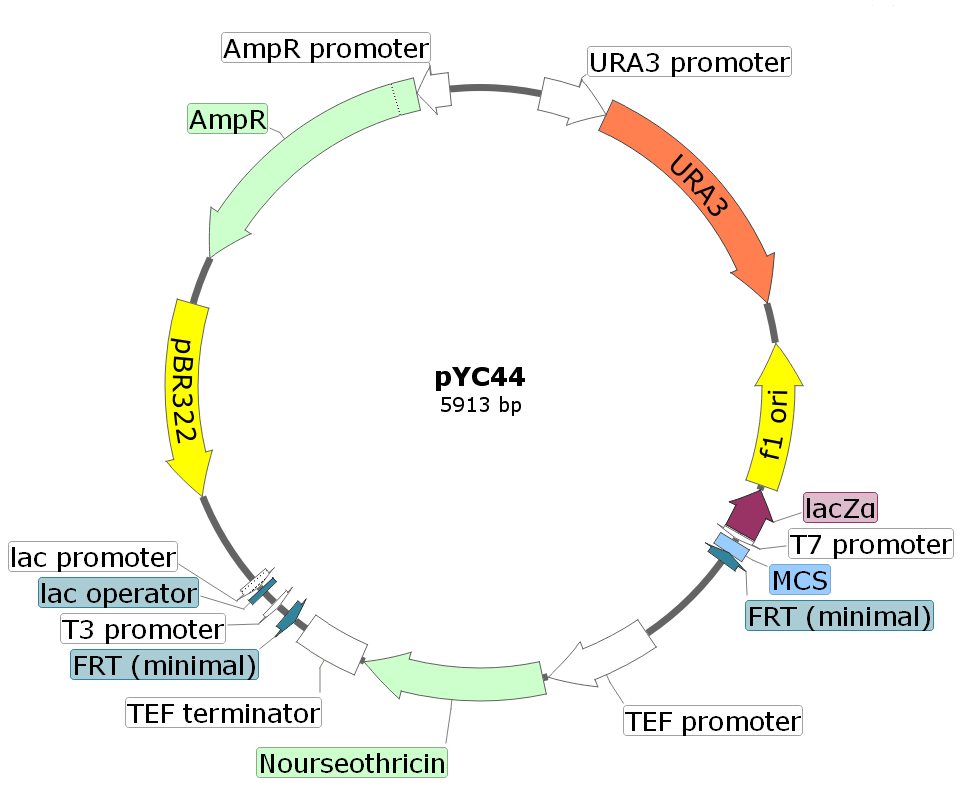

pYC44载体图谱

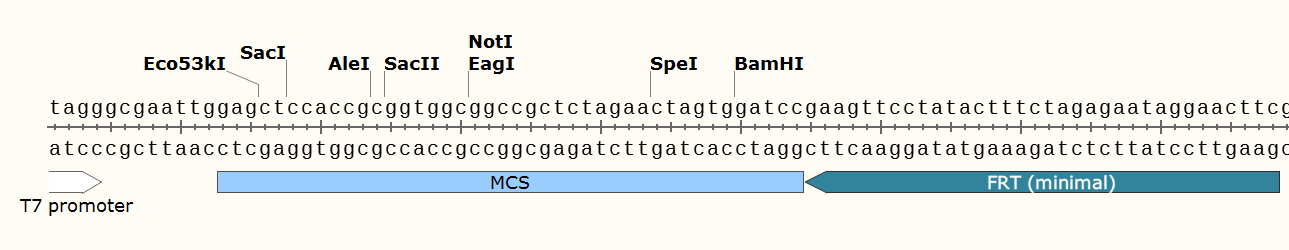

pYC44多克隆位点

载体简介

酿酒酵母整合型载体还有:

pYC44
pYC56   红色荧光标签
pYC54   黄色荧光标签
pYC52   青色荧光标签
pYC50   13XMyc标签
pYC48   HA标签
pYC46   3XFlag标签



载体序列

LOCUS       pYC44	5913 bp 	DNA	SYN
DEFINITION  pYC44
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5913
                     /organism="pYC44"
                     /mol_type="other DNA"
     misc_feature    complement(29..51)
                     /label="pGEX_3_primer"
     promoter        196..409
                     /label="URA3_promoter"
     gene            411..1211
                     /label="URA3"
                     /gene="URA3"
     CDS             411..1214
                     /label="ORF frame 3"
                     /translation="MSKATYKERAATHPSPVAAKLFNIMHEKQTNLCASLDVRTTKEL
                     LELVEALGPKICLLKTHVDILTDFSMEGTVKPLKALSAKYNFLLFEDRKFADIGNTVK
                     LQYSAGVYRIAEWADITNAHGVVGPGIVSGLKQAAEEVTKEPRGLLMLAELSCKGSLS
                     TGEYTKGTVDIAKSDKDFVIGFIAQRDMGGRDEGYDWLIMTPGVGLDDKGDALGQQYR
                     TVDDVVSTGSDIIIVGRGLFAKGRDAKVEGERYRKAGWEAYLRRCGQQN*"
     CDS             complement(446..922)
                     /label="ORF frame 3"
                     /translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
                     GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
                     EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
     misc_feature    complement(1814..1962)
                     /label="lacZ_a"
                     /translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
                     GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
                     EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
     misc_feature    1928..1950
                     /label="M13_pUC_fwd_primer"
                     /translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
                     GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
                     EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
     promoter        1943..1959
                     /label="M13_forward20_primer"
                     /translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
                     GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
                     EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
     promoter        1966..1984
                     /label="T7_promoter"
                     /translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
                     GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
                     EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
     misc_feature    2017..2033
                     /label="pBluescriptSK_primer"
                     /translation="MSTVPLVYSPVDREPLHDNSANIKRPLGSFVTSSAACFKPLTIP
                     GPTTPCAFVMSAHSAILYTPAEYCNLTVLPMSANFLSSKSKKLYLADNAFSGLTVPSM
                     EKSVKISTCVFSKQILGPNASTNSSNSLVVRTSNEAHKFVCFSCMILNSLAATGLG*"
     CDS             complement(2701..3222)
                     /label="ORF frame 1"
                     /translation="MNSWSINIGNFQPQMTSTSFSGEFSSQTHQSSTNTMTSMFWSNF
                     NIFNSQSSVPTRIRNNNETSQITIITISNESSRIWITIFTSIGFIIGFIIWENLSQWW
                     INWNFSQSETITSSSNSKNSIGSERTIQSFNSFSITWNRSSVSISSIIQSSRHNCRMI
                     RLFMFGCDVRTVS*"
     CDS             2758..3330
                     /label="ORF frame 1"
                     /translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
                     FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
                     NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
                     GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
     promoter        complement(3652..3671)
                     /label="T3_promoter"
                     /translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
                     FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
                     NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
                     GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
     promoter        complement(3688..3706)
                     /label="M13_reverse_primer"
                     /translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
                     FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
                     NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
                     GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
     misc_feature    complement(3705..3727)
                     /label="M13_pUC_rev_primer"
                     /translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
                     FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
                     NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
                     GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
     rep_origin      complement(4079..4698)
                     /label="pBR322_origin"
                     /translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
                     FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
                     NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
                     GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
     gene            complement(4853..5713)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MSTTLDDTAYRYRTSVPGDAEAIEALDGSFTTDTVFRVTATGDG
                     FTLREVPVDPPLTKVFPDDESDDESDAGEDGDPDSRTFVAYGDDGDLAGFVVVSYSGW
                     NRRLTVEDIEVAPEHRGHGVGRALMGLATEFARERGAGHLWLEVTNVNAPAIHAYRRM
                     GFTLCGLDTALYDGTASDGEQALYMSMPCP*"
     CDS             complement(4853..5713)
                     /label="ORF frame 3"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFFHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(5755..5783)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFFHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 Tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
   61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
  121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
  181 accacgcttt tcaattcaat tcatcatttt ttttttattc ttttttttga tttcggtttc
  241 tttgaaattt ttttgattcg gtaatctccg aacagaagga agaacgaagg aaggagcaca
  301 gacttagatt ggtatatata cgcatatgta gtgttgaaga aacatgaaat tgcccagtat
  361 tcttaaccca actgcacaga acaaaaacct gcaggaaacg aagataaatc ATGTCGAAAG
  421 CTACATATAA GGAACGTGCT GCTACTCATC CTAGTCCTGT TGCTGCCAAG CTATTTAATA
  481 TCATGCACGA AAAGCAAACA AACTTGTGTG CTTCATTGGA TGTTCGTACC ACCAAGGAAT
  541 TACTGGAGTT AGTTGAAGCA TTAGGTCCCA AAATTTGTTT ACTAAAAACA CATGTGGATA
  601 TCTTGACTGA TTTTTCCATG GAGGGCACAG TTAAGCCGCT AAAGGCATTA TCCGCCAAGT
  661 ACAATTTTTT ACTCTTCGAA GACAGAAAAT TTGCTGACAT TGGTAATACA GTCAAATTGC
  721 AGTACTCTGC GGGTGTATAC AGAATAGCAG AATGGGCAGA CATTACGAAT GCACACGGTG
  781 TGGTGGGCCC AGGTATTGTT AGCGGTTTGA AGCAGGCGGC AGAAGAAGTA ACAAAGGAAC
  841 CTAGAGGCCT TTTGATGTTA GCAGAATTGT CATGCAAGGG CTCCCTATCT ACTGGAGAAT
  901 ATACTAAGGG TACTGTTGAC ATTGCGAAGA GCGACAAAGA TTTTGTTATC GGCTTTATTG
  961 CTCAAAGAGA CATGGGTGGA AGAGATGAAG GTTACGATTG GTTGATTATG ACACCCGGTG
 1021 TGGGTTTAGA TGACAAGGGA GACGCATTGG GTCAACAGTA TAGAACCGTG GATGATGTGG
 1081 TCTCTACAGG ATCTGACATT ATTATTGTTG GAAGAGGACT ATTTGCAAAG GGAAGGGATG
 1141 CTAAGGTAGA GGGTGAACGT TACAGAAAAG CAGGCTGGGA AGCATATTTG AGAAGATGCG
 1201 GCCAGCAAAA CTAAaaaact gtattataag taaatgcatg tatactaaac tcacaaatta
 1261 gagcttcaat ttaattatat cagttattac cctgcggtgt gaaataccgc acagatgcgt
 1321 aaggagaaaa taccgcatca ggaaattgta aacgttaata ttttgttaaa attcgcgtta
 1381 aatttttgtt aaatcagctc attttttaac caataggccg aaatcggcaa aatcccttat
 1441 aaatcaaaag aatagaccga gatagggttg agtgTTGTTC CAGTTTGGAA CAAGAGTCCA
 1501 CTATTAAAGA ACGTGGACTC CAACGTCAAA GGGCGAAAAA CCGTCTATCA GGGCGATGGC
 1561 CCACTACGTG AACCATCACC CTAATCAAGT TTTTTGGGGT CGAGGTGCCG TAAAGCACTA
 1621 AATCGGAACC CTAAAGGGAG CCCCCGATTT AGAGCTTGAC GGGGAAAGCC GGCGAACGTG
 1681 GCGAGAAAGG AAGGGAAGAA AGCGAAAGGA GCGGGCGCTA GGGCGCTGGC AAGTGTAGCG
 1741 GTCACGCTGC GCGTAACCAC CACACCCGCC GCGCTTAATG Cgccgctaca gggcgcgtcg
 1801 cgCCATTCGC CATTCAGGCT GCGCAACTGT TGGGAAGGGC GATCGGTGCG GGCCTCTTCG
 1861 CTATTACGCC AGCTGGCGAA GGGGGGATGT GCTGCAAGGC GATTAAGTTG GGTAACGCCA
 1921 GGGTTTTCCC AGTCACGACG TTGTAAAACG ACGGCCAGTG AAttgtaata cgactcacta
 1981 tagggcgaat tggagctcca ccgcggtggc ggccgctcta gaactagtgg atccgaagtt
 2041 cctatacttt ctagagaata ggaacttcgt gcgcttttga accacgtaaa gtgctgtaaa
 2101 Ccagctctat tcaatgaggt aaatgataaa gtttataaga gaccaaaaaa ttcaaaaaaa
 2161 aaattgaaaa attatattgg tatttatatg aaacaatagt tcagttcaaa gcgctagctt
 2221 ttctcatctc aactaaccgg tattaggtgg gtatttattt aatatgggaa caagaaatgt
 2281 gacaTtaatg ttcatgtttt tattttcatt atttattcta tatggtttgg gacttgatgt
 2341 tatgtcttaa ttcatagaGA TCCgcttgcc tcgtccccgc cgggtcaccc ggccagcgac
 2401 atggaggccc agaataccct ccttgacagt cttgacgtgc gcagctcagg ggcatgatgt
 2461 gactgtcgcc cgtacattta gcccatacat ccccatgtat aatcatttgc atccatacat
 2521 tttgatggcc gcacggcgcg aagcaaaaat tacggctcct cgctgcagac ctgcgagcag
 2581 ggaaacgctc ccctcacaga cgcgttgaat tgtccccacg ccgcgcccct gtagagaaat
 2641 ataaaaggtt aggatttgcc actgaggttc ttctttcata tacttccttt taaaatcttg
 2701 ctaggataca gttctcacat cacatccgaa cataaacaac cgGATCatcc tacaattATG
 2761 TCTACTACTT TGGATGATAC TGCTTATAGA TACAGAACTT CTGTTCCAGG TGATGCTGAA
 2821 GCTATTGAAG CTTTGGATGG TTCTTTCACT ACCGATACTG TTTTTAGAGT TACTGCTACT
 2881 GGTGATGGTT TCACTTTGAG AGAAGTTCCA GTTGATCCAC CATTGACTAA GGTTTTCCCA
 2941 GATGATGAAT CCGATGATGA ATCCGATGCT GGTGAAGATG GTGATCCAGA TTCTAGAACT
 3001 TTCGTTGCTT ATGGTGATGA TGGTGATTTG GCTGGTTTCG TTGTTGTTTC TTATTCTGGT
 3061 TGGAACAGAA GATTGACTGT TGAAGATATT GAAGTTGCTC CAGAACATAG AGGTCATGGT
 3121 GTTGGTAGAG CTTTGATGGG TTTGGCTACT GAATTCGCCA GAGAAAGAGG TGCTGGTCAT
 3181 TTGTGGTTGG AAGTTACCAA TGTTAATGCT CCAGCTATTC ATGCTTATAG AAGAATGGGT
 3241 TTCACTTTGT GTGGTTTGGA TACTGCTTTA TACGATGGTA CTGCTTCCGA TGGTGAACAA
 3301 GCTTTGTATA TGTCTATGCC ATGTCCATAA taacTCGACc agtactgaca ataaaaagat
 3361 tcttgttttc aagaacttgt catttgtata gtttttttat attgtagttg ttctatttta
 3421 atcaaatgtt agcgtgattt atattttttt tcgcctcgac atcatctgcc cagatgcgaa
 3481 gttaagtgcg cagaaagtaa tatcatgcgt caatcgtatg tgaatgctgg tcgctatact
 3541 gctgtcgatt cgatactaac gccgccatcc agtgTCGAtc gacGAAGTTC CTATACTTTC
 3601 TAGAGAATAG GAACTTCGTC ctcgaggggg ggcccggtac cagcttttgt tccctttagt
 3661 gagggttaat tccgagcttg gcgtaatcat ggtcatagct gtttcctgtg tgaaattgtt
 3721 atccgctcac aattccacac aacataggag ccggaagcat aaagtgtaaa gcctggggtg
 3781 cctaatgagt gaggtaactc acattaattg cgttgcgctc actgcccgct ttccagtcgg
 3841 gaaacctgtc gtgccagctg cattaatgaa tcggccaacg cgcggggaga ggcggtttgc
 3901 gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc gttcggctgc
 3961 ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa tcaggggata
 4021 acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggcCG
 4081 CGTTGCTGGC GTTTTTCCAT AGGCTCGGCC CCCCTGACGA GCATCACAAA AATCGACGCT
 4141 CAAGTCAGAG GTGGCGAAAC CCGACAGGAC TATAAAGATA CCAGGCGTTC CCCCCTGGAA
 4201 GCTCCCTCGT GCGCTCTCCT GTTCCGACCC TGCCGCTTAC CGGATACCTG TCCGCCTTTC
 4261 TCCCTTCGGG AAGCGTGGCG CTTTCTCAAT GCTCACGCTG TAGGTATCTC AGTTCGGTGT
 4321 AGGTCGTTCG CTCCAAGCTG GGCTGTGTGC ACGAACCCCC CGTTCAGCCC GACCGCTGCG
 4381 CCTTATCCGG TAACTATCGT CTTGAGTCCA ACCCGGTAAG ACACGACTTA TCGCCACTGG
 4441 CAGCAGCCAC TGGTAACAGG ATTAGCAGAG CGAGGTATGT AGGCGGTGCT ACAGAGTTCT
 4501 TGAAGTGGTG GCCTAACTAC GGCTACACTA GAAGGACAGT ATTTGGTATC TGCGCTCTGC
 4561 TGAAGCCAGT TACCTTCGGA AAAAGAGTTG GTAGCTCTTG ATCCGGCAAA CAAACCACCG
 4621 CTGGTAGCGG TGGTTTTTTT GTTTGCAAGC AGCAGATTAC GCGCAGAAAA AAAGGATCTC
 4681 AAGAAGATCC TTTGATCTtt tctacggggt ctgacgctca gtggaacgaa aactcacgtt
 4741 aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa
 4801 aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac agTTACCAAT
 4861 GCTTAATCAG TGAGGCACCT ATCTCAGCGA TCTGTCTATT TCGTTCATCC ATAGTTGCCT
 4921 GACTGCCCGT CGTGTAGATA ACTACGATAC GGGAGGGCTT ACCATCTGGC CCCAGTGCTG
 4981 CAATGATACC GCGAGACCCA CGCTCACCGG CTCCAGATTT ATCAGCAATA AACCAGCCAG
 5041 CCGGAAGGGC CGAGCGCAGA AGTGGTCCTG CAACTTTATC CGCCTCCATC CAGTCTATTA
 5101 ATTGTTGCCG GGAAGCTAGA GTAAGTAGTT CGCCAGTTAA TAGTTTGCGC AACGTTGTTG
 5161 CCATTGCTAC AGGCATCGTG GTGTCACGCT CGTCGTTTGG TATGGCTTCA TTCAGCTCCG
 5221 GTTCCCAACG ATCAAGGCGA GTTACATGAT CCCCCATGTT GTGAAAAAAA GCGGTTAGCT
 5281 CCTTCGGTCC TCCGATCGTT GTCAGAAGTA AGTTGGCCGC AGTGTTATCA CTCATGGTTA
 5341 TGGCAGCACT GCATAATTCT CTTACTGTCA TGCCATCCGT AAGATGCTTT TCTGTGACTG
 5401 GTGAGTACTC AACCAAGTCA TTCTGAGAAT AGTGTATGCG GCGACCGAGT TGCTCTTGCC
 5461 CGGCGTCAAT ACGGGATAAT ACCGCGCCAC ATAGCAGAAC TTTAAAAGTG CTCATCATTG
 5521 GAAAACGTTC TTCGGGGCGA AAACTCTCAA GGATCTTACC GCTGTTGAGA TCCAGTTCGA
 5581 TGTAACCCAC TCGTGCACCC AACTGATCTT CAGCATCTTT TACTTTCACC AGCGTTTCTG
 5641 GGTGAGCAAA AACAGGAAGG CAAAATGCCG CAAAAAAGGG AATAAGGGCG ACACGGAAAT
 5701 GTTGAATACT CATactcttc ctttttcaat attattgaag catttatcag ggttattgtc
 5761 tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg gttccgcgca
 5821 catttccccg aaaagtgcca cctgacgtct aagaaaccat tattatcatg acattaacct
 5881 ataaaaatag gcgtatcacg aggccctttc gtc
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
