pTYB2

价格:900元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: NEB
载体名称: pTYB2
质粒类型: 大肠杆菌表达载体;蛋白纯化
高拷贝/低拷贝: --
启动子: --
克隆方法: 多克隆位点,限制性内切酶
载体大小: 7474 bp
5' 测序引物及序列: T7: TAATACGACTCACTATAGGG
3' 测序引物及序列: --
载体标签: Intein
载体抗性: Ampicillin
筛选标记: --
备注: --
产品目录号: N6702S
稳定性: --
组成型: --
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

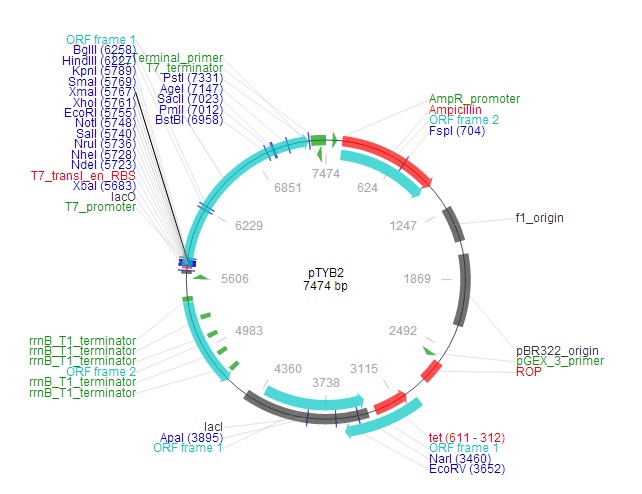

pTYB2载体图谱

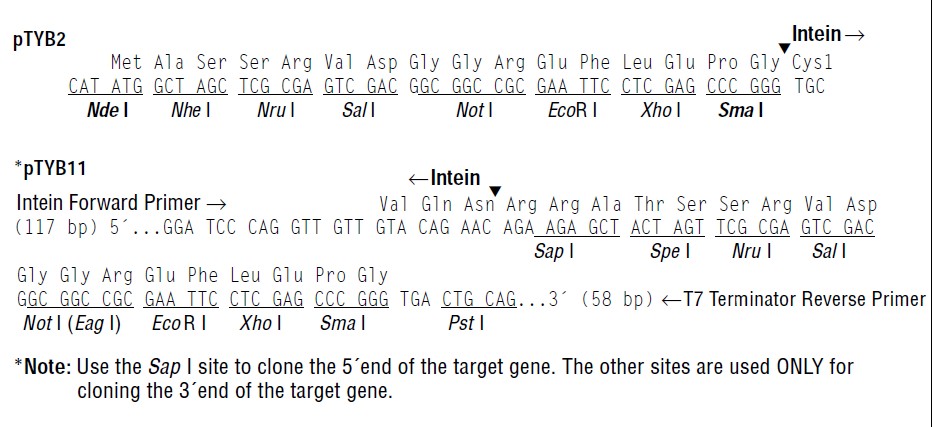

pTYB2多克隆位点

载体简介

pTYB2 is an E. coli cloning and expression vector (7474 bp) used in the IMPACT™ Kit (NEB #E6901) which allows the
overexpression of a target protein as a fusion to a self-cleavable affinity tag (1,2). This C-terminal fusion vector is
designed for the in-frame insertion of a target gene into the polylinker upstream of an intein tag
(the Sce VMA intein/chitin binding domain, 55 kDa) (1,2). This results in the fusion of the C-terminus of the target
protein to the N-terminus of the intein tag. Thiol-induced self-cleavage of the intein releases the target protein from
the chitin-bound intein tag, resulting in a single column purification of the target protein.
For fusion of the N-terminus of the target protein to the intein tag, use pTYB21 (NEB #N6709) or pTYB22 (NEB #N6710).
This vector can be used in conjuction with pTYB22 (NEB #N6710) to test which fusion constructin (N-terminal or C-terminal)
maximizes the expression and yield of a target protein (3).

Features

The NdeI site in the polylinker contains an ATG sequence for translation initiation.
The SmaI site is used for cloning the 3´ end of the target gene and will yield a target protein with a single glycine residue added to its C-terminus after cleavage of the intein.
A pBR322 derivative with a ColE1 replication origin.
Expression of the fusion gene is under the control of an IPTG-inducible T7 promoter (4).
Expression requires an E. coli host that carries the T7 RNA Polymerase gene [e.g., T7 Express Competent E. coli
(High Efficiency) NEB #C2566), BL21(DE3) Competent E. coli (NEB #C2527) and derivatives].
Ampicillin resistance.
M13 allows for the production of single-stranded DNA by helper phage superinfection of cells bearing the plasmid.
M13K07 helper phage is available from (NEB #N0315).
Other IMPACT vectors are available which allow for fusion of a target gene to N- or C- terminus of an intein, the cleavage
reaction may be induced by thiol reagent or temperature/pH shift.
The sites in the polylinker region are identical to or compatible with (i.e., NheI of pTYB2 and SpeI of pTYB12) those of
pTYB12 (NEB #N6902).
This allows the same amplified target gene to be cloned into either vector for optimizing protein expression. Vector derived
residues may be present at the N- and/or C-termini of the target proteins.

载体序列

LOCUS       pTYB2	7474 bp 	DNA	SYN
DEFINITION  pTYB2
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..7474
                     /organism="pTYB2"
                     /mol_type="other DNA"
     promoter        70..98
                     /label="AmpR_promoter"
     gene            140..1000
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             140..1000
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      complement(1232..1538)
                     /label="f1_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     rep_origin      1650..2269
                     /label="pBR322_origin"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    2607..2629
                     /label="pGEX_3_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    complement(2623..2814)
                     /label="ROP"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     CDS             2953..3588
                     /label="ORF frame 1"
                     /translation="MDAAGPEKNHSGSMPAERQQDVAQRVGRHAGDNGLLLAETFGGG
                     TSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPERCRHLSYELHDKEDSHKCGDD
                     SHAPRPPEGADWVEGSQGHRSRSRCLMSELTYINCVALTARFPVGKPVVPAALMNRPT
                     RGERRFAYWAPGWFFFSPVRRATADCPSPPGPERVAASGPRWFAPAGENPV*"
     gene            complement(3010..3309)
                     /label="tet (611 - 312)"
                     /gene="tet (611 - 312)"
                     /translation="MDAAGPEKNHSGSMPAERQQDVAQRVGRHAGDNGLLLAETFGGG
                     TSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPERCRHLSYELHDKEDSHKCGDD
                     SHAPRPPEGADWVEGSQGHRSRSRCLMSELTYINCVALTARFPVGKPVVPAALMNRPT
                     RGERRFAYWAPGWFFFSPVRRATADCPSPPGPERVAASGPRWFAPAGENPV*"
     misc_feature    complement(3371..4462)
                     /label="lacI"
                     /translation="MDAAGPEKNHSGSMPAERQQDVAQRVGRHAGDNGLLLAETFGGG
                     TSDEGLSEGVQDSEYRKRQADHRRAPAKAVLAENDPERCRHLSYELHDKEDSHKCGDD
                     SHAPRPPEGADWVEGSQGHRSRSRCLMSELTYINCVALTARFPVGKPVVPAALMNRPT
                     RGERRFAYWAPGWFFFSPVRRATADCPSPPGPERVAASGPRWFAPAGENPV*"
     CDS             complement(3371..4330)
                     /label="ORF frame 1"
                     /translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
                     RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
                     PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
                     HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
                     SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
                     LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
     CDS             complement(4654..5415)
                     /label="ORF frame 2"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     terminator      4687..4730
                     /label="rrnB_T1_terminator"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     terminator      4870..4913
                     /label="rrnB_T1_terminator"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     terminator      5053..5096
                     /label="rrnB_T1_terminator"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     terminator      5236..5279
                     /label="rrnB_T1_terminator"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     terminator      5419..5462
                     /label="rrnB_T1_terminator"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     promoter        5637..5655
                     /label="T7_promoter"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     misc_feature    5655..5682
                     /label="lacO"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     misc_feature    5700..5716
                     /label="T7_transl_en_RBS"
                     /translation="MPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVHRQT
                     TDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQESVH
                     RQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICPTQE
                     SVHRQTTDKTKGPVFRLSLSFYLMPGELIPGSLWRASCPPPSGPLLRNVQIRSRRICP
                     TQESVHRQTTDKTKGPVFRLSLSFYLMPGELGINS*"
     CDS             5725..7326
                     /label="ORF frame 1"
                     /translation="MASSRVDGGREFLEPGCFAKGTNVLMADGSIECIENIEVGNKVM
                     GKDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTP
                     RSVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVE
                     SYRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTI
                     EGPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQV
                     AKTVNLYSKVVRGNGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETF
                     LAGLIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTK
                     HKISYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGI
                     TLSDDSDHQFLLGSQVVVHACGGLTGLNSGLTTNPGVSAWQVNTAYTAGQLVTYNGKT
                     YKCLQPHTSLAGWEPSNVPALWQLQ*"
     terminator      7346..7474
                     /label="T7_terminator"
                     /translation="MASSRVDGGREFLEPGCFAKGTNVLMADGSIECIENIEVGNKVM
                     GKDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTP
                     RSVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVE
                     SYRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTI
                     EGPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQV
                     AKTVNLYSKVVRGNGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETF
                     LAGLIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTK
                     HKISYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGI
                     TLSDDSDHQFLLGSQVVVHACGGLTGLNSGLTTNPGVSAWQVNTAYTAGQLVTYNGKT
                     YKCLQPHTSLAGWEPSNVPALWQLQ*"
     misc_feature    complement(7388..7406)
                     /label="T7_Terminal_primer"
                     /translation="MASSRVDGGREFLEPGCFAKGTNVLMADGSIECIENIEVGNKVM
                     GKDGRPREVIKLPRGRETMYSVVQKSQHRAHKSDSSREVPELLKFTCNATHELVVRTP
                     RSVRRLSRTIKGVEYFEVITFEMGQKKAPDGRIVELVKEVSKSYPISEGPERANELVE
                     SYRKASNKAYFEWTIEARDLSLLGSHVRKATYQTYAPILYENDHFFDYMQKSKFHLTI
                     EGPKVLAYLLGLWIGDGLSDRATFSVDSRDTSLMERVTEYAEKLNLCAEYKDRKEPQV
                     AKTVNLYSKVVRGNGIRNNLNTENPLWDAIVGLGFLKDGVKNIPSFLSTDNIGTRETF
                     LAGLIDSDGYVTDEHGIKATIKTIHTSVRDGLVSLARSLGLVVSVNAEPAKVDMNVTK
                     HKISYAIYMSGGDVLLNVLSKCAGSKKFRPAPAAAFARECRGFYFELQELKEDDYYGI
                     TLSDDSDHQFLLGSQVVVHACGGLTGLNSGLTTNPGVSAWQVNTAYTAGQLVTYNGKT
                     YKCLQPHTSLAGWEPSNVPALWQLQ*"
ORIGIN
    1 AACTACGTCA GGTGGCACTT TTCGGGGAAA TGTGCGCGGA ACCCCTATTT GTTTATTTTT
   61 CTAAATACAT TCAAATATGT ATCCGCTCAT GAGACAATAA CCCTGATAAA TGCTTCAATA
  121 ATATTGAAAA AGGAAGAGTA TGAGTATTCA ACATTTCCGT GTCGCCCTTA TTCCCTTTTT
  181 TGCGGCATTT TGCCTTCCTG TTTTTGCTCA CCCAGAAACG CTGGTGAAAG TAAAAGATGC
  241 TGAAGATCAG TTGGGTGCAC GAGTGGGTTA CATCGAACTG GATCTCAACA GCGGTAAGAT
  301 CCTTGAGAGT TTTCGCCCCG AAGAACGTTC TCCAATGATG AGCACTTTTA AAGTTCTGCT
  361 ATGTGGCGCG GTATTATCCC GTGTTGACGC CGGGCAAGAG CAACTCGGTC GCCGCATACA
  421 CTATTCTCAG AATGACTTGG TTGAGTACTC ACCAGTCACA GAAAAGCATC TTACGGATGG
  481 CATGACAGTA AGAGAATTAT GCAGTGCTGC CATAACCATG AGTGATAACA CTGCGGCCAA
  541 CTTACTTCTG ACAACGATCG GAGGACCGAA GGAGCTAACC GCTTTTTTGC ACAACATGGG
  601 GGATCATGTA ACTCGCCTTG ATCGTTGGGA ACCGGAGCTG AATGAAGCCA TACCAAACGA
  661 CGAGCGTGAC ACCACGATGC CTGTAGCAAT GGCAACAACG TTGCGCAAAC TATTAACTGG
  721 CGAACTACTT ACTCTAGCTT CCCGGCAACA ATTAATAGAC TGGATGGAGG CGGATAAAGT
  781 TGCAGGACCA CTTCTGCGCT CGGCCCTTCC GGCTGGCTGG TTTATTGCTG ATAAATCTGG
  841 AGCCGGTGAG CGTGGGTCTC GCGGTATCAT TGCAGCACTG GGGCCAGATG GTAAGCCCTC
  901 CCGTATCGTA GTTATCTACA CGACGGGGAG TCAGGCAACT ATGGATGAAC GAAATAGACA
  961 GATCGCTGAG ATAGGTGCCT CACTGATTAA GCATTGGTAA CTGTCAGACC AAGTTTACTC
 1021 ATATATACTT TAGATTGATT TACCCCGGTT GATAATCAGA AAAGCCCCAA AAACAGGAAG
 1081 ATTGTATAAG CAAATATTTA AATTGTAAAC GTTAATATTT TGTTAAAATT CGCGTTAAAT
 1141 TTTTGTTAAA TCAGCTCATT TTTTAACCAA TAGGCCGAAA TCGGCAAAAT CCCTTATAAA
 1201 TCAAAAGAAT AGCCCGAGAT AGGGTTGAGT GTTGTTCCAG TTTGGAACAA GAGTCCACTA
 1261 TTAAAGAACG TGGACTCCAA CGTCAAAGGG CGAAAAACCG TCTATCAGGG CGATGGCCCA
 1321 CTACGTGAAC CATCACCCAA ATCAAGTTTT TTGGGGTCGA GGTGCCGTAA AGCACTAAAT
 1381 CGGAACCCTA AAGGGAGCCC CCGATTTAGA GCTTGACGGG GAAAGCCGGC GAACGTGGCG
 1441 AGAAAGGAAG GGAAGAAAGC GAAAGGAGCG GGCGCTAGGG CGCTGGCAAG TGTAGCGGTC
 1501 ACGCTGCGCG TAACCACCAC ACCCGCCGCG CTTAATGCGC CGCTACAGGG CGCGTAAAAG
 1561 GATCTAGGTG AAGATCCTTT TTGATAATCT CATGACCAAA ATCCCTTAAC GTGAGTTTTC
 1621 GTTCCACTGA GCGTCAGACC CCGTAGAAAA GATCAAAGGA TCTTCTTGAG ATCCTTTTTT
 1681 TCTGCGCGTA ATCTGCTGCT TGCAAACAAA AAAACCACCG CTACCAGCGG TGGTTTGTTT
 1741 GCCGGATCAA GAGCTACCAA CTCTTTTTCC GAAGGTAACT GGCTTCAGCA GAGCGCAGAT
 1801 ACCAAATACT GTCCTTCTAG TGTAGCCGTA GTTAGGCCAC CACTTCAAGA ACTCTGTAGC
 1861 ACCGCCTACA TACCTCGCTC TGCTAATCCT GTTACCAGTG GCTGCTGCCA GTGGCGATAA
 1921 GTCGTGTCTT ACCGGGTTGG ACTCAAGACG ATAGTTACCG GATAAGGCGC AGCGGTCGGG
 1981 CTGAACGGGG GGTTCGTGCA CACAGCCCAG CTTGGAGCGA ACGACCTACA CCGAACTGAG
 2041 ATACCTACAG CGTGAGCTAT GAGAAAGCGC CACGCTTCCC GAAGGGAGAA AGGCGGACAG
 2101 GTATCCGGTA AGCGGCAGGG TCGGAACAGG AGAGCGCACG AGGGAGCTTC CAGGGGGAAA
 2161 CGCCTGGTAT CTTTATAGTC CTGTCGGGTT TCGCCACCTC TGACTTGAGC GTCGATTTTT
 2221 GTGATGCTCG TCAGGGGGGC GGAGCCTATG GAAAAACGCC AGCAACGCGG CCTTTTTACG
 2281 GTTCCTGGCC TTTTGCTGGC CTTTTGCTCA CATGTTCTTT CCTGCGTTAT CCCCTGATTC
 2341 TGTGGATAAC CGTATTACCG CCTTTGAGTG AGCTGATACC GCTCGCCGCA GCCGAACGAC
 2401 CGAGCGCAGC GAGTCAGTGA GCGAGGAAGC TATGGTGCAC TCTCAGTACA ATCTGCTCTG
 2461 ATGCCGCATA GTTAAGCCAG TATACACTCC GCTATCGCTA CGTGACTGGG TCATGGCTGC
 2521 GCCCCGACAC CCGCCAACAC CCGCTGACGC GCCCTGACGG GCTTGTCTGC TCCCGGCATC
 2581 CGCTTACAGA CAAGCTGTGA CCGTCTCCGG GAGCTGCATG TGTCAGAGGT TTTCACCGTC
 2641 ATCACCGAAA CGCGCGAGGC AGCTGCGGTA AAGCTCATCA GCGTGGTCGT GCAGCGATTC
 2701 ACAGATGTCT GCCTGTTCAT CCGCGTCCAG CTCGTTGAGT TTCTCCAGAA GCGTTAATGT
 2761 CTGGCTTCTG ATAAAGCGGG CCATGTTAAG GGCGGTTTTT TCCTGTTTGG TCACTGATGC
 2821 CTCCGTGTAA GGGGGATTTC TGTTCATGGG GGTAATGATA CCGATGAAAC GAGAGAGGAT
 2881 GCTCACGATA CGGGTTACTG ATGATGAACA TGCCCGGTTA CTGGAACGTT GTGAGGGTAA
 2941 ACAACTGGCG GTATGGATGC GGCGGGACCA GAGAAAAATC ACTCAGGGTC AATGCCAGCC
 3001 GAACGCCAGC AAGACGTAGC CCAGCGCGTC GGCCGCCATG CCGGCGATAA TGGCCTGCTT
 3061 CTCGCCGAAA CGTTTGGTGG CGGGACCAGT GACGAAGGCT TGAGCGAGGG CGTGCAAGAT
 3121 TCCGAATACC GCAAGCGACA GGCCGATCAT CGTCGCGCTC CAGCGAAAGC GGTCCTCGCC
 3181 GAAAATGACC CAGAGCGCTG CCGGCACCTG TCCTACGAGT TGCATGATAA AGAAGACAGT
 3241 CATAAGTGCG GCGACGATAG TCATGCCCCG CGCCCACCGG AAGGAGCTGA CTGGGTTGAA
 3301 GGCTCTCAAG GGCATCGGTC GAGATCCCGG TGCCTAATGA GTGAGCTAAC TTACATTAAT
 3361 TGCGTTGCGC TCACTGCCCG CTTTCCAGTC GGGAAACCTG TCGTGCCAGC TGCATTAATG
 3421 AATCGGCCAA CGCGCGGGGA GAGGCGGTTT GCGTATTGGG CGCCAGGGTG GTTTTTCTTT
 3481 TCACCAGTGA GACGGGCAAC AGCTGATTGC CCTTCACCGC CTGGCCCTGA GAGAGTTGCA
 3541 GCAAGCGGTC CACGCTGGTT TGCCCCAGCA GGCGAAAATC CTGTTTGATG GTGGTTAACG
 3601 GCGGGATATA ACATGAGCTG TCTTCGGTAT CGTCGTATCC CACTACCGAG ATATCCGCAC
 3661 CAACGCGCAG CCCGGACTCG GTAATGGCGC GCATTGCGCC CAGCGCCATC TGATCGTTGG
 3721 CAACCAGCAT CGCAGTGGGA ACGATGCCCT CATTCAGCAT TTGCATGGTT TGTTGAAAAC
 3781 CGGACATGGC ACTCCAGTCG CCTTCCCGTT CCGCTATCGG CTGAATTTGA TTGCGAGTGA
 3841 GATATTTATG CCAGCCAGCC AGACGCAGAC GCGCCGAGAC AGAACTTAAT GGGCCCGCTA
 3901 ACAGCGCGAT TTGCTGGTGA CCCAATGCGA CCAGATGCTC CACGCCCAGT CGCGTACCGT
 3961 CTTCATGGGA GAAAATAATA CTGTTGATGG GTGTCTGGTC AGAGACATCA AGAAATAACG
 4021 CCGGAACATT AGTGCAGGCA GCTTCCACAG CAATGGCATC CTGGTCATCC AGCGGATAGT
 4081 TAATGATCAG CCCACTGACG CGTTGCGCGA GAAGATTGTG CACCGCCGCT TTACAGGCTT
 4141 CGACGCCGCT TCGTTCTACC ATCGACACCA CCACGCTGGC ACCCAGTTGA TCGGCGCGAG
 4201 ATTTAATCGC CGCGACAATT TGCGACGGCG CGTGCAGGGC CAGACTGGAG GTGGCAACGC
 4261 CAATCAGCAA CGACTGTTTG CCCGCCAGTT GTTGTGCCAC GCGGTTGGGA ATGTAATTCA
 4321 GCTCCGCCAT CGCCGCTTCC ACTTTTTCCC GCGTTTTCGC AGAAACGTGG CTGGCCTGGT
 4381 TCACCACGCG GGAAACGGTC TGATAAGAGA CACCGGCATA CTCTGCGACA TCGTATAACG
 4441 TTACTGGTTT CACATTCACC ACCCTGAATT GACTCTCTTC CGGGCGCTAT CATGCCATAC
 4501 CGCGAAAGGT TTTGCGCCAT TCGATGGTGT CCGGGATCTC GACGCTCTCC CTTATGCGAC
 4561 TCCTGCATTA GGAAGCAGCC CAGTAGTAGG TTGAGGCCGT TGAGCACCGC CGCCGCAAGG
 4621 AATGGTGCAT GCCGGCATGC CGCCCTTTCG TCTTCAAGAA TTAATTCCCA ATTCCCCAGG
 4681 CATCAAATAA AACGAAAGGC TCAGTCGAAA GACTGGGCCT TTCGTTTTAT CTGTTGTTTG
 4741 TCGGTGAACG CTCTCCTGAG TAGGACAAAT CCGCCGGGAG CGGATTTGAA CGTTGCGAAG
 4801 CAACGGCCCG GAGGGTGGCG GGCAGGACGC CCGCCATAAA CTGCCAGGAA TTAATTCCCC
 4861 AGGCATCAAA TAAAACGAAA GGCTCAGTCG AAAGACTGGG CCTTTCGTTT TATCTGTTGT
 4921 TTGTCGGTGA ACGCTCTCCT GAGTAGGACA AATCCGCCGG GAGCGGATTT GAACGTTGCG
 4981 AAGCAACGGC CCGGAGGGTG GCGGGCAGGA CGCCCGCCAT AAACTGCCAG GAATTAATTC
 5041 CCCAGGCATC AAATAAAACG AAAGGCTCAG TCGAAAGACT GGGCCTTTCG TTTTATCTGT
 5101 TGTTTGTCGG TGAACGCTCT CCTGAGTAGG ACAAATCCGC CGGGAGCGGA TTTGAACGTT
 5161 GCGAAGCAAC GGCCCGGAGG GTGGCGGGCA GGACGCCCGC CATAAACTGC CAGGAATTAA
 5221 TTCCCCAGGC ATCAAATAAA ACGAAAGGCT CAGTCGAAAG ACTGGGCCTT TCGTTTTATC
 5281 TGTTGTTTGT CGGTGAACGC TCTCCTGAGT AGGACAAATC CGCCGGGAGC GGATTTGAAC
 5341 GTTGCGAAGC AACGGCCCGG AGGGTGGCGG GCAGGACGCC CGCCATAAAC TGCCAGGAAT
 5401 TAATTCCCCA GGCATCAAAT AAAACGAAAG GCTCAGTCGA AAGACTGGGC CTTTCGTTTT
 5461 ATCTGTTGTT TGTCGGTGAA CGCTCTCCTG AGTAGGACAA ATCCGCCGGG AGCGGATTTG
 5521 AACGTTGCGA AGCAACGGCC CGGAGGGTGG CGGGCAGGAC GCCCGCCATA AACTGCCAGG
 5581 AATTGGGGAT CGGAATTAAT TCCCGGTTTA AACCGGGGAT CTCGATCCCG CGAAATTAAT
 5641 ACGACTCACT ATAGGGGAAT TGTGAGCGGA TAACAATTCC CCTCTAGAAA TAATTTTGTT
 5701 TAACTTTAAG AAGGAGATAT ACATATGGCT AGCTCGCGAG TCGACGGCGG CCGCGAATTC
 5761 CTCGAGCCCG GGTGCTTTGC CAAGGGTACC AATGTTTTAA TGGCGGATGG GTCTATTGAA
 5821 TGTATTGAAA ACATTGAGGT TGGTAATAAG GTCATGGGTA AAGATGGCAG ACCTCGTGAG
 5881 GTAATTAAAT TGCCCAGAGG AAGAGAAACT ATGTACAGCG TCGTGCAGAA AAGTCAGCAC
 5941 AGAGCCCACA AAAGTGACTC AAGTCGTGAA GTGCCAGAAT TACTCAAGTT TACGTGTAAT
 6001 GCGACCCATG AGTTGGTTGT TAGAACACCT CGTAGTGTCC GCCGTTTGTC TCGTACCATT
 6061 AAGGGTGTCG AATATTTTGA AGTTATTACT TTTGAGATGG GCCAAAAGAA AGCCCCCGAC
 6121 GGTAGAATTG TTGAGCTTGT CAAGGAAGTT TCAAAGAGCT ACCCAATATC TGAGGGGCCT
 6181 GAGAGAGCCA ACGAATTAGT AGAATCCTAT AGAAAGGCTT CAAATAAAGC TTATTTTGAG
 6241 TGGACTATTG AGGCCAGAGA TCTTTCTCTG TTGGGTTCCC ATGTTCGTAA AGCTACCTAC
 6301 CAGACTTACG CTCCAATTCT TTATGAGAAT GACCACTTTT TCGACTACAT GCAAAAAAGT
 6361 AAGTTTCATC TCACCATTGA AGGTCCAAAA GTACTTGCTT ATTTACTTGG TTTATGGATT
 6421 GGTGATGGAT TGTCTGACAG GGCAACTTTT TCGGTTGATT CCAGAGATAC TTCTTTGATG
 6481 GAACGTGTTA CTGAATATGC TGAAAAGTTG AATTTGTGCG CCGAGTATAA GGACAGAAAA
 6541 GAACCACAAG TTGCCAAAAC TGTTAATTTG TACTCTAAAG TTGTCAGAGG TAATGGTATT
 6601 CGCAATAATC TTAATACTGA GAATCCATTA TGGGACGCTA TTGTTGGCTT AGGATTCTTG
 6661 AAGGACGGTG TCAAAAATAT TCCTTCTTTC TTGTCTACGG ACAATATCGG TACTCGTGAA
 6721 ACATTTCTTG CTGGTCTAAT TGATTCTGAT GGCTATGTTA CTGATGAGCA TGGTATTAAA
 6781 GCAACAATAA AGACAATTCA TACTTCTGTC AGAGATGGTT TGGTTTCCCT TGCTCGTTCT
 6841 TTAGGCTTAG TAGTCTCGGT TAACGCAGAA CCTGCTAAGG TTGACATGAA TGTCACCAAA
 6901 CATAAAATTA GTTATGCTAT TTATATGTCT GGTGGAGATG TTTTGCTTAA CGTTCTTTCG
 6961 AAGTGTGCCG GCTCTAAAAA ATTCAGGCCT GCTCCCGCCG CTGCTTTTGC ACGTGAGTGC
 7021 CGCGGATTTT ATTTCGAGTT ACAAGAATTG AAGGAAGACG ATTATTATGG GATTACTTTA
 7081 TCTGATGATT CTGATCATCA GTTTTTGCTT GGATCCCAGG TTGTCGTCCA TGCATGCGGT
 7141 GGCCTGACCG GTCTGAACTC AGGCCTCACG ACAAATCCTG GTGTATCCGC TTGGCAGGTC
 7201 AACACAGCTT ATACTGCGGG ACAATTGGTC ACATATAACG GCAAGACGTA TAAATGTTTG
 7261 CAGCCCCACA CCTCCTTGGC AGGATGGGAA CCATCCAACG TTCCTGCCTT GTGGCAGCTT
 7321 CAATGACTGC AGGAAGGGGA TCCGGCTGCT AACAAAGCCC GAAAGGAAGC TGAGTTGGCT
 7381 GCTGCCACCG CTGAGCAATA ACTAGCATAA CCCCTTGGGG CCTCTAAACG GGTCTTGAGG
 7441 GGTTTTTTGC TGAAAGGAGG AACTATATCC GGAT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
