pcDNA3.1-EGFP

价格:800元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Biofeng
载体名称: pcDNA3.1-EGFP, pcDNA3.1(+)EGFP
质粒类型: 哺乳动物细胞表达载体
启动子: CMV
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 6119 bp
5' 测序引物:   pcDNA3.1-F:CTAGAGAACCCACTGCTTAC
3' 测序引物:   pcDNA3.1-R (BGH-R):TAGAAGGCACAGTCGAGG
载体标签: EGFP
载体抗性: Ampicillin
筛选标记: Neomycin/G418
备注:
EGFP were inserted into pcDNA3.1(+) by BamHI and Not I.
产品目录号: --
稳定性: 瞬表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

pcDNA3.1-EGFP载体图谱

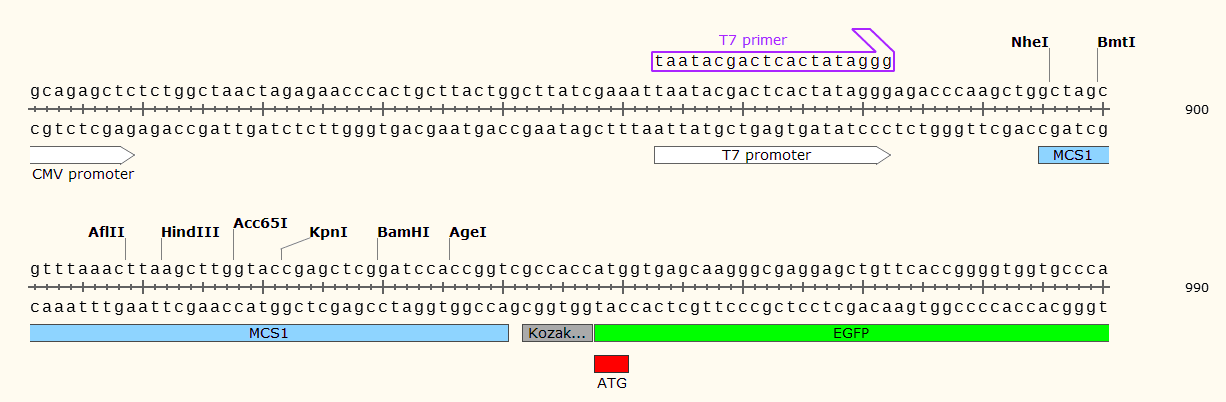

pcDNA3.1-EGFP多克隆位点1

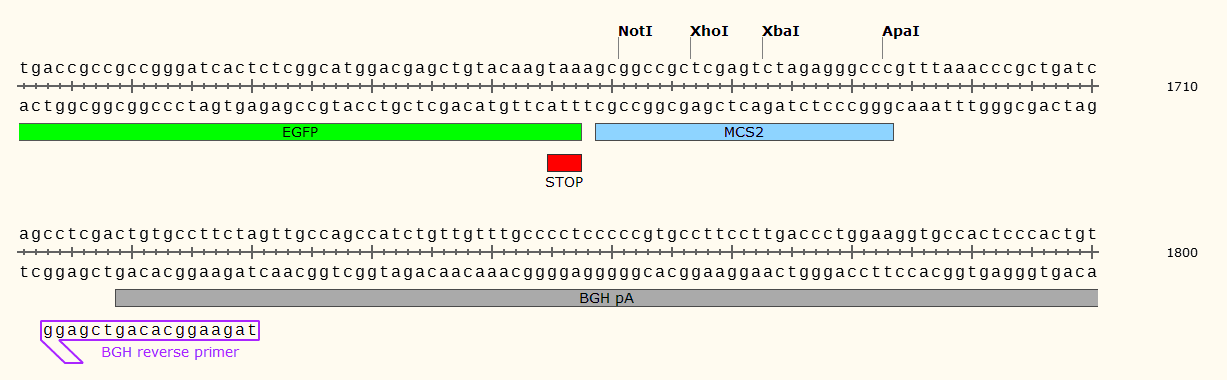

pcDNA3.1-EGFP多克隆位点2

载体简介

载体序列

LOCUS       pcDNA3.1(+)-EGFP        6119 bp    DNA     circular SYN 21-JUN-2012
SOURCE
  ORGANISM
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     CDS             complement(5123..5983)
                     /invitrogen="1020000"
                     /vntifkey="4"
                     /label=Amp(R)
     polyA_site      1719..1943
                     /invitrogen="1870000"
                     /vntifkey="26"
                     /label=BGH\pA
     primer          complement(1713..1730)
                     /invitrogen="1910000"
                     /vntifkey="27"
                     /label=BGH\reverse\primer
     promoter        complement(5984..6082)
                     /invitrogen="2330000"
                     /vntifkey="30"
                     /label=bla\promoter
     primer          769..789
                     /invitrogen="1930000"
                     /vntifkey="27"
                     /label=CMV\forward\primer
     promoter        232..819
                     /invitrogen="2180000"
                     /vntifkey="29"
                     /label=CMV\promoter
     rep_origin      1989..2417
                     /invitrogen="2500000"
                     /vntifkey="33"
                     /label=f1\origin
     CDS             2827..3621
                     /invitrogen="1260000"
                     /vntifkey="4"
                     /label=Neo(R)
     rep_origin      complement(4308..4978)
                     /invitrogen="2540000"
                     /vntifkey="33"
                     /label=pUC\origin
     promoter        2422..2791
                     /invitrogen="2290000"
                     /vntifkey="29"
                     /label=SV40\early\promoter
     polyA_signal    3795..3925
                     /invitrogen="1840000"
                     /vntifkey="25"
                     /label=SV40\pA
     primer          863..882
                     /invitrogen="2100000"
                     /vntifkey="27"
                     /label=T7\primer
     promoter        863..879
                     /invitrogen="2370000"
                     /vntifkey="30"
                     /label=T7\promoter
     misc_feature    948..1667
                     /vntifkey="21"
                     /label=EGFP
     misc_feature    942..947
                     /vntifkey="21"
                     /label=Kozak\Sequence
BASE COUNT     1417 a      1649 c      1580 g      1473 t
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccaccggt cgccaccatg gtgagcaagg
      961 gcgaggagct gttcaccggg gtggtgccca tcctggtcga gctggacggc gacgtaaacg
     1021 gccacaagtt cagcgtgtcc ggcgagggcg agggcgatgc cacctacggc aagctgaccc
     1081 tgaagttcat ctgcaccacc ggcaagctgc ccgtgccctg gcccaccctc gtgaccaccc
     1141 tgacctacgg cgtgcagtgc ttcagccgct accccgacca catgaagcag cacgacttct
     1201 tcaagtccgc catgcccgaa ggctacgtcc aggagcgcac catcttcttc aaggacgacg
     1261 gcaactacaa gacccgcgcc gaggtgaagt tcgagggcga caccctggtg aaccgcatcg
     1321 agctgaaggg catcgacttc aaggaggacg gcaacatcct ggggcacaag ctggagtaca
     1381 actacaacag ccacaacgtc tatatcatgg ccgacaagca gaagaacggc atcaaggtga
     1441 acttcaagat ccgccacaac atcgaggacg gcagcgtgca gctcgccgac cactaccagc
     1501 agaacacccc catcggcgac ggccccgtgc tgctgcccga caaccactac ctgagcaccc
     1561 agtccgccct gagcaaagac cccaacgaga agcgcgatca catggtcctg ctggagttcg
     1621 tgaccgccgc cgggatcact ctcggcatgg acgagctgta caagtaaagc ggccgctcga
     1681 gtctagaggg cccgtttaaa cccgctgatc agcctcgact gtgccttcta gttgccagcc
     1741 atctgttgtt tgcccctccc ccgtgccttc cttgaccctg gaaggtgcca ctcccactgt
     1801 cctttcctaa taaaatgagg aaattgcatc gcattgtctg agtaggtgtc attctattct
     1861 ggggggtggg gtggggcagg acagcaaggg ggaggattgg gaagacaata gcaggcatgc
     1921 tggggatgcg gtgggctcta tggcttctga ggcggaaaga accagctggg gctctagggg
     1981 gtatccccac gcgccctgta gcggcgcatt aagcgcggcg ggtgtggtgg ttacgcgcag
     2041 cgtgaccgct acacttgcca gcgccctagc gcccgctcct ttcgctttct tcccttcctt
     2101 tctcgccacg ttcgccggct ttccccgtca agctctaaat cgggggctcc ctttagggtt
     2161 ccgatttagt gctttacggc acctcgaccc caaaaaactt gattagggtg atggttcacg
     2221 tagtgggcca tcgccctgat agacggtttt tcgccctttg acgttggagt ccacgttctt
     2281 taatagtgga ctcttgttcc aaactggaac aacactcaac cctatctcgg tctattcttt
     2341 tgatttataa gggattttgc cgatttcggc ctattggtta aaaaatgagc tgatttaaca
     2401 aaaatttaac gcgaattaat tctgtggaat gtgtgtcagt tagggtgtgg aaagtcccca
     2461 ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc aaccaggtgt
     2521 ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca
     2581 gcaaccatag tcccgcccct aactccgccc atcccgcccc taactccgcc cagttccgcc
     2641 cattctccgc cccatggctg actaattttt tttatttatg cagaggccga ggccgcctct
     2701 gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctagg cttttgcaaa
     2761 aagctcccgg gagcttgtat atccattttc ggatctgatc aagagacagg atgaggatcg
     2821 tttcgcatga ttgaacaaga tggattgcac gcaggttctc cggccgcttg ggtggagagg
     2881 ctattcggct atgactgggc acaacagaca atcggctgct ctgatgccgc cgtgttccgg
     2941 ctgtcagcgc aggggcgccc ggttcttttt gtcaagaccg acctgtccgg tgccctgaat
     3001 gaactgcagg acgaggcagc gcggctatcg tggctggcca cgacgggcgt tccttgcgca
     3061 gctgtgctcg acgttgtcac tgaagcggga agggactggc tgctattggg cgaagtgccg
     3121 gggcaggatc tcctgtcatc tcaccttgct cctgccgaga aagtatccat catggctgat
     3181 gcaatgcggc ggctgcatac gcttgatccg gctacctgcc cattcgacca ccaagcgaaa
     3241 catcgcatcg agcgagcacg tactcggatg gaagccggtc ttgtcgatca ggatgatctg
     3301 gacgaagagc atcaggggct cgcgccagcc gaactgttcg ccaggctcaa ggcgcgcatg
     3361 cccgacggcg aggatctcgt cgtgacccat ggcgatgcct gcttgccgaa tatcatggtg
     3421 gaaaatggcc gcttttctgg attcatcgac tgtggccggc tgggtgtggc ggaccgctat
     3481 caggacatag cgttggctac ccgtgatatt gctgaagagc ttggcggcga atgggctgac
     3541 cgcttcctcg tgctttacgg tatcgccgct cccgattcgc agcgcatcgc cttctatcgc
     3601 cttcttgacg agttcttctg agcgggactc tggggttcga aatgaccgac caagcgacgc
     3661 ccaacctgcc atcacgagat ttcgattcca ccgccgcctt ctatgaaagg ttgggcttcg
     3721 gaatcgtttt ccgggacgcc ggctggatga tcctccagcg cggggatctc atgctggagt
     3781 tcttcgccca ccccaacttg tttattgcag cttataatgg ttacaaataa agcaatagca
     3841 tcacaaattt cacaaataaa gcattttttt cactgcattc tagttgtggt ttgtccaaac
     3901 tcatcaatgt atcttatcat gtctgtatac cgtcgacctc tagctagagc ttggcgtaat
     3961 catggtcata gctgtttcct gtgtgaaatt gttatccgct cacaattcca cacaacatac
     4021 gagccggaag cataaagtgt aaagcctggg gtgcctaatg agtgagctaa ctcacattaa
     4081 ttgcgttgcg ctcactgccc gctttccagt cgggaaacct gtcgtgccag ctgcattaat
     4141 gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc gcttcctcgc
     4201 tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg
     4261 cggtaatacg gttatccaca gaatcagggg ataacgcagg aaagaacatg tgagcaaaag
     4321 gccagcaaaa ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc
     4381 gcccccctga cgagcatcac aaaaatcgac gctcaagtca gaggtggcga aacccgacag
     4441 gactataaag ataccaggcg tttccccctg gaagctccct cgtgcgctct cctgttccga
     4501 ccctgccgct taccggatac ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc
     4561 atagctcacg ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg
     4621 tgcacgaacc ccccgttcag cccgaccgct gcgccttatc cggtaactat cgtcttgagt
     4681 ccaacccggt aagacacgac ttatcgccac tggcagcagc cactggtaac aggattagca
     4741 gagcgaggta tgtaggcggt gctacagagt tcttgaagtg gtggcctaac tacggctaca
     4801 ctagaagaac agtatttggt atctgcgctc tgctgaagcc agttaccttc ggaaaaagag
     4861 ttggtagctc ttgatccggc aaacaaacca ccgctggtag cggttttttt gtttgcaagc
     4921 agcagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt
     4981 ctgacgctca gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa
     5041 ggatcttcac ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat
     5101 atgagtaaac ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga
     5161 tctgtctatt tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac
     5221 gggagggctt accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg
     5281 ctccagattt atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg
     5341 caactttatc cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt
     5401 cgccagttaa tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct
     5461 cgtcgtttgg tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat
     5521 cccccatgtt gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta
     5581 agttggccgc agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca
     5641 tgccatccgt aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat
     5701 agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac
     5761 atagcagaac tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa
     5821 ggatcttacc gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt
     5881 cagcatcttt tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg
     5941 caaaaaaggg aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat
     6001 attattgaag catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt
     6061 agaaaaataa acaaataggg gttccgcgca catttccccg aaaagtgcca cctgacgtc
//
