| 出品公司: | Invitrigen |
|---|---|
| 载体名称: | pCMV-SPORT6 |
| 质粒类型: | 哺乳细胞表达载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 启动子: | CMV |
| 克隆方法: | Gateway |
| 载体大小: | 4396 |
| 5' 测序引物及序列: | Sp6 5'd[GATTTAGGTGACACTATAG]3' |
| 3' 测序引物及序列: | -- |
| 载体标签: | -- |
| 载体抗性: | 氨苄青霉素（Ampicillin） |
| 筛选标记: | -- |
| 备注: | pCMV-SPORT6载体用于构建cDNA文库。 |
| 产品目录号: | 18248-013 |
| 稳定性: | 瞬表达 |
| 组成型: | 组成型 |
| 病毒/非病毒: | 非病毒 |
买家导航
载体基本信息

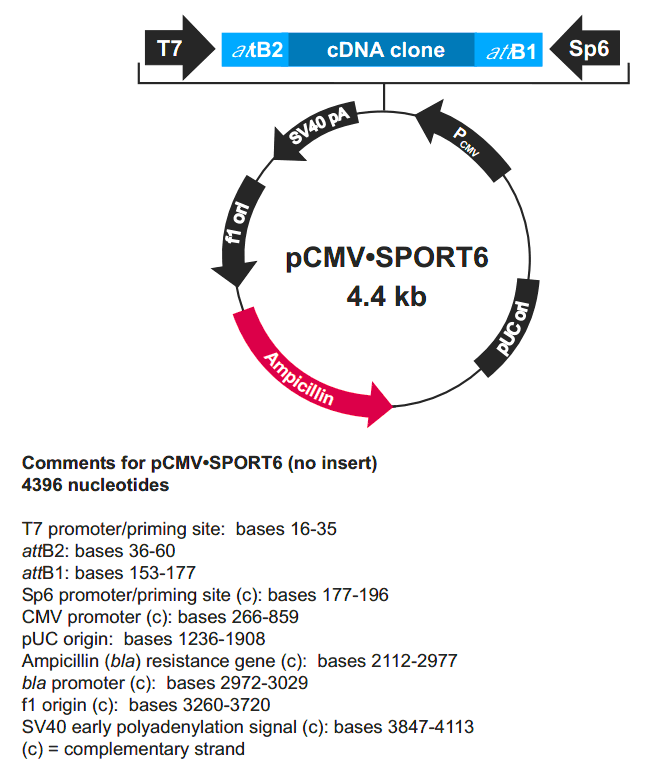

载体图谱质粒图谱和多克隆位点信息
载体简介
SuperScript质粒系统设计用于从纯化的 mRNA 群合成双链 cDNA。 cDNA 适合通过定向克隆导入 pSPORT1 载体或 pCMV-SPORT6 质粒载体中，随后可生成 cDNA 文库并使用 Gateway 技术。 SuperScript质粒系统：
• cDNA 产量更大，并且用 SuperScriptII RT 增加全长 cDNA
• 为定向克隆提供简化的引物-接头策略
• 为第一和第二链反应提供一管模式，提高 cDNA 产量
• 使用高效方便的预填充柱分离 cDNA
• 将插入片段连接进预先剪切的 Not I-Sal I 载体，这是为最大限度降低背景而制备的载体。
载体序列
LOCUS pCMV-Sport 6 4396 bp DNA SYN
DEFINITION pCMV-Sport 6
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..4396
/organism="pCMV-Sport 6"
/mol_type="other DNA"
promoter 16..34
/label="T7_promoter"
misc_feature complement(36..60)
/label="attB2"
misc_feature complement(153..177)
/label="attB1"
misc_feature complement(179..196)
/label="Sp6_primer"
misc_feature complement(220..242)
/label="M13_pUC_rev_primer"
promoter complement(266..385)
/label="CMV2_promoter"
promoter complement(328..399)
/label="CMV_promoter"
misc_feature complement(328..352)
/label="LNCX_primer"
misc_feature complement(335..354)
/label="pCEP_fwd_primer"
promoter complement(351..855)
/label="CMV_immearly_promoter"
misc_feature complement(378..398)
/label="CMV_fwd_primer"
misc_feature complement(564..851)
/label="CAG_enhancer"
promoter 1001..1029
/label="AmpR_promoter"
rep_origin complement(1301..1920)
/label="pBR322_origin"
misc_feature 1982..2015
/label="loxP"
gene complement(2117..2977)
/label="Ampicillin"
/gene="Ampicillin"
CDS complement(2117..2977)
/label="ORF frame 1"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
rep_origin complement(3397..3703)
/label="f1_origin"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
terminator complement(3856..3975)
/label="SV40_PA_terminator"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
misc_feature complement(3870..3889)
/label="EBV_rev_primer"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
misc_feature complement(4263..4278)
/label="SV40_int"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
misc_feature 4370..4392
/label="M13_pUC_fwd_primer"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
promoter 4385..5
/label="M13_forward20_primer"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
ORIGIN
1 CCAGTGCCTA GCTTATAATA CGACTCACTA TAGGGACCAC TTTGTACAAG AAAGCTGGGT
61 ACGCGTAAGC TTGGGCCCCT CGAGGGATAC TCTAGAGCGG CCGCCGACTA GTGAGCTCGT
121 CGACGATATC CCGGGAATTC CGGACCGGTA CCAGCCTGCT TTTTTGTACA AACTTGTTCT
181 ATAGTGTCAC CTAAATAGGC CTAATGGTCA TAGCTGTTTC CTGTGTGAAA TTGTTATCCG
241 CTCCGCGGCC TAGGCTAGAG TCCGGAGGCT GGATCGGTCC CGGTGTCTTC TATGGAGGTC
301 AAAACAGCGT GGATGGCGTC TCCAGGCGAT CTGACGGTTC ACTAAACGAG CTCTGCTTAT
361 ATAGACCTCC CACCGTACAC GCCTACCGCC CATTTGCGTC AATGGGGCGG AGTTGTTACG
421 ACATTTTGGA AAGTCCCGTT GATTTTGGTG CCAAAACAAA CTCCCATTGA CGTCAATGGG
481 GTGGAGACTT GGAAATCCCC GTGAGTCAAA CCGCTATCCA CGCCCATTGA TGTACTGCCA
541 AAACCGCATC ACCATGGTAA TAGCGATGAC TAATACGTAG ATGTACTGCC AAGTAGGAAA
601 GTCCCATAAG GTCATGTACT GGGCATAATG CCAGGCGGGC CATTTACCGT CATTGACGTC
661 AATAGGGGGC GTACTTGGCA TATGATACAC TTGATGTACT GCCAAGTGGG CAGTTTACCG
721 TAAATACTCC ACCCATTGAC GTCAATGGAA AGTCCCTATT GGCGTTACTA TGGGAACATA
781 CGTCATTATT GACGTCAATG GGCGGGGGTC GTTGGGCGGT CAGCCAGGCG GGCCATTTAC
841 CGTAAGTTAT GTAACGACAT GCATCTAATG AGTGAAAGGG CCTCGTACTA CGCCTATTTT
901 TATAGGTTAA TGTCATGATA ATAATGGTTT CTTAGACGTC AGGTGGCACT TTTCGGGGAA
961 ATGTGCGCGG AACCCCTATT TGTTTATTTT TCTAAATACA TTCAAATATG TATCCGCTCA
1021 TGAGACAATA ACCCTGATAA ATGCTTCAAT AATATTGAAA AACGCGCGAA TTGCAAGCTC
1081 TGCATTAATG AATCGGCCAA CGCGCGGGGA GAGGCGGTTT GCGTATTGGG CGCTCTTCCG
1141 CTTCCTCGCT CACTGACTCG CTGCGCTCGG TCGTTCGGCT GCGGCGAGCG GTATCAGCTC
1201 ACTCAAAGGC GGTAATACGG TTATCCACAG AATCAGGGGA TAACGCAGGA AAGAACATGT
1261 GAGCAAAAGG CCAGCAAAAG GCCAGGAACC GTAAAAAGGC CGCGTTGCTG GCGTTTTTCC
1321 ATAGGCTCCG CCCCCCTGAC GAGCATCACA AAAATCGACG CTCAAGTCAG AGGTGGCGAA
1381 ACCCGACAGG ACTATAAAGA TACCAGGCGT TTCCCCCTGG AAGCTCCCTC GTGCGCTCTC
1441 CTGTTCCGAC CCTGCCGCTT ACCGGATACC TGTCCGCCTT TCTCCCTTCG GGAAGCGTGG
1501 CGCTTTCTCA ATGCTCACGC TGTAGGTATC TCAGTTCGGT GTAGGTCGTT CGCTCCAAGC
1561 TGGGCTGTGT GCACGAACCC CCCGTTCAGC CCGACCGCTG CGCCTTATCC GGTAACTATC
1621 GTCTTGAGTC CAACCCGGTA AGACACGACT TATCGCCACT GGCAGCAGCC ACTGGTAACA
1681 GGATTAGCAG AGCGAGGTAT GTAGGCGGTG CTACAGAGTT CTTGAAGTGG TGGCCTAACT
1741 ACGGCTACAC TAGAAGGACA GTATTTGGTA TCTGCGCTCT GCTGAAGCCA GTTACCTTCG
1801 GAAAAAGAGT TGGTAGCTCT TGATCCGGCA AACAAACCAC CGCTGGTAGC GGTGGTTTTT
1861 TTGTTTGCAA GCAGCAGATT ACGCGCAGAA AAAAAGGATC TCAAGAAGAT CCTTTGATCT
1921 TTTCTACGGG GTCTGACGCT CAGTGGAACG AAAACTCACG TTAAGGGATT TTGGTCATGC
1981 CATAACTTCG TATAGCATAC ATTATACGAA GTTATGGCAT GAGATTATCA AAAAGGATCT
2041 TCACCTAGAT CCTTTTAAAT TAAAAATGAA GTTTTAAATC AATCTAAAGT ATATATGAGT
2101 AAACTTGGTC TGACAGTTAC CAATGCTTAA TCAGTGAGGC ACCTATCTCA GCGATCTGTC
2161 TATTTCGTTC ATCCATAGTT GCCTGACTCC CCGTCGTGTA GATAACTACG ATACGGGAGG
2221 GCTTACCATC TGGCCCCAGT GCTGCAATGA TACCGCGAGA CCCACGCTCA CCGGCTCCAG
2281 ATTTATCAGC AATAAACCAG CCAGCCGGAA GGGCCGAGCG CAGAAGTGGT CCTGCAACTT
2341 TATCCGCCTC CATCCAGTCT ATTAATTGTT GCCGGGAAGC TAGAGTAAGT AGTTCGCCAG
2401 TTAATAGTTT GCGCAACGTT GTTGCCATTG CTACAGGCAT CGTGGTGTCA CGCTCGTCGT
2461 TTGGTATGGC TTCATTCAGC TCCGGTTCCC AACGATCAAG GCGAGTTACA TGATCCCCCA
2521 TGTTGTGCAA AAAAGCGGTT AGCTCCTTCG GTCCTCCGAT CGTTGTCAGA AGTAAGTTGG
2581 CCGCAGTGTT ATCACTCATG GTTATGGCAG CACTGCATAA TTCTCTTACT GTCATGCCAT
2641 CCGTAAGATG CTTTTCTGTG ACTGGTGAGT ACTCAACCAA GTCATTCTGA GAATAGTGTA
2701 TGCGGCGACC GAGTTGCTCT TGCCCGGCGT CAATACGGGA TAATACCGCG CCACATAGCA
2761 GAACTTTAAA AGTGCTCATC ATTGGAAAAC GTTCTTCGGG GCGAAAACTC TCAAGGATCT
2821 TACCGCTGTT GAGATCCAGT TCGATGTAAC CCACTCGTGC ACCCAACTGA TCTTCAGCAT
2881 CTTTTACTTT CACCAGCGTT TCTGGGTGAG CAAAAACAGG AAGGCAAAAT GCCGCAAAAA
2941 AGGGAATAAG GGCGACACGG AAATGTTGAA TACTCATACT CTTCCTTTTT CAATATTATT
3001 GAAGCATTTA TCAGGGTTAT TGTCTCATGC CAGGGGTGGG CACACATATT TGATACCAGC
3061 GATCCCTACA CAGCACATAA TTCAATGCGA CTTCCCTCTA TCGCACATCT TAGACCTTTA
3121 TTCTCCCTCC AGCACACATC GAAGCTGCCG AGCAAGCCGT TCTCACCAGT CCAAGACCTG
3181 GCATGAGCGG ATACATATTT GAATGTATTT AGAAAAATAA ACAAATAGGG GTTCCGCGCA
3241 CATTTCCCCG AAAAGTGCCA CCTGAAATTG TAAACGTTAA TATTTTGTTA AAATTCGCGT
3301 TAAATTTTTG TTAAATCAGC TCATTTTTTA ACCAATAGGC CGAAATCGGC AAAATCCCTT
3361 ATAAATCAAA AGAATAGACC GAGATAGGGT TGAGTGTTGT TCCAGTTTGG AACAAGAGTC
3421 CACTATTAAA GAACGTGGAC TCCAACGTCA AAGGGCGAAA AACCGTCTAT CAGGGCGATG
3481 GCCCACTACG TGAACCATCA CCCTAATCAA GTTTTTTGGG GTCGAGGTGC CGTAAAGCAC
3541 TAAATCGGAA CCCTAAAGGG AGCCCCCGAT TTAGAGCTTG ACGGGGAAAG CCGGCGAACG
3601 TGGCGAGAAA GGAAGGGAAG AAAGCGAAAG GAGCGGGCGC TAGGGCGCTG GCAAGTGTAG
3661 CGGTCACGCT GCGCGTAACC ACCACACCCG CCGCGCTTAA TGCGCCGCTA CAGGGCGCGT
3721 CCCATTCGCC ATTCAGGCTG CGCAACTGTT GGGAAGGGCG ATCGGTGCGG GCCTCTTCGC
3781 TATTACGCCA GCCAATACGC AAACCGCCTC TCCCCGCGCG TTGGCCGATT CATTAATGCA
3841 GGATCGATCC AGACATGATA AGATACATTG ATGAGTTTGG ACAAACCACA ACTAGAATGC
3901 AGTGAAAAAA ATGCTTTATT TGTGAAATTT GTGATGCTAT TGCTTTATTT GTAACCATTA
3961 TAAGCTGCAA TAAACAAGTT AACAACAACA ATTGCATTCA TTTTATGTTT CAGGTTCAGG
4021 GGGAGGTGTG GGAGGTTTTT TAAAGCAAGT AAAACCTCTA CAAATGTGGT ATGGCTGATT
4081 ATGATCATGA ACAGACTGTG AGGACTGAGG GGCCTGAAAT GAGCCTTGGG ACTGTGAATC
4141 TAAAATACAC AAACAATTAG AATCACTAGC TCCTGTGTAT AATATTTTCA TAAATCATAC
4201 TCAGTAAGCA AAACTCTCAA GCAGCAAGCA TATGCAGCTA GTTTAACACA TTATACACTT
4261 AAAAATTTTA TATTTACCTT AGAGCTTTAA ATCTCTGTAG GTAGTTTGTC CAATTATGTC
4321 ACACCACAGA AGTAAGGTTC CTTCACAAAG ATCCCAAGCT AGCAGTTTTC CCAGTCACGA
4381 CGTTGTAAAA CGACGG
//
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
