载体基本信息

出品公司: Invitrogen
载体名称: pCMV-SPORT1
质粒类型: 哺乳动物表达载体;cDNA克隆载体;I.M.A.G.E.载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV
载体大小: 4380 bp
5' 测序引物及序列: CMV fwd 5’CGCAAATGGGCGGTAGGCGTG 3’
3' 测序引物及序列: SV40pA rev 5'GAAATTTGTGATGCTATTGC'
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: --
克隆菌株: DH5α
宿主细胞(系): 哺乳动物细胞
备注: 用于cDNA文库的构建
产品目录号: --
稳定性: 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

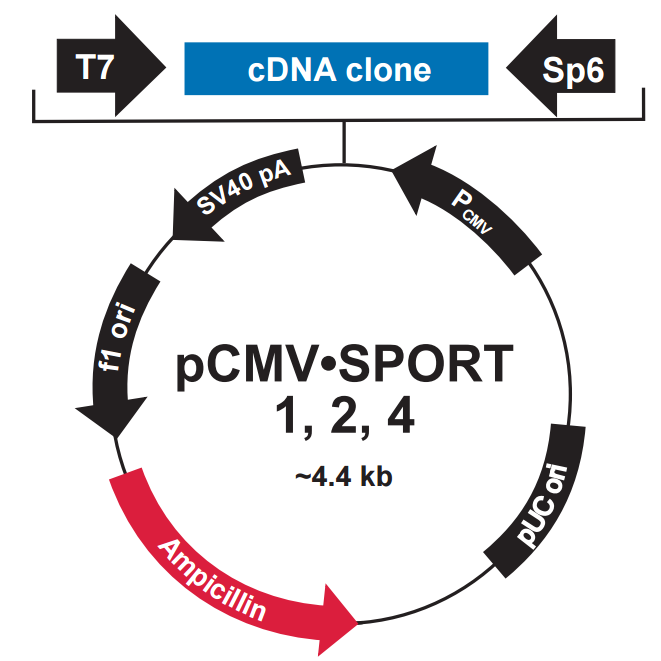

pCMV-SPORT1载体图谱

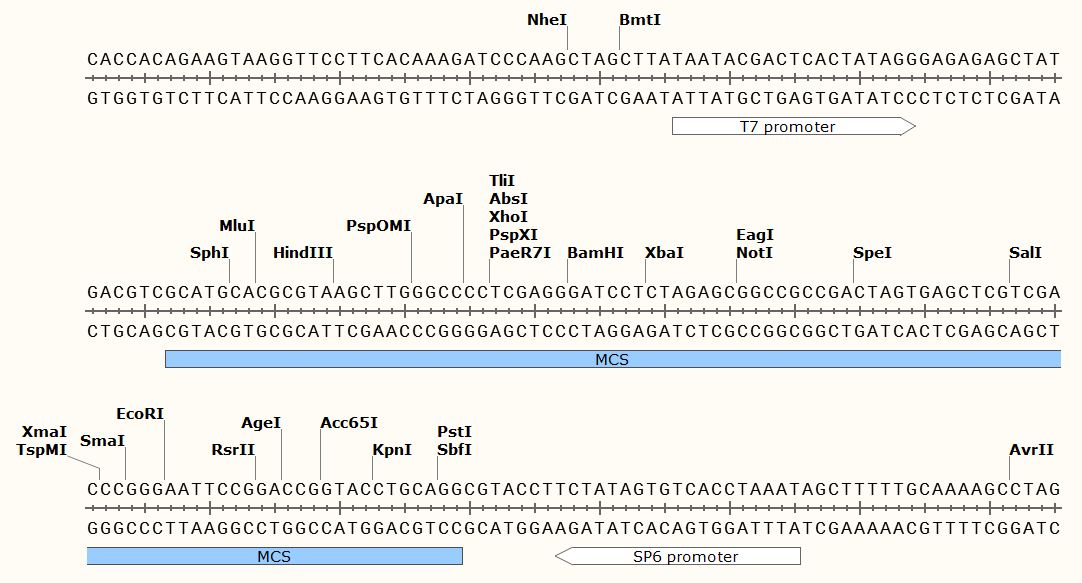

pCMV-SPORT1多克隆位点

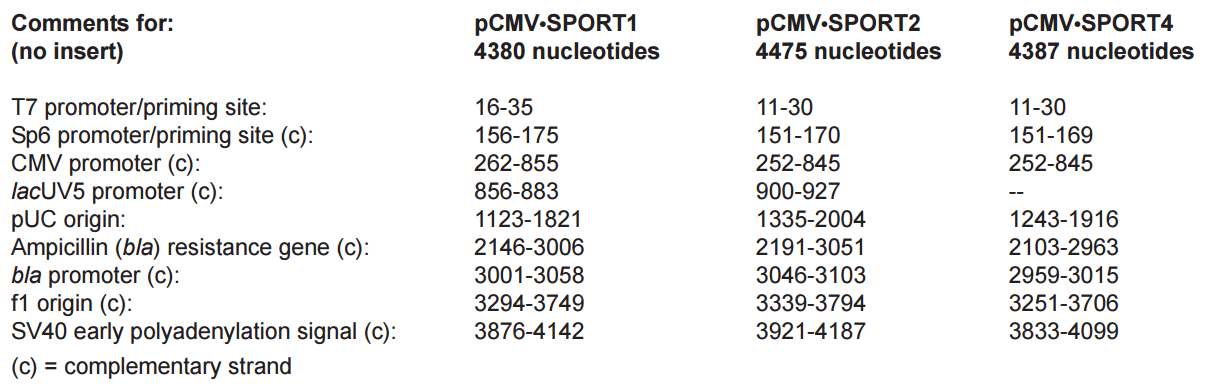

pCMV-SPORT1载体特征

载体简介

载体序列

LOCUS       Exported                4380 bp ds-DNA     circular SYN 28-FEB-2013
DEFINITION  Vector for cloning and transient mammalian cell expression of cDNAs.
ACCESSION   .
VERSION     .
KEYWORDS    pCMV SPORT
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4380)
  AUTHORS   I.M.A.G.E. Consortium
FEATURES             Location/Qualifiers
     source          1..4380
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     polyA_signal    125..259
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     promoter        646..664
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
     misc_feature    682..779
                     /note="MCS"
                     /note="multiple cloning site"
     promoter        complement(787..805)
                     /note="SP6 promoter"
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     promoter        complement(921..1124)
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     enhancer        1125..1428
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     protein_bind    1458..1474
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(1482..1513)
                     /note="lac UV5 promoter"
                     /note="E. coli lac promoter with an ""up"" mutation"
     rep_origin      complement(1975..2563)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     protein_bind    2641..2674
                     /bound_moiety="Cre recombinase"
                     /note="loxP"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     CDS             complement(2776..3636)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      complement(3924..4379)
                     /direction=LEFT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
ORIGIN
        1 ccattcgcca ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg cctcttcgct
       61 attacgccag ccaatacgca aaccgcctct ccccgcgcgt tggccgattc attaatgcag
      121 gatcgatcca gacatgataa gatacattga tgagtttgga caaaccacaa ctagaatgca
      181 gtgaaaaaaa tgctttattt gtgaaatttg tgatgctatt gctttatttg taaccattat
      241 aagctgcaat aaacaagtta acaacaacaa ttgcattcat tttatgtttc aggttcaggg
      301 ggaggtgtgg gaggtttttt aaagcaagta aaacctctac aaatgtggta tggctgatta
      361 tgatcatgaa cagactgtga ggactgaggg gcctgaaatg agccttggga ctgtgaatct
      421 aaaatacaca aacaattaga atcactagct cctgtgtata atattttcat aaatcatact
      481 cagtaagcaa aactctcaag cagcaagcat atgcagctag tttaacacat tatacactta
      541 aaaattttat atttacctta gagctttaaa tctctgtagg tagtttgtcc aattatgtca
      601 caccacagaa gtaaggttcc ttcacaaaga tcccaagcta gcttataata cgactcacta
      661 tagggagaga gctatgacgt cgcatgcacg cgtaagcttg ggcccctcga gggatcctct
      721 agagcggccg ccgactagtg agctcgtcga cccgggaatt ccggaccggt acctgcaggc
      781 gtaccttcta tagtgtcacc taaatagctt tttgcaaaag cctaggctag agtccggagg
      841 ctggatcggt cccggtgtct tctatggagg tcaaaacagc gtggatggcg tctccaggcg
      901 atctgacggt tcactaaacg agctctgctt atatagacct cccaccgtac acgcctaccg
      961 cccatttgcg tcaatggggc ggagttgtta cgacattttg gaaagtcccg ttgattttgg
     1021 tgccaaaaca aactcccatt gacgtcaatg gggtggagac ttggaaatcc ccgtgagtca
     1081 aaccgctatc cacgcccatt gatgtactgc caaaaccgca tcaccatggt aatagcgatg
     1141 actaatacgt agatgtactg ccaagtagga aagtcccata aggtcatgta ctgggcataa
     1201 tgccaggcgg gccatttacc gtcattgacg tcaatagggg gcgtacttgg catatgatac
     1261 acttgatgta ctgccaagtg ggcagtttac cgtaaatact ccacccattg acgtcaatgg
     1321 aaagtcccta ttggcgttac tatgggaaca tacgtcatta ttgacgtcaa tgggcggggg
     1381 tcgttgggcg gtcagccagg cgggccattt accgtaagtt atgtaacgac ctgcacgatg
     1441 ctgtttcctg tgtgaaattg ttatccgctc acaattccac acattatacg agccggaagc
     1501 tataaagtgt aaagcctggg gtgcctaatg agtgaaaggg cctcgtatac gcctattttt
     1561 ataggttaat gtcatgataa taatggtttc ttagacgtca ggtggcactt ttcggggaaa
     1621 tgtgcgcgga acccctattt gtttattttt ctaaatacat tcaaatatgt atccgctcat
     1681 gagacaataa ccctgataaa tgcttcaata atattgaaaa acgcgcgaat tgcaagctct
     1741 gcattaatga atcggccaac gcgcggggag aggcggtttg cgtattgggc gctcttccgc
     1801 ttcctcgctc actgactcgc tgcgctcggt cgttcggctg cggcgagcgg tatcagctca
     1861 ctcaaaggcg gtaatacggt tatccacaga atcaggggat aacgcaggaa agaacatgtg
     1921 agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca
     1981 taggctccgc ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa
     2041 cccgacagga ctataaagat accaggcgtt tccccctgga agctccctcg tgcgctctcc
     2101 tgttccgacc ctgccgctta ccggatacct gtccgccttt ctcccttcgg gaagcgtggc
     2161 gctttctcaa tgctcacgct gtaggtatct cagttcggtg taggtcgttc gctccaagct
     2221 gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc gccttatccg gtaactatcg
     2281 tcttgagtcc aacccggtaa gacacgactt atcgccactg gcagcagcca ctggtaacag
     2341 gattagcaga gcgaggtatg taggcggtgc tacagagttc ttgaagtggt ggcctaacta
     2401 cggctacact agaaggacag tatttggtat ctgcgctctg ctgaagccag ttaccttcgg
     2461 aaaaagagtt ggtagctctt gatccggcaa acaaaccacc gctggtagcg gtggtttttt
     2521 tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct caagaagatc ctttgatctt
     2581 ttctacgggg tctgacgctc agtggaacga aaactcacgt taagggattt tggtcatgcc
     2641 ataacttcgt atagcataca ttatacgaag ttatggcatg agattatcaa aaaggatctt
     2701 cacctagatc cttttaaatt aaaaatgaag ttttaaatca atctaaagta tatatgagta
     2761 aacttggtct gacagttacc aatgcttaat cagtgaggca cctatctcag cgatctgtct
     2821 atttcgttca tccatagttg cctgactccc cgtcgtgtag ataactacga tacgggaggg
     2881 cttaccatct ggccccagtg ctgcaatgat accgcgagac ccacgctcac cggctccaga
     2941 tttatcagca ataaaccagc cagccggaag ggccgagcgc agaagtggtc ctgcaacttt
     3001 atccgcctcc atccagtcta ttaattgttg ccgggaagct agagtaagta gttcgccagt
     3061 taatagtttg cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac gctcgtcgtt
     3121 tggtatggct tcattcagct ccggttccca acgatcaagg cgagttacat gatcccccat
     3181 gttgtgcaaa aaagcggtta gctccttcgg tcctccgatc gttgtcagaa gtaagttggc
     3241 cgcagtgtta tcactcatgg ttatggcagc actgcataat tctcttactg tcatgccatc
     3301 cgtaagatgc ttttctgtga ctggtgagta ctcaaccaag tcattctgag aatagtgtat
     3361 gcggcgaccg agttgctctt gcccggcgtc aatacgggat aataccgcgc cacatagcag
     3421 aactttaaaa gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct caaggatctt
     3481 accgctgttg agatccagtt cgatgtaacc cactcgtgca cccaactgat cttcagcatc
     3541 ttttactttc accagcgttt ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa
     3601 gggaataagg gcgacacgga aatgttgaat actcatactc ttcctttttc aatattattg
     3661 aagcatttat cagggttatt gtctcatgcc aggggtgggc acacatattt gataccagcg
     3721 atccctacac agcacataat tcaatgcgac ttccctctat cgcacatctt agacctttat
     3781 tctccctcca gcacacatcg aagctgccga gcaagccgtt ctcaccagtc caagacctgg
     3841 catgagcgga tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac
     3901 atttccccga aaagtgccac ctgaaattgt aaacgttaat attttgttaa aattcgcgtt
     3961 aaatttttgt taaatcagct cattttttaa ccaataggcc gaaatcggca aaatccctta
     4021 taaatcaaaa gaatagaccg agatagggtt gagtgttgtt ccagtttgga acaagagtcc
     4081 actattaaag aacgtggact ccaacgtcaa agggcgaaaa accgtctatc agggcgatgg
     4141 cccactacgt gaaccatcac cctaatcaag ttttttgggg tcgaggtgcc gtaaagcact
     4201 aaatcggaac cctaaaggga gcccccgatt tagagcttga cggggaaagc cggcgaacgt
     4261 ggcgagaaag gaagggaaga aagcgaaagg agcgggcgct agggcgctgg caagtgtagc
     4321 ggtcacgctg cgcgtaacca ccacacccgc cgcgcttaat gcgccgctac agggcgcgtc
//
