psiCHECK-2-h1-cluster09

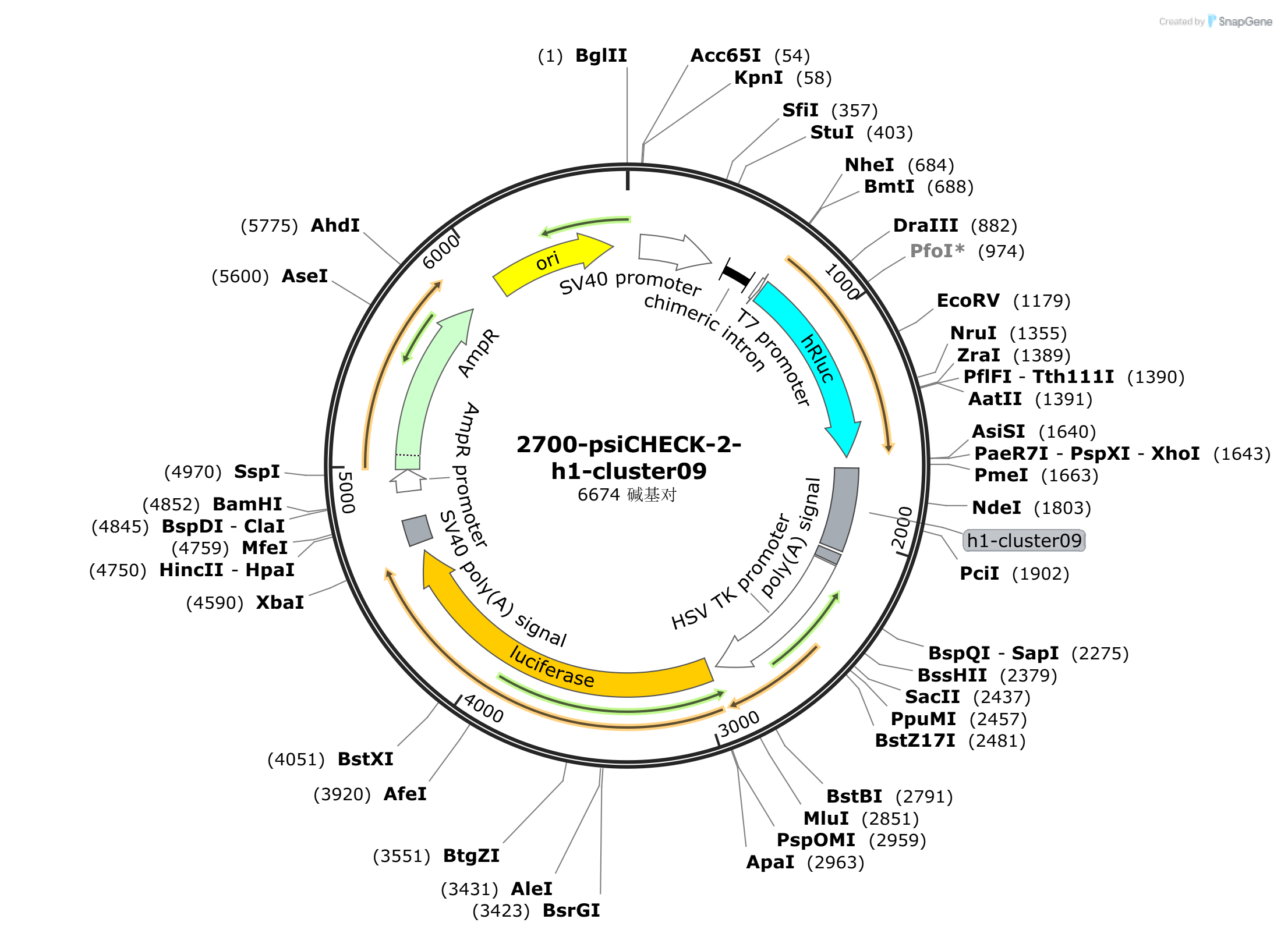

LOCUS       psiCHECK-2-h1-cluster09      6674 bp DNA     circular SYN 16-MAY-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6674)
  AUTHORS   SnapGene License
  TITLE     Direct Submission
  JOURNAL   Exported Sep 15, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6674
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        62..419
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     enhancer        62..253
                     /label=SV40 enhancer
                     /note="enhancer for the SV40 early promoter (Herr, 1993)"
     rep_origin      270..405
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     intron          489..621
                     /label=chimeric intron
                     /note="chimera between introns from human beta-globin and
                     immunoglobulin heavy chain genes"
     promoter        666..684
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      688..697
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             694..1629
                     /codon_start=1
                     /product="Renilla luciferase"
                     /label=hRluc
                     /note="human codon-optimized"
                     /translation="MASKVYDPEQRKRMITGPQWWARCKQMNVLDSFINYYDSEKHAEN
                     AVIFLHGNAASSYLWRHVVPHIEPVARCIIPDLIGMGKSGKSGNGSYRLLDHYKYLTAW
                     FELLNLPKKIIFVGHDWGACLAFHYSYEHQDKIKAIVHAESVVDVIESWDEWPDIEEDI
                     ALIKSEEGEKMVLENNFFVETMLPSKIMRKLEPEEFAAYLEPFKEKGEVRRPTLSWPRE
                     IPLVKGGKPDVVQIVRNYNAYLRASDDLPKMFIESDPGFFSNAIVEGAKKFPNTEFVKV
                     KGLHFSQEDAPDEMGKYIKSFVERVLKNEQ"
     misc_feature    1681..2073
                     /label=h1-cluster09
     polyA_signal    2089..2137
                     /note="synthetic polyadenylation signal"
     promoter        2146..2897
                     /label=HSV TK promoter
                     /note="herpes simplex virus thymidine kinase promoter"
     regulatory      2927..2936
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             2933..4585
                     /codon_start=1
                     /gene="luc+"
                     /product="firefly luciferase"
                     /label=luciferase
                     /note="enhanced luc+ version of the luciferase gene"
                     /db_xref="GI:42718124"
                     /protein_id="AAS38485.1"
                     /translation="MADAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTDA
                     HIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAVAP
                     ANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQGFQS
                     MYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVRFSHA
                     RDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRSLQDYK
                     IQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLPGIRQGY
                     GLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCVRGPMIMS
                     GYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVAPAELESIL
                     LQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTTAKKLRGGVV
                     FVDEVPKGLTGKLDARKIREILIKAKKGGKIAV"
     RBS             3892..3900
                     /label=Shine-Dalgarno sequence
                     /note="full consensus sequence for ribosome-binding sites
                     upstream of start codons in E. coli; complementary to a
                     region in the 3' end of the 16S rRNA (Chen et al., 1994)"
     polyA_signal    4629..4750
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     promoter        4883..4987
                     /gene="bla"
                     /label=AmpR promoter
     CDS             4988..5848
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      6019..6607
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 agatctgcgc agcaccatgg cctgaaataa cctctgaaag aggaacttgg ttaggtacct
       61 tctgaggcgg aaagaaccag ctgtggaatg tgtgtcagtt agggtgtgga aagtccccag
      121 gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca accaggtgtg
      181 gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag
      241 caaccatagt cccgccccta actccgccca tcccgcccct aactccgccc agttccgccc
      301 attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag gccgcctcgg
      361 cctctgagct attccagaag tagtgaggag gcttttttgg aggcctaggc ttttgcaaaa
      421 agcttgattc ttctgacaca acagtctcga acttaagctg cagaagttgg tcgtgaggca
      481 ctgggcaggt aagtatcaag gttacaagac aggtttaagg agaccaatag aaactgggct
      541 tgtcgagaca gagaagactc ttgcgtttct gataggcacc tattggtctt actgacatcc
      601 actttgcctt tctctccaca ggtgtccact cccagttcaa ttacagctct taaggctaga
      661 gtacttaata cgactcacta taggctagcc accatggctt ccaaggtgta cgaccccgag
      721 caacgcaaac gcatgatcac tgggcctcag tggtgggctc gctgcaagca aatgaacgtg
      781 ctggactcct tcatcaacta ctatgattcc gagaagcacg ccgagaacgc cgtgattttt
      841 ctgcatggta acgctgcctc cagctacctg tggaggcacg tcgtgcctca catcgagccc
      901 gtggctagat gcatcatccc tgatctgatc ggaatgggta agtccggcaa gagcgggaat
      961 ggctcatatc gcctcctgga tcactacaag tacctcaccg cttggttcga gctgctgaac
     1021 cttccaaaga aaatcatctt tgtgggccac gactgggggg cttgtctggc ctttcactac
     1081 tcctacgagc accaagacaa gatcaaggcc atcgtccatg ctgagagtgt cgtggacgtg
     1141 atcgagtcct gggacgagtg gcctgacatc gaggaggata tcgccctgat caagagcgaa
     1201 gagggcgaga aaatggtgct tgagaataac ttcttcgtcg agaccatgct cccaagcaag
     1261 atcatgcgga aactggagcc tgaggagttc gctgcctacc tggagccatt caaggagaag
     1321 ggcgaggtta gacggcctac cctctcctgg cctcgcgaga tccctctcgt taagggaggc
     1381 aagcccgacg tcgtccagat tgtccgcaac tacaacgcct accttcgggc cagcgacgat
     1441 ctgcctaaga tgttcatcga gtccgaccct gggttctttt ccaacgctat tgtcgaggga
     1501 gctaagaagt tccctaacac cgagttcgtg aaggtgaagg gcctccactt cagccaggag
     1561 gacgctccag atgaaatggg taagtacatc aagagcttcg tggagcgcgt gctgaagaac
     1621 gagcagtaat tctaggcgat cgctcgagcc cgggaattcg tttaaaccta gagcggccgc
     1681 tattacctgt ctgagtagga aaagatagag attttcaaaa gacaaatttt attttaaaaa
     1741 gccaaatgat gtaatggaaa gttgtggagt ttacagtcag aaaatgtagc agccatctaa
     1801 tcatatgact tactagactt aatttattcc ttctgagcct cagtatgctt acctgtaaaa
     1861 tatgataata attaccaacc taaaagattg ttctgcaagc aacatgtgag aaatgtaagc
     1921 tgcaaatagc aagatacgtc ttctggtttt gtatgtatga ttttatactg acttacagat
     1981 acttataatt gagaaagaat gtggtggggg gaagggtggt agtgagtagg accatttgta
     2041 aaatgatgag aacaaaattc aataaagaaa gctgcggccg ctggccgcaa taaaatatct
     2101 ttattttcat tacatctgtg tgttggtttt ttgtgtgagg atctaaatga gtcttcggac
     2161 ctcgcggggg ccgcttaagc ggtggttagg gtttgtctga cgcgggggga gggggaagga
     2221 acgaaacact ctcattcgga ggcggctcgg ggtttggtct tggtggccac gggcacgcag
     2281 aagagcgccg cgatcctctt aagcaccccc ccgccctccg tggaggcggg ggtttggtcg
     2341 gcgggtggta actggcgggc cgctgactcg ggcgggtcgc gcgccccaga gtgtgacctt
     2401 ttcggtctgc tcgcagaccc ccgggcggcg ccgccgcggc ggcgacgggc tcgctgggtc
     2461 ctaggctcca tggggaccgt atacgtggac aggctctgga gcatccgcac gactgcggtg
     2521 atattaccgg agaccttctg cgggacgagc cgggtcacgc ggctgacgcg gagcgtccgt
     2581 tgggcgacaa acaccaggac ggggcacagg tacactatct tgtcacccgg aggcgcgagg
     2641 gactgcagga gcttcaggga gtggcgcagc tgcttcatcc ccgtggcccg ttgctcgcgt
     2701 ttgctggcgg tgtccccgga agaaatatat ttgcatgtct ttagttctat gatgacacaa
     2761 accccgccca gcgtcttgtc attggcgaat tcgaacacgc agatgcagtc ggggcggcgc
     2821 ggtcccaggt ccacttcgca tattaaggtg acgcgtgtgg cctcgaacac cgagcgaccc
     2881 tgcagcgacc cgcttaaaag cttggcattc cggtactgtt ggtaaagcca ccatggccga
     2941 tgctaagaac attaagaagg gccctgctcc cttctaccct ctggaggatg gcaccgctgg
     3001 cgagcagctg cacaaggcca tgaagaggta tgccctggtg cctggcacca ttgccttcac
     3061 cgatgcccac attgaggtgg acatcaccta tgccgagtac ttcgagatgt ctgtgcgcct
     3121 ggccgaggcc atgaagaggt acggcctgaa caccaaccac cgcatcgtgg tgtgctctga
     3181 gaactctctg cagttcttca tgccagtgct gggcgccctg ttcatcggag tggccgtggc
     3241 ccctgctaac gacatttaca acgagcgcga gctgctgaac agcatgggca tttctcagcc
     3301 taccgtggtg ttcgtgtcta agaagggcct gcagaagatc ctgaacgtgc agaagaagct
     3361 gcctatcatc cagaagatca tcatcatgga ctctaagacc gactaccagg gcttccagag
     3421 catgtacaca ttcgtgacat ctcatctgcc tcctggcttc aacgagtacg acttcgtgcc
     3481 agagtctttc gacagggaca aaaccattgc cctgatcatg aacagctctg ggtctaccgg
     3541 cctgcctaag ggcgtggccc tgcctcatcg caccgcctgt gtgcgcttct ctcacgcccg
     3601 cgaccctatt ttcggcaacc agatcatccc cgacaccgct attctgagcg tggtgccatt
     3661 ccaccacggc ttcggcatgt tcaccaccct gggctacctg atttgcggct ttcgggtggt
     3721 gctgatgtac cgcttcgagg aggagctgtt cctgcgcagc ctgcaagact acaaaattca
     3781 gtctgccctg ctggtgccaa ccctgttcag cttcttcgct aagagcaccc tgatcgacaa
     3841 gtacgacctg tctaacctgc acgagattgc ctctggcggc gccccactgt ctaaggaggt
     3901 gggcgaagcc gtggccaagc gctttcatct gccaggcatc cgccagggct acggcctgac
     3961 cgagacaacc agcgccattc tgattacccc agagggcgac gacaagcctg gcgccgtggg
     4021 caaggtggtg ccattcttcg aggccaaggt ggtggacctg gacaccggca agaccctggg
     4081 agtgaaccag cgcggcgagc tgtgtgtgcg cggccctatg attatgtccg gctacgtgaa
     4141 taaccctgag gccacaaacg ccctgatcga caaggacggc tggctgcact ctggcgacat
     4201 tgcctactgg gacgaggacg agcacttctt catcgtggac cgcctgaagt ctctgatcaa
     4261 gtacaagggc taccaggtgg ccccagccga gctggagtct atcctgctgc agcaccctaa
     4321 cattttcgac gccggagtgg ccggcctgcc cgacgacgat gccggcgagc tgcctgccgc
     4381 cgtcgtcgtg ctggaacacg gcaagaccat gaccgagaag gagatcgtgg actatgtggc
     4441 cagccaggtg acaaccgcca agaagctgcg cggcggagtg gtgttcgtgg acgaggtgcc
     4501 caagggcctg accggcaagc tggacgcccg caagatccgc gagatcctga tcaaggctaa
     4561 gaaaggcggc aagatcgccg tgtaataatt ctagagtcgg ggcggccggc cgcttcgagc
     4621 agacatgata agatacattg atgagtttgg acaaaccaca actagaatgc agtgaaaaaa
     4681 atgctttatt tgtgaaattt gtgatgctat tgctttattt gtaaccatta taagctgcaa
     4741 taaacaagtt aacaacaaca attgcattca ttttatgttt caggttcagg gggaggtgtg
     4801 ggaggttttt taaagcaagt aaaacctcta caaatgtggt aaaatcgata aggatccagg
     4861 tggcactttt cggggaaatg tgcgcggaac ccctatttgt ttatttttct aaatacattc
     4921 aaatatgtat ccgctcatga gacaataacc ctgataaatg cttcaataat attgaaaaag
     4981 gaagagtatg agtattcaac atttccgtgt cgcccttatt cccttttttg cggcattttg
     5041 ccttcctgtt tttgctcacc cagaaacgct ggtgaaagta aaagatgctg aagatcagtt
     5101 gggtgcacga gtgggttaca tcgaactgga tctcaacagc ggtaagatcc ttgagagttt
     5161 tcgccccgaa gaacgttttc caatgatgag cacttttaaa gttctgctat gtggcgcggt
     5221 attatcccgt attgacgccg ggcaagagca actcggtcgc cgcatacact attctcagaa
     5281 tgacttggtt gagtactcac cagtcacaga aaagcatctt acggatggca tgacagtaag
     5341 agaattatgc agtgctgcca taaccatgag tgataacact gcggccaact tacttctgac
     5401 aacgatcgga ggaccgaagg agctaaccgc ttttttgcac aacatggggg atcatgtaac
     5461 tcgccttgat cgttgggaac cggagctgaa tgaagccata ccaaacgacg agcgtgacac
     5521 cacgatgcct gtagcaatgg caacaacgtt gcgcaaacta ttaactggcg aactacttac
     5581 tctagcttcc cggcaacaat taatagactg gatggaggcg gataaagttg caggaccact
     5641 tctgcgctcg gcccttccgg ctggctggtt tattgctgat aaatctggag ccggtgagcg
     5701 tgggtctcgc ggtatcattg cagcactggg gccagatggt aagccctccc gtatcgtagt
     5761 tatctacacg acggggagtc aggcaactat ggatgaacga aatagacaga tcgctgagat
     5821 aggtgcctca ctgattaagc attggtaact gtcagaccaa gtttactcat atatacttta
     5881 gattgattta aaacttcatt tttaatttaa aaggatctag gtgaagatcc tttttgataa
     5941 tctcatgacc aaaatccctt aacgtgagtt ttcgttccac tgagcgtcag accccgtaga
     6001 aaagatcaaa ggatcttctt gagatccttt ttttctgcgc gtaatctgct gcttgcaaac
     6061 aaaaaaacca ccgctaccag cggtggtttg tttgccggat caagagctac caactctttt
     6121 tccgaaggta actggcttca gcagagcgca gataccaaat actgttcttc tagtgtagcc
     6181 gtagttaggc caccacttca agaactctgt agcaccgcct acatacctcg ctctgctaat
     6241 cctgttacca gtggctgctg ccagtggcga taagtcgtgt cttaccgggt tggactcaag
     6301 acgatagtta ccggataagg cgcagcggtc gggctgaacg gggggttcgt gcacacagcc
     6361 cagcttggag cgaacgacct acaccgaact gagataccta cagcgtgagc tatgagaaag
     6421 cgccacgctt cccgaaggga gaaaggcgga caggtatccg gtaagcggca gggtcggaac
     6481 aggagagcgc acgagggagc ttccaggggg aaacgcctgg tatctttata gtcctgtcgg
     6541 gtttcgccac ctctgacttg agcgtcgatt tttgtgatgc tcgtcagggg ggcggagcct
     6601 atggaaaaac gccagcaacg cggccttttt acggttcctg gccttttgct ggccttttgc
     6661 tcacatggct cgac
//
