| 质粒名称: | pAAV-CAG-NES-fYTnC2-NES |
|---|---|
| 出品公司: | Wekwikgene |
| 目录编号: | 0000185 |
| 产品用途: | Expresses the fYTnC2 green calcium indicator based on YFP and troponin from Falco peregrinus falcon in the cytosol of mammalian cells |
| 存储实验室: | Laboratory of Molecular Design |
|
载体骨架基本信息 |
|
| 载体名称: | pAAV |
| 表达系统: | 腺病毒，哺乳动物表达 |
| 启动子: | CAG |
| 拷贝数: | 低拷贝 |
| 载体抗性: | 氨苄霉素 |
| 生长温度: | 37 ℃ |
| 宿主菌: | Mach1 |
|
插入基因信息 |
|
| 插入基因名称: | fYTnC2 |
| 物种来源: | Synthetic |
| 密码子优化: | 细菌表达优化 |
|
文献引用方法 |
|
| 参考文献部分: |
cNTnC and fYTnC3, Genetically Encoded Green Calcium Indicators Based on Troponin C from Fast Animals
Subach O.M., Vlaskina A.V., Agapova Y.K., Korzhenevskiy D.A., Nikolaeva A.Y., Varizhuk A.M., Subach M.F., Patrushev M.V., Piatkevich K.D., Boyko K.M., Subach F.V.
Int. J. Mol. Sci. 23, 14614 (2022)
|
买家导航
pAAV-CAG-NES-fYTnC2-NES载体质粒基本信息

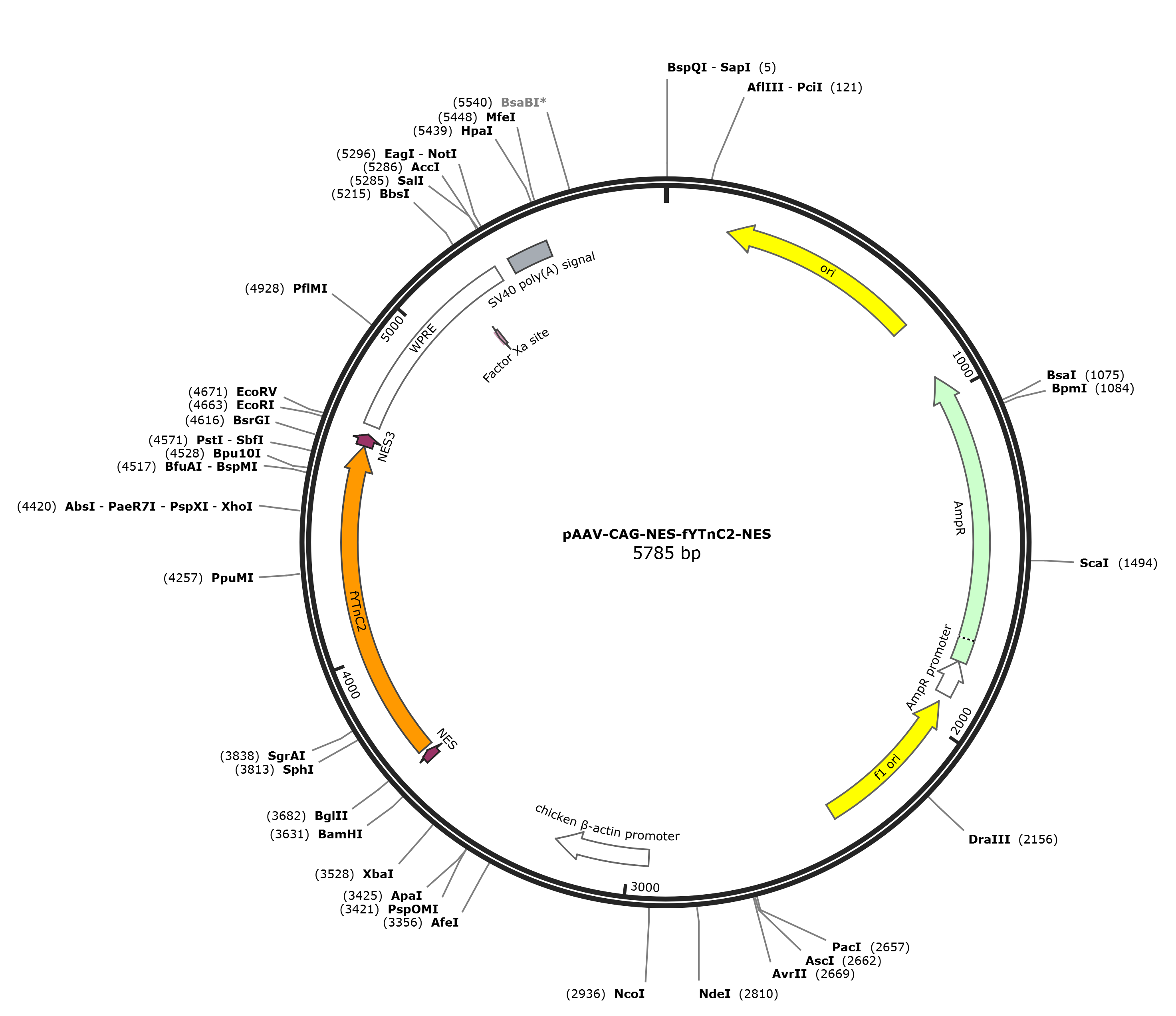

pAAV-CAG-NES-fYTnC2-NES质粒图谱载体图谱和pAAV-CAG-NES-fYTnC2-NES载体序列质粒序列多克隆位点信息
pAAV-CAG-NES-fYTnC2-NES质粒载体简介
pAAV-CAG-NES-fYTnC2-NES质粒序列载体序列
LOCUS pAAV-CAG-NES-fYTnC2-NES 5785 bp DNA circular SYN 22-APR-2023
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS .
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 5785)
AUTHORS .
TITLE Direct Submission
JOURNAL Exported Apr 29, 2026 from SnapGene 6.0.2
https://www.biofeng.com
FEATURES Location/Qualifiers
source 1..5785
/mol_type="other DNA"
/organism="synthetic DNA construct"
rep_origin complement(182..770)
/direction=LEFT
/label=ori
/note="high-copy-number colE1/pMB1/pBR322/pUC origin of
replication"
CDS complement(941..1801)
/codon_start=1
/gene="bla"
/product="beta-lactamase"
/label=AmpR
/note="confers resistance to ampicillin, carbenicillin, and
related antibiotics"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
LIKHW"
promoter complement(1802..1906)
/gene="bla"
/label=AmpR promoter
rep_origin complement(1932..2387)
/direction=LEFT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
promoter 2942..3219
/label=chicken beta-actin promoter
CDS 3652..3678
/codon_start=1
/product="nuclear export signal from the HIV Rev protein
(Fischer et al., 1995)"
/label=NES
/translation="LPPLERLTL"
CDS 3688..4623
/codon_start=1
/label=fYTnC2
/translation="MVSKGEELFTGVVPILVEMVGDVNGHRFSVSGEGEGIATYGMLTL
KLICTTGELPVPWPTLVTTLGYGVACFARYPDHMKQHDFFKSAMPEGYVQERTIFFKGD
GHYKTRAEVKFEGDTLVNRIELKGFDFREDGNILGHKLGYNFDLSEEELANSFRICDRN
ADGFIDIEELGEILRATEERVTEEDIEDLMMDSDKNNDGRIDFDEFLKMMEGALGINSH
NVYITADKQKNGVKAHFEIRHNLEDGSVQLADHYQLNTPIGDGPVLLPDNHYLRHQSAL
SKDPNEKRDHMVLQEYVTAAGITHGMDELYK"
CDS 4624..4659
/codon_start=1
/label=NES3
/translation="LALKLAGLDIGS"
misc_feature 4687..5275
/label=WPRE
/note="woodchuck posttranscriptional regulatory element"
CDS complement(5158..5169)
/codon_start=1
/product="Factor Xa recognition and cleavage site"
/label=Factor Xa site
/translation="IEGR"
polyA_signal 5318..5439
/label=SV40 poly(A) signal
/note="SV40 polyadenylation signal"
ORIGIN
1 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
61 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
121 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
181 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
241 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
301 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
361 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
421 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
481 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
541 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
601 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
661 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg
721 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
781 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
841 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
901 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
961 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
1021 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
1081 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
1141 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
1201 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
1261 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
1321 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
1381 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
1441 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
1501 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
1561 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
1621 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
1681 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
1741 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
1801 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
1861 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
1921 aagtgccacc taaattgtaa gcgttaatat tttgttaaaa ttcgcgttaa atttttgtta
1981 aatcagctca ttttttaacc aataggccga aatcggcaaa atcccttata aatcaaaaga
2041 atagaccgag atagggttga gtgttgttcc agtttggaac aagagtccac tattaaagaa
2101 cgtggactcc aacgtcaaag ggcgaaaaac cgtctatcag ggcgatggcc cactacgtga
2161 accatcaccc taatcaagtt ttttggggtc gaggtgccgt aaagcactaa atcggaaccc
2221 taaagggagc ccccgattta gagcttgacg gggaaagccg gcgaacgtgg cgagaaagga
2281 agggaagaaa gcgaaaggag cgggcgctag ggcgctggca agtgtagcgg tcacgctgcg
2341 cgtaaccacc acacccgccg cgcttaatgc gccgctacag ggcgcgtccc attcgccatt
2401 caggctgcgc aactgttggg aagggcgatc ggtgcgggcc tcttcgctat tacgccagct
2461 gcgcgctcgc tcgctcactg aggccgcccg ggcaaagccc gggcgtcggg cgacctttgg
2521 tcgcccggcc tcagtgagcg agcgagcgcg cagagaggga gtggccaact ccatcactag
2581 gggttccttg tagttaatga ttaacccgcc atgctactta tctacgtagc catgctctag
2641 gaagatcgta ggttaattaa ggcgcgcccc taggggagat ggccagccag cccattgacg
2701 tcaataatga cgtatgttcc catagtaacg ccaataggga ctttccattg acgtcaatgg
2761 gtggagtatt tacggtaaac tgcccacttg gcagtacatc aagtgtatca tatgccaagt
2821 acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct ggcattatgc ccagtacatg
2881 accttatggg actttcctac ttggcagtac atctacgtat tagtcatcgc tattaccatg
2941 gtcgaggtga gccccacgtt ctgcttcact ctccccatct cccccccctc cccaccccca
3001 attttgtatt tatttatttt ttaattattt tgtgcagcga tgggggcggg gggggggggg
3061 gggcgcgcgc caggcggggc ggggcggggc gaggggcggg gcggggcgag gcggagaggt
3121 gcggcggcag ccaatcagag cggcgcgctc cgaaagtttc cttttatggc gaggcggcgg
3181 cggcggcggc cctataaaaa gcgaagcgcg cggcgggcgg gagtcgctgc gacgctgcct
3241 tcgccccgtg ccccgctccg ccgccgcctc gcgccgcccg ccccggctct gactgaccgc
3301 gttactccca caggtgagcg ggcgggacgg cccttctcct ccgggctgta attagcgctt
3361 ggtttaatga cggcttgttt cttttctgtg gctgcgtgaa agccttgagg ggctccggga
3421 gggccctttg tgcgggggga gcggctcggg gctgtccgcg gggggacggc tgccttcggg
3481 ggggacgggg cagggcgggg ttcggcttct ggcgtgtgac cggcggctct agagcctctg
3541 ctaaccatgt tcatgccttc ttctttttcc tacagctcct gggcaacgtg ctggttattg
3601 tgctgtctca tcattttggc aaagaattgg ggatccgaca ccatgcttca acttcctcct
3661 cttgaacgtc ttactctttc gagatctatg gtgagcaagg gcgaggagct gttcaccggg
3721 gtggtgccca tcctggtcga gatggtcggc gacgtaaacg gccataggtt cagcgtgtcc
3781 ggcgagggcg agggcattgc cacctacggc atgctgaccc tgaagctcat ctgcaccacc
3841 ggcgagctgc ccgtgccctg gcccaccctc gtgaccaccc tcggctacgg cgtggcgtgc
3901 ttcgcccgct accccgacca catgaagcag cacgacttct tcaagtccgc catgcccgag
3961 ggctacgtcc aggaacgcac catcttcttc aaaggcgacg gccactacaa gacccgcgcc
4021 gaggtgaagt tcgagggcga caccctggtg aaccgcatcg agctgaaggg cttcgacttc
4081 agggaggacg gcaacatcct gggtcacaag ctggggtaca acttcgactt gtctgaggag
4141 gagctggcca acagcttccg catctgtgac cggaatgcgg atgggttcat tgacattgag
4201 gaactgggcg agatcctgag agccaccgag gagcgcgtca ctgaagagga catagaggac
4261 ctgatgatgg actcagacaa gaacaatgat ggccgcatcg actttgatga gttcctgaag
4321 atgatggagg gtgcgttggg catcaacagc cacaacgtct atatcaccgc cgacaagcag
4381 aagaacggcg tcaaggccca cttcgagatc cgccacaacc tcgaggacgg cagcgtgcag
4441 ctcgccgacc actaccagct gaacaccccc atcggcgacg gccccgtgct gctgcccgac
4501 aaccactacc tgcgccacca gtccgccctg agcaaagacc ccaacgagaa gcgcgatcac
4561 atggtcctgc aggagtacgt gactgccgcc gggatcactc acggcatgga cgagctgtac
4621 aagcttgctc ttaagttggc tggacttgat attggttctt aagaattcga tatcaagctt
4681 atcgataatc aacctctgga ttacaaaatt tgtgaaagat tgactggtat tcttaactat
4741 gttgctcctt ttacgctatg tggatacgct gctttaatgc ctttgtatca tgctattgct
4801 tcccgtatgg ctttcatttt ctcctccttg tataaatcct ggttgctgtc tctttatgag
4861 gagttgtggc ccgttgtcag gcaacgtggc gtggtgtgca ctgtgtttgc tgacgcaacc
4921 cccactggtt ggggcattgc caccacctgt cagctccttt ccgggacttt cgctttcccc
4981 ctccctattg ccacggcgga actcatcgcc gcctgccttg cccgctgctg gacaggggct
5041 cggctgttgg gcactgacaa ttccgtggtg ttgtcgggga aatcatcgtc ctttccttgg
5101 ctgctcgcct gtgttgccac ctggattctg cgcgggacgt ccttctgcta cgtcccttcg
5161 gccctcaatc cagcggacct tccttcccgc ggcctgctgc cggctctgcg gcctcttccg
5221 cgtcttcgcc ttcgccctca gacgagtcgg atctcccttt gggccgcctc cccgcatcga
5281 taccgtcgac ccgggcggcc gcttcgagca gacatgataa gatacattga tgagtttgga
5341 caaaccacaa ctagaatgca gtgaaaaaaa tgctttattt gtgaaatttg tgatgctatt
5401 gctttatttg taaccattat aagctgcaat aaacaagtta acaacaacaa ttgcattcat
5461 tttatgtttc aggttcaggg ggagatgtgg gaggtttttt aaagcaagta aaacctctac
5521 aaatgtggta aaatcgataa ggatcttcct agagcatggc tacgtagata agtagcatgg
5581 cgggttaatc attaactaca aggaacccct agtgatggag ttggccactc cctctctgcg
5641 cgctcgctcg ctcactgagg ccgggcgacc aaaggtcgcc cgacgcccgg gctttgcccg
5701 ggcggcctca gtgagcgagc gagcgcgcag ctgcattaat gaatcggcca acgcgcgggg
5761 agaggcggtt tgcgtattgg gcgct
//
pAAV-CAG-NES-fYTnC2-NES载体图谱质粒图谱pdf版和pAAV-CAG-NES-fYTnC2-NES载体序列质粒序列等相关资料下载
pAAV-CAG-NES-fYTnC2-NES质粒载体应用举例
