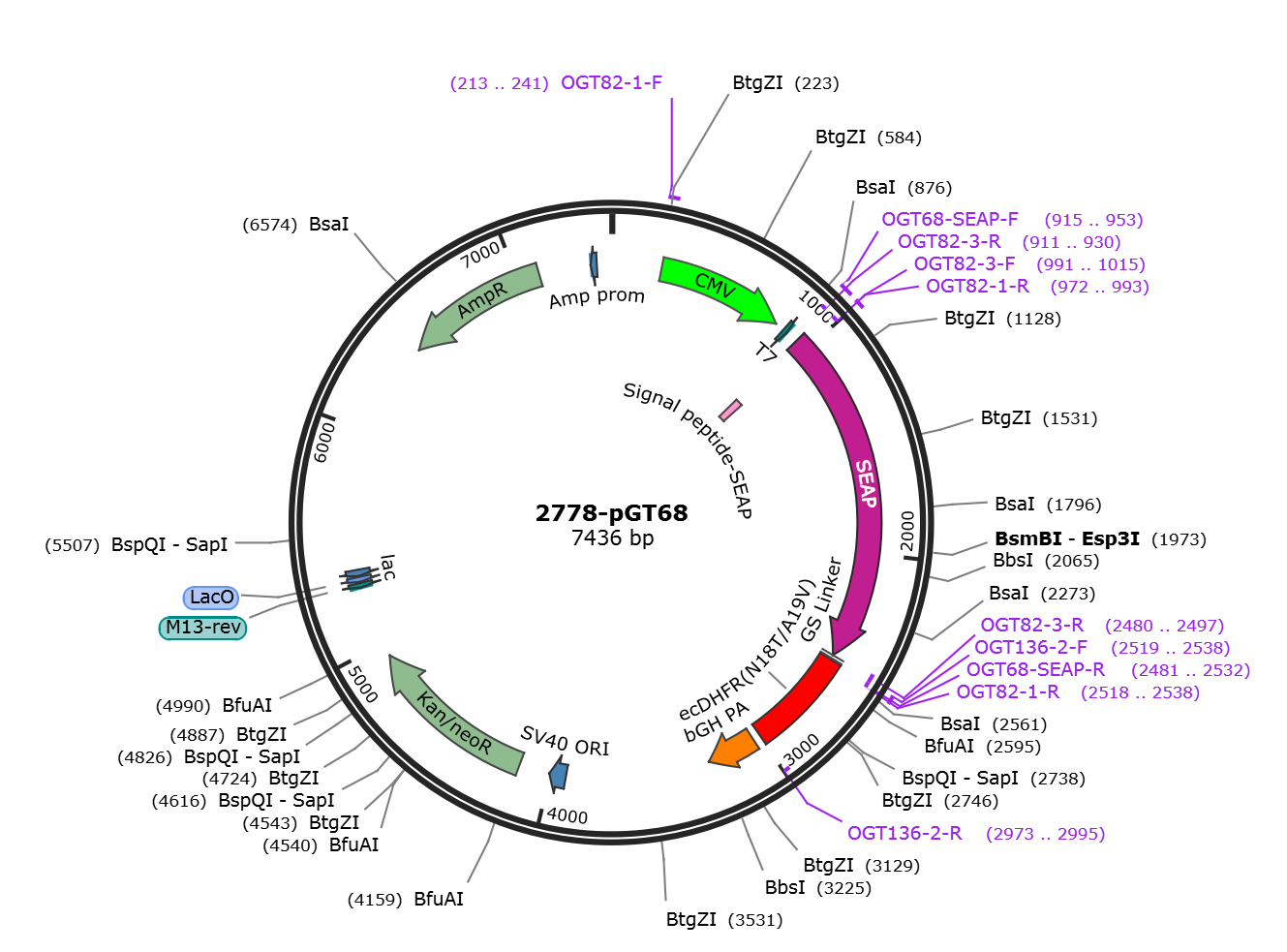

pGT68

LOCUS      pGT68              7436 bp DNA     circular SYN 14-JUL-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 7436)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 14, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7436
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     primer_bind     213..241
                     /label=OGT82-1-F
     misc_feature    232..819
                     /label=CMV
     primer_bind     863..882
                     /label=T7
     primer_bind     complement(911..930)
                     /label=OGT82-3-R
     primer_bind     915..953
                     /label=OGT68-SEAP-F
     misc_feature    941..2497
                     /label=SEAP
     misc_feature    941..991
                     /label=Signal peptide-SEAP
     primer_bind     complement(972..993)
                     /label=OGT82-1-R
     primer_bind     991..1015
                     /label=OGT82-3-F
     primer_bind     complement(2480..2497)
                     /label=OGT82-3-R
     primer_bind     complement(2481..2532)
                     /label=OGT68-SEAP-R
     misc_feature    2498..2512
                     /label=GS Linker
     primer_bind     complement(2518..2538)
                     /label=OGT82-1-R
     misc_feature    2519..2997
                     /label=ecDHFR(N18T/A19V)
     primer_bind     2519..2538
                     /label=OGT136-2-F
     primer_bind     complement(2973..2995)
                     /label=OGT136-2-R
     terminator      3033..3260
                     /label=bGH PA
     misc_feature    3928..4005
                     /label=SV40 ORI
     CDS             4147..4938
                     /label=Kan/neoR
     primer_bind     complement(5278..5298)
                     /label=M13-rev
     misc_binding    complement(5304..5326)
                     /label=LacO
     promoter        complement(5331..5360)
                     /label=lac
     CDS             complement(6443..7102)
                     /label=AmpR
     promoter        complement(7342..7370)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccgccacc atgctgctgc tgctgctgct
      961 gctgggcctg aggctacagc tctccctggg catcatccca gttgaggagg agaacccgga
     1021 cttctggaac cgcgaggcag ccgaggccct gggtgccgcc aagaagctgc agcctgcaca
     1081 gacagccgcc aagaacctca tcatcttcct gggcgatggg atgggggtgt ctacggtgac
     1141 agctgccagg atcctaaaag ggcagaagaa ggacaaactg gggcctgaga tacccctggc
     1201 catggaccgc ttcccatatg tggctctgtc caagacatac aatgtagaca aacatgtgcc
     1261 agacagtgga gccacagcca cggcctacct gtgcggggtc aagggcaact tccagaccat
     1321 tggcttgagt gcagccgccc gctttaacca gtgcaacacg acacgcggca acgaggtcat
     1381 ctccgtgatg aatcgggcca agaaagcagg gaagtcagtg ggagtggtaa ccaccacacg
     1441 agtgcagcac gcctcgccag ccggcaccta cgcccacacg gtgaaccgca actggtactc
     1501 ggacgccgac gtgcctgcct cggcccgcca ggaggggtgc caggacatcg ctacgcagct
     1561 catctccaac atggacattg acgtgatcct aggtggaggc cgaaagtaca tgtttcgcat
     1621 gggaacccca gaccctgagt acccagatga ctacagccaa ggtgggacca ggctggacgg
     1681 gaagaatctg gtgcaggaat ggctggcgaa gcgccagggt gcccggtatg tgtggaaccg
     1741 cactgagctc atgcaggctt ccctggaccc gtctgtgacc catctcatgg gtctctttga
     1801 gcctggagac atgaaatacg agatccaccg agactccaca ctggacccct ccctgatgga
     1861 gatgacagag gctgccctgc gcctgctgag caggaacccc cgcggcttct tcctcttcgt
     1921 ggagggtggt cgcatcgacc atggtcatca tgaaagcagg gcttaccggg cactgactga
     1981 gacgatcatg ttcgacgacg ccattgagag ggcgggccag ctcaccagcg aggaggacac
     2041 gctgagcctc gtcactgccg accactccca cgtcttctcc ttcggaggct accccctgcg
     2101 agggagctcc atcttcgggc tggcccctgg caaggcccgg gacaggaagg cctacacggt
     2161 cctcctatac ggaaacggtc caggctatgt gctcaaggac ggcgcccggc cggatgttac
     2221 cgagagcgag agcgggagcc ccgagtatcg gcagcagtca gcagtgcccc tggacgaaga
     2281 gacccacgca ggcgaggacg tggcggtgtt cgcgcgcggc ccgcaggcgc acctggttca
     2341 cggcgtgcag gagcagacct tcatagcgca cgtcatggcc ttcgccgcct gcctggagcc
     2401 ctacaccgcc tgcgacctgg cgccccccgc cggcaccacc gacgccgcgc acccgggtta
     2461 ctctagagtc ggggcggccg gccgcttcga gcagacaggc ggcggcagcg gcgaattcat
     2521 gatcagcctg atcgccgccc tggccgtgga ccacgtgatc ggcatggaga ccgtgatgcc
     2581 ctggaacctg cccgccgacc tggcctggtt caagagaaac accctgaaca agcccgtgat
     2641 catgggcaga cacacctggg agagcatcgg cagacccctg cccggcagaa agaacatcat
     2701 cctgagcagc cagcccagca ccgacgacag agtgacctgg gtgaagagcg tggacgaggc
     2761 catcgccgcc tgcggcgacg tgcccgagat catggtgatc ggcggcggca gagtgtacga
     2821 gcagttcctg cccaaggccc agaagctgta cctgacccac atcgacgccg aggtggaggg
     2881 cgacacccac ttccccgact acgagcccga cgactgggag agcgtgttca gcgagttcca
     2941 cgacgccgac gcccagaaca gccacagcta ctgcttcgag atcctggaga gaagatagtc
     3001 tagagggccc gtttaaaccc gctgatcagc ctcgactgtg ccttctagtt gccagccatc
     3061 tgttgtttgc ccctcccccg tgccttcctt gaccctggaa ggtgccactc ccactgtcct
     3121 ttcctaataa aatgaggaaa ttgcatcgca ttgtctgagt aggtgtcatt ctattctggg
     3181 gggtggggtg gggcaggaca gcaaggggga ggattgggaa gacaatagca ggcatgctgg
     3241 ggatgcggtg ggctctatgg cttctgaggc ggaaagaacc agctggggct ctagggggta
     3301 tccccacgcg ccctgtagcg gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt
     3361 gaccgctaca cttgccagcg ccctagcgcc cgctcctttc gctttcttcc cttcctttct
     3421 cgccacgttc gccggctttc cccgtcaagc tctaaatcgg gggctccctt tagggttccg
     3481 atttagtgct ttacggcacc tcgaccccaa aaaacttgat tagggtgatg gttcacgtag
     3541 tgggccatcg ccctgataga cggtttttcg ccctttgacg ttggagtcca cgttctttaa
     3601 tagtggactc ttgttccaaa ctggaacaac actcaaccct atctcggtct attcttttga
     3661 tttataaggg attttgccga tttcggccta ttggttaaaa aatgagctga tttaacaaaa
     3721 atttaacgcg aattaattct gtggaatgtg tgtcagttag ggtgtggaaa gtccccaggc
     3781 tccccagcag gcagaagtat gcaaagcatg catctcaatt agtcagcaac caggtgtgga
     3841 aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca
     3901 accatagtcc cgcccctaac tccgcccatc ccgcccctaa ctccgcccag ttccgcccat
     3961 tctccgcccc atggctgact aatttttttt atttatgcag aggccgaggc cgcctctgcc
     4021 tctgagctat tccagaagta gtgaggaggc ttttttggag gcctaggctt ttgcaaaaag
     4081 ctcccgggag cttgtatatc cattttcgga tctgatcaag agacaggatg aggatcgttt
     4141 cgcatgattg aacaagatgg attgcacgca ggttctccgg ccgcttgggt ggagaggcta
     4201 ttcggctatg actgggcaca acagacaatc ggctgctctg atgccgccgt gttccggctg
     4261 tcagcgcagg ggcgcccggt tctttttgtc aagaccgacc tgtccggtgc cctgaatgaa
     4321 ctgcaggacg aggcagcgcg gctatcgtgg ctggccacga cgggcgttcc ttgcgcagct
     4381 gtgctcgacg ttgtcactga agcgggaagg gactggctgc tattgggcga agtgccgggg
     4441 caggatctcc tgtcatctca ccttgctcct gccgagaaag tatccatcat ggctgatgca
     4501 atgcggcggc tgcatacgct tgatccggct acctgcccat tcgaccacca agcgaaacat
     4561 cgcatcgagc gagcacgtac tcggatggaa gccggtcttg tcgatcagga tgatctggac
     4621 gaagagcatc aggggctcgc gccagccgaa ctgttcgcca ggctcaaggc gcgcatgccc
     4681 gacggcgagg atctcgtcgt gacccatggc gatgcctgct tgccgaatat catggtggaa
     4741 aatggccgct tttctggatt catcgactgt ggccggctgg gtgtggcgga ccgctatcag
     4801 gacatagcgt tggctacccg tgatattgct gaagagcttg gcggcgaatg ggctgaccgc
     4861 ttcctcgtgc tttacggtat cgccgctccc gattcgcagc gcatcgcctt ctatcgcctt
     4921 cttgacgagt tcttctgagc gggactctgg ggttcgaaat gaccgaccaa gcgacgccca
     4981 acctgccatc acgagatttc gattccaccg ccgccttcta tgaaaggttg ggcttcggaa
     5041 tcgttttccg ggacgccggc tggatgatcc tccagcgcgg ggatctcatg ctggagttct
     5101 tcgcccaccc caacttgttt attgcagctt ataatggtta caaataaagc aatagcatca
     5161 caaatttcac aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca
     5221 tcaatgtatc ttatcatgtc tgtataccgt cgacctctag ctagagcttg gcgtaatcat
     5281 ggtcatagct gtttcctgtg tgaaattgtt atccgctcac aattccacac aacatacgag
     5341 ccggaagcat aaagtgtaaa gcctggggtg cctaatgagt gagctaactc acattaattg
     5401 cgttgcgctc actgcccgct ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa
     5461 tcggccaacg cgcggggaga ggcggtttgc gtattgggcg ctcttccgct tcctcgctca
     5521 ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg
     5581 taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc
     5641 agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc
     5701 cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac
     5761 tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc
     5821 tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata
     5881 gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc
     5941 acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca
     6001 acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag
     6061 cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta
     6121 gaagaacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg
     6181 gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tttttttgtt tgcaagcagc
     6241 agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct acggggtctg
     6301 acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta tcaaaaagga
     6361 tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa agtatatatg
     6421 agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc tcagcgatct
     6481 gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact acgatacggg
     6541 agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc tcaccggctc
     6601 cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt ggtcctgcaa
     6661 ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta agtagttcgc
     6721 cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg tcacgctcgt
     6781 cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt acatgatccc
     6841 ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc agaagtaagt
     6901 tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt actgtcatgc
     6961 catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc tgagaatagt
     7021 gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc gcgccacata
     7081 gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa ctctcaagga
     7141 tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac tgatcttcag
     7201 catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa
     7261 aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt tttcaatatt
     7321 attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa tgtatttaga
     7381 aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct gacgtc
//
