pYSJ4

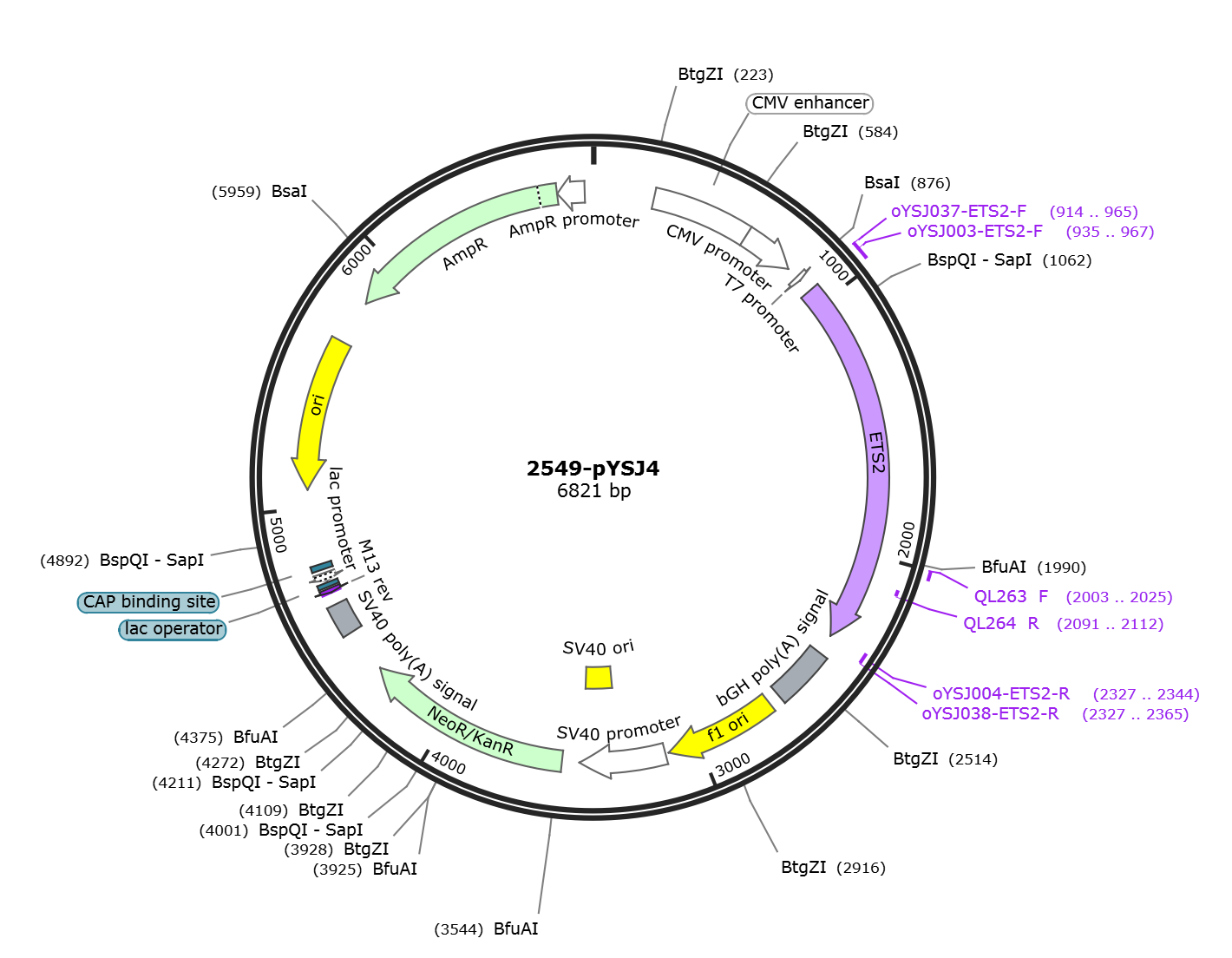

LOCUS       pYSJ4       6821 bp DNA     circular SYN 17-SEP-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6821)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 3, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6821
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..965
                     /label=oYSJ037-ETS2-F
     CDS             935..2344
                     /codon_start=1
                     /label=ETS2
                     /translation="MNDFGIKNMDQVAPVANSYRGTLKRQPAFDTFDGSLFAVFPSLNE
                     EQTLQEVPTGLDSISHDSANCELPLLTPCSKAVMSQALKATFSGFKKEQRRLGIPKNPW
                     LWSEQQVCQWLLWATNEFSLVNVNLQRFGMNGQMLCNLGKERFLELAPDFVGDILWEHL
                     EQMIKENQEKTEDQYEENSHLTSVPHWINSNTLGFGTEQAPYGMQTQNYPKGGLLDSMC
                     PASTPSVLSSEQEFQMFPKSRLSSVSVTYCSVSQDFPGSNLNLLTNNSGTPKDHDSPEN
                     GADSFESSDSLLQSWNSQSSLLDVQRVPSFESFEDDCSQSLCLNKPTMSFKDYIQERSD
                     PVEQGKPVIPAAVLAGFTGSGPIQLWQFLLELLSDKSCQSFISWTGDGWEFKLADPDEV
                     ARRWGKRKNKPKMNYEKLSRGLRYYYDKNIIHKTSGKRYVYRFVCDLQNLLGFTPEELH
                     AILGVQPDTED"
     primer_bind     935..967
                     /label=oYSJ003-ETS2-F
     primer_bind     2003..2025
                     /label=QL263  F
     primer_bind     complement(2091..2112)
                     /label=QL264  R
     primer_bind     complement(2327..2365)
                     /label=oYSJ038-ETS2-R
     primer_bind     complement(2327..2344)
                     /label=oYSJ004-ETS2-R
     primer_bind     2404..2422
                     /label=oQZ311
     polyA_signal    2421..2645
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2642..2664)
                     /label=oQZ312
     primer_bind     2650..2664
                     /label=oQZ313
     rep_origin      2691..3119
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3133..3462
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3313..3448
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3529..4323
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4497..4618
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4667..4683)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4691..4707
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4715..4745)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4760..4781
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5069..5654)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5825..6685)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6686..6790)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatgaat gatttcggaa tcaagaatat
      961 ggaccaggta gcccctgtgg ctaacagtta cagagggaca ctcaagcgcc agccagcctt
     1021 tgacaccttt gatgggtccc tgtttgctgt ttttccttct ctaaatgaag agcaaacact
     1081 gcaagaagtg ccaacaggct tggattccat ttctcatgac tccgccaact gtgaattgcc
     1141 tttgttaacc ccgtgcagca aggctgtgat gagtcaagcc ttaaaagcta ccttcagtgg
     1201 cttcaaaaag gaacagcggc gcctgggcat tccaaagaac ccctggctgt ggagtgagca
     1261 acaggtatgc cagtggcttc tctgggccac caatgagttc agtctggtga acgtgaatct
     1321 gcagaggttc ggcatgaatg gccagatgct gtgtaacctt ggcaaggaac gctttctgga
     1381 gctggcacct gactttgtgg gtgacattct ctgggaacat ctggagcaaa tgatcaaaga
     1441 aaaccaagaa aagacagaag atcaatatga agaaaattca cacctcacct ccgttcctca
     1501 ttggattaac agcaatacat taggttttgg cacagagcag gcgccctatg gaatgcagac
     1561 acagaattac cccaaaggcg gcctcctgga cagcatgtgt ccggcctcca cacccagcgt
     1621 actcagctct gagcaggagt ttcagatgtt ccccaagtct cggctcagct ccgtcagcgt
     1681 cacctactgc tctgtcagtc aggacttccc aggcagcaac ttgaatttgc tcaccaacaa
     1741 ttctgggacg cccaaagacc acgactcccc tgagaacggt gcggacagct tcgagagctc
     1801 agactccctc ctccagtcct ggaacagcca gtcgtccttg ctggatgtgc aacgggttcc
     1861 ttccttcgag agcttcgaag atgactgcag ccagtctctc tgcctcaata agccaaccat
     1921 gtctttcaag gattacatcc aagagaggag tgacccggtg gagcaaggca aaccagttat
     1981 acctgcagct gtgctggccg gcttcacagg aagtggacct attcagctgt ggcagtttct
     2041 cctggagctg ctatcagaca aatcctgcca gtcattcatc agctggactg gagacggatg
     2101 ggagtttaag ctcgccgacc ccgatgaggt ggcccgccgg tggggaaaga ggaaaaataa
     2161 gcccaagatg aactacgaga agctgagccg gggcttacgc tactattacg acaagaacat
     2221 catccacaag acgtcgggga agcgctacgt gtaccgcttc gtgtgcgacc tccagaactt
     2281 gctggggttc acgcccgagg aactgcacgc catcctgggc gtccagcccg acacggagga
     2341 ctgagaattc tgcagatatc cagcacagtg gcggccgctc gagtctagag ggcccgttta
     2401 aacccgctga tcagcctcga ctgtgccttc tagttgccag ccatctgttg tttgcccctc
     2461 ccccgtgcct tccttgaccc tggaaggtgc cactcccact gtcctttcct aataaaatga
     2521 ggaaattgca tcgcattgtc tgagtaggtg tcattctatt ctggggggtg gggtggggca
     2581 ggacagcaag ggggaggatt gggaagacaa tagcaggcat gctggggatg cggtgggctc
     2641 tatggcttct gaggcggaaa gaaccagctg gggctctagg gggtatcccc acgcgccctg
     2701 tagcggcgca ttaagcgcgg cgggtgtggt ggttacgcgc agcgtgaccg ctacacttgc
     2761 cagcgcccta gcgcccgctc ctttcgcttt cttcccttcc tttctcgcca cgttcgccgg
     2821 ctttccccgt caagctctaa atcgggggct ccctttaggg ttccgattta gtgctttacg
     2881 gcacctcgac cccaaaaaac ttgattaggg tgatggttca cgtagtgggc catcgccctg
     2941 atagacggtt tttcgccctt tgacgttgga gtccacgttc tttaatagtg gactcttgtt
     3001 ccaaactgga acaacactca accctatctc ggtctattct tttgatttat aagggatttt
     3061 gccgatttcg gcctattggt taaaaaatga gctgatttaa caaaaattta acgcgaatta
     3121 attctgtgga atgtgtgtca gttagggtgt ggaaagtccc caggctcccc agcaggcaga
     3181 agtatgcaaa gcatgcatct caattagtca gcaaccaggt gtggaaagtc cccaggctcc
     3241 ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccat agtcccgccc
     3301 ctaactccgc ccatcccgcc cctaactccg cccagttccg cccattctcc gccccatggc
     3361 tgactaattt tttttattta tgcagaggcc gaggccgcct ctgcctctga gctattccag
     3421 aagtagtgag gaggcttttt tggaggccta ggcttttgca aaaagctccc gggagcttgt
     3481 atatccattt tcggatctga tcaagagaca ggatgaggat cgtttcgcat gattgaacaa
     3541 gatggattgc acgcaggttc tccggccgct tgggtggaga ggctattcgg ctatgactgg
     3601 gcacaacaga caatcggctg ctctgatgcc gccgtgttcc ggctgtcagc gcaggggcgc
     3661 ccggttcttt ttgtcaagac cgacctgtcc ggtgccctga atgaactgca ggacgaggca
     3721 gcgcggctat cgtggctggc cacgacgggc gttccttgcg cagctgtgct cgacgttgtc
     3781 actgaagcgg gaagggactg gctgctattg ggcgaagtgc cggggcagga tctcctgtca
     3841 tctcaccttg ctcctgccga gaaagtatcc atcatggctg atgcaatgcg gcggctgcat
     3901 acgcttgatc cggctacctg cccattcgac caccaagcga aacatcgcat cgagcgagca
     3961 cgtactcgga tggaagccgg tcttgtcgat caggatgatc tggacgaaga gcatcagggg
     4021 ctcgcgccag ccgaactgtt cgccaggctc aaggcgcgca tgcccgacgg cgaggatctc
     4081 gtcgtgaccc atggcgatgc ctgcttgccg aatatcatgg tggaaaatgg ccgcttttct
     4141 ggattcatcg actgtggccg gctgggtgtg gcggaccgct atcaggacat agcgttggct
     4201 acccgtgata ttgctgaaga gcttggcggc gaatgggctg accgcttcct cgtgctttac
     4261 ggtatcgccg ctcccgattc gcagcgcatc gccttctatc gccttcttga cgagttcttc
     4321 tgagcgggac tctggggttc gaaatgaccg accaagcgac gcccaacctg ccatcacgag
     4381 atttcgattc caccgccgcc ttctatgaaa ggttgggctt cggaatcgtt ttccgggacg
     4441 ccggctggat gatcctccag cgcggggatc tcatgctgga gttcttcgcc caccccaact
     4501 tgtttattgc agcttataat ggttacaaat aaagcaatag catcacaaat ttcacaaata
     4561 aagcattttt ttcactgcat tctagttgtg gtttgtccaa actcatcaat gtatcttatc
     4621 atgtctgtat accgtcgacc tctagctaga gcttggcgta atcatggtca tagctgtttc
     4681 ctgtgtgaaa ttgttatccg ctcacaattc cacacaacat acgagccgga agcataaagt
     4741 gtaaagcctg gggtgcctaa tgagtgagct aactcacatt aattgcgttg cgctcactgc
     4801 ccgctttcca gtcgggaaac ctgtcgtgcc agctgcatta atgaatcggc caacgcgcgg
     4861 ggagaggcgg tttgcgtatt gggcgctctt ccgcttcctc gctcactgac tcgctgcgct
     4921 cggtcgttcg gctgcggcga gcggtatcag ctcactcaaa ggcggtaata cggttatcca
     4981 cagaatcagg ggataacgca ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga
     5041 accgtaaaaa ggccgcgttg ctggcgtttt tccataggct ccgcccccct gacgagcatc
     5101 acaaaaatcg acgctcaagt cagaggtggc gaaacccgac aggactataa agataccagg
     5161 cgtttccccc tggaagctcc ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat
     5221 acctgtccgc ctttctccct tcgggaagcg tggcgctttc tcatagctca cgctgtaggt
     5281 atctcagttc ggtgtaggtc gttcgctcca agctgggctg tgtgcacgaa ccccccgttc
     5341 agcccgaccg ctgcgcctta tccggtaact atcgtcttga gtccaacccg gtaagacacg
     5401 acttatcgcc actggcagca gccactggta acaggattag cagagcgagg tatgtaggcg
     5461 gtgctacaga gttcttgaag tggtggccta actacggcta cactagaaga acagtatttg
     5521 gtatctgcgc tctgctgaag ccagttacct tcggaaaaag agttggtagc tcttgatccg
     5581 gcaaacaaac caccgctggt agcggttttt ttgtttgcaa gcagcagatt acgcgcagaa
     5641 aaaaaggatc tcaagaagat cctttgatct tttctacggg gtctgacgct cagtggaacg
     5701 aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc acctagatcc
     5761 ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa acttggtctg
     5821 acagttacca atgcttaatc agtgaggcac ctatctcagc gatctgtcta tttcgttcat
     5881 ccatagttgc ctgactcccc gtcgtgtaga taactacgat acgggagggc ttaccatctg
     5941 gccccagtgc tgcaatgata ccgcgagacc cacgctcacc ggctccagat ttatcagcaa
     6001 taaaccagcc agccggaagg gccgagcgca gaagtggtcc tgcaacttta tccgcctcca
     6061 tccagtctat taattgttgc cgggaagcta gagtaagtag ttcgccagtt aatagtttgc
     6121 gcaacgttgt tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt
     6181 cattcagctc cggttcccaa cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa
     6241 aagcggttag ctccttcggt cctccgatcg ttgtcagaag taagttggcc gcagtgttat
     6301 cactcatggt tatggcagca ctgcataatt ctcttactgt catgccatcc gtaagatgct
     6361 tttctgtgac tggtgagtac tcaaccaagt cattctgaga atagtgtatg cggcgaccga
     6421 gttgctcttg cccggcgtca atacgggata ataccgcgcc acatagcaga actttaaaag
     6481 tgctcatcat tggaaaacgt tcttcggggc gaaaactctc aaggatctta ccgctgttga
     6541 gatccagttc gatgtaaccc actcgtgcac ccaactgatc ttcagcatct tttactttca
     6601 ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg
     6661 cgacacggaa atgttgaata ctcatactct tcctttttca atattattga agcatttatc
     6721 agggttattg tctcatgagc ggatacatat ttgaatgtat ttagaaaaat aaacaaatag
     6781 gggttccgcg cacatttccc cgaaaagtgc cacctgacgt c
//
