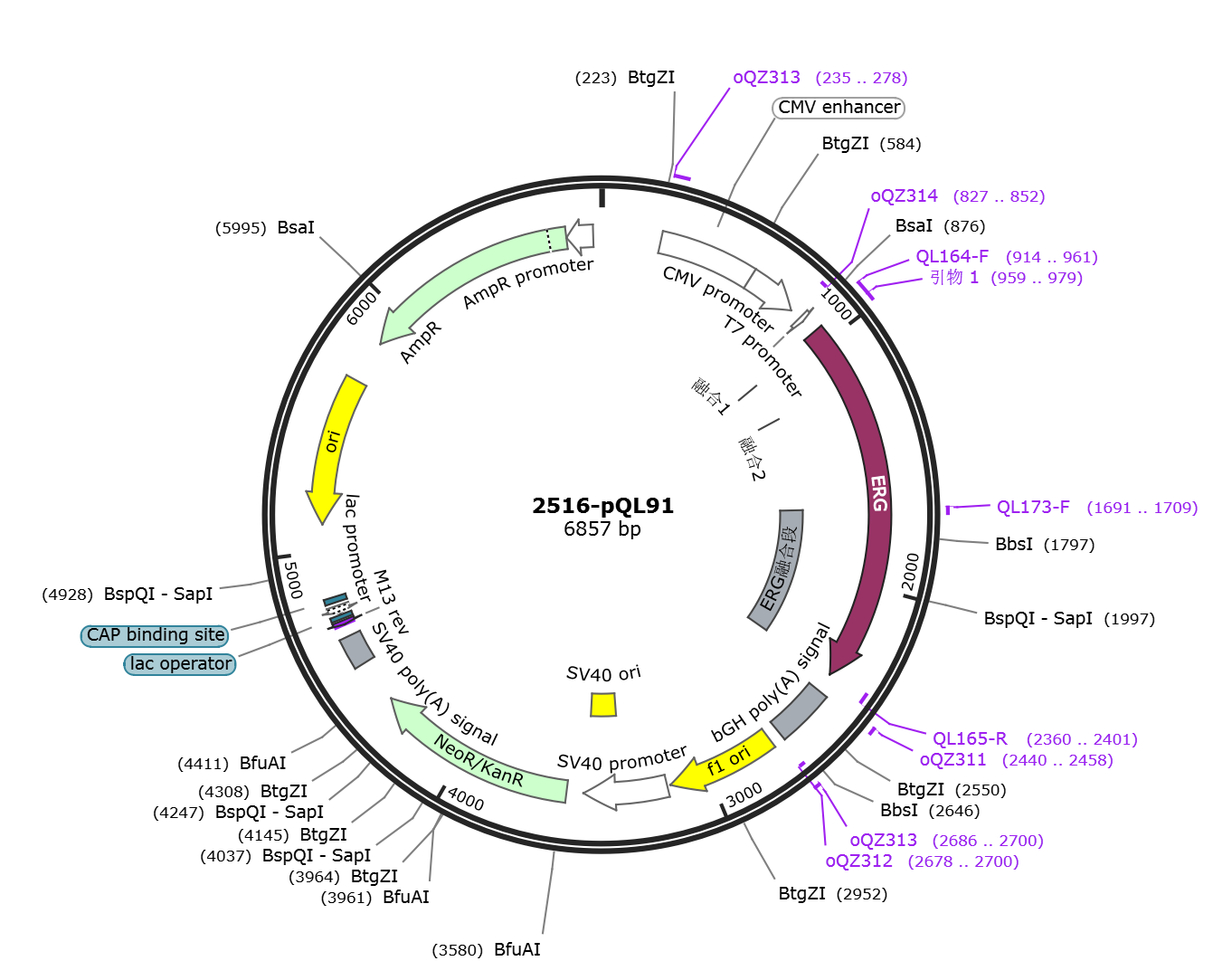

pQL91

LOCUS      pQL91             6857 bp DNA     circular SYN 04-MAY-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6857)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6857
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..961
                     /label=QL164-F
     CDS             941..2380
                     /codon_start=1
                     /label=ERG
                     /translation="MASTIKEALSVVSEDQSLFECAYGTPHLAKTEMTASSSSDYGQTS
                     KMSPRVPQQDWLSQPPARVTIKMECNPSQVNGSRNSPDECSVAKGGKMVGSPDTVGMNY
                     GSYMEEKHMPPPNMTTNERRVIVPADPTLWSTDHVRQWLEWAVKEYGLPDVNILLFQNI
                     DGKELCKMTKDDFQRLTPSYNADILLSHLHYLRETPLPHLTSDDVDKALQNSPRLMHAR
                     NTGGAAFIFPNTSVYPEATQRITTRPDLPYEPPRRSAWTGHGHPTPQSKAAQPSPSTVP
                     KTEDQRPQLDPYQILGPTSSRLANPGSGQIQLWQFLLELLSDSSNSSCITWEGTNGEFK
                     MTDPDEVARRWGERKSKPNMNYDKLSRALRYYYDKNIMTKVHGKRYAYKFDFHGIAQAL
                     QPHPPESSLYKYPSDLPYMGSYHAHPQKMNFVAPHPPALPVTSSSFFAAPNPYWNSPTG
                     GIYPNTRLPTSHMPSHLGTYY"
     primer_bind     959..979
                     /label=引物 1
     misc_feature    959..968
                     /label=融合1
     misc_feature    1177..1186
                     /label=融合2
     misc_feature    1691..2380
                     /label=ERG融合段
     primer_bind     1691..1709
                     /label=QL173-F
     primer_bind     complement(2360..2401)
                     /label=QL165-R
     primer_bind     2440..2458
                     /label=oQZ311
     polyA_signal    2457..2681
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2678..2700)
                     /label=oQZ312
     primer_bind     2686..2700
                     /label=oQZ313
     rep_origin      2727..3155
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3169..3498
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3349..3484
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3565..4359
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4533..4654
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4703..4719)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4727..4743
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4751..4781)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4796..4817
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5105..5690)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5861..6721)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6722..6826)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccgccacc atggccagca ctattaagga
      961 agccttatca gttgtgagtg aggaccagtc gttgtttgag tgtgcctacg gaacgccaca
     1021 cctggctaag acagagatga ccgcgtcctc ctccagcgac tatggacaga cttccaagat
     1081 gagcccacgc gtccctcagc aggattggct gtctcaaccc ccagccaggg tcaccatcaa
     1141 aatggaatgt aaccctagcc aggtgaatgg ctcaaggaac tctcctgatg aatgcagtgt
     1201 ggccaaaggc gggaagatgg tgggcagccc agacaccgtt gggatgaact acggcagcta
     1261 catggaggag aagcacatgc cacccccaaa catgaccacg aacgagcgca gagttatcgt
     1321 gccagcagat cctacgctat ggagtacaga ccatgtgcgg cagtggctgg agtgggcggt
     1381 gaaagaatat ggccttccag acgtcaacat cttgttattc cagaacatcg atgggaagga
     1441 actgtgcaag atgaccaagg acgacttcca gaggctcacc cccagctaca atgccgacat
     1501 ccttctctca catctccact acctcagaga gactcctctt ccacatttga cttcagatga
     1561 tgttgataaa gccttacaaa actctccacg gttaatgcat gctagaaaca cagggggtgc
     1621 agcttttatt ttcccaaata cttcagtata tcctgaagct acgcaaagaa ttacaactag
     1681 gccagattta ccatatgagc cccccaggag atcagcctgg accggtcacg gccaccccac
     1741 gccccagtcg aaagctgctc aaccatctcc ttccacagtg cccaaaactg aagaccagcg
     1801 tcctcagtta gatccttatc agattcttgg accaacaagt agccgccttg caaatccagg
     1861 cagtggccag atccagcttt ggcagttcct cctggagctc ctgtcggaca gctccaactc
     1921 cagctgcatc acctgggaag gcaccaacgg ggagttcaag atgacggatc ccgacgaggt
     1981 ggcccggcgc tggggagagc ggaagagcaa acccaacatg aactacgata agctcagccg
     2041 cgccctccgt tactactatg acaagaacat catgaccaag gtccatggga agcgctacgc
     2101 ctacaagttc gacttccacg ggatcgccca ggccctccag ccccaccccc cggagtcatc
     2161 tctgtacaag tacccctcag acctcccgta catgggctcc tatcacgccc acccacagaa
     2221 gatgaacttt gtggcgcccc accctccagc cctccccgtg acatcttcca gtttttttgc
     2281 tgccccaaac ccatactgga attcaccaac tgggggtata taccccaaca ctaggctccc
     2341 caccagccat atgccttctc atctgggcac ttactactaa gaattctgca gatatccagc
     2401 acagtggcgg ccgctcgagt ctagagggcc cgtttaaacc cgctgatcag cctcgactgt
     2461 gccttctagt tgccagccat ctgttgtttg cccctccccc gtgccttcct tgaccctgga
     2521 aggtgccact cccactgtcc tttcctaata aaatgaggaa attgcatcgc attgtctgag
     2581 taggtgtcat tctattctgg ggggtggggt ggggcaggac agcaaggggg aggattggga
     2641 agacaatagc aggcatgctg gggatgcggt gggctctatg gcttctgagg cggaaagaac
     2701 cagctggggc tctagggggt atccccacgc gccctgtagc ggcgcattaa gcgcggcggg
     2761 tgtggtggtt acgcgcagcg tgaccgctac acttgccagc gccctagcgc ccgctccttt
     2821 cgctttcttc ccttcctttc tcgccacgtt cgccggcttt ccccgtcaag ctctaaatcg
     2881 ggggctccct ttagggttcc gatttagtgc tttacggcac ctcgacccca aaaaacttga
     2941 ttagggtgat ggttcacgta gtgggccatc gccctgatag acggtttttc gccctttgac
     3001 gttggagtcc acgttcttta atagtggact cttgttccaa actggaacaa cactcaaccc
     3061 tatctcggtc tattcttttg atttataagg gattttgccg atttcggcct attggttaaa
     3121 aaatgagctg atttaacaaa aatttaacgc gaattaattc tgtggaatgt gtgtcagtta
     3181 gggtgtggaa agtccccagg ctccccagca ggcagaagta tgcaaagcat gcatctcaat
     3241 tagtcagcaa ccaggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc
     3301 atgcatctca attagtcagc aaccatagtc ccgcccctaa ctccgcccat cccgccccta
     3361 actccgccca gttccgccca ttctccgccc catggctgac taattttttt tatttatgca
     3421 gaggccgagg ccgcctctgc ctctgagcta ttccagaagt agtgaggagg cttttttgga
     3481 ggcctaggct tttgcaaaaa gctcccggga gcttgtatat ccattttcgg atctgatcaa
     3541 gagacaggat gaggatcgtt tcgcatgatt gaacaagatg gattgcacgc aggttctccg
     3601 gccgcttggg tggagaggct attcggctat gactgggcac aacagacaat cggctgctct
     3661 gatgccgccg tgttccggct gtcagcgcag gggcgcccgg ttctttttgt caagaccgac
     3721 ctgtccggtg ccctgaatga actgcaggac gaggcagcgc ggctatcgtg gctggccacg
     3781 acgggcgttc cttgcgcagc tgtgctcgac gttgtcactg aagcgggaag ggactggctg
     3841 ctattgggcg aagtgccggg gcaggatctc ctgtcatctc accttgctcc tgccgagaaa
     3901 gtatccatca tggctgatgc aatgcggcgg ctgcatacgc ttgatccggc tacctgccca
     3961 ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta ctcggatgga agccggtctt
     4021 gtcgatcagg atgatctgga cgaagagcat caggggctcg cgccagccga actgttcgcc
     4081 aggctcaagg cgcgcatgcc cgacggcgag gatctcgtcg tgacccatgg cgatgcctgc
     4141 ttgccgaata tcatggtgga aaatggccgc ttttctggat tcatcgactg tggccggctg
     4201 ggtgtggcgg accgctatca ggacatagcg ttggctaccc gtgatattgc tgaagagctt
     4261 ggcggcgaat gggctgaccg cttcctcgtg ctttacggta tcgccgctcc cgattcgcag
     4321 cgcatcgcct tctatcgcct tcttgacgag ttcttctgag cgggactctg gggttcgaaa
     4381 tgaccgacca agcgacgccc aacctgccat cacgagattt cgattccacc gccgccttct
     4441 atgaaaggtt gggcttcgga atcgttttcc gggacgccgg ctggatgatc ctccagcgcg
     4501 gggatctcat gctggagttc ttcgcccacc ccaacttgtt tattgcagct tataatggtt
     4561 acaaataaag caatagcatc acaaatttca caaataaagc atttttttca ctgcattcta
     4621 gttgtggttt gtccaaactc atcaatgtat cttatcatgt ctgtataccg tcgacctcta
     4681 gctagagctt ggcgtaatca tggtcatagc tgtttcctgt gtgaaattgt tatccgctca
     4741 caattccaca caacatacga gccggaagca taaagtgtaa agcctggggt gcctaatgag
     4801 tgagctaact cacattaatt gcgttgcgct cactgcccgc tttccagtcg ggaaacctgt
     4861 cgtgccagct gcattaatga atcggccaac gcgcggggag aggcggtttg cgtattgggc
     4921 gctcttccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg cggcgagcgg
     4981 tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat aacgcaggaa
     5041 agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg
     5101 cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga
     5161 ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga agctccctcg
     5221 tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt ctcccttcgg
     5281 gaagcgtggc gctttctcat agctcacgct gtaggtatct cagttcggtg taggtcgttc
     5341 gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc gccttatccg
     5401 gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg gcagcagcca
     5461 ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc ttgaagtggt
     5521 ggcctaacta cggctacact agaagaacag tatttggtat ctgcgctctg ctgaagccag
     5581 ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc gctggtagcg
     5641 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
     5701 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
     5761 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
     5821 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
     5881 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
     5941 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
     6001 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
     6061 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
     6121 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
     6181 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
     6241 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
     6301 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
     6361 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
     6421 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
     6481 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
     6541 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
     6601 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
     6661 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
     6721 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
     6781 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
     6841 aagtgccacc tgacgtc
//
