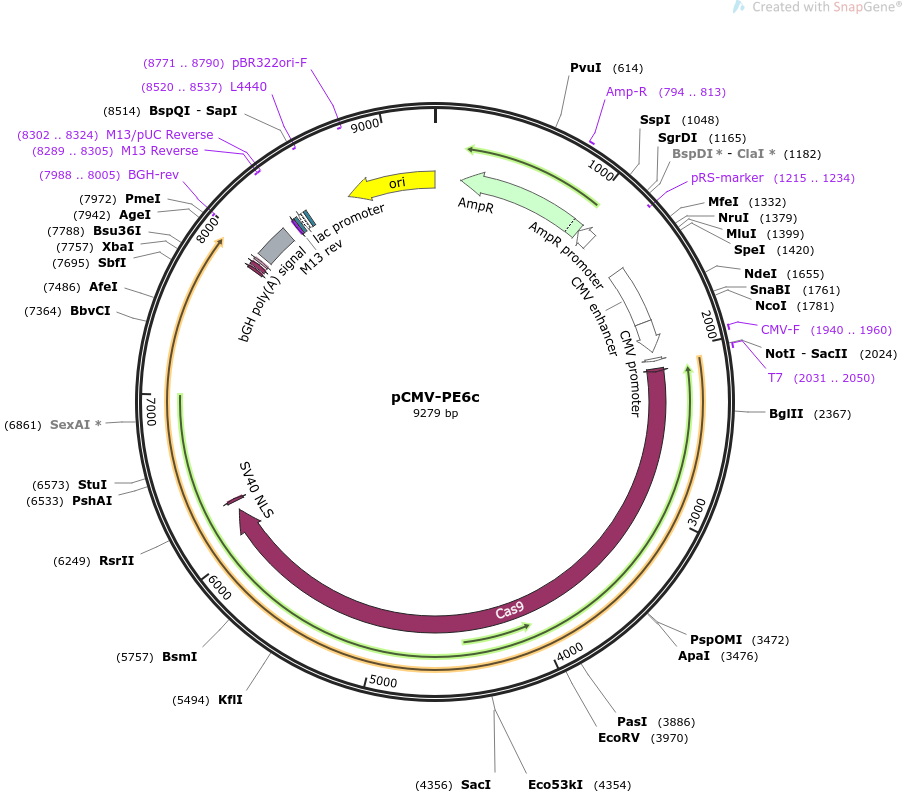

pCMV-PE6c

LOCUS       pCMV-PE6c                9279 bp ds-DNA     circular SYN 19-SEP-2023
DEFINITION  Mammalian expression of PE6c prime editor.
ACCESSION   .
VERSION     .
KEYWORDS    pCMV-PE6c
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9279)
  AUTHORS   Doman JL, Pandey S, Neugebauer ME, An M, Davis JR, Randolph PB,
            McElroy A, Gao XD, Raguram A, Richter MF, Everette KA, Banskota S,
            Tian K, Tao YA, Tolar J, Osborn MJ, Liu DR
  TITLE     Phage-assisted evolution and protein engineering yield compact,
            efficient prime editors.
  JOURNAL   Cell. 2023 Aug 31;186(18):3983-4002.e26. doi:
            10.1016/j.cell.2023.07.039.
  PUBMED    37657419
REFERENCE   2  (bases 1 to 9279)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 19, 2023 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..9279
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     CDS             complement(171..1031)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     794..813
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(1032..1136)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(1215..1234)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        1406..1785
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        1786..1989
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     1940..1960
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     2031..2050
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        2031..2049
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             2099..2119
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             2120..6220
                     /codon_start=1
                     /product="Cas9 (Csn1) endonuclease from the Streptococcus
                     pyogenes Type II CRISPR/Cas system"
                     /label=Cas9
                     /note="generates RNA-guided double strand breaks in DNA"
                     /translation="DKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN
                     LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF
                     LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF
                     RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRKLE
                     NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI
                     GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ
                     QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLKREDLLR
                     KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN
                     SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF
                     TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS
                     VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL
                     KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ
                     LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH
                     KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL
                     YYLQNGRDMYVDQELDINRLSDYDVDAIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPS
                     EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV
                     AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN
                     AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE
                     SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT
                     IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL
                     ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA
                     NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD
                     ATLIHQSITGLYETRIDLSQLGGD"
     CDS             6278..6298
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             7883..7903
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             7913..7939
                     /codon_start=1
                     /product="nuclear localization signal of human c-Myc
                     proto-oncogene (Dang and Lee, 1988)"
                     /label=c-myc NLS
                     /translation="PAAKRVKLD"
     CDS             7948..7965
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     primer_bind     complement(7988..8005)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    7994..8218
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(8289..8305)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(8289..8305)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(8302..8324)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    8313..8329
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(8337..8367)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    8382..8403
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(8520..8537)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(8691..9279)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(8771..8790)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 gaagatcctt tgatcttttc tacggggtct gacactcagt ggaacgaaaa ctcacgttaa
       61 gggattttgg tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa
      121 tgaagtttta aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc
      181 ttaatcagtg aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga
      241 ctccccgtcg tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca
      301 atgataccgc gagaaccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc
      361 ggaagggccg agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat
      421 tgttgccggg aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc
      481 attgctacag gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt
      541 tcccaacgat caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc
      601 ttcggtcctc cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg
      661 gcagcactgc ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt
      721 gagtactcaa ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg
      781 gcgtcaatac gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga
      841 aaacgttctt cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg
      901 taacccactc gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg
      961 tgagcaaaaa caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt
     1021 tgaatactca tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc
     1081 atgagcggat acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca
     1141 tttccccgaa aagtgccacc tgacgtcgac ggatcgggag atcgatctcc cgatccccta
     1201 gggtcgactc tcagtacaat ctgctctgat gccgcatagt taagccagta tctgctccct
     1261 gcttgtgtgt tggaggtcgc tgagtagtgc gcgagcaaaa tttaagctac aacaaggcaa
     1321 ggcttgaccg acaattgcat gaagaatctg cttagggtta ggcgttttgc gctgcttcgc
     1381 gatgtacggg ccagatatac gcgttgacat tgattattga ctagttatta atagtaatca
     1441 attacggggt cattagttca tagcccatat atggagttcc gcgttacata acttacggta
     1501 aatggcccgc ctggctgacc gcccaacgac ccccgcccat tgacgtcaat aatgacgtat
     1561 gttcccatag taacgccaat agggactttc cattgacgtc aatgggtgga gtatttacgg
     1621 taaactgccc acttggcagt acatcaagtg tatcatatgc caagtacgcc ccctattgac
     1681 gtcaatgacg gtaaatggcc cgcctggcat tatgcccagt acatgacctt atgggacttt
     1741 cctacttggc agtacatcta cgtattagtc atcgctatta ccatggtgat gcggttttgg
     1801 cagtacatca atgggcgtgg atagcggttt gactcacggg gatttccaag tctccacccc
     1861 attgacgtca atgggagttt gttttggcac caaaatcaac gggactttcc aaaatgtcgt
     1921 aacaactccg ccccattgac gcaaatgggc ggtaggcgtg tacggtggga ggtctatata
     1981 agcagagctg gtttagtgaa ccgtcagatc cgctagagat ccgcggccgc taatacgact
     2041 cactataggg agagccgcca ccatgaaacg gacagccgac ggaagcgagt tcgagtcacc
     2101 aaagaagaag cggaaagtcg acaagaagta cagcatcggc ctggacatcg gcaccaactc
     2161 tgtgggctgg gccgtgatca ccgacgagta caaggtgccc agcaagaaat tcaaggtgct
     2221 gggcaacacc gaccggcaca gcatcaagaa gaacctgatc ggagccctgc tgttcgacag
     2281 cggcgaaaca gccgaggcca cccggctgaa gagaaccgcc agaagaagat acaccagacg
     2341 gaagaaccgg atctgctatc tgcaagagat cttcagcaac gagatggcca aggtggacga
     2401 cagcttcttc cacagactgg aagagtcctt cctggtggaa gaggataaga agcacgagcg
     2461 gcaccccatc ttcggcaaca tcgtggacga ggtggcctac cacgagaagt accccaccat
     2521 ctaccacctg agaaagaaac tggtggacag caccgacaag gccgacctgc ggctgatcta
     2581 tctggccctg gcccacatga tcaagttccg gggccacttc ctgatcgagg gcgacctgaa
     2641 ccccgacaac agcgacgtgg acaagctgtt catccagctg gtgcagacct acaaccagct
     2701 gttcgaggaa aaccccatca acgccagcgg cgtggacgcc aaggccatcc tgtctgccag
     2761 actgagcaag agcagaaagc tggaaaatct gatcgcccag ctgcccggcg agaagaagaa
     2821 tggcctgttc ggaaacctga ttgccctgag cctgggcctg acccccaact tcaagagcaa
     2881 cttcgacctg gccgaggatg ccaaactgca gctgagcaag gacacctacg acgacgacct
     2941 ggacaacctg ctggcccaga tcggcgacca gtacgccgac ctgtttctgg ccgccaagaa
     3001 cctgtccgac gccatcctgc tgagcgacat cctgagagtg aacaccgaga tcaccaaggc
     3061 ccccctgagc gcctctatga tcaagagata cgacgagcac caccaggacc tgaccctgct
     3121 gaaagctctc gtgcggcagc agctgcctga gaagtacaaa gagattttct tcgaccagag
     3181 caagaacggc tacgccggct acattgacgg cggagccagc caggaagagt tctacaagtt
     3241 catcaagccc atcctggaaa agatggacgg caccgaggaa ctgctcgtga agctgaagag
     3301 agaggacctg ctgcggaagc agcggacctt cgacaacggc agcatccccc accagatcca
     3361 cctgggagag ctgcacgcca ttctgcggcg gcaggaagat ttttacccat tcctgaagga
     3421 caaccgggaa aagatcgaga agatcctgac cttccgcatc ccctactacg tgggccctct
     3481 ggccagggga aacagcagat tcgcctggat gaccagaaag agcgaggaaa ccatcacccc
     3541 ctggaacttc gaggaagtgg tggacaaggg cgcttccgcc cagagcttca tcgagcggat
     3601 gaccaacttc gataagaacc tgcccaacga gaaggtgctg cccaagcaca gcctgctgta
     3661 cgagtacttc accgtgtata acgagctgac caaagtgaaa tacgtgaccg agggaatgag
     3721 aaagcccgcc ttcctgagcg gcgagcagaa aaaggccatc gtggacctgc tgttcaagac
     3781 caaccggaaa gtgaccgtga agcagctgaa agaggactac ttcaagaaaa tcgagtgctt
     3841 cgactccgtg gaaatctccg gcgtggaaga tcggttcaac gcctccctgg gcacatacca
     3901 cgatctgctg aaaattatca aggacaagga cttcctggac aatgaggaaa acgaggacat
     3961 tctggaagat atcgtgctga ccctgacact gtttgaggac agagagatga tcgaggaacg
     4021 gctgaaaacc tatgcccacc tgttcgacga caaagtgatg aagcagctga agcggcggag
     4081 atacaccggc tggggcaggc tgagccggaa gctgatcaac ggcatccggg acaagcagtc
     4141 cggcaagaca atcctggatt tcctgaagtc cgacggcttc gccaacagaa acttcatgca
     4201 gctgatccac gacgacagcc tgacctttaa agaggacatc cagaaagccc aggtgtccgg
     4261 ccagggcgat agcctgcacg agcacattgc caatctggcc ggcagccccg ccattaagaa
     4321 gggcatcctg cagacagtga aggtggtgga cgagctcgtg aaagtgatgg gccggcacaa
     4381 gcccgagaac atcgtgatcg aaatggccag agagaaccag accacccaga agggacagaa
     4441 gaacagccgc gagagaatga agcggatcga agagggcatc aaagagctgg gcagccagat
     4501 cctgaaagaa caccccgtgg aaaacaccca gctgcagaac gagaagctgt acctgtacta
     4561 cctgcagaat gggcgggata tgtacgtgga ccaggaactg gacatcaacc ggctgtccga
     4621 ctacgatgtg gacgctatcg tgcctcagag ctttctgaag gacgactcca tcgacaacaa
     4681 ggtgctgacc agaagcgaca agaaccgggg caagagcgac aacgtgccct ccgaagaggt
     4741 cgtgaagaag atgaagaact actggcggca gctgctgaac gccaagctga ttacccagag
     4801 aaagttcgac aatctgacca aggccgagag aggcggcctg agcgaactgg ataaggccgg
     4861 cttcatcaag agacagctgg tggaaacccg gcagatcaca aagcacgtgg cacagatcct
     4921 ggactcccgg atgaacacta agtacgacga gaatgacaag ctgatccggg aagtgaaagt
     4981 gatcaccctg aagtccaagc tggtgtccga tttccggaag gatttccagt tttacaaagt
     5041 gcgcgagatc aacaactacc accacgccca cgacgcctac ctgaacgccg tcgtgggaac
     5101 cgccctgatc aaaaagtacc ctaagctgga aagcgagttc gtgtacggcg actacaaggt
     5161 gtacgacgtg cggaagatga tcgccaagag cgagcaggaa atcggcaagg ctaccgccaa
     5221 gtacttcttc tacagcaaca tcatgaactt tttcaagacc gagattaccc tggccaacgg
     5281 cgagatccgg aagcggcctc tgatcgagac aaacggcgaa accggggaga tcgtgtggga
     5341 taagggccgg gattttgcca ccgtgcggaa agtgctgagc atgccccaag tgaatatcgt
     5401 gaaaaagacc gaggtgcaga caggcggctt cagcaaagag tctatcctgc ccaagaggaa
     5461 cagcgataag ctgatcgcca gaaagaagga ctgggaccct aagaagtacg gcggcttcga
     5521 cagccccacc gtggcctatt ctgtgctggt ggtggccaaa gtggaaaagg gcaagtccaa
     5581 gaaactgaag agtgtgaaag agctgctggg gatcaccatc atggaaagaa gcagcttcga
     5641 gaagaatccc atcgactttc tggaagccaa gggctacaaa gaagtgaaaa aggacctgat
     5701 catcaagctg cctaagtact ccctgttcga gctggaaaac ggccggaaga gaatgctggc
     5761 ctctgccggc gaactgcaga agggaaacga actggccctg ccctccaaat atgtgaactt
     5821 cctgtacctg gccagccact atgagaagct gaagggctcc cccgaggata atgagcagaa
     5881 acagctgttt gtggaacagc acaagcacta cctggacgag atcatcgagc agatcagcga
     5941 gttctccaag agagtgatcc tggccgacgc taatctggac aaagtgctgt ccgcctacaa
     6001 caagcaccgg gataagccca tcagagagca ggccgagaat atcatccacc tgtttaccct
     6061 gaccaatctg ggagcccctg ccgccttcaa gtactttgac accaccatcg accggaagag
     6121 gtacaccagc accaaagagg tgctggacgc caccctgatc caccagagca tcaccggcct
     6181 gtacgagaca cggatcgacc tgtctcagct gggaggtgac tccggcggaa gctctggtgg
     6241 cagcaagcgg accgccgacg gctctgaatt cgagagccct aagaagaaaa gaaaggtgag
     6301 cggaggctct agcggcggaa gcatcagcag ctctaagcac accctgagcc agatgaacaa
     6361 ggtgagcaac atcgtgaagg aacccgagct gcccgacatc tacaaggaat ttaaggacat
     6421 caccgccgac accaataccg agaagctgcc taagcctatt aagggcctgg aatttgaagt
     6481 ggaactgaca caggagaact acagactgcc tatccggaac tatcctctga ctccagtcaa
     6541 gatgcaggcc atgaacgacg agatcaatca aggcctgaaa ggcggcatca tcagagagag
     6601 caaggccatc aacgcctgcc ctgttatatt cgtgcccaga aaggaaggca cactgcgcat
     6661 ggtggtcgac tacaggcccc tgaacaagta cgtgaagccc aacgtctacc ccctgccact
     6721 gattgaacaa ctgctggcca agatccaggg cagcaccatt ttcaccaagc tggacctgaa
     6781 aagcgcctac caccagatca gagtgcgaaa gggagatgag cacaagctgg ccttccggtg
     6841 ccccagagga gtcttcgagt acctggtgat gccttacggc atcaagacag cccctgccca
     6901 ctttcagtac ttcatcaaca caatcctggg cgaggccaag gaaagccacg tggtgtgcta
     6961 catggacgac atcctgatcc attccaagtc cgagtccgaa cacgtgaaac atgtgaagga
     7021 cgtgctgcaa aagctgaaga acgctaatct gatcatcaac caggccaaat gcgagtttca
     7081 ccagagccaa gtgaagttcc tgggctacca catcagcgag aagggcttaa ccccatgtca
     7141 ggagaacatc gacaaggtgc tgcagtggaa acagcctaaa aaccagaagg aactgagaca
     7201 gttcctgggc caggtgaact acctgagaaa attcatcccc aaaaccagcc agttgaccca
     7261 ccctctgaac aaactcctga aaaaggatgt cagatggaaa tggaccccta cccagaccca
     7321 ggctatcgag aatatcaagc aatgtctggt gtctcctcct gtgctgaggc acttcgactt
     7381 cagcaagaag atcctgcttg agacagacgt ttctgatgtg gccgtgggag ccgtgctgag
     7441 ccagaagcat gatgatgata agtactaccc tgtgggctat tacagcgcta aaatgagcaa
     7501 agcccagctg aattattctg tgtccgacaa ggagatgctg gctatcatca aaagcctgga
     7561 gcactggcgg cactacctgg aatctacaat cgagcccttc aagatcctga ccgaccacag
     7621 aaacctgatt ggaagaatca caaacgagag cgaaccagag aacaagcggc tggccagatg
     7681 gcagctgttc ctgcaggact tcaacttcga gatcaactac agacctggct ctgcaaatca
     7741 catcgccgat gccctgtcta gaatcgtgga cgagactgag cctatcccta aggacaacga
     7801 agataacagc atcaacttcg tgaaccagat cagcatctct ggcggctcaa aaagaaccgc
     7861 cgacggcagc gaattcgagt ctcccaagaa gaagaggaaa gtcggctctg gccctgccgc
     7921 taagagagtg aagctggact aaccggtcat catcaccatc accattgagt ttaaacccgc
     7981 tgatcagcct cgactgtgcc ttctagttgc cagccatctg ttgtttgccc ctcccccgtg
     8041 ccttccttga ccctggaagg tgccactccc actgtccttt cctaataaaa tgagaaaatt
     8101 gcatcgcatt gtctgagtag gtgtcattct attctggggg gtggggtggg gcaggacagc
     8161 aagggggagg attgggaaga caatagcagg catgctgggg atgcggtggg ctctatggct
     8221 tctgaggcgg aaagaaccag ctggggctcg ataccgtcga cctctagcta gagcttggcg
     8281 taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac
     8341 atacgagccg gaagcataaa gtgtaaagcc tagggtgcct aatgagtgag ctaactcaca
     8401 ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat
     8461 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc
     8521 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca
     8581 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     8641 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     8701 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     8761 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     8821 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     8881 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     8941 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     9001 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     9061 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     9121 tacactagaa gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     9181 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt
     9241 tgcaagcagc agattacgcg cagaaaaaaa ggatctcaa
//
