| 质粒名称: | pET28a-mKate2 |
|---|---|
| 出品公司: | Wekwikgene |
| 目录编号: | 0001812 |
| 产品用途: | Expression of tr-FP in E. coli |
| 存储实验室: | Xin Zhang Lab |
|
载体骨架基本信息 |
|
| 载体名称: | pET28a |
| 表达系统: | 细菌表达 |
| 启动子: | T7 |
| 拷贝数: | 低拷贝 |
| 载体抗性: | 卡那霉素 |
| 生长温度: | 37 ℃ |
| 宿主菌: | Stbl3 |
|
插入基因信息 |
|
| 插入基因名称: | mKate2 |
| 物种来源: | synthetic |
| 密码子优化: | 未优化 |
|
文献引用方法 |
|
| 参考文献部分: |
Time-resolved fluorescent proteins expand fluorescent microscopy in temporal and spectral domains.
Tan Z., Hsiung C-H., Feng J., Zhang Y., Wan Y., Chen J., Sun K., Lu P., Zang J., Yang W., Gao Y., Yin J., Zhu T., Lu Y., Pan Z., Zou Y., Liao C., Li X., Ye Y., Liu Y., Zhang X.
Cell 0, (2025)
|
买家导航
pET28a-mKate2载体质粒基本信息

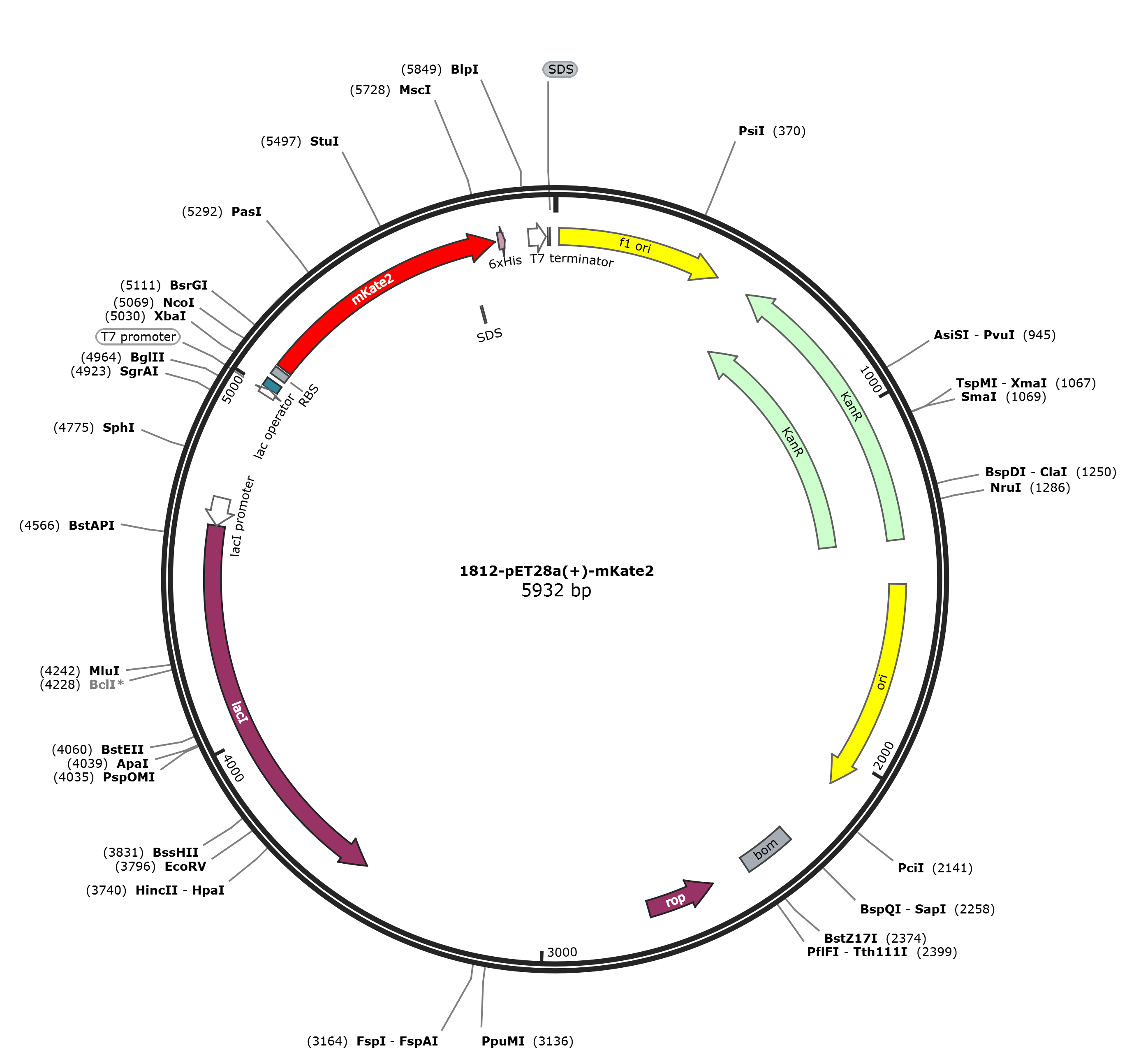

pET28a-mKate2质粒图谱载体图谱和pET28a-mKate2载体序列质粒序列多克隆位点信息
pET28a-mKate2质粒载体简介
pET28a-mKate2质粒序列载体序列
LOCUS pET28a-mKate2 5932 bp DNA circular SYN 28-JUL-2025
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS .
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 5932)
AUTHORS Stavrini Papadaki
TITLE Direct Submission
JOURNAL Exported Apr 20, 2026 from SnapGene 6.0.2
https://www.biofeng.com
FEATURES Location/Qualifiers
source 1..5932
/mol_type="other DNA"
/organism="synthetic DNA construct"
rep_origin 12..467
/direction=RIGHT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
CDS complement(560..1375)
/codon_start=1
/gene="aph(3')-Ia"
/product="aminoglycoside phosphotransferase"
/label=KanR
/note="confers resistance to kanamycin in bacteria or G418
(Geneticin(R)) in eukaryotes"
/translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG
KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDA
SDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI
ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
CDS complement(560..1375)
/codon_start=1
/product="aminoglycoside phosphotransferase"
/label=KanR
/note="confers resistance to kanamycin in bacteria or G418
(Geneticin(R)) in eukaryotes"
/translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG
KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDA
SDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI
ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
rep_origin 1497..2085
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
misc_feature 2271..2413
/label=bom
/note="basis of mobility region from pBR322"
CDS complement(2515..2706)
/codon_start=1
/gene="rop"
/product="Rop protein, which maintains plasmids at low copy
number"
/label=rop
/translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
DELYRSCLARFGDDGENL"
CDS complement(3515..4597)
/codon_start=1
/gene="lacI"
/product="lac repressor"
/label=lacI
/note="The lac repressor binds to the lac operator to
inhibit transcription in E. coli. This inhibition can be
relieved by adding lactose or
isopropyl-beta-D-thiogalactopyranoside (IPTG)."
/translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
ALADSLMQLARQVSRLESGQ"
promoter complement(4598..4675)
/gene="lacI"
/label=lacI promoter
promoter 4984..5002
/label=T7 promoter
/note="promoter for bacteriophage T7 RNA polymerase"
protein_bind 5003..5027
/label=lac operator
/bound_moiety="lac repressor encoded by lacI"
/note="The lac repressor binds to the lac operator to
inhibit transcription in E. coli. This inhibition can be
relieved by adding lactose or
isopropyl-beta-D-thiogalactopyranoside (IPTG)."
RBS 5042..5064
/note="efficient ribosome binding site from bacteriophage
T7 gene 10 (Olins and Rangwala, 1989)"
CDS 5071..5766
/codon_start=1
/product="monomeric far-red fluorescent protein (Shcherbo
et al., 2009)"
/label=mKate2
/note="mammalian codon-optimized"
/translation="MVSELIKENMHMKLYMEGTVNNHHFKCTSEGEGKPYEGTQTMRIK
AVEGGPLPFAFDILATSFMYGSKTFINHTQGIPDFFKQSFPEGFTWERVTTYEDGGVLT
ATQDTSLQDGCLIYNVKIRGVNFPSNGPVMQKKTLGWEASTETLYPADGGLEGRADMAL
KLVGGGHLICNLKTTYRSKKPAKNLKMPGVYYVDRRLERIKEADKETYVEQHEVAVARY
CDLPSKLGHR"
misc_feature 5681..5686
/label=SDS
CDS 5776..5793
/codon_start=1
/product="6xHis affinity tag"
/label=6xHis
/translation="HHHHHH"
terminator 5860..5907
/label=T7 terminator
/note="transcription terminator for bacteriophage T7 RNA
polymerase"
misc_feature 5913..5918
/label=SDS
ORIGIN
1 tggcgaatgg gacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg
61 cagcgtgacc gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc
121 ctttctcgcc acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg
181 gttccgattt agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc
241 acgtagtggg ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt
301 ctttaatagt ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc
361 ttttgattta taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta
421 acaaaaattt aacgcgaatt ttaacaaaat attaacgttt acaatttcag gtggcacttt
481 tcggggaaat gtgcgcggaa cccctatttg tttatttttc taaatacatt caaatatgta
541 tccgctcatg aattaattct tagaaaaact catcgagcat caaatgaaac tgcaatttat
601 tcatatcagg attatcaata ccatattttt gaaaaagccg tttctgtaat gaaggagaaa
661 actcaccgag gcagttccat aggatggcaa gatcctggta tcggtctgcg attccgactc
721 gtccaacatc aatacaacct attaatttcc cctcgtcaaa aataaggtta tcaagtgaga
781 aatcaccatg agtgacgact gaatccggtg agaatggcaa aagtttatgc atttctttcc
841 agacttgttc aacaggccag ccattacgct cgtcatcaaa atcactcgca tcaaccaaac
901 cgttattcat tcgtgattgc gcctgagcga gacgaaatac gcgatcgctg ttaaaaggac
961 aattacaaac aggaatcgaa tgcaaccggc gcaggaacac tgccagcgca tcaacaatat
1021 tttcacctga atcaggatat tcttctaata cctggaatgc tgttttcccg gggatcgcag
1081 tggtgagtaa ccatgcatca tcaggagtac ggataaaatg cttgatggtc ggaagaggca
1141 taaattccgt cagccagttt agtctgacca tctcatctgt aacatcattg gcaacgctac
1201 ctttgccatg tttcagaaac aactctggcg catcgggctt cccatacaat cgatagattg
1261 tcgcacctga ttgcccgaca ttatcgcgag cccatttata cccatataaa tcagcatcca
1321 tgttggaatt taatcgcggc ctagagcaag acgtttcccg ttgaatatgg ctcataacac
1381 cccttgtatt actgtttatg taagcagaca gttttattgt tcatgaccaa aatcccttaa
1441 cgtgagtttt cgttccactg agcgtcagac cccgtagaaa agatcaaagg atcttcttga
1501 gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg
1561 gtggtttgtt tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc
1621 agagcgcaga taccaaatac tgtccttcta gtgtagccgt agttaggcca ccacttcaag
1681 aactctgtag caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc
1741 agtggcgata agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg
1801 cagcggtcgg gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac
1861 accgaactga gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga
1921 aaggcggaca ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt
1981 ccagggggaa acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag
2041 cgtcgatttt tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg
2101 gcctttttac ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta
2161 tcccctgatt ctgtggataa ccgtattacc gcctttgagt gagctgatac cgctcgccgc
2221 agccgaacga ccgagcgcag cgagtcagtg agcgaggaag cggaagagcg cctgatgcgg
2281 tattttctcc ttacgcatct gtgcggtatt tcacaccgca tatatggtgc actctcagta
2341 caatctgctc tgatgccgca tagttaagcc agtatacact ccgctatcgc tacgtgactg
2401 ggtcatggct gcgccccgac acccgccaac acccgctgac gcgccctgac gggcttgtct
2461 gctcccggca tccgcttaca gacaagctgt gaccgtctcc gggagctgca tgtgtcagag
2521 gttttcaccg tcatcaccga aacgcgcgag gcagctgcgg taaagctcat cagcgtggtc
2581 gtgaagcgat tcacagatgt ctgcctgttc atccgcgtcc agctcgttga gtttctccag
2641 aagcgttaat gtctggcttc tgataaagcg ggccatgtta agggcggttt tttcctgttt
2701 ggtcactgat gcctccgtgt aagggggatt tctgttcatg ggggtaatga taccgatgaa
2761 acgagagagg atgctcacga tacgggttac tgatgatgaa catgcccggt tactggaacg
2821 ttgtgagggt aaacaactgg cggtatggat gcggcgggac cagagaaaaa tcactcaggg
2881 tcaatgccag cgcttcgtta atacagatgt aggtgttcca cagggtagcc agcagcatcc
2941 tgcgatgcag atccggaaca taatggtgca gggcgctgac ttccgcgttt ccagacttta
3001 cgaaacacgg aaaccgaaga ccattcatgt tgttgctcag gtcgcagacg ttttgcagca
3061 gcagtcgctt cacgttcgct cgcgtatcgg tgattcattc tgctaaccag taaggcaacc
3121 ccgccagcct agccgggtcc tcaacgacag gagcacgatc atgcgcaccc gtggggccgc
3181 catgccggcg ataatggcct gcttctcgcc gaaacgtttg gtggcgggac cagtgacgaa
3241 ggcttgagcg agggcgtgca agattccgaa taccgcaagc gacaggccga tcatcgtcgc
3301 gctccagcga aagcggtcct cgccgaaaat gacccagagc gctgccggca cctgtcctac
3361 gagttgcatg ataaagaaga cagtcataag tgcggcgacg atagtcatgc cccgcgccca
3421 ccggaaggag ctgactgggt tgaaggctct caagggcatc ggtcgagatc ccggtgccta
3481 atgagtgagc taacttacat taattgcgtt gcgctcactg cccgctttcc agtcgggaaa
3541 cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat
3601 tgggcgccag ggtggttttt cttttcacca gtgagacggg caacagctga ttgcccttca
3661 ccgcctggcc ctgagagagt tgcagcaagc ggtccacgct ggtttgcccc agcaggcgaa
3721 aatcctgttt gatggtggtt aacggcggga tataacatga gctgtcttcg gtatcgtcgt
3781 atcccactac cgagatatcc gcaccaacgc gcagcccgga ctcggtaatg gcgcgcattg
3841 cgcccagcgc catctgatcg ttggcaacca gcatcgcagt gggaacgatg ccctcattca
3901 gcatttgcat ggtttgttga aaaccggaca tggcactcca gtcgccttcc cgttccgcta
3961 tcggctgaat ttgattgcga gtgagatatt tatgccagcc agccagacgc agacgcgccg
4021 agacagaact taatgggccc gctaacagcg cgatttgctg gtgacccaat gcgaccagat
4081 gctccacgcc cagtcgcgta ccgtcttcat gggagaaaat aatactgttg atgggtgtct
4141 ggtcagagac atcaagaaat aacgccggaa cattagtgca ggcagcttcc acagcaatgg
4201 catcctggtc atccagcgga tagttaatga tcagcccact gacgcgttgc gcgagaagat
4261 tgtgcaccgc cgctttacag gcttcgacgc cgcttcgttc taccatcgac accaccacgc
4321 tggcacccag ttgatcggcg cgagatttaa tcgccgcgac aatttgcgac ggcgcgtgca
4381 gggccagact ggaggtggca acgccaatca gcaacgactg tttgcccgcc agttgttgtg
4441 ccacgcggtt gggaatgtaa ttcagctccg ccatcgccgc ttccactttt tcccgcgttt
4501 tcgcagaaac gtggctggcc tggttcacca cgcgggaaac ggtctgataa gagacaccgg
4561 catactctgc gacatcgtat aacgttactg gtttcacatt caccaccctg aattgactct
4621 cttccgggcg ctatcatgcc ataccgcgaa aggttttgcg ccattcgatg gtgtccggga
4681 tctcgacgct ctcccttatg cgactcctgc attaggaagc agcccagtag taggttgagg
4741 ccgttgagca ccgccgccgc aaggaatggt gcatgcaagg agatggcgcc caacagtccc
4801 ccggccacgg ggcctgccac catacccacg ccgaaacaag cgctcatgag cccgaagtgg
4861 cgagcccgat cttccccatc ggtgatgtcg gcgatatagg cgccagcaac cgcacctgtg
4921 gcgccggtga tgccggccac gatgcgtccg gcgtagagga tcgagatctc gatcccgcga
4981 aattaatacg actcactata ggggaattgt gagcggataa caattcccct ctagaaataa
5041 ttttgtttaa ctttaagaag gagatatacc atggtgagcg agctgattaa ggagaacatg
5101 cacatgaagc tgtacatgga gggcaccgtg aacaaccacc acttcaagtg cacatccgag
5161 ggcgaaggca agccctacga gggcacccag accatgagaa tcaaggcggt cgagggcggc
5221 cctctcccct tcgccttcga catcctggct accagcttca tgtacggcag caaaaccttc
5281 atcaaccaca cccagggcat ccccgacttc tttaagcagt ccttccccga gggcttcaca
5341 tgggagagag tcaccacata cgaagacggg ggcgtgctga ccgctaccca ggacaccagc
5401 ctccaggacg gctgcctcat ctacaacgtc aagatcagag gggtgaactt cccatccaac
5461 ggccctgtga tgcagaagaa aacactcggc tgggaggcct ccaccgagac cctgtacccc
5521 gctgacggcg gcctggaagg cagagccgac atggccctga agctcgtggg cgggggccac
5581 ctgatctgca acttgaagac cacatacaga tccaagaaac ccgctaagaa cctcaagatg
5641 cccggcgtct actatgtgga cagaagactg gaaagaatca aggaggccga caaagagacc
5701 tacgtcgagc agcacgaggt ggctgtggcc agatactgcg acctccctag caaactgggg
5761 cacagaagca gtagccacca ccaccaccac cactgagatc cggctgctaa caaagcccga
5821 aaggaagctg agttggctgc tgccaccgct gagcaataac tagcataacc ccttggggcc
5881 tctaaacggg tcttgagggg ttttttgctg aaaggaggaa ctatatccgg at
//
pET28a-mKate2载体图谱质粒图谱pdf版和pET28a-mKate2载体序列质粒序列等相关资料下载
pET28a-mKate2质粒载体应用举例
- 上一篇：pET28a-mKate2-S144T
- 下一篇：没有了
