PL-SIN-PGK-EGFP

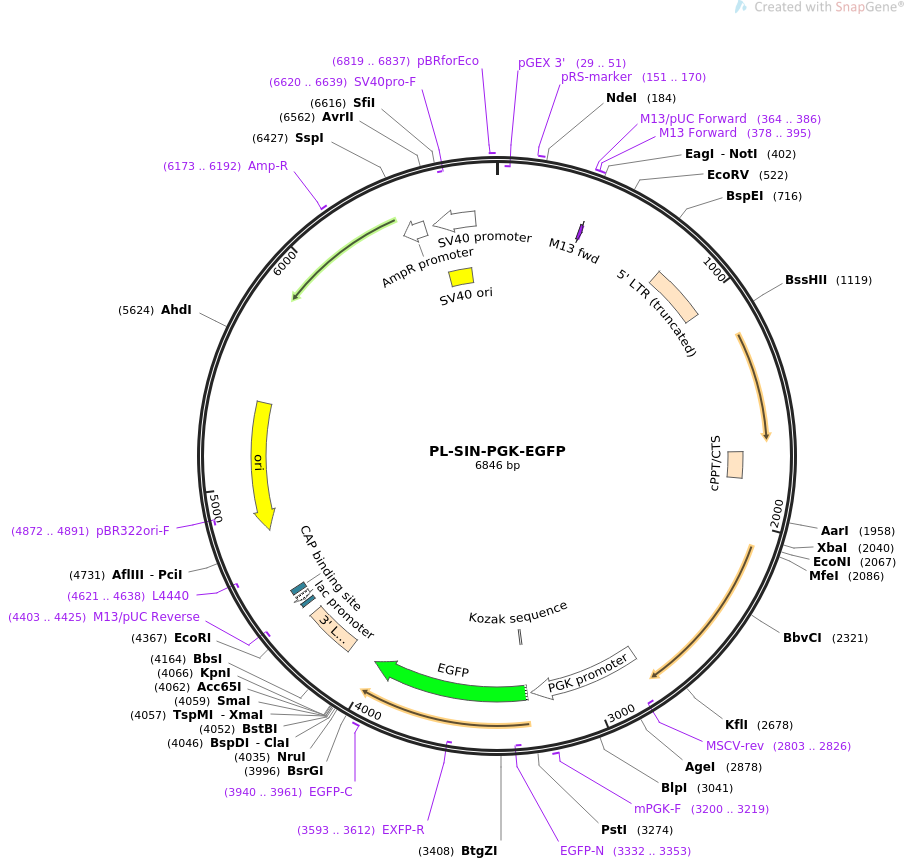

LOCUS       PL-SIN-PGK-EGFP              6846 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  Control Lentiviral vector with ubiquitous PGK promoter, expresses
            EGFP.
ACCESSION   .
VERSION     .
KEYWORDS    PL-SIN-PGK-EGFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6846)
  AUTHORS   Hotta A, Cheung AY, Farra N, Vijayaragavan K, Seguin CA, Draper JS,
            Pasceri P, Maksakova IA, Mager DL, Rossant J, Bhatia M, Ellis J
  TITLE     Isolation of human iPS cells using EOS lentiviral vectors to select
            for pluripotency.
  JOURNAL   Nat Methods. 2009 May . 6(5):370-6.
  PUBMED    19404254
REFERENCE   2  (bases 1 to 6846)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6846
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(29..51)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     151..170
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     364..386
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     378..395
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     379..395
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     LTR             785..1042
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    1693..1810
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        2768..3267
                     /label=PGK promoter
                     /note="mouse phosphoglycerate kinase 1 promoter"
     primer_bind     complement(2803..2826)
                     /label=MSCV-rev
                     /note="Murine stem cell virus, reverse primer"
     primer_bind     3200..3219
                     /label=mPGK-F
                     /note="Mouse PGK promoter, forward primer"
     regulatory      3281..3290
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             3287..4006
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(3332..3353)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(3593..3612)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     3940..3961
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     LTR             4133..4366
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     primer_bind     complement(4403..4425)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4414..4430
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4438..4468)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4483..4504
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4621..4638)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4792..5380)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4872..4891)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     6173..6192
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6411..6515)
                     /gene="bla"
                     /label=AmpR promoter
     promoter        complement(6552..6748)
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      6566..6701
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6620..6639)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     6819..6837
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
ORIGIN
        1 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
       61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
      121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
      181 accatatgcg gtgtgaaata ccgcacagat gcgtaaggag aaaataccgc atcaggcgcc
      241 attcgccatt caggctgcgc aactgttggg aagggcgatc ggtgcgggcc tcttcgctat
      301 tacgccagct ggcgaaaggg ggatgtgctg caaggcgatt aagttgggta acgccagggt
      361 tttcccagtc acgacgttgt aaaacgacgg ccagtgaatt gcggccgctg gaagggctaa
      421 tttggtccca aaaaagacaa gagatccttg atctgtggat ctaccacaca caaggctact
      481 tccctgattg gcagaactac acaccagggc cagggatcag atatccactg acctttggat
      541 ggtgcttcaa gttagtacca gttgaaccag agcaagtaga agaggccaaa taaggagaga
      601 agaacagctt gttacaccct atgagccagc atgggatgga ggacccggag ggagaagtat
      661 tagtgtggaa gtttgacagc ctcctagcat ttcgtcacat ggcccgagag ctgcatccgg
      721 agtactacaa agactgctga catcgagctt tctacaaggg actttccgct ggggactttc
      781 cagggaggtg tggcctgggc gggactgggg agtggcgagc cctcagatgc tacatataag
      841 cagctgcttt ttgcctgtac tgggtctctc tggttagacc agatctgagc ctgggagctc
      901 tctggctaac tagggaaccc actgcttaag cctcaataaa gcttgccttg agtgctcaaa
      961 gtagtgtgtg cccgtctgtt gtgtgactct ggtaactaga gatccctcag acccttttag
     1021 tcagtgtgga aaatctctag cagtggcgcc cgaacaggga cttgaaagcg aaagtaaagc
     1081 cagaggagat ctctcgacgc aggactcggc ttgctgaagc gcgcacggca agaggcgagg
     1141 ggcggcgact ggtgagtacg ccaaaaattt tgactagcgg aggctagaag gagagagatg
     1201 ggtgcgagag cgtcggtatt aagcggggga gaattagata aatgggaaaa aattcggtta
     1261 aggccagggg gaaagaaaca atataaacta aaacatatag tatgggcaag cagggagcta
     1321 gaacgattcg cagttaatcc tggcctttta gagacatcag aaggctgtag acaaatactg
     1381 ggacagctac aaccatccct tcagacagga tcagaagaac ttagatcatt atataataca
     1441 atagcagtcc tctattgtgt gcatcaaagg atagatgtaa aagacaccaa ggaagcctta
     1501 gataagatag aggaagagca aaacaaaagt aagaaaaagg cacagcaagc agcagctgac
     1561 acaggaaaca acagccaggt cagccaaaat taccctatag tgcagaacct ccaggggcaa
     1621 atggtacatc aggccatatc acctagaact ttaaattaag acagcagtac aaatggcagt
     1681 attcatccac aattttaaaa gaaaaggggg gattgggggg tacagtgcag gggaaagaat
     1741 agtagacata atagcaacag acatacaaac taaagaatta caaaaacaaa ttacaaaaat
     1801 tcaaaatttt cgggtttatt acagggacag cagagatcca gtttggaaag gaccagcaaa
     1861 gctcctctgg aaaggtgaag gggcagtagt aatacaagat aatagtgaca taaaagtagt
     1921 gccaagaaga aaagcaaaga tcatcaggga ttatggaaaa cagatggcag gtgatgattg
     1981 tgtggcaagt agacaggatg aggattaaca catggaaaag attagtaaaa caccatagct
     2041 ctagagcgat ccgatcttca gacctggagg aggcgatatg agggacaatt ggagaagtga
     2101 attatataaa tataaagtag taaaaattga accattagga gtagcaccca ccaaggcaaa
     2161 gagaagagtg gtgcagagag aaaaaagagc agtgggaata ggagctttgt tccttgggtt
     2221 cttgggagca gcaggaagca ctatgggctg cacgtcaatg acgctgacgg tacaggccag
     2281 acaattattg tctgatatag tgcagcagca gaacaatttg ctgagggcta ttgaggcgca
     2341 acagcatctg ttgcaactca cagtctgggg catcaaacag ctccaggcaa gaatcctggc
     2401 tgtggaaaga tacctaaagg atcaacagct cctggggatt tggggttgct ctggaaaact
     2461 catttgcacc actgctgtgc cttggaatgc tagttggagt aataaatctc tggaacagat
     2521 ttggaataac atgacctgga tggagtggga cagagaaatt aacaattaca caagcttggt
     2581 aggtttaaga atagtttttg ctgtactttc tatagtgaat agagttaggc agggatattc
     2641 accattatcg tttcagaccc acctcccaat cccgagggga cccgacaggc ccgaaggaat
     2701 agaagaagaa ggtggagaga gagacagaga cagatccatt cgattagtga acggatctaa
     2761 ttctaccggg taggggaggc gcttttccca aggcagtctg gagcatgcgc tttagcagcc
     2821 ccgctgggca cttggcgcta cacaagtggc ctctggcctc gcacacattc cacatccacc
     2881 ggtaggcgcc aaccggctcc gttctttggt ggccccttcg cgccaccttc tactcctccc
     2941 ctagtcagga agttcccccc cgccccgcag ctcgcgtcgt gcaggacgtg acaaatggaa
     3001 gtagcacgtc tcactagtct cgtgcagatg gacagcaccg ctgagcaatg gaagcgggta
     3061 ggcctttggg gcagcggcca atagcagctt tgctccttcg ctttctgggc tcagaggctg
     3121 ggaaggggtg ggtccggggg cgggctcagg ggcgggctca ggggcggggc gggcgcccga
     3181 aggtcctccc gaggcccggc attctgcacg cttcaaaagc gcacgtctgc cgcgctgttc
     3241 tcctcttcct catctccggg cctttcgacc tgcagcggtc gccaccatgg tgagcaaggg
     3301 cgaggagctg ttcaccgggg tggtgcccat cctggtcgag ctggacggcg acgtaaacgg
     3361 ccacaagttc agcgtgtccg gcgagggcga gggcgatgcc acctacggca agctgaccct
     3421 gaagttcatc tgcaccaccg gcaagctgcc cgtgccctgg cccaccctcg tgaccaccct
     3481 gacctacggc gtgcagtgct tcagccgcta ccccgaccac atgaagcagc acgacttctt
     3541 caagtccgcc atgcccgaag gctacgtcca ggagcgcacc atcttcttca aggacgacgg
     3601 caactacaag acccgcgccg aggtgaagtt cgagggcgac accctggtga accgcatcga
     3661 gctgaagggc atcgacttca aggaggacgg caacatcctg gggcacaagc tggagtacaa
     3721 ctacaacagc cacaacgtct atatcatggc cgacaagcag aagaacggca tcaaggtgaa
     3781 cttcaagatc cgccacaaca tcgaggacgg cagcgtgcag ctcgccgacc actaccagca
     3841 gaacaccccc atcggcgacg gccccgtgct gctgcccgac aaccactacc tgagcaccca
     3901 gtccgccctg agcaaagacc ccaacgagaa gcgcgatcac atggtcctgc tggagttcgt
     3961 gaccgccgcc gggatcactc tcggcatgga cgagctgtac aagtaaagcg gccaacctcg
     4021 acgttattcc cttcgcgaag gcctatcgat ttcgaacccg gggtaccttt aagaccaatg
     4081 acttacaagg cagctgtaga tcttagccac tttttaaaag aaaagggggg actggaaggg
     4141 ctaattcact cccaaagaag acaagatctg ctttttgcct gtactgggtc tctctggtta
     4201 gaccagatct gagcctggga gctctctggc taactaggga acccactgct taagcctcaa
     4261 taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac
     4321 tagagatccc tcagaccctt ttagtcagtg tggaaaatct ctagcagaat tctagcttgg
     4381 cgtaatcatg gtcatagctg ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa
     4441 catacgagcc ggaagcataa agtgtaaagc ctggggtgcc taatgagtga gctaactcac
     4501 attaattgcg ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt gccagctgca
     4561 ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt attgggcgct cttccgcttc
     4621 ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat cagctcactc
     4681 aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga acatgtgagc
     4741 aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag
     4801 gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc
     4861 gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt
     4921 tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct
     4981 ttctcaatgc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg
     5041 ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta actatcgtct
     5101 tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg gtaacaggat
     5161 tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc ctaactacgg
     5221 ctacactaga aggacagtat ttggtatctg cgctctgctg aagccactta ccttcggaaa
     5281 aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg gtttttttgt
     5341 ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc
     5401 tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg tcatgagatt
     5461 atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta aatcaatcta
     5521 aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg aggcacctat
     5581 ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg tgtagataac
     5641 tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc gagacccacg
     5701 ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg agcgcagaag
     5761 tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg aagctagagt
     5821 aagtagttcg ccagttaata gtttgcgcaa cgttgtgcca ttgctacagg catcgtggtg
     5881 tcacgctcgt cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt
     5941 acatgatccc ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc
     6001 agaagtaagt tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt
     6061 actgtcatgc catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc
     6121 tgagaatagt gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc
     6181 gcgccacata gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa
     6241 ctctcaagga tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac
     6301 tgatcttcag catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa
     6361 aatgccgcaa aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt
     6421 tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa
     6481 tgtatttaga aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct
     6541 gggactagct ttttgcaaaa gcctaggcct ccaaaaaagc ctcctcacta cttctggaat
     6601 agctcagagg ccgaggcggc ctcggcctct gcataaataa aaaaaattag tcagccatgg
     6661 ggcggagaat gggcggaact gggcggagtt aggggcggga tgggcggagt taggggcggg
     6721 actatggttg ctgactaatt gagatgtagc ttgcatgccg acatggatta ttgactagtc
     6781 cctaagaaac cattattatc atgacattaa cctataaaaa taggcgtatc acgaggccct
     6841 ttcgtc
//
