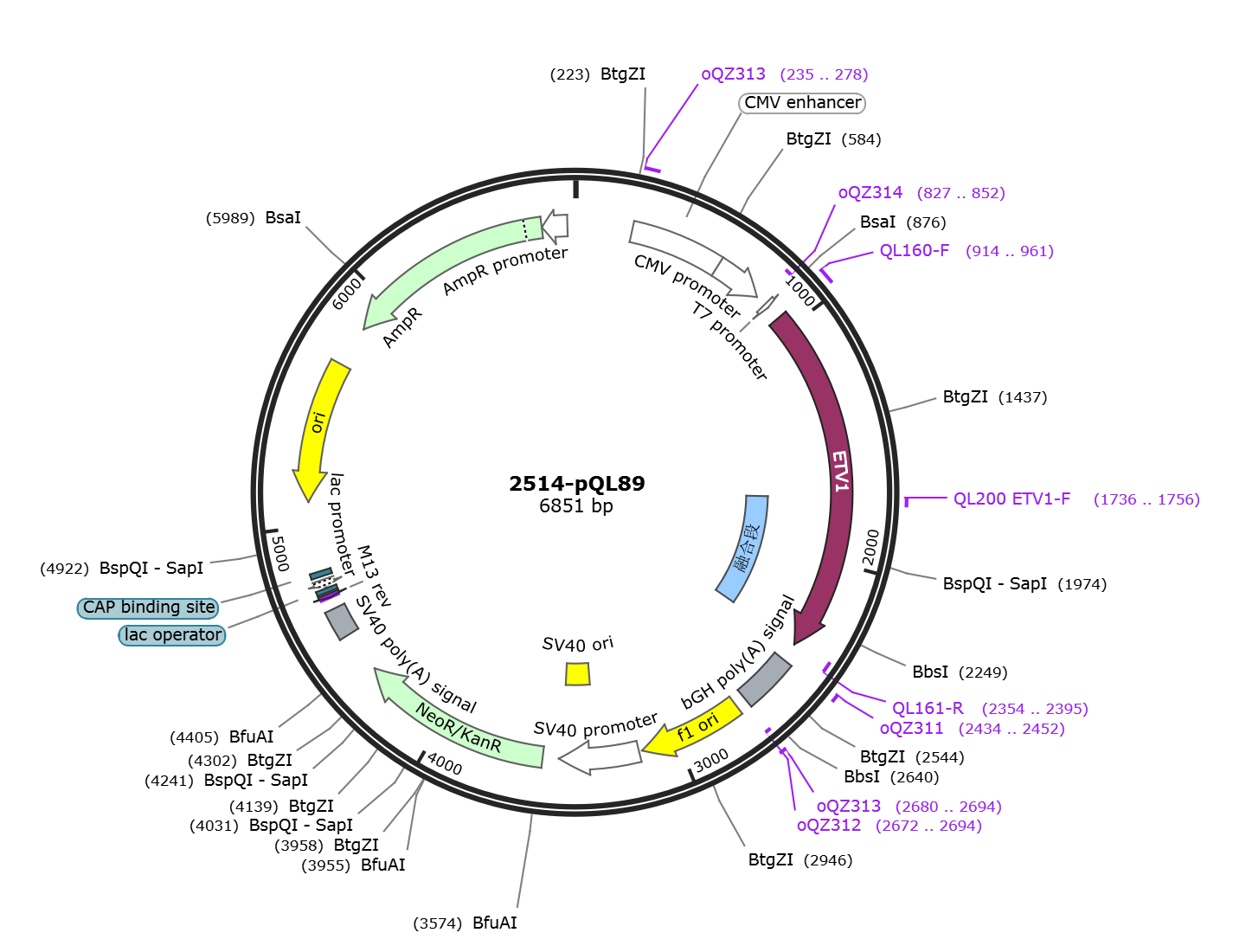

pQL89

LOCUS       pQL89            6851 bp DNA     circular SYN 12-OCT-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6851)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6851
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..961
                     /label=QL160-F
     CDS             941..2374
                     /codon_start=1
                     /label=ETV1
                     /translation="MDGFYDQQVPYMVTNSQRGRNCNEKPTNVRKRKFINRDLAHDSEE
                     LFQDLSQLQETWLAEAQVPDNDEQFVPDYQAESLAFHGLPLKIKKEPHSPCSEISSACS
                     QEQPFKFSYGEKCLYNVSAYDQKPQVGMRPSNPPTPSSTPVSPLHHASPNSTHTPKPDR
                     AFPAHLPPSQSIPDSSYPMDHRFRRQLSEPCNSFPPLPTMPREGRPMYQRQMSEPNIPF
                     PPQGFKQEYHDPVYEHNTMVGSAASQSFPPPLMIKQEPRDFAYDSEVPSCHSIYMRQEG
                     FLAHPSRTEGCMFEKGPRQFYDDTCVVPEKFDGDIKQEPGMYREGPTYQRRGSLQLWQF
                     LVALLDDPSNSHFIAWTGRGMEFKLIEPEEVARRWGIQKNRPAMNYDKLSRSLRYYYEK
                     GIMQKVAGERYVYKFVCDPEALFSMAFPDNQRPLLKTDMERHINEEDTVPLSHFDESMA
                     YMPEGGCCNPHPYNEGYVY"
     misc_feature    1736..2374
                     /label=融合段
     primer_bind     1736..1756
                     /label=QL200 ETV1-F
     primer_bind     complement(2354..2395)
                     /label=QL161-R
     primer_bind     2434..2452
                     /label=oQZ311
     polyA_signal    2451..2675
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2672..2694)
                     /label=oQZ312
     primer_bind     2680..2694
                     /label=oQZ313
     rep_origin      2721..3149
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3163..3492
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3343..3478
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3559..4353
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4527..4648
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4697..4713)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4721..4737
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4745..4775)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4790..4811
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5099..5684)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5855..6715)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6716..6820)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccgccacc atggatggat tttatgacca
      961 gcaagtgcct tacatggtca ccaatagtca gcgtgggaga aattgtaacg agaaaccaac
     1021 aaatgtcagg aaaagaaaat tcattaacag agatctggct catgattcag aagaactctt
     1081 tcaagatcta agtcaattac aggaaacatg gcttgcagaa gctcaggtac ctgacaatga
     1141 tgagcagttt gtaccagact atcaggctga aagtttggct tttcatggcc tgccactgaa
     1201 aatcaagaaa gaaccccaca gtccatgttc agaaatcagc tctgcctgca gtcaagaaca
     1261 gccctttaaa ttcagctatg gagaaaagtg cctgtacaat gtcagtgcct atgatcagaa
     1321 gccacaagtg ggaatgaggc cctccaaccc ccccacacca tccagcacgc cagtgtcccc
     1381 actgcatcat gcatctccaa actcaactca tacaccgaaa cctgaccggg ccttcccagc
     1441 tcacctccct ccatcgcagt ccataccaga tagcagctac cccatggacc acagatttcg
     1501 ccgccagctt tctgaaccct gtaactcctt tcctcctttg ccgacgatgc caagggaagg
     1561 acgtcctatg taccaacgcc agatgtctga gccaaacatc cccttcccac cacaaggctt
     1621 taagcaggag taccacgacc cagtgtatga acacaacacc atggttggca gtgcggccag
     1681 ccaaagcttt ccccctcctc tgatgattaa acaggaaccc agagattttg catatgactc
     1741 agaagtgcct agctgccact ccatttatat gaggcaagaa ggcttcctgg ctcatcccag
     1801 cagaacagaa ggctgtatgt ttgaaaaggg ccccaggcag ttttatgatg acacctgtgt
     1861 tgtcccagaa aaattcgatg gagacatcaa acaagagcca ggaatgtatc gggaaggacc
     1921 cacataccaa cggcgaggat cacttcagct ctggcagttt ttggtagctc ttctggatga
     1981 cccttcaaat tctcatttta ttgcctggac tggtcgaggc atggaattta aactgattga
     2041 gcctgaagag gtggcccgac gttggggcat tcagaaaaac aggccagcta tgaactatga
     2101 taaacttagc cgttcactcc gctattacta tgagaaagga attatgcaaa aggtggctgg
     2161 agagagatat gtctacaagt ttgtgtgtga tccagaagcc cttttctcca tggcctttcc
     2221 agataatcag cgtccactgc tgaagacaga catggaacgt cacatcaacg aggaggacac
     2281 agtgcctctt tctcactttg atgagagcat ggcctacatg ccggaagggg gctgctgcaa
     2341 cccccacccc tacaacgaag gctacgtgta ttaagaattc tgcagatatc cagcacagtg
     2401 gcggccgctc gagtctagag ggcccgttta aacccgctga tcagcctcga ctgtgccttc
     2461 tagttgccag ccatctgttg tttgcccctc ccccgtgcct tccttgaccc tggaaggtgc
     2521 cactcccact gtcctttcct aataaaatga ggaaattgca tcgcattgtc tgagtaggtg
     2581 tcattctatt ctggggggtg gggtggggca ggacagcaag ggggaggatt gggaagacaa
     2641 tagcaggcat gctggggatg cggtgggctc tatggcttct gaggcggaaa gaaccagctg
     2701 gggctctagg gggtatcccc acgcgccctg tagcggcgca ttaagcgcgg cgggtgtggt
     2761 ggttacgcgc agcgtgaccg ctacacttgc cagcgcccta gcgcccgctc ctttcgcttt
     2821 cttcccttcc tttctcgcca cgttcgccgg ctttccccgt caagctctaa atcgggggct
     2881 ccctttaggg ttccgattta gtgctttacg gcacctcgac cccaaaaaac ttgattaggg
     2941 tgatggttca cgtagtgggc catcgccctg atagacggtt tttcgccctt tgacgttgga
     3001 gtccacgttc tttaatagtg gactcttgtt ccaaactgga acaacactca accctatctc
     3061 ggtctattct tttgatttat aagggatttt gccgatttcg gcctattggt taaaaaatga
     3121 gctgatttaa caaaaattta acgcgaatta attctgtgga atgtgtgtca gttagggtgt
     3181 ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca
     3241 gcaaccaggt gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat
     3301 ctcaattagt cagcaaccat agtcccgccc ctaactccgc ccatcccgcc cctaactccg
     3361 cccagttccg cccattctcc gccccatggc tgactaattt tttttattta tgcagaggcc
     3421 gaggccgcct ctgcctctga gctattccag aagtagtgag gaggcttttt tggaggccta
     3481 ggcttttgca aaaagctccc gggagcttgt atatccattt tcggatctga tcaagagaca
     3541 ggatgaggat cgtttcgcat gattgaacaa gatggattgc acgcaggttc tccggccgct
     3601 tgggtggaga ggctattcgg ctatgactgg gcacaacaga caatcggctg ctctgatgcc
     3661 gccgtgttcc ggctgtcagc gcaggggcgc ccggttcttt ttgtcaagac cgacctgtcc
     3721 ggtgccctga atgaactgca ggacgaggca gcgcggctat cgtggctggc cacgacgggc
     3781 gttccttgcg cagctgtgct cgacgttgtc actgaagcgg gaagggactg gctgctattg
     3841 ggcgaagtgc cggggcagga tctcctgtca tctcaccttg ctcctgccga gaaagtatcc
     3901 atcatggctg atgcaatgcg gcggctgcat acgcttgatc cggctacctg cccattcgac
     3961 caccaagcga aacatcgcat cgagcgagca cgtactcgga tggaagccgg tcttgtcgat
     4021 caggatgatc tggacgaaga gcatcagggg ctcgcgccag ccgaactgtt cgccaggctc
     4081 aaggcgcgca tgcccgacgg cgaggatctc gtcgtgaccc atggcgatgc ctgcttgccg
     4141 aatatcatgg tggaaaatgg ccgcttttct ggattcatcg actgtggccg gctgggtgtg
     4201 gcggaccgct atcaggacat agcgttggct acccgtgata ttgctgaaga gcttggcggc
     4261 gaatgggctg accgcttcct cgtgctttac ggtatcgccg ctcccgattc gcagcgcatc
     4321 gccttctatc gccttcttga cgagttcttc tgagcgggac tctggggttc gaaatgaccg
     4381 accaagcgac gcccaacctg ccatcacgag atttcgattc caccgccgcc ttctatgaaa
     4441 ggttgggctt cggaatcgtt ttccgggacg ccggctggat gatcctccag cgcggggatc
     4501 tcatgctgga gttcttcgcc caccccaact tgtttattgc agcttataat ggttacaaat
     4561 aaagcaatag catcacaaat ttcacaaata aagcattttt ttcactgcat tctagttgtg
     4621 gtttgtccaa actcatcaat gtatcttatc atgtctgtat accgtcgacc tctagctaga
     4681 gcttggcgta atcatggtca tagctgtttc ctgtgtgaaa ttgttatccg ctcacaattc
     4741 cacacaacat acgagccgga agcataaagt gtaaagcctg gggtgcctaa tgagtgagct
     4801 aactcacatt aattgcgttg cgctcactgc ccgctttcca gtcgggaaac ctgtcgtgcc
     4861 agctgcatta atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt gggcgctctt
     4921 ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag
     4981 ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca ggaaagaaca
     5041 tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt
     5101 tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt cagaggtggc
     5161 gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc ctcgtgcgct
     5221 ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct tcgggaagcg
     5281 tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca
     5341 agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta tccggtaact
     5401 atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca gccactggta
     5461 acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag tggtggccta
     5521 actacggcta cactagaaga acagtatttg gtatctgcgc tctgctgaag ccagttacct
     5581 tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt agcggttttt
     5641 ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct
     5701 tttctacggg gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga
     5761 gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa
     5821 tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac
     5881 ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga
     5941 taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc
     6001 cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca
     6061 gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta
     6121 gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct acaggcatcg
     6181 tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc
     6241 gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg
     6301 ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt
     6361 ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt
     6421 cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata
     6481 ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc
     6541 gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac
     6601 ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa
     6661 ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct
     6721 tcctttttca atattattga agcatttatc agggttattg tctcatgagc ggatacatat
     6781 ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc
     6841 cacctgacgt c
//
