pcambia2300

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: CAMBIA
载体名称: pCAMBIA2300
质粒类型: 植物载体;农杆菌双元表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: Lac
载体大小: 8743 bp
5' 测序引物及序列: M13 Reverse:CAGGAAACAGCTATGAC
3' 测序引物及序列: M13/pUC Forward:CCCAGTCACGACGTTGTAAAACG
载体标签: --
载体抗性: 卡那霉素
筛选标记: Neomycin_1.html' target='_blank'>新霉素Neomycin
克隆菌株: HB101等菌株
宿主细胞(系): 植物细胞、农杆菌
备注: --
产品目录号: --
稳定性: 稳表达
组成型/诱导型: 诱导型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

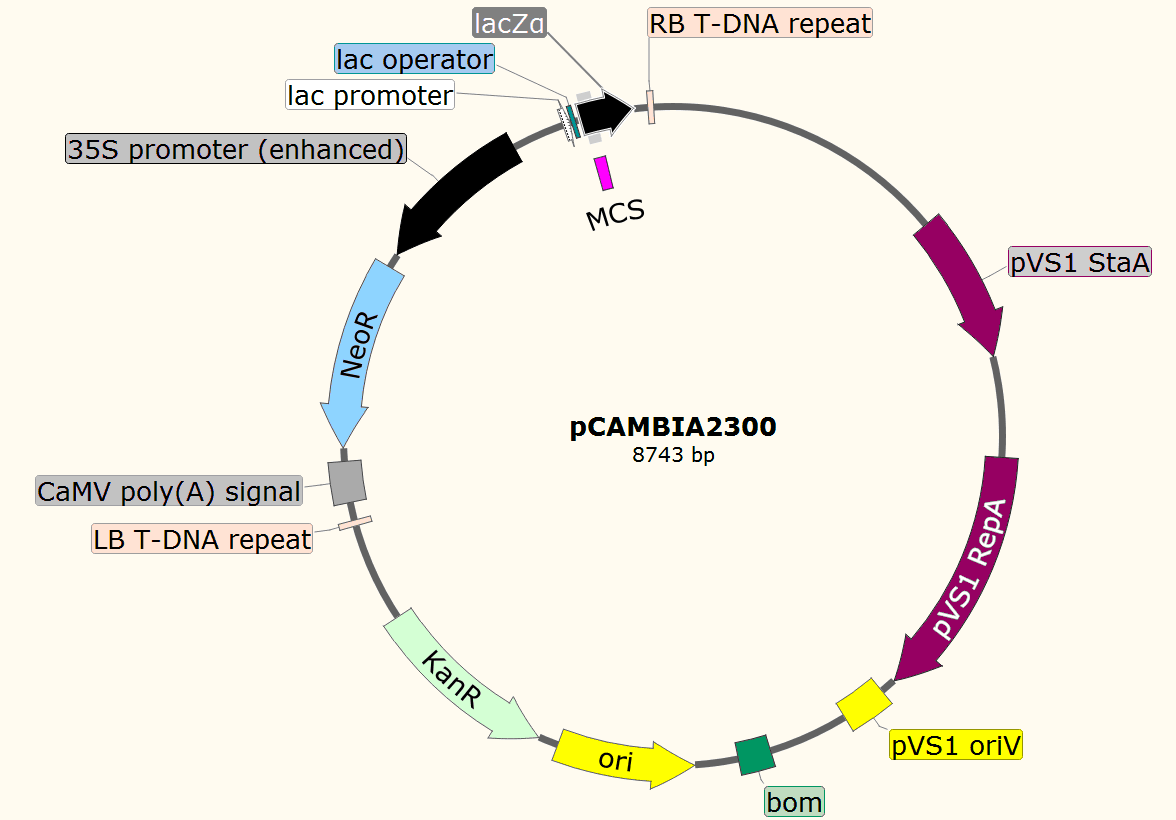

pCAMBIA2300载体图谱

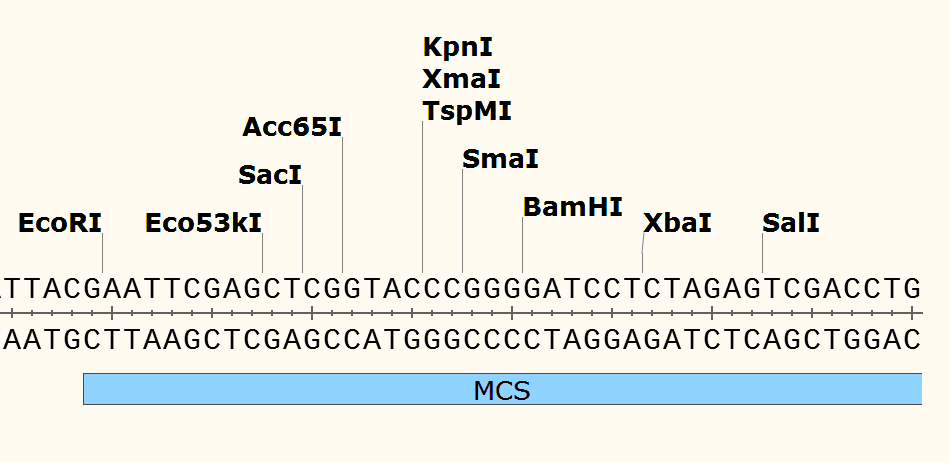

pCAMBIA2300 多克隆位点

载体简介

载体序列

LOCUS       AF234315                8742 bp    DNA     circular SYN 24-APR-2000
DEFINITION  Binary vector pCAMBIA-2300, complete sequence.
ACCESSION   AF234315
VERSION     AF234315.1  GI:7638145
KEYWORDS    .
SOURCE      Binary vector pCAMBIA-2300
  ORGANISM  Binary vector pCAMBIA-2300
            other sequences; artificial sequences; vectors.
REFERENCE   1  (sites)
  AUTHORS   Hajdukiewicz,P., Svab,Z. and Maliga,P.
  TITLE     The small, versatile pPZP family of Agrobacterium binary vectors
            for plant transformation
  JOURNAL   Plant Mol. Biol. 25 (6), 989-994 (1994)
   PUBMED   7919218
REFERENCE   2  (bases 1 to 8742)
  AUTHORS   Roberts,C., Rajagopal,S., Smith,L.M., Nguyen,T.A., Yang,W.,
            Nugrohu,S., Ravi,K.S., Vijayachandra,K., Harcourt,R.L.,
            Dransfield,L., Desamero,N., Slamet,I., Hadjukiewicz,P., Svab,Z.,
            Maliga,P., Mayer,J.E., Keese,P.K., Kilian,A. and Jefferson,R.A.
  TITLE     A comprehensive set of modular vectors for advanced manipulations
            and efficient transformation of plants
  JOURNAL   Unpublished
  REMARK    Full description of constructs
REFERENCE   3  (bases 1 to 8742)
  AUTHORS   Roberts,C., Rajagopal,S., Smith,L.M., Nguyen,T.A., Yang,W.,
            Nugrohu,S., Ravi,K.S., Vijayachandra,K., Harcourt,R.L.,
            Dransfield,L., Desamero,N., Slamet,I., Hadjukiewicz,P., Svab,Z.,
            Maliga,P., Mayer,J.E., Keese,P.K., Kilian,A. and Jefferson,R.A.
  TITLE     Direct Submission
  JOURNAL   Submitted (15-FEB-2000) CAMBIA, Clunies Ross St, Black Mountain /
            GPO Box 3200, Canberra, ACT 2601, Australia
FEATURES             Location/Qualifiers
     source          1..8742
                     /organism="Binary vector pCAMBIA-2300"
                     /mol_type="other DNA"
                     /db_xref="taxon:118407"
     misc_feature    complement(980..1980)
                     /note="STA region from pVS1 plasmid"
     rep_origin      complement(2573..3573)
                     /note="pVS1-REP; replication origin from pVS1"
     misc_feature    complement(3983..4243)
                     /note="bom site from pBR322"
     rep_origin      complement(4383..4663)
                     /note="pBR322 origin of replication"
     CDS             complement(4954..5748)
                     /note="aadA (kanamycin resistance) gene amplified from
                     pIG121Hm"
                     /codon_start=1
                     /product="aminoglycoside phosphotransferase"
                     /protein_id="AAF65399.1"
                     /db_xref="GI:7638147"
                     /translation="MAKMRISPELKKLIEKYRCVKDTEGMSPAKVYKLVGENENLYLK
                     MTDSRYKGTTYDVEREKDMMLWLEGKLPVPKVLHFERHDGWSNLLMSEADGVLCSEEY
                     EDEQSPEKIIELYAECIRLFHSIDISDCPYTNSLDSRLAELDYLLNNDLADVDCENWE
                     EDTPFKDPRELYDFLKTEKPEEELVFSHGDLGDSNIFVKDGKVSGFIDLGRSGRADKW
                     YDIAFCVRSIREDIGEEQYVELFFDLLGIKPDWEKIKYYILLDELF"
     misc_feature    6173..6198
                     /note="left border repeat from C58 T-DNA"
     misc_feature    6265..6468
                     /note="CaMV 3'UTR (polyA signal)"
     CDS             complement(6506..7303)
                     /note="nptII (kanamycin resistance) gene"
                     /codon_start=1
                     /product="neomycin phosphotransferase"
                     /protein_id="AAF65400.1"
                     /db_xref="GI:7638148"
                     /translation="MGIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQG
                     RPVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQD
                     LLSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLD
                     EEHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADR
                     YQDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     promoter        complement(7334..8114)
                     /note="CaMV35S2; CaMV 35S promoter, duplicated"
     promoter        8262..8316
                     /note="PlacZ; lacZ promoter"
     CDS             8344..8577
                     /codon_start=1
                     /product="LacZ alpha fragment"
                     /protein_id="AAF65398.1"
                     /db_xref="GI:7638146"
                     /translation="MTMITNSSSVPGDPLESTCRHASLALAVVLQRRDWENPGVTQLN
                     RLAAHPPFASWRNSEEARTDRPSQQLRSLNGEC"
     misc_feature    8358..8414
                     /note="pUC18 MCS; polylinker"
     misc_feature    8656..8681
                     /note="right border T-DNA repeat"
ORIGIN
        1 catgccaacc acagggttcc cctcgggatc aaagtacttt gatccaaccc ctccgctgct
       61 atagtgcagt cggcttctga cgttcagtgc agccgtcttc tgaaaacgac atgtcgcaca
      121 agtcctaagt tacgcgacag gctgccgccc tgcccttttc ctggcgtttt cttgtcgcgt
      181 gttttagtcg cataaagtag aatacttgcg actagaaccg gagacattac gccatgaaca
      241 agagcgccgc cgctggcctg ctgggctatg cccgcgtcag caccgacgac caggacttga
      301 ccaaccaacg ggccgaactg cacgcggccg gctgcaccaa gctgttttcc gagaagatca
      361 ccggcaccag gcgcgaccgc ccggagctgg ccaggatgct tgaccaccta cgccctggcg
      421 acgttgtgac agtgaccagg ctagaccgcc tggcccgcag cacccgcgac ctactggaca
      481 ttgccgagcg catccaggag gccggcgcgg gcctgcgtag cctggcagag ccgtgggccg
      541 acaccaccac gccggccggc cgcatggtgt tgaccgtgtt cgccggcatt gccgagttcg
      601 agcgttccct aatcatcgac cgcacccgga gcgggcgcga ggccgccaag gcccgaggcg
      661 tgaagtttgg cccccgccct accctcaccc cggcacagat cgcgcacgcc cgcgagctga
      721 tcgaccagga aggccgcacc gtgaaagagg cggctgcact gcttggcgtg catcgctcga
      781 ccctgtaccg cgcacttgag cgcagcgagg aagtgacgcc caccgaggcc aggcggcgcg
      841 gtgccttccg tgaggacgca ttgaccgagg ccgacgccct ggcggccgcc gagaatgaac
      901 gccaagagga acaagcatga aaccgcacca ggacggccag gacgaaccgt ttttcattac
      961 cgaagagatc gaggcggaga tgatcgcggc cgggtacgtg ttcgagccgc ccgcgcacgt
     1021 ctcaaccgtg cggctgcatg aaatcctggc cggtttgtct gatgccaagc tggcggcctg
     1081 gccggccagc ttggccgctg aagaaaccga gcgccgccgt ctaaaaaggt gatgtgtatt
     1141 tgagtaaaac agcttgcgtc atgcggtcgc tgcgtatatg atgcgatgag taaataaaca
     1201 aatacgcaag gggaacgcat gaaggttatc gctgtactta accagaaagg cgggtcaggc
     1261 aagacgacca tcgcaaccca tctagcccgc gccctgcaac tcgccggggc cgatgttctg
     1321 ttagtcgatt ccgatcccca gggcagtgcc cgcgattggg cggccgtgcg ggaagatcaa
     1381 ccgctaaccg ttgtcggcat cgaccgcccg acgattgacc gcgacgtgaa ggccatcggc
     1441 cggcgcgact tcgtagtgat cgacggagcg ccccaggcgg cggacttggc tgtgtccgcg
     1501 atcaaggcag ccgacttcgt gctgattccg gtgcagccaa gcccttacga catatgggcc
     1561 accgccgacc tggtggagct ggttaagcag cgcattgagg tcacggatgg aaggctacaa
     1621 gcggcctttg tcgtgtcgcg ggcgatcaaa ggcacgcgca tcggcggtga ggttgccgag
     1681 gcgctggccg ggtacgagct gcccattctt gagtcccgta tcacgcagcg cgtgagctac
     1741 ccaggcactg ccgccgccgg cacaaccgtt cttgaatcag aacccgaggg cgacgctgcc
     1801 cgcgaggtcc aggcgctggc cgctgaaatt aaatcaaaac tcatttgagt taatgaggta
     1861 aagagaaaat gagcaaaagc acaaacacgc taagtgccgg ccgtccgagc gcacgcagca
     1921 gcaaggctgc aacgttggcc agcctggcag acacgccagc catgaagcgg gtcaactttc
     1981 agttgccggc ggaggatcac accaagctga agatgtacgc ggtacgccaa ggcaagacca
     2041 ttaccgagct gctatctgaa tacatcgcgc agctaccaga gtaaatgagc aaatgaataa
     2101 atgagtagat gaattttagc ggctaaagga ggcggcatgg aaaatcaaga acaaccaggc
     2161 accgacgccg tggaatgccc catgtgtgga ggaacgggcg gttggccagg cgtaagcggc
     2221 tgggttgtct gccggccctg caatggcact ggaaccccca agcccgagga atcggcgtga
     2281 cggtcgcaaa ccatccggcc cggtacaaat cggcgcggcg ctgggtgatg acctggtgga
     2341 gaagttgaag gccgcgcagg ccgcccagcg gcaacgcatc gaggcagaag cacgccccgg
     2401 tgaatcgtgg caagcggccg ctgatcgaat ccgcaaagaa tcccggcaac cgccggcagc
     2461 cggtgcgccg tcgattagga agccgcccaa gggcgacgag caaccagatt ttttcgttcc
     2521 gatgctctat gacgtgggca cccgcgatag tcgcagcatc atggacgtgg ccgttttccg
     2581 tctgtcgaag cgtgaccgac gagctggcga ggtgatccgc tacgagcttc cagacgggca
     2641 cgtagaggtt tccgcagggc cggccggcat ggccagtgtg tgggattacg acctggtact
     2701 gatggcggtt tcccatctaa ccgaatccat gaaccgatac cgggaaggga agggagacaa
     2761 gcccggccgc gtgttccgtc cacacgttgc ggacgtactc aagttctgcc ggcgagccga
     2821 tggcggaaag cagaaagacg acctggtaga aacctgcatt cggttaaaca ccacgcacgt
     2881 tgccatgcag cgtacgaaga aggccaagaa cggccgcctg gtgacggtat ccgagggtga
     2941 agccttgatt agccgctaca agatcgtaaa gagcgaaacc gggcggccgg agtacatcga
     3001 gatcgagcta gctgattgga tgtaccgcga gatcacagaa ggcaagaacc cggacgtgct
     3061 gacggttcac cccgattact ttttgatcga tcccggcatc ggccgttttc tctaccgcct
     3121 ggcacgccgc gccgcaggca aggcagaagc cagatggttg ttcaagacga tctacgaacg
     3181 cagtggcagc gccggagagt tcaagaagtt ctgtttcacc gtgcgcaagc tgatcgggtc
     3241 aaatgacctg ccggagtacg atttgaagga ggaggcgggg caggctggcc cgatcctagt
     3301 catgcgctac cgcaacctga tcgagggcga agcatccgcc ggttcctaat gtacggagca
     3361 gatgctaggg caaattgccc tagcagggga aaaaggtcga aaaggtctct ttcctgtgga
     3421 tagcacgtac attgggaacc caaagccgta cattgggaac cggaacccgt acattgggaa
     3481 cccaaagccg tacattggga accggtcaca catgtaagtg actgatataa aagagaaaaa
     3541 aggcgatttt tccgcctaaa actctttaaa acttattaaa actcttaaaa cccgcctggc
     3601 ctgtgcataa ctgtctggcc agcgcacagc cgaagagctg caaaaagcgc ctacccttcg
     3661 gtcgctgcgc tccctacgcc ccgccgcttc gcgtcggcct atcgcggccg ctggccgctc
     3721 aaaaatggct ggcctacggc caggcaatct accagggcgc ggacaagccg cgccgtcgcc
     3781 actcgaccgc cggcgcccac atcaaggcac cctgcctcgc gcgtttcggt gatgacggtg
     3841 aaaacctctg acacatgcag ctcccggaga cggtcacagc ttgtctgtaa gcggatgccg
     3901 ggagcagaca agcccgtcag ggcgcgtcag cgggtgttgg cgggtgtcgg ggcgcagcca
     3961 tgacccagtc acgtagcgat agcggagtgt atactggctt aactatgcgg catcagagca
     4021 gattgtactg agagtgcacc atatgcggtg tgaaataccg cacagatgcg taaggagaaa
     4081 ataccgcatc aggcgctctt ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg
     4141 gctgcggcga gcggtatcag ctcactcaaa ggcggtaata cggttatcca cagaatcagg
     4201 ggataacgca ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa
     4261 ggccgcgttg ctggcgtttt tccataggct ccgcccccct gacgagcatc acaaaaatcg
     4321 acgctcaagt cagaggtggc gaaacccgac aggactataa agataccagg cgtttccccc
     4381 tggaagctcc ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat acctgtccgc
     4441 ctttctccct tcgggaagcg tggcgctttc tcatagctca cgctgtaggt atctcagttc
     4501 ggtgtaggtc gttcgctcca agctgggctg tgtgcacgaa ccccccgttc agcccgaccg
     4561 ctgcgcctta tccggtaact atcgtcttga gtccaacccg gtaagacacg acttatcgcc
     4621 actggcagca gccactggta acaggattag cagagcgagg tatgtaggcg gtgctacaga
     4681 gttcttgaag tggtggccta actacggcta cactagaagg acagtatttg gtatctgcgc
     4741 tctgctgaag ccagttacct tcggaaaaag agttggtagc tcttgatccg gcaaacaaac
     4801 caccgctggt agcggtggtt tttttgtttg caagcagcag attacgcgca gaaaaaaagg
     4861 atctcaagaa gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc
     4921 acgttaaggg attttggtca tgcattctag gtactaaaac aattcatcca gtaaaatata
     4981 atattttatt ttctcccaat caggcttgat ccccagtaag tcaaaaaata gctcgacata
     5041 ctgttcttcc ccgatatcct ccctgatcga ccggacgcag aaggcaatgt cataccactt
     5101 gtccgccctg ccgcttctcc caagatcaat aaagccactt actttgccat ctttcacaaa
     5161 gatgttgctg tctcccaggt cgccgtggga aaagacaagt tcctcttcgg gcttttccgt
     5221 ctttaaaaaa tcatacagct cgcgcggatc tttaaatgga gtgtcttctt cccagttttc
     5281 gcaatccaca tcggccagat cgttattcag taagtaatcc aattcggcta agcggctgtc
     5341 taagctattc gtatagggac aatccgatat gtcgatggag tgaaagagcc tgatgcactc
     5401 cgcatacagc tcgataatct tttcagggct ttgttcatct tcatactctt ccgagcaaag
     5461 gacgccatcg gcctcactca tgagcagatt gctccagcca tcatgccgtt caaagtgcag
     5521 gacctttgga acaggcagct ttccttccag ccatagcatc atgtcctttt cccgttccac
     5581 atcataggtg gtccctttat accggctgtc cgtcattttt aaatataggt tttcattttc
     5641 tcccaccagc ttatatacct tagcaggaga cattccttcc gtatctttta cgcagcggta
     5701 tttttcgatc agttttttca attccggtga tattctcatt ttagccattt attatttcct
     5761 tcctcttttc tacagtattt aaagataccc caagaagcta attataacaa gacgaactcc
     5821 aattcactgt tccttgcatt ctaaaacctt aaataccaga aaacagcttt ttcaaagttg
     5881 ttttcaaagt tggcgtataa catagtatcg acggagccga ttttgaaacc gcggtgatca
     5941 caggcagcaa cgctctgtca tcgttacaat caacatgcta ccctccgcga gatcatccgt
     6001 gtttcaaacc cggcagctta gttgccgttc ttccgaatag catcggtaac atgagcaaag
     6061 tctgccgcct tacaacggct ctcccgctga cgccgtcccg gactgatggg ctgcctgtat
     6121 cgagtggtga ttttgtgccg agctgccggt cggggagctg ttggctggct ggtggcagga
     6181 tatattgtgg tgtaaacaaa ttgacgctta gacaacttaa taacacattg cggacgtttt
     6241 taatgtactg aattaacgcc gaattaattc gggggatctg gattttagta ctggattttg
     6301 gttttaggaa ttagaaattt tattgataga agtattttac aaatacaaat acatactaag
     6361 ggtttcttat atgctcaaca catgagcgaa accctatagg aaccctaatt cccttatctg
     6421 ggaactactc acacattatt atggagaaac tcgagcttgt cgatcgactc tagctagagg
     6481 atcgatccga accccagagt cccgctcaga agaactcgtc aagaaggcga tagaaggcga
     6541 tgcgctgcga atcgggagcg gcgataccgt aaagcacgag gaagcggtca gcccattcgc
     6601 cgccaagctc ttcagcaata tcacgggtag ccaacgctat gtcctgatag cggtccgcca
     6661 cacccagccg gccacagtcg atgaatccag aaaagcggcc attttccacc atgatattcg
     6721 gcaagcaggc atcgccatgt gtcacgacga gatcctcgcc gtcgggcatg cgcgccttga
     6781 gcctggcgaa cagttcggct ggcgcgagcc cctgatgctc ttcgtccaga tcatcctgat
     6841 cgacaagacc ggcttccatc cgagtacgtg ctcgctcgat gcgatgtttc gcttggtggt
     6901 cgaatgggca ggtagccgga tcaagcgtat gcagccgccg cattgcatca gccatgatgg
     6961 atactttctc ggcaggagca aggtgagatg acaggagatc ctgccccggc acttcgccca
     7021 atagcagcca gtcccttccc gcttcagtga caacgtcgag cacagctgcg caaggaacgc
     7081 ccgtcgtggc cagccacgat agccgcgctg cctcgtcctg gagttcattc agggcaccgg
     7141 acaggtcggt cttgacaaaa agaaccgggc gcccctgcgc tgacagccgg aacacggcgg
     7201 catcagagca gccgattgtc tgttgtgccc agtcatagcc gaatagcctc tccacccaag
     7261 cggccggaga acctgcgtgc aatccatctt gttcaatccc catggtcgat cgacagatct
     7321 gcgaaagctc gagagagata gatttgtaga gagagactgg tgatttcagc gtgtcctctc
     7381 caaatgaaat gaacttcctt atatagagga aggtcttgcg aaggatagtg ggattgtgcg
     7441 tcatccctta cgtcagtgga gatatcacat caatccactt gctttgaaga cgtggttgga
     7501 acgtcttctt tttccacgat gctcctcgtg ggtgggggtc catctttggg accactgtcg
     7561 gcagaggcat cttgaacgat agcctttcct ttatcgcaat gatggcattt gtaggtgcca
     7621 ccttcctttt ctactgtcct tttgatgaag tgacagatag ctgggcaatg gaatccgagg
     7681 aggtttcccg atattaccct ttgttgaaaa gtctcaatag ccctttggtc ttctgagact
     7741 gtatctttga tattcttgga gtagacgaga gtgtcgtgct ccaccatgtt atcacatcaa
     7801 tccacttgct ttgaagacgt ggttggaacg tcttcttttt ccacgatgct cctcgtgggt
     7861 gggggtccat ctttgggacc actgtcggca gaggcatctt gaacgatagc ctttccttta
     7921 tcgcaatgat ggcatttgta ggtgccacct tccttttcta ctgtcctttt gatgaagtga
     7981 cagatagctg ggcaatggaa tccgaggagg tttcccgata ttaccctttg ttgaaaagtc
     8041 tcaatagccc tttggtcttc tgagactgta tctttgatat tcttggagta gacgagagtg
     8101 tcgtgctcca ccatgttggc aagctgctct agccaatacg caaaccgcct ctccccgcgc
     8161 gttggccgat tcattaatgc agctggcacg acaggtttcc cgactggaaa gcgggcagtg
     8221 agcgcaacgc aattaatgtg agttagctca ctcattaggc accccaggct ttacacttta
     8281 tgcttccggc tcgtatgttg tgtggaattg tgagcggata acaatttcac acaggaaaca
     8341 gctatgacca tgattacgaa ttcgagctcg gtacccgggg atcctctaga gtcgacctgc
     8401 aggcatgcaa gcttggcact ggccgtcgtt ttacaacgtc gtgactggga aaaccctggc
     8461 gttacccaac ttaatcgcct tgcagcacat ccccctttcg ccagctggcg taatagcgaa
     8521 gaggcccgca ccgatcgccc ttcccaacag ttgcgcagcc tgaatggcga atgctagagc
     8581 agcttgagct tggatcagat tgtcgtttcc cgccttcagt ttaaactatc agtgtttgac
     8641 aggatatatt ggcgggtaaa cctaagagaa aagagcgttt attagaataa cggatattta
     8701 aaagggcgtg aaaaggttta tccgttcgtc catttgtatg tg
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
