pRetroX-PTuner

价格:3500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pRetroX-PTuner
质粒类型: 逆病毒载体;双顺反子
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV IE
载体大小: 6229 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: DD tag (N-端)
载体抗性: 氨苄青霉素
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: DH5α,推荐Stellar
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
备注: 逆病毒载体pRetroX-PTuner载体表达N端DD标签融合蛋白;
DD标签是一个大小为12KD的FKBP (L106P)去稳定结构域,带有DD标签的目的蛋白将很快被降解;
向培养基中加入Shield1配体后,情况将发生逆转,细胞中目的蛋白的量则迅速提高。
产品目录号: 631463
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 逆转录病毒

载体质粒图谱和多克隆位点信息

pRetroX-PTuner载体图谱



pRetroX-PTuner 多克隆位点

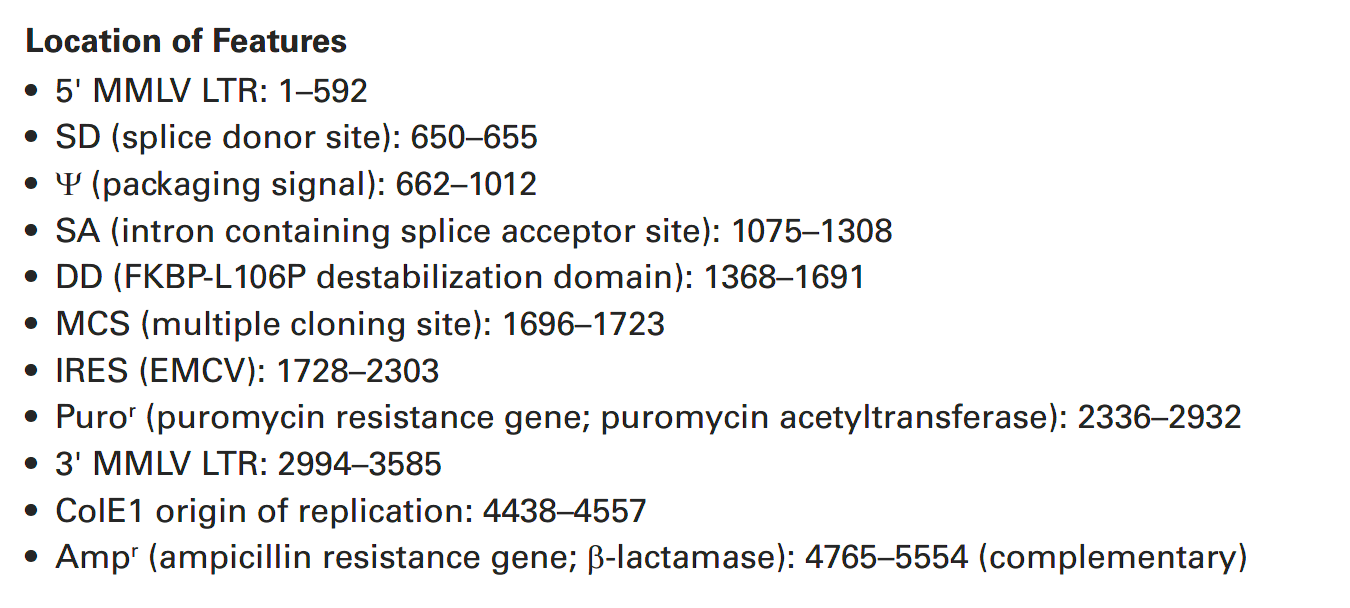

pRetroX-PTuner 载体特征

载体简介

pRetroX-PTuner载体描述

pRetroX-PTuner is a bicistronic, retroviral expression vector that allows you to precisely regulate the amount of your protein of interest in stably transduced mammalian cells. The vector encodes a 12 kDa, FKBP (L106P) destabilization domain (DD; 1) that is expressed as an N-terminal tag on your protein of interest; this domain causes the rapid degradation of any protein to which it is fused. Once expressed, the amount of DD-tagged protein present in the cell can be rapidly increased by the addition of Shield1 stabilizing ligand to the medium. Shield1 is a membrane permeable molecule that binds to the DD tag, 'shielding' the fusion protein from proteasomal degradation. pRetroX-PTuner allows the simultaneous expression of your DD-tagged protein of interest and puromycin acetyltransferase (PAC; for puromycin resistance (Puror)) from the same bicistronic mRNA transcript. Because PAC (i.e., Puror) is unaffected by the DD tag, it can be used as a selection marker.

Bicistronic expression of PAC and the DD-tagged protein of interest is facilitated by the encephalomyocarditis virus (EMCV) internal ribosome entry site (IRES). This IRES allows cap-independent translation of PAC (Puror) from an internal start site at the IRES/Purorjunction (2). A gene cloned into the multiple cloning site (MCS), located between the DD and the IRES sequences, is expressed as a bicistronic message transcribed from the 5’ LTR.

pRetroX-PTuner is derived from the pMIN series of retroviral vectors (3, 4). These optimized vectors have the ability to produce high viral titers, and high levels of recombinant protein. In addition, because they lack retroviral structural genes (gag, pol, and env) necessary for retroviral particle formation and replication, these vectors exhibit improved safety profiles.

pRetroX-PTuner contains all of the necessary viral RNA processing elements; these include the 5’ and 3’ LTRs, the packaging signal (Ψ), and the tRNA primer-binding site. pRetroX-PTuner also contains a ColE1 origin of replication, and an E. coli Ampr gene for propagation and selection in bacteria

pRetroX-PTuner is available in the Retro-X ProteoTuner Shield System N . It is designed to efficiently deliver and co-express your DD-tagged protein of interest and puromycin acetyltransferase (Puror) in any mitotically active mammalian cell. In order to create your DD-tagged protein of interest, your gene of interest must be cloned into the MCS in the same reading frame as the DD tag sequence, and it must contain a stop codon at the end of its coding sequence.
In order to infect mammalian cells with pRetroX-PTuner, the vector must be transfected into a packaging cell line, such as the RetroPack PT67 Cell line, AmphoPack-293, EcoPack2-293 , Pantropic Retroviral Expression System , or Retro-X Universal Packaging System . These cell lines package RNA transcribed from the vector into infectious, replication-incompetent, retroviral particles. Such retroviral particles can transduce target cells and transmit the gene of interest, but cannot replicate within these cells due to the absence of viral structural genes. The separate introduction and integration of the structural genes into the packaging cell line minimizes the chance of producing replication-competent virus due to recombination events during cell proliferation.
When cells expressing a DD-tagged protein of interest are grown in medium containing Shield1, the ligand binds to the DD tag and protects the fusion protein from degradation. As a result, the protein quickly accumulates inside the cells in amounts that are directly proportional to the concentration of Shield1 in the medium. If the cells are subsequently grown in medium lacking Shield1, the DD tag is no longer stabilized, and the fusion protein is rapidly degraded. Because the effects of Shield1 are concentration-dependent
and reversible, it is possible to fine-tune the amount of fusion protein present in the cells simply by adjusting the concentration of Shield1 in the medium (1).

Propagation in E. coli
 Suitable host strains: Stellar Competent Cells.
 Selectable marker: plasmid confers resistance to ampicillin (100 μg/ml) in E. coli hosts.
 E. coli replication origin: ColE1
 Copy number: high


载体序列

LOCUS       pRetroX-PTuner	6229 bp 	DNA	SYN
DEFINITION  pRetroX-PTuner
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6229
                     /organism="pRetroX-PTuner"
                     /mol_type="other DNA"
     misc_feature    11..592
                     /label="3MoMuLV_LTR"
     misc_feature    41..592
                     /label="5_LTR2"
     misc_feature    1235..1255
                     /label="EF1a_fwd_primer"
     misc_feature    1729..2292
                     /label="IRES"
     CDS             2213..2959
                     /label="ORF frame 2"
                     /translation="MLYMCLVEVKKTSRPPEPRGRGFPLKNTMISLPQPTRRRPSMTE
                     YKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDI
                     GKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPK
                     EPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFT
                     VTADVEVPEGPRTWCMTRKPGATGAASRIK*"
     gene            2336..2923
                     /label="puro (variant)"
                     /gene="puro (variant)"
                     /translation="MLYMCLVEVKKTSRPPEPRGRGFPLKNTMISLPQPTRRRPSMTE
                     YKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDI
                     GKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPK
                     EPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFT
                     VTADVEVPEGPRTWCMTRKPGATGAASRIK*"
     misc_feature    2992..3585
                     /label="3MoMuLV_LTR"
                     /translation="MLYMCLVEVKKTSRPPEPRGRGFPLKNTMISLPQPTRRRPSMTE
                     YKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDI
                     GKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPK
                     EPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFT
                     VTADVEVPEGPRTWCMTRKPGATGAASRIK*"
     misc_feature    3034..3585
                     /label="5_LTR2"
                     /translation="MLYMCLVEVKKTSRPPEPRGRGFPLKNTMISLPQPTRRRPSMTE
                     YKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDI
                     GKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPK
                     EPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFT
                     VTADVEVPEGPRTWCMTRKPGATGAASRIK*"
     promoter        complement(3597..3615)
                     /label="M13_reverse_primer"
                     /translation="MLYMCLVEVKKTSRPPEPRGRGFPLKNTMISLPQPTRRRPSMTE
                     YKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDI
                     GKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPK
                     EPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFT
                     VTADVEVPEGPRTWCMTRKPGATGAASRIK*"
     misc_feature    complement(3614..3636)
                     /label="M13_pUC_rev_primer"
                     /translation="MLYMCLVEVKKTSRPPEPRGRGFPLKNTMISLPQPTRRRPSMTE
                     YKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDI
                     GKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPK
                     EPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFT
                     VTADVEVPEGPRTWCMTRKPGATGAASRIK*"
     promoter        complement(3650..3679)
                     /label="lac_promoter"
                     /translation="MLYMCLVEVKKTSRPPEPRGRGFPLKNTMISLPQPTRRRPSMTE
                     YKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDI
                     GKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPK
                     EPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFT
                     VTADVEVPEGPRTWCMTRKPGATGAASRIK*"
     gene            complement(4762..5622)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MLYMCLVEVKKTSRPPEPRGRGFPLKNTMISLPQPTRRRPSMTE
                     YKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIERVTELQELFLTRVGLDI
                     GKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLAAQQQMEGLLAPHRPK
                     EPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETSAPRNLPFYERLGFT
                     VTADVEVPEGPRTWCMTRKPGATGAASRIK*"
     CDS             complement(4762..5622)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(5664..5692)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    complement(5851..5873)
                     /label="pGEX_3_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    complement(6072..6215)
                     /label="lacZ_a"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     misc_feature    6186..6208
                     /label="M13_pUC_fwd_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        6201..6217
                     /label="M13_forward20_primer"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 TGAAAGACCC CACCTGTAGG TTTGGCAAGC TAGCTTAAGT AACGCCATTT TGCAAGGCAT
   61 GGAAAAATAC ATAACTGAGA ATAGAAAAGT TCAGATCAAG GTCAGGAACA GATGGAACAG
  121 CTGAATATGG GCCAAACAGG ATATCTGTGG TAAGCAGTTC CTGCCCCGGC TCAGGGCCAA
  181 GAACAGATGG AACAGCTGAA TATGGGCCAA ACAGGATATC TGTGGTAAGC AGTTCCTGCC
  241 CCGGCTCAGG GCCAAGAACA GATGGTCCCC AGATGCGGTC CAGCCCTCAG CAGTTTCTAG
  301 AGAACCATCA GATGTTTCCA GGGTGCCCCA AGGACCTGAA ATGACCCTGT GCCTTATTTG
  361 AACTAACCAA TCAGTTCGCT TCTCGCTTCT GTTCGCGCGC TTCTGCTCCC CGGGCTCAAT
  421 AAAAGAGCCC ACAACCCCTC ACTCGGCGCG CCAGTCCTCC GATTGACTGA GTCGCCCGGG
  481 TACCCGTGTA TCCAATAAAC CCTCTTGCAG TTGCATCCGA CTTGTGGCCT CGCTGTTCCT
  541 TGGGAGGGTC TCCTCTGAGT GATTGACTAC CCGTCAGCGG GGGTCTTTCA TTTGGGGGCT
  601 CGTCCGGGAT CGGGAGACCC CTGCCCAGGG ACCACCGACC CACCACCGGG AGGTAAGCTG
  661 GCCAGCAACT TATCTGTGTC TGTCCGATTG TCTAGTGTCT ATGACTGATT TTATGCGCCT
  721 GCGTCGGTAC TAGTTAGCTA ACTAGCTCTG TATCTGGCGG ACCCGTGGTG GAACTGACGA
  781 GTTCGGAACA CCCGGCCGCA ACCCTGGGAG ACGTCCCAGG GACTTCGGGG GCCGTTTTTG
  841 TGGCCCGACC TGAGTCCAAA AATCCCGATC GTTTTGGACT CTTTGGTGCA CCCCCCTTAG
  901 AGGAGGGATA TGTGGTTCTG GTAGGAGACG AGAACCTAAA ACAGTTCCCG CCTCCGTCTG
  961 AATTTTTGCT TTCGGTTTGG GACCGAAGCC GCGCCGCGCG TCTTGTCTGC TGCAGCATCG
 1021 TTCTGTGTTG TCTCTGTCTG ACTGTGTTTC TGTATTTGTC TGAAAATACG CGTGTCGAGC
 1081 TTTTGGAGTA CGTCGTCTTT AGGTTGGGGG GAGGGGTTTT ATGCGATGGA GTTTCCCCAC
 1141 ACTGAGTGGG TGGAGACTGA AGTTAGGCCA GCTTGGCACT TGATGTAATT CTCCTTGGAA
 1201 TTTGCCCTTT TTGAGTTTGG ATCTTGGTTC ATTCTCAAGC CTCAGACAGT GGTTCAAAGT
 1261 TTTTTTCTTC CATTTCAGCC GTCGTGAAAA CTACCCCTAA AAGCCAAAAA AATCGAATTC
 1321 CCAAACTTAA GCTTGGTACC GAGCTCGGAT CTCACGTGGG CCCGCGGATG GGAGTGCAGG
 1381 TGGAAACCAT CTCCCCAGGA GACGGGCGCA CCTTCCCCAA GCGCGGCCAG ACCTGTGTGG
 1441 TGCACTACAC CGGGATGCTT GAAGATGGAA AGAAAGTCGA TTCCTCCCGG GACAGAAACA
 1501 AGCCCTTTAA GTTTATGCTA GGCAAGCAGG AGGTGATCCG AGGCTGGGAA GAAGGGGTTG
 1561 CCCAGATGAG TGTGGGTCAG AGAGCCAAAC TGACTATATC TCCAGATTAT GCCTATGGTG
 1621 CCACTGGGCA CCCAGGCATC ATCCCACCAC ATGCCACTCT CGTCTTCGAT GTGGAGCTTC
 1681 TAAAACCGGA ACCGCGGCCG CAGATCTATC GATGGATCCG TCCATGGCGC CCCTCTCCCT
 1741 CCCCCCCCCC TAACGTTACT GGCCGAAGCC GCTTGGAATA AGGCCGGTGT GCGTTTGTCT
 1801 ATATGTTATT TTCCACCATA TTGCCGTCTT TTGGCAATGT GAGGGCCCGG AAACCTGGCC
 1861 CTGTCTTCTT GACGAGCATT CCTAGGGGTC TTTCCCCTCT CGCCAAAGGA ATGCAAGGTC
 1921 TGTTGAATGT CGTGAAGGAA GCAGTTCCTC TGGAAGCTTC TTGAAGACAA ACAACGTCTG
 1981 TAGCGACCCT TTGCAGGCAG CGGAACCCCC CACCTGGCGA CAGGTGCCTC TGCGGCCAAA
 2041 AGCCACGTGT ATAAGATACA CCTGCAAAGG CGGCACAACC CCAGTGCCAC GTTGTGAGTT
 2101 GGATAGTTGT GGAAAGAGTC AAATGGCTCT CCTCAAGCGT ATTCAACAAG GGGCTGAAGG
 2161 ATGCCCAGAA GGTACCCCAT TGTATGGGAT CTGATCTGGG GCCTCGGTGC ACATGCTTTA
 2221 CATGTGTTTA GTCGAGGTTA AAAAAACGTC TAGGCCCCCC GAACCACGGG GACGTGGTTT
 2281 TCCTTTGAAA AACACGATGA TAAGCTTGCC ACAACCCACA AGGAGACGAC CTTCCATGAC
 2341 CGAGTACAAG CCCACGGTGC GCCTCGCCAC CCGCGACGAC GTCCCCCGGG CCGTACGCAC
 2401 CCTCGCCGCC GCGTTCGCCG ACTACCCCGC CACGCGCCAC ACCGTCGACC CGGACCGCCA
 2461 CATCGAGCGG GTCACCGAGC TGCAAGAACT CTTCCTCACG CGCGTCGGGC TCGACATCGG
 2521 CAAGGTGTGG GTCGCGGACG ACGGCGCCGC GGTGGCGGTC TGGACCACGC CGGAGAGCGT
 2581 CGAAGCGGGG GCGGTGTTCG CCGAGATCGG CCCGCGCATG GCCGAGTTGA GCGGTTCCCG
 2641 GCTGGCCGCG CAGCAACAGA TGGAAGGCCT CCTGGCGCCG CACCGGCCCA AGGAGCCCGC
 2701 GTGGTTCCTG GCCACCGTCG GCGTCTCGCC CGACCACCAG GGCAAGGGTC TGGGCAGCGC
 2761 CGTCGTGCTC CCCGGAGTGG AGGCGGCCGA GCGCGCCGGG GTGCCCGCCT TCCTGGAGAC
 2821 CTCCGCGCCC CGCAACCTCC CCTTCTACGA GCGGCTCGGC TTCACCGTCA CCGCCGACGT
 2881 CGAGGTGCCC GAAGGACCGC GCACCTGGTG CATGACCCGC AAGCCCGGTG CCACCGGTGC
 2941 GGCTTCGAGG ATAAAATAAA AGATTTTATT TAGTCTCCAG AAAAAGGGGG GAATGAAAGA
 3001 CCCCACCTGT AGGTTTGGCA AGCTAGCTTA AGTAACGCCA TTTTGCAAGG CATGGAAAAA
 3061 TACATAACTG AGAATAGAGA AGTTCAGATC AAGGTCAGGA ACAGATGGAA CAGCTGAATA
 3121 TGGGCCAAAC AGGATATCTG TGGTAAGCAG TTCCTGCCCC GGCTCAGGGC CAAGAACAGA
 3181 TGGAACAGCT GAATATGGGC CAAACAGGAT ATCTGTGGTA AGCAGTTCCT GCCCCGGCTC
 3241 AGGGCCAAGA ACAGATGGTC CCCAGATGCG GTCCAGCCCT CAGCAGTTTC TAGAGAACCA
 3301 TCAGATGTTT CCAGGGTGCC CCAAGGACCT GAAATGACCC TGTGCCTTAT TTGAACTAAC
 3361 CAATCAGTTC GCTTCTCGCT TCTGTTCGCG CGCTTCTGCT CCCCGAGCTC AATAAAAGAG
 3421 CCCACAACCC CTCACTCGGG GCGCCAGTCC TCCGATTGAC TGAGTCGCCC GGGTACCCGT
 3481 GTATCCAATA AACCCTCTTG CAGTTGCATC CGACTTGTGG TCTCGCTGTT CCTTGGGAGG
 3541 GTCTCCTCTG AGTGATTGAC TACCCGTCAG CGGGGGTCTT TCATTGAATT CGTAATCATG
 3601 GTCATAGCTG TTTCCTGTGT GAAATTGTTA TCCGCTCACA ATTCCACACA ACATACGAGC
 3661 CGGAAGCATA AAGTGTAAAG CCTGGGGTGC CTAATGAGTG AGCTAACTCA CATTAATTGC
 3721 GTTGCGCTCA CTGCCCGCTT TCCAGTCGGG AAACCTGTCG TGCCAGCTGC ATTAATGAAT
 3781 CGGCCAACGC GCGGGGAGAG GCGGTTTGCG TATTGGGCGC TCTTCCGCTT CCTCGCTCAC
 3841 TGACTCGCTG CGCTCGGTCG TTCGGCTGCG GCGAGCGGTA TCAGCTCACT CAAAGGCGGT
 3901 AATACGGTTA TCCACAGAAT CAGGGGATAA CGCAGGAAAG AACATGTGAG CAAAAGGCCA
 3961 GCAAAAGGCC AGGAACCGTA AAAAGGCCGC GTTGCTGGCG TTTTTCCATA GGCTCCGCCC
 4021 CCCTGACGAG CATCACAAAA ATCGACGCTC AAGTCAGAGG TGGCGAAACC CGACAGGACT
 4081 ATAAAGATAC CAGGCGTTTC CCCCTGGAAG CTCCCTCGTG CGCTCTCCTG TTCCGACCCT
 4141 GCCGCTTACC GGATACCTGT CCGCCTTTCT CCCTTCGGGA AGCGTGGCGC TTTCTCATAG
 4201 CTCACGCTGT AGGTATCTCA GTTCGGTGTA GGTCGTTCGC TCCAAGCTGG GCTGTGTGCA
 4261 CGAACCCCCC GTTCAGCCCG ACCGCTGCGC CTTATCCGGT AACTATCGTC TTGAGTCCAA
 4321 CCCGGTAAGA CACGACTTAT CGCCACTGGC AGCAGCCACT GGTAACAGGA TTAGCAGAGC
 4381 GAGGTATGTA GGCGGTGCTA CAGAGTTCTT GAAGTGGTGG CCTAACTACG GCTACACTAG
 4441 AAGAACAGTA TTTGGTATCT GCGCTCTGCT GAAGCCAGTT ACCTTCGGAA AAAGAGTTGG
 4501 TAGCTCTTGA TCCGGCAAAC AAACCACCGC TGGTAGCGGT GGTTTTTTTG TTTGCAAGCA
 4561 GCAGATTACG CGCAGAAAAA AAGGATCTCA AGAAGATCCT TTGATCTTTT CTACGGGGTC
 4621 TGACGCTCAG TGGAACGAAA ACTCACGTTA AGGGATTTTG GTCATGAGAT TATCAAAAAG
 4681 GATCTTCACC TAGATCCTTT TAAATTAAAA ATGAAGTTTT AAATCAATCT AAAGTATATA
 4741 TGAGTAAACT TGGTCTGACA GTTACCAATG CTTAATCAGT GAGGCACCTA TCTCAGCGAT
 4801 CTGTCTATTT CGTTCATCCA TAGTTGCCTG ACTCCCCGTC GTGTAGATAA CTACGATACG
 4861 GGAGGGCTTA CCATCTGGCC CCAGTGCTGC AATGATACCG CGAGACCCAC GCTCACCGGC
 4921 TCCAGATTTA TCAGCAATAA ACCAGCCAGC CGGAAGGGCC GAGCGCAGAA GTGGTCCTGC
 4981 AACTTTATCC GCCTCCATCC AGTCTATTAA TTGTTGCCGG GAAGCTAGAG TAAGTAGTTC
 5041 GCCAGTTAAT AGTTTGCGCA ACGTTGTTGC CATTGCTACA GGCATCGTGG TGTCACGCTC
 5101 GTCGTTTGGT ATGGCTTCAT TCAGCTCCGG TTCCCAACGA TCAAGGCGAG TTACATGATC
 5161 CCCCATGTTG TGCAAAAAAG CGGTTAGCTC CTTCGGTCCT CCGATCGTTG TCAGAAGTAA
 5221 GTTGGCCGCA GTGTTATCAC TCATGGTTAT GGCAGCACTG CATAATTCTC TTACTGTCAT
 5281 GCCATCCGTA AGATGCTTTT CTGTGACTGG TGAGTACTCA ACCAAGTCAT TCTGAGAATA
 5341 GTGTATGCGG CGACCGAGTT GCTCTTGCCC GGCGTCAATA CGGGATAATA CCGCGCCACA
 5401 TAGCAGAACT TTAAAAGTGC TCATCATTGG AAAACGTTCT TCGGGGCGAA AACTCTCAAG
 5461 GATCTTACCG CTGTTGAGAT CCAGTTCGAT GTAACCCACT CGTGCACCCA ACTGATCTTC
 5521 AGCATCTTTT ACTTTCACCA GCGTTTCTGG GTGAGCAAAA ACAGGAAGGC AAAATGCCGC
 5581 AAAAAAGGGA ATAAGGGCGA CACGGAAATG TTGAATACTC ATACTCTTCC TTTTTCAATA
 5641 TTATTGAAGC ATTTATCAGG GTTATTGTCT CATGAGCGGA TACATATTTG AATGTATTTA
 5701 GAAAAATAAA CAAATAGGGG TTCCGCGCAC ATTTCCCCGA AAAGTGCCAC CTGACGTCTA
 5761 AGAAACCATT ATTATCATGA CATTAACCTA TAAAAATAGG CGTATCACGA GGCCCTTTCG
 5821 TCTCGCGCGT TTCGGTGATG ACGGTGAAAA CCTCTGACAC ATGCAGCTCC CGGAGACGGT
 5881 CACAGCTTGT CTGTAAGCGG ATGCCGGGAG CAGACAAGCC CGTCAGGGCG CGTCAGCGGG
 5941 TGTTGGCGGG TGTCGGGGCT GGCTTAACTA TGCGGCATCA GAGCAGATTG TACTGAGAGT
 6001 GCACCATATG CGGTGTGAAA TACCGCACAG ATGCGTAAGG AGAAAATACC GCATCAGGCG
 6061 CCATTCGCCA TTCAGGCTGC GCAACTGTTG GGAAGGGCGA TCGGTGCGGG CCTCTTCGCT
 6121 ATTACGCCAG CTGGCGAAAG GGGGATGTGC TGCAAGGCGA TTAAGTTGGG TAACGCCAGG
 6181 GTTTTCCCAG TCACGACGTT GTAAAACGAC GGCCAGTGCC AAGCTTATG
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
