pLVX-DsRed-Monomer-N1

价格:1250元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-DsRed-Monomer-N1
质粒类型: 慢病毒表达载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
启动子: CMV
克隆方法: 多克隆位点,限制性内切酶
载体大小: 8751 bp
5' 测序引物及序列: CMV-F: CGCAAATGGGCGGTAGGCGTG (Invitrogen)
3' 测序引物及序列: --
载体标签: DsRed-Monomer(C-端)
载体抗性: 氨苄青霉素
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: Stbl3
宿主细胞(系): 常规细胞系,293、CV-1、CHO等
备注: pLVX-DsRed-Monomer-N1载体表达C端DsRed-Monomer融合蛋白;
DsRed-Monomer是DsRed的单体突变体,与DsRed相比,编码序列经过了人工优化,适用于在哺乳动物细胞中的高水平表达;
CMV启动子是过表达启动子。
产品目录号: 632152
稳定性: 稳表达
组成型: 组成型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

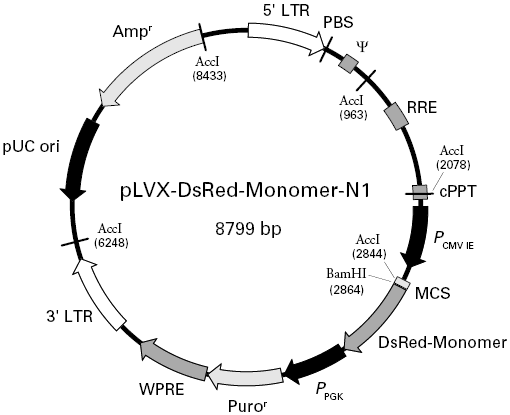

pLVX-DsRed-Monomer-N1载体图谱

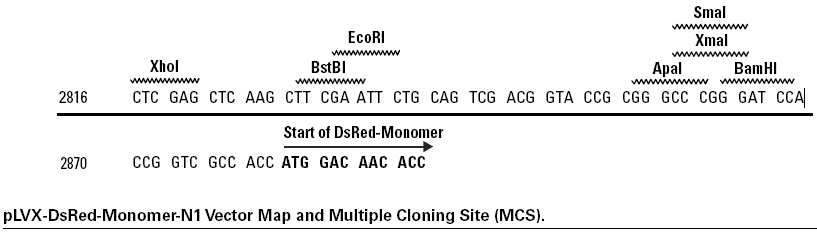

pLVX-DsRed-Monomer-N1多克隆位点

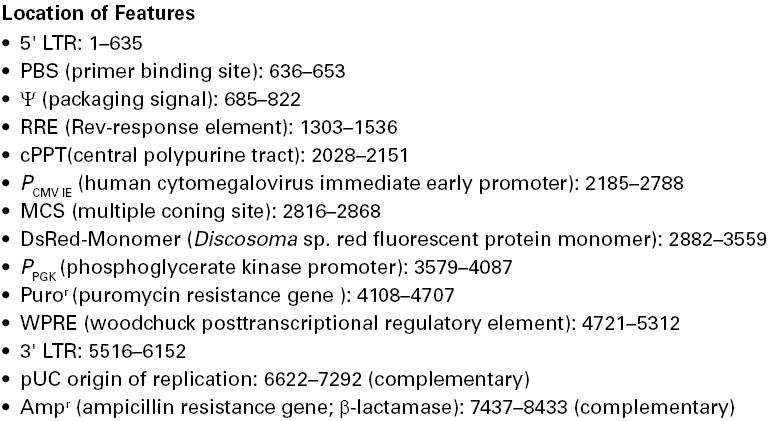

pLVX-DsRed-Monomer-N1载体特征

载体简介

Description
pLVX-DsRed-Monomer-N1 is an HIV-1-based, lentiviral expression vector that allows you to express your gene of interest fused to DsRed-Monomer, a monomeric mutant of the Discosoma sp. red fluorescent protein. Genes cloned into the multiple cloning site (MCS),located upstream of the DsRed-Monomer coding sequence, are expressed as N-terminal fusions of the DsRed-Monomer protein. Expression of the fusion protein is driven by the constitutively active human cytomegalovirus immediate early promoter (PCMV IE) located just upstream of the MCS. Lentiviral particles derived from the vector allow the expression of DsRed-Monomer fusion proteins in virtually any cell type, including primary cells. The unmodified vector expresses DsRed-Monomer, and may be used to produce marker virus to
optimize infection protocols.

pLVX-DsRed-Monomer-N1 contains all of the viral processing elements necessary for the production of replication-incompetent lentivirus, as well as elements to improve viral titer, transgene expression, and overall vector function. The woodchuck hepatitis virus posttranscriptional regulatory element (WPRE) promotes RNA processing events and nhances nuclear export of viral and transgene RNA (1), leading to increased viral titers from packaging cells, and enhanced expression of your gene of interest in target cells. In addition, the vector includes a Rev-response element (RRE), which further increases viral titers by enhancing the transport of unspliced viral RNA out of the nucleus (2). Finally, pLVX-DsRed-Monomer-N1 also contains a central polypurine tract (cPPT) element that increases nuclear importation of the viral genome during target cell infection, resulting in improved vector integration and more efficient transduction (3).

In addition to lentiviral elements, pLVX-DsRed-Monomer-N1 contains a puromycin resistance gene (Puror) under the control of the murine phosphoglycerate kinase (PGK) promoter (PPGK) for the selection of stable transductants. The vector also contains a pUC origin of replication and an E. coli ampicillin resistance gene (Ampr) for propagation and selection in bacteria.

Use
pLVX-DsRed-Monomer-N1 constitutively expresses your gene of interest from PCMV IE when transduced into target cells. Before the vector can be transduced into cells, however, it must be transfected into 293T packaging cells with our Lenti-X™ HTX Packaging System (Cat. Nos. 631247 and 631249). This packaging system allows you to safely produce high titer, infectious, replication-incompetent, VSV-G pseudotyped lentiviral particles that can infect a wide range of cell types, including non-dividing and primary cells (4).

载体序列

LOCUS       pLVX-DsRed-Monomer-N1   8751 bp    DNA   circular             9-NOV-2009
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     Cat. No. 632152
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     LTR             1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=Packaging\signal
     misc_feature    2028..2151
                     /label=cPPT/CTS
     promoter        2185..2787
                     /label=CMV\IE\Promoter
     misc_feature    4720..5311
                     /label=WPRE
     rep_origin      complement(6619..7292)
                     /label=pUC\origin
     CDS             complement(7437..8433)
                     /label=Amp(R)
     misc_binding    1303..1536
                     /label=RRE
     misc_binding    636..653
                     /label=PBS
     LTR             5514..6150
                     /label=3'\LTR
     misc_feature    2814..2868
                     /label=MCS
     CDS             2881..3558
                     /label=DsRed-Monomer
     promoter        3578..4086
                     /label=PGK\Promoter
     CDS             4107..4706
                     /label=Puro(R)
BASE COUNT     2168 a      2279 c      2317 g      1987 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgataagctt gggagttccg cgttacataa cttacggtaa
     2221 atggcccgcc tggctgaccg cccaacgacc cccgcccatt gacgtcaata atgacgtatg
     2281 ttcccatagt aacgccaata gggactttcc attgacgtca atgggtggag tatttacggt
     2341 aaactgccca cttggcagta catcaagtgt atcatatgcc aagtacgccc cctattgacg
     2401 tcaatgacgg taaatggccc gcctggcatt atgcccagta catgacctta tgggactttc
     2461 ctacttggca gtacatctac gtattagtca tcgctattac catggtgatg cggttttggc
     2521 agtacatcaa tgggcgtgga tagcggtttg actcacgggg atttccaagt ctccacccca
     2581 ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg ggactttcca aaatgtcgta
     2641 acaactccgc cccattgacg caaatgggcg gtaggcgtgt acggtgggag gtctatataa
     2701 gcagagctcg tttagtgaac cgtcagatcg cctggagacg ccatccacgc tgttttgacc
     2761 tccatagaag acaccgactc tactagagga tcgctagcgc taccggactc agatctcgag
     2821 ctcaagcttc gaattctgca gtcgacggta ccgcgggccc gggatccacc ggtcgccacc
     2881 atggacaaca ccgaggacgt catcaaggag ttcatgcagt tcaaggtgcg catggagggc
     2941 tccgtgaacg gccactactt cgagatcgag ggcgagggcg agggcaagcc ctacgagggc
     3001 acccagaccg ccaagctgca ggtgaccaag ggcggccccc tgcccttcgc ctgggacatc
     3061 ctgtcccccc agttccagta cggctccaag gcctacgtga agcaccccgc cgacatcccc
     3121 gactacatga agctgtcctt ccccgagggc ttcacctggg agcgctccat gaacttcgag
     3181 gacggcggcg tggtggaggt gcagcaggac tcctccctgc aggacggcac cttcatctac
     3241 aaggtgaagt tcaagggcgt gaacttcccc gccgacggcc ccgtaatgca gaagaagact
     3301 gccggctggg agccctccac cgagaagctg tacccccagg acggcgtgct gaagggcgag
     3361 atctcccacg ccctgaagct gaaggacggc ggccactaca cctgcgactt caagaccgtg
     3421 tacaaggcca agaagcccgt gcagctgccc ggcaaccact acgtggactc caagctggac
     3481 atcaccaacc acaacgagga ctacaccgtg gtggagcagt acgagcacgc cgaggcccgc
     3541 cactccggct cccagtagag cggccgcgac tctagataat tctaccgggt aggggaggcg
     3601 cttttcccaa ggcagtctgg agcatgcgct ttagcagccc cgctgggcac ttggcgctac
     3661 acaagtggcc tctggcctcg cacacattcc acatccaccg gtaggcgcca accggctccg
     3721 ttctttggtg gccccttcgc gccaccttct actcctcccc tagtcaggaa gttccccccc
     3781 gccccgcagc tcgcgtcgtg caggacgtga caaatggaag tagcacgtct cactagtctc
     3841 gtgcagatgg acagcaccgc tgagcaatgg aagcgggtag gcctttgggg cagcggccaa
     3901 tagcagcttt gctccttcgc tttctgggct cagaggctgg gaaggggtgg gtccgggggc
     3961 gggctcaggg gcgggctcag gggcggggcg ggcgcccgaa ggtcctccgg aggcccggca
     4021 ttctgcacgc ttcaaaagcg cacgtctgcc gcgctgttct cctcttcctc atctccgggc
     4081 ctttcgacct gcagcccaag cttaccatga ccgagtacaa gcccacggtg cgcctcgcca
     4141 cccgcgacga cgtccccagg gccgtacgca ccctcgccgc cgcgttcgcc gactaccccg
     4201 ccacgcgcca caccgtcgat ccggaccgcc acatcgagcg ggtcaccgag ctgcaagaac
     4261 tcttcctcac gcgcgtcggg ctcgacatcg gcaaggtgtg ggtcgcggac gacggcgccg
     4321 cggtggcggt ctggaccacg ccggagagcg tcgaagcggg ggcggtgttc gccgagatcg
     4381 gcccgcgcat ggccgagttg agcggttccc ggctggccgc gcagcaacag atggaaggcc
     4441 tcctggcgcc gcaccggccc aaggagcccg cgtggttcct ggccaccgtc ggcgtctcgc
     4501 ccgaccacca gggcaagggt ctgggcagcg ccgtcgtgct ccccggagtg gaggcggccg
     4561 agcgcgccgg ggtgcccgcc ttcctggaga cctccgcgcc ccgcaacctc cccttctacg
     4621 agcggctcgg cttcaccgtc accgccgacg tcgaggtgcc cgaaggaccg cgcacctggt
     4681 gcatgacccg caagcccggt gcctgaccgc gtctggaaca atcaacctct ggattacaaa
     4741 atttgtgaaa gattgactgg tattcttaac tatgttgctc cttttacgct atgtggatac
     4801 gctgctttaa tgcctttgta tcatgctatt gcttcccgta tggctttcat tttctcctcc
     4861 ttgtataaat cctggttgct gtctctttat gaggagttgt ggcccgttgt caggcaacgt
     4921 ggcgtggtgt gcactgtgtt tgctgacgca acccccactg gttggggcat tgccaccacc
     4981 tgtcagctcc tttccgggac tttcgctttc cccctcccta ttgccacggc ggaactcatc
     5041 gccgcctgcc ttgcccgctg ctggacaggg gctcggctgt tgggcactga caattccgtg
     5101 gtgttgtcgg ggaagctgac gtcctttcca tggctgctcg cctgtgttgc cacctggatt
     5161 ctgcgcggga cgtccttctg ctacgtccct tcggccctca atccagcgga ccttccttcc
     5221 cgcggcctgc tgccggctct gcggcctctt ccgcgtcttc gccttcgccc tcagacgagt
     5281 cggatctccc tttgggccgc ctccccgcct ggaattaatt ctgcagtcga gacctagaaa
     5341 aacatggagc aatcacaagt agcaatacag cagctaccaa tgctgattgt gcctggctag
     5401 aagcacaaga ggaggaggag gtgggttttc cagtcacacc tcaggtacct ttaagaccaa
     5461 tgacttacaa ggcagctgta gatcttagcc actttttaaa agaaaagagg ggactggaag
     5521 ggctaattca ctcccaacga agacaagata tccttgatct gtggatctac cacacacaag
     5581 gctacttccc tgattagcag aactacacac cagggccagg ggtcagatat ccactgacct
     5641 ttggatggtg ctacaagcta gtaccagttg agccagataa ggtagaagag gccaataaag
     5701 gagagaacac cagcttgtta caccctgtga gcctgcatgg gatggatgac ccggagagag
     5761 aagtgttaga gtggaggttt gacagccgcc tagcatttca tcacgtggcc cgagagctgc
     5821 atccggagta cttcaagaac tgctgatatc gagcttgcta caagggactt tccgctgggg
     5881 actttccagg gaggcgtggc ctgggcggga ctggggagtg gcgagccctc agatcctgca
     5941 tataagcagc tgctttttgc ctgtactggg tctctctggt tagaccagat ctgagcctgg
     6001 gagctctctg gctaactagg gaacccactg cttaagcctc aataaagctt gccttgagtg
     6061 cttcaagtag tgtgtgcccg tctgttgtgt gactctggta actagagatc cctcagaccc
     6121 ttttagtcag tgtggaaaat ctctagcagt agtagttcat gtcatcttat tattcagtat
     6181 ttataacttg caaagaaatg aatatcagag agtgagaggc cttgacattg ctagcgttta
     6241 ccgtcgacct ctagctagag cttggcgtaa tcatggtcat agctgtttcc tgtgtgaaat
     6301 tgttatccgc tcacaattcc acacaacata cgagccggaa gcataaagtg taaagcctgg
     6361 ggtgcctaat gagtgagcta actcacatta attgcgttgc gctcactgcc cgctttccag
     6421 tcgggaaacc tgtcgtgcca gctgcattaa tgaatcggcc aacgcgcggg gagaggcggt
     6481 ttgcgtattg ggcgctcttc cgcttcctcg ctcactgact cgctgcgctc ggtcgttcgg
     6541 ctgcggcgag cggtatcagc tcactcaaag gcggtaatac ggttatccac agaatcaggg
     6601 gataacgcag gaaagaacat gtgagcaaaa ggccagcaaa aggccaggaa ccgtaaaaag
     6661 gccgcgttgc tggcgttttt ccataggctc cgcccccctg acgagcatca caaaaatcga
     6721 cgctcaagtc agaggtggcg aaacccgaca ggactataaa gataccaggc gtttccccct
     6781 ggaagctccc tcgtgcgctc tcctgttccg accctgccgc ttaccggata cctgtccgcc
     6841 tttctccctt cgggaagcgt ggcgctttct catagctcac gctgtaggta tctcagttcg
     6901 gtgtaggtcg ttcgctccaa gctgggctgt gtgcacgaac cccccgttca gcccgaccgc
     6961 tgcgccttat ccggtaacta tcgtcttgag tccaacccgg taagacacga cttatcgcca
     7021 ctggcagcag ccactggtaa caggattagc agagcgaggt atgtaggcgg tgctacagag
     7081 ttcttgaagt ggtggcctaa ctacggctac actagaagaa cagtatttgg tatctgcgct
     7141 ctgctgaagc cagttacctt cggaaaaaga gttggtagct cttgatccgg caaacaaacc
     7201 accgctggta gcggtggttt ttttgtttgc aagcagcaga ttacgcgcag aaaaaaagga
     7261 tctcaagaag atcctttgat cttttctacg gggtctgacg ctcagtggaa cgaaaactca
     7321 cgttaaggga ttttggtcat gagattatca aaaaggatct tcacctagat ccttttaaat
     7381 taaaaatgaa gttttaaatc aatctaaagt atatatgagt aaacttggtc tgacagttac
     7441 caatgcttaa tcagtgaggc acctatctca gcgatctgtc tatttcgttc atccatagtt
     7501 gcctgactcc ccgtcgtgta gataactacg atacgggagg gcttaccatc tggccccagt
     7561 gctgcaatga taccgcgaga cccacgctca ccggctccag atttatcagc aataaaccag
     7621 ccagccggaa gggccgagcg cagaagtggt cctgcaactt tatccgcctc catccagtct
     7681 attaattgtt gccgggaagc tagagtaagt agttcgccag ttaatagttt gcgcaacgtt
     7741 gttgccattg ctacaggcat cgtggtgtca cgctcgtcgt ttggtatggc ttcattcagc
     7801 tccggttccc aacgatcaag gcgagttaca tgatccccca tgttgtgcaa aaaagcggtt
     7861 agctccttcg gtcctccgat cgttgtcaga agtaagttgg ccgcagtgtt atcactcatg
     7921 gttatggcag cactgcataa ttctcttact gtcatgccat ccgtaagatg cttttctgtg
     7981 actggtgagt actcaaccaa gtcattctga gaatagtgta tgcggcgacc gagttgctct
     8041 tgcccggcgt caatacggga taataccgcg ccacatagca gaactttaaa agtgctcatc
     8101 attggaaaac gttcttcggg gcgaaaactc tcaaggatct taccgctgtt gagatccagt
     8161 tcgatgtaac ccactcgtgc acccaactga tcttcagcat cttttacttt caccagcgtt
     8221 tctgggtgag caaaaacagg aaggcaaaat gccgcaaaaa agggaataag ggcgacacgg
     8281 aaatgttgaa tactcatact cttccttttt caatattatt gaagcattta tcagggttat
     8341 tgtctcatga gcggatacat atttgaatgt atttagaaaa ataaacaaat aggggttccg
     8401 cgcacatttc cccgaaaagt gccacctgac gtcgacggat cgggagatca acttgtttat
     8461 tgcagcttat aatggttaca aataaagcaa tagcatcaca aatttcacaa ataaagcatt
     8521 tttttcactg cattctagtt gtggtttgtc caaactcatc aatgtatctt atcatgtctg
     8581 gatcaactgg ataactcaag ctaaccaaaa tcatcccaaa cttcccaccc cataccctat
     8641 taccactgcc aattacctgt ggtttcattt actctaaacc tgtgattcct ctgaattatt
     8701 ttcattttaa agaaattgta tttgttaaat atgtactaca aacttagtag t
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
