pLVX-AmCyan1-C1

价格:2500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pLVX-AmCyan1-C1, pLVX AmCyan1 C1
质粒类型: 慢病毒表达载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
启动子: CMV
克隆方法: 多克隆位点,限制性内切酶
载体大小: 8757 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: AmCyan1(N-端)
载体抗性: 氨苄青霉素
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: Stbl3
宿主细胞(系): 常规细胞系,293、CV-1、CHO等
备注: pLVX-AmCyan1-C1载体表达N端AmCyan1融合蛋白;
青色荧光蛋白AmCyan1具有高度可溶性,高亮度,同时与其它荧光蛋白颜色区别大。
产品目录号: 632557
稳定性: 稳表达
组成型: 组成型
病毒/非病毒: 慢病毒

载体质粒图谱和多克隆位点信息

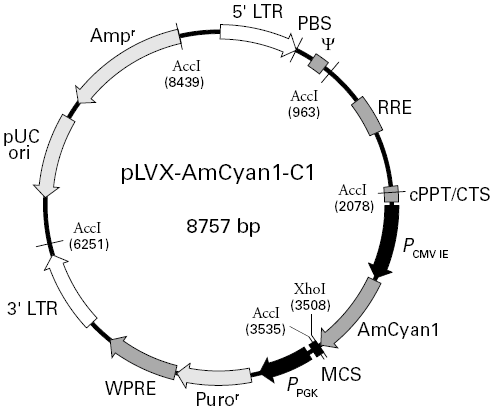

pLVX-AmCyan1-C1载体图谱

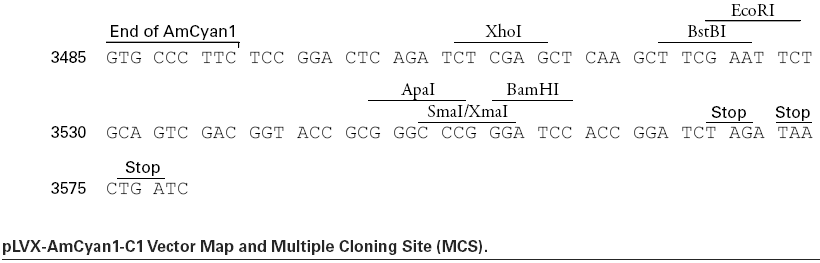

pLVX-AmCyan1-C1多克隆位点

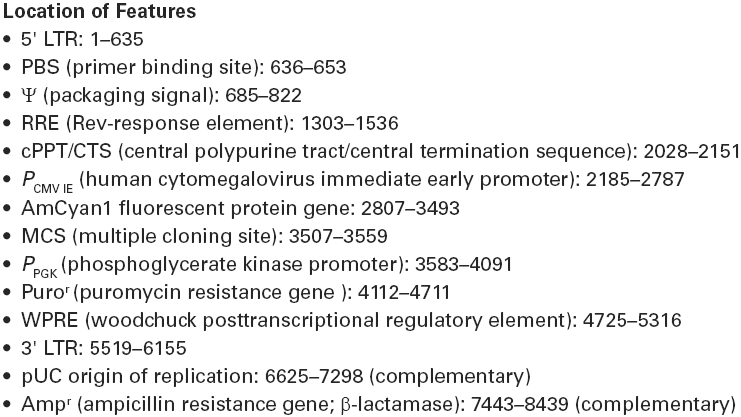

pLVX-AmCyan1-C1载体特征

载体简介

pLVX-AmCyan1-C1 is an HIV-1-based, lentiviral expression vector that allows you to express your gene of interest fused to AmCyan1, a human codon-optimized variant of the wild-type Anemonia majano cyan fluorescent protein (1). Genes cloned into the multiple cloning site (MCS), located at the C-terminal end of the AmCyan1 coding sequence, are expressed as C-terminal AmCyan1 fusion proteins. Expression of the fusion protein is driven by the constitutively active human cytomegalovirus immediate early promoter (PCMV IE), located just upstream of the AmCyan1 coding sequence. Lentiviral particles derived from the vector allow the expression of AmCyan1 fusion proteins in virtually any cell type, including primary cells. The unmodified vector expresses AmCyan1, and may be used to produce marker virus to optimize infection protocols.
pLVX-AmCyan1-C1 contains all of the viral processing elements necessary for the production of replication-incompetent lentivirus, as well as elements to improve viral titer, transgene expression, and overall vector function. The woodchuck hepatitis virus posttranscriptional regulatory element (WPRE) promotes RNA processing events and enhances nuclear export of viral and transgene RNA (2), leading to increased viral titers from packaging cells, and enhanced expression of your gene of interest in target cells. In addition, the vector includes a Rev-response element (RRE), which further increases viral titers by enhancing the transport of unspliced viral RNA out of the nucleus (3). Finally, pLVX-AmCyan1-C1 also contains a central polypurine tract/central termination sequence element (cPPT/CTS). During target cell infection, this element creates a central DNA flap that increases nuclear import of the viral genome, resulting in improved vector integration and more efficient transduction (4).In addition to lentiviral elements, pLVX-AmCyan1-C1 contains a puromycin resistance gene (Puror) under the control of the murine phosphoglycerate kinase (PGK) promoter (PPGK) for the selection of stable transductants. The vector also contains a pUC origin of replication and an E. coli ampicillin resistance gene (Ampr) for propagation and selection in bacteria.
To construct a fusion protein, the gene of interest must be cloned into pLVX-AmCyan1-C1 so that it is in-frame with the AmCyan1 coding sequence. The inserted sequence does not require an initiation codon (ATG) or a stop codon (TAA, TAG, TGA); however, if you don't want to use the stop codons downstream of the MCS (see map), you can add a stop codon to the end of your gene of interest.
The fusion protein is constitutively expressed when pLVX-AmCyan1-C1 is transduced into target cells. Before the vector can be transduced, however, it must be transfected into 293T packaging cells with our Lenti-X HT Packaging System (Cat. Nos. 632160 and 632161). This packaging system allows you to safely produce high titer, infectious, replication-incompetent, VSV-G pseudotyped lentiviral particles that can infect a wide range of cell types, including non-dividing and primary cells (5).

Propagation in E. coli
 Suitable host strains: DH5α, DH10B and other general purpose strains.
 Selectable marker: plasmid confers resistance to ampicillin (100 μg/ml) in E. coli hosts.
 E. coli replication origin: ColE1
 Copy number: high

Excitation and emission maxima of AmCyan1
 Excitation maximum = 458 nm
 Emission maximum = 489 nm

载体序列

LOCUS       pLVX-AmCyan1-C1   8757 bp    DNA   circular             7-OCT-2009
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     Cat. No. 632557
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     LTR             1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=packaging\signal
     misc_feature    4725..5316
                     /label=WPRE
     CDS             complement(7443..8439)
                     /label=Amp(R)
     misc_binding    1303..1536
                     /label=RRE
     misc_binding    636..653
                     /label=PBS
     LTR             5519..6155
                     /label=3'\LTR
     promoter        3583..4091
                     /label=PGK\Promoter
     CDS             4112..4711
                     /label=Puro(R)
     misc_feature    3568..3570
                     /label=Stop
     misc_feature    3572..3574
                     /label=Stop
     CDS             2807..3493
                     /label=AmCyan1
     misc_feature    2028..2151
                     /label=cPPT/CTS\(DNA\flap)
     promoter        2185..2787
                     /label=CMV\IE\Promoter
     rep_origin      complement(6625..7298)
                     /label=pUC\ori
     misc_feature    3576..3578
                     /label=Stop
     misc_feature    3507..3559
                     /label=MCS
BASE COUNT     2166 a      2296 c      2295 g      2000 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgataagctt gggagttccg cgttacataa cttacggtaa
     2221 atggcccgcc tggctgaccg cccaacgacc cccgcccatt gacgtcaata atgacgtatg
     2281 ttcccatagt aacgccaata gggactttcc attgacgtca atgggtggag tatttacggt
     2341 aaactgccca cttggcagta catcaagtgt atcatatgcc aagtacgccc cctattgacg
     2401 tcaatgacgg taaatggccc gcctggcatt atgcccagta catgacctta tgggactttc
     2461 ctacttggca gtacatctac gtattagtca tcgctattac catggtgatg cggttttggc
     2521 agtacatcaa tgggcgtgga tagcggtttg actcacgggg atttccaagt ctccacccca
     2581 ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg ggactttcca aaatgtcgta
     2641 acaactccgc cccattgacg caaatgggcg gtaggcgtgt acggtgggag gtctatataa
     2701 gcagagctcg tttagtgaac cgtcagatcg cctggagacg ccatccacgc tgttttgacc
     2761 tccatagaag acaccgactc tactagagga tctaccggtc gccaccatgg ccctgtccaa
     2821 caagttcatc ggcgacgaca tgaagatgac ctaccacatg gacggctgcg tgaacggcca
     2881 ctacttcacc gtgaagggcg agggcagcgg caagccctac gagggcaccc agacctccac
     2941 cttcaaggtg accatggcca acggcggccc cctggccttc tccttcgaca tcctgtccac
     3001 cgtgttcatg tacggcaacc gctgcttcac cgcctacccc accagcatgc ccgactactt
     3061 caagcaggcc ttccccgacg gcatgtccta cgagagaacc ttcacctacg aggacggcgg
     3121 cgtggccacc gccagctggg agatcagcct gaagggcaac tgcttcgagc acaagtccac
     3181 cttccacggc gtgaacttcc ccgccgacgg ccccgtgatg gccaagaaga ccaccggctg
     3241 ggacccctcc ttcgagaaga tgaccgtgtg cgacggcatc ttgaagggcg acgtgaccgc
     3301 cttcctgatg ctgcagggcg gcggcaacta cagatgccag ttccacacct cctacaagac
     3361 caagaagccc gtgaccatgc cccccaacca cgtggtggag caccgcatcg ccagaaccga
     3421 cctggacaag ggcggcaaca gcgtgcagct gaccgagcac gccgtggccc acatcacctc
     3481 cgtggtgccc ttctccggac tcagatctcg agctcaagct tcgaattctg cagtcgacgg
     3541 taccgcgggc ccgggatcca ccggatctag ataactgatc ataattctac cgggtagggg
     3601 aggcgctttt cccaaggcag tctggagcat gcgctttagc agccccgctg ggcacttggc
     3661 gctacacaag tggcctctgg cctcgcacac attccacatc caccggtagg cgccaaccgg
     3721 ctccgttctt tggtggcccc ttcgcgccac cttctactcc tcccctagtc aggaagttcc
     3781 cccccgcccc gcagctcgcg tcgtgcagga cgtgacaaat ggaagtagca cgtctcacta
     3841 gtctcgtgca gatggacagc accgctgagc aatggaagcg ggtaggcctt tggggcagcg
     3901 gccaatagca gctttgctcc ttcgctttct gggctcagag gctgggaagg ggtgggtccg
     3961 ggggcgggct caggggcggg ctcaggggcg gggcgggcgc ccgaaggtcc tccggaggcc
     4021 cggcattctg cacgcttcaa aagcgcacgt ctgccgcgct gttctcctct tcctcatctc
     4081 cgggcctttc gacctgcagc ccaagcttac catgaccgag tacaagccca cggtgcgcct
     4141 cgccacccgc gacgacgtcc ccagggccgt acgcaccctc gccgccgcgt tcgccgacta
     4201 ccccgccacg cgccacaccg tcgatccgga ccgccacatc gagcgggtca ccgagctgca
     4261 agaactcttc ctcacgcgcg tcgggctcga catcggcaag gtgtgggtcg cggacgacgg
     4321 cgccgcggtg gcggtctgga ccacgccgga gagcgtcgaa gcgggggcgg tgttcgccga
     4381 gatcggcccg cgcatggccg agttgagcgg ttcccggctg gccgcgcagc aacagatgga
     4441 aggcctcctg gcgccgcacc ggcccaagga gcccgcgtgg ttcctggcca ccgtcggcgt
     4501 ctcgcccgac caccagggca agggtctggg cagcgccgtc gtgctccccg gagtggaggc
     4561 ggccgagcgc gccggggtgc ccgccttcct ggagacctcc gcgccccgca acctcccctt
     4621 ctacgagcgg ctcggcttca ccgtcaccgc cgacgtcgag gtgcccgaag gaccgcgcac
     4681 ctggtgcatg acccgcaagc ccggtgcctg accgcgtctg gaacaatcaa cctctggatt
     4741 acaaaatttg tgaaagattg actggtattc ttaactatgt tgctcctttt acgctatgtg
     4801 gatacgctgc tttaatgcct ttgtatcatg ctattgcttc ccgtatggct ttcattttct
     4861 cctccttgta taaatcctgg ttgctgtctc tttatgagga gttgtggccc gttgtcaggc
     4921 aacgtggcgt ggtgtgcact gtgtttgctg acgcaacccc cactggttgg ggcattgcca
     4981 ccacctgtca gctcctttcc gggactttcg ctttccccct ccctattgcc acggcggaac
     5041 tcatcgccgc ctgccttgcc cgctgctgga caggggctcg gctgttgggc actgacaatt
     5101 ccgtggtgtt gtcggggaag ctgacgtcct ttccatggct gctcgcctgt gttgccacct
     5161 ggattctgcg cgggacgtcc ttctgctacg tcccttcggc cctcaatcca gcggaccttc
     5221 cttcccgcgg cctgctgccg gctctgcggc ctcttccgcg tcttcgcctt cgccctcaga
     5281 cgagtcggat ctccctttgg gccgcctccc cgcctggaat taattctgca gtcgagacct
     5341 agaaaaacat ggagcaatca caagtagcaa tacagcagct accaatgctg attgtgcctg
     5401 gctagaagca caagaggagg aggaggtggg ttttccagtc acacctcagg tacctttaag
     5461 accaatgact tacaaggcag ctgtagatct tagccacttt ttaaaagaaa agaggggact
     5521 ggaagggcta attcactccc aacgaagaca agatatcctt gatctgtgga tctaccacac
     5581 acaaggctac ttccctgatt agcagaacta cacaccaggg ccaggggtca gatatccact
     5641 gacctttgga tggtgctaca agctagtacc agttgagcca gataaggtag aagaggccaa
     5701 taaaggagag aacaccagct tgttacaccc tgtgagcctg catgggatgg atgacccgga
     5761 gagagaagtg ttagagtgga ggtttgacag ccgcctagca tttcatcacg tggcccgaga
     5821 gctgcatccg gagtacttca agaactgctg atatcgagct tgctacaagg gactttccgc
     5881 tggggacttt ccagggaggc gtggcctggg cgggactggg gagtggcgag ccctcagatc
     5941 ctgcatataa gcagctgctt tttgcctgta ctgggtctct ctggttagac cagatctgag
     6001 cctgggagct ctctggctaa ctagggaacc cactgcttaa gcctcaataa agcttgcctt
     6061 gagtgcttca agtagtgtgt gcccgtctgt tgtgtgactc tggtaactag agatccctca
     6121 gaccctttta gtcagtgtgg aaaatctcta gcagtagtag ttcatgtcat cttattattc
     6181 agtatttata acttgcaaag aaatgaatat cagagagtga gaggccttga cattgctagc
     6241 gttttaccgt cgacctctag ctagagcttg gcgtaatcat ggtcatagct gtttcctgtg
     6301 tgaaattgtt atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa
     6361 gcctggggtg cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct
     6421 ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa tcggccaacg cgcggggaga
     6481 ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc
     6541 gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa
     6601 tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt
     6661 aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa
     6721 aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt
     6781 ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg
     6841 tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc
     6901 agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc
     6961 gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta
     7021 tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct
     7081 acagagttct tgaagtggtg gcctaactac ggctacacta gaagaacagt atttggtatc
     7141 tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa
     7201 caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac gcgcagaaaa
     7261 aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa
     7321 aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt
     7381 ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac
     7441 agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt tcgttcatcc
     7501 atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt accatctggc
     7561 cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt atcagcaata
     7621 aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc cgcctccatc
     7681 cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc
     7741 aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca
     7801 ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa
     7861 gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc agtgttatca
     7921 ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt aagatgcttt
     7981 tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt
     8041 tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac tttaaaagtg
     8101 ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc gctgttgaga
     8161 tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt tactttcacc
     8221 agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg aataagggcg
     8281 acacggaaat gttgaatact catactcttc ctttttcaat attattgaag catttatcag
     8341 ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg
     8401 gttccgcgca catttccccg aaaagtgcca cctgacgtcg acggatcggg agatcaactt
     8461 gtttattgca gcttataatg gttacaaata aagcaatagc atcacaaatt tcacaaataa
     8521 agcatttttt tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg tatcttatca
     8581 tgtctggatc aactggataa ctcaagctaa ccaaaatcat cccaaacttc ccaccccata
     8641 ccctattacc actgccaatt acctgtggtt tcatttactc taaacctgtg attcctctga
     8701 attattttca ttttaaagaa attgtatttg ttaaatatgt actacaaact tagtagt
//

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
