pFastBac Dual

价格:900元

联系方式:I47-825O-882O

买家导航

pFastBacDual载体基本信息

出品公司: Invitrogen
载体名称: pFastBacDual, pFastBac Dual
质粒类型: 昆虫细胞表达载体
启动子: Polyhedrin, P10
表达水平:
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5238 bp
5' 测序引物: pFastbac-F: TATTCCGGATTATTCATACC
3' 测序引物: pFastBac-R: ACAAATGTGGTATGGCTGA
载体标签: N-His, N-TEV
载体抗性: 氨苄
筛选标记: Gentamycin_2.html' target='_blank'>庆大霉素
备注: 在昆虫细胞中,能够同时表达两个基因。
产品目录号: 10584-027
稳定性: 稳表达 Stable
组成型: 组成型 Constitutive
病毒/非病毒: 杆状病毒

pFastBacDual载体质粒图谱和多克隆位点信息

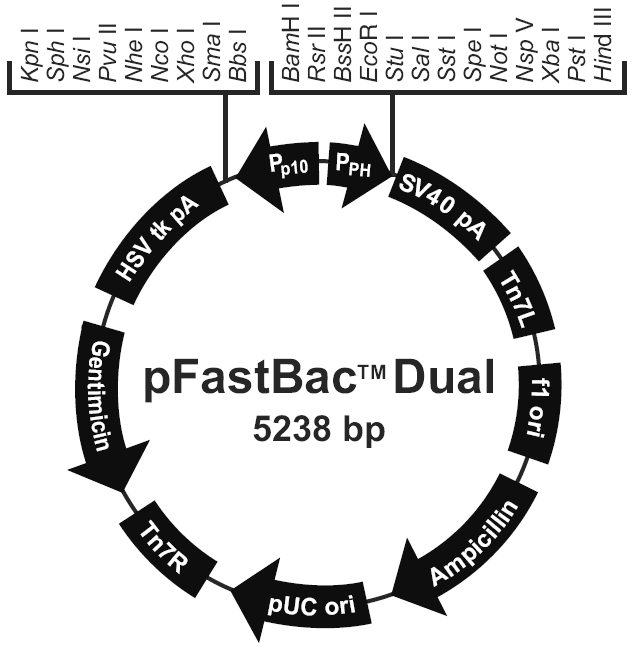

pFastBacDual载体图谱

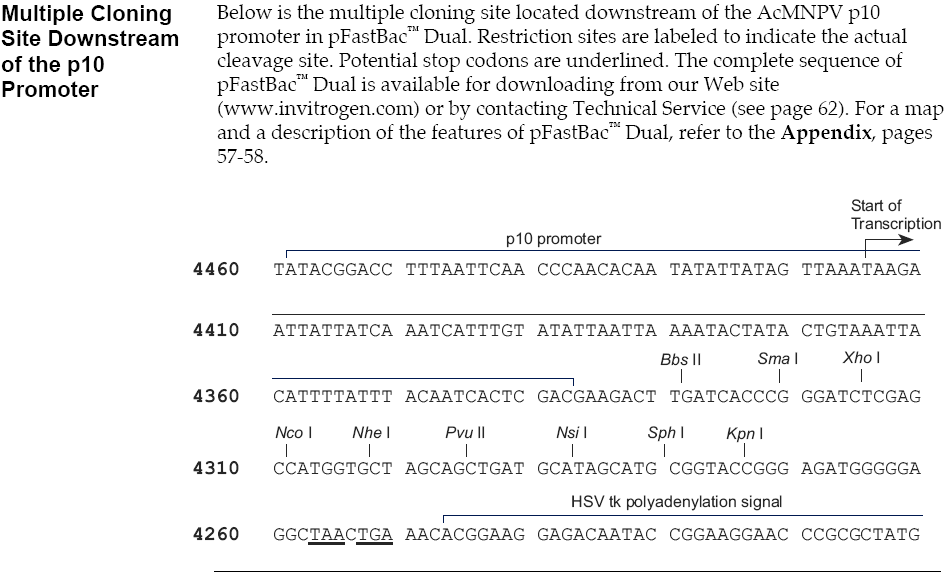

pFastBacDual多克隆位点

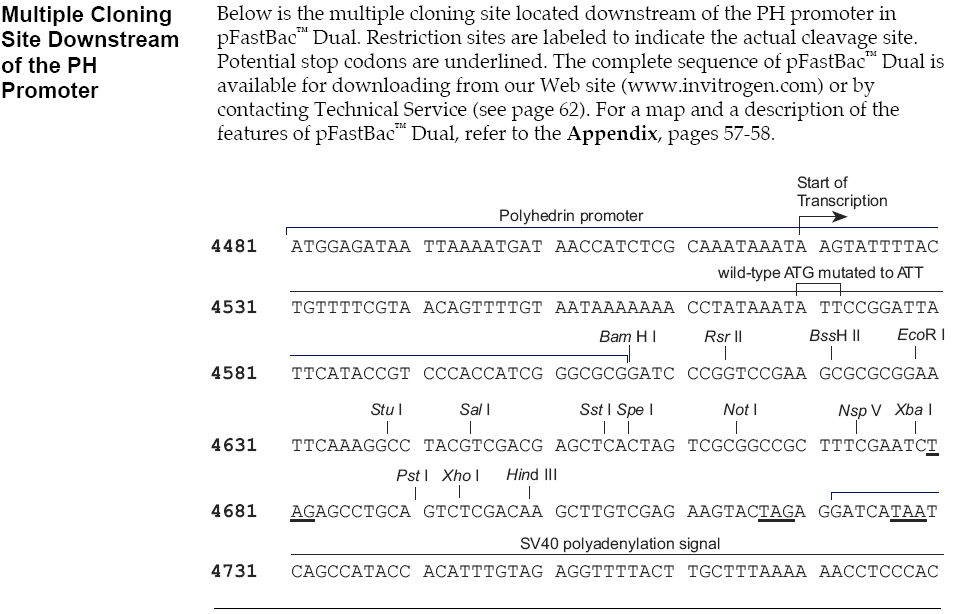

pFastBacDual多克隆位点

pFastBacDual载体简介

pFastBac Dual昆虫细胞表达载体包含有两个启动子,能够同时表达两个外源基因,一个表达基因是polyhedrin (PH)启动子控制,另一个外源基因是由p10启动子控制。

pFastBacDual载体序列

LOCUS       pFastBac\Dual           5238 bp    DNA     circular SYN 16-MAY-2012
DEFINITION  pFastBac Dual.
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..5238
                     /organism="pFastBac Dual"
                     /mol_type="other DNA"
                     /vntifkey="98"
     rep_origin      102..557
                     /vntifkey="33"
                     /label=f1_origin
     promoter        619..647
                     /vntifkey="30"
                     /label=AmpR_promoter
     CDS             689..1549
                     /gene="Ampicillin"
                     /vntifkey="4"
                     /label=Ampicillin
                     /note="ORF frame 2"
     gene            689..1549
                     /gene="Ampicillin"
                     /vntifkey="60"
     rep_origin      1704..2323
                     /vntifkey="33"
                     /label=pUC_origin
     gene            complement(2902..3435)
                     /gene="gent"
                     /vntifkey="60"
     terminator      complement(3996..4266)
                     /vntifkey="43"
                     /label=TK_PA_terminator
     misc_feature    4494..4511
                     /vntifkey="21"
                     /label=polyhedrin_fwd_primer
     promoter        4478..4606
                     /vntifkey="30"
                     /label=PH_promoter
     terminator      4831..4962
                     /vntifkey="43"
                     /label=SV40_PA_terminator
     misc_feature    4919..4938
                     /vntifkey="21"
                     /label=EBV_rev_primer
     misc_feature    2611..2835
                     /vntifkey="21"
                     /label=Tn7R
     CDS             complement(2902..3435)
                     /vntifkey="4"
                     /label=Gentimicin\Resistance\Gene
     misc_feature    complement(4274..4337)
                     /vntifkey="21"
                     /label=MCS
     misc_feature    4606..4704
                     /vntifkey="21"
                     /label=MCS
     promoter        complement(4338..4459)
                     /vntifkey="30"
                     /label=P10\Promoter
     misc_feature    complement(4991..5156)
                     /vntifkey="21"
                     /label=Tn7L
     misc_signal     complement(3992..4274)
                     /vntifkey="87"
                     /label=HSV\TK\polyadenylation\signal
     misc_signal     4722..4962
                     /vntifkey="87"
                     /label=SV40\polyadenylation\signal
BASE COUNT     1294 a      1282 c      1259 g      1403 t
ORIGIN
        1 ttctctgtca cagaatgaaa atttttctgt catctcttcg ttattaatgt ttgtaattga
       61 ctgaatatca acgcttattt gcagcctgaa tggcgaatgg gacgcgccct gtagcggcgc
      121 attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc gctacacttg ccagcgccct
      181 agcgcccgct cctttcgctt tcttcccttc ctttctcgcc acgttcgccg gctttccccg
      241 tcaagctcta aatcgggggc tccctttagg gttccgattt agtgctttac ggcacctcga
      301 ccccaaaaaa cttgattagg gtgatggttc acgtagtggg ccatcgccct gatagacggt
      361 ttttcgccct ttgacgttgg agtccacgtt ctttaatagt ggactcttgt tccaaactgg
      421 aacaacactc aaccctatct cggtctattc ttttgattta taagggattt tgccgatttc
      481 ggcctattgg ttaaaaaatg agctgattta acaaaaattt aacgcgaatt ttaacaaaat
      541 attaacgttt acaatttcag gtggcacttt tcggggaaat gtgcgcggaa cccctatttg
      601 tttatttttc taaatacatt caaatatgta tccgctcatg agacaataac cctgataaat
      661 gcttcaataa tattgaaaaa ggaagagtat gagtattcaa catttccgtg tcgcccttat
      721 tccctttttt gcggcatttt gccttcctgt ttttgctcac ccagaaacgc tggtgaaagt
      781 aaaagatgct gaagatcagt tgggtgcacg agtgggttac atcgaactgg atctcaacag
      841 cggtaagatc cttgagagtt ttcgccccga agaacgtttt ccaatgatga gcacttttaa
      901 agttctgcta tgtggcgcgg tattatcccg tattgacgcc gggcaagagc aactcggtcg
      961 ccgcatacac tattctcaga atgacttggt tgagtactca ccagtcacag aaaagcatct
     1021 tacggatggc atgacagtaa gagaattatg cagtgctgcc ataaccatga gtgataacac
     1081 tgcggccaac ttacttctga caacgatcgg aggaccgaag gagctaaccg cttttttgca
     1141 caacatgggg gatcatgtaa ctcgccttga tcgttgggaa ccggagctga atgaagccat
     1201 accaaacgac gagcgtgaca ccacgatgcc tgtagcaatg gcaacaacgt tgcgcaaact
     1261 attaactggc gaactactta ctctagcttc ccggcaacaa ttaatagact ggatggaggc
     1321 ggataaagtt gcaggaccac ttctgcgctc ggcccttccg gctggctggt ttattgctga
     1381 taaatctgga gccggtgagc gtgggtctcg cggtatcatt gcagcactgg ggccagatgg
     1441 taagccctcc cgtatcgtag ttatctacac gacggggagt caggcaacta tggatgaacg
     1501 aaatagacag atcgctgaga taggtgcctc actgattaag cattggtaac tgtcagacca
     1561 agtttactca tatatacttt agattgattt aaaacttcat ttttaattta aaaggatcta
     1621 ggtgaagatc ctttttgata atctcatgac caaaatccct taacgtgagt tttcgttcca
     1681 ctgagcgtca gaccccgtag aaaagatcaa aggatcttct tgagatcctt tttttctgcg
     1741 cgtaatctgc tgcttgcaaa caaaaaaacc accgctacca gcggtggttt gtttgccgga
     1801 tcaagagcta ccaactcttt ttccgaaggt aactggcttc agcagagcgc agataccaaa
     1861 tactgtcctt ctagtgtagc cgtagttagg ccaccacttc aagaactctg tagcaccgcc
     1921 tacatacctc gctctgctaa tcctgttacc agtggctgct gccagtggcg ataagtcgtg
     1981 tcttaccggg ttggactcaa gacgatagtt accggataag gcgcagcggt cgggctgaac
     2041 ggggggttcg tgcacacagc ccagcttgga gcgaacgacc tacaccgaac tgagatacct
     2101 acagcgtgag cattgagaaa gcgccacgct tcccgaaggg agaaaggcgg acaggtatcc
     2161 ggtaagcggc agggtcggaa caggagagcg cacgagggag cttccagggg gaaacgcctg
     2221 gtatctttat agtcctgtcg ggtttcgcca cctctgactt gagcgtcgat ttttgtgatg
     2281 ctcgtcaggg gggcggagcc tatggaaaaa cgccagcaac gcggcctttt tacggttcct
     2341 ggccttttgc tggccttttg ctcacatgtt ctttcctgcg ttatcccctg attctgtgga
     2401 taaccgtatt accgcctttg agtgagctga taccgctcgc cgcagccgaa cgaccgagcg
     2461 cagcgagtca gtgagcgagg aagcggaaga gcgcctgatg cggtattttc tccttacgca
     2521 tctgtgcggt atttcacacc gcagaccagc cgcgtaacct ggcaaaatcg gttacggttg
     2581 agtaataaat ggatgccctg cgtaagcggg tgtgggcgga caataaagtc ttaaactgaa
     2641 caaaatagat ctaaactatg acaataaagt cttaaactag acagaatagt tgtaaactga
     2701 aatcagtcca gttatgctgt gaaaaagcat actggacttt tgttatggct aaagcaaact
     2761 cttcattttc tgaagtgcaa attgcccgtc gtattaaaga ggggcgtggc caagggcatg
     2821 gtaaagacta tattcgcggc gttgtgacaa tttaccgaac aactccgcgg ccgggaagcc
     2881 gatctcggct tgaacgaatt gttaggtggc ggtacttggg tcgatatcaa agtgcatcac
     2941 ttcttcccgt atgcccaact ttgtatagag agccactgcg ggatcgtcac cgtaatctgc
     3001 ttgcacgtag atcacataag caccaagcgc gttggcctca tgcttgagga gattgatgag
     3061 cgcggtggca atgccctgcc tccggtgctc gccggagact gcgagatcat agatatagat
     3121 ctcactacgc ggctgctcaa acctgggcag aacgtaagcc gcgagagcgc caacaaccgc
     3181 ttcttggtcg aaggcagcaa gcgcgatgaa tgtcttacta cggagcaagt tcccgaggta
     3241 atcggagtcc ggctgatgtt gggagtaggt ggctacgtct ccgaactcac gaccgaaaag
     3301 atcaagagca gcccgcatgg atttgacttg gtcagggccg agcctacatg tgcgaatgat
     3361 gcccatactt gagccaccta actttgtttt agggcgactg ccctgctgcg taacatcgtt
     3421 gctgctgcgt aacatcgttg ctgctccata acatcaaaca tcgacccacg gcgtaacgcg
     3481 cttgctgctt ggatgcccga ggcatagact gtacaaaaaa acagtcataa caagccatga
     3541 aaaccgccac tgcgccgtta ccaccgctgc gttcggtcaa ggttctggac cagttgcgtg
     3601 agcgcatacg ctacttgcat tacagtttac gaaccgaaca ggcttatgtc aactgggttc
     3661 gtgccttcat ccgtttccac ggtgtgcgtc acccggcaac cttgggcagc agcgaagtcg
     3721 aggcatttct gtcctggctg gcgaacgagc gcaaggtttc ggtctccacg catcgtcagg
     3781 cattggcggc cttgctgttc ttctacggca aggtgctgtg cacggatctg ccctggcttc
     3841 aggagatcgg tagacctcgg ccgtcgcggc gcttgccggt ggtgctgacc ccggatgaag
     3901 tggttcgcat cctcggtttt ctggaaggcg agcatcgttt gttcgcccag gactctagct
     3961 atagttctag tggttggcct acgtacccgt agtggctatg gcagggcttg ccgccccgac
     4021 gttggctgcg agccctgggc cttcacccga acttgggggt tggggtgggg aaaaggaaga
     4081 aacgcgggcg tattggtccc aatggggtct cggtggggta tcgacagagt gccagccctg
     4141 ggaccgaacc ccgcgtttat gaacaaacga cccaacaccc gtgcgtttta ttctgtcttt
     4201 ttattgccgt catagcgcgg gttccttccg gtattgtctc cttccgtgtt tcagttagcc
     4261 tcccccatct cccggtaccg catgctatgc atcagctgct agcaccatgg ctcgagatcc
     4321 cgggtgatca agtcttcgtc gagtgattgt aaataaaatg taatttacag tatagtattt
     4381 taattaatat acaaatgatt tgataataat tcttatttaa ctataatata ttgtgttggg
     4441 ttgaattaaa ggtccgtata ctccggaata ttaatagatc atggagataa ttaaaatgat
     4501 aaccatctcg caaataaata agtattttac tgttttcgta acagttttgt aataaaaaaa
     4561 cctataaata ttccggatta ttcataccgt cccaccatcg ggcgcggatc ccggtccgaa
     4621 gcgcgcggaa ttcaaaggcc tacgtcgacg agctcactag tcgcggccgc tttcgaatct
     4681 agagcctgca gtctcgacaa gcttgtcgag aagtactaga ggatcataat cagccatacc
     4741 acatttgtag aggttttact tgctttaaaa aacctcccac acctccccct gaacctgaaa
     4801 cataaaatga atgcaattgt tgttgttaac ttgtttattg cagcttataa tggttacaaa
     4861 taaagcaata gcatcacaaa tttcacaaat aaagcatttt tttcactgca ttctagttgt
     4921 ggtttgtcca aactcatcaa tgtatcttat catgtctgga tctgatcact gcttgagcct
     4981 aggagatccg aaccagataa gtgaaatcta gttccaaact attttgtcat ttttaatttt
     5041 cgtattagct tacgacgcta cacccagttc ccatctattt tgtcactctt ccctaaataa
     5101 tccttaaaaa ctccatttcc acccctccca gttcccaact attttgtccg cccacagcgg
     5161 ggcatttttc ttcctgttat gtttttaatc aaacatcctg ccaactccat gtgacaaacc
     5221 gtcatcttcg gctacttt
//

pFastBacDual载体质粒图谱pdf版和相关资料下载

pFastBacDual载体应用举例
