pLaczi

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

载体名称: pLaczi
质粒类型: 酿酒酵母单杂交质粒
高拷贝/低拷贝: --
复制子: pUC
启动子: CYC1
载体大小: 6.9kb
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: URA3
克隆菌株: DH5α 等
培养条件: 37°C
备注: --
产品目录号: --

载体质粒图谱和多克隆位点信息

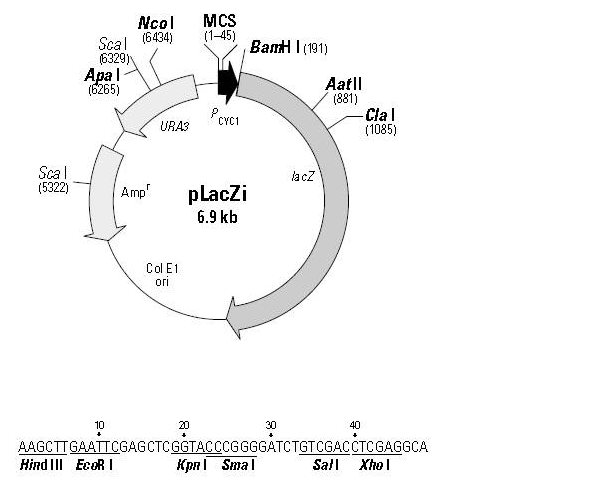

pLacZi载体图谱

载体简介

载体序列

LOCUS       pLacZi                6867 bp ds-DNA     circular SYN 06-JAN-2018
DEFINITION  synthetic circular DNA
FEATURES             Location/Qualifiers
     source          1..6867
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     CDS             185..3322
                     /codon_start=1
                     /label=LacZI
                     /translation="MTGSGAWLLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSR
                     LNRLAAHPPFASWRNSEEARTDRPSQQLRSLNGEWRFAWFPAPEAVPESWLECDLPEAD
                     TVVVPSNWQMHGYDAPIYTNVTYPITVNPPFVPTENPTGCYSLTFNVDESWLQEGQTRI
                     IFDGVNSAFHLWCNGRWVGYGQDSRLPSEFDLSAFLRAGENRLAVMVLRWSDGSYLEDQ
                     DMWRMSGIFRDVSLLHKPTTQISDFHVATRFNDDFSRAVLEAEVQMCGELRDYLRVTVS
                     LWQGETQVASGTAPFGGEIIDERGGYADRVTLRLNVENPKLWSAEIPNLYRAVVELHTA
                     DGTLIEAEACDVGFREVRIENGLLLLNGKPLLIRGVNRHEHHPLHGQVMDEQTMVQDIL
                     LMKQNNFNAVRCSHYPNHPLWYTLCDRYGLYVVDEANIETHGMVPMNRLTDDPRWLPAM
                     SERVTRMVQRDRNHPSVIIWSLGNESGHGANHDALYRWIKSVDPSRPVQYEGGGADTTA
                     TDIICPMYARVDEDQPFPAVPKWSIKKWLSLPGETRPLILCEYAHAMGNSLGGFAKYWQ
                     AFRQYPRLQGGFVWDWVDQSLIKYDENGNPWSAYGGDFGDTPNDRQFCMNGLVFADRTP
                     HPALTEAKHQQQFFQFRLSGQTIEVTSEYLFRHSDNELLHWMVALDGKPLASGEVPLDV
                     APQGKQLIELPELPQPESAGQLWLTVRVVQPNATAWSEAGHISAWQQWRLAENLSVTLP
                     AASHAIPHLTTSEMDFCIELGNKRWQFNRQSGFLSQMWIGDKKQLLTPLRDQFTRAPLD
                     NDIGVSEATRIDPNAWVERWKAAGHYQAEAALLQCTADTLADAVLITTAHAWQHQGKTL
                     FISRKTYRIDGSGQMAITVDVEVASDTPHPARIGLNCQLAQVAERVNWLGLGPQENYPD
                     RLTAACFDRWDLPLSDMYTPYVFPSENGLRCGTRELNYGPHQWRGDFQFNISRYSQQQL
                     METSHRHLLHAEEGTWLNIDGFHMGIGGDDSWSPSVSAELQLSAGRYHYQLVWCQK"
     rep_origin      complement(4019..4607)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4778..5638)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5639..5743)
                     /gene="bla"
                     /label=AmpR promoter
     CDS             complement(5848..6651)
                     /codon_start=1
                     /gene="S. cerevisiae URA3"
                     /product="orotidine-5'-phosphate decarboxylase, required
                     for uracil biosynthesis"
                     /label=URA3
                     /note="yeast auxotrophic marker, counterselectable with
                     5-fluoroorotic acid (5-FOA)"
                     /translation="MSKATYKERAATHPSPVAAKLFNIMHEKQTNLCASLDVRTTKELL
                     ELVEALGPKICLLKTHVDILTDFSMEGTVKPLKALSAKYNFLLFEDRKFADIGNTVKLQ
                     YSAGVYRIAEWADITNAHGVVGPGIVSGLKQAAEEVTKEPRGLLMLAELSCKGSLSTGE
                     YTKGTVDIAKSDKDFVIGFIAQRDMGGRDEGYDWLIMTPGVGLDDKGDALGQQYRTVDD
                     VVSTGSDIIIVGRGLFAKGRDAKVEGERYRKAGWEAYLRRCGQQN"
     promoter        complement(6652..6867)
                     /gene="S. cerevisiae URA3"
                     /label=URA3 promoter
ORIGIN
        1 aagcttgaat tcgagctcgg tacccgggga tctgtcgacc tcgaggcatg tgctctgtat
       61 gtatataaaa ctcttgtttt cttcttttct ctaaatattc tttccttata cattaggtcc
      121 tttgtagcat aaattactat acttctatag acacgcaaac acaaatacac acactaaatt
      181 aataatgacc ggatccggag cttggctgtt gcccgtctca ctggtgaaaa gaaaaaccac
      241 cctggcgccc aatacgcaaa ccgcctctcc ccgcgcgttg gccgattcat taatgcagct
      301 ggcacgacag gtttcccgac ttaatcgcct tgcagcacat ccccctttcg ccagctggcg
      361 taatagcgaa gaggcccgca ccgatcgccc ttcccaacag ttgcgcagcc tgaatggcga
      421 atggcgcttt gcctggtttc cggcaccaga agcggtgccg gaaagctggc tggagtgcga
      481 tcttcctgag gccgatactg tcgtcgtccc ctcaaactgg cagatgcacg gttacgatgc
      541 gcccatctac accaacgtaa cctatcccat tacggtcaat ccgccgtttg ttcccacgga
      601 gaatccgacg ggttgttact cgctcacatt taatgttgat gaaagctggc tacaggaagg
      661 ccagacgcga attatttttg atggcgttaa ctcggcgttt catctgtggt gcaacgggcg
      721 ctgggtcggt tacggccagg acagtcgttt gccgtctgaa tttgacctga gcgcattttt
      781 acgcgccgga gaaaaccgcc tcgcggtgat ggtgctgcgt tggagtgacg gcagttatct
      841 ggaagatcag gatatgtggc ggatgagcgg cattttccgt gacgtctcgt tgctgcataa
      901 accgactaca caaatcagcg atttccatgt tgccactcgc tttaatgatg atttcagccg
      961 cgctgtactg gaggctgaag ttcagatgtg cggcgagttg cgtgactacc tacgggtaac
     1021 agtttcttta tggcagggtg aaacgcaggt cgccagcggc accgcgcctt tcggcggtga
     1081 aattatcgat gagcgtggtg gttatgccga tcgcgtcaca ctacgtctga acgtcgaaaa
     1141 cccgaaactg tggagcgccg aaatcccgaa tctctatcgt gcggtggttg aactgcacac
     1201 cgccgacggc acgctgattg aagcagaagc ctgcgatgtc ggtttccgcg aggtgcggat
     1261 tgaaaatggt ctgctgctgc tgaacggcaa gccgttgctg attcgaggcg ttaaccgtca
     1321 cgagcatcat cctctgcatg gtcaggtcat ggatgagcag acgatggtgc aggatatcct
     1381 gctgatgaag cagaacaact ttaacgccgt gcgctgttcg cattatccga accatccgct
     1441 gtggtacacg ctgtgcgacc gctacggcct gtatgtggtg gatgaagcca atattgaaac
     1501 ccacggcatg gtgccaatga atcgtctgac cgatgatccg cgctggctac cggcgatgag
     1561 cgaacgcgta acgcgaatgg tgcagcgcga tcgtaatcac ccgagtgtga tcatctggtc
     1621 gctggggaat gaatcaggcc acggcgctaa tcacgacgcg ctgtatcgct ggatcaaatc
     1681 tgtcgatcct tcccgcccgg tgcagtatga aggcggcgga gccgacacca cggccaccga
     1741 tattatttgc ccgatgtacg cgcgcgtgga tgaagaccag cccttcccgg ctgtgccgaa
     1801 atggtccatc aaaaaatggc tttcgctacc tggagagacg cgcccgctga tcctttgcga
     1861 atacgcccac gcgatgggta acagtcttgg cggtttcgct aaatactggc aggcgtttcg
     1921 tcagtatccc cgtttacagg gcggcttcgt ctgggactgg gtggatcagt cgctgattaa
     1981 atatgatgaa aacggcaacc cgtggtcggc ttacggcggt gattttggcg atacgccgaa
     2041 cgatcgccag ttctgtatga acggtctggt ctttgccgac cgcacgccgc atccagcgct
     2101 gacggaagca aaacaccagc agcagttttt ccagttccgt ttatccgggc aaaccatcga
     2161 agtgaccagc gaatacctgt tccgtcatag cgataacgag ctcctgcact ggatggtggc
     2221 gctggatggt aagccgctgg caagcggtga agtgcctctg gatgtcgctc cacaaggtaa
     2281 acagttgatt gaactgcctg aactaccgca gccggagagc gccgggcaac tctggctcac
     2341 agtacgcgta gtgcaaccga acgcgaccgc atggtcagaa gccgggcaca tcagcgcctg
     2401 gcagcagtgg cgtctggcgg aaaacctcag tgtgacgctc cccgccgcgt cccacgccat
     2461 cccgcatctg accaccagcg aaatggattt ttgcatcgag ctgggtaata agcgttggca
     2521 atttaaccgc cagtcaggct ttctttcaca gatgtggatt ggcgataaaa aacaactgct
     2581 gacgccgctg cgcgatcagt tcacccgtgc accgctggat aacgacattg gcgtaagtga
     2641 agcgacccgc attgacccta acgcctgggt cgaacgctgg aaggcggcgg gccattacca
     2701 ggccgaagca gcgttgttgc agtgcacggc agatacactt gctgatgcgg tgctgattac
     2761 gaccgctcac gcgtggcagc atcaggggaa aaccttattt atcagccgga aaacctaccg
     2821 gattgatggt agtggtcaaa tggcgattac cgttgatgtt gaagtggcga gcgatacacc
     2881 gcatccggcg cggattggcc tgaactgcca gctggcgcag gtagcagagc gggtaaactg
     2941 gctcggatta gggccgcaag aaaactatcc cgaccgcctt actgccgcct gttttgaccg
     3001 ctgggatctg ccattgtcag acatgtatac cccgtacgtc ttcccgagcg aaaacggtct
     3061 gcgctgcggg acgcgcgaat tgaattatgg cccacaccag tggcgcggcg acttccagtt
     3121 caacatcagc cgctacagtc aacagcaact gatggaaacc agccatcgcc atctgctgca
     3181 cgcggaagaa ggcacatggc tgaatatcga cggtttccat atggggattg gtggcgacga
     3241 ctcctggagc ccgtcagtat cggcggaatt acagctgagc gccggtcgct accattacca
     3301 gttggtctgg tgtcaaaaat aataataacc gggcaggcca tgtctgcccg tatttcgcgt
     3361 aaggaaatcc attatgtact atttaaaaaa cacaaacttt tggatgttcg gtttattctt
     3421 tttcttttac ttttttatca tgggagccta cttcccgttt ttcccgattt ggctacatga
     3481 catcaaccat atcagcaaaa gtgatacggg tattattttt gccgctattt ctctgttctc
     3541 gctattattc caaccgctgt ttggtctgct ttctgacaaa ctcggcctcg actctagcga
     3601 attaattcgt aatcatgtca tagctgtttc ctgtgtgaaa ttgttatccg ctcacaattc
     3661 cacacaacat acgagccgga agcataaagt gtaaagcctg gggtgcctaa tgagtgagct
     3721 aactcacatt aattgcgttg cgctcactgc ccgctttcca gtcgggaaac ctgtcgtgcc
     3781 agctgcatta atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt gggcgctctt
     3841 ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag
     3901 ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca ggaaagaaca
     3961 tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt
     4021 tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt cagaggtggc
     4081 gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc ctcgtgcgct
     4141 ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct tcgggaagcg
     4201 tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca
     4261 agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta tccggtaact
     4321 atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca gccactggta
     4381 acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag tggtggccta
     4441 actacggcta cactagaagg acagtatttg gtatctgcgc tctgctgaag ccagttacct
     4501 tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt agcggtggtt
     4561 tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga
     4621 tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca
     4681 tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat
     4741 caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg
     4801 cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt
     4861 agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag
     4921 acccacgctc accggctcca gatttatcag caataaacca gccagccgga agggccgagc
     4981 gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag
     5041 ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca
     5101 tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa
     5161 ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga
     5221 tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata
     5281 attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca
     5341 agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg
     5401 ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg
     5461 ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg
     5521 cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag
     5581 gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac
     5641 tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca
     5701 tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag
     5761 tgccacctgg gtaataactc gatataatta aattgaagct ctaatttgtg agtttagtat
     5821 acatgcattt acttataata cagtttttta gttttgctgg ccgcatcttc tcaaatatgc
     5881 ttcccagcct gcttttctgt aacgttcacc ctctacctta gcatcccttc cctttgcaaa
     5941 tagtcctctt ccaacaataa taatgtcaga tcctgtagag accacatcat ccacggttct
     6001 atactgttga cccaatgcgt ctcccttgtc atctaaaccc acaccgggtg tcataatcaa
     6061 ccaatcgtaa ccttcatctc ttccacccat gtctctttga gcaataaagc cgataacaaa
     6121 atctttgtcg ctcttcgcaa tgtcaacagt acccttagta tattctccag tagataggga
     6181 gcccttgcat gacaattctg ctaacatcaa aaggcctcta ggttcctttg ttacttcttc
     6241 tgccgcctgc ttcaaaccgc taacaatacc tgggcccacc acaccgtgtg cattcgtaat
     6301 gtctgcccat tctgctattc tgtatacacc cgcagagtac tgcaatttga ctgtattacc
     6361 aatgtcagca aattttctgt cttcgaagag taaaaaattg tacttggcgg ataatgcctt
     6421 tagcggctta actgtgccct ccatggaaaa atcagtcaag atatccacat gtgtttttag
     6481 taaacaaatt ttgggaccta atgcttcaac taactccagt aattccttgg tggtacgaac
     6541 atccaatgaa gcacacaagt ttgtttgctt ttcgtgcatg atattaaata gcttggcagc
     6601 aacaggacta ggatgagtag cagcacgttc cttatatgta gctttcgaca tgatttatct
     6661 tcgtttcctg caggtttttg ttctgtgcag ttgggttaag aatactgggc aatttcatgt
     6721 ttcttcaaca ctacatatgc gtatatatac caatctaagt ctgtgctcct tccttcgttc
     6781 ttccttctgt tcggagatta ccgaatcaaa aaaatttcaa ggaaaccgaa atcaaaaaaa
     6841 agaataaaaa aaaaatgatg aattgaa
//


载体质粒图谱pdf版和相关资料下载

载体应用举例
