pT7ts

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: 爱迪基因
载体名称: pT7ts
GenBank ID: AB255037
质粒类型: 大肠杆菌表达载体
载体大小: 3000 bp
5' 测序引物及序列: T7
3' 测序引物及序列: SP6
载体抗性: 氨苄青霉素
克隆方法: 限制性内切酶
培养条件: 37°C
克隆菌株: DH5α 等

载体质粒图谱和多克隆位点信息

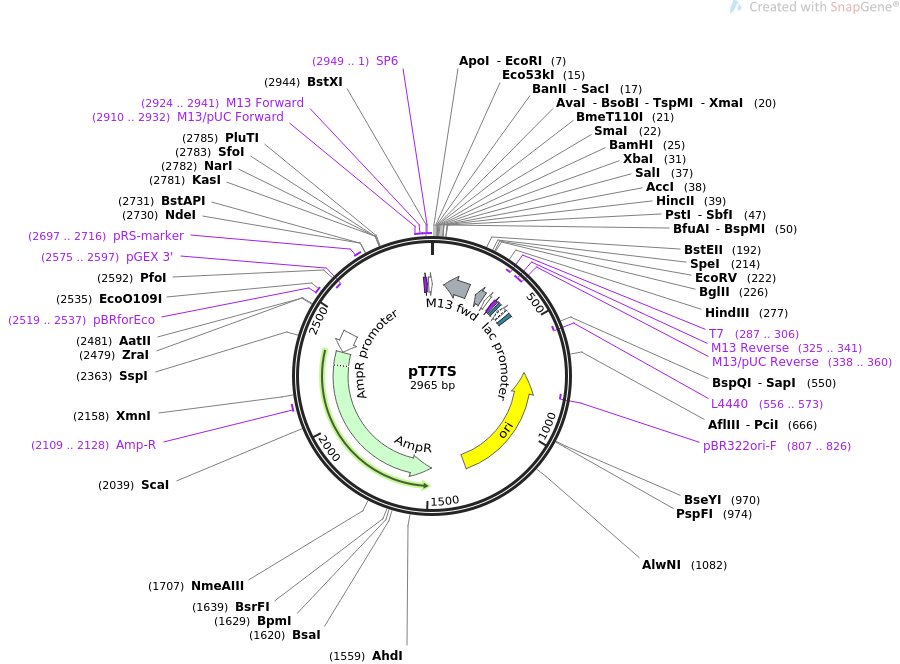

pT7TS载体图谱

载体简介

载体序列

LOCUS       pT7ts              2965 bp ds-DNA     circular SYN 03-OCT-2019
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pT7TS
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2965)
  TITLE     Krieg Lab plasmids
REFERENCE   2  (bases 1 to 2965)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Oct 3, 2019 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..2965
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     3'UTR           complement(62..187)
                     /label=Xenopus globin 3'-UTR
                     /note="3'-UTR of the major beta-globin gene of Xenopus
                     laevis"
     5'UTR           complement(233..275)
                     /label=Xenopus globin 5'-UTR
                     /note="translational enhancer from the 5'-UTR of the major
                     beta-globin gene of Xenopus laevis"
     primer_bind     complement(287..306)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(288..306)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(325..341)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(325..341)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(338..360)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    349..365
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(373..403)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    418..439
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(556..573)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(727..1315)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(807..826)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(1486..2346)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     2109..2128
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(2347..2451)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     2519..2537
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     primer_bind     complement(2575..2597)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     2697..2716
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     2910..2932
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     2924..2941
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     2925..2941
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        2949..2
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     2949..1
                     /label=SP6
                     /note="SP6 promoter, forward primer"
ORIGIN
        1 gaatacgaat tcgagctcgc ccggggatcc tctagagtcg acctgcaggg ggggggggaa
       61 tgtgaagaaa ctttcttttt attaggagca gatacgaatg gctacatttt gggggacaac
      121 attttgtaaa gtgtaagttg gtattatgta gcttagagac tccattcggg tgttcttgag
      181 gctggtttag tggtaaccag atcctagtca gtcactagtg atatcagatc tgccaaagtt
      241 gagcgtttat tctgagcttc tgcaaaaaga acaagcaagc ttgtctccct atagtgagtc
      301 gtattagagc ttggcgtaat catggtcata gctgtttcct gtgtgaaatt gttatccgct
      361 cacaattcca cacaacatac gagccggaag cataaagtgt aaagcctggg gtgcctaatg
      421 agtgagctaa ctcacattaa ttgcgttgcg ctcactgccc gctttccagt cgggaaacct
      481 gtcgtgccag ctgcattaat gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg
      541 gcgctcttcc gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc
      601 ggtatcagct cactcaaagg cggtaatacg gttatccaca gaatcagggg ataacgcagg
      661 aaagaacatg tgagcaaaag gccagcaaaa ggccaggaac cgtaaaaagg ccgcgttgct
      721 ggcgtttttc cataggctcc gcccccctga cgagcatcac aaaaatcgac gctcaagtca
      781 gaggtggcga aacccgacag gactataaag ataccaggcg tttccccctg gaagctccct
      841 cgtgcgctct cctgttccga ccctgccgct taccggatac ctgtccgcct ttctcccttc
      901 gggaagcgtg gcgctttctc atagctcacg ctgtaggtat ctcagttcgg tgtaggtcgt
      961 tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag cccgaccgct gcgccttatc
     1021 cggtaactat cgtcttgagt ccaacccggt aagacacgac ttatcgccac tggcagcagc
     1081 cactggtaac aggattagca gagcgaggta tgtaggcggt gctacagagt tcttgaagtg
     1141 gtggcctaac tacggctaca ctagaagaac agtatttggt atctgcgctc tgctgaagcc
     1201 agttaccttc ggaaaaagag ttggtagctc ttgatccggc aaacaaacca ccgctggtag
     1261 cggtggtttt tttgtttgca agcagcagat tacgcgcaga aaaaaaggat ctcaagaaga
     1321 tcctttgatc ttttctacgg ggtctgacgc tcagtggaac gaaaactcac gttaagggat
     1381 tttggtcatg agattatcaa aaaggatctt cacctagatc cttttaaatt aaaaatgaag
     1441 ttttaaatca atctaaagta tatatgagta aacttggtct gacagttacc aatgcttaat
     1501 cagtgaggca cctatctcag cgatctgtct atttcgttca tccatagttg cctgactccc
     1561 cgtcgtgtag ataactacga tacgggaggg cttaccatct ggccccagtg ctgcaatgat
     1621 accgcgagac ccacgctcac cggctccaga tttatcagca ataaaccagc cagccggaag
     1681 ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc atccagtcta ttaattgttg
     1741 ccgggaagct agagtaagta gttcgccagt taatagtttg cgcaacgttg ttgccattgc
     1801 tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct tcattcagct ccggttccca
     1861 acgatcaagg cgagttacat gatcccccat gttgtgcaaa aaagcggtta gctccttcgg
     1921 tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta tcactcatgg ttatggcagc
     1981 actgcataat tctcttactg tcatgccatc cgtaagatgc ttttctgtga ctggtgagta
     2041 ctcaaccaag tcattctgag aatagtgtat gcggcgaccg agttgctctt gcccggcgtc
     2101 aatacgggat aataccgcgc cacatagcag aactttaaaa gtgctcatca ttggaaaacg
     2161 ttcttcgggg cgaaaactct caaggatctt accgctgttg agatccagtt cgatgtaacc
     2221 cactcgtgca cccaactgat cttcagcatc ttttactttc accagcgttt ctgggtgagc
     2281 aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg gcgacacgga aatgttgaat
     2341 actcatactc ttcctttttc aatattattg aagcatttat cagggttatt gtctcatgag
     2401 cggatacata tttgaatgta tttagaaaaa taaacaaata ggggttccgc gcacatttcc
     2461 ccgaaaagtg ccacctgacg tctaagaaac cattattatc atgacattaa cctataaaaa
     2521 taggcgtatc acgaggccct ttcgtctcgc gcgtttcggt gatgacggtg aaaacctctg
     2581 acacatgcag ctcccggaga cggtcacagc ttgtctgtaa gcggatgccg ggagcagaca
     2641 agcccgtcag ggcgcgtcag cgggtgttgg cgggtgtcgg ggctggctta actatgcggc
     2701 atcagagcag attgtactga gagtgcacca tatgcggtgt gaaataccgc acagatgcgt
     2761 aaggagaaaa taccgcatca ggcgccattc gccattcagg ctgcgcaact gttgggaagg
     2821 gcgatcggtg cgggcctctt cgctattacg ccagctggcg aaagggggat gtgctgcaag
     2881 gcgattaagt tgggtaacgc cagggttttc ccagtcacga cgttgtaaaa cgacggccag
     2941 tgaattggat ttaggtgaca ctata
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
