pQE-70

价格:800元

联系方式:I47-825O-882O

买家导航

pQE70载体基本信息

出品公司: Qiagen
别名: pQE70, pQE 70
质粒类型: 大肠杆菌蛋白表达载体
表达水平: 低拷贝
启动子: T5
克隆方法: 多克隆位点,限制性内切酶
载体大小: 3426 bp
5' 测序引物及序列: pQE30-F: AGCGGATAACAATTTCACACAG
3' 测序引物及序列: pQE30-R: TTCTGAGGTCATTACTGGATC
载体标签: C-His
载体抗性: Ampicillin
备注:
pQE vectors and constructs can be maintained in any E. coli strain that is ampicillin-sensitive and carries the pREP4 repressor plasmid, or harbors the lacIq gene on the F-factor episome. 配套表达菌株为M15[pREP4].
产品目录号: 32903
稳定性: 瞬时表达 Transient
组成型: 组成型 Constitutive
病毒/非病毒: 非病毒

pQE70载体质粒图谱和多克隆位点信息

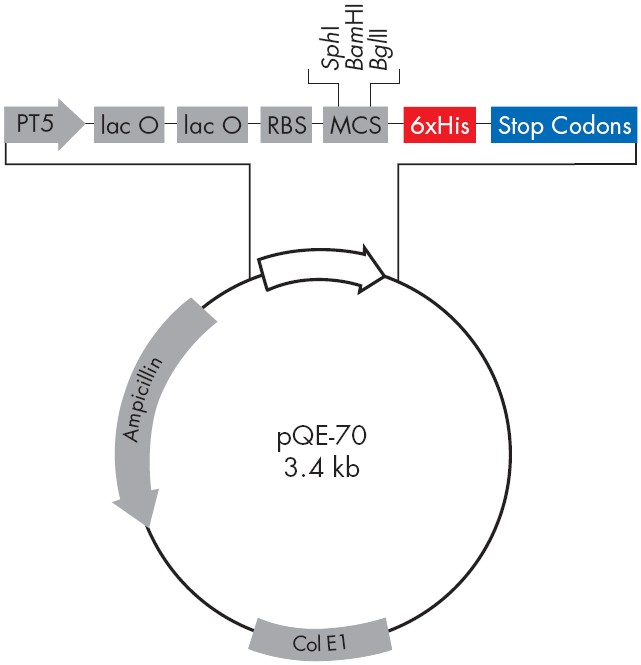

pQE-70载体图谱

pQE-70多克隆位点

pQE70载体简介

pQE70载体序列

LOCUS       pQE-70	3426 bp   circular	DNA	SYN
DEFINITION  pQE-70
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..3426
                     /organism="pQE-70"
                     /mol_type="other DNA"
     gene            311..970
                     /label="CAT/CamR"
                     /gene="CAT/CamR"
     CDS             311..970
                     /label="ORF frame 2"
     terminator      1038..1081
                     /label="rrnB_T1_terminator"
     misc_feature    complement(1168..1190)
                     /label="pGEX_3_primer"
     gene            complement(2361..3221)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(2361..3221)
                     /label="ORF frame 2"
     promoter        complement(3263..3291)
                     /label="AmpR_promoter"
ORIGIN
    1 CTCGAGAAAT CATAAAAAAT TTATTTGCTT TGTGAGCGGA TAACAATTAT AATAGATTCA
   61 ATTGTGAGCG GATAACAATT TCACACAGAA TTCATTAAAG AGGAGAAATT AAGCATGCGA
  121 GGATCCAGAT CTCATCACCA TCACCATCAC TAAGCTTAAT TAGCTGAGCT TGGACTCCTG
  181 TTGATAGATC CAGTAATGAC CTCAGAACTC CATCTGGATT TGTTCAGAAC GCTCGGTTGC
  241 CGCCGGGCGT TTTTTATTGG TGAGAATCCA AGCTAGCTTG GCGAGATTTT CAGGAGCTAA
  301 GGAAGCTAAA ATGGAGAAAA AAATCACTGG ATATACCACC GTTGATATAT CCCAATGGCA
  361 TCGTAAAGAA CATTTTGAGG CATTTCAGTC AGTTGCTCAA TGTACCTATA ACCAGACCGT
  421 TCAGCTGGAT ATTACGGCCT TTTTAAAGAC CGTAAAGAAA AATAAGCACA AGTTTTATCC
  481 GGCCTTTATT CACATTCTTG CCCGCCTGAT GAATGCTCAT CCGGAATTTC GTATGGCAAT
  541 GAAAGACGGT GAGCTGGTGA TATGGGATAG TGTTCACCCT TGTTACACCG TTTTCCATGA
  601 GCAAACTGAA ACGTTTTCAT CGCTCTGGAG TGAATACCAC GACGATTTCC GGCAGTTTCT
  661 ACACATATAT TCGCAAGATG TGGCGTGTTA CGGTGAAAAC CTGGCCTATT TCCCTAAAGG
  721 GTTTATTGAG AATATGTTTT TCGTCTCAGC CAATCCCTGG GTGAGTTTCA CCAGTTTTGA
  781 TTTAAACGTG GCCAATATGG ACAACTTCTT CGCCCCCGTT TTCACCATGG GCAAATATTA
  841 TACGCAAGGC GACAAGGTGC TGATGCCGCT GGCGATTCAG GTTCATCATG CCGTTTGTGA
  901 TGGCTTCCAT GTCGGCAGAA TGCTTAATGA ATTACAACAG TACTGCGATG AGTGGCAGGG
  961 CGGGGCGTAA TTTTTTTAAG GCAGTTATTG GTGCCCTTAA ACGCCTGGGG TAATGACTCT
 1021 CTAGCTTGAG GCATCAAATA AAACGAAAGG CTCAGTCGAA AGACTGGGCC TTTCGTTTTA
 1081 TCTGTTGTTT GTCGGTGAAC GCTCTCCTGA GTAGGACAAA TCCGCCCTCT AGAGCTGCCT
 1141 CGCGCGTTTC GGTGATGACG GTGAAAACCT CTGACACATG CAGCTCCCGG AGACGGTCAC
 1201 AGCTTGTCTG TAAGCGGATG CCGGGAGCAG ACAAGCCCGT CAGGGCGCGT CAGCGGGTGT
 1261 TGGCGGGTGT CGGGGCGCAG CCATGACCCA GTCACGTAGC GATAGCGGAG TGTATACTGG
 1321 CTTAACTATG CGGCATCAGA GCAGATTGTA CTGAGAGTGC ACCATATGCG GTGTGAAATA
 1381 CCGCACAGAT GCGTAAGGAG AAAATACCGC ATCAGGCGCT CTTCCGCTTC CTCGCTCACT
 1441 GACTCGCTGC GCTCGGTCGT TCGGCTGCGG CGAGCGGTAT CAGCTCACTC AAAGGCGGTA
 1501 ATACGGTTAT CCACAGAATC AGGGGATAAC GCAGGAAAGA ACATGTGAGC AAAAGGCCAG
 1561 CAAAAGGCCA GGAACCGTAA AAAGGCCGCG TTGCTGGCGT TTTTCCATAG GCTCCGCCCC
 1621 CCTGACGAGC ATCACAAAAA TCGACGCTCA AGTCAGAGGT GGCGAAACCC GACAGGACTA
 1681 TAAAGATACC AGGCGTTTCC CCCTGGAAGC TCCCTCGTGC GCTCTCCTGT TCCGACCCTG
 1741 CCGCTTACCG GATACCTGTC CGCCTTTCTC CCTTCGGGAA GCGTGGCGCT TTCTCATAGC
 1801 TCACGCTGTA GGTATCTCAG TTCGGTGTAG GTCGTTCGCT CCAAGCTGGG CTGTGTGCAC
 1861 GAACCCCCCG TTCAGCCCGA CCGCTGCGCC TTATCCGGTA ACTATCGTCT TGAGTCCAAC
 1921 CCGGTAAGAC ACGACTTATC GCCACTGGCA GCAGCCACTG GTAACAGGAT TAGCAGAGCG
 1981 AGGTATGTAG GCGGTGCTAC AGAGTTCTTG AAGTGGTGGC CTAACTACGG CTACACTAGA
 2041 AGGACAGTAT TTGGTATCTG CGCTCTGCTG AAGCCAGTTA CCTTCGGAAA AAGAGTTGGT
 2101 AGCTCTTGAT CCGGCAAACA AACCACCGCT GGTAGCGGTG GTTTTTTTGT TTGCAAGCAG
 2161 CAGATTACGC GCAGAAAAAA AGGATCTCAA GAAGATCCTT TGATCTTTTC TACGGGGTCT
 2221 GACGCTCAGT GGAACGAAAA CTCACGTTAA GGGATTTTGG TCATGAGATT ATCAAAAAGG
 2281 ATCTTCACCT AGATCCTTTT AAATTAAAAA TGAAGTTTTA AATCAATCTA AAGTATATAT
 2341 GAGTAAACTT GGTCTGACAG TTACCAATGC TTAATCAGTG AGGCACCTAT CTCAGCGATC
 2401 TGTCTATTTC GTTCATCCAT AGTTGCCTGA CTCCCCGTCG TGTAGATAAC TACGATACGG
 2461 GAGGGCTTAC CATCTGGCCC CAGTGCTGCA ATGATACCGC GAGACCCACG CTCACCGGCT
 2521 CCAGATTTAT CAGCAATAAA CCAGCCAGCC GGAAGGGCCG AGCGCAGAAG TGGTCCTGCA
 2581 ACTTTATCCG CCTCCATCCA GTCTATTAAT TGTTGCCGGG AAGCTAGAGT AAGTAGTTCG
 2641 CCAGTTAATA GTTTGCGCAA CGTTGTTGCC ATTGCTACAG GCATCGTGGT GTCACGCTCG
 2701 TCGTTTGGTA TGGCTTCATT CAGCTCCGGT TCCCAACGAT CAAGGCGAGT TACATGATCC
 2761 CCCATGTTGT GCAAAAAAGC GGTTAGCTCC TTCGGTCCTC CGATCGTTGT CAGAAGTAAG
 2821 TTGGCCGCAG TGTTATCACT CATGGTTATG GCAGCACTGC ATAATTCTCT TACTGTCATG
 2881 CCATCCGTAA GATGCTTTTC TGTGACTGGT GAGTACTCAA CCAAGTCATT CTGAGAATAG
 2941 TGTATGCGGC GACCGAGTTG CTCTTGCCCG GCGTCAATAC GGGATAATAC CGCGCCACAT
 3001 AGCAGAACTT TAAAAGTGCT CATCATTGGA AAACGTTCTT CGGGGCGAAA ACTCTCAAGG
 3061 ATCTTACCGC TGTTGAGATC CAGTTCGATG TAACCCACTC GTGCACCCAA CTGATCTTCA
 3121 GCATCTTTTA CTTTCACCAG CGTTTCTGGG TGAGCAAAAA CAGGAAGGCA AAATGCCGCA
 3181 AAAAAGGGAA TAAGGGCGAC ACGGAAATGT TGAATACTCA TACTCTTCCT TTTTCAATAT
 3241 TATTGAAGCA TTTATCAGGG TTATTGTCTC ATGAGCGGAT ACATATTTGA ATGTATTTAG
 3301 AAAAATAAAC AAATAGGGGT TCCGCGCACA TTTCCCCGAA AAGTGCCACC TGACGTCTAA
 3361 GAAACCATTA TTATCATGAC ATTAACCTAT AAAAATAGGC GTATCACGAG GCCCTTTCGT
 3421 CTTCAC
//

pQE70载体质粒图谱pdf版和相关资料下载

pQE70载体应用举例
