pMBP-P

LOCUS       pMBP-P                6741 bp ds-DNA     circular SYN 05-AUG-2016
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pMBP-P
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6741)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Tuesday, September 6, 2016 from SnapGene Viewer 3.1.4
            http://www.miaolingbio.com

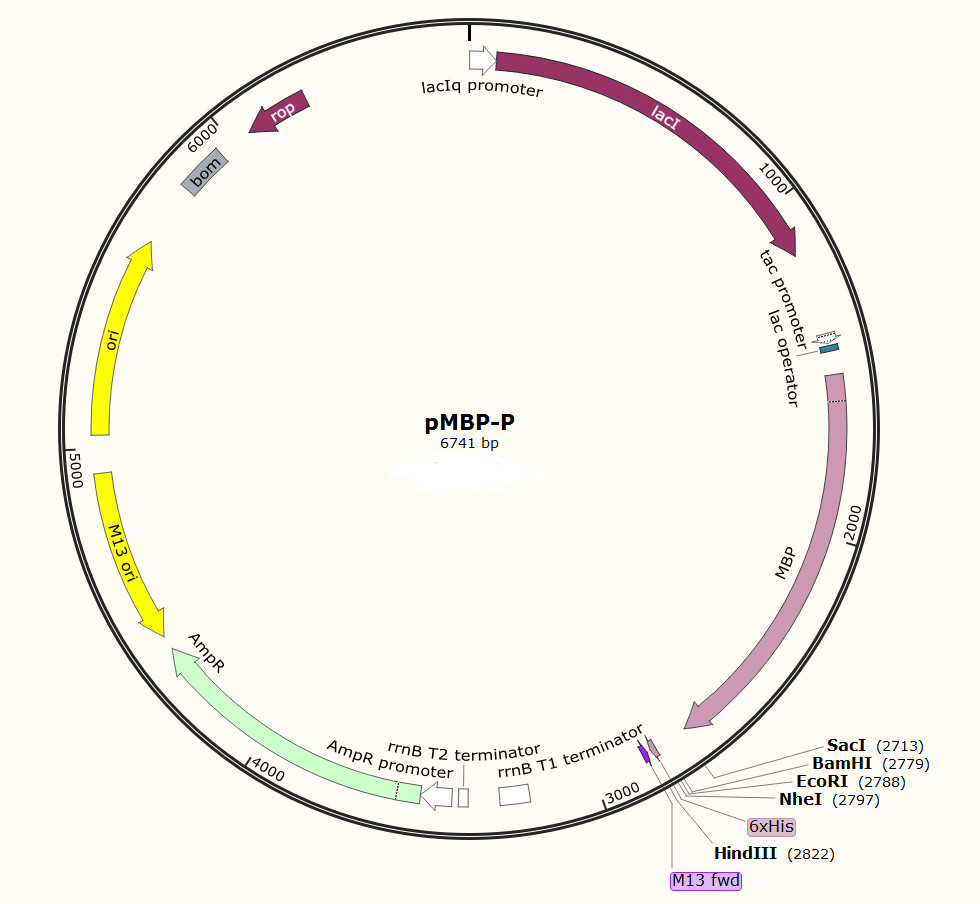

FEATURES             Location/Qualifiers
     source          1..6741
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        3..80
                     /gene="lacI (mutant)"
                     /note="lacIq promoter"
                     /note="In the lacIq allele, a single base change in the
                     promoter boosts expression of the lacI gene about 10-fold."
     CDS             81..1163
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /note="lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     misc_feature    1406..1434
                     /note="tac promoter"
                     /note="strong E. coli promoter; hybrid between the trp and
                     lac UV5 promoters"
     protein_bind    1442..1458
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     CDS             1528..2703
                     /codon_start=1
                     /gene="malE"
                     /product="maltose binding protein from E. coli"
                     /note="MBP"
                     /note="This gene encodes a signal sequence that can direct
                     MBP to the bacterial periplasm."
                     /translation="MKIKTGARILALSALTTMMFSASALAKIEEGKLVIWINGDKGYNG
                     LAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAE
                     ITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDK
                     ELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLV
                     DLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPS
                     KPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKD
                     PRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQT"
     CDS             2803..2820
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /note="6xHis"
                     /translation="HHHHHH"
     primer_bind     complement(2831..2847)
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     terminator      3196..3282
                     /gene="Escherichia coli rrnB"
                     /note="rrnB T1 terminator"
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     terminator      3374..3401
                     /note="rrnB T2 terminator"
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     promoter        3421..3512
                     /gene="bla"
                     /note="AmpR promoter"
     CDS             3513..4373
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERSPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      complement(4415..4928)
                     /direction=LEFT
                     /note="M13 ori"
                     /note="M13 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     rep_origin      5039..5627
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     misc_feature    5813..5955
                     /note="bom"
                     /note="basis of mobility region from pBR322"
     CDS             complement(6057..6248)
                     /codon_start=1
                     /gene="rop"
                     /product="Rop protein, which maintains plasmids at low copy
                     number"
                     /note="rop"
                     /translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
                     DELYRSCLARFGDDGENL"
ORIGIN
        1 ccgacaccat cgaatggtgc aaaacctttc gcggtatggc atgatagcgc ccggaagaga
       61 gtcaattcag ggtggtgaat gtgaaaccag taacgttata cgatgtcgca gagtatgccg
      121 gtgtctctta tcagaccgtt tcccgcgtgg tgaaccaggc cagccacgtt tctgcgaaaa
      181 cgcgggaaaa agtggaagcg gcgatggcgg agctgaatta cattcccaac cgcgtggcac
      241 aacaactggc gggcaaacag tcgttgctga ttggcgttgc cacctccagt ctggccctgc
      301 acgcgccgtc gcaaattgtc gcggcgatta aatctcgcgc cgatcaactg ggtgccagcg
      361 tggtggtgtc gatggtagaa cgaagcggcg tcgaagcctg taaagcggcg gtgcacaatc
      421 ttctcgcgca acgcgtcagt gggctgatca ttaactatcc gctggatgac caggatgcca
      481 ttgctgtgga agctgcctgc actaatgttc cggcgttatt tcttgatgtc tctgaccaga
      541 cacccatcaa cagtattatt ttctcccatg aagacggtac gcgactgggc gtggagcatc
      601 tggtcgcatt gggtcaccag caaatcgcgc tgttagcggg cccattaagt tctgtctcgg
      661 cgcgtctgcg tctggctggc tggcataaat atctcactcg caatcaaatt cagccgatag
      721 cggaacggga aggcgactgg agtgccatgt ccggttttca acaaaccatg caaatgctga
      781 atgagggcat cgttcccact gcgatgctgg ttgccaacga tcagatggcg ctgggcgcaa
      841 tgcgcgccat taccgagtcc gggctgcgcg ttggtgcgga tatctcggta gtgggatacg
      901 acgataccga agacagctca tgttatatcc cgccgttaac caccatcaaa caggattttc
      961 gcctgctggg gcaaaccagc gtggaccgct tgctgcaact ctctcagggc caggcggtga
     1021 agggcaatca gctgttgccc gtctcactgg tgaaaagaaa aaccaccctg gcgcccaata
     1081 cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca cgacaggttt
     1141 cccgactgga aagcgggcag tgagcgcaac gcaattaatg taagttagct cactcattag
     1201 gcacaattct catgtttgac agcttatcat cgactgcacg gtgcaccaat gcttctggcg
     1261 tcaggcagcc atcggaagct gtggtatggc tgtgcaggtc gtaaatcact gcataattcg
     1321 tgtcgctcaa ggcgcactcc cgttctggat aatgtttttt gcgccgacat cataacggtt
     1381 ctggcaaata ttctgaaatg agctgttgac aattaatcat cggctcgtat aatgtgtgga
     1441 attgtgagcg gataacaatt tcacacagga aacagccagt ccgtttaggt gttttcacga
     1501 gcacttcacc aacaaggacc atagcatatg aaaataaaaa caggtgcacg catcctcgca
     1561 ttatccgcat taacgacgat gatgttttcc gcctcggctc tcgccaaaat cgaagaaggt
     1621 aaactggtaa tctggattaa cggcgataaa ggctataacg gtctcgctga agtcggtaag
     1681 aaattcgaga aagataccgg aattaaagtc accgttgagc atccggataa actggaagag
     1741 aaattcccac aggttgcggc aactggcgat ggccctgaca ttatcttctg ggcacacgac
     1801 cgctttggtg gctacgctca atctggcctg ttggctgaaa tcaccccgga caaagcgttc
     1861 caggacaagc tgtatccgtt tacctgggat gccgtacgtt acaacggcaa gctgattgct
     1921 tacccgatcg ctgttgaagc gttatcgctg atttataaca aagatctgct gccgaacccg
     1981 ccaaaaacct gggaagagat cccggcgctg gataaagaac tgaaagcgaa aggtaagagc
     2041 gcgctgatgt tcaacctgca agaaccgtac ttcacctggc cgctgattgc tgctgacggg
     2101 ggttatgcgt tcaagtatga aaacggcaag tacgacatta aagacgtggg cgtggataac
     2161 gctggcgcga aagcgggtct gaccttcctg gttgacctga ttaaaaacaa acacatgaat
     2221 gcagacaccg attactccat cgcagaagct gcctttaata aaggcgaaac agcgatgacc
     2281 atcaacggcc cgtgggcatg gtccaacatc gacaccagca aagtgaatta tggtgtaacg
     2341 gtactgccga ccttcaaggg tcaaccatcc aaaccgttcg ttggcgtgct gagcgcaggt
     2401 attaacgccg ccagtccgaa caaagagctg gcaaaagagt tcctcgaaaa ctatctgctg
     2461 actgatgaag gtctggaagc ggttaataaa gacaaaccgc tgggtgccgt agcgctgaag
     2521 tcttacgagg aagagttggc gaaagatcca cgtattgccg ccaccatgga aaacgcccag
     2581 aaaggtgaaa tcatgccgaa catcccgcag atgtccgctt tctggtatgc cgtgcgtact
     2641 gcggtgatca acgccgccag cggtcgtcag actgtcgatg aagccctgaa agacgcgcag

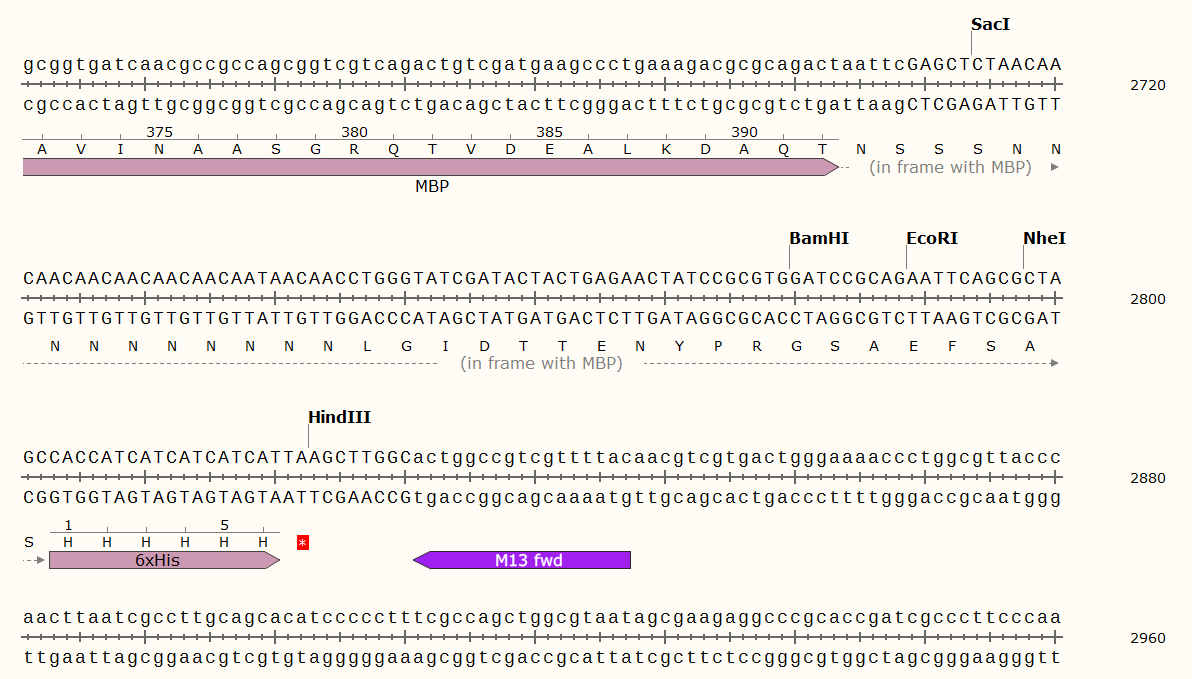

     2701 actaattcga gctctaacaa caacaacaac aacaacaata acaacctggg tatcgatact
     2761 actgagaact atccgcgtgg atccgcagaa ttcagcgcta gccaccatca tcatcatcat
     2821 taagcttggc actggccgtc gttttacaac gtcgtgactg ggaaaaccct ggcgttaccc
     2881 aacttaatcg ccttgcagca catccccctt tcgccagctg gcgtaatagc gaagaggccc
     2941 gcaccgatcg cccttcccaa cagttgcgca gcctgaatgg cgaatggcag cttggctgtt
     3001 ttggcggatg agataagatt ttcagcctga tacagattaa atcagaacgc agaagcggtc
     3061 tgataaaaca gaatttgcct ggcggcagta gcgcggtggt cccacctgac cccatgccga
     3121 actcagaagt gaaacgccgt agcgccgatg gtagtgtggg gtctccccat gcgagagtag
     3181 ggaactgcca ggcatcaaat aaaacgaaag gctcagtcga aagactgggc ctttcgtttt
     3241 atctgttgtt tgtcggtgaa cgctctcctg agtaggacaa atccgccggg agcggatttg
     3301 aacgttgcga agcaacggcc cggagggtgg cgggcaggac gcccgccata aactgccagg
     3361 catcaaatta agcagaaggc catcctgacg gatggccttt ttgcgtttct acaaactctt
     3421 tttgtttatt tttctaaata cattcaaata tgtatccgct catgagacaa taaccctgat
     3481 aaatgcttca ataatattga aaaaggaaga gtatgagtat tcaacatttc cgtgtcgccc
     3541 ttattccctt ttttgcggca ttttgccttc ctgtttttgc tcacccagaa acgctggtga
     3601 aagtaaaaga tgctgaagat cagttgggtg cacgagtggg ttacatcgaa ctggatctca
     3661 acagcggtaa gatccttgag agttttcgcc ccgaagaacg ttctccaatg atgagcactt
     3721 ttaaagttct gctatgtggc gcggtattat cccgtgttga cgccgggcaa gagcaactcg
     3781 gtcgccgcat acactattct cagaatgact tggttgagta ctcaccagtc acagaaaagc
     3841 atcttacgga tggcatgaca gtaagagaat tatgcagtgc tgccataacc atgagtgata
     3901 acactgcggc caacttactt ctgacaacga tcggaggacc gaaggagcta accgcttttt
     3961 tgcacaacat gggggatcat gtaactcgcc ttgatcgttg ggaaccggag ctgaatgaag
     4021 ccataccaaa cgacgagcgt gacaccacga tgcctgtagc aatggcaaca acgttgcgca
     4081 aactattaac tggcgaacta cttactctag cttcccggca acaattaata gactggatgg
     4141 aggcggataa agttgcagga ccacttctgc gctcggccct tccggctggc tggtttattg
     4201 ctgataaatc tggagccggt gagcgtgggt ctcgcggtat cattgcagca ctggggccag
     4261 atggtaagcc ctcccgtatc gtagttatct acacgacggg gagtcaggca actatggatg
     4321 aacgaaatag acagatcgct gagataggtg cctcactgat taagcattgg taactgtcag
     4381 accaagttta ctcatatata ctttagattg atttaccccg gttgataatc agaaaagccc
     4441 caaaaacagg aagattgtat aagcaaatat ttaaattgta aacgttaata ttttgttaaa
     4501 attcgcgtta aatttttgtt aaatcagctc attttttaac caataggccg aaatcggcaa
     4561 aatcccttat aaatcaaaag aatagaccga gatagggttg agtgttgttc cagtttggaa
     4621 caagagtcca ctattaaaga acgtggactc caacgtcaaa gggcgaaaaa ccgtctatca
     4681 gggcgatggc ccactacgtg aaccatcacc caaatcaagt tttttggggt cgaggtgccg
     4741 taaagcacta aatcggaacc ctaaagggag cccccgattt agagcttgac ggggaaagcc
     4801 ggcgaacgtg gcgagaaagg aagggaagaa agcgaaagga gcgggcgcta gggcgctggc
     4861 aagtgtagcg gtcacgctgc gcgtaaccac cacacccgcc gcgcttaatg cgccgctaca
     4921 gggcgcgtaa aaggatctag gtgaagatcc tttttgataa tctcatgacc aaaatccctt
     4981 aacgtgagtt ttcgttccac tgagcgtcag accccgtaga aaagatcaaa ggatcttctt
     5041 gagatccttt ttttctgcgc gtaatctgct gcttgcaaac aaaaaaacca ccgctaccag
     5101 cggtggtttg tttgccggat caagagctac caactctttt tccgaaggta actggcttca
     5161 gcagagcgca gataccaaat actgtccttc tagtgtagcc gtagttaggc caccacttca
     5221 agaactctgt agcaccgcct acatacctcg ctctgctaat cctgttacca gtggctgctg
     5281 ccagtggcga taagtcgtgt cttaccgggt tggactcaag acgatagtta ccggataagg
     5341 cgcagcggtc gggctgaacg gggggttcgt gcacacagcc cagcttggag cgaacgacct
     5401 acaccgaact gagataccta cagcgtgagc tatgagaaag cgccacgctt cccgaaggga
     5461 gaaaggcgga caggtatccg gtaagcggca gggtcggaac aggagagcgc acgagggagc
     5521 ttccaggggg aaacgcctgg tatctttata gtcctgtcgg gtttcgccac ctctgacttg
     5581 agcgtcgatt tttgtgatgc tcgtcagggg ggcggagcct atggaaaaac gccagcaacg
     5641 cggccttttt acggttcctg gccttttgct ggccttttgc tcacatgttc tttcctgcgt
     5701 tatcccctga ttctgtggat aaccgtatta ccgcctttga gtgagctgat accgctcgcc
     5761 gcagccgaac gaccgagcgc agcgagtcag tgagcgagga agcggaagag cgcctgatgc
     5821 ggtattttct ccttacgcat ctgtgcggta tttcacaccg catatatggt gcactctcag
     5881 tacaatctgc tctgatgccg catagttaag ccagtataca ctccgctatc gctacgtgac
     5941 tgggtcatgg ctgcgccccg acacccgcca acacccgctg acgcgccctg acgggcttgt
     6001 ctgctcccgg catccgctta cagacaagct gtgaccgtct ccgggagctg catgtgtcag
     6061 aggttttcac cgtcatcacc gaaacgcgcg aggcagctgc ggtaaagctc atcagcgtgg
     6121 tcgtgcagcg attcacagat gtctgcctgt tcatccgcgt ccagctcgtt gagtttctcc
     6181 agaagcgtta atgtctggct tctgataaag cgggccatgt taagggcggt tttttcctgt
     6241 ttggtcactg atgcctccgt gtaaggggga tttctgttca tgggggtaat gataccgatg
     6301 aaacgagaga ggatgctcac gatacgggtt actgatgatg aacatgcccg gttactggaa
     6361 cgttgtgagg gtaaacaact ggcggtatgg atgcggcggg accagagaaa aatcactcag
     6421 ggtcaatgcc agcgcttcgt taatacagat gtaggtgttc cacagggtag ccagcagcat
     6481 cctgcgatgc agatccggaa cataatggtg cagggcgctg acttccgcgt ttccagactt
     6541 tacgaaacac ggaaaccgaa gaccattcat gttgttgctc aggtcgcaga cgttttgcag
     6601 cagcagtcgc ttcacgttcg ctcgcgtatc ggtgattcat tctgctaacc agtaaggcaa
     6661 ccccgccagc ctagccgggt cctcaacgac aggagcacga tcatgcgcac ccgtggccag
     6721 gacccaacgc tgcccgaaat t
//
